2003 TOYOTA 4RUNNER Owners Manual

’03 4Runner_U (L/O 0305)
291
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
CAUTION
When lowering the vehicle, make
sure all portions of your body and
all other persons around will not be
injured as the vehicle is lowered to
the ground.
Have the wheel nuts tightened with
torque wrench to 110 N·m (11.5
kgf·m, 83 ft·lbf), as soon as pos-
sible after changing wheels. Other-
wise, the nuts may loosen and the
wheels may fall off, which could
cause a serious accident.
11. Reinstall the wheel ornament.
Put the wheel ornament into position and
then tap it firmly with the side or heel of
your hand to snap it into place.
CAUTION
Take due care in handling the orna-
ment to avoid unexpected personal
injury.
12. Check the air pressure of the re- placed tire.
Adjust the air pressure to the specification
designated on page 356 in Section 8. If
the pressure is lower, drive slowly to the
nearest service station and fill to the cor-
rect pressure.
Do not forget to reinstall the tire inflation
valve cap as dirt and moisture could get
into the valve core and possibly cause air
leakage. If the cap is missing, have a new
one put on as soon as possible.
13. Restow all the tools, jack and flat tire securely.
As soon after changing wheels as pos-
sible, tighten the wheel nuts to the torque
specified on page 356 in Section 8 with
a torque wrench. Have a technician repair
the flat tire.
—Reinstalling wheel ornament —After changing wheels

’03 4Runner_U (L/O 0305)
292
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
CAUTION
Before driving, make sure all the
tools, jack and flat tire are securely
in place in their storage location to
reduce the possibility of personal in-
jury during a collision or s udden
braking.
If your vehicle becomes stuck in snow,
mud, sand, etc., then you may attempt
to rock the vehicle free by moving it
forward and backward.
Turn off the traction control system to
become unstuck to allow the tires to
spin enough to remove the vehicle from
the obstruction. (For details, see “Trac-
tion control system” on page 145 in
Section 16.)
CAUTION
Do not attempt to rock the vehicle
free by moving it forward and back-
ward if people or objects are any-
where near the vehicle. During the
rocking operation the vehicle may
suddenly move forward or backward
as it becomes unstuck, causing injury
or damage to nearby people or ob-
jects.
NOTICE
If you rock your vehicle, observe the
following precautions to prevent dam-
age to the transmission and other
parts.
 Do not depress the accelerator ped-
al while shifting the selector lever
or before the transmission is com-
pletely shifted to forward or reverse
gear.
 Do not race the engine and avoid
spinning the wheels.
 If your vehicle remains stuck after
rocking the vehicle several times,
consider other ways such as tow-
ing.
If your vehicle becomes stuck

’03 4Runner_U (L/O 0305)
293
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
—From front
—From rear

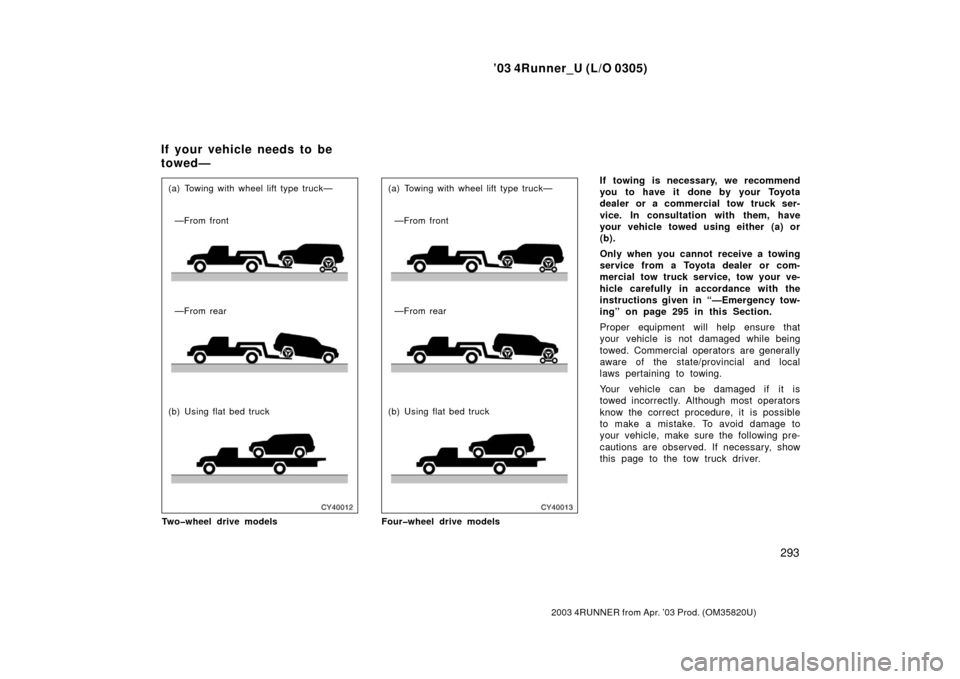

(b) Using flat bed truck (a) Towing with wheel lift type truck—
Twowheel drive models
(a) Towing with wheel lift type truck— —From front
—From rear
(b) Using flat bed truck
Fourwheel drive modelsIf towing is necessary, we recommend
you to have it done by your Toyota
dealer or a commercial tow truck ser-
vice. In consultation with them, have
your vehicle towed using either (a) or
(b).
Only when you cannot receive a towing
service from a Toyota dealer or com-
mercial tow truck service, tow your ve-
hicle carefully in accordance with the
instructions given in “—Emergency tow-
ing” on page 295 in this Section.
Proper equipment will help ensure that
your vehicle is not damaged while being
towed. Commercial operators are generally
aware of the state/provincial and local
laws pertaining to towing.
Your vehicle can be damaged if it is
towed incorrectly. Although most operators
know the correct procedure, it is possible
to make a mistake. To avoid damage to
your vehicle, make sure the following pre-
cautions are observed. If necessary, show
this page to the tow truck driver.
If your vehicle needs to be
towed—

’03 4Runner_U (L/O 0305)
294
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
TOWING PRECAUTIONS:
Use a safety chain system for all towing,
and abide by the state/provincial and local
laws. The wheels and axle on the ground
must be in good condition. If they are
damaged, use a towing dolly.
CAUTION
Vehicles with rear height control air
suspension: When your vehicle is
towed, put the vehicle height in the
“N” (normal) mode and push the
“HEIGHT CONTROL OFF” switch to
turn off the rear height control air
suspension. Otherwise, the vehicle
height may be changed in the auto-
matic leveling function, resulting in
accident. For details, see “Rear
height control air suspension” on
page 158 in Section 16.
Twowheel drive models—
(a) Towing with wheel lift type truck
From front—
Use a towing dolly under the rear wheels.
NOTICE
Never tow a vehicle from the front
with the rear wheels on the ground,
as this may cause serious damage to
the transmission.
From rear—Place the ignition key in the
“ACC” position.
NOTICE
 When lifting wheels, take care to
ensure adequate ground clearance
for towing at the opposite end of
the raised vehicle. Otherwise, the
bumper and/or underbody of the
towed vehicle will be damaged dur-
ing towing.
 Do not tow with the key removed or
in the “LOCK” position, as the
steering lock mechanism is not
strong enough to hold the front
wheels straight while towing.
(b) Using flat bed truck Fourwheel drive models—
(a) Towing with wheel lift type truck
FULLTIME FOUR WHEEL DRIVE
MODELS
Use a towing dolly under the wheels not
lifted by the truck.
MULTIMODE FOUR WHEEL DRIVE
MODELS
From front—
Use a towing dolly under the rear wheels.
NOTICE
Never tow a vehicle from the front
with the rear wheels on the ground,
as this may cause serious damage to
the transmission.
From rear—
We recommend using a tow-
ing dolly under the front wheels. If you do
not use a towing dolly, place the ignition
key in the “ACC” position, put the trans-
mission in “N” and the multimode control
switch knob in “H2”.

’03 4Runner_U (L/O 0305)
295
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
NOTICE
When lifting wheels, take care to
ensure adequate ground clearance
for towing at the opposite end of
the raised vehicle. Otherwise, the
bumper and/or underbody of the
towed vehicle will be damaged dur-
ing towing.
 Do not tow with the key removed or
in the “LOCK” position when tow-
ing from the rear without a towing
dolly. The steering lock mechanism
is not strong enough to hold the
front wheels straight.
(b) Using flat bed truck
(c) Towing with sling
type truck
All models—
(c) Towing with sling type truck
NOTICE
Do not tow with sling type truck, ei-
ther from the front or rear. This may
cause body damage.
Front
Rear
—Emergency towing

’03 4Runner_U (L/O 0305)
296
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
If towing is necessary, we recommend
you to have it done by your Toyota
dealer or a commercial tow truck ser-
vice.
If towing service is not available in an
emergency, your vehicle may be tempo-
rarily towed by a cable or chain se-
cured to either emergency towing eyelet
under the front of the vehicle or the
left emergency towing eyelet under the
rear of the vehicle. Use extreme caution
when towing the vehicles.
NOTICE
Only use specified towing eyelet;
otherwise your vehicle may be dam-
aged.
A driver must be in the vehicle to steer
it and operate the brakes.
Towing in this manner may be done only
on hardsurfaced roads for a short dis-
tance and at low speeds. Also, the
wheels, axles, drive train, steering and
brakes must all be in good condition.
CAUTION
Use extreme caution when towing ve-
hicles. Avoid sudden starts or erratic
driving maneuvers which would place
excessive stress on the emergency
towing eyelet and towing cable or
chain. The eyelet and towing cable or
chain may break and cause serious
injury or damage.
NOTICE
Use only a cable or chain specifically
intended for use in towing vehicles.
Securely fasten the cable or chain to
the towing eyelet provided.
Before towing, release the parking brake
and put the transmission in “N”. The key
must be in “ACC” (engine off) or “ON”
(engine running).
Fourwheel drive models—On multimode
fourwheel drive models, put the multi
mode control switch knob in “H2”. On full
time fourwheel drive models, unlock the
center differential.
CAUTION
If the engine is not running, the pow-
er assist for the brakes and steering
will not work so steering and braking
will be much harder than usual.

’03 4Runner_U (L/O 0305)
297
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
Before emergency towing, check that
the eyelet is not broken or damaged
and that the installation bolts are not
loose.
Fasten the towing cable or chain se-
curely to the eyelet.
Do not jerk the eyelet. Apply steady
and even force.
To avoid damaging the eyelet, do not
pull from the side or at a vertical
angle. Always pull straight ahead.

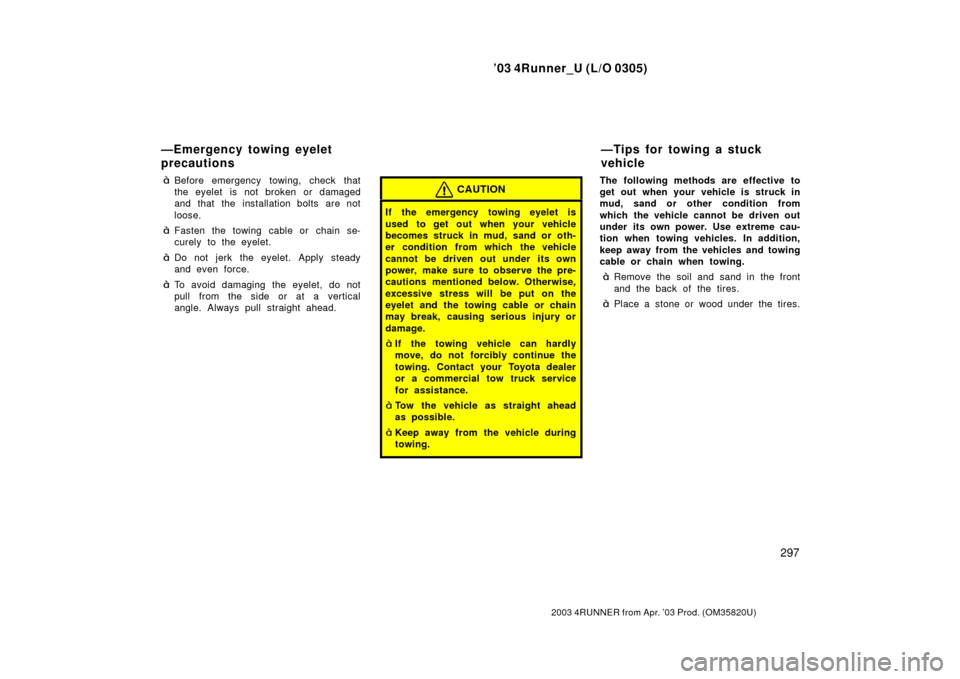

CAUTION
If the emergency towing eyelet is
used to get out when your vehicle
becomes struck in mud, sand or oth-
er condition from which the vehicle
cannot be driven out under its own
power, make sure to observe the pre-
cautions mentioned below. Otherwise,
excessive stress will be put on the
eyelet and the towing cable or chain
may break, causing serious injury or
damage.
If the towing vehicle can hardly
move, do not forcibly continue the
towing. Contact your Toyota dealer
or a commercial tow truck service
for assistance.
Tow the vehicle as straight ahead
as possible.
Keep away from the vehicle during
towing.
The following methods are effective to
get out when your vehicle is struck in
mud, sand or other condition from
which the vehicle cannot be driven out
under its own power. Use extreme cau-
tion when towing vehicles. In addition,
keep away from the vehicles and towing
cable or chain when towing.
Remove the soil and sand in the front
and the back of the tires.
Place a stone or wood under the tires.
—Emergency towing eyelet
precautions — Tip s fo r to win g a st u ck
vehicle

’03 4Runner_U (L/O 0305)
298
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
If you cannot shift the selector lever
out of “P” position to other positions
even though the brake pedal is de-
pressed, use the shift lock override but-
ton as follows:
1. Turn the ignition key to “LOCK” position. Make sure the parking
brake is set.

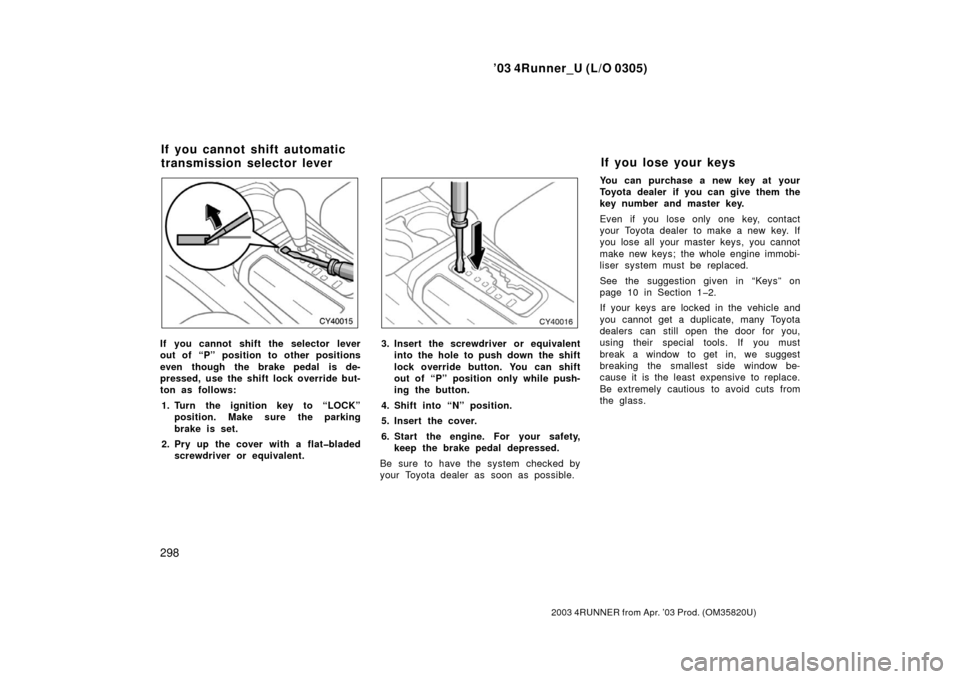

2. Pry up the cover with a flatbladed screwdriver or equivalent.3. Insert the screwdriver or equivalentinto the hole to push down the shift
lock override button. You can shift
out of “P” position only while push-
ing the button.
4. Shift into “N” position.
5. Insert the cover.
6. Start the engine. For your safety, keep the brake pedal depressed.
Be sure to have the system checked by
your Toyota dealer as soon as possible. You can purchase a new key at your
Toyota dealer if you can give them the
key number and master key.
Even if you lose only one key, contact
your Toyota dealer to make a new key. If
you lose all your master keys, you cannot
make new keys; the whole engine immobi-
liser system must be replaced.
See the suggestion given in “Keys” on
page 10 in Section 12.
If your keys are locked in the vehicle and
you cannot get a duplicate, many Toyota
dealers can still open the door for you,
using their special tools. If you must
break a window to get in, we suggest
breaking the smallest side window be-
cause it is the least expensive to replace.
Be extremely cautious to avoid cuts from
the glass.
If you cannot shift automatic
transmission selector lever
If you lose your keys
