2003 TOYOTA 4RUNNER Owners Manual

’03 4Runner_U (L/O 0305)
83
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)

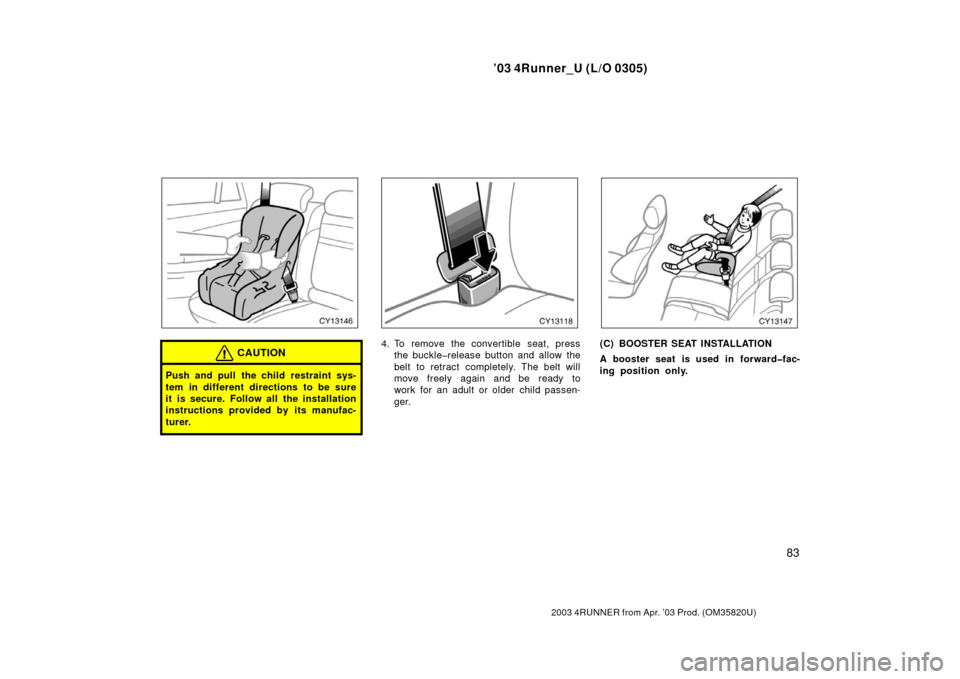

CAUTION
Push and pull the child restraint sys-
tem in different directions to be sure
it is secure. Follow all the installation
instructions provided by its manufac-
turer.
4. To remove the convertible seat, press
the bucklerelease button and allow the
belt to retract completely. The belt will
move freely again and be ready to
work for an adult or older child passen-
ger.(C) BOOSTER SEAT INSTALLATION
A booster seat is used in forwardfac-
ing position only.

’03 4Runner_U (L/O 0305)
84
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)

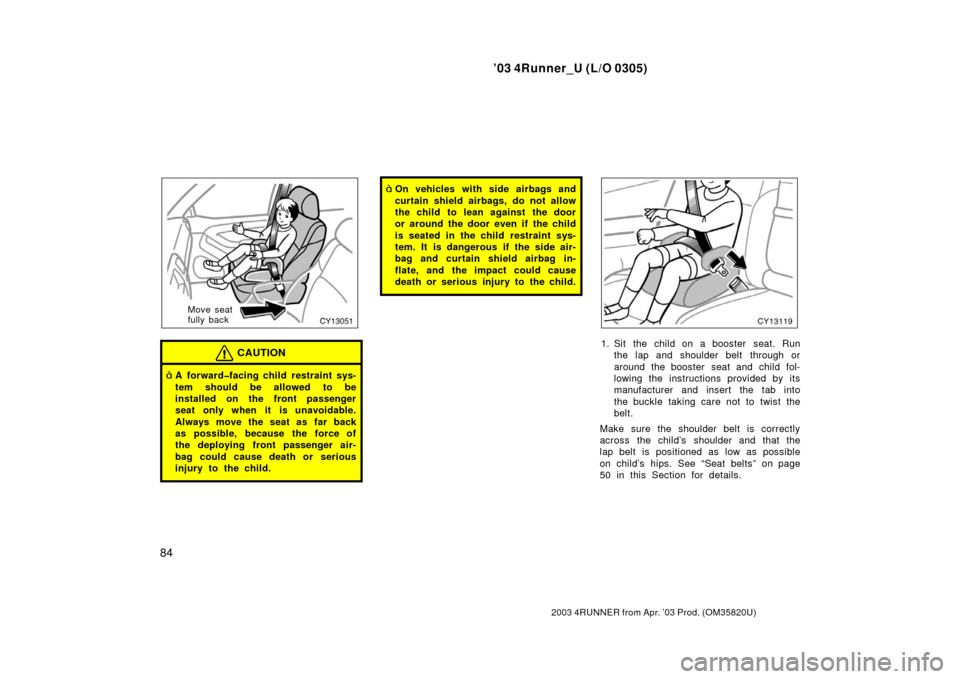

Move seat
fully back
CAUTION
A forwardfacing child restraint sys-
tem should be allowed to be
installed on the front passenger
seat only when it is unavoidable.
Always move the seat as far back
as possible, because the force of
the deploying front passenger air-
bag could cause death or serious
injury to the child.
On vehicles with side airbags and
curtain shield airbags, do not allow
the child to lean against the door
or around the door even if the child
is seated in the child restraint sys-
tem. It is dangerous if the side air-
bag and curtain shield airbag in-
flate, and the impact could cause
death or serious injury to the child.
1. Sit the child on a booster seat. Run
the lap and shoulder belt through or
around the booster seat and child fol-
lowing the instructions provided by its
manufacturer and insert the tab into
the buckle taking care not to twist the
belt.
Make sure the shoulder belt is correctly
across the child’s shoulder and that the
lap belt is positioned as low as possible
on child’s hips. See “Seat belts” on page
50 in this Section for details.

’03 4Runner_U (L/O 0305)
85
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)

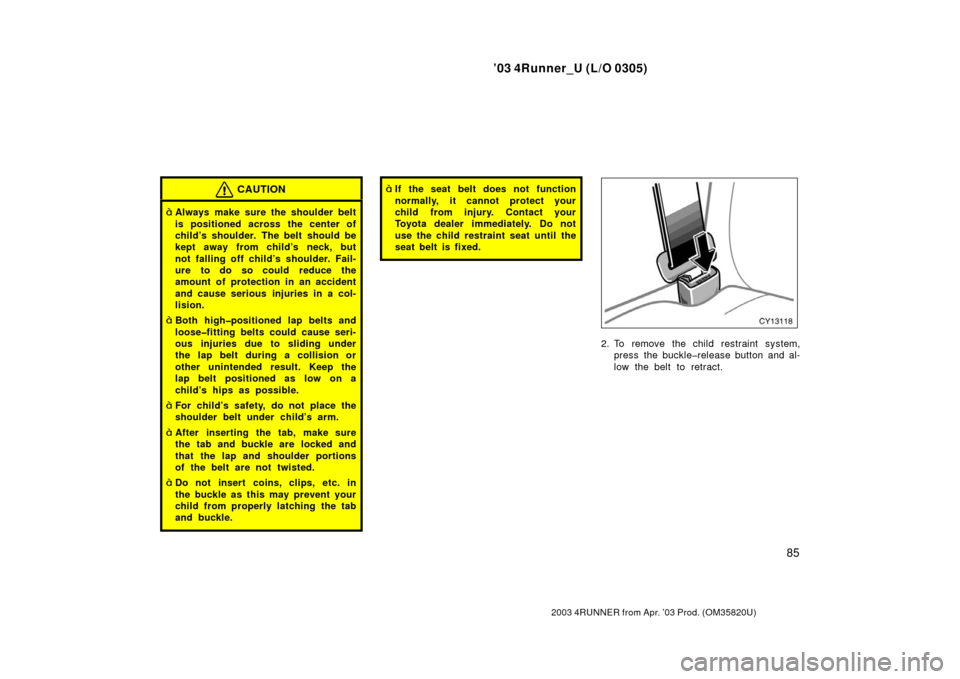

CAUTION
Always make sure the shoulder belt
is positioned across the center of
child’s shoulder. The belt should be
kept away from child’s neck, but
not falling off child’s shoulder. Fail-
ure to do so could reduce the
amount of protection in an accident
and cause serious injuries in a col-
lision.
Both highpositioned lap belts and
loosefitting belts could cause seri-
ous injuries due to sliding under
the lap belt during a collision or
other unintended result. Keep the
lap belt positioned as low on a
child’s hips as possible.
For child’s safety, do not place the
shoulder belt under child’s arm.
After inserting the tab, make sure
the tab and buckle are locked and
that the lap and shoulder portions
of the belt are not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent your
child from properly latching the tab
and buckle.
If the seat belt does not function
normally, it cannot protect your
child from injury. Contact your
Toyota dealer immediately. Do not
use the child restraint seat until the
seat belt is fixed.
2. To remove the child restraint system, press the bucklerelease button and al-
low the belt to retract.

’03 4Runner_U (L/O 0305)
86
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)

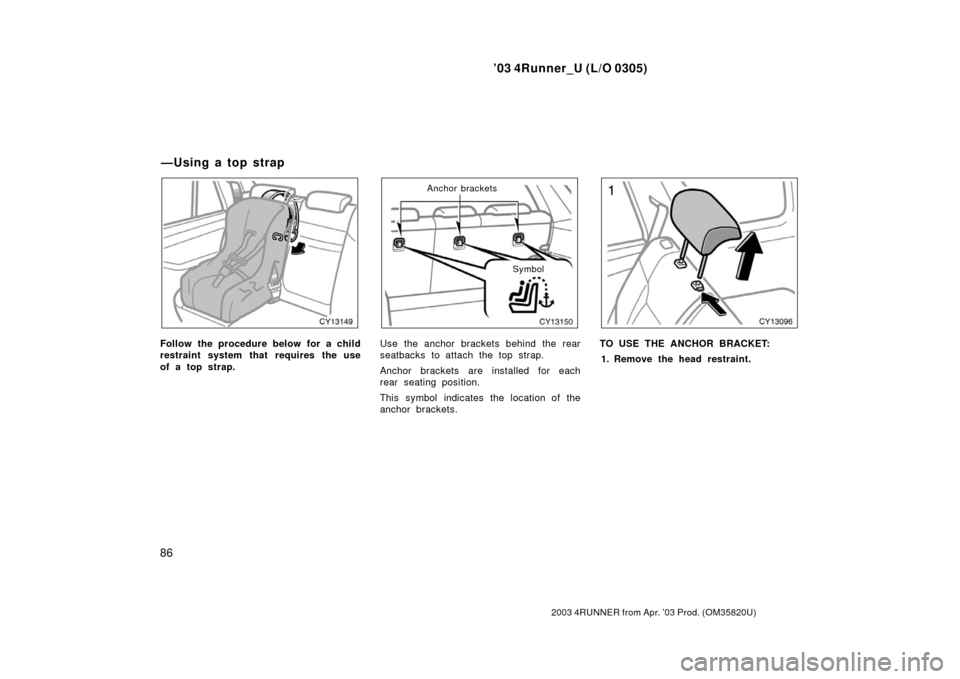

Follow the procedure below for a child
restraint system that requires the use
of a top strap.
Anchor brackets
Symbol
Use the anchor brackets behind the rear
seatbacks to attach the top strap.
Anchor brackets are installed for each
rear seating position.
This symbol indicates the location of the
anchor brackets.TO USE THE ANCHOR BRACKET:1. Remove the head restraint.
— U sin g a to p st rap

’03 4Runner_U (L/O 0305)
87
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)

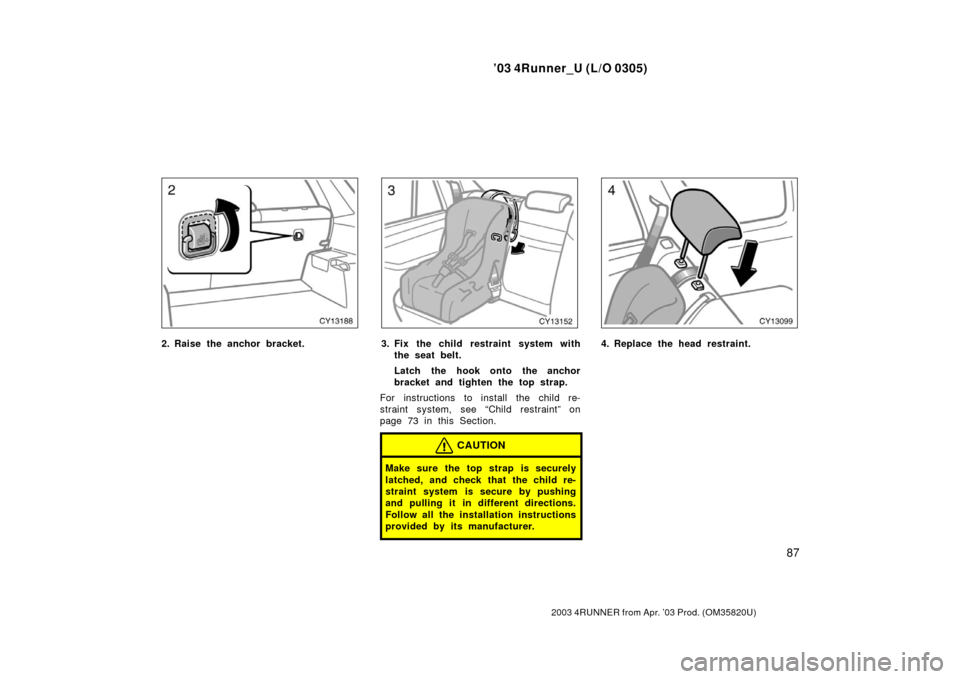

2. Raise the anchor bracket.3. Fix the child restraint system with
the seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 73 in this Section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.
4. Replace the head restraint.

’03 4Runner_U (L/O 0305)
88
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)

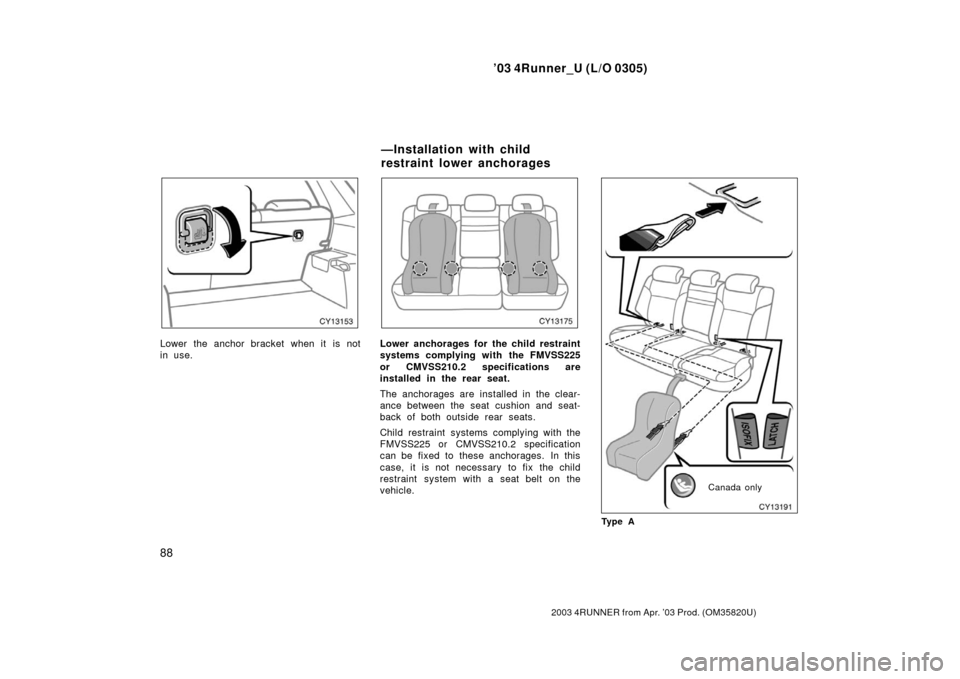

Lower the anchor bracket when it is not
in use.Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the rear seat.
The anchorages are installed in the clear-
ance between the seat cushion and seat-
back of both outside rear seats.
Child restraint systems complying with the
FMVSS225 or CMVSS210.2 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
Canada only
Ty p e A
—Installation with child
restraint lower anchorages

’03 4Runner_U (L/O 0305)
89
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)

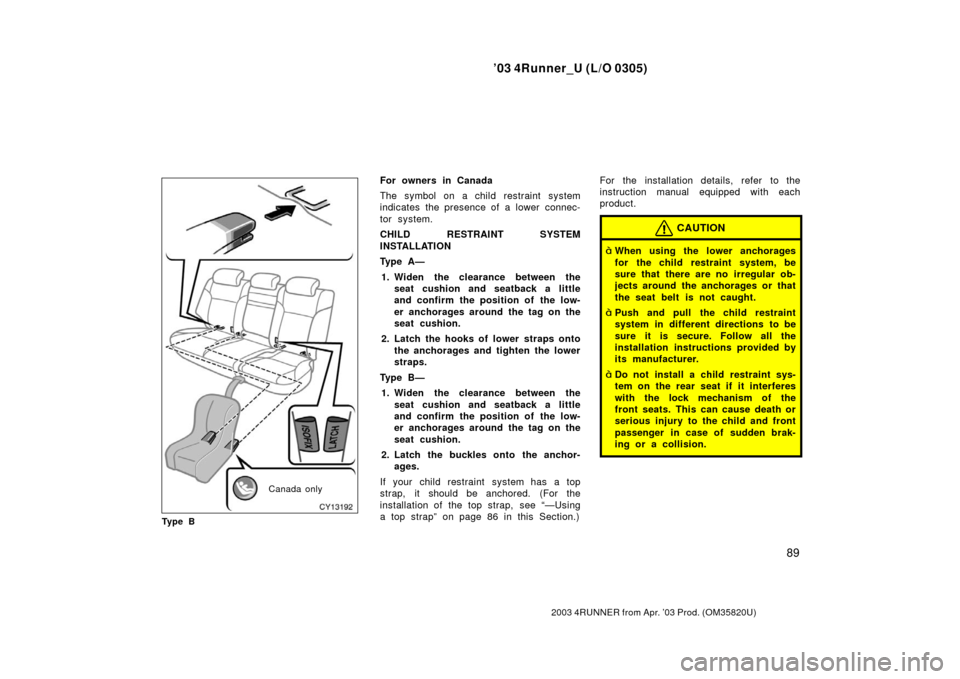

Canada only
Ty p e B
For owners in Canada
The symbol on a child restraint system
indicates the presence of a lower connec-
tor system.
CHILD RESTRAINT SYSTEM
INSTALLATION
Ty p e A — 1. Widen the clearance between the seat cushion and seatback a little
and confirm the position of the low-
er anchorages around the tag on the
seat cushion.
2. Latch the hooks of lower straps onto the anchorages and tighten the lower
straps.
Ty p e B — 1. Widen the clearance between the seat cushion and seatback a little
and confirm the position of the low-
er anchorages around the tag on the
seat cushion.
2. Latch the buckles onto the anchor- ages.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 86 in this Section.) For the installation details, refer to the
instruction manual equipped with each
product.
CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. This can cause death or
serious injury to the child and front
passenger in case of sudden brak-
ing or a collision.

’03 4Runner_U (L/O 0305)
90
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)

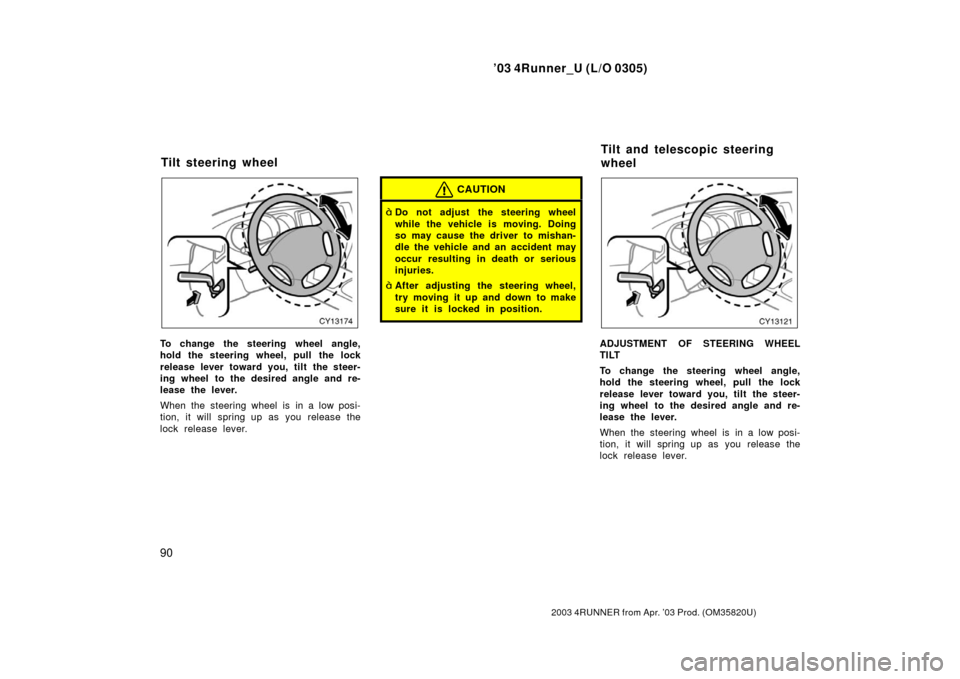

To change the steering wheel angle,
hold the steering wheel, pull the lock
release lever toward you, tilt the steer-
ing wheel to the desired angle and re-
lease the lever.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
ADJUSTMENT OF STEERING WHEEL
TILT
To change the steering wheel angle,
hold the steering wheel, pull the lock
release lever toward you, tilt the steer-
ing wheel to the desired angle and re-
lease the lever.
When the steering wheel is in a low posi-
tion, it will spring up as you release the
lock release lever.
Tilt steering wheel Tilt and telescopic steering
wheel
