2003 TOYOTA 4RUNNER Owners Manual

’03 4Runner_U (L/O 0305)
179
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
Compact disc player
Push and hold “
” (preset button 6) or
“
” (preset button 5) to fast forward or
reverse within a compact disc. When you
release the button, the compact disc play-
er will resume playing.
AM
Push the “AM” button to turn on the radio
and select the AM band. “AM” will appear
on the display.
AUDIO CONTROL (Tone and sound bal-
ance adjustment function)
By using the “AUDIO CONTROL” knob,
you can adjust the tone and sound bal-
ance, and turn on or off the surround
function.
Each time you push this knob, the mode
changes. To adjust the tone and balance
and turn on or off the surround function,
turn the knob.
BAS: Adjusts lowpitched tones. The dis-
play ranges from 5 to 5.
MID: Adjusts midpitched tones. The dis-
play ranges from 5 to 5.
TRE: Adjusts highpitched tones. The dis-
play ranges from 5 to 5. FAD: Adjusts the sound balance between
the front and rear speakers. The display
ranges from F7 to R7.
BAL: Adjusts the sound balance between
the right and left speakers. The display
ranges from L7 to R7.
SURROUND: Turn on or off the surround
function. “SURROUND ON” or “SUR-
ROUND OFF” will appear on the display.
DISC (Compact disc)
Push the “DISC” button to play a compact
disc.
When the audio system is set into com-
pact disc operation, the display shows the
track, or track and disc number currently
being played.
Error messages
If the player malfunctions, your audio sys-
tem will display one of the six following
error messages.
“WAIT”:
The compact disc player unit
may be too hot. Allow the player to cool
down.
“ERROR 1”: The disc may be dirty, dam-
aged or inserted incorrectly (upside
down). Clean the disc and reinsert it.
“NO DISC”: The compact disc changer of
separate unit is empty. Insert a disc. “ERROR 3”:
There is a problem inside
the system. Eject the disc or magazine.
Set the disc or magazine again.
“ERROR 4”: Overcurrent. Ask your
Toyota dealer to inspect.
“CD OPEN”: The compact disc changer
lid of separate unit is open. Close the
compact disc changer lid.
If the malfunction still exists, take your
vehicle to your Toyota dealer.
 DISC
Use these buttons to select a disc you
want to listen to.
Push “ ” (preset button 3) or “ ” (preset
button 4) until the number of the disc you
want to listen appears on the display.
Dolby
B NR∗
If you are listening to a tape that was
recorded with Dolby  B Noise Reduction,
push “
” (preset button 3). “” will
appear on the display. Push the button
again to turn off Dolby B NR.

’03 4Runner_U (L/O 0305)
180
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
The Dolby NR mode reduces tape noise
by about 10 dB. For best sound reproduc-
tion, play your tapes with this button on
or off according to the mode used to re-
cord the tape.
∗: Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation. “DOLBY” and the
double D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
FM
Push the “FM” button to turn on the radio
and select the FM band. “FM1”, “FM2” or
“FM TYPE” will appear on the display.
This system allows you to set twelve FM
and six RDS stations, three for each of
the preset button. If the RDS is off or
RDS stations are not preset to the preset
buttons, “FM TYPE” will not appear on the
display.
LOAD
This button is used to load the compact
discs in the compact disc player. This
player can store up to six discs.
To load one compact disc only, quickly
push and release the button, then insert
a compact disc. After the disc is loaded,
the shutter of the slot will close.
If no compact disc is inserted, the shutter
will close after 15 seconds. To load multiple compact discs, push and
hold the button (until you hear a beep
when the audio system is on), then insert
the first compact disc. After the disc is
loaded, the shutter of the slot will close.
After a few seconds, the shutter will auto-
matically open again so the next disc can
be inserted. The same process can be
applied for loading the rest of the di
scs.
If the player is full of discs, “DISC FULL”
will appear on the display.
If no compact disc is inserted, the shutter
will close after 15 seconds.
PWR·VOL (Power and Volume)
Push “PWR·VOL” to turn the audio system
on and off. Turn “PWR·VOL” to adjust the
volume.
RDS (Radio Data System)
Your audio system is equipped with Radio
Data System (RDS). RDS station providing
good reception is automatically selected if
current reception worsens.
The “RDS” button turns the RDS on and
off. This button is operational except in
AM mode. To turn on the RDS, push and hold this
button until you hear a beep and “RDS”
will appear on the display. At this time,
the radio starts to search the RDS sta-
tions and “RDS SEARCH” will flash on the
display.
Quickly push and release this button when
the RDS turns on, the radio starts to
search the RDS stations and “RDS
SEARCH” will flash on the display.
When the RDS stations are found,
“FOUND” and the number of the RDS sta-
tions will appear on the display, and you
will hear two beeps. The stations will be
preset to the preset buttons.
If the RDS stations can not be found, “NO
RDS ST” will appear on the display and
you will hear a beep, and the display
returns to the previous mode.
To turn the RDS off, push the button until
you hear a beep again.

’03 4Runner_U (L/O 0305)
181
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
RAND (Random)
There are two random features—you can
either listen to the tracks on one compact
disc in random order, or listen to the
tracks on all the compact discs in the
magazine in random order.
To play the tracks on one disc in random
order:
Quickly push and release “RAND” (preset
button 1). “
” will appear on the
display and the player will perform the
tracks on the disc you are listening to in
random order. To turn off the random fea-
ture, push this button again.
To play all the tracks in the magazine in
random order:
Push and hold “RAND” (preset button 1)
until you hear a beep. “
” will ap-
pear on the display and the player will
perform all the tracks on all the discs in
the magazine in random order. To turn off
the random feature, push this button
again. RPT (Repeat)
Cassette player
Push “RPT” (preset button 2) while the
track is playing. “
” will appear on
the display. When the track ends, it will
automatically rewind and replay. To turn
off the repeat feature, push this button
again.
There must be at least 3 seconds of blank
space between tracks in order for the re-
peat feature to work correctly.
Compact disc player
There are two repeat features—You can
either replay a disc track or a whole com-
pact disc.
Repeating a track:
Quickly push and release “RPT” (preset
button 2) while the track is playing.
“
” will appear on the display. When
the track ends, it will automatically replay.
To turn off the repeat feature, push this
button again. Repeating a disc:
Push and hold “RPT” (preset button 2)
until you hear a beep. “
” will ap-
pear on the display. The player will repeat
all the tracks on the disc you are listening
to. When the disc ends, the player will
automatically go back to the top track of
the disc and replay. To turn off the repeat
feature, push this button again.
SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold “ ” or “ ” side of the
“SCAN” button until you hear a beep. The
radio will tune in the next preset station
up or down the band, stay there for 5
seconds, and then move to the next pre-
set station. To stop scanning, push this
button again.
To scan all the frequencies:
Quickly push and release “ ” or “ ” side
of the “SCAN” button. The radio will find
the next station up or down the station
band, stay there for 5 seconds, and then
scan again to the next station. To stop
scanning, push this button again.

’03 4Runner_U (L/O 0305)
182
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
Compact disc player
There are two scan features—you can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.
Scanning the tracks on a disc:
Quickly push and release “” or “ ” side
of the “SCAN” button. “SCAN” will appear
on the display and the player will scan up
or down all the tracks on the disc you are
listening to. To stop scanning, push this
button again. If the player scanned all the
tracks on the disc, it will stop scanning.
Scanning the first tracks of all the discs
in the magazine:
Push “ ” or “ ” side of the “SCAN” but-
ton until you hear a beep. “
·SCAN” will
appear on the display and the player will
scan up or down the first track of the
next disc. To stop scanning, push this
button again. If the auto changer has
scanned all the di scs, it will stop scan-
ning. SEEK/TRACK (Seeking/Track up/down)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek the next station, quickly push and
release “
” or “ ” side of the “SEEK/
TRACK” button. Do this again to find the
station after that.
Cassette Player
Use this button to skip up or down to
locate a song or recording.
You can select up to nine recordings (in-
cluding current one).
A blank space of at least 3 seconds is
considered to be a start of a recording.
When a beginning of a tape is reached,
the player automatically resumes play.
When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play.
In addition, the feature may not work well
with some spoken word, live, or classical
recordings. Compact disc player
Use this button to skip up or down to a
different track.
Push “
” or “ ” side of the “SEEK/
TRACK” button until the number of the
track you want to listen to appears on the
display. If you want to return to the begin-
ning of the current track, quickly push the
down side of the button one time.
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TA P E
Push the “TAPE” button to play a cassette
tape.

’03 4Runner_U (L/O 0305)
183
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
TEXT
Radio
This button is operational only in RDS
mode.
When an RDS radio station transmits a
text message, “TEXT” will be displayed. At
this time, push the “TEXT” button to view
the text message. The message display
will be canceled if any button that affects
the display is pushed. To view the mes-
sage again, push this button again. After
the entire message has been displayed,
the message will disappear.
The RDS audio system has memory to
store three 64character messages. To
store a message in memory, push and
hold the “TEXT” button until you hear a
beep.
If three messages are already stored in
memory, the oldest message will be over-
written by the new message.
To recall a radio text message, push the
“TEXT” button momentarily. This will dis-
play the most recent message. Each push
of the button will display messages in the
order of most to least recent. If no messages have been stored, or if
there are no more messages to be re-
called, “NO MESSAGE” will appear on the
display, and the message display will be
canceled.
The message display will be canceled if
you activate any function that affects the
display.
Compact disc player
This button is used to change the display
for the compact disc that contains text
data.
To change the display, quickly push and
release the “TEXT” button while the com-
pact disc is playing. The display changes
in the order from the elapsed time to disc
title to track title, then back to the
elapsed time.
If this button is pushed while a compact
disc that does not contain text data is
playing, “NO TITLE” will appear on the
display.
If the entire disc or track title does not
appear on the display, push and hold the
button until you hear a beep. The rest of
the title will appear.TRAF (Traffic)
This button turns the traffic announcement
(TA) feature on and off. This button is
operational only in FM mode.
By pushing the “TRAF” button, “TRAF
SEEK” will flash on the display and the
radio will start seeking any traffic program
station.
When a traffic program station is found,
“TRAF” will be displayed and you will hear
a beep.
After the traffic announcement program is
over, the display returns to the previous
mode.
If no traffic program station is found, “NO
TRAF INFO” appears on the display for a
few seconds and the display returns to
the previous mode.
To cancel the traffic announcement, push
this button again.
TUNE (Tuning)
Turn the “TUNE” knob clockwise to step
up the frequency. Turn the knob counter-
clockwise to step down the frequency.

’03 4Runner_U (L/O 0305)
184
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
TYPE (Program Types)
When you push the “TYPE” button while
receiving an RDS station, the current pro-
gram type appears on the display.
Each time you push this button, the pro-
gram type changes as in the following:
ROCK
EASY LIS (Easy listening)
CLS/JAZZ (Classical music and Jazz)
R&B (Rhythm and Blues)
INFORM (Information)
RELIGION
MISC (Miscellaneous)
ALERT (Emergency message)

’03 4Runner_U (L/O 0305)
185
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)

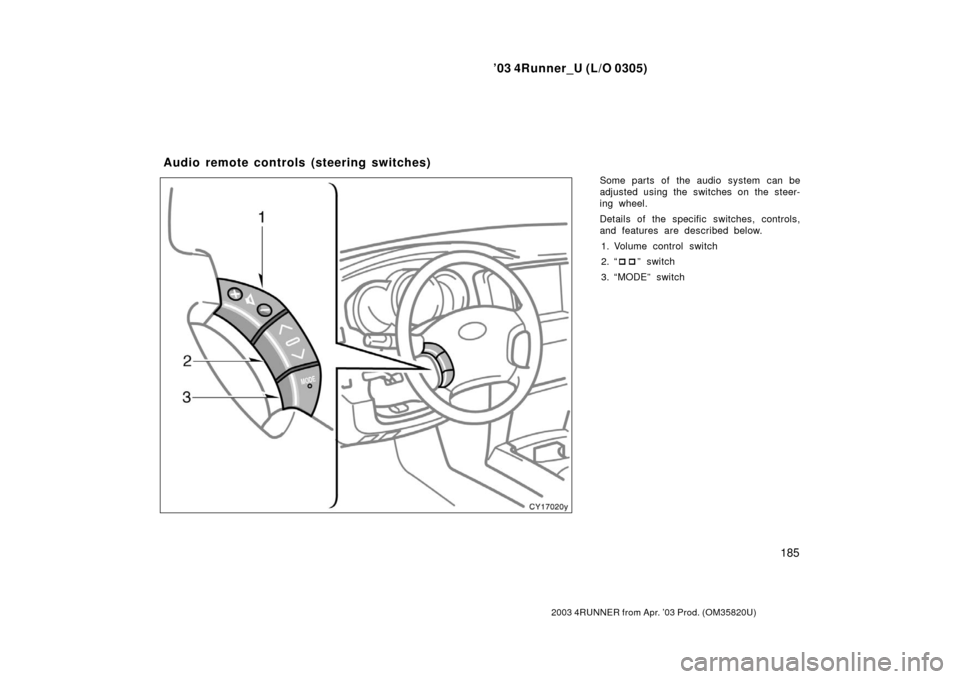

Some parts of the audio system can be
adjusted using the switches on the steer-
ing wheel.
Details of the specific switches, controls,
and features are described below.
1. Volume control switch
2. “ ” switch
3. “MODE” switch
Audio remote controls (steering switches)

’03 4Runner_U (L/O 0305)
186
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
1. Volume control switch
Push “+” to increase the volume. The vol-
ume continues to increase while the
switch is being pushed.
Push “” to decrease the volume. The
volume continues to decrease while the
switch is being pushed. 2. “ ” switch
Radio
This switch has the following features—
To select a preset station:
Quickly push and release the “ ” or “ ”
side of the switch. Do this again to select
the next preset station.
To seek a station:
Push and hold the “ ” or “ ” side of the
switch until you hear a beep. Do this
again to find the next station. If you push
the switch on either side during the seek
mode, seeking will be cancelled.
Cassette player
This switch has the following features—
To skip to a different track in either direc-
tion:
Quickly push and release the “ ” or “ ”
side of the switch. “FF 1” or “REW 1” will
appear on the display. Next, push either side of the track switch
until the track you want to listen to is set.
If you push the switch ten times, the skip
function will turn off. (You can skip up to
nine tracks at a time.)
When counting the number of the tracks
you want to rewind, remember to count
the current track as well. For example, if
you want to rewind to a song that is two
tracks before the song you are listening
to, push the “
” side of the switch three
times.
If you push the track switch further than
you wanted to, push the other side of the
switch. The track number will be in-
creased or reduced.
The track number you select is not valid
if it is higher than the number of the
tracks remaining on the current side of
the cassette.
When the tape reaches to the begin-
ning, the player will automatically start
playing that side.
After the tape reaches to the end, the
player will automatically reverse and
start playing the other side. There must be at least 3 seconds of blank
space between tracks for the track switch
to work correctly. In addition, the feature
may not work well with some spoken, live,
or classical recordings.
To fast forward or reverse:
Push and hold the “
” side of the switch
to fast forward a cassette tape. “FF” will
appear on the display. Push and hold the
“  ” side of the switch to rewind a tape.
“REW” will appear on the display.
To stop the tape while it is fast forward-
ing, push the “ ” side of the switch. To
stop the tape while it is rewinding, push
the “ ” side of the switch.
If a tape rewinds completely, the cassette
player will stop and then play that same
side. If a tape fast forwards completely,
the cassette will play the other side of the
tape using the autoreverse feature.
Compact disc player
Use this switch to skip up or down to a
different track in either direction.
Quickly push and release the “ ” or “ ”
side of the switch until the track you want
to listen to is set. If you want to return
to the beginning of the current track, push
the “ ” side of the switch once, quickly.
