“VSC TRAC” warning light
When the system is normal and the igni-
tion key is turned to “ON”, the warning
light will come on and will go off after a
few seconds.
It is not a malfunction that the warning
light may stay on for 60 seconds after the
ignition key is turned to the “ON” position.
Depressing the brake pedal repeatedly
may turn on the light. It is normal if it
goes out after a few seconds.
The brake actuator temperature increases
during continuous operation of the above
mentioned system on such as slippery
roads. If the brake actuator temperature
becomes too high while any of the sys-
tems is operating, a buzzer will start to
sound intermittently to indicate that the
downhill assist control system can no lon-
ger operate. In this case, stop your ve-
hicle immediately at a safe place.
If the system continues to operate, the
buzzer sound changes from intermittent to
continuous. (The continuous buzzer
sounds for about 3 seconds.) At this time, the “VSC TRAC” warning
light will come on and the downhill assist
control system stops operating temporarily
in order to protect the brake actuator. (Al-
though the downhill assist control system
does not operate, it is no problem to con-
tinue your driving.) The system will be
automatically restored after a short time
and the “VSC TRAC” warning light goes
out.
If the warning light comes on while driv-
ing, the system does not work. However,
as normal braking operates when being
applied, it is no problem to continue your
driving.
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
The hillstart assist control system as-
sists you in starting to move up a
steep or slippery hill. When you start
to move up the hill slope, the system
helps to prevent the vehicle from roll-
ing backward in the interval while you
move your foot from the brake pedal to
the accelerator pedal.
CAUTION
Do not rely excessively on the h
ill
start assist control system. The ve-
hicle may not be able to start
smoothly on road surfaces or off
road surfaces such as extremely
steep slopes or icy roads, on which
sliding can occur very easily.
Do not use the hillstart assist con-
trol system to stop the vehicle. This
system is not designed as a func-
tion for stopping the vehicle on a
uphill slope.
Hillstart assist control
system

’03 4Runner_U (L/O 0305)
156
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
The hillstart assist control system will
operate for 5 seconds maximally when
all of the following conditions apply.
5speed automatic transmission—
When the transmission is in any of
positions “D”, “4”, “3”, “2” or “L”
4speed automatic transmission—
When the transmission is in any of
positions “D”, “3”, “2” or “L”
When the brake pedal is not de-
pressed
The system is designed to operate when
the vehicle is starting on an uphill slope;
therefore, if the transmission is in “P” or
“N” it will not operate. It will not operate
either if the vehicle starts to move in
reverse on a slope with the transmission
in the “R”.
When the hillstart assist control system
is operating, the slip indicator light flashes
and an alarm sounds intermittently. At the
same time, the stop lamps and high
mounted stoplight are lit.
The slip indicator light comes on for a few
seconds when the ignition key is turned
to “ON”. If the indicator light does not
come on when the ignition is turned on,
contact your Toyota dealer. Keep in mind the following when driv-
ing.
The hillstart assist
control system op-
erates for 5 seconds maximally. If both
the brake and accelerator pedals re-
main undepressed for longer than 5
seconds, the buzzer will sound at more
frequent intervals and the system will
gradually stop operating.
The hillstart assist control system is
not designed as a function for stopping
the vehicle on a uphill slope. When
stopping the vehicle, be sure to de-
press the brake pedal.
If the system is used frequently, the
brake actuator temperature may become
too high and a buzzer will sound inter-
mittently.
In this case, a buzzer will sound intermit-
tently. When the temperature of the brake
actuator goes down, the system will begin
to operate again. Until it restarts, the trac-
tion control system (twowheel drive mod-
els), active traction control system (four
wheel drive models) and downhill assist
control system will not operate; however,
the conventional brake can be operated.

’03 4Runner_U (L/O 0305)
157
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
If there is any abnormality in the sys-
tem, the “VSC TRAC” warning light will
come on.
If the system malfunctions, the “VSC
TRAC” warning light will come on.
If the “VSC TRAC” warning light comes
on, there may be an abnormality in any
of the following systems in addition to the
hillstart assist control system.
Downhill assist control system
(fourwheel drive models)
Traction control system
(twowheel drive models)
Active traction control system
(fourwheel drive models)
Vehicle stability control system “VSC TRAC” warning light
When the system is normal and the igni-
tion key is turned to “ON”, the warning
light will come on and will go off after a
few seconds.
It is not a malfunction that the warning
light may stay on for 60 seconds after the
ignition key is turned to “ON”.
Depressing the brake pedal repeatedly
may turn on the light. It is normal if it
goes out after a few seconds.
The brake actuator temperature increases
during continuous operation of the above
mentioned system on such as slippery
roads. If the brake actuator temperature
becomes too high while any of the sys-
tems is operating, a buzzer will start to
sound intermittently to indicate that the
hillstart assist control system can no lon-
ger operate. In this case, stop your ve-
hicle immediately at a safe place.
If the system continues to operate, the
buzzer sound changes from intermittent to
continuous. (The continuous buzzer
sounds for about 3 seconds.)
At this time, the “VSC TRAC” warning
light will come on and the hillstart assist
control system stops operating temporarily
in order to protect the brake actuator. (Al-
though the h
illstart assist control system
does not operate, it is no problem to con-
tinue your driving.) The system will be
automatically restored after a short time
and the “VSC TRAC” warning light goes
out.
If the warning light comes on while driv-
ing, the system does not work. However,
as normal braking operates when being
applied, it is no problem to continue your
driving.
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.

’03 4Runner_U (L/O 0305)
158
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
This rear height control air suspension
controls the vehicle height depending
on the vehicle driving conditions. Select
your desired height among the “HI”
(high), “N” (normal) and “LO” (low)
modes with the height select switch.
(a) Vehicle height modes
“N” (normal) mode—
The vehicle height in this mode is standard.
Regardless of the number of occupants or the
luggage loading condition, the vehicle height
is always automatically adjusted to a fixed
height in this mode while the engine is
running.
This mode is suitable for ordinary driving. “HI” (high) mode—
The vehicle height is about 40 mm (1.6 in.)
higher at rear than the
“N” mode height.
This mode is suitable when driving on the
bumpy roads and through water.
However, when the vehicle speed exceeds
about 30 km/h (19 mph) or over in the
“HI” mode, the “N” mode is automatically
selected.
CAUTION
The “HI” mode should be used for
severe offroad driving condition
only. Because the vehicle’s center of
gravity is higher in this setting, the
vehicle may become unstable when
turning abruptly, resulting in accident.
“LO” (low) mode—
The vehicle height is about 20 mm (0.8 in.)
lower at rear than the “N” mode height.
This mode allows you easy access to the
vehicle (getting in and out) and easy load-
ing and unloading operation.
This mode is available when the vehicle
speed is under about 12 km/h (7 mph).

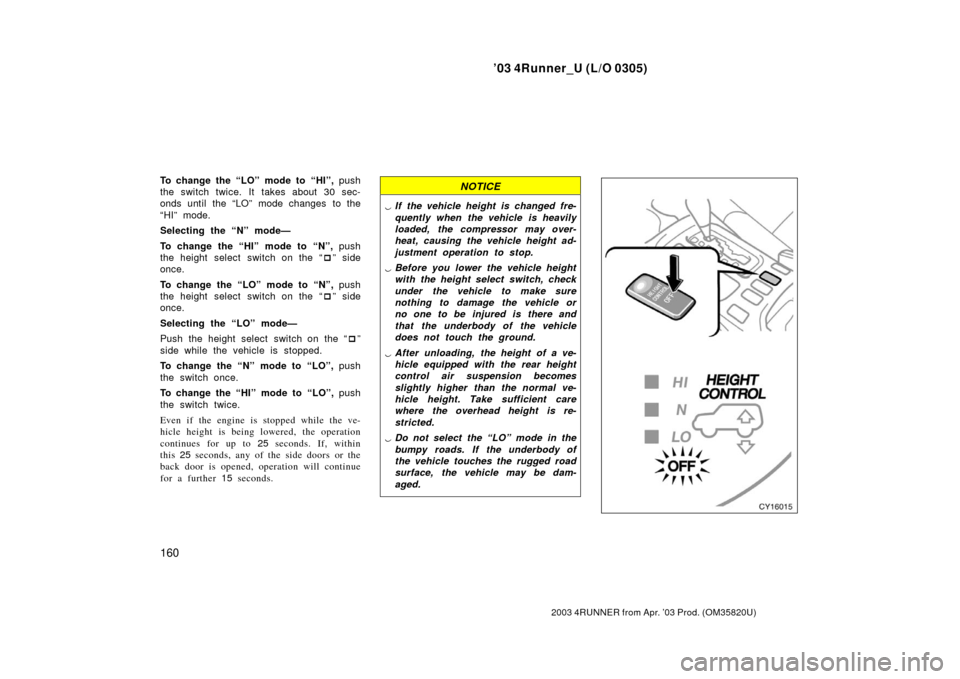

NOTICE
Use the “LO” mode when the vehicle
is stopped. Otherwise, when the ve-
hicle speed exceeds about 12 km/h (7
mph), “N” mode is selected automati-
cally. So be careful when you drive in
any place where the overhead height
is limited.
(b) Vehicle height mode changing con- dition
To change the vehicle height, it is necessary
to meet the following conditions.
The engine should be running.
The height control “OFF” indicator light
should go off.
Rear height control air
suspension

’03 4Runner_U (L/O 0305)
159
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
When selecting a mode, there is a ve-
hicle speed limit. Refer to the following
table.
Yes = The mode can be selected.
No = The mode cannot be selected.
“LO”
mode“N”
mode“HI”
mode
Under about
12 km/h
(7 mph)
Ye sYe sYe s
Under about
30 km/h
(19 mph)
NoYe sYe s
About
30 km/h
(19 mph) or
over
NoYe sNo
In the following cases, the rear height
control suspension will not operate.
The underbody of the vehicle has
touched the surface on bumpy roads.
The area around the rear suspension
is coated with ice. If the vehicle is moved to its usual loca-
tion or the ice is removed and the height
select switch is pressed, the vehicle
height control cannot be operated. In this
case, turn off and restart the engine, then
push the control switches.
(c) Vehicle height adjustment

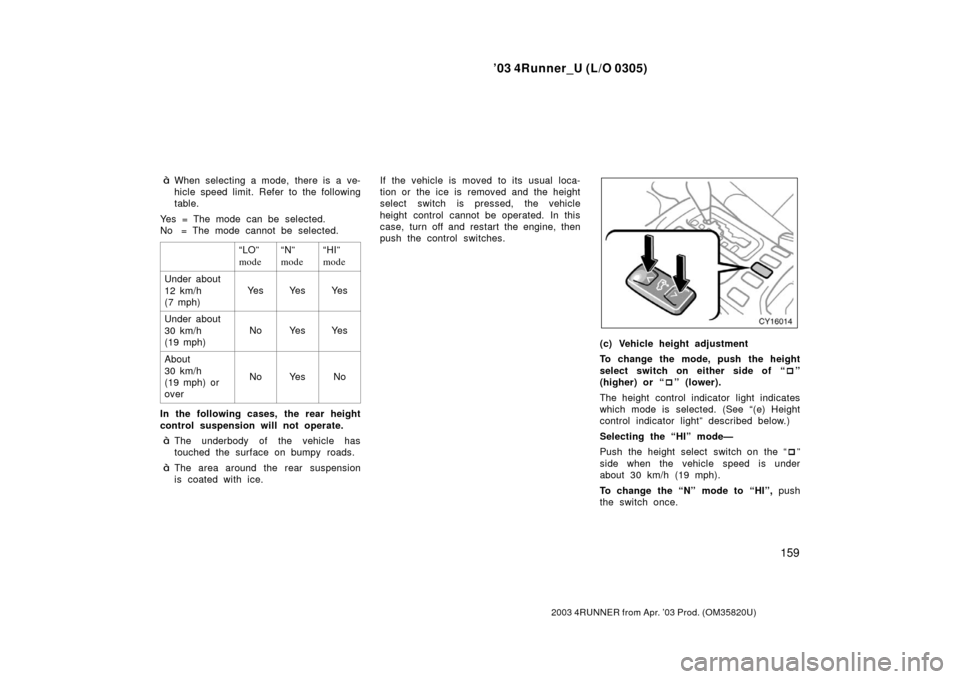

To change the mode, push the height
select switch on either side of “
”
(higher) or “ ” (lower).

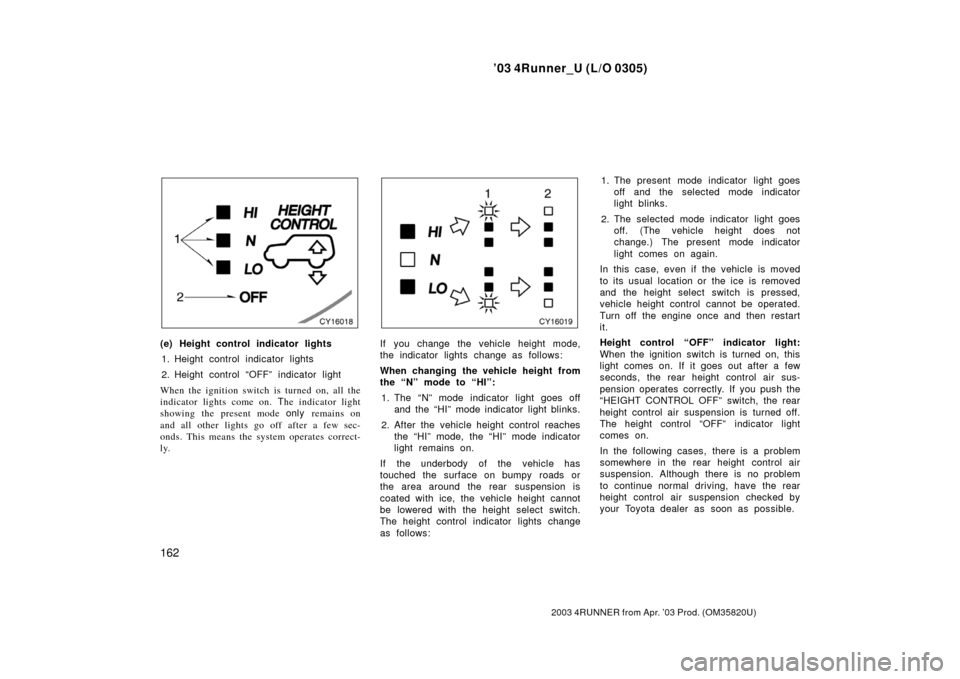

The height control indicator light indicates
which mode is selected. (See “(e) Height
control indicator light” described below.)
Selecting the “HI” mode—
Push the height select switch on the “ ”
side when the vehicle speed is under
about 30 km/h (19 mph).
To change the “N” mode to “HI”, push
the switch once.

’03 4Runner_U (L/O 0305)
160
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
To change the “LO” mode to “HI”, push
the switch twice. It takes about 30 sec-
onds until the “LO” mode changes to the
“HI” mode.
Selecting the “N” mode—
To change the “HI” mode to “N”, push
the height select switch on the “ ” side
once.
To change the “LO” mode to “N”, push
the height select switch on the “ ” side
once.
Selecting the “LO” mode—
Push the height select switch on the “ ”
side while the vehicle is stopped.
To change the “N” mode to “LO”, push
the switch once.
To change the “HI” mode to “LO”, push
the switch twice.
Even if the engine is stopped while the ve-
hicle height is being lowered, the operation
continues for up to 25 seconds. If , within
this 25 seconds, any of the side doors or the
back door is opened, operation will continue
for a further 15 seconds.NOTICE
If the vehicle height is changed fre-
quently when the vehicle is heavily
loaded, the compressor may over-
heat, causing the vehicle height ad-
justment operation to stop.
 Before you lower the vehicle height
with the height select switch, check
under the vehicle to make sure
nothing to damage the vehicle or
no one to be injured is there and
that the underbody of the vehicle
does not touch the ground.
 After unloading, the height of a ve-
hicle equipped with the rear height
control air suspension becomes
slightly higher than the normal ve-
hicle height. Take sufficient care
where the overhead height is re-
stricted.
 Do not select the “LO” mode in the
bumpy roads. If the underbody of
the vehicle touches the rugged road
surface, the vehicle may be dam-
aged.

’03 4Runner_U (L/O 0305)
161
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
(d) Turning off the rear height control
air suspension
To turn off the rear height control air
suspension with the vehicle stopped,
push the “HEIGHT CONTROL OFF”
switch. The height control “OFF” indi-
cator light comes on and the vehicle
height is fixed in the same mode as the
height control switch is pushed.
This status is memorized in the system
even after the engine is stopped.
If you push the switch again, the height
control “OFF” indicator light goes out and
the rear height control air suspension is
turned on.
Even after the rear height control air suspen-
sion is turned off with the “HEIGHT CON-
TROL OFF” switch, if the vehicle speed ex-
ceeds 30 km/h (19 mph), the rear height
control air suspension automatically selects
the “N” mode.CAUTION
If you drive through deep water over
about 700 mm (28 in.) in depth, put
the vehicle height in the “HI” mode
with the height select switch and then
turn off the rear height control air
suspension by pushing the “HEIGHT
CONTROL OFF” switch.
NOTICE
When jacking up or insta lling tire
chains, be sure to turn off the rear
height control air suspension by
pushing the “HEIGHT CONTROL
OFF” switch and stop the engine.
Otherwise, the vehicle height may
change because of the automatic
leveling function, resulting in an un-
expected accident.
 If your vehicle must be towed, put
the vehicle height in the “N” mode
and turn off the rear height control
air suspension. Otherwise, the ve-
hicle height may change because of
the automatic leveling function, re-
sulting in an unexpected accident.
If your vehicle gets ditched, turn off
the rear height control air suspen-
sion with the “HEIGHT CONTROL
OFF” switch. Otherwise, the vehicle
height may change because of the
automatic leveling function resulting
in an unexpected accident.

’03 4Runner_U (L/O 0305)
162
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
(e) Height control indicator lights
1. Height control indicator lights
2. Height control “OFF” indicator light
When the ignition switch is turned on, all the
indicator lights come on. The indicator light
showing the present mode only remains on
and all other lights go off after a few sec-
onds. This means the system operates correct-
ly.If you change the vehicle height mode,
the indicator lights change as follows:
When changing the vehicle height from
the “N” mode to “HI”:
1. The “N” mode indicator light goes off and the “HI” mode indicator light blinks.
2. After the vehicle height control reaches the “HI” mode, the “HI” mode indicator
light remains on.
If the underbody of the vehicle has
touched the surface on bumpy roads or
the area around the rear suspension is
coated with ice, the vehicle height cannot
be lowered with the height select switch.
The height control indicator lights change
as follows: 1. The present mode indicator light goes
off and the selected mode indicator
light blinks.
2. The selected mode indicator light goes off. (The vehicle height does not
change.) The present mode indicator
light comes on again.
In this case, even if the vehicle is moved
to its usual location or the ice is removed
and the height select switch is pressed,
vehicle height control cannot be operated.
Turn off the engine once and then restart
it.
Height control “OFF” indicator light:
When the ignition switch is turned on, this
light comes on. If it goes out after a few
seconds, the rear height control air sus-
pension operates correctly. If you push the
“HEIGHT CONTROL OFF” switch, the rear
height control air suspension is turned off.
The height control “OFF” indicator light
comes on.
In the following cases, there is a problem
somewhere in the rear height control air
suspension. Although there is no problem
to continue normal driving, have the rear
height control air suspension checked by
your Toyota dealer as soon as possible.
