2003 TOYOTA 4RUNNER Owners Manual

’03 4Runner_U (L/O 0305)
51
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
Do not allow the child to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious in-
jury or death during emergency braking or
a collision. Also do not let the child sit on
your lap. It does not provide sufficient
restraint.
Pregnant woman. Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific

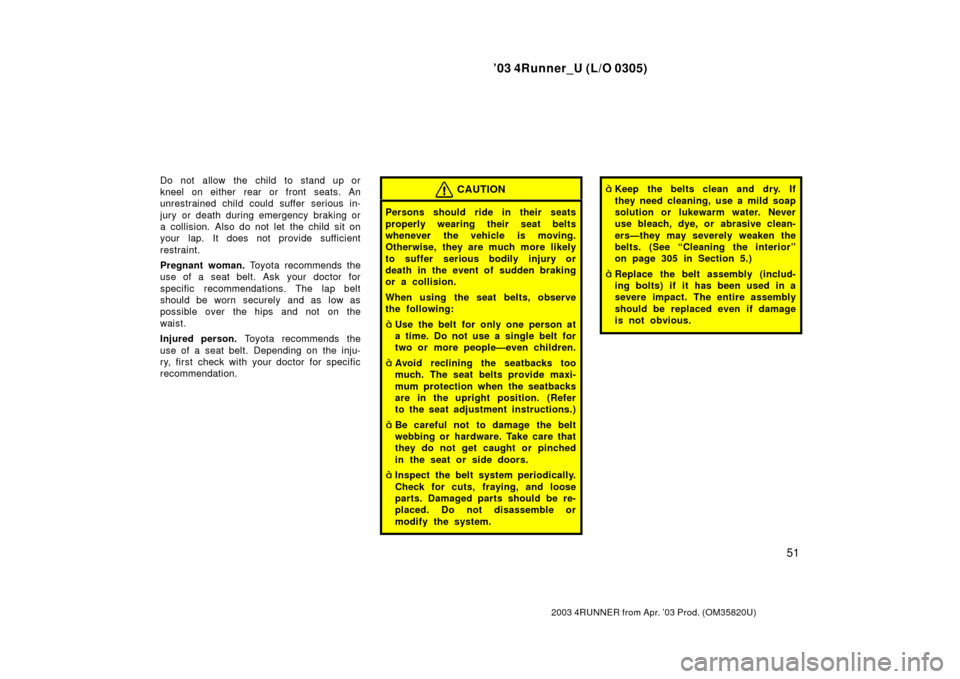

recommendation.CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:
Use the belt for only one person at
a time. Do not use a single belt for
two or more people—even children.
Avoid reclining the seatbacks too
much. The seat belts provide maxi-
mum protection when the seatbacks
are in the upright position. (Refer
to the seat adjustment instructions.)
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or side doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ers—they may severely weaken the
belts. (See “Cleaning the interior”
on page 305 in Section 5.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.

’03 4Runner_U (L/O 0305)
52
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)

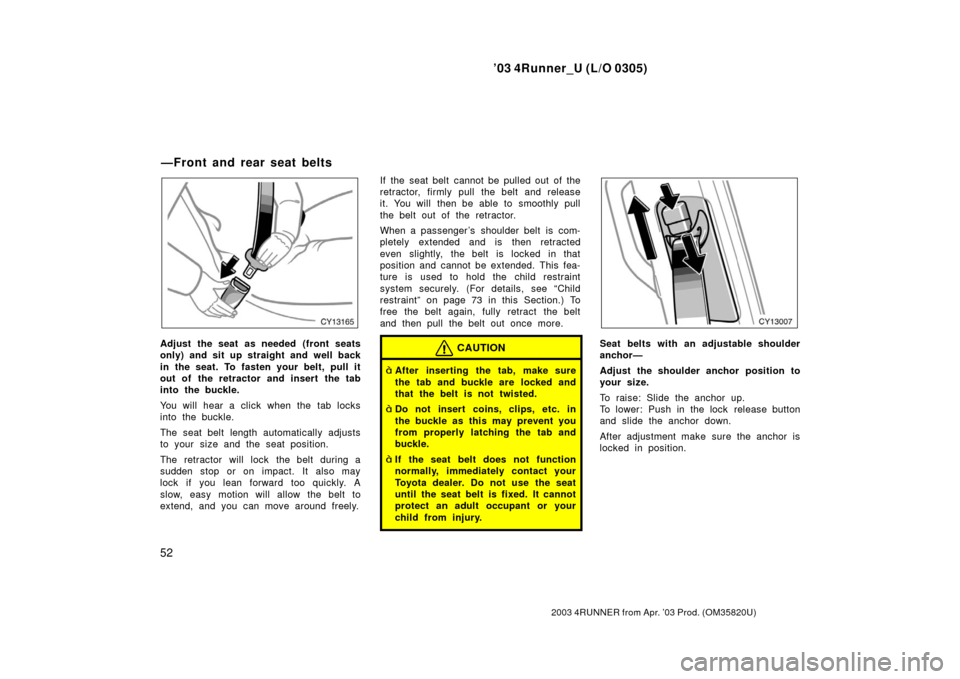

Adjust the seat as needed (front seats
only) and sit up straight and well back
in the seat. To fasten your belt, pull it
out of the retractor and insert the tab
into the buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely. If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.
When a passenger ’s shoulder belt is com-
pletely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This fea-
ture is used to hold the child restraint
system securely. (For details, see “Child
restraint” on page 73 in this Section.) To
free the belt again, fully retract the belt
and then pull the belt out once more.CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.
Seat belts with an adjustable shoulder
anchor—
Adjust the shoulder anchor position to
your size.
To raise: Slide the anchor up.
To lower: Push in the lock release button
and slide the anchor down.
After adjustment make sure the anchor is
locked in position.
—Front and rear seat belts

’03 4Runner_U (L/O 0305)
53
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)

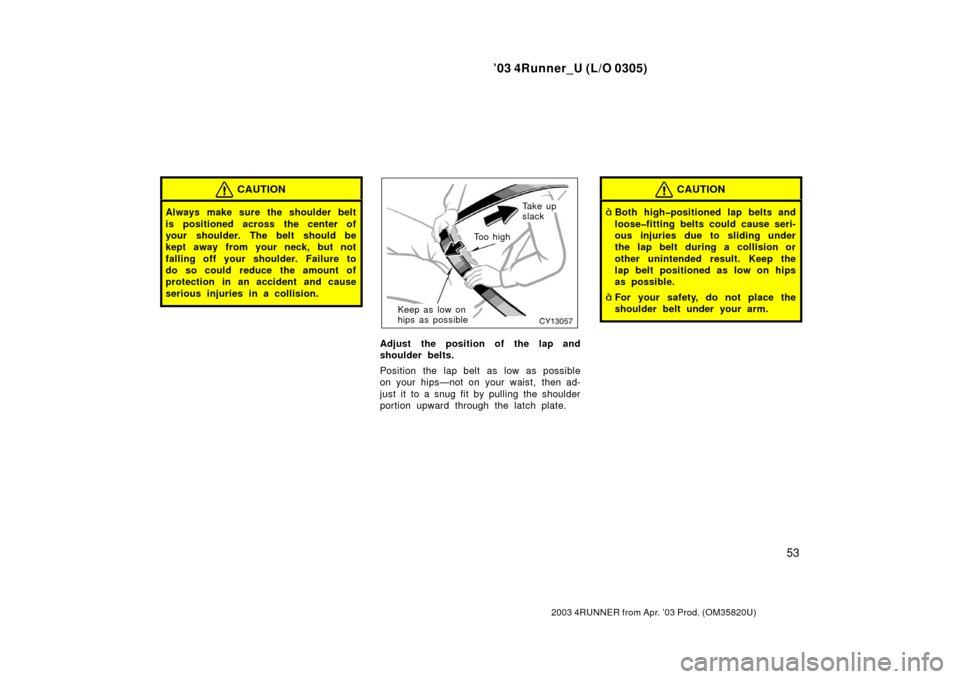

CAUTION
Always make sure the shoulder belt
is positioned across the center of
your shoulder. The belt should be
kept away from your neck, but not
falling off your shoulder. Failure to
do so could reduce the amount of
protection in an accident and cause
serious injuries in a collision.Ta k e u p
slack
To o h i g h
Keep as low on
hips as possible
Adjust the position of the lap and
shoulder belts.
Position the lap belt as low as possible
on your hips—not on your waist, then ad-
just it to a snug fit by pulling the shoulder
portion upward through the latch plate.
CAUTION
Both highpositioned lap belts and
loosefitting belts could cause seri-
ous injuries due to sliding under
the lap belt during a collision or
other unintended result. Keep the
lap belt positioned as low on hips
as possible.
For your safety, do not place the
shoulder belt under your arm.

’03 4Runner_U (L/O 0305)
54
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)

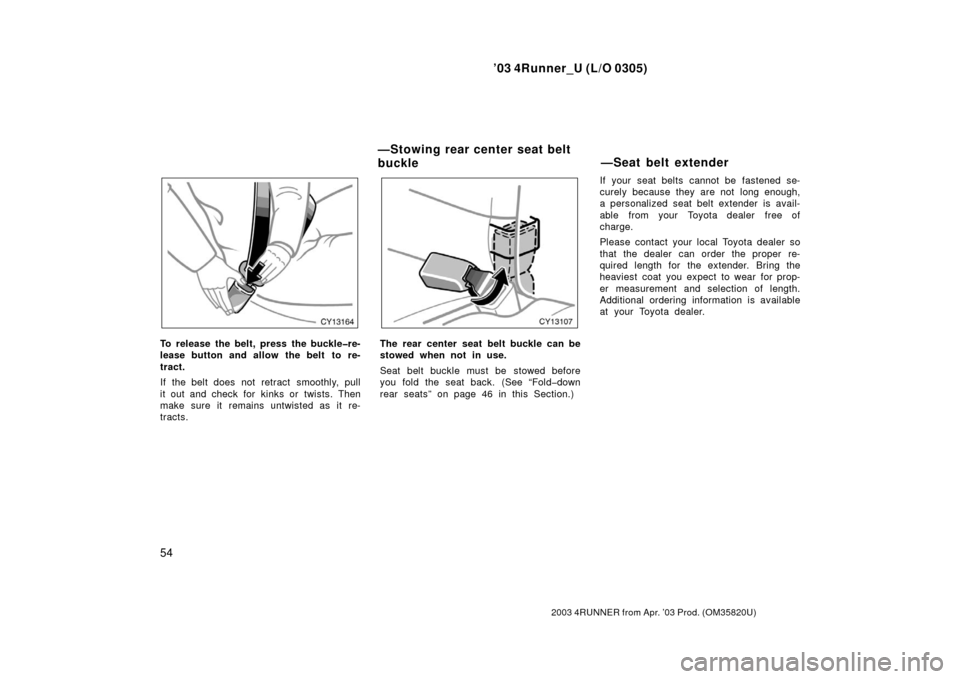

To release the belt, press the bucklere-
lease button and allow the belt to re-
tract.
If the belt does not retract smoothly, pull
it out and check for kinks or twists. Then
make sure it remains untwisted as it re-
tracts.The rear center seat belt buckle can be
stowed when not in use.
Seat belt buckle must be stowed before
you fold the seat back. (See “Folddown
rear seats” on page 46 in this Section.) If your seat belts cannot be fastened se-
curely because they are not long enough,
a personalized seat belt extender is avail-
able from your Toyota dealer free of
charge.
Please contact your local Toyota dealer so
that the dealer can order the proper re-
quired length for the extender. Bring the
heaviest coat you expect to wear for prop-
er measurement and selection of length.
Additional ordering information is available
at your Toyota dealer.
—Stowing rear center seat belt
buckle
—Seat belt extender

’03 4Runner_U (L/O 0305)
55
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)

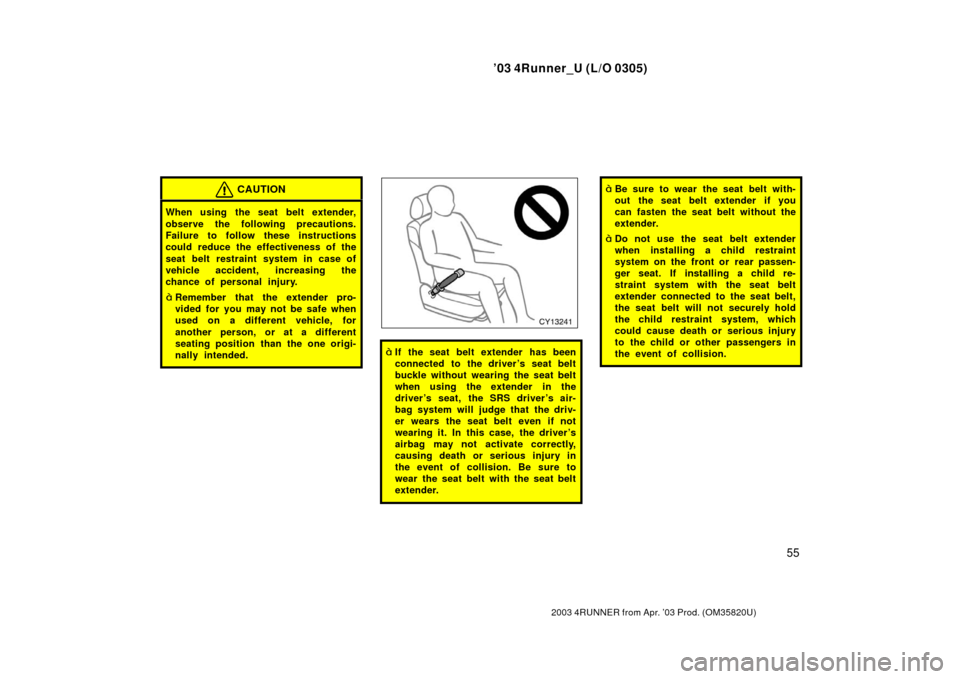

CAUTION
When using the seat belt extender,
observe the following precautions.
Failure to follow these instructions
could reduce the effectiveness of the
seat belt restraint system in case of
vehicle accident, increasing the
chance of personal injury.
Remember that the extender pro-
vided for you may not be safe when
used on a different vehicle, for
another person, or at a different
seating position than the one origi-
nally intended.
If the seat belt extender has been
connected to the driver ’s seat belt
buckle without wearing the seat belt
when using the extender in the
driver ’s seat, the SRS driver ’s air-
bag system will judge that the driv-
er wears the seat belt even if not
wearing it. In this case, the driver ’s
airbag may not activate correctly,
causing death or serious injury in
the event of collision. Be sure to
wear the seat belt with the seat belt
extender.
Be sure to wear the seat belt with-
out the seat belt extender if you
can fasten the seat belt without the
extender.
Do not use the seat belt extender
when installing a child restraint
system on the front or rear passen-
ger seat. If installing a child re-
straint system with the seat belt
extender connected to the seat belt,
the seat belt will not securely hold
the child restraint system, which
could cause death or serious injury
to the child or other passengers in
the event of collision.

’03 4Runner_U (L/O 0305)
56
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
To connect the extender to the seat
belt, insert the tab into the seat belt
buckle so that the “PRESS” signs on
the bucklerelease buttons of the ex-
tender and the seat belt are both facing
outward as shown.
You will hear a click when the tab locks
into the buckle.
When releasing the seat belt, press on
the bucklerelease button on the extender,
not on the seat belt. This helps prevent
damage to the vehicle interior and extend-
er itself.
When not in use, remove the extender
and store in the vehicle for future use.
CAUTION
After inserting the tab, make sure
the tab and buckle are locked and
that the seat belt extender is not
twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.
If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed. It cannot
protect an adult occupant or your
child from injury.
The driver and front passenger ’s seat
belt pretensioners are designed to be
activated in response to a severe fron-
tal impact.
When the airbag sensor detects the shock
of a severe frontal impact, the front seat
belts are quickly drawn back in by the
retractors so that the belts snugly restrain
the front seat occupants.
The front seat belt pretensioners are acti-
vated even with no passenger in the front
seat.
The seat belt pretensioners and SRS air-
bags may not operate together in case of
collisions at a certain speeds and angles.
—Front seat belt
pretensioners

’03 4Runner_U (L/O 0305)
57
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)

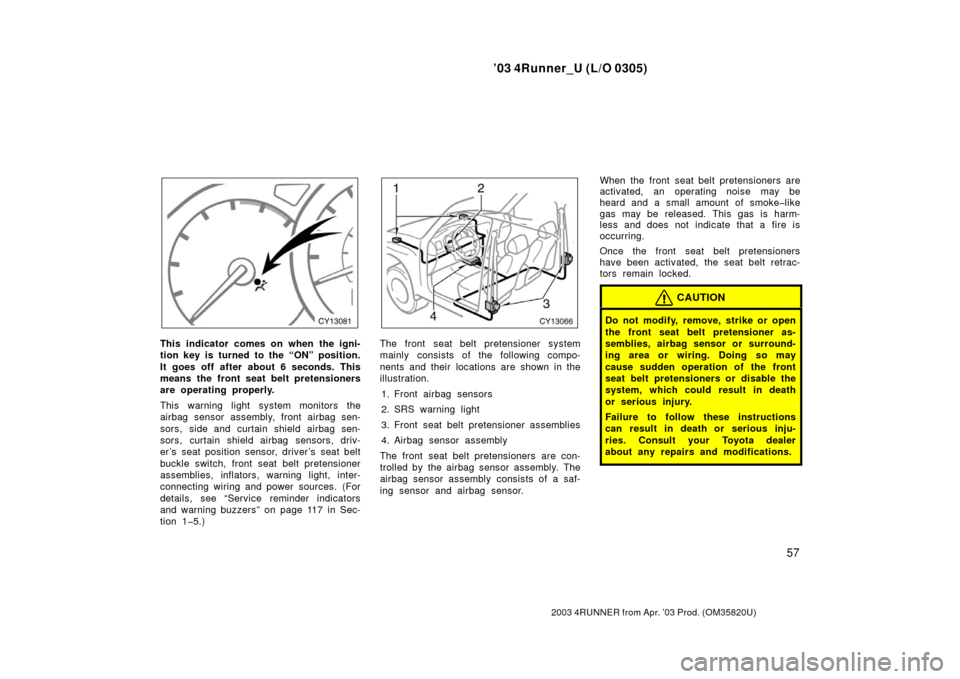

This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the front seat belt pretensioners
are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, front seat belt pretensioner
assemblies, inflators, warning light, inter-
connecting wiring and power sources. (For
details, see “Service reminder indicators
and warning buzzers” on page 117 in Sec-
tion 15.)The front seat belt pretensioner system
mainly consists of the following compo-
nents and their locations are shown in the
illustration.
1. Front airbag sensors
2. SRS warning light
3. Front seat belt pretensioner assemblies
4. Airbag sensor assembly
The front seat belt pretensioners are con-
trolled by the airbag sensor assembly. The
airbag sensor assembly consists of a saf-
ing sensor and airbag sensor. When the front seat belt pretensioners are
activated, an operating noise may be
heard and a small amount of smokelike
gas may be released. This gas is harm-
less and does not indicate that a fire is
occurring.
Once the front seat belt pretensioners
have been activated, the seat belt retrac-
tors remain locked.
CAUTION
Do not modify, remove, strike or open
the front seat belt pretensioner as-
semblies, airbag sensor or surround-
ing area or wiring. Doing so may
cause sudden operation of the front
seat belt pretensioners or disable the
system, which could result in death
or serious injury.
Failure to follow these instructions
can result in death or serious inju-
ries. Consult your Toyota dealer
about any repairs and modifications.

’03 4Runner_U (L/O 0305)
58
2003 4RUNNER from Apr. ’03 Prod. (OM 35820U)
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
front seat belt pretensioners in some
cases.
Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Repairs on or near the front seat
belt retractor assemblies
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure or con-
sole
This front seat belt pretensioner system
has a service reminder indicator to inform
the driver of operating problems. If any of
the following conditions occurs, this
indicates a malfunction of the airbags or
pretensioners. Contact your Toyota dealer
as soon as possible to service the
vehicle.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion, or the light remains on.
The light comes on or flashes while
driving.
If either front seat belt does not retract
or cannot be pulled out due to a mal-
function or activation of the relevant
front seat belt pretensioner.
In the following cases, contact your Toyota
dealer as soon as possible:
The front of the vehicle (shaded in the
illustration) was involved in an acci dent
that was not severe enough to cause
the front seat belt pretensioners to op-
erate.
Either front seat belt pretensioner as-
sembly or surrounding area is
scratched, cracked, or otherwise dam-
aged.
