2003 NISSAN TEANA Symbols

HOW TO USE THIS MANUAL
GI-15
C
D
E
F
G
H
I
J
K
L
MB
GI

How to Read Wiring DiagramsBAS00082

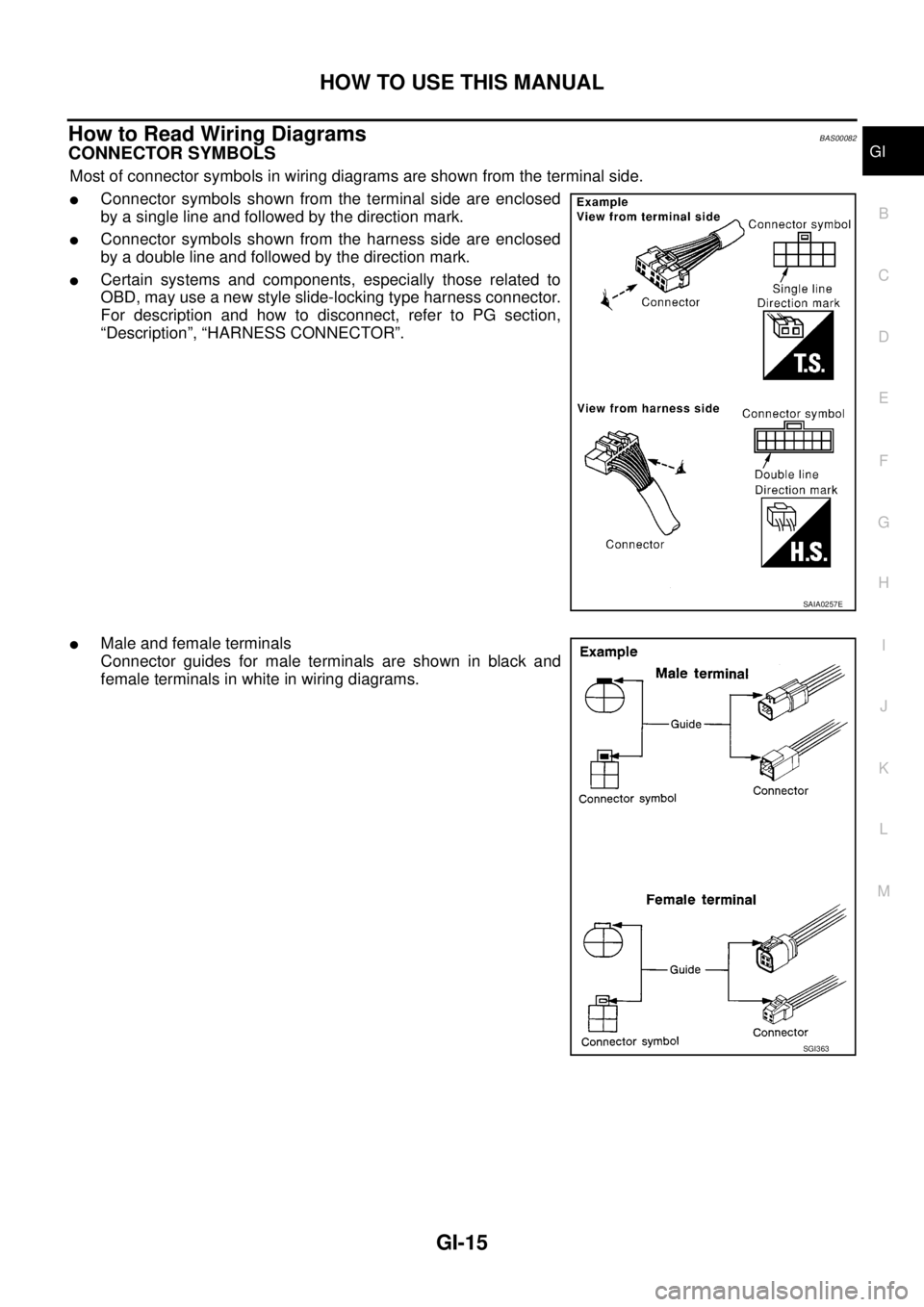

CONNECTOR SYMBOLS
Most of connector symbols in wiring diagrams are shown from the terminal side.

Connector symbols shown from the terminal side are enclosed
by a single line and followed by the direction mark.

Connector symbols shown from the harness side are enclosed
by a double line and followed by the direction mark.

Certain systems and components, especially those related to
OBD, may use a new style slide-locking type harness connector.
For description and how to disconnect, refer to PG section,
“Description”, “HARNESS CONNECTOR”.

Male and female terminals
Connector guides for male terminals are shown in black and
female terminals in white in wiring diagrams.
SAIA0257E
SGI363

GI-22
HOW TO USE THIS MANUAL

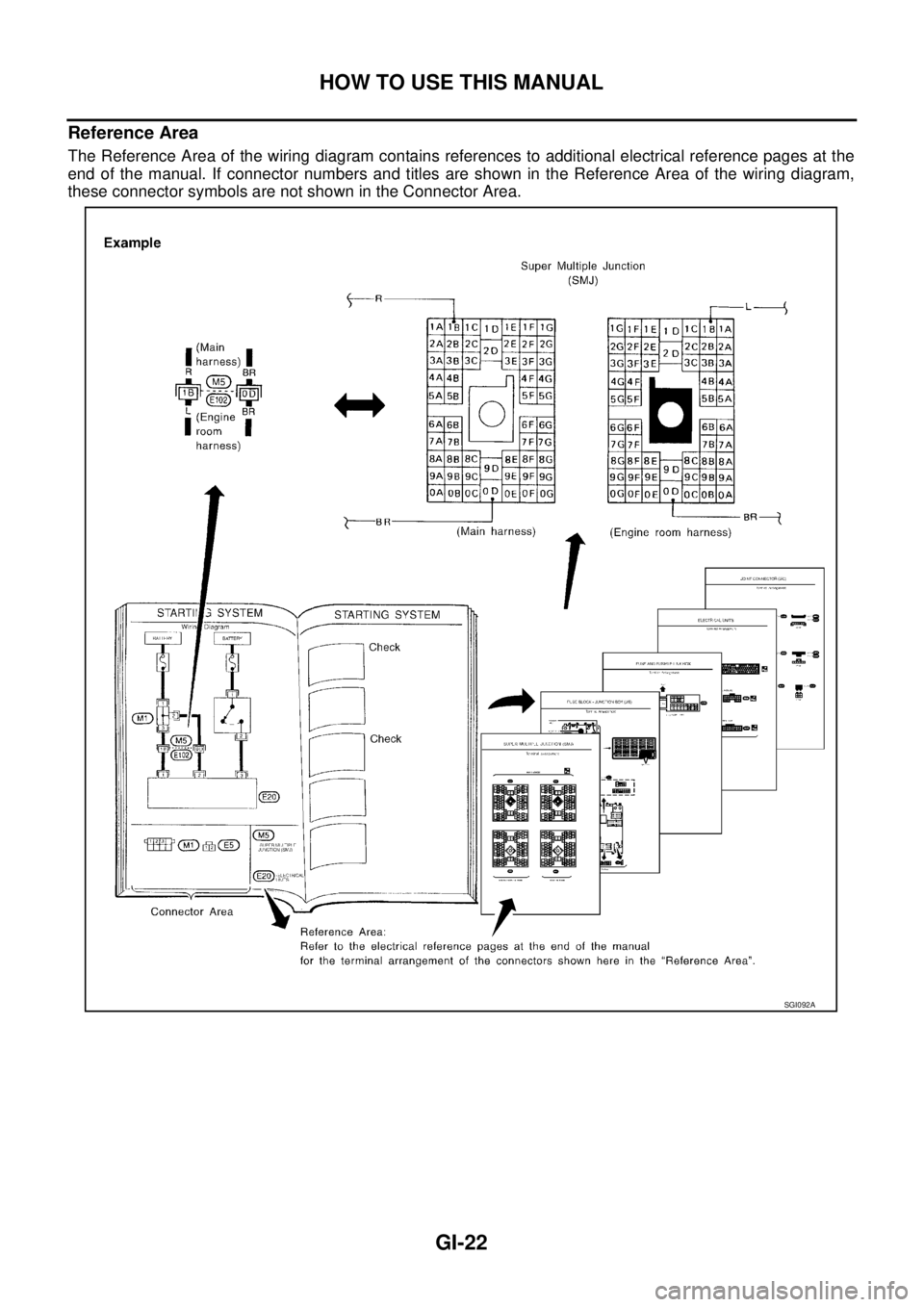

Reference Area
The Reference Area of the wiring diagram contains references to additional electrical reference pages at the
end of the manual. If connector numbers and titles are shown in the Reference Area of the wiring diagram,
these connector symbols are not shown in the Connector Area.
SGI092A

IDX-7
A
C
D
E
F
G
H
I
J
K
L B
IDX
ALPHABETICAL INDEX
SECPSV - Wiring diagram ............................. CVT-109
SEN/PW - Wiring diagram ................. EC-234, EC-591
SESCVT - Wiring diagram ............................... CVT-80
SHIFT - Wiring diagram ................... AT-217, CVT-181
Shift control ...................................................... CVT-20
Shift control system ....................................... CVT-176
Shift lock system .............................................. AT-216
Shift schedule ................................. CVT-40, CVT-198
Side air bag (satellite) sensor .......................... SRS-45
Side curtain air bag .......................................... SRS-42
Side trim .............................................................. EI-38
SMJ (super multiple junction) ............................ PG-76
Spark plug replacement(QR20DE) .................... MA-22
Spark plug replacement(VQ23DE and VQ35DE) .........
MA-32
Spark plug(VQ23DE and VQ35DE) ................. EM-153
Specification value ............................... EC-95, EC-440
Speedometer ........................................................ DI-4
Spiral cable ...................................................... SRS-37
SROOF - Wiring diagram .................................. RF-13
SRS - See Supplemental Restraint System ...... SRS-5
SRS Trouble diagnoses ..................................... SRS-7
SSV/A - Wiring diagram ..................................... AT-91
SSV/B - Wiring diagram ..................................... AT-96
Stall Test .......................................................... CVT-32
Stall test (A/T) .................................................... AT-43
Standardized relay ............................................. PG-77
START - Wiring diagram ................................... SC-15
Starter ................................................................ SC-14
Starting system .................................................. SC-14
Steering gear and linkage inspection ................ MA-41
Steering linkage ................................................. PS-17
Steering wheel and column ..................... PS-9, PS-12
Step motor .................................... CVT-153, CVT-157
STM - Wiring diagram .................................... CVT-154
Stop lamp ......................................................... LT-190
Stop lamp switch .. EC-245, EC-602, EC-626, EC-660
STOP/L - Wiring diagram ................................. LT-190
STSIG - Wiring diagram .................................. CVT-57
Sun roof, electric ................................................ RF-10
Sunload sensor ............................. ATC-102, ATC-111
Sunroof .................................................. RF-10, RF-22
Sunshade ............................................................ EI-46
Supplemental Restraint System ........................ SRS-5
Suspension ........................................................ MA-42
Symbols and abbreviations ..................... GI-10, GI-23
Symptom matrix chart .......................... EC-60, EC-402
T
Tachometer .......................................................... DI-4
TCM circuit diagram ........................................ CVT-31
TCM function ................................................... CVT-18
TCM inspection table ........................... AT-64, CVT-40
TCV - Wiring diagram ........................ AT-106, CVT-90
Thermostat(QR20DE) ........................................ CO-24
Thermostat(VQ23DE and VQ35DE) .................. CO-50
Three way catalyst precautions ............................ GI-6
Three way catalyst(QR20DE) ............................ EM-23
Three way catalyst(VQ23DE and VQ35DE) ... EM-140
Throttle control motor ......................... EC-213, EC-568
Throttle control motor relay ................ EC-207, EC-562
Throttle position sensor (TPS) .......... EC-136, EC-157,
EC-229
, EC-231, EC-265, EC-479, EC-505, EC-586,
EC-588
, EC-645
Throttle valve closed position learning . EC-47, EC-389
Timing chain(QR20DE) ..................................... EM-53
Timing chain(VQ23DE and VQ35DE) ............. EM-173
Tire rotation ....................................................... MA-40
Torque converter installation AT-244, AT-355, CVT-196
Torque convertor clutch solenoid valve .......... CVT-89,
CVT-94
TPS1 - Wiring diagram ...................... EC-159, EC-507
TPS2 - Wiring diagram ...................... EC-138, EC-481
TPS3 - Wiring diagram ...................... EC-267, EC-647
Trouble diagnoses .............................................. GI-11
Trunk lid ........................................................... BL-131
Trunk lid opener - See Trunk lid ...................... BL-136
TURN - Wiring diagram .................................... LT-156
Turn signal lamp ............................................... LT-152
Two trip detection logic ........................ EC-33, EC-373
U
Unified meter and A/C amp. ............................... DI-27
V
Vacuum hose (brake system) ............................ BR-24
Vacuum hose drawing (Engine control) EC-69, EC-412
Valve clearance ................................................ EM-50
Valve clearance(VQ23DE and VQ35DE) ....... EM-202
Valve guide(QR20DE) ...................................... EM-73
Valve guide(VQ23DE and VQ35DE) EM-218, EM-219
Valve lifter(QR20DE) ........................................ EM-41
Valve lifter(VQ23DE and VQ35DE) ................ EM-196
Valve seat(QR20DE) ........................................ EM-75
Valve seat(VQ23DE and VQ35D) ................... EM-220
Valve seat(VQ23DE and VQ35DE) ................ EM-220
Valve spring(QR20DE) ..................................... EM-76
Valve spring(VQ23DE and VQ35DE) ............. EM-221
Variable induction air control system (VIAS) ... EC-753
VDC -Wiring diagram ...................................... BRC-49
Vehicle speed sensor (VSS) EC-183, EC-243, EC-622,
EC-624
, EC-762
VFD display ....................................................... AV-41
VIAS - Wiring diagram ..................................... EC-755
Viscosity number (SAE) .................................... MA-15
VSS A/T - Wiring diagram .................................. AT-82
VSSMTR - Wiring diagram ................................ AT-87
W
W/ANT - Wiring diagram .................................... AV-38
WARN - Wiring diagram ..................................... DI-37
Warning chime .................................................... DI-56
Warning lamps .................................................... DI-35
Washer, front ..................................................... WW-4

PG-42
HARNESS

HARNESS PFP:00011
Harness Layout BKS0024Z
HOW TO READ HARNESS LAYOUT
The following Harness Layouts use a map style grid to help locate
connectors on the figures:

Main Harness

Engine Room Harness

Engine Control Harness

Body Harness

Body No. 2 Harness
To Use the Grid Reference
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the figure, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.
CONNECTOR SYMBOL
Main symbols of connector (in Harness Layout) are indicated in the below.
SEL252V
CKIT0108E

POWER STEERING GEAR AND LINKAGE
PS-17
C
D
E
F
H
I
J
K
L
MA
B
PS

POWER STEERING GEAR AND LINKAGEPFP:49001
Removal and InstallationBGS0003W

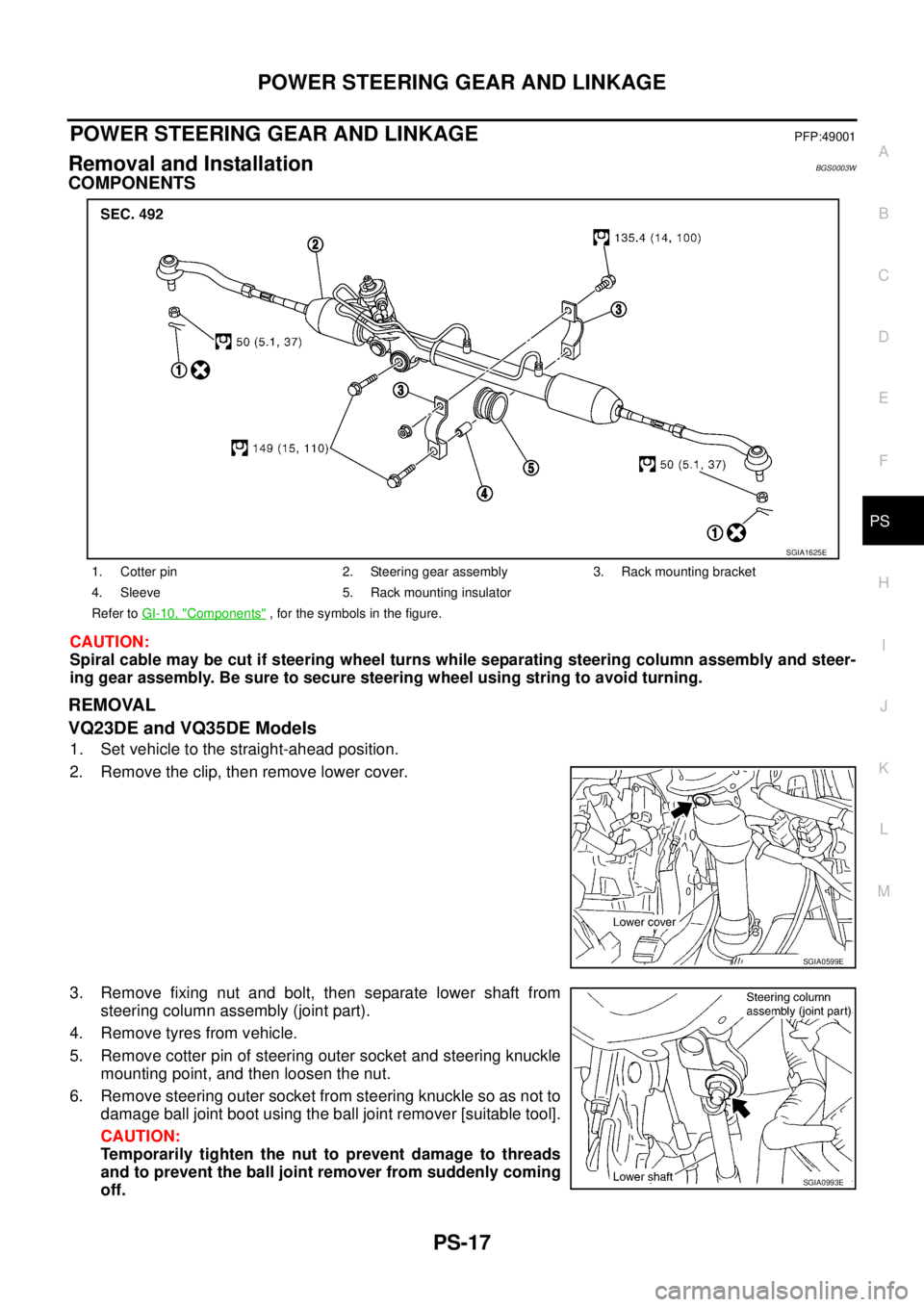

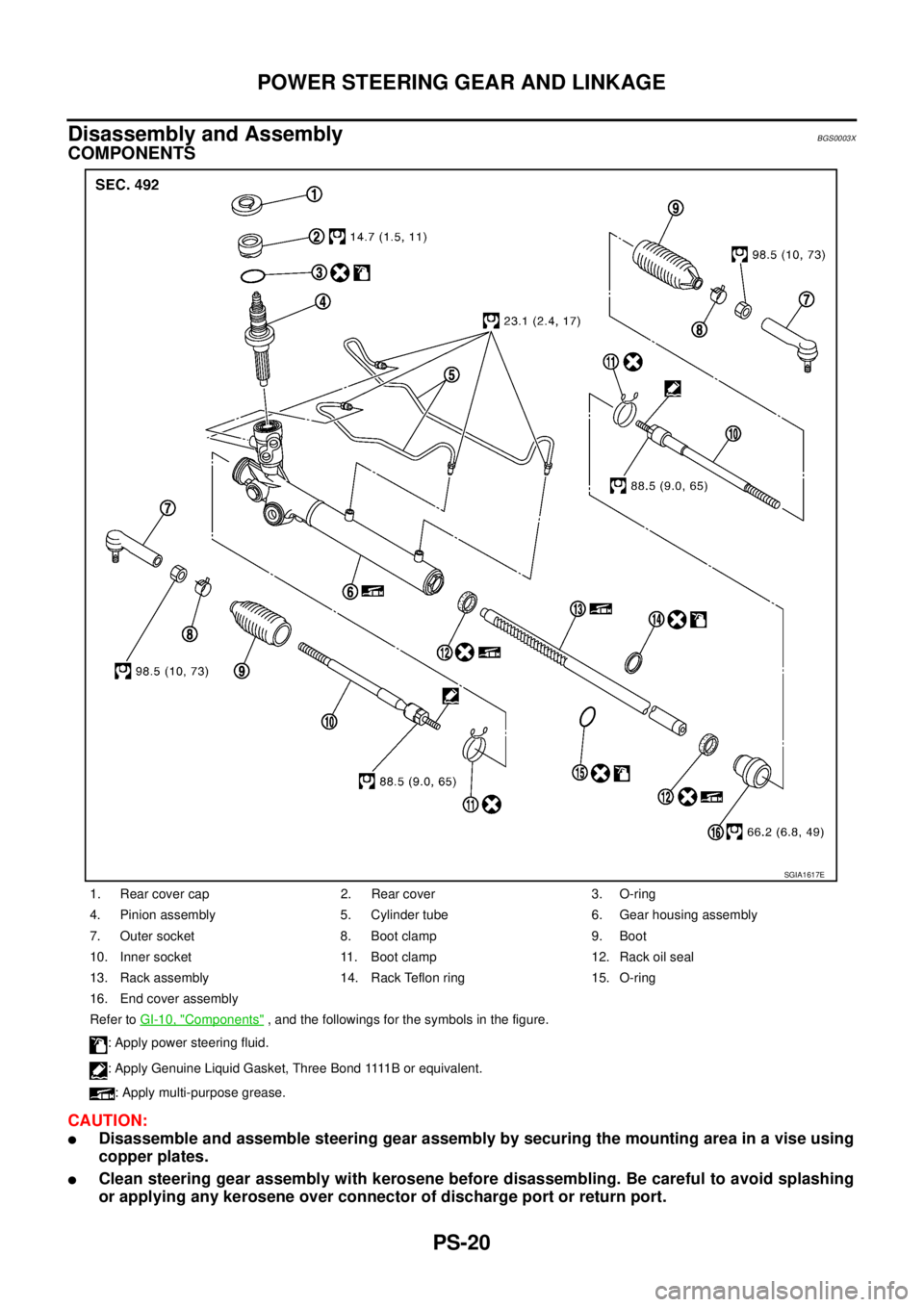

COMPONENTS
CAUTION:
Spiral cable may be cut if steering wheel turns while separating steering column assembly and steer-
ing gear assembly. Be sure to secure steering wheel using string to avoid turning.
REMOVAL
VQ23DE and VQ35DE Models
1. Set vehicle to the straight-ahead position.
2. Remove the clip, then remove lower cover.
3. Remove fixing nut and bolt, then separate lower shaft from
steering column assembly (joint part).
4. Remove tyres from vehicle.
5. Remove cotter pin of steering outer socket and steering knuckle
mounting point, and then loosen the nut.
6. Remove steering outer socket from steering knuckle so as not to
damage ball joint boot using the ball joint remover [suitable tool].
CAUTION:
Temporarily tighten the nut to prevent damage to threads
and to prevent the ball joint remover from suddenly coming
off.
1. Cotter pin 2. Steering gear assembly 3. Rack mounting bracket
4. Sleeve 5. Rack mounting insulator
Refer to GI-10, "
Components" , for the symbols in the figure.
SGIA1625E
SGIA0599E
SGIA0993E

PS-20
POWER STEERING GEAR AND LINKAGE

Disassembly and AssemblyBGS0003X
COMPONENTS
CAUTION:

Disassemble and assemble steering gear assembly by securing the mounting area in a vise using
copper plates.

Clean steering gear assembly with kerosene before disassembling. Be careful to avoid splashing
or applying any kerosene over connector of discharge port or return port.
1. Rear cover cap 2. Rear cover 3. O-ring
4. Pinion assembly 5. Cylinder tube 6. Gear housing assembly
7. Outer socket 8. Boot clamp 9. Boot
10. Inner socket 11. Boot clamp 12. Rack oil seal
13. Rack assembly 14. Rack Teflon ring 15. O-ring
16. End cover assembly
Refer to GI-10, "
Components" , and the followings for the symbols in the figure.
: Apply power steering fluid.
: Apply Genuine Liquid Gasket, Three Bond 1111 B o r e q u i v a l e n t .
: Apply multi-purpose grease.
SGIA1617E

POWER STEERING OIL PUMP
PS-31
C
D
E
F
H
I
J
K
L
MA
B
PS

Disassembly and Assembly (Except for QR20DE Models)BGS00040

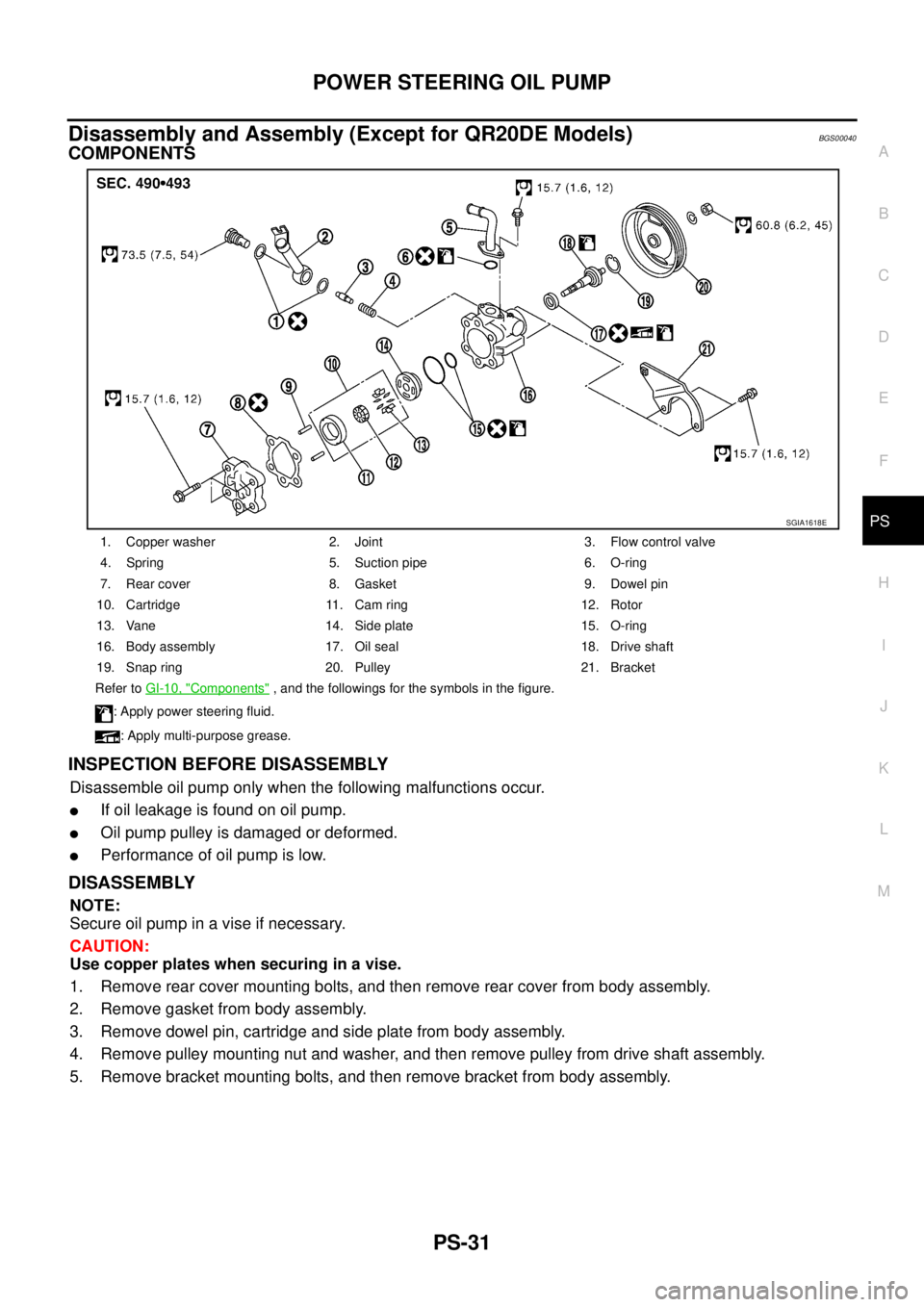

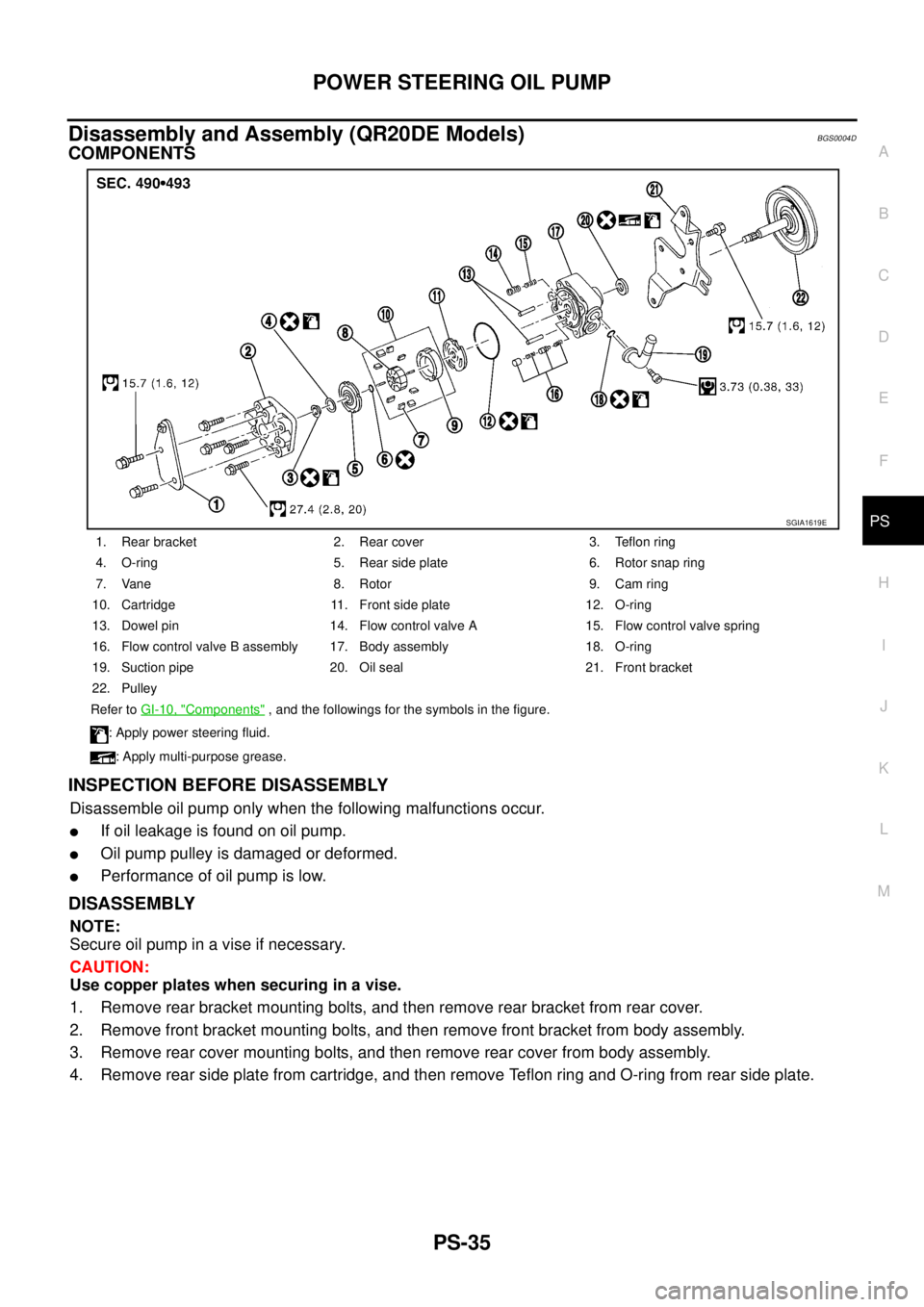

COMPONENTS
INSPECTION BEFORE DISASSEMBLY
Disassemble oil pump only when the following malfunctions occur.

If oil leakage is found on oil pump.

Oil pump pulley is damaged or deformed.

Performance of oil pump is low.
DISASSEMBLY
NOTE:
Secure oil pump in a vise if necessary.
CAUTION:
Use copper plates when securing in a vise.
1. Remove rear cover mounting bolts, and then remove rear cover from body assembly.
2. Remove gasket from body assembly.
3. Remove dowel pin, cartridge and side plate from body assembly.
4. Remove pulley mounting nut and washer, and then remove pulley from drive shaft assembly.
5. Remove bracket mounting bolts, and then remove bracket from body assembly.
1. Copper washer 2. Joint 3. Flow control valve
4. Spring 5. Suction pipe 6. O-ring
7. Rear cover 8. Gasket 9. Dowel pin
10. Cartridge 11. Cam ring 12. Rotor
13. Vane 14. Side plate 15. O-ring
16. Body assembly 17. Oil seal 18. Drive shaft
19. Snap ring 20. Pulley 21. Bracket
Refer to GI-10, "
Components" , and the followings for the symbols in the figure.
: Apply power steering fluid.
: Apply multi-purpose grease.
SGIA1618E

POWER STEERING OIL PUMP
PS-35
C
D
E
F
H
I
J
K
L
MA
B
PS

Disassembly and Assembly (QR20DE Models)BGS0004D
COMPONENTS
INSPECTION BEFORE DISASSEMBLY
Disassemble oil pump only when the following malfunctions occur.

If oil leakage is found on oil pump.

Oil pump pulley is damaged or deformed.

Performance of oil pump is low.
DISASSEMBLY
NOTE:
Secure oil pump in a vise if necessary.
CAUTION:
Use copper plates when securing in a vise.
1. Remove rear bracket mounting bolts, and then remove rear bracket from rear cover.
2. Remove front bracket mounting bolts, and then remove front bracket from body assembly.
3. Remove rear cover mounting bolts, and then remove rear cover from body assembly.
4. Remove rear side plate from cartridge, and then remove Teflon ring and O-ring from rear side plate.
1. Rear bracket 2. Rear cover 3. Teflon ring
4. O-ring 5. Rear side plate 6. Rotor snap ring
7. Vane 8. Rotor 9. Cam ring
10. Cartridge 11. Front side plate 12. O-ring
13. Dowel pin 14. Flow control valve A 15. Flow control valve spring
16. Flow control valve B assembly 17. Body assembly 18. O-ring
19. Suction pipe 20. Oil seal 21. Front bracket
22. Pulley
Refer to GI-10, "
Components" , and the followings for the symbols in the figure.
: Apply power steering fluid.
: Apply multi-purpose grease.
SGIA1619E
