CAMSHAFT

Summary of the inspection items:
* Transmission/transaxle/CVT fluid. power steering fluid, brake fluid, etc.
Valve ClearanceBBS004W2
INSPECTION
In cases of removing/installing or replacing camshaft and valve-
related parts, or of unusual engine conditions due to changes in
valve clearance (found malfunctions during stating, idling or causing
noise), perform inspection as follows:
1. Remove rocker covers (right and left banks). Refer to EM-160, "
ROCKER COVER" .
2. Remove splash guard (RH).
3. Measure the valve clearance as follows:
a. Set No. 1 cylinder at TDC of its compression stroke.

Rotate crankshaft pulley clockwise to align timing mark
(grooved line without color) with timing indicator.

Make sure that intake and exhaust cam noses on No. 1 cylin-
der (engine front side of right bank) are located as shown in
the figure.

If not, rotate crankshaft one revolution (360 degrees) and
align as shown in the figure.
Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluid* Level Leakage Level
Fuel Leakage Leakage Leakage
Exhaust gases — Leakage —
SEM713A
SEM918G
SEM418G

EM-210
[VQ]
CYLINDER HEAD

CYLINDER HEADPFP:11041
On-Vehicle ServiceBBS004W6
CHECKING COMPRESSION PRESSURE
1. Warm up engine thoroughly. Then, stop it.
2. Release fuel pressure. Refer to EC-392, "
FUEL PRESSURE RELEASE" .
3. Disconnect fuel pump fuse to avoid fuel injection during mea-
surement.
4. Remove engine cover. Refer to EM-133, "
INTAKE MANIFOLD COLLECTOR" .
5. Remove ignition coil and spark plug from each cylinder. Refer to EM-152, "
IGNITION COIL" and EM-153,
"SPARK PLUG (PLATINUM-TIPPED TYPE)" .
6. Connect engine tachometer (not required in use of CONSULT-ll).
7. Install compression tester with adapter onto spark plug hole.

Use compression gauge whose picking up end inserted to
spark plug hole is smaller than 20 mm (0.79 in) in diameter.
Otherwise, it may be caught by cylinder head during removal.
8. With accelerator pedal fully depressed, turn ignition switch to “START” for cranking. When the gauge
pointer stabilizes, read the compression pressure and engine rpm. Perform these steps to check each cyl-
inder.
Compression pressure:
Unit: kPa (bar, kg/cm2 , psi) /rpm
PBIB2110E
PBIC0900E
SBIA0533E
VQ23DE VQ35DE
Standard 1,050 (10.5, 10.7, 152) / 300 1,270 (12.70, 13.0, 184) / 300
Minimum 750 (7.5, 7.7, 109) / 300 980 (9.8, 10.0, 142) / 300
Differential limit between cylinders 100 (1.0, 1.0, 15) / 300 100 (1.0, 1.0, 15) / 300

CYLINDER HEAD
EM-215
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM

INSPECTION AFTER INSTALLATION
Inspection for Leaks
The following are procedures for checking fluids leak, lubricates leak and exhaust gases leak.

Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-14, "
RECOMMENDED FLUIDS AND LUBRICANTS" .

Use procedure below to check for fuel leakage.
–Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel
leakage at connection points.
–Start engine. With engine speed increased, check again for fuel leakage at connection points.

Run engine to check for unusual noise and vibration.

Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gases, or any oil/fluids
including engine oil and engine coolant.

Bleed air from lines and hoses of applicable lines, such as in cooling system.

After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the
specified level, if necessary.
Summary of the inspection items:
* Transmission/transaxle/CVT fluid. power steering fluid, brake fluid, etc.
Disassembly and AssemblyBBS004W8
Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluid* Level Leakage Level
Fuel Leakage Leakage Leakage
Exhaust gases — Leakage —

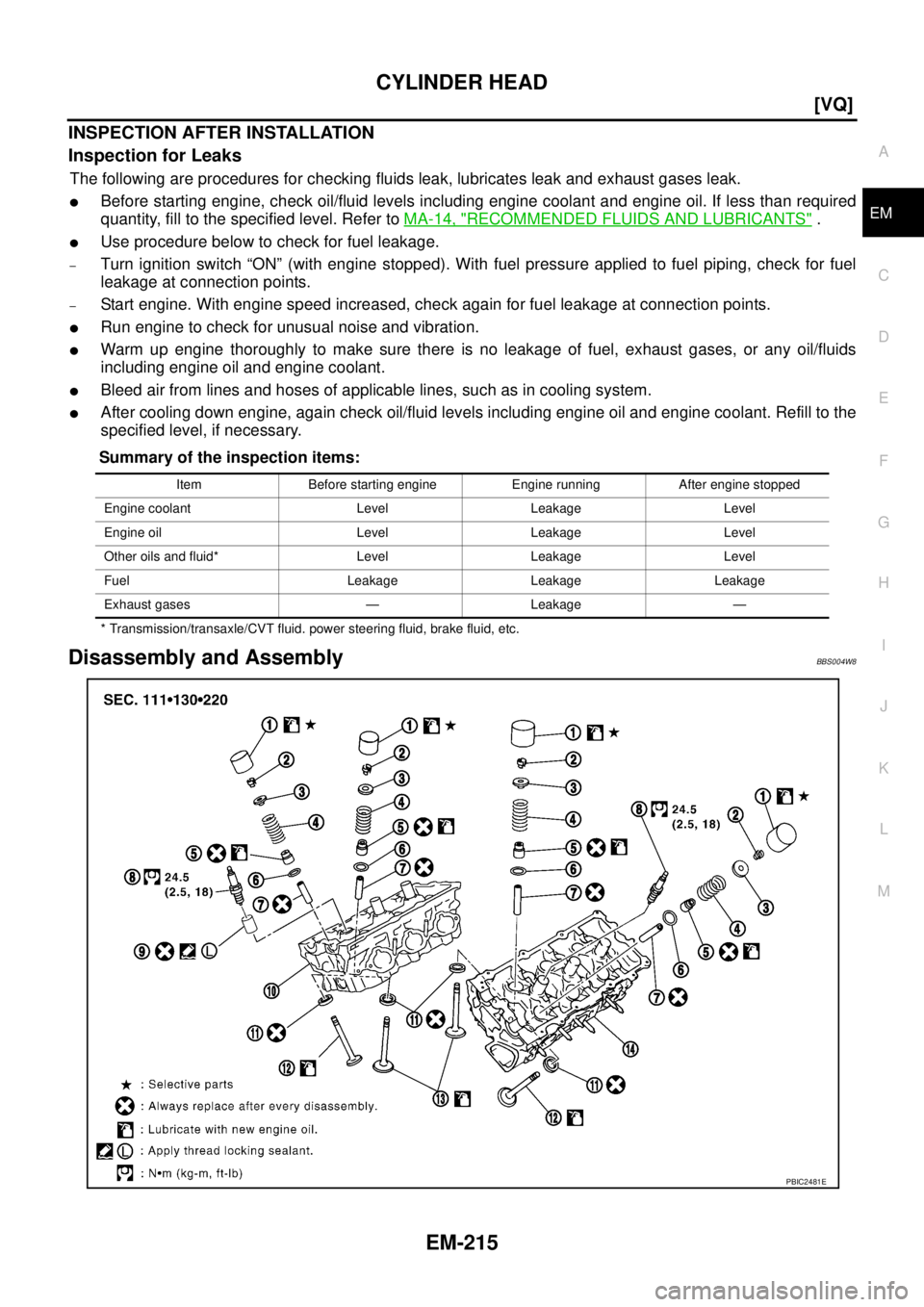

PBIC2481E

EM-226
[VQ]
ENGINE ASSEMBLY

6. Remove front suspension member mounting nuts and bolts. Refer to FSU-5, "FRONT SUSPENSION
ASSEMBLY" .
7. Carefully lower engine, transaxle and front suspension member assembly. When performing work,
observe the following caution.
CAUTION:

Confirm there is no interference with vehicle.

Make sure that all connection points have been disconnected.

Keep in mind the center of vehicle gravity changes. If necessary, use jack(s) to support vehicle
at rear jacking point(s) to prevent it from falling it off the lift.
Separation Work
1. Remove power steering oil pump, power steering piping and power steering bracket from engine and tran-
saxle assembly. Refer to PS-39, "
HYDRAULIC LINE" .
2. Remove starter motor. Refer to SC-14, "
STARTING SYSTEM" .
3. Disconnect harness connector of engine mounting insulators (front and rear).
4. Remove engine mounting (front) and engine mounting (rear) through-bolts.
5. Lift with hoist and separate engine and transaxle assembly from front suspension member.
CAUTION:
Before and during this lifting, always make sure that any harnesses are not connected.
6. Remove each engine mounting insulator and each engine mounting bracket from engine, transaxle and
front suspension member.
7. Separate engine and transaxle. Refer to AT- 2 4 1 , "
TRANSAXLE ASSEMBLY" (A/T), CVT-193, "TRAN-
SAXLE ASSEMBLY" (CVT).
INSTALLATION
Note the following, and install in the reverse order of removal.

Do not allow engine mounting insulator to be damage and careful no engine oil gets on it.

For a path with a specified installation orientation, refer to component figure in EM-223, "Removal and
Installation" .

Make sure all engine mounting insulators are seated properly, then tighten nuts and bolts.
INSPECTION AFTER INSTALLATION
Inspection for Leaks
The following are procedures for checking fluids leak, lubricates leak and exhaust gases leak.

Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-14, "
RECOMMENDED FLUIDS AND LUBRICANTS" .

Use procedure below to check for fuel leakage.
–Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel
leakage at connection points.
–Start engine. With engine speed increased, check again for fuel leakage at connection points.

Run engine to check for unusual noise and vibration.

Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gases, or any oil/fluids
including engine oil and engine coolant.

Bleed air from lines and hoses of applicable lines, such as in cooling system.

After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the
specified level, if necessary.

ENGINE ASSEMBLY
EM-227
[VQ]
C
D
E
F
G
H
I
J
K
L
MA
EM

Summary of the inspection items:
* Transmission/transaxle/CVT fluid. power steering fluid, brake fluid, etc.Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluid* Level Leakage Level
Fuel Leakage Leakage Leakage
Exhaust gases — Leakage —

FUEL SYSTEM
FL-3
C
D
E
F
G
H
I
J
K
L
MA
FL

FUEL SYSTEMPFP:17503
Checking Fuel LinesBBS005AE
Inspect fuel lines, fuel filler cap and fuel tank for improper attach-
ment, leaks, cracks, damage, loose connections, chafing or deterio-
ration.
If necessary, repair or replace damaged parts.
General PrecautionsBBS005AF
WARNING:
When replacing fuel line parts, be sure to observe the following.

Put a “CAUTION: FLAMMABLE” sign in the workshop.

Be sure to work in a well ventilated area and furnish workshop with a CO2 fire extinguisher.

Do not smoke while servicing fuel system. Keep open flames and sparks away from the work area.

Put drained fuel in an explosion-proof container and put the lid on securely. Keep the container in
safe area.
CAUTION:

Use gasoline required by the regulations for octane number. Refer to GI-6, "Precautions for Fuel" .

Before removing fuel line parts, perform the following procedures:
–Release fuel pressure from the fuel lines. Refer to EC-49, "FUEL PRESSURE RELEASE"
(QR20DE), or EC-392, "FUEL PRESSURE RELEASE" (VQ23DE and VQ35DE).
–Disconnect the battery cable from negative terminal.

Always replace clamps with new ones.

Do not kink or twist tubes when they are being installed.

Perform work on level place.

Do not tighten hose clamps excessively to avoid damaging hoses.

After connecting fuel tube quick connectors, make sure
quick connectors are secure.
Ensure that connector and resin tube do not contact any
adjacent parts.

After installing tubes, make sure there is no fuel leakage at
connections in the following steps.
–Apply fuel pressure to fuel lines with turning ignition switch
“ON” (with engine stopped). Then check for fuel leaks at
connections.
–Start engine and rev it up and check for fuel leaks at con-
nections.

Use only a genuine NISSAN fuel filler cap as a replacement.
If an incorrect fuel filler cap is used, the “MIL” may come
on.

For servicing “Evaporative Emission System” parts, refer to
EC-27, "
EVAPORATIVE EMISSION SYSTEM" (QR20DE), or
EC-366, "
EVAPORATIVE EMISSION SYSTEM" (VQ23DE
and VQ35DE).
SMA803A
SBIA0504E

FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY
FL-7
C
D
E
F
G
H
I
J
K
L
MA
FL

INSTALLATION
Note the following, and install in the reverse order of removal.
Fuel Level Sensor Unit, Fuel Filter and Fuel Pump Assembly
1. Install seal packing to fuel tank without any twist.
2. Align “B” with “A” as shown in the figure. Install fuel level sensor
unit, fuel filter and fuel pump assembly to fuel tank.
CAUTION:
Do not bend float arm during installing.
3. Tighten lock ring with lock ring wrench (commercial service tool).
CAUTION:
Install lock ring horizontally.
Quick Connector
Connect quick connector of fuel feed hose as follows:
1. Check the connection for damage or any foreign materials.
2. Align the connector with the tube, then insert the connector straight into the tube until a click sound is
heard.
3. After connecting, make sure that the connection is secure by following method.

Visually confirm that the two tabs are connected to the connector.

Pull the tube and the connector to make sure they are
securely connected.
Inspection Hole Cover
1. Install inspection hole cover with front mark (arrow) facing front of vehicle.
2. Lock clips by turning counter-clockwise.
INSPECTION AFTER INSTALLATION
Use the following procedure to check for fuel leaks.
1. Turn ignition switch “ON” (with engine stopped), then check connections for leaks by applying fuel pres-
sure to fuel piping.
2. Start engine and rev it up and make sure there are no fuel leaks at the fuel system connections.
A : Arrow mark (Fuel tank side)
B : Positioning mark
C : Fuel tank
: Vehicle front
PBIC4584J
PBIC1653E

FUEL TANK
FL-9
C
D
E
F
G
H
I
J
K
L
MA
FL

7. Disconnect fuel filler hose and vent hose at the position shown
in the figure.
8. Disconnect EVAP hose at EVAP canister side.
9. Support the lower part of fuel tank with transmission jack.
CAUTION:

Support right and left part of flat bottom plate with pass-
ing board.

Because the height of right and left bottom plate is differ-
ent, horizontally support them with wood plate and things
like that.

Support the position that fuel tank mounting bands do
not engage.
10. Remove fuel tank mounting bands.
11. Supporting with hands, descend transmission jack carefully, and remove fuel tank.
CAUTION:

Make sure that all connection points have been disconnected.

Confirm there is no interference with vehicle.
12. Remove fuel filler tube, if necessary.
INSTALLATION
Note to the following, and install in the reverse order of removal.

Surely clamp fuel hoses and insert hose to the length below.

Be sure hose clamp is not placed on swelled area of fuel tube.

Tighten fuel hose clamp so that the distance between its lugs becomes to the following.

Before fixing fuel tank, temporarily install fuel filler tube.
CAUTION:
Use genuine fuel filler tube mounting bolts or equivalent. Make sure to tighten them to the speci-
fied torque.

To connect quick connector, refer to FL-7, "Quick Connector" .
INSPECTION AFTER INSTALLATION
Use the following procedure to check for fuel leaks.
1. Turn ignition switch “ON” (with engine stopped), and check connections for leakage by applying fuel pres-
sure to fuel piping.
2. Start engine and rev it up and make sure there are no fuel leaks at the fuel system tube and hose connec-
tions.
PBIC2528E
PBIC2529E
Fuel filler hose : 35 mm (1.38 in)
The other hoses : 25 mm (0.98 in)
Fuel tank side : 5 - 9 mm (0.20 - 0.35 in)
Fuel filler tube side : 7 - 11 mm (0.28 - 0.43 in)
