Page 3054 of 3502

PG-20
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
All Items, Main Items, Selection From Menu
NOTE:
Perform monitoring of IPDM E/R data with the ignition switch ON. When the ignition switch is at ACC, the display may not be cor-
rect.
*1: The vehicle without the Intelligent Key system displays only ON without change.
*2: This item is displayed, but does not function.
ACTIVE TEST
Operation Procedure
1. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Touch item to be tested.
3. Touch “START”, and confirm its operation.
4. Touch “OFF” while testing to stop the operation.
CONSULT-II
screen displayItem name Display or unitMonitor item selection
Description
ALL
SIGNALSMAIN
SIGNALSSELEC-
TION
FROM
MENU
MOTOR FAN REQ Motor fan request 1/2/3/4×× ×Signal status input from ECM
AC COMP REQ Compressor request ON/OFF×× ×Signal status input from ECM
TAIL&CLR REQ Tail & clear request ON/OFF×× ×Signal status input from BCM
HL LO REQ Headlamp LO request ON/OFF×× ×Signal status input from BCM
HL HI REQ Headlamp HI request ON/OFF×× ×Signal status input from BCM
FR FOG REQ Front fog request ON/OFF×× ×Signal status input from BCM
HL WASHER REQHeadlamp washer
requestON/OFF××Signal status input from head-
lamp washer switch
FR WIP REQ Front wiper requestSTOP/1LOW/
LOW/HI×× ×Signal status input from BCM
WIP AUTO STOP Wiper auto stop ACT P/STOP P×× ×Output status of IPDM E/R
WIP PROT Wiper protection OFF/BLOCK×× ×Control status of IPDM E/R
ST RLY REQ
*1Starter request ON/OFF××Status of input signal
IGN RLY Ignition relay status ON/OFF×× ×Ignition relay status monitored
with IPDM E/R
RR DEF REQRear window defogger
requestON/OFF×× ×Signal status input from BCM
OIL P SW Oil pressure switch OPEN/CLOSE××Signal status input in IPDM E/R
DTRL REQ*
2Daytime running light
requestON/OFF××—
HOOD SW
*2Hood switch ON/OFF××—
THFT HRN REQTheft warning horn
requestON/OFF××Signal status input from BCM
HORN CHIRP
*2Horn chirp ON/OFF××—
CONSULT-II screen display Test item Description
TAIL LAMPParking, license plate and tail
lamps operationTail lamp relay is operated by switching operation ON-OFF.
REAR DEFOGGER Rear window defogger operation Rear defogger relay is operated by switching operation ON-OFF.
Page 3055 of 3502

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PG-21
C
D
E
F
G
H
I
J
L
MA
B
PG
NOTE:
High beam headlamp repeats high beam and low beam every 1 second. When high beam headlamp of xenon type operates, the head-
lamp perform the HIGH-LOW changeover operation without illuminating the headlamp bulb.
Auto Active TestBKS002EW
DESCRIPTION
In auto active test mode, operation inspection can be performed when IPDM E/R sends a drive signal to
the following systems:
–Rear window defogger
–Front wiper
–Parking, license plate and tail lamps
–Front fog lamp
–Headlamp (HI, LO)
–A/C compressor (magnet clutch)
–Cooling fan
–Oil pressure warning lamp
OPERATION PROCEDURE
1. Close hood and front door (passenger side), and then lift wiper arms away from windshield (to prevent
glass damage by wiper operation).
NOTE:
When auto active test is performed with hood opened, sprinkle water on windshield beforehand.
2. Turn ignition switch OFF.
3. Turn ignition switch ON, and within 20 seconds, press driver's door switch 10 times (close the other
doors). Then turn ignition switch OFF.
4. Turn ignition switch ON within 10 seconds after ignition switch OFF.
5. When auto active test mode is actuated, horn chirps once. Oil pressure warning lamp starts blinking.
6. After a series of operations is repeated three times, auto active test is completed.
NOTE:
When auto active test mode has to be cancelled halfway, turn ignition switch OFF.
CAUTION:
Be sure to inspect door switch when the auto active test cannot be performed.
FRONT WIPER Front wiper (HI, LO) operationFront wiper relay and front wiper high relay are operated by switch-
ing operation (OFF: OFF, HI: high speed, LO: low speed).
MOTOR FAN Cooling fan operationCooling fan relay-1, 2 and 3 are operated by switching operation
(1: OFF, 2: LO, 3: MID, 4: HI).
HEAD LAMP WASHER Headlamp washer operation Headlamp washer relay is operated by switching operation ON-OFF.
LAMPSHigh beam headlamp and low
beam headlamp operation
NOTEHeadlamp low relay and headlamp high relay are operated by
switching operation (OFF: OFF, HI: high beam, LO: low beam).
Front fog lamp operationFront fog lamp relay is operated by switching operation
(OFF: OFF, FOG: ON).
HORN Horn operation Touch “ON” button, horn relay operates 20 ms.CONSULT-II screen display Test item Description
Page 3056 of 3502
PG-22
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
INSPECTION IN AUTO ACTIVE TEST MODE
When auto active test mode is actuated, the following eight steps are repeated three times.
NOTE:
A dotted line shows a position of HIGH beam of Halogen headlamp.
NOTE:
When high beam headlamp of xenon type operates, the headlamp perform the HIGH-LOW changeover operation without illuminating
the headlamp bulb.
SKIB8863E
Operation
orderTest item Operation time / frequency
1 Rear window defogger 10 seconds
2 Front wiper LO 5 seconds HI 5 seconds
3 Parking, license plate and tail lamps 10 seconds
4 Front fog lamp 10 seconds
5 Headlamp (LO) 10 seconds
6
Headlamp (HI)
NOTEON 2 seconds ⇔ OFF 2 seconds (5 times)
7 A/C compressor (magnet clutch) ON 2 seconds ⇔ OFF 2 seconds (5 times)
8 Cooling fanLO 2 seconds MID 2 seconds HI 2 seconds MID 2 seconds
LO 2 seconds
A Oil pressure warning lamp Oil pressure warning lamp is blinking when the auto active test operating.
Page 3057 of 3502

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PG-23
C
D
E
F
G
H
I
J
L
MA
B
PG
Concept of Auto Active Test
IPDM E/R actuates auto active test mode when it receives door switch signal from BCM via CAN commu-
nication line. Therefore, when auto active test mode is activated successfully, CAN communication
between IPDM E/R and BCM is normal.
If any of systems controlled by IPDM E/R cannot be operated, possible cause can be easily diagnosed
using auto active test.
Diagnosis chart in auto active test mode
Symptom Inspection contents Possible cause
Any of front wiper, park-
ing, license plate and
tail lamps, front fog
lamp, and headlamp
(HI, LO) do not operate.Perform auto active
test. Does system in
question operate?YES
BCM signal input system malfunction
NO
Lamp/wiper motor malfunction
Lamp/wiper motor ground circuit malfunction
Harness/connector malfunction between IPDM E/R and system in ques-
tion
IPDM E/R (integrated relay) malfunction
Rear window defogger
does not operate.Perform auto active
test. Does rear win-
dow defogger oper-
ate?YES
BCM signal input circuit malfunction
NO
Rear window defogger relay malfunction
Harness/connector malfunction between IPDM E/R and rear window
defogger relay
Open circuit of rear window defogger
IPDM E/R malfunction
A/C compressor does
not operate.Perform auto active
test. Does magnetic
clutch operate?YES
BCM signal input circuit malfunction
CAN communication signal between BCM and ECM.
CAN communication signal between ECM and IPDM E/R
NO
Magnetic clutch malfunction
Harness/connector malfunction between IPDM E/R and magnetic clutch
IPDM E/R (integrated relay) malfunction
Cooling fan does not
operate.Perform auto active
test. Does cooling fan
operate?YES
ECM signal input circuit
CAN communication signal between ECM and IPDM E/R
NO
Cooling fan motor malfunction
Harness/connector malfunction between IPDM E/R and cooling fan
motor
IPDM E/R (integrated relay) malfunction
Oil pressure warning
lamp does not operate.Perform auto active
test. Does oil pres-
sure warning lamp
blink?YES
Harness/connector malfunction between IPDM E/R and oil pressure
switch
Oil pressure switch malfunction
IPDM E/R malfunction
NO
CAN communication signal between BCM and Unified Meter and A/C
Amp.
Combination meter
Page 3058 of 3502
PG-24
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

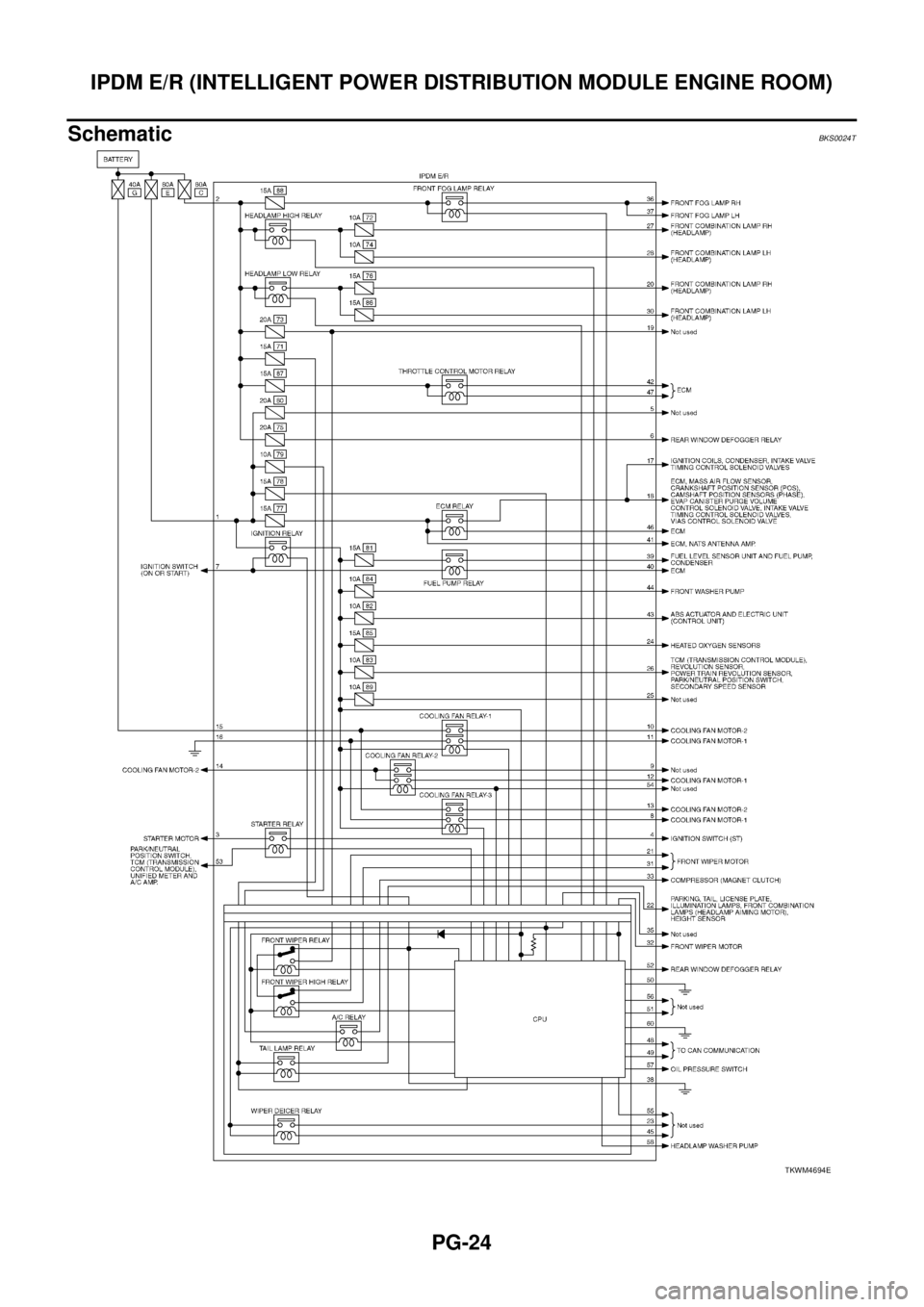

SchematicBKS0024T
TKWM4694E
Page 3059 of 3502
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PG-25
C
D
E
F
G
H
I
J
L
MA
B
PG
IPDM E/R Terminal ArrangementBKS0024U
CKIM0351E
Page 3060 of 3502

PG-26
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
Check IPDM E/R Power Supply and Ground CircuitBKS002F3
1. CHECK FUSES AND FUSIBLE LINK
Check for blown fuses and fusible link.
OK or NG
OK >> GO TO 2.
NG >> If fuse or fusible link is blown, be sure to eliminate cause of malfunction before installing new fuse
or fusible link.
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R harness connector.
3. Check voltage between IPDM E/R harness connector and
ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK GROUND CIRCUIT
1. Disconnect IPDM E/R harness connectors.
2. Check continuity between IPDM E/R harness connectors and
ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
Terminal No. Power source Fuse and fusible link No.
1
BatteryE
2C
—71
78
Terminals
Vo l ta g e (+) (-)
IPDM E/R connector Terminal
Ground
E31
Battery voltage
2
PKIB6562E
IPDM E/R connector Terminal
GroundContinuity
E8 38
E950
Ye s
60
SKIB8836E
Page 3061 of 3502

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
PG-27
C
D
E
F
G
H
I
J
L
MA
B
PG
Inspection With CONSULT-II (Self-Diagnosis)BKS0024W
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which performs CAN communication.
1. CHECK SELF DIAGNOSTIC RESULT
1. Connect CONSULT-II and select “IPDM E/R” on “SELECT SYSTEM” screen.
2. Select “SELF-DIAG RESULTS” on the “SELECT DIAG MODE” screen.
3. Check display content in self diagnostic results.
NOTE:
The details for display of the period are as follows:
CRNT: Error currently detected with IPDM E/R.
PAST: Error detected in the past and memorized with IPDM E/R.
Contents displayed
NO DTC IS DETECTED.FURTHER TESTING MAY BE REQUIRED.>>INSPECTION END
CAN COMM CIRC>>Print out the self-diagnostic results and refer to LAN-42, "
Precautions When Using
CONSULT-II" .
CONSULT-II displayCONSULT-II
display codeTIME
Details of diagnosis result
CRNT PAST
NO DTC IS DETECTED.
FURTHER TESTING MAY BE REQUIRED.- - - No malfunction
CAN COMM CIRC U1000××Any of or several items below have errors.
TRANSMIT DIAG
ECM
BCM / SEC
