2003 NISSAN MAXIMA Navigation Manual

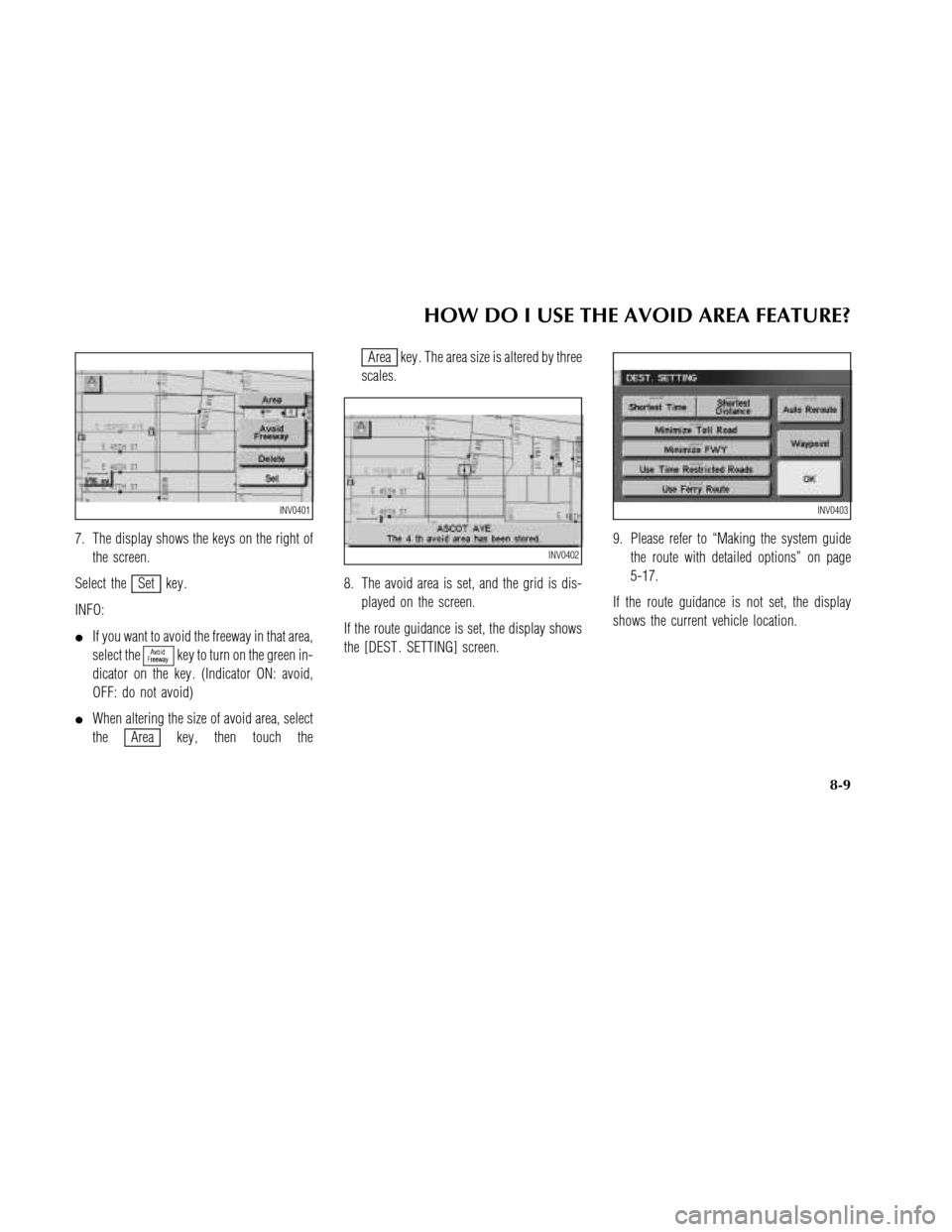

8. Use the joystick to adjust the location.
INFO:
Area size: Max.5x5miles (8x8km)9. The display shows the keys on the right of
the screen.
Select the
Set key .
INFO:

If you want to avoid the freeway in that area,
select the
key to turn on the green in-
dicator on the key . (Indicator ON: avoid,
OFF: do not avoid)

When altering the size of the avoid area,
touch the
Area key . The area size is al-
tered by three scales.
The avoid area is set, and the grid will be
displayed on the screen.
INFO:
The grid color will be displayed in green or
blue.
(Avoid Freeway ON: green, OFF: blue)
If the route guidance is set, the display shows
the [DEST . SETTING] screen.
INV0493INV0388INV0389
HOW DO I USE THE AVOID AREA FEATURE?
8-4

Please refer to “Making the system guide
the route with detailed options” on page
5-17.
If the route guidance is not set, the display
shows the current vehicle location.
ALTERING AND DELETING THE
AVOID AREAS
Setting with the selected location
key
When the stored avoid area is selected, the
avoid area can be renamed or deleted.

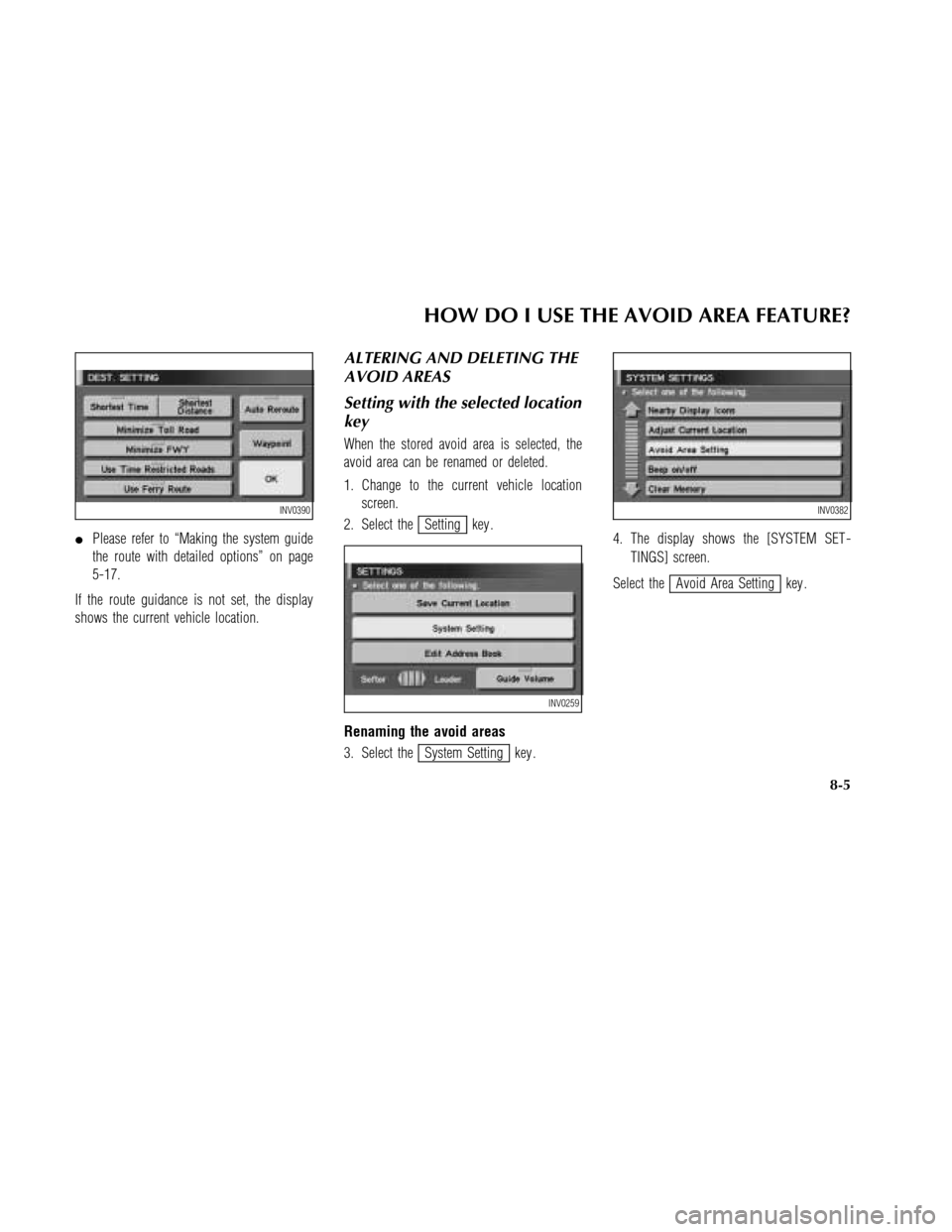

1. Change to the current vehicle location
screen.
2. Select the
Setting key .
Renaming the avoid areas
3. Select the
System Setting key .4. The display shows the [SYSTEM SET -
TINGS] screen.
Select the
Avoid Area Setting key .
INV0390
INV0259
INV0382
HOW DO I USE THE AVOID AREA FEATURE?
8-5

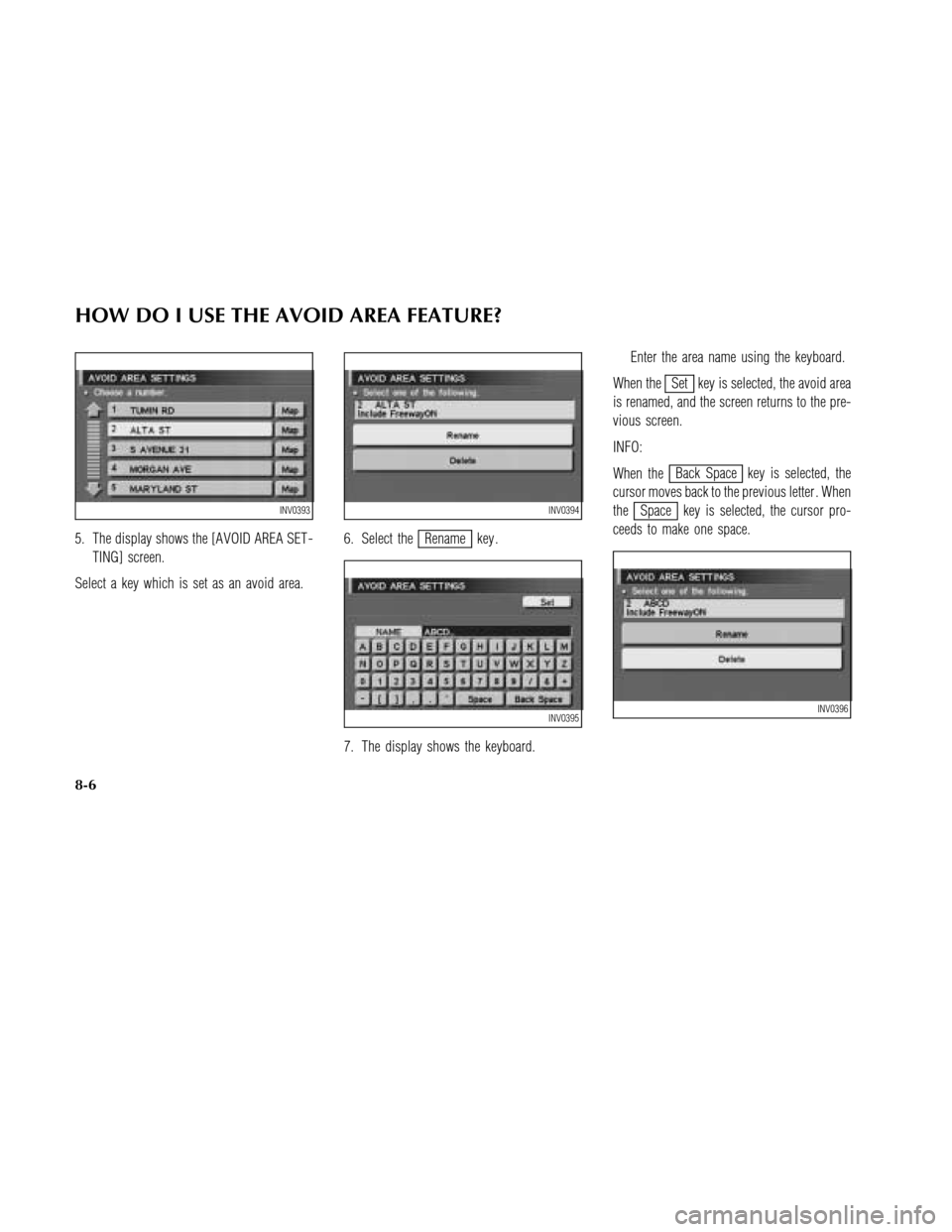

5. The display shows the [AVOIDAREA SET -
TING] screen.
Select a key which is set as an avoid area.6. Select theRename key .
7. The display shows the keyboard.Enter the area name using the keyboard.
When the
Set key is selected, the avoid area
is renamed, and the screen returns to the pre-
vious screen.
INFO:
When the
Back Space key is selected, the
cursor moves back to the previous letter . When
the
Space key is selected, the cursor pro-
ceeds to make one space.INV0393INV0394
INV0395INV0396
HOW DO I USE THE AVOID AREA FEATURE?
8-6

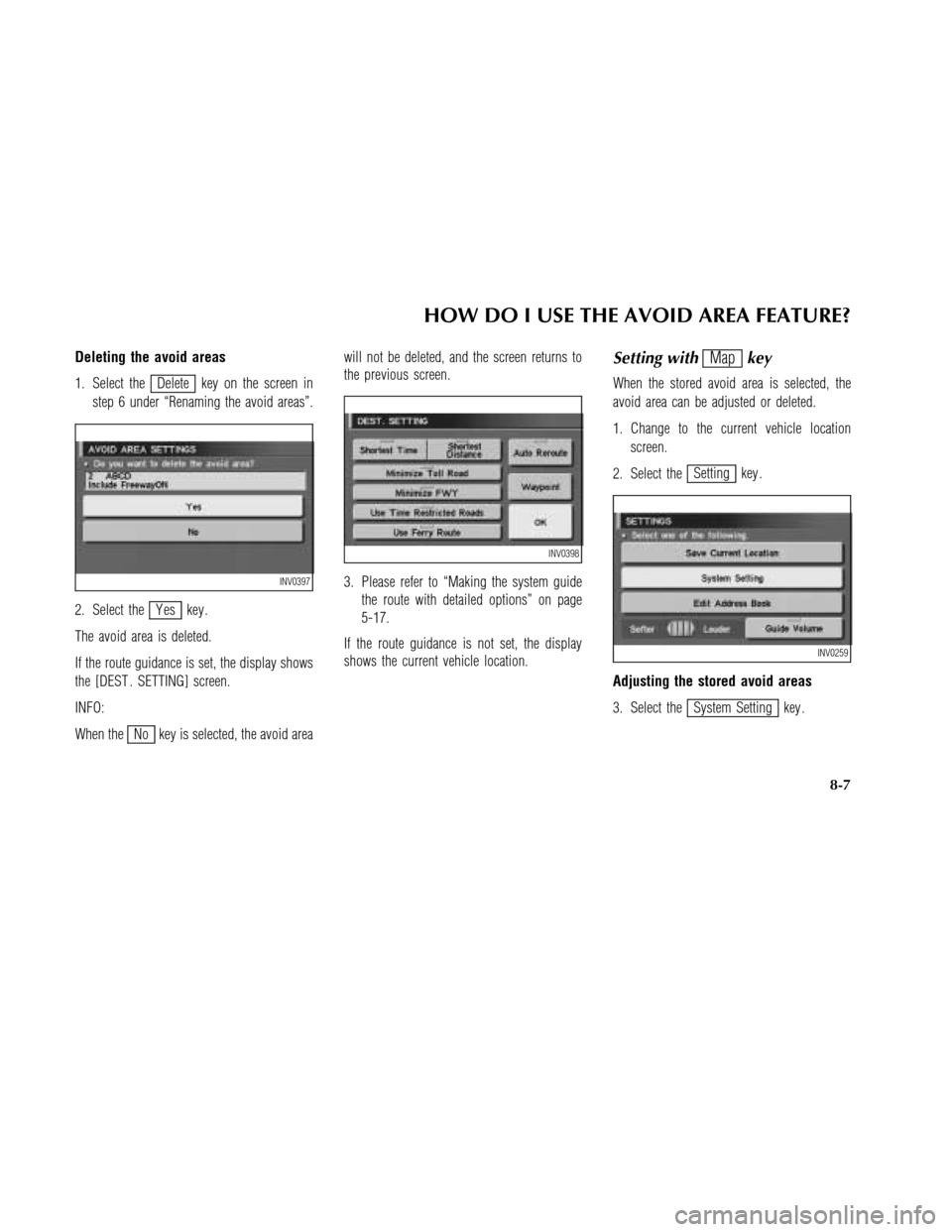

Deleting the avoid areas
1. Select the
Delete key on the screen in
step 6 under “Renaming the avoid areas”.
2. Select the
Y es key .
The avoid area is deleted.
If the route guidance is set, the display shows
the [DEST . SETTING] screen.
INFO:
When the
No key is selected, the avoid areawill not be deleted, and the screen returns to
the previous screen.
3. Please refer to “Making the system guide
the route with detailed options” on page
5-17.
If the route guidance is not set, the display
shows the current vehicle location.
Setting withMapkey
When the stored avoid area is selected, the
avoid area can be adjusted or deleted.
1. Change to the current vehicle location
screen.
2. Select the
Setting key .
Adjusting the stored avoid areas
3. Select the
System Setting key .
INV0397
INV0398
INV0259
HOW DO I USE THE AVOID AREA FEATURE?
8-7

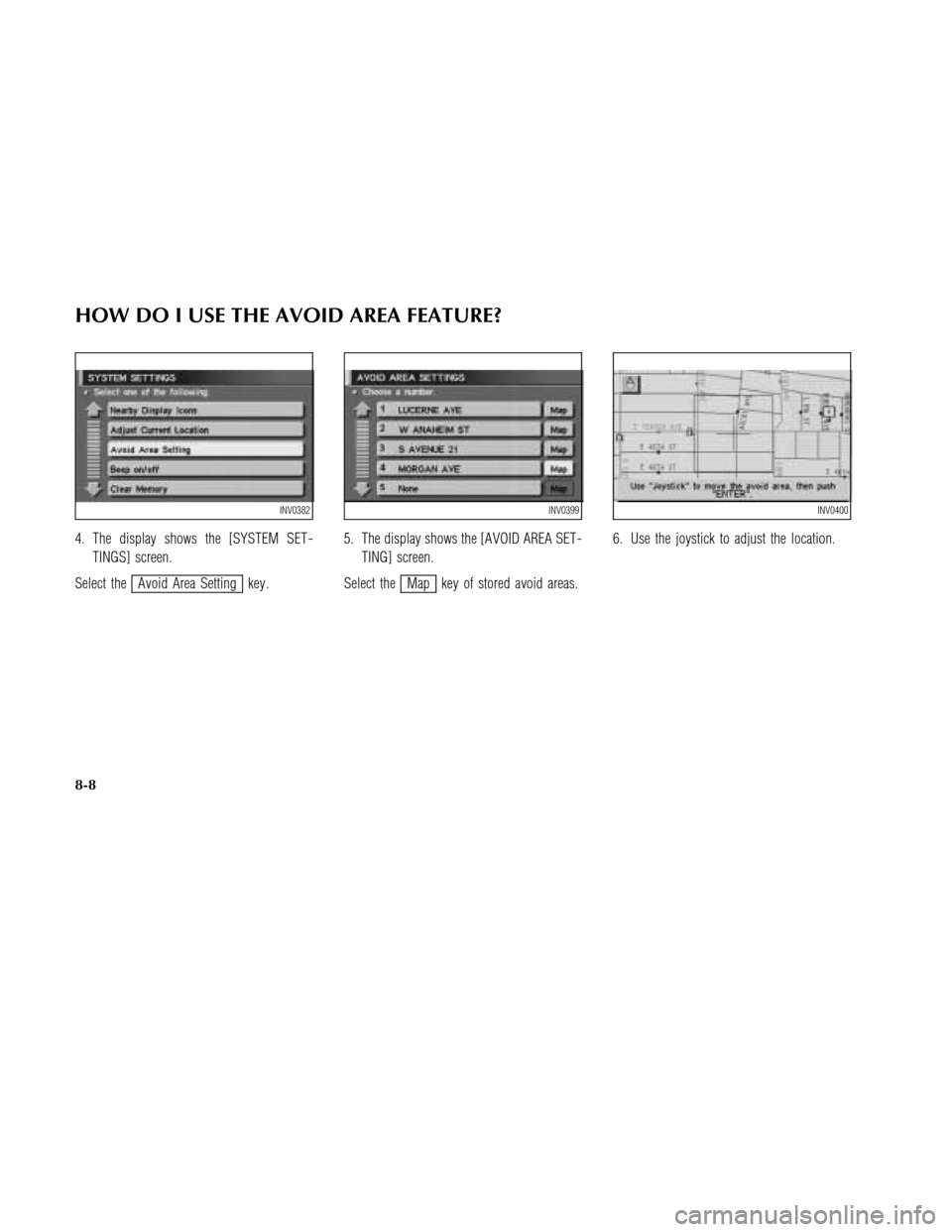

4. The display shows the [SYSTEM SET -
TINGS] screen.
Select the
Avoid Area Setting key .5. The display shows the [AVOIDAREA SET -
TING] screen.
Select theMap key of stored avoid areas.6. Use the joystick to adjust the location.
INV0382INV0399INV0400
HOW DO I USE THE AVOID AREA FEATURE?
8-8

7. The display shows the keys on the right of
the screen.
Select the
Set key .
INFO:

If you want to avoid the freeway in that area,
select the
key to turn on the green in-
dicator on the key . (Indicator ON: avoid,
OFF: do not avoid)

When altering the size of avoid area, select
the
Area key , then touch the
Area key . The area size is altered by three
scales.
8. The avoid area is set, and the grid is dis-
played on the screen.
If the route guidance is set, the display shows
the [DEST . SETTING] screen.9. Please refer to “Making the system guide
the route with detailed options” on page
5-17.
If the route guidance is not set, the display
shows the current vehicle location.
INV0401
INV0402
INV0403
HOW DO I USE THE AVOID AREA FEATURE?
8-9

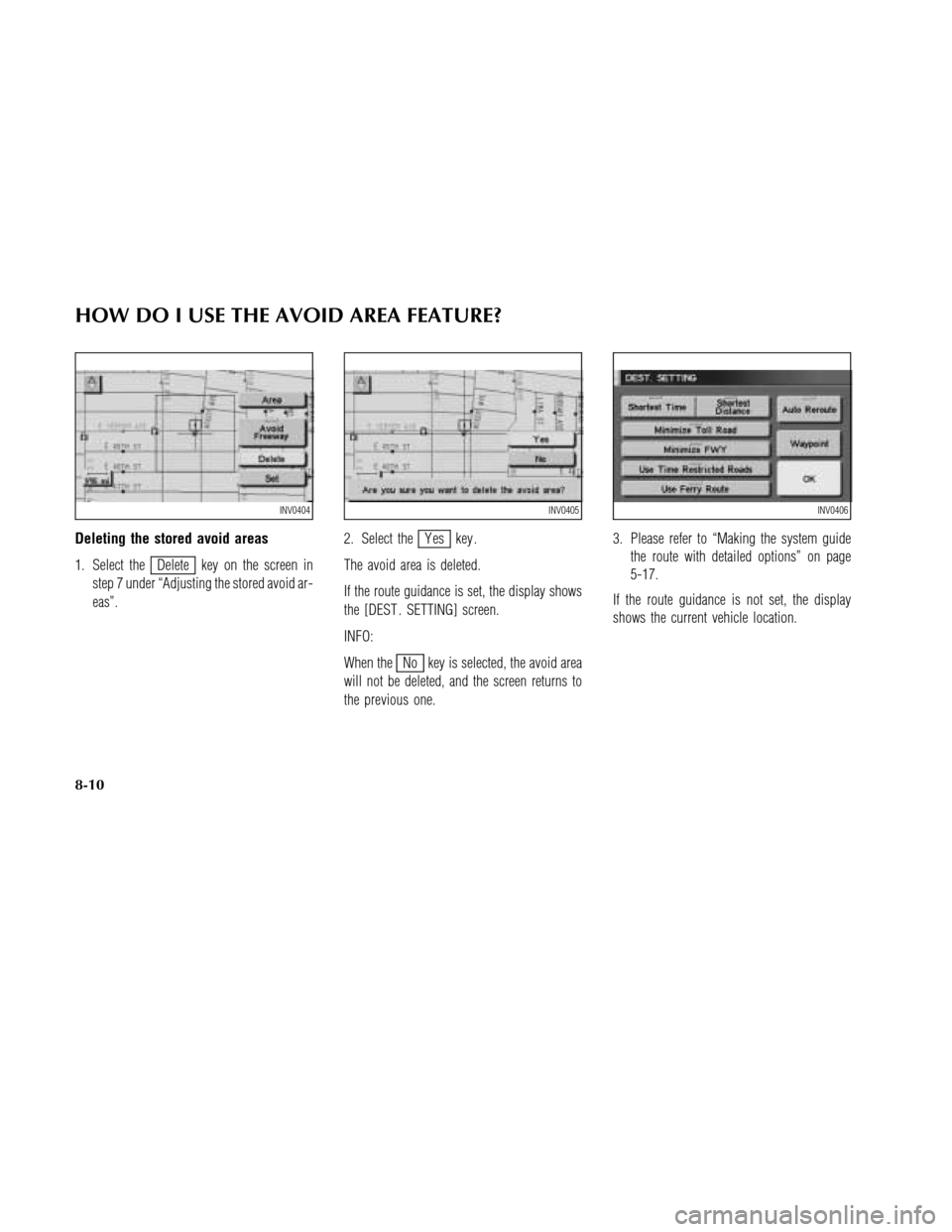

Deleting the stored avoid areas
1. Select the
Delete key on the screen in
step 7 under “Adjusting the stored avoid ar-
eas”.2. Select the
Y es key .
The avoid area is deleted.
If the route guidance is set, the display shows
the [DEST . SETTING] screen.
INFO:
When the
No key is selected, the avoid area
will not be deleted, and the screen returns to
the previous one.3. Please refer to “Making the system guide
the route with detailed options” on page
5-17.
If the route guidance is not set, the display
shows the current vehicle location.
INV0404INV0405INV0406
HOW DO I USE THE AVOID AREA FEATURE?
8-10

9 HOW DO I USE THE AUTOMATIC REROUTING FEATURE?
Rerouting when the vehicle is off the
suggested route ........................................... 9-2
Automa tic rerouting ............................... 9-2
Manual rerouting .................................... 9-3
Detouring from the route temporaril y ....... 9-4
Turning off route guidance temporaril y ...... 9-5
