2003 NISSAN MAXIMA stop start

Display Settingkey:
Changes the display color of the screen.
Please refer to “Changing the display color” on
page 11-16.
Adjusts the screen brightness.
Please refer to “Adjusting the display bright-
ness” on page 11-18.
Headingkey:
Y ou can set the map either to show the vehi-
cle’s current forward direction up, or to show
North up.
Please refer to “Changing the display direc-
tion” on page 11-6.
Nearby Display Iconskey:
Displays five types of points of interest around
the current location.
Please refer to “Setting the nearby display
icons” on page 6-9.
Adjust Current Locationkey:
Corrects the location and direction of the ve-
hicle icon.
Please refer to “Updating the current vehicle lo-
cation and the direction” on page 11-13.
Avoid Area Settingkey:
Defines areas to avoid when calculating a
route.
Please refer to “Avoid area” on page 8-2.
Beep on/offkey:
T urns ON/OFF beep sound which occurs au-
tomatically .
Please refer to “Setting automatic beep sound”
on page 11-19.
Clear Memorykey:
Clears all the stored memory (Address Book,
Avoid Area, Previous Dest.).Please refer to “Clearing the memory” on page
4-12.
GPS Informationkey:
GPS information will be displayed.
Please refer to “GPS information display” on
page 11-12.
Quick Stop Customer Settingskey:
Sets the user-defined [Quick Stop] POI (Point
Of Interest).
Please refer to “Quick stop” on page 5-26.
Route Prioritieskey:
Sets the conditions for route search.
Please refer to “Making the system guide the
route with detailed options” on page 5-17.
T rackingkey:
Y ou can choose whether to display the path
from the start to the current position.
HOW DO I OPERATE THE NISSAN NAVIGATION SYSTEM?
4-6

CAUTION

Close the display while driving to
prevent injury in an accident or
sudden stop.

Do not put any object on the open
display screen.

Do not allow the system to get wet.
Excessive moisture such as
spilled liquids may cause the sys-
tem to malfunction.
SETTING UP THE START-UP
SCREEN
When you turn the ignition key to ACC, the fol-
lowing warning is displayed on the screen:
Read the warning and select the
ENTER key .
INFO:

If you do not touch the
ENTER key , this
system will not proceed to the next step dis-
play .

If you do not use the navigation system,
press the OFF button for the display .
When the engine is turned off during route
calculation and then turned on, the [CON-
FIRMA TION OF DEST ./WA YPOINT] screen
will be displayed after the [SYSTEM
ST ART -UP] screen. When continuing the
previous route guidance, select the
OK
key . T o edit or delete, select the
Change
key .
CLEARING THE MEMORY
All the stored data (Address Book, Avoid Area,
Previous Dest) can be cleared.
1. Change to the current vehicle location
screen.
2. Select the
Setting key .
INV0487
HOW DO I OPERATE THE NISSAN NAVIGATION SYSTEM?
4-12

6. Select theOK key .
The [Route Calculation] screen will appear .INFO:
T o cancel the route calculation on the screen,
select the
Stop key .
The map screen will re-appear .

The suggested route is indicated with a
thick blue line.
When the vehicle travels on the route, the
navigation system will start voice guidance.
When the vehicle arrives in the neighbor-
hood of the destination, the route guidance
will end automatically with voice guidance.

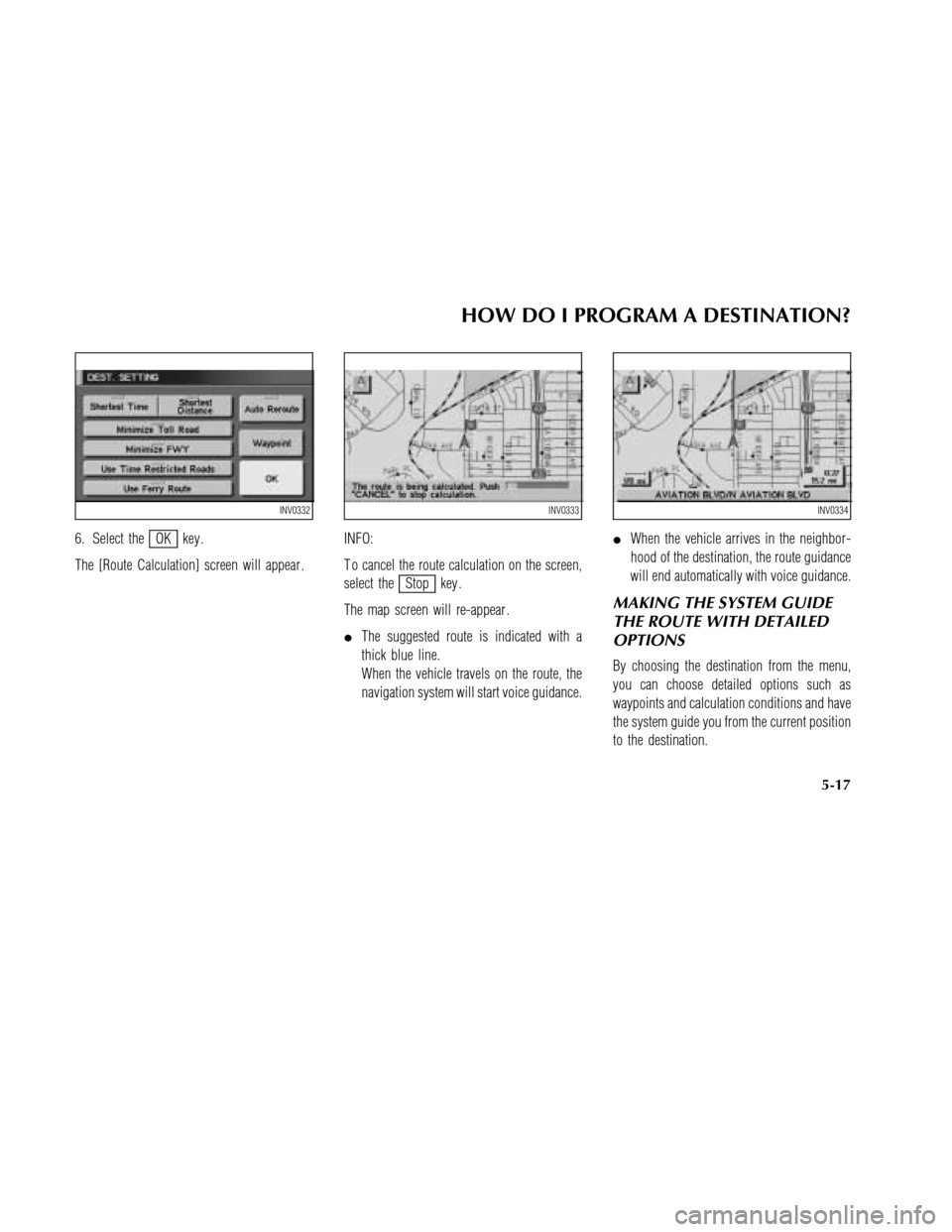

MAKING THE SYSTEM GUIDE
THE ROUTE WITH DETAILED
OPTIONS
By choosing the destination from the menu,
you can choose detailed options such as
waypoints and calculation conditions and have
the system guide you from the current position
to the destination.
INV0332INV0333INV0334
HOW DO I PROGRAM A DESTINATION?
5-17

INFO:
It is possible to display the [EDIT ROUTE]
screen by touching the map screen and by se-
lecting the
Edit Route key .
Select the
Route calc. key .
Route calculation screen will be displayed.
The suggested route will be displayed with a
thick blue line. If you enter this route, the voice
guide will start.INFO:

If you want to cancel the route calculation,
select the
Stop key .

If you set a place which is not suitable as
a destination, the suggested route will not
be displayed. In such a case, the
OK key
will be displayed on the screen. Select the
OK key and press the MAP button. Re-
set a correct destination.

In case the route calculation is not possible
with all the set preferences, the system maylook up a route that does not exactly cor-
respond to the preferences.

T o cancel the setting of destinations or
waypoints, touch the screen, then select the
Edit Route key .
Enlarged intersection display
When the vehicle approaches a guide point
such as an intersection, the enlarged map of
the point will be displayed.
INV0342
INV0343INV0492
HOW DO I PROGRAM A DESTINATION?
5-22

4. The display shows the direction and dis-
tance from the current vehicle position to
the selected facility .
Select the facility name you want to set as
a destination (waypoint).5. The display shows the [ROUTE PRIORI-
TIES] screen.
Set route priorities, then press the
OK
key . The route calculation to the destination
will be started.
INFO:
If quick stop is set after the destination was set,
the system starts the route calculation to the
location as the waypoint. Five waypoints can be
registered at the same time.Quick Stop Customer Setting
1. For example, set “REST AURANT”.
Change to the current vehicle location screen.
Select the
Setting key .
2. Select the
System Setting key on the
[SETTINGS] screen.
INV0355INV0274INV0259
HOW DO I PROGRAM A DESTINATION?
5-27

CONTROL P ANEL
When a music CDis inserted into the system,
the operation screen will appear automatically .
INFO:
While a music CDis playing, the navigation
system cannot be used.
1.
REPEA T key; refer to page 13-4.
2.
OFF key; refer to page 13-4.
3.
key (play); refer to page 13-3.4.
key (stop); refer to page 13-3.
5.
key (rewind/fast forward); re-
fer to page 13-4.
6.
key (skips tracks — rewind/
fast forward); refer to page 13-4.
LISTENING TO THE MUSIC CD
1. Press the OPENbutton. The display
will tilt forward.
2. Press the
button on the main unit to
eject the inserted map CD-ROM.
INFO:
If the ejected CD-ROM is left as it is, it will be
retracted automatically for protection.
3. Insert a music CDto the insertion slot.
When the music CDis inserted to a certain
extent, it will be retracted automatically . The
operation screen will appear , then the sys-
tem will start playback.NOTE:

An 8 cm music CD (single)can be
also used without an adapter . Do not
use an adapter because it may cause
failure.

Store the ejected map CD-ROM in a
case.
INFO:
Sound volume, quality , and balance can be ad-
justed in the audio section.
OPERATING THE AUDIO SYS-
TEM
How to play/stop to the music
CD

T o stop playback, select thekey on
the screen.

T o restart playback, select the
key
on the screen.

T o change the initial screen to the music
INV0474
HOW DO I OPERATE THE AUDIO SYSTEM?
13-3

Music CD.................................................................... 13-2
N
Nearby display icons .................................................. 6-10
P
Point of Interest (POI) .................................................. 6-2
Preferences for route calculation ................................ 5-21
Previous Dest. ............................................................. 5-4
Q
Quick stop................................................................... 5-26
Quick stop customer settings ..................................... 5-28
R
Reference symbols ........................................................ 1-2
Route calculation and guidance ................................. 5-22
Route guidance ........................................................... 4-14S
Safe operation ............................................................... 1-2
Safety note .................................................................... 1-2
Scrolling the map ....................................................... 11-8
Setup start-up screen ................................................. 4-12
Simulation drive........................................................ 11-10
Storing current vehicle location ................................... 7-2
T
T racking .................................................................... 11-11
T roubleshooting .......................................................... 15-1
T urn list ...................................................................... 11-9
U
Updating the current vehicle location and the
direction .................................................................... 11-13
V
Voice guidance ........................................................... 10-2Voice guidance (Notes) .............................................. 10-4
W
Waypoint (Adjusting) .................................................. 5-23
Waypoint (Deleting) .................................................... 5-23
Waypoint (Setting) ...................................................... 5-19
Where am I? ............................................................... 5-29
Z
Zoom in (IN) ............................................................... 11-5
Zoom out (OUT) ......................................................... 11-5
INDEX
16-2
