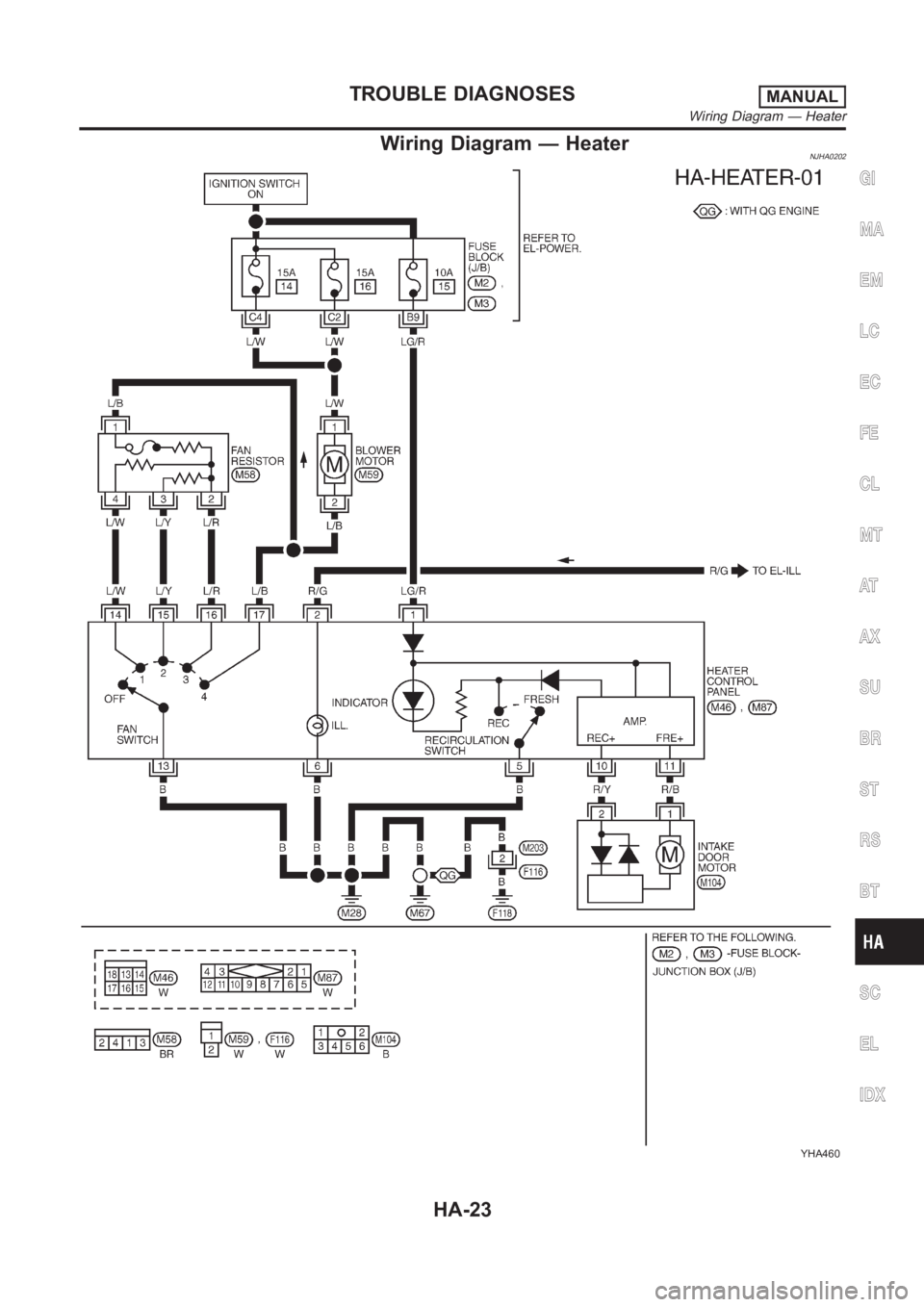

Wiring Diagram — HeaterNJHA0202
YHA460
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
SC
EL
IDX
TROUBLE DIAGNOSESMANUAL
Wiring Diagram — Heater
HA-23

Circuit Diagram — Air ConditionerNJHA0127
YHA461
TROUBLE DIAGNOSESMANUAL
Circuit Diagram — Air Conditioner
HA-24

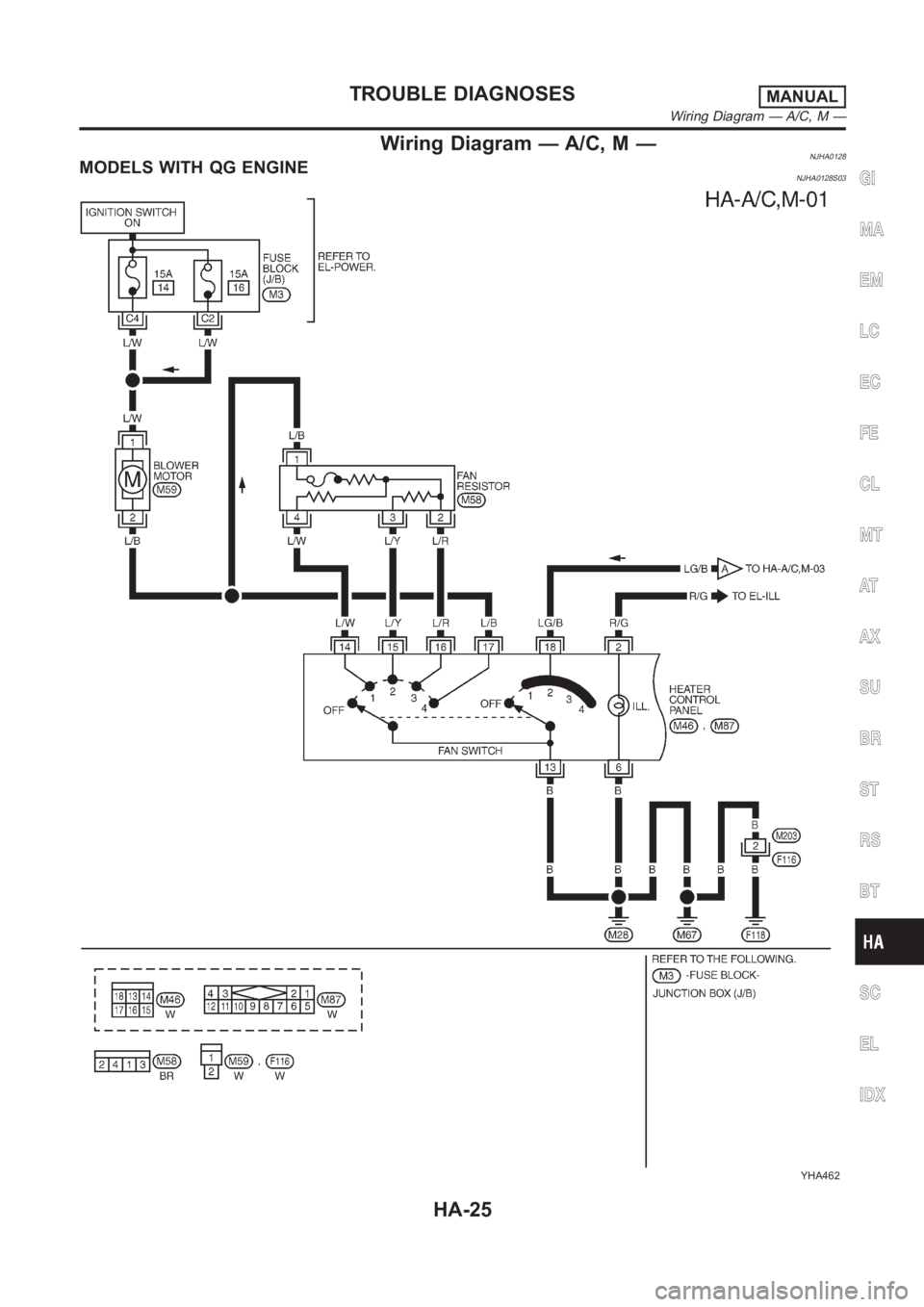

Wiring Diagram — A/C, M —NJHA0128MODELS WITH QG ENGINENJHA0128S03
YHA462
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
SC
EL
IDX
TROUBLE DIAGNOSESMANUAL
Wiring Diagram — A/C, M —
HA-25

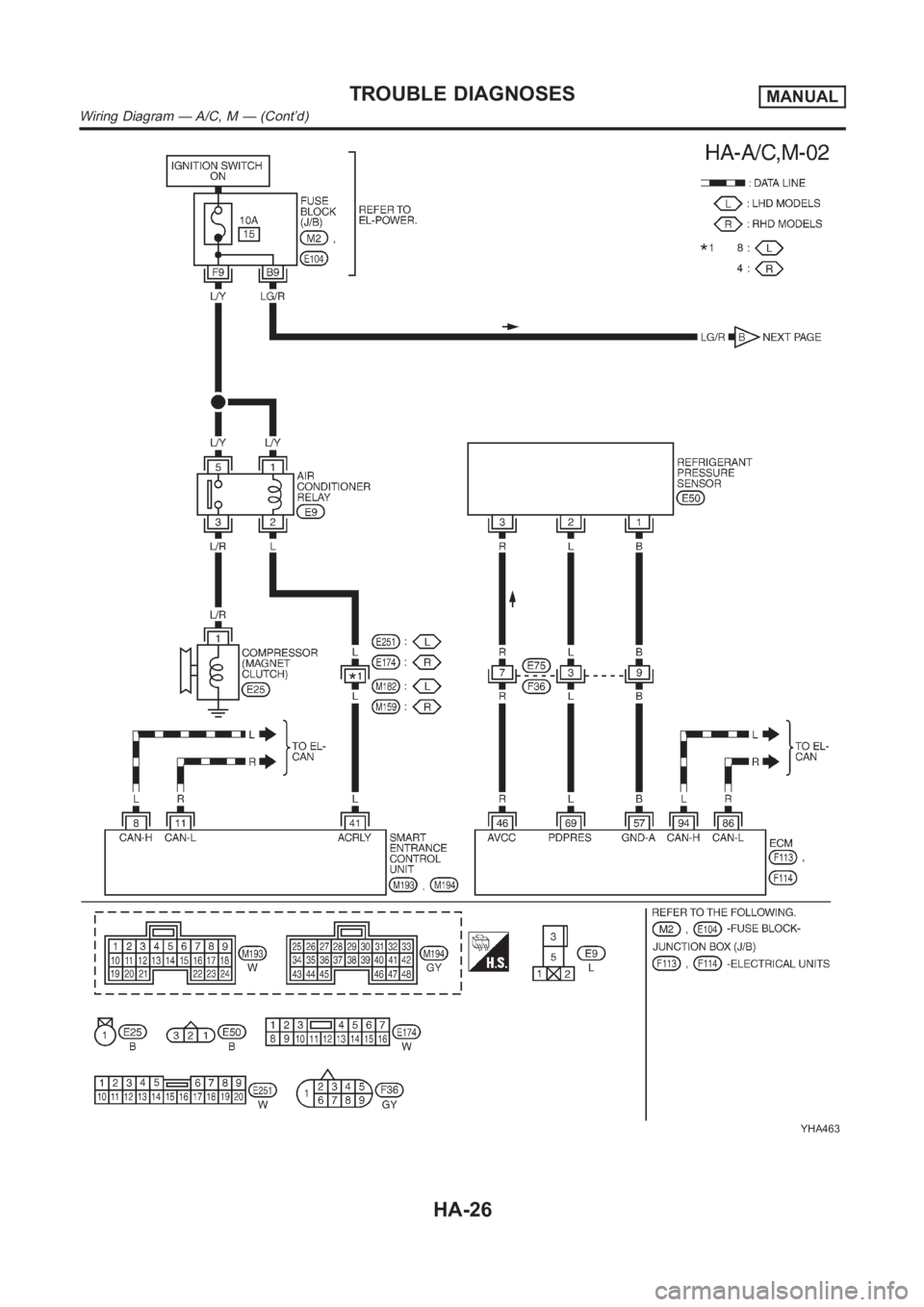

YHA463

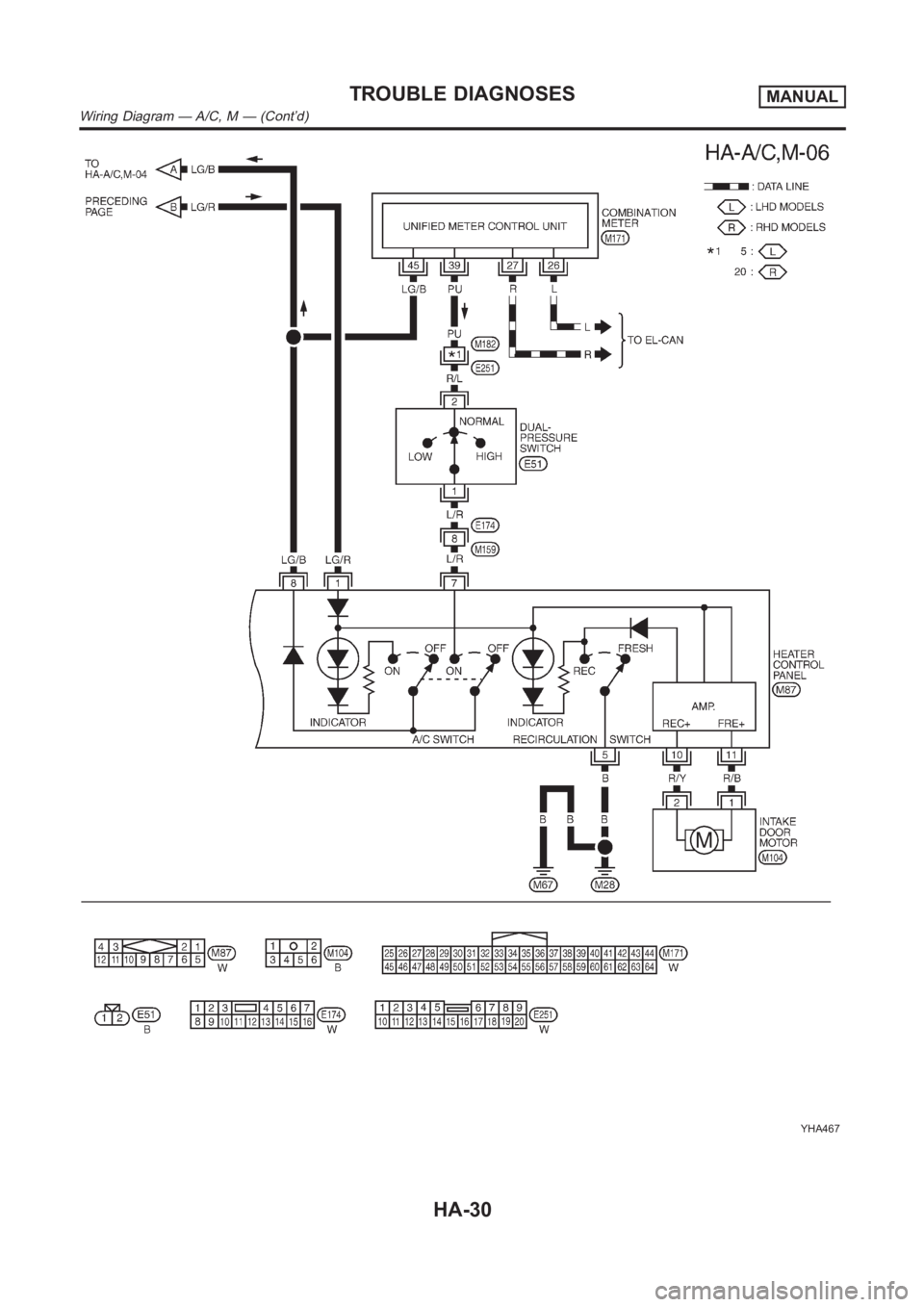

TROUBLE DIAGNOSESMANUAL
Wiring Diagram — A/C, M — (Cont’d)
HA-26

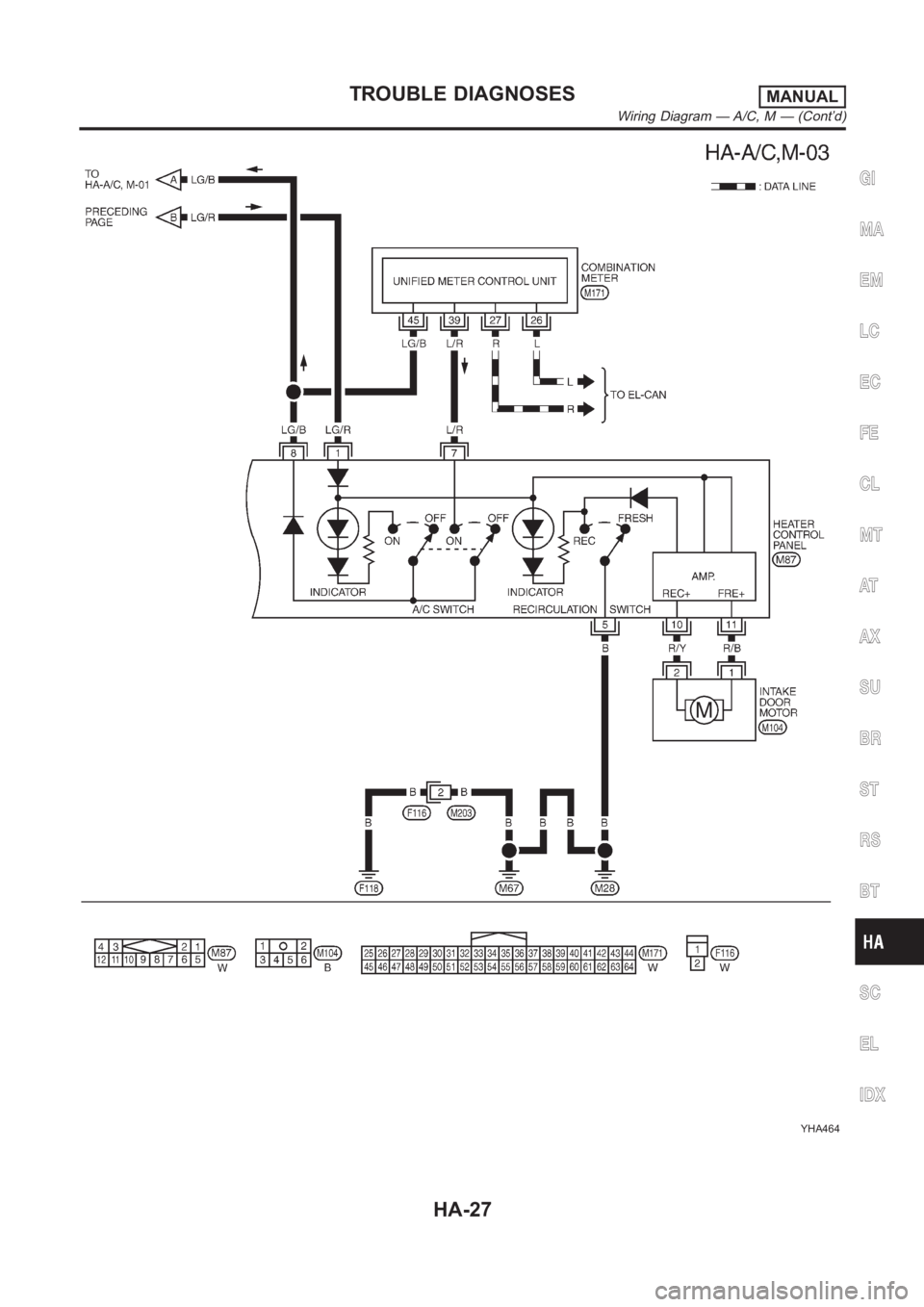

YHA464
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
SC
EL
IDX
TROUBLE DIAGNOSESMANUAL

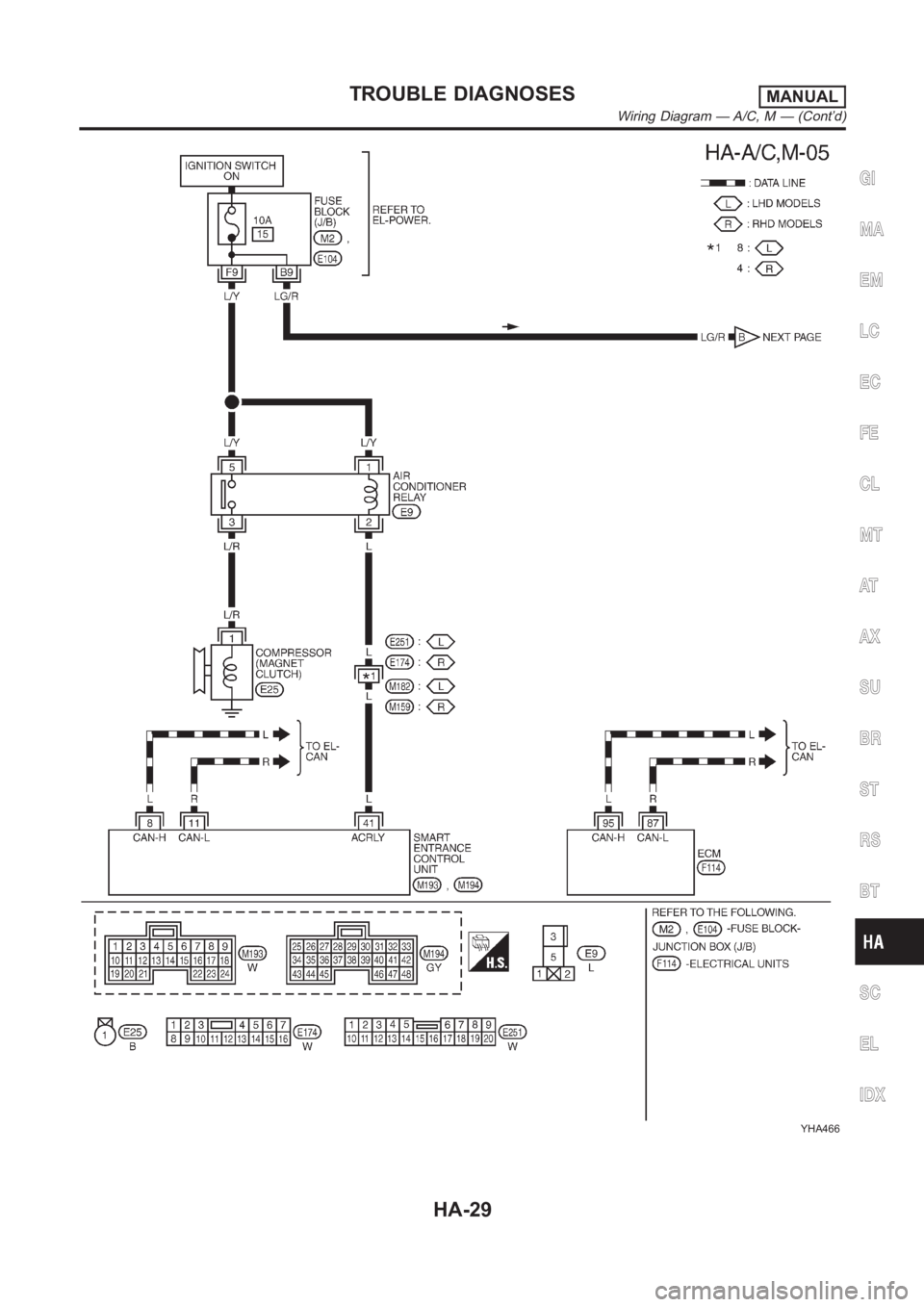

Wiring Diagram — A/C, M — (Cont’d)
HA-27

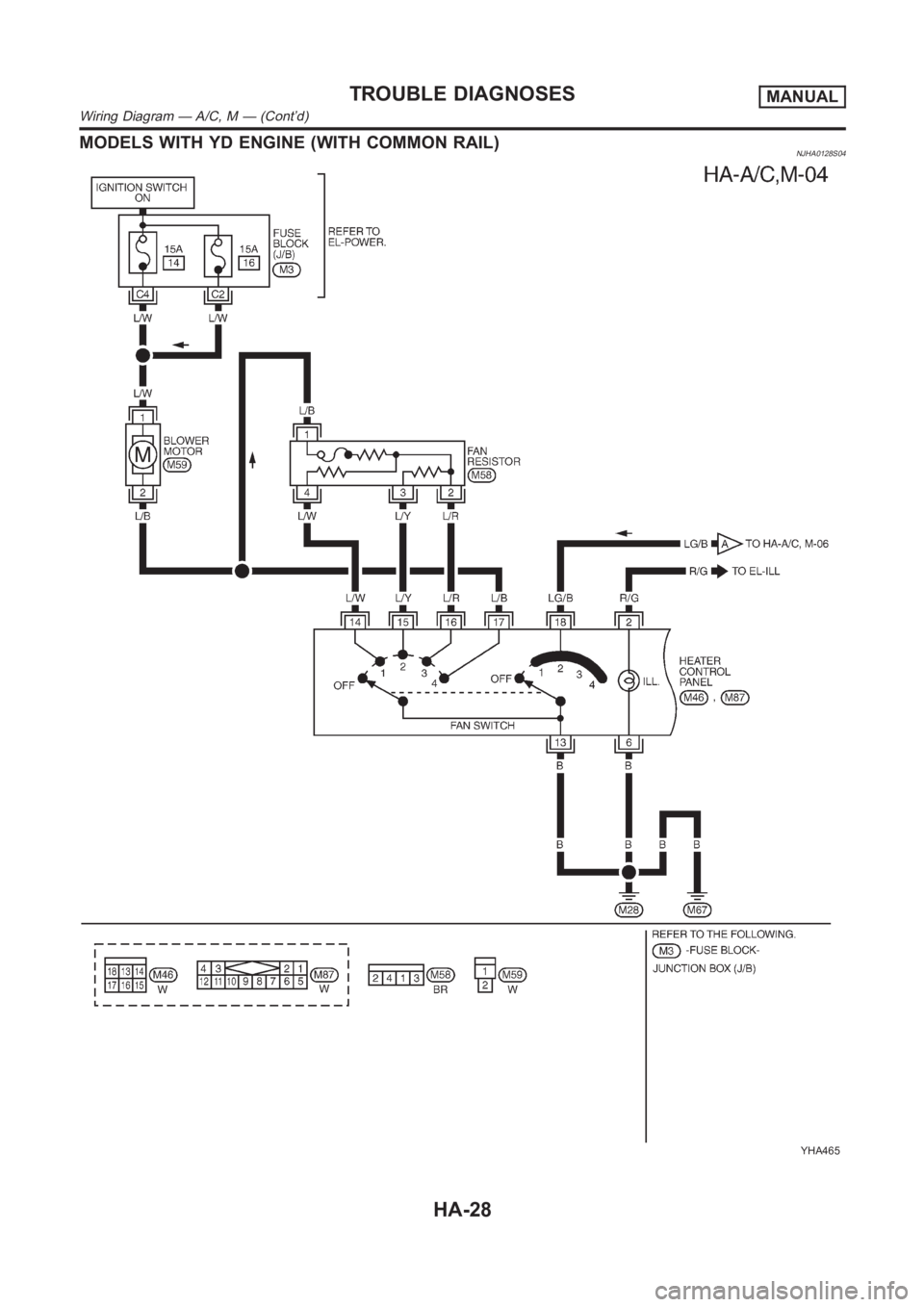

MODELS WITH YD ENGINE (WITH COMMON RAIL)NJHA0128S04
YHA465
TROUBLE DIAGNOSESMANUAL
Wiring Diagram — A/C, M — (Cont’d)
HA-28

YHA466
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
SC
EL
IDX
TROUBLE DIAGNOSESMANUAL
Wiring Diagram — A/C, M — (Cont’d)
HA-29

YHA467
TROUBLE DIAGNOSESMANUAL
Wiring Diagram — A/C, M — (Cont’d)
HA-30
