DTC P1111 IVT CONTROL SOLENOID VALVE
D T C P 1111 I V T C O N T R O L S O L E N O I D VA LV E
PFP:23796
Component DescriptionEBS00K9G
Intake valve timing control solenoid valve is activated by ON/OFF
pulse duty (ratio) signals from the ECM.
The intake valve timing control solenoid valve changes the oil
amount and direction of flow through intake valve timing control unit
or stops oil flow.
The longer pulse width advances valve angle.
The shorter pulse width retards valve angle.
When ON and OFF pulse widths become equal, the solenoid valve
stops oil pressure flow to fix the intake valve angle at the control
position.
CONSULT-II Reference Value in Data Monitor ModeEBS00K9H
Specification data are reference values.
On Board Diagnosis LogicEBS00K9I
DTC Confirmation ProcedureEBS00K9J
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF”
and wait at least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 5 seconds.
4. If 1st trip DTC is detected, go to EC-274, "
Diagnostic Procedure"
.
WITH GST
Following the procedure “WITH CONSULT-II” above.
PBIB0195E
MONITOR ITEM CONDITION SPECIFICATION
INT/V SOL (B1)
●Engine: After warming up
●Shift lever:
N (A/T models)
Neutral (M/T models)
●Air conditioner switch: OFF
●No-loadIdle 0% - 2%
When revving engine up to 2,000 rpm
quicklyApprox. 0% - 60%
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P 1111
1111Intake valve timing control
solenoid valve circuitAn improper voltage is sent to the ECM
through intake valve timing control solenoid
valve.
●Harness or connectors
(Solenoid valve circuit is open or shorted.)
●Intake valve timing control solenoid valve
SEF058Y

EC-324
[QG (WITH EURO-OBD)]

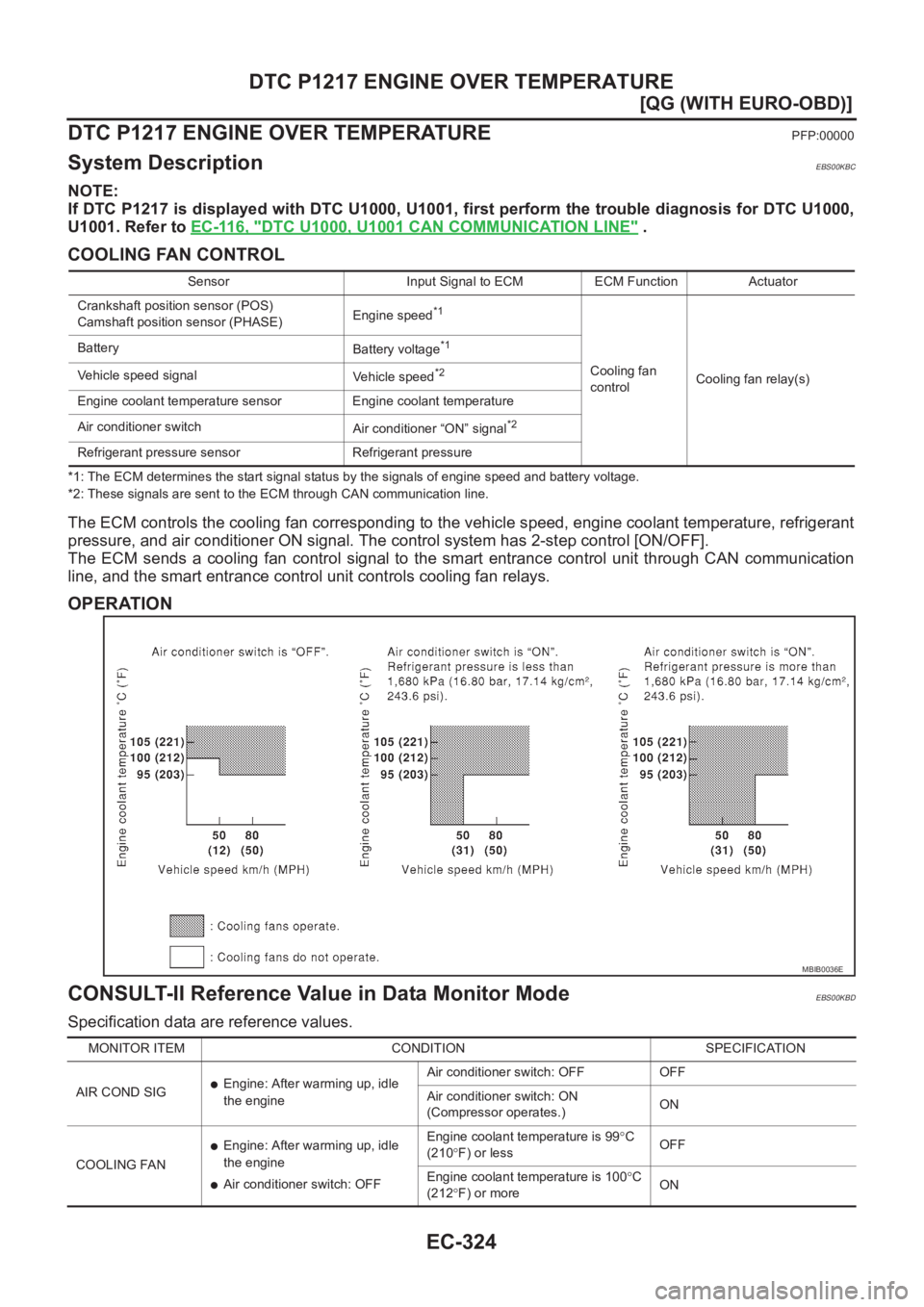

DTC P1217 ENGINE OVER TEMPERATURE
DTC P1217 ENGINE OVER TEMPERATURE
PFP:00000
System DescriptionEBS00KBC
NOTE:
If DTC P1217 is displayed with DTC U1000, U1001, first perform the trouble diagnosis for DTC U1000,
U1001. Refer to EC-116, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
COOLING FAN CONTROL
*1: The ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: These signals are sent to the ECM through CAN communication line.
The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, refrigerant
pressure, and air conditioner ON signal. The control system has 2-step control [ON/OFF].
The ECM sends a cooling fan control signal to the smart entrance control unit through CAN communication
line, and the smart entrance control unit controls cooling fan relays.
OPERATION
CONSULT-II Reference Value in Data Monitor ModeEBS00KBD
Specification data are reference values.
Sensor Input Signal to ECM ECM Function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed
*1
Cooling fan
controlCooling fan relay(s) Battery
Battery voltage
*1
Vehicle speed signal
Vehicle speed*2
Engine coolant temperature sensor Engine coolant temperature
Air conditioner switch
Air conditioner “ON” signal
*2
Refrigerant pressure sensor Refrigerant pressure
MBIB0036E
MONITOR ITEM CONDITION SPECIFICATION
AIR COND SIG
●Engine: After warming up, idle
the engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates.)ON
COOLING FAN
●Engine: After warming up, idle
the engine
●Air conditioner switch: OFFEngine coolant temperature is 99°C
(210°F) or lessOFF
Engine coolant temperature is 100°C
(212°F) or moreON

EC-326
[QG (WITH EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
4. Perform “COOLING FAN” in “ACTIVE TEST” mode with CON-
SULT-II.
5. If the results are NG, go to EC-328, "
Diagnostic Procedure" .
WITH GST
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-328,
"Diagnostic Procedure" .
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-328,
"Diagnostic Procedure" .
3. Start engine.
Be careful not to overheat engine.
4. Turn air conditioner switch “ON”.
5. Turn blower fan switch “ON”.
6. Make sure that cooling fans operate.
If NG, go to EC-328, "
Diagnostic Procedure" .
MBIB0037E
SEF621W
SEC163BA

EC-328
[QG (WITH EURO-OBD)]
DTC P1217 ENGINE OVER TEMPERATURE
Diagnostic Procedure
EBS00KBH
1. INSPECTION START
Do you have CONSULT-II?
Ye s o r N o
Yes >> GO TO 2.
No >> GO TO 3.
2. CHECK COOLING FAN OPERATION
With CONSULT-II
1. Start engine and let it idle.
2. Select “COOLING FAN” in “ACTIVE TEST” mode with CON-
SULT-II and touch “ON” on the CONSULT-II screen.
3. Make sure that cooling fans-1 and -2 operate.
OK or NG
OK >> GO TO 4.
NG >> Check cooling fan control circuit. (Go to EC-331, "
PRO-
CEDURE A" .)
3. CHECK COOLING FAN OPERATION
Without CONSULT-II
1. Start engine and let it idle.
2. Turn air conditioner switch “ON”.
3. Turn blower fan switch “ON”.
4. Make sure that cooling fans-1 and -2 operate.
OK or NG
OK >> GO TO 4.
NG >> Check cooling fan control circuit. (Go to EC-331, "
PRO-
CEDURE A" .)
MBIB0037E
SEC163BA

INJECTOR CIRCUIT
EC-375
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
INJECTOR CIRCUITPFP:16600
Component DescriptionEBS00KCX
The fuel injector is a small, precise solenoid valve. When the ECM
supplies a ground to the injector circuit, the coil in the injector is
energized. The energized coil pulls the needle valve back and allows
fuel to flow through the injector into the intake manifold. The amount
of fuel injected depends upon the injection pulse duration. Pulse
duration is the length of time the injector remains open. The ECM
controls the injection pulse duration based on engine fuel needs.
CONSULT-II Reference Value in Data Monitor ModeEBS00KCY
Specification data are reference values.
SEF375Z
MONITOR ITEM CONDITION SPECIFICATION
B/FUEL SCHDL
●Engine: After warming up
●Shift lever:
N (A/T models)
Neutral (M/T models)
●Air conditioner switch: OFF
●No-loadIdle 1.5 - 3.0 msec
2,000 rpm 1.2 - 3.0 msec
INJ PULSE-B1
●Engine: After warming up
●Shift lever:
N (A/T models)
Neutral (M/T models)
●Air conditioner switch: OFF
●No-loadIdle 2.0 - 3.5 msec
2,000 rpm 1.5 - 3.5 msec

REFRIGERANT PRESSURE SENSOR
EC-387
[QG (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
REFRIGERANT PRESSURE SENSORPFP:92136
Component DescriptionEBS00KD9
The refrigerant pressure sensor is installed at the liquid tank of the
air conditioner system. The sensor uses an electrostatic volume
pressure transducer to convert refrigerant pressure to voltage. The
voltage signal is sent to ECM, and ECM controls cooling fan system.
MBIB0249E
SEF099X

EC-404
[QG (WITH EURO-OBD)]
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
PFP:00030
Fuel PressureEBS00KDN
Idle Speed and Ignition TimingEBS00KDO
*1: Under the following conditions:
●Air conditioner switch: OFF
●Electric load: OFF (Lights, heater fan & rear window defogger)
●Steering wheel: Kept in straight-ahead position
Calculated Load ValueEBS00KDP
Mass Air Flow SensorEBS00KDQ
*: Engine is warmed up to normal operating temperature and running under no-load.
Intake Air Temperature SensorEBS00KDR
Engine Coolant Temperature SensorEBS00KDS
Heated Oxygen Sensor 1 HeaterEBS00KDT
Heated Oxygen sensor 2 HeaterEBS00KDU
Crankshaft Position Sensor (POS)EBS00KDV
Refer to EC-238, "Component Inspection" .
Camshaft Position Sensor (PHASE)EBS00KDW
Refer to EC-244, "Component Inspection" .
Fuel pressure at idle
Approximately 350 kPa (3.5bar, 3.57kg/cm2 , 51psi)
Target idle speed
No-load*1 (in “P” or N” position)A/T: 800±50 rpm
M/T: 700±50 rpm
Air conditioner: ON In “P” or N” position 900 rpm or more
Ignition timingIn “P” or N” position A/T: 10°±5° BTDC
M/T: 8°±5° BTDC
Calculated load value % (Using CONSULT-II or GST)
At idle10 - 35
At 2,500 rpm10 - 35
Supply voltageBattery voltage (11 - 14V)
Output voltage at idle1.0 - 1.7*V
Mass air flow (Using CONSULT-II or GST)1.0 - 4.0 g·m/sec at idle*
5.0 - 10.0 g·m/sec at 2,500 rpm*
Temperature °C (°F) Resistance kΩ
25 (77)1.9 - 2.1
80 (176)0.31 - 0.37
Temperature °C (°F) Resistance kΩ
20 (68) 2.1 - 2.9
50 (122) 0.68 - 1.00
90 (194) 0.236 - 0.260
Resistance [at 20°C (68°F)] 8 - 10Ω
Resistance [at 25°C (77°F)] 2.3 - 4.3Ω

ENGINE CONTROL SYSTEM
EC-417
[QG (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
System ChartEBS00KEB
*1: This sensor is not used to control the engine system under normal conditions.
*2: The signals are sent to the ECM through CAN communication line.
*3: The output signals are sent from the ECM through CAN communication line.
Multiport Fuel Injection (MFI) SystemEBS00KEC
INPUT/OUTPUT SIGNAL CHART
*1: Under normal conditions, this sensor is not for engine control operation.
*2: This signal is sent to the ECM through CAN communication line.
*3: The ECM determines the start signal status by the signals of engine speed and battery voltage.
SYSTEM DESCRIPTION
The amount of fuel injected from the fuel injector is determined by the ECM. The ECM controls the length of
time the valve remains open (injection pulse duration). The amount of fuel injected is a program value in the
Input (Sensor) ECM Function Output (Actuator)
●Camshaft position sensor (PHASE)
●Crankshaft position sensor (POS)
●Mass air flow sensor
●Engine coolant temperature sensor
●Heated oxygen sensor 1
●Throttle position sensor
●Accelerator pedal position sensor
●Park/neutral position (PNP) switch
●Intake air temperature sensor
●Power steering pressure sensor
●Ignition switch
●Stop lamp switch
●Battery voltage
●Knock sensor
●Refrigerant pressure sensor
●Heated oxygen sensor 2*1
●TCM (Transmission control module)*2
●Air conditioner switch*2
●Vehicle speed signal*2
●Electrical load signal*2
Fuel injection & mixture ratio control Fuel injectors
Electronic ignition system Power transistor
Fuel pump control Fuel pump relay
On board diagnostic system
MI (On the instrument panel)
*3
Intake valve timing controlIntake valve timing control solenoid
valve
Heated oxygen sensor 1 heater control Heated oxygen sensor 1 heater
Heated oxygen sensor 2 heater control Heated oxygen sensor 2 heater
EVAP canister purge flow controlEVAP canister purge volume control
solenoid valve
Air conditioning cut control
Air conditioner relay
*3
Cooling fan control
Cooling fan relays*3
Sensor Input Signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed
*3 and piston position
Fuel injection & mix-
ture ratio controlFuel injectors Mass air flow sensor Amount of intake air
Engine coolant temperature sensor Engine coolant temperature
Heated oxygen sensor 1 Density of oxygen in exhaust gas
Throttle position sensor Throttle position
Accelerator pedal position sensor Accelerator pedal position
Park/neutral position (PNP) switch Gear position
Knock sensor Engine knocking condition
Battery
Battery voltage
*3
Power steering pressure sensor Power steering operation
Heated oxygen sensor 2
*1Density of oxygen in exhaust gas
Vehicle speed signal
*2Vehicle speed
Air conditioner switch
*2Air conditioner operation
