2003 MAZDA MODEL PROTÉGÉ Owners Manual (in English)

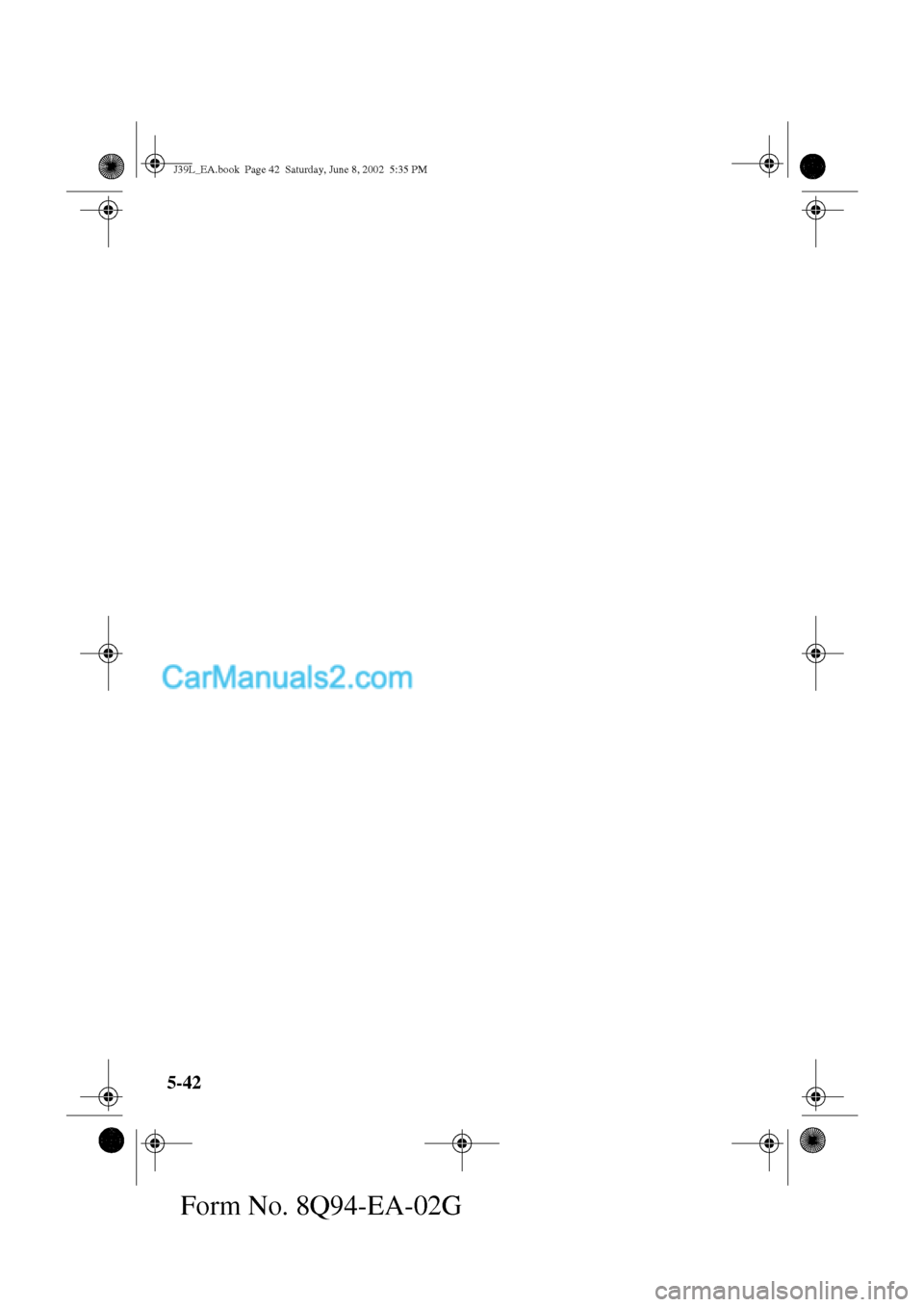

5-42
Form No. 8Q94-EA-02G
J39L_EA.book Page 42 Saturday, June 8, 2002 5:35 PM

6-1
Form No. 8Q94-EA-02G
6Interior Comfort
Use of various features for drive comfort, including climate control
and audio system.
Climate Control System
................................................................ 6-2
Operating Tips ........................................................................... 6-2
Vent Operation ........................................................................... 6-3
Manual Type .............................................................................. 6-5
Audio System
............................................................................... 6-10
Antenna ................................................................................... 6-10
Operating Tips for Audio System ............................................ 6-11
Audio Set ................................................................................. 6-17
Safety Certification .................................................................. 6-34
Interior Equipment
..................................................................... 6-35
Sunvisors ................................................................................. 6-35
Interior Lights .......................................................................... 6-35
Lighter ..................................................................................... 6-37
Ashtray .................................................................................... 6-38
Cup Holder .............................................................................. 6-38
Storage Compartments ............................................................ 6-39
J39L_EA.book Page 1 Saturday, June 8, 2002 5:35 PM

6-2
Interior Comfort
Form No. 8Q94-EA-02G
Climate Control System

Operating the Climate Control
System
Operate the climate control system with
the engine running.

Clearing the Air Inlet
Clear all obstructions like leaves, snow
and ice from the hood and the air inlet in
the cowling grille to improve the system
efficiency.

Foggy Windows
The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.
To help defog the windows, operate the air
conditioner to dehumidify the air.

Outside/Recirculated Air
Position
Use the outside air position in normal
conditions. The recirculated air position
can be used temporarily when driving on
dusty roads or for quick cooling of the
interior.

Parking in Direct Sunlight
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.

Not Using for a Long Period
Run the air conditioner at least once a
month to keep internal parts lubricated.

Check the Refrigerant before
Weather Gets Hot
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.
The optional air conditioner is filled with
HFC134a (R134a), a refrigerant that will
not damage the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.
Operating Tips
J39L_EA.book Page 2 Saturday, June 8, 2002 5:35 PM

6-3
Interior Comfort
Climate Control System
Form No. 8Q94-EA-02G

Adjusting the Vents
Directing airflow
You can direct air flow by moving the adjustment knob.
Adjusting the amount of airflow
These vents can be opened and closed with wheel.
Vent Operation
NOTE
When using the air conditioner, mist may come out from the vents. This is not a sign of
trouble but a result of humid air being suddenly cooled.
Knob Open
Close
* Depending on the model some vents may not be available.
J39L_EA.book Page 3 Saturday, June 8, 2002 5:35 PM

6-4
Interior Comfort
Climate Control System
Form No. 8Q94-EA-02G

Selecting the Airflow Mode
Dashboard and Floor Vents Defroster Vents
Floor Vents Dashboard Vents Defroster and Floor Vents
J39L_EA.book Page 4 Saturday, June 8, 2002 5:35 PM

6-5
Interior Comfort
Climate Control System
Form No. 8Q94-EA-02G

Control Switches
Temperature control dial
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.Fan control dial
This dial allows variable fan speeds.
0—Fan off
1—Low speed
2—Medium low speed
3—Medium high speed
4—High speed
Manual Type
A/C switch
Fan control dial Rear window defroster switch
Temperature control dial
Air intake selector
Mode selector dial
(page 5-40)
Hot Cold
J39L_EA.book Page 5 Saturday, June 8, 2002 5:35 PM

6-6
Interior Comfort
Climate Control System
Form No. 8Q94-EA-02G
Mode selector dial
Turn the mode selector dial to select
airflow mode (page 6-4).
A/C switch
Push the switch to turn the air conditioner
on. An indicator light on the switch will
illuminate when the fan control dial is on.
Push the switch once again to turn the air
conditioner off.Air intake selector
This switch controls the source of air
entering the vehicle.
Press the switch to alternate between the
and positions. The indicator
light for the selected mode will
illuminate.
It is recommended that under normal
conditions the switch be kept in the
outside air position.
Outside air position ( )
Outside air is taken into the vehicle. Use
this position for normal ventilation and
heating.
NOTE
The air conditioner may not function
when the outside temperature
approaches 0
°C (32
°F).
J39L_EA.book Page 6 Saturday, June 8, 2002 5:35 PM

6-7
Interior Comfort
Climate Control System
Form No. 8Q94-EA-02G

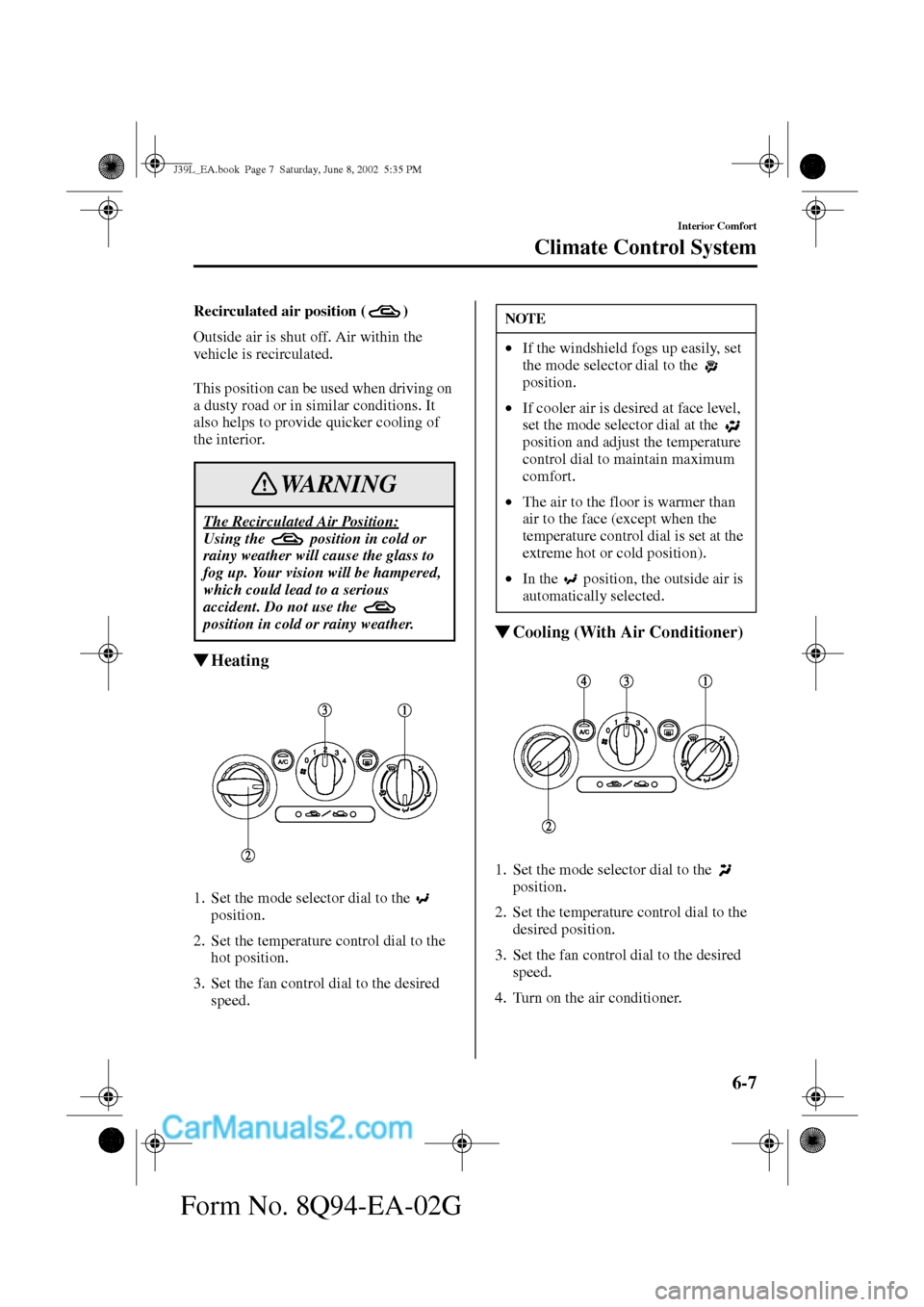

Recirculated air position ( )
Outside air is shut off. Air within the
vehicle is recirculated.
This position can be used when driving on
a dusty road or in similar conditions. It
also helps to provide quicker cooling of
the interior.

Heating
1. Set the mode selector dial to the
position.
2. Set the temperature control dial to the
hot position.
3. Set the fan control dial to the desired
speed.

Cooling (With Air Conditioner)
1. Set the mode selector dial to the
position.
2. Set the temperature control dial to the
desired position.
3. Set the fan control dial to the desired
speed.
4. Turn on the air conditioner.
The Recirculated Air Position:
Using the position in cold or
rainy weather will cause the glass to
fog up. Your vision will be hampered,
which could lead to a serious
accident. Do not use the
position in cold or rainy weather.
WARNING
NOTE
•If the windshield fogs up easily, set
the mode selector dial to the
position.
•If cooler air is desired at face level,
set the mode selector dial at the
position and adjust the temperature
control dial to maintain maximum
comfort.
•The air to the floor is warmer than
air to the face (except when the
temperature control dial is set at the
extreme hot or cold position).
•In the position, the outside air is
automatically selected.
