Warning/Indicator Lights and Beeps
Form No. 8Q94-EA-02G

Headlight High-Beam Indicator
Light
This light indicates one of two things:
•The high-beam headlights are on.
•The turn signal lever is in the flash-to-
pass position.

O/D OFF Indicator Light
This light comes on when the overdrive
has been turned off.

Shift Position Indicator Light
This indicates the selected shift position
when the ignition switch is in the ACC or
ON position.
In manual mode, the "M" of the shift
position indicator illuminates and the
numeral for the selected gear illuminates
in the gear position indicator. If the automatic transaxle warning
light flashes, the transaxle has an
electrical problem. Continuing to drive
your Mazda in this condition could
cause damage to your transaxle.
Consult an Authorized Mazda Dealer
as soon as possible.
CAUTION
If the overdrive-off indicator light
flashes, the transaxle has an electrical
problem. Continuing to drive your
Mazda in this condition could cause
damage to your transaxle. Consult an
Authorized Mazda Dealer as soon as
possible.
CAUTION
Gear position indicator
J39L_EA.book Page 34 Saturday, June 8, 2002 5:35 PM

5-35
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8Q94-EA-02G

Cruise Set Indicator Light
This light comes on when a cruising speed
is set.

Seat Belt Warning Beep
If the driver’s seat belt is not fastened
when the ignition switch is turned to the
ON position, a beep will sound for about
6 seconds.

Ignition Key Reminder
If the ignition switch is in the LOCK or
ACC position, a beep will sound when
any door is opened.

Lights-On Reminder
If lights are on and the key is removed
from the ignition switch, a beep will
sound when any door is opened.
Beeps
J39L_EA.book Page 35 Saturday, June 8, 2002 5:35 PM

5-36
Driving Your Mazda
Form No. 8Q94-EA-02G
Switches and Controls

Headlights
To turn on the lights, turn the knob on the
end of the control lever.

Lights-On Reminder
If lights are on and the key is removed
from the ignition switch, a beep will
sound when any door is opened.

Headlight High-Low Beams
Push the lever forward for high beams.
Pull it back for low.

Flashing the Headlights
To flash the headlights, pull the lever fully
toward you. The headlight switch need
not be on, and the lever will return to the
normal position when released.
Lighting Control
Lever Position OFF
Headlights Off Off On
Taillights
Parking lights
License lights
Side-marker lightsOff On On
NOTE
To prevent discharging the battery,
don’t leave the lights on while the
engine is off.
High beams
Low beams
J39L_EA.book Page 36 Saturday, June 8, 2002 5:35 PM

5-37
Driving Your Mazda
Switches and Controls
Form No. 8Q94-EA-02G

Tu r n S i g n a l
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change —until the
indicator flashes— and hold it there. It
will return to the off position when
released.Use this switch to turn on the fog lights.
They help you to see as well as to be seen.
To turn on the fog lights, first turn on the
headlight switch. Then press the fog light
switch.
To turn the fog lights off, press the fog
light switch again or turn the headlight
switch off.
Turn and Lane-Change
Signals
NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, the
turn signal bulb may be burned out.
Right turn
Left turn Right lane
change
Left lane
changeOFF
Fog Lights
J39L_EA.book Page 37 Saturday, June 8, 2002 5:35 PM

5-38
Driving Your Mazda
Switches and Controls
Form No. 8Q94-EA-02G
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition
switch is turned to the ON position.The ignition switch must be in the ON
position.
Daytime Running Lights
NOTE
The running lights go off when the
parking brake is applied.
Windshield Wipers and
Washer
Frozen Washer Fluid:
Using windshield washer fluid in
freezing temperatures is dangerous.
The washer fluid could freeze on the
windshield and block your vision.
You could have an accident. Don’t use
the washer without first warming the
windshield.
NOTE
Because heavy ice and snow can jam
the wiper blades, the wiper motor is
protected by a circuit breaker. This
mechanism will automatically stop
operation of the blades, but only for
about 5 minutes.
If this happens, turn off the wiper
switch and park off the right-of-way,
and remove the snow and ice.
After 5 minutes, turn on the switch and
the blades should operate normally. If
they don’t resume functioning, consult
an Authorized Mazda Dealer as soon
as possible.
WARNING
J39L_EA.book Page 38 Saturday, June 8, 2002 5:35 PM

5-39
Driving Your Mazda
Switches and Controls
Form No. 8Q94-EA-02G

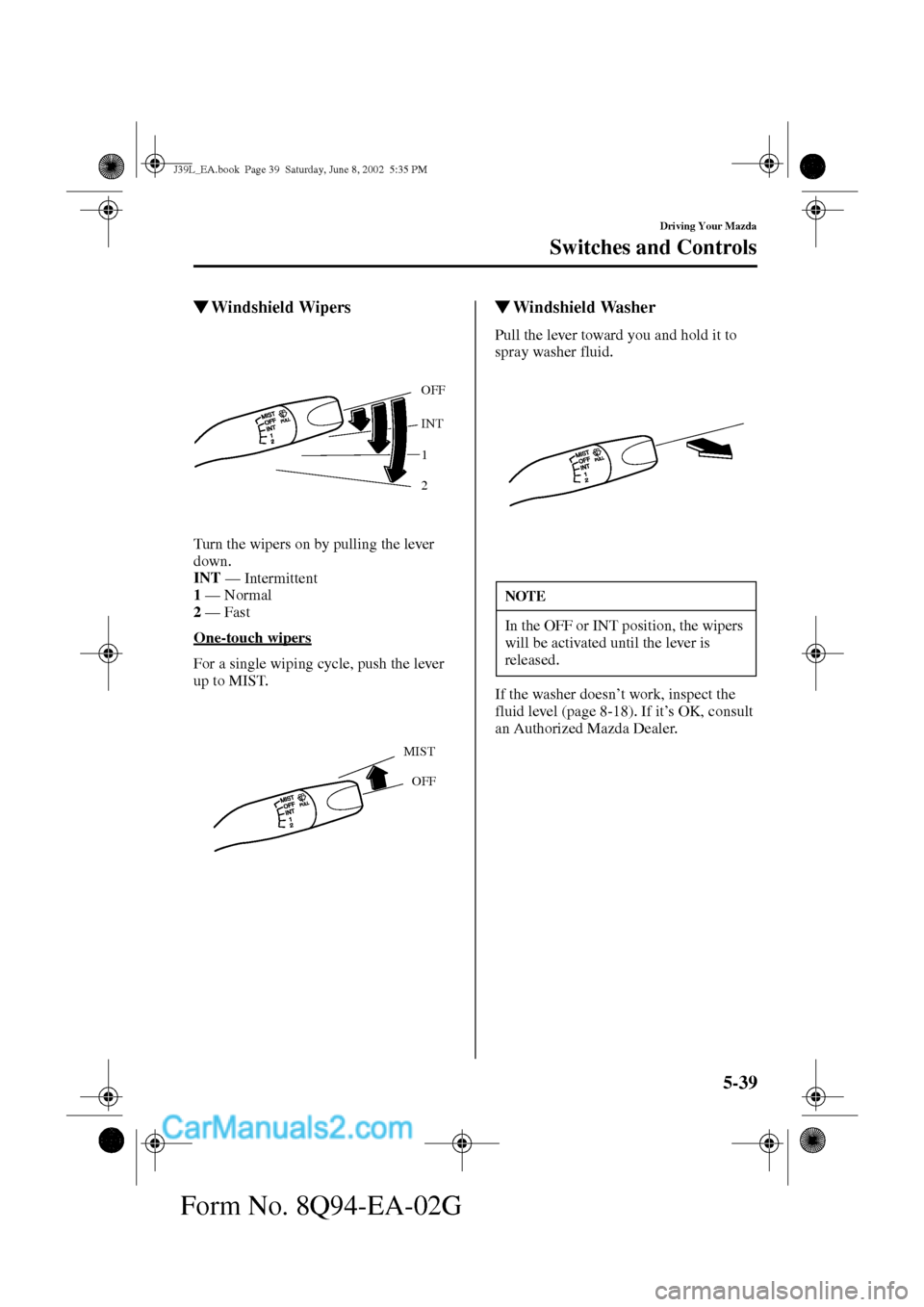

Windshield Wipers
Turn the wipers on by pulling the lever
down.
INT
— Intermittent
1
— Normal
2
— Fast
One-touch wipers
For a single wiping cycle, push the lever
up to MIST.

Windshield Washer
Pull the lever toward you and hold it to
spray washer fluid.
If the washer doesn’t work, inspect the
fluid level (page 8-18). If it’s OK, consult
an Authorized Mazda Dealer.
OFF
INT
1
2
MIST
OFF
NOTE
In the OFF or INT position, the wipers
will be activated until the lever is
released.
J39L_EA.book Page 39 Saturday, June 8, 2002 5:35 PM

5-40
Driving Your Mazda
Switches and Controls
Form No. 8Q94-EA-02G
The ignition switch must be in the ON
position.

Rear Window Wiper
Turn the wiper on by turning the knob.
ON
—
Normal
INT
—
Intermittent

Rear Window Washer
To spray washer fluid, turn the knob to the
position. After the knob is released,
the washer will stop.
If the washer doesn’t work, inspect the
fluid level (page 8-18). If it’s OK and the
washer still doesn’t work, consult an
Authorized Mazda Dealer.The rear defroster clears frost, fog, and
thin ice from the rear window.
The ignition switch must be in the ON
position.
Push the switch to turn on the rear
window defroster; the indicator light will
come on.
Push the switch again to turn it off.
Rear Window Wiper and
Washer (Hatchback)
NOTE
There are two washer positions: up and
down. In the down washer position, the
wiper will not be activated.
Washer WasherON
INT
OFF
Rear Window Defroster
Don’t use sharp instruments or
window cleaners with abrasives to
clean the inside of the rear window
surface. They may damage the
defroster grid inside the window.
NOTE
This defroster is not designed for
melting snow. If there is an
accumulation of snow on the rear
window, brush it off before using the
defroster.
CAUTION
J39L_EA.book Page 40 Saturday, June 8, 2002 5:35 PM

5-41
Driving Your Mazda
Switches and Controls
Form No. 8Q94-EA-02G
To sound the horn, press around the
mark of the steering wheel.The hazard warning lights should always
be used when you stop on or near a
roadway.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning switch and all
four turn signals will flash at once.
HornHazard Warning Flasher
NOTE
•The turn signals don’t work when
the hazard warning lights are on.
•Check local regulations about the
use of hazard warning lights while
the vehicle is being towed. They
may forbid it.
