2003 MAZDA MODEL MPV Owners Manual (in English)

8-30
Maintenance and Care
Owner Maintenance
Form No. 8R21-EA-02G

Replacing a Bulb (Front)
To replace the parking light bulbs, contact an Authorized Mazda Dealer.
Fog lights
Front turn signal lights/
Side-marker lights
J16L_8R21-EA-02G.book Page 30 Saturday, June 8, 2002 11:16 AM

8-31
Maintenance and Care
Owner Maintenance
Form No. 8R21-EA-02G

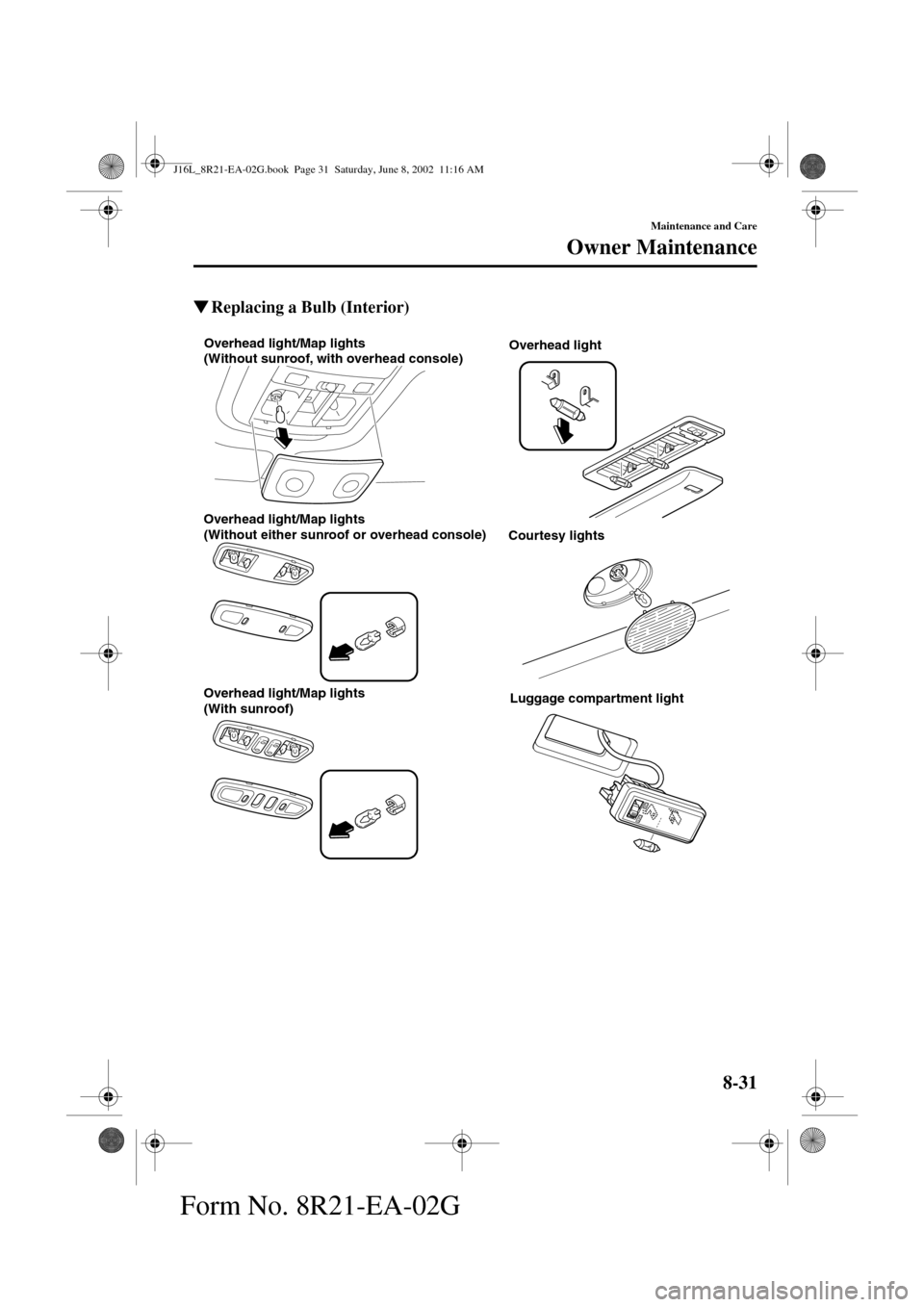

Replacing a Bulb (Interior)
O
NO
F
F
Overhead light/Map lights
(Without sunroof, with overhead console)
Overhead light/Map lights
(Without either sunroof or overhead console)Overhead light
Courtesy lights
Luggage compartment light Overhead light/Map lights
(With sunroof)
J16L_8R21-EA-02G.book Page 31 Saturday, June 8, 2002 11:16 AM

8-32
Maintenance and Care
Owner Maintenance
Form No. 8R21-EA-02G

Replacing a Bulb (Rear)
Brake lights/Taillights
Rear turn signal lights
Reverse lights
TaillightsHigh-mount brake lights
License plate lights
An unsecured high-mount brake lights
will allow water to leak into the vehicle.
Make sure the high-mount brake light is
tightly fastened to the vehicle and if
water still leaks, consult an Authorized
Mazda Dealer.
J16L_8R21-EA-02G.book Page 32 Saturday, June 8, 2002 11:16 AM

8-33
Maintenance and Care
Owner Maintenance
Form No. 8R21-EA-02G
Yo u r v e h i c l e’s electrical system is
protected by fuses.
If any lights, accessories, or controls don’t
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.

Fuse Replacement
If the electrical system doesn’t work, first
inspect fuses on the driver’s side.
1. Turn off the ignition switch and other
switches.
2. Open the fuse panel cover.3. Pull the fuse straight out with the fuse
puller provided on the fuse panel.
4. Inspect it and replace if it’s blown.
5. Push in a new fuse of the same rating,
and make sure it fits tightly. If it
doesn’t, have an Authorized Mazda
Dealer install it.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO circuit.
Fuses
Fuse panel cover
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Fuse puller
Normal Blown
CAUTION
J16L_8R21-EA-02G.book Page 33 Saturday, June 8, 2002 11:16 AM

8-34
Maintenance and Care
Owner Maintenance
Form No. 8R21-EA-02G
If the headlights or other electrical
components don’t work and the fuses in
the cabin are OK, inspect the fuse block
under the hood. If a fuse is blown, it must
be replaced. Follow these steps:
1. Turn off the ignition switch and all
other switches.
2. Remove the fuse block cover.
3. If a fuse is blown, replace it with a new
one of the same rating
.
NOTE
To replace the MAIN fuse, contact an
Authorized Mazda Dealer (page 8-35).
Fuse block cover
Ta b
Normal Blown
J16L_8R21-EA-02G.book Page 34 Saturday, June 8, 2002 11:16 AM

8-35
Maintenance and Care
Owner Maintenance
Form No. 8R21-EA-02G

Fuse Panel Description
Fuse block (Engine compartment)
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
1 DEFOG 40ARear window
defroster
2 BTN 60ASTOP, HAZARD,
ROOM, D.LOCK
and DRL fuses
3 ABS 60AAntilock brake
system,
For protection of
various circuits
4 FAN1 30A Cooling fan
5 FAN2 30A Cooling fan
6 HEATER 40A Heater
7 R.HEATER 30ARear heater,
For protection of
various circuits
8 IG KEY2 40AA/C, P.WIND,
SUN ROOF and
R.WIP fuses
9 A/C 10AAir conditioner,
For protection of
various circuitsDESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
10 TAIL 15A Taillights
11
A/C PWR15A Inverter
12
HORN15A Horn
13
FOG 15AFor protection of
various circuits
14
EEC 5AFor protection of
various circuits
15
HEAD L 15AHeadlight-left
16
HEAD R 15AHeadlight-right
17
HID L 20A—
18
HID R 20A—
19 IG KEY1 60AMETER,
ENGINE and
WIPER fuses
20 EGI INJ 30AFor protection of
various circuits
21 FUEL PUMP 20A Fuel pump
22 MAIN 120AFor protection of
all circuits
J16L_8R21-EA-02G.book Page 35 Saturday, June 8, 2002 11:16 AM

8-36
Maintenance and Care
Owner Maintenance
Form No. 8R21-EA-02G
Fuse block (Driver’s side)
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
1
P. W I N D30APower windows,
For protection of
various circuits
2
WIPER20AWi n ds h i e l d
wipers and washer
3SUN ROOF15ASunroof,
For protection of
various circuits
4
R.WIP10ARear window
wiper and washer
5
SEAT20AFor protection of
various circuits
6
M.DEF10AMirror defroster,
For protection of
various circuits
7
A/C10AAir conditioner,
For protection of
various circuits
8
DRL10AFor protection of
various circuits
9
———
10
H/CLEAN20AFor protection of
various circuits
11—— —
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
12 HAZARD 10AHazard warning
flashers
13 ROOM 15AOverhead lights,
Map lights,
Luggage
compartment light
14
AU X
POWER25A Accessory socket
15
CLOSER
LH20AFor protection of
various circuits
16
AUDIO10AAudio system, For
protection of
various circuits
17
D.LOCK30APower door locks,
For protection of
various circuits
18
P/SEAT30A Power seat
19
ENGINE10AEngine control
system
20
METER10A Instrument cluster
21
STOP15A Brake lights
22
CLOSER
RH20AFor protection of
various circuits
J16L_8R21-EA-02G.book Page 36 Saturday, June 8, 2002 11:16 AM

8-37
Maintenance and Care
Owner Maintenance
Form No. 8R21-EA-02G
DESCRIPTIONFUSE
RATINGPROTECTED
COMPONENT
23
ACC .
DELAY30APower windows
delay,
For protection of
various circuits
24
METER15AInstrument
cluster,
INH switch
25
ST.SIGN10A Starter signal
26 CIGAR 25A Lighter
27—— —
28—— —
