4-18
Before Driving Your Mazda
To w i n g
Form No. 8R21-EA-02G
Passing
Plan well ahead to pass other vehicles, and provide plenty of room before changing lanes.
Crosswinds from passing vehicles, especially larger ones, and the effects of rough roads
will affect handling.
If swaying occurs, firmly grip the steering wheel and reduce speed immediately, but
gradually.
Steer straight ahead. If no extreme correction of steering or braking is made, the
combination of less speed and firm steering will result in stability.
Backing up
Backing a vehicle with a trailer requires practice and patience. Back slowly, and have a
helper outside at the rear of the trailer to reduce the risk of an accident.
To turn the trailer, place your hand at the bottom of the steering wheel and turn it in the
direction you want the trailer to go. Make only slight movements to prevent sharp or
prolonged turning.
Ascending a hill
Shift into a lower gear to reduce the possibility of overloading or overheating the engine, or
both.
Descending a hill
Shift into a lower gear and use engine compression as a braking effect.
Overheated engine
The extra weight of the trailer may strain the engine on hot days and on long or steep
upgrades.
If the temperature gauge indicates overheating, turn off the air conditioner, drive safely to
the side of the road, park off the right-of-way and wait for engine to cool. Refer to
Overheating (page 7-15).
Over Use of the Brake Pedal:
Holding the brake pedal down too long or too frequently is dangerous as it could
cause the brakes to overheat and lose power, resulting in loss of control and a serious
accident. Use lower gears (1st and 2nd) to help reduce speed. Pull off the road and
allow brakes to cool down whenever braking performance feels reduced. Always use
lower gears to reduce speed.
WARNING
J16L_8R21-EA-02G.book Page 18 Saturday, June 8, 2002 11:16 AM

4-19
Before Driving Your Mazda
To w i n g
Form No. 8R21-EA-02G
Parking
Always make sure the tires of the trailer and the tow vehicle are blocked while parked.
Apply the parking brake firmly and put the transaxle in P.
Avoid parking on an incline, but if you must, follow these instructions:
1. Depress and hold down the brake pedal.
2. Have a helper put wheel blocks against the downhill side of all vehicle and trailer tires.
3. Then release the brake pedal slowly until the blocks bear the load.
If the grade is downhill, turn the steering wheel so that the front of the front tires face
the curb.
If it is uphill, face the rear of the front tires against the curb.
4. Firmly apply the parking brake.
5. Shift the transaxle into P, and stop the engine.
To restart after parking on an incline:
1. With the transaxle in P, start the engine. (Be sure to depress and hold the brake pedal.)
2. Shift into gear.
3. Release the parking brake (also the foot brake) and pull away from the wheel blocks.
Stop; apply the parking brake and shift into P.
4. Have a helper retrieve the wheel blocks.
Fuel consumption
Trailer towing causes higher fuel consumption.
Maintenance
If you tow a trailer frequently, have your vehicle serviced as shown in Scheduled
Maintenance (page 8-3).
J16L_8R21-EA-02G.book Page 19 Saturday, June 8, 2002 11:16 AM

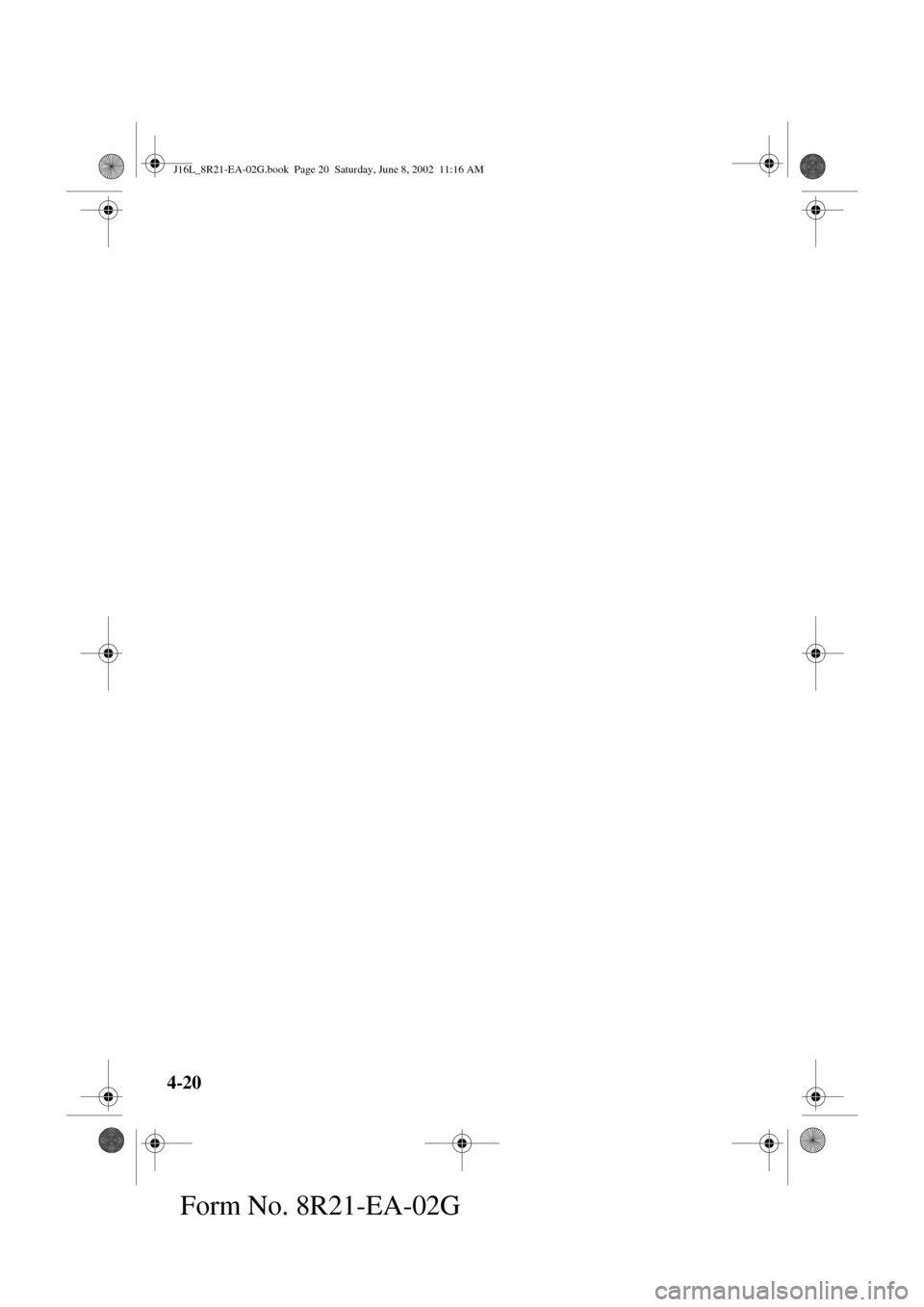

4-20
Form No. 8R21-EA-02G
J16L_8R21-EA-02G.book Page 20 Saturday, June 8, 2002 11:16 AM

5-1
Form No. 8R21-EA-02G
5Driving Your Mazda
Explanation of instruments and controls.
Starting and Driving
................................................................... 5- 2
Ignition Switch ........................................................................ 5- 2
Starting the Engine .................................................................. 5- 3
Brake System ........................................................................... 5- 4
Automatic Transaxle Controls ................................................. 5- 8
Power Steering ......................................................................... 5-12
Cruise Control ......................................................................... 5-13
Traction Control System (TCS) ............................................... 5-16
Instrument Cluster and Indicators
............................................ 5-19
Meters and Gauges .................................................................. 5-19
Warning/Indicator Lights and Beeps
........................................ 5-23
Warning/Indicator Lights ......................................................... 5-23
Beeps ....................................................................................... 5-31
Switches and Controls
................................................................. 5-32
Lighting Control ...................................................................... 5-32
Turn and Lane-Change Signals ............................................... 5-33
Fog Lights ................................................................................ 5-34
Windshield Wipers and Washer ............................................... 5-34
Rear Window Wiper and Washer ............................................ 5-36
Rear Window Defroster ........................................................... 5-36
Horn ......................................................................................... 5-37
Hazard Warning Flasher .......................................................... 5-37
J16L_8R21-EA-02G.book Page 1 Saturday, June 8, 2002 11:16 AM

5-2
Driving Your Mazda
Form No. 8R21-EA-02G
Starting and Driving

Ignition Switch Positions
LOCK
The steering wheel locks to protect
against theft. Only in this position can the
key be removed.ACC (Accessory)
The steering wheel unlocks and some
electrical accessories will operate.
ON
This is the normal running position after
the engine is started. The warning lights
(except brakes) should be inspected
before the engine is started (page 5-23).
START
The engine is started in this position. It
will crank until you release the key; then
it returns to the ON position. The brake
warning light can be checked after the
engine is started (page 5-23).

Ignition Key Reminder
If the ignition switch is in the LOCK or
ACC position, a beep will sound when the
driver’s door is opened.
Ignition Switch
Removing the Key:
It’s dangerous to remove the key from
the ignition switch while the vehicle is
moving. Removing the key allows the
steering wheel to lock. You will lose
steering control and a serious
accident could occur.
Remove the key only when the vehicle
is parked.
Not Setting the Parking Brake:
Leaving the driver’s seat without
setting the parking brake is
dangerous. Unexpected vehicle
movement could occur if the parking
brake is not set. This could cause an
accident. Before leaving the driver’s
seat, always set the parking brake and
make sure the shift lever is in P.
WARNING
NOTE
If turning the key is difficult, jiggle the
steering wheel from side to side.
J16L_8R21-EA-02G.book Page 2 Saturday, June 8, 2002 11:16 AM

5-3
Driving Your Mazda
Starting and Driving
Form No. 8R21-EA-02G
1. Occupants should fasten their seat
belts.
2. Make sure the parking brake is on.
3. Depress the brake pedal.
4. Put the vehicle in park (P). If you must
restart the engine while the vehicle is
moving, shift into neutral (N).
5. Turn the ignition switch to the START
position and hold (up to 10 seconds at a
time) until the engine starts.
6. After starting the engine, let it idle for
about 10 seconds.
Starting the Engine
NOTE
Engine-starting is controlled by the
spark ignition system.
This system meets all Canadian
Interference-Causing Equipment
Standard requirements regulating the
impulse electrical field strength of
radio noise.
NOTE
The starter will not operate if the shift
lever is not
in P or N.
Don’t try the starter for more than 10
seconds at a time. If the engine stalls or
fails to start, wait 10 seconds before
trying again. Otherwise, you may
damage the starter and drain the
battery.
CAUTION
NOTE
•In extremely cold weather, below
-18
°C (0
°F), or after the vehicle has
stood idle several days, let the
engine warm up without operating
the accelerator.
•Whether cold or warm, the engine
should be started without use of the
accelerator.
J16L_8R21-EA-02G.book Page 3 Saturday, June 8, 2002 11:16 AM

5-4
Driving Your Mazda
Starting and Driving
Form No. 8R21-EA-02G

Foot Brake
Your Mazda has power-assisted brakes
that adjust automatically through normal
use.
Should power-assist fail, you can stop by
applying greater force than normal to the
brake pedal. But the distance required to
stop will be greater than usual.
Brake System
Driving with the Engine Off:
Continuing to drive when the engine
is stalled or turned off is dangerous.
Braking will require more effort, and
the brake’s power-assist could be
depleted if you pump the brake. This
will cause longer stopping distances
or even an accident. Don’t continue
driving when the engine is stalled or
turned off, find a safe place to stop.
Riding the Brakes:
Driving with your foot continuously
on the brake pedal or steadily
applying the brakes for long distances
is dangerous. This causes overheated
brakes, resulting in longer stopping
distances or even total brake failure.
This could cause loss of vehicle
control and a serious accident. Avoid
continuous application of the brakes.
Shift to a lower gear when going
down steep hills.
Driving with Wet Brakes:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been
affected. Dry the brakes by driving
very slowly and applying the brakes
lightly until brake performance is
normal.
WARNING
J16L_8R21-EA-02G.book Page 4 Saturday, June 8, 2002 11:16 AM

5-5
Driving Your Mazda
Starting and Driving
Form No. 8R21-EA-02G

Parking Brake
Setting the parking brake
Depress the brake pedal, then pull the
brake handle fully upward.
Releasing the parking brake
Depress the brake pedal, then pull the
handle up and press the button. Lower the
handle to the release position while
holding in the button.

Brake System Warning Light
This warning has the following functions:
Parking brake warning
The light comes on when the parking
brake is applied with the ignition switch
in the START or ON position. It goes off
when the parking brake is fully released.
Low brake fluid level warning/
Electronic brake force distribution
system warning
If the light stays on after the parking brake
is fully released, you may have a brake
problem.
Drive to the side of the road and park off
the right-of-way.
Low brake fluid level warning
You may notice that the pedal is harder to
push or that it may go closer to the floor.
In either case, it will take longer to stop
the vehicle.
1. With the engine stopped, check the
brake fluid level immediately and add
fluid as required (page 8-13).
2. After adding fluid, check the light
again. Driving with the parking brake on will
cause excessive wear of the brake
linings or pads.
CAUTION
J16L_8R21-EA-02G.book Page 5 Saturday, June 8, 2002 11:16 AM
