2003 MAZDA MODEL MPV Owners Manual (in English)

6-32
Interior Comfort
Au di o S ys t em
Form No. 8R21-EA-02G

Operating the Compact Disc (CD) Player
Inserting the CD
Insert the CD into the slot, label-side up.
The auto-loading mechanism will set the
CD and begin play. There will be a short
lapse before play begins while the player
reads the digital signals on the CD.
The disc-in indicator will illuminate and
the track number will be displayed.
Playing
Press the CD play button ( ) to start
playing when a CD is in the unit.
Ejecting the CD
Press the CD eject button ( ) to eject the
CD.Fast-forward/Reverse
Press and hold the fast-forward button
( ) to advance through a track at high
speed.
Press and hold the reverse button ( )
to reverse through a track at high speed.
Tr a c k s e a r c h
Press the track up button ( ) once to
skip forward to the beginning of the next
track.
Press the track down button ( ) once to
skip back to the beginning of the current
track.
Display CD slotCD play button CD eject button
Random button
Repeat buttonFast-forward button
Reverse
button Scan
button
Track up
button
Track down
button
Disc-in indicator
J16L_8R21-EA-02G.book Page 32 Saturday, June 8, 2002 11:16 AM

6-33
Interior Comfort
Au di o S ys t em
Form No. 8R21-EA-02G
Music scan
This feature helps to find a program by
playing about the first 10 seconds of each
track.
Press the scan button ( ) during play
to start scan play operation (the track
number will flash).
Press the scan button ( ) once again
to cancel scan play.
Repeat play
This feature makes it possible to listen to
a selection repeatedly.
Press the repeat button ( ) during play.
The current selection will be repeated
("RPT" will be displayed).
Press the repeat button ( ) once again
to cancel repeat play.
Random play
This feature allows the CD player to
randomly select the order of the songs.
Press the random button ( ) during
play. The next selection will be randomly
selected ("RDM" will be displayed).
Press the random button ( ) once
again to cancel random play.
NOTE
If the unit is left in scan, normal play
will resume where scan was selected.
J16L_8R21-EA-02G.book Page 33 Saturday, June 8, 2002 11:16 AM

6-34
Interior Comfort
Au di o S ys t em
Form No. 8R21-EA-02G

Operating the In-Dash CD Changer
Inserting the CD
The CD must be label-side up when
inserting. The auto-loading mechanism
will set the CD and begin play. There will
be a short lapse before play begins while
the player reads the digital signals on the
CD.
The disc number and the track number
will be displayed.Normal insertion
1. Press the load button ( ).
2. When "In" is displayed, insert the CD.
Inserting CDs into desired tray number
1. Press and hold the load button ( )
for about 2 seconds until a beep is
heard.
2. Press the channel preset button for the
desired tray number within 5 seconds
after the beep is heard.
3. When "In" is displayed, insert the CD.
Display CD slotCD play button CD eject button
Random button
Repeat button Disc up buttonFast-forward button
Reverse
button Scan
button
Auto memory
button
Track up
button
Track down
button
Disc down
button
Load button
Power/Volume knob
NOTE
A CD cannot be inserted while the
display reads "WAIT". A beeping
sound can be heard during this waiting
time. Simultaneously pressing the
power/volume knob and the load
button ( ) for about 2 seconds will
turn this beeping sound ON or OFF.
NOTE
The CD cannot be inserted to the
desired tray number if the number is
already occupied.
J16L_8R21-EA-02G.book Page 34 Saturday, June 8, 2002 11:16 AM

6-35
Interior Comfort
Au di o S ys t em
Form No. 8R21-EA-02G
Multiple insertion
1. Press and hold the load button ( )
for about 2 seconds until a beep is
heard.
2. When "In" is displayed, insert the CD.
3. When "In" is displayed again, insert
the next CD.
Ejecting the CD
Normal ejection
1. Press the CD eject button ( ). The
disc number and "OUT" will be
displayed.
2. Pull out the CD.
Ejecting CDs from desired tray number
1. Press and hold the CD eject button ( )
for about 2 seconds until a beep is
heard.
2. Press the channel preset button for the
desired CD number within 5 seconds
after the beep is heard.
3. Pull out the CD.Multiple ejection
1. Press and hold the CD eject button ( )
for about 2 seconds until a beep is
heard.
2. Wait 5 seconds or press the CD eject
button ( ) again within 5 seconds
after the beep is heard.
3. Pull out the CD, then the next CD will
be ejected.
Playing
Press the CD play button ( ) to start
playing when a CD is in the unit.
Fast-forward/Reverse
Press and hold the fast-forward button
( ) to advance through a track at high
speed.
Press and hold the reverse button ( )
to reverse through a track at high speed.
Tr a c k s e a r c h
Press the track up button ( ) once to
skip forward to the beginning of the next
track.
Press the track down button ( ) once to
skip back to the beginning of the current
track.
NOTE
The first-inserted CD will be played
automatically when:
•No CD is inserted within 15
seconds after "In" is displayed.
•The CD trays are full.
NOTE
When the CD is ejected during play,
the next CD will be played
automatically.
NOTE
•CDs will be ejected starting with the
one with the lowest number.
•All CDs in the tray will be ejected
continuously.
•CDs can be ejected when the
ignition switch is off. Press and hold
the CD eject button ( ) for about 2
seconds and all CDs will eject.
J16L_8R21-EA-02G.book Page 35 Saturday, June 8, 2002 11:16 AM

6-36
Interior Comfort
Au di o S ys t em
Form No. 8R21-EA-02G
Disc search
Press the disc up button ( ) to skip
forward to the beginning of the next CD.
Press the disc down button ( ) to
skip back to the beginning of the previous
CD.
Music scan
This feature helps to find a program by
playing about the first 10 seconds of each
track.
Press the scan button ( ) during play
to start scan play operation (the track
number will flash).
Press the scan button ( ) once again
to cancel scan play.
Repeat play
This feature makes it possible to listen to
a selection repeatedly.
Press the repeat button ( ) during play.
The current selection will be repeated
("RPT" will be displayed).
Press the repeat button ( ) once again
to cancel repeat play.
Random play
This feature allows the CD player to
randomly select the order of the songs.
Press the random button ( ) during
play. The next selection will be randomly
selected ("RDM" will be displayed).
Press the random button ( ) once
again to cancel random play.
NOTE
If the unit is left in scan, normal play
will resume where scan was selected.
J16L_8R21-EA-02G.book Page 36 Saturday, June 8, 2002 11:16 AM

6-37
Interior Comfort
Au di o S ys t em
Form No. 8R21-EA-02G

Error Indications
If you see an error indication on the display, find the cause in the chart. If you cannot clear
the error indication, take the vehicle to an Authorized Mazda Dealer.
Indication Cause Solution
CHECK MD MD is inserted upside downInsert the MD properly. If the error indication
does not disappear, consult an Authorized Mazda
Dealer
CHECK MD MD is defectiveInsert another MD properly. If the error
indication does not disappear, consult an
Authorized Mazda Dealer
CHECK CD CD is inserted upside downInsert the CD properly. If the error indication
does not disappear, consult an Authorized Mazda
Dealer
CHECK CD CD is defective Check the CD for scratches or soiling
J16L_8R21-EA-02G.book Page 37 Saturday, June 8, 2002 11:16 AM

6-38
Interior Comfort
Au di o S ys t em
Form No. 8R21-EA-02G

Adjusting the Volume
To increase the volume, press volume
button ( ).
To decrease the volume, press volume
button ( ).

Changing the Source
Press the mode switch ( ) to change
the audio source (AM radio>FM1
radio>FM2 radio>Cassette tape player or
MD player>CD player or CD
changer>cyclical).
Audio Control Switch
Operation
NOTE
Mazda installed this system to help
you avoid being too distracted using
audio controls on the dashboard.
Always make safe driving your first
priority.
J16L_8R21-EA-02G.book Page 38 Saturday, June 8, 2002 11:16 AM

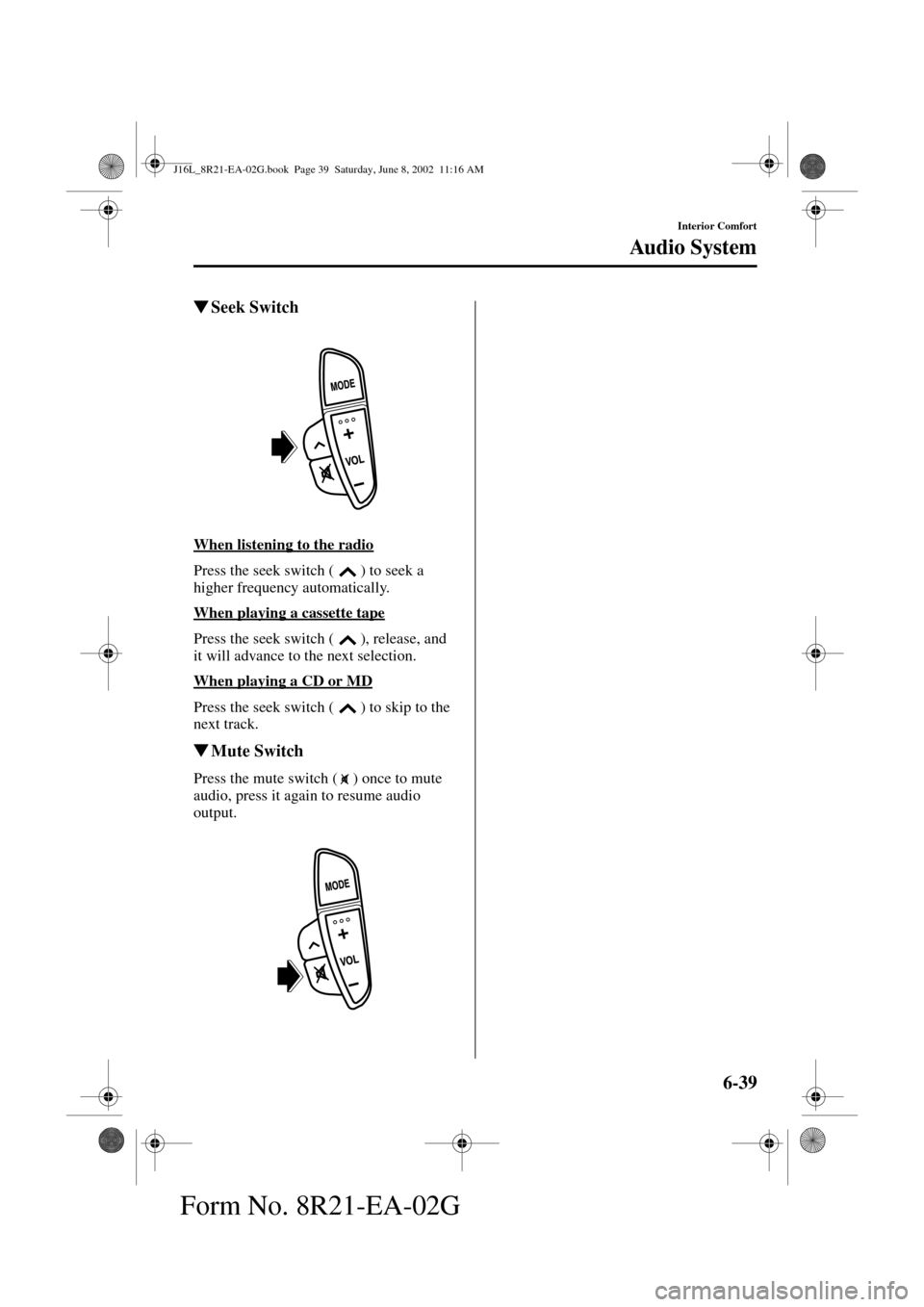

6-39
Interior Comfort
Au di o S ys t em
Form No. 8R21-EA-02G

Seek Switch
When listening to the radio
Press the seek switch ( ) to seek a
higher frequency automatically.
When playing a cassette tape
Press the seek switch ( ), release, and
it will advance to the next selection.
When playing a CD or MD
Press the seek switch ( ) to skip to the
next track.

Mute Switch
Press the mute switch ( ) once to mute
audio, press it again to resume audio
output.
J16L_8R21-EA-02G.book Page 39 Saturday, June 8, 2002 11:16 AM
