2003 MAZDA MODEL MPV Owners Manual (in English)

5-22
Driving Your Mazda
Instrument Cluster and Indicators
Form No. 8R21-EA-02G

Fuel Gauge
The fuel gauge shows approximately how
much fuel is in the tank. We recommend
keeping the tank over 1/4 full. When the
low fuel warning light illuminates or
when the needle is near E, refuel as soon
as possible.

Dashboard Illumination
When the headlight switch is in the
or position, rotate the thumb-wheel
to adjust the brightness of the dashboard
lights.
Low fuel
warning light
Bright
Dim
J16L_8R21-EA-02G.book Page 22 Saturday, June 8, 2002 11:16 AM

5-23
Driving Your Mazda
Form No. 8R21-EA-02G
Warning/Indicator Lights and Beeps
Warning/Indicator Lights
Signal Warning/Indicator Lights Page
Brake System Warning Light 5-25
Charging System Warning Light 5-26
Engine Oil Pressure Warning Light 5-26
Check Engine Light 5-27
ABS Warning Light 5-27
Air Bag/Front Seat Belt Pretensioner System Warning Light 5-28
Low Fuel Warning Light 5-28
Warning/Indicator lights will appear in any of the highlighted areas
J16L_8R21-EA-02G.book Page 23 Saturday, June 8, 2002 11:16 AM

5-24
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8R21-EA-02G
Seat Belt Warning Light 5-28
Door-Ajar Warning Light 5-29
Immobilizer System Warning/Security Indicator Light 5-29
Headlight High-Beam Indicator Light 5-29
O/D OFF Indicator Light 5-29
Shift Position Indicator Light 5-30
TCS Indicator Light 5-30
TCS OFF Indicator Light 5-30
Cruise Set Indicator Light 5-30 Signal Warning/Indicator Lights Page
J16L_8R21-EA-02G.book Page 24 Saturday, June 8, 2002 11:16 AM

5-25
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8R21-EA-02G

Brake System Warning Light
This warning has the following functions:
Parking brake warning
The light comes on when the parking
brake is applied with the ignition switch
in the START or ON position. It goes off
when the parking brake is fully released.
Low brake fluid level warning/
Electronic brake force distribution
system warning
If the light stays on after the parking brake
is fully released, you may have a brake
problem.
Drive to the side of the road and park off
the right-of-way.
Low brake fluid level warning
You may notice that the pedal is harder to
push or that it may go closer to the floor.
In either case, it will take longer to stop
the vehicle.
1. With the engine stopped, check the
brake fluid level immediately and add
fluid as required (page 8-13).
2. After adding fluid, check the light
again.If the warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. Have it towed to an
Authorized Mazda Dealer.
Even if the light goes off, have your brake
system inspected as soon as possible.
Electronic brake force distribution
system warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may turn the brake system
warning light on.
In this case, the ABS warning light comes
on at the same time (page 5-27).
J16L_8R21-EA-02G.book Page 25 Saturday, June 8, 2002 11:16 AM

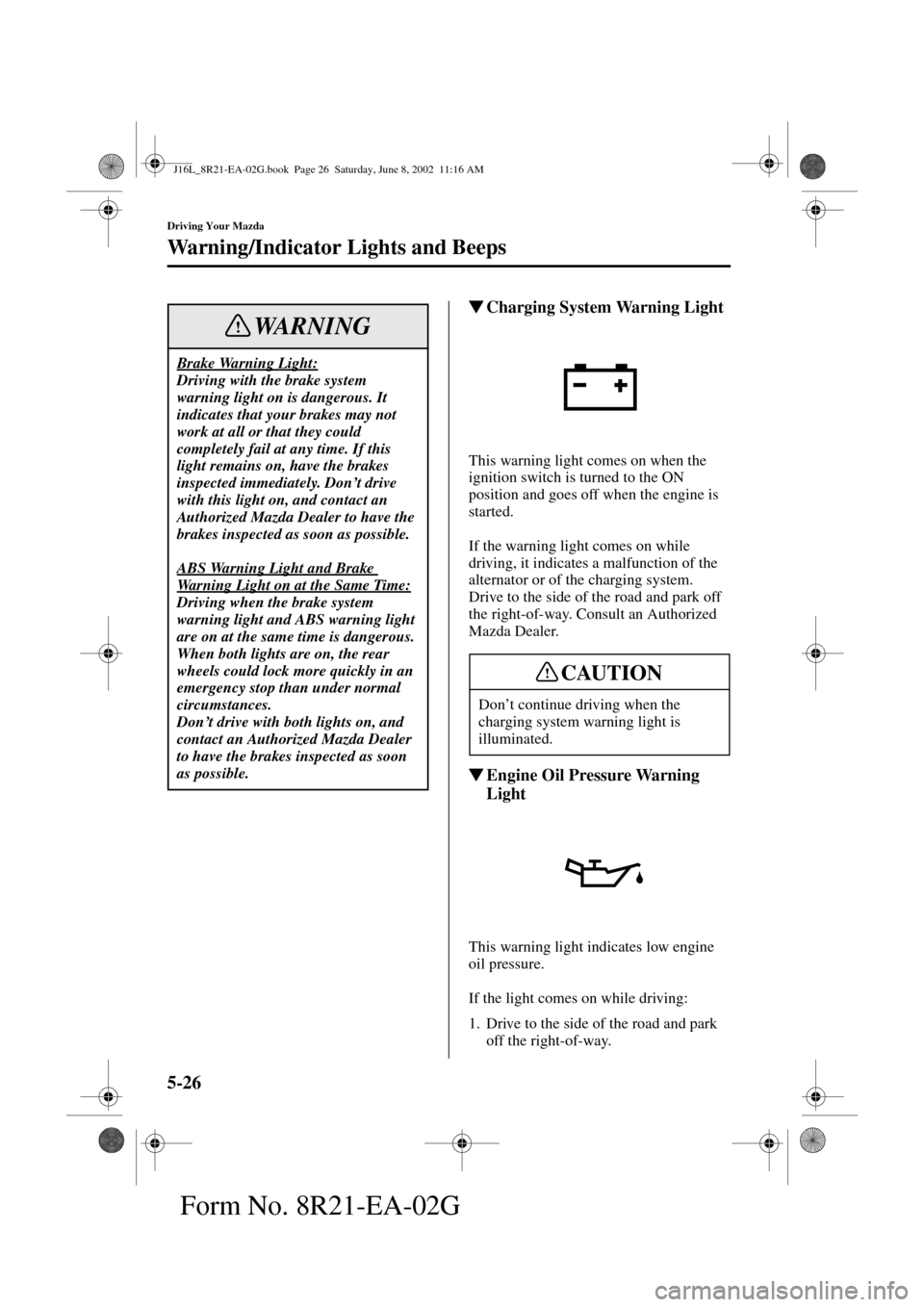

5-26
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8R21-EA-02G

Charging System Warning Light
This warning light comes on when the
ignition switch is turned to the ON
position and goes off when the engine is
started.
If the warning light comes on while
driving, it indicates a malfunction of the
alternator or of the charging system.
Drive to the side of the road and park off
the right-of-way. Consult an Authorized
Mazda Dealer.

Engine Oil Pressure Warning
Light
This warning light indicates low engine
oil pressure.
If the light comes on while driving:
1. Drive to the side of the road and park
off the right-of-way.
Brake Warning Light:
Driving with the brake system
warning light on is dangerous. It
indicates that your brakes may not
work at all or that they could
completely fail at any time. If this
light remains on, have the brakes
inspected immediately. Don’t drive
with this light on, and contact an
Authorized Mazda Dealer to have the
brakes inspected as soon as possible.
ABS Warning Light and Brake
Warning Light on at the Same Time:
Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don’t drive with both lights on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
WARNING
Don’t continue driving when the
charging system warning light is
illuminated.
CAUTION
J16L_8R21-EA-02G.book Page 26 Saturday, June 8, 2002 11:16 AM

5-27
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8R21-EA-02G
2. Turn off the engine and inspect the
engine oil level (page 8-9). If it’s low,
add oil.
3. Check the light.
If the light remains on even after you add
oil, have your vehicle towed to the nearest
service station or to an Authorized Mazda
Dealer.

Check Engine Light
If this light comes on while driving, the
vehicle may have a problem. It is
important to note the driving conditions
when the light came on and consult an
Authorized Mazda Dealer.
The check engine light may come on in
the following cases:
•The fuel tank level being very low or
approaching empty.
•The engine’s electrical system has a
problem.
•The emission control system has a
problem.
•The fuel-filler cap is missing or not
tightened securely.If the check engine light flashes
continuously, decrease your speed and
consult an Authorized Mazda Dealer as
soon as possible.

ABS Warning Light
The warning light stays on for a few
seconds when the ignition switch is turned
to the ON position.
If the ABS warning light stays on while
you’re driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function
normally as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible. Don’t run the engine if oil pressure is
low. It could result in extensive engine
damage.
CAUTION
ABS Warning Light and Brake
Warning Light on at the Same Time:
Driving when the brake system
warning light and ABS warning light
are on at the same time is dangerous.
When both lights are on, the rear
wheels could lock more quickly in an
emergency stop than under normal
circumstances.
Don’t drive with both lights on, and
contact an Authorized Mazda Dealer
to have the brakes inspected as soon
as possible.
WARNING
J16L_8R21-EA-02G.book Page 27 Saturday, June 8, 2002 11:16 AM

5-28
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8R21-EA-02G

Air Bag/Front Seat Belt
Pretensioner System Warning
Light
If the air bag/front seat belt pretensioner
system is OK, the warning light comes on
when the ignition switch is turned to the
ON position or after the engine is cranked.
After about 6 seconds it goes out.
A system malfunction is indicated when
the warning light constantly flashes, stays
on or doesn’t come on at all. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.

Low Fuel Warning Light
This warning light in the fuel gauge
signals that the fuel tank will soon be
empty.
Get fuel as soon as possible.

Seat Belt Warning Light
If the driver’s seat belt is not fastened
when the ignition switch is turned to the
ON position, the seat belt warning light
will remain on until the belt is fastened.
If the system does not operate correctly,
consult an Authorized Mazda Dealer.
NOTE
When the engine is jump-started to
charge the battery, uneven rpm occurs
and the ABS warning light comes on.
This is due to a weak battery, not a
malfunction.
Recharge the battery.Self-Servicing the Air Bag/
Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled. This
could cause serious injuries. Never
tamper with the systems and always
have an Authorized Mazda Dealer
perform all servicing and repairs.
WARNING
Low fuel
warning light
J16L_8R21-EA-02G.book Page 28 Saturday, June 8, 2002 11:16 AM

5-29
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8R21-EA-02G

Door-Ajar Warning Light
This warning light comes on when any
door or liftgate isn’t securely closed.

Immobilizer System Warning/
Security Indicator Light
Immobilizer system warning light
When the key is in the ignition switch,
this light serves as the immobilizer system
warning light.
If the immobilizer system is working
properly, the light will come on when the
ignition switch is turned to the ON or
START position. The light will go out
when confirmation by the immobilizer
system is completed.
If the light flashes rapidly, fails to come
on, or comes on and stays on, it indicates
a system malfunction. If any of these
occur, contact an Authorized Mazda
Dealer as soon as possible.Security indicator light
When there is no key in the ignition
switch, and the theft-deterrent system has
been armed, the light will flash once every
3 seconds. This indicates that the system
is working properly.

Headlight High-Beam Indicator
Light
This light indicates one of two things:
•The high-beam headlights are on.
•The turn signal lever is in the flash-to-
pass position.

O/D OFF Indicator Light
This light comes on when the overdrive
has been turned off.
If the overdrive-off indicator light
flashes, the transaxle has an electrical
problem. Continuing to drive your
Mazda in this condition could cause
damage to your transaxle. Consult an
Authorized Mazda Dealer as soon as
possible.
CAUTION
J16L_8R21-EA-02G.book Page 29 Saturday, June 8, 2002 11:16 AM
