2003 LEXUS LS430 replacement

Use an incandescent lamp for inspection. Bring it within 30 cm (11.8 in.) of the A/C solar sensor.
Result:
AIR CONDITIONING AMPLIFIER (TSDR) TEST RESULT
Fig. 84: Inspecting Air Conditioning Amplifier (TSDR)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
B: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
C: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT )
A: Go to next step
3.INSPECT A/C SOLAR SENSOR
a. Remove the A/C solar sensor.
NGA
OK (Checking from the PROBLEM SYMPTOMS TABLE)B
OK (Checking from the DTC)C

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT
)
CIRCUIT DESCRIPTION
A photodiode in the A/C solar sensor detects solar radiation and sends signals to the A/C amplifier.
Fig. 87: Photodiode Resistance/Solar Radiation Strength Graph

DATA LIST / AIR CONDITIONER:
DATA LIST / AIR CONDITIONER
OK:
The display is as specified in the normal condition.
Result:
AIR CONDITIONER TEST RESULT
B: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
C: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT )
A: Go to next step
2.INSPECT AIR CONDITIONING AMPLIFIER (TSRr - GND)
a. Remove the A/C amplifier with connector still connected.
b. Turn the ignition switch to the ON position.
c. Measure the voltage according to the value (s) in the table below.
Standard:
AIR CONDITIONING AMPLIFIER (TSRR - GND) VOLTAGE
HINT:
As the temperature increases, the voltage decreases.
Use an incandescent lamp for inspection. Bring it within 30 cm (11.8 in.) of the solar sensor.
Result:
ItemMeasure Item/Display (Range)Normal ConditionDiagnostic
Note
REAR SOLAR
SENSRear solar sensor / min.: 0 max.:
255Changes depending on
brightness-
NGA
OK (Checking from the PROBLEM SYMPTOM TABLE)B
OK (Checking from the DTC)C
Tester connectionConditionSpecified condition
A11-30 (TSRr) - A12-16 (S5-4)Sensor is subjected to electric light0.8 to 4.3 V
A11-30 (TSRr) - A12-16 (S5-4)Sensor is covered by a clothBelow 0.8 V

AIR CONDITIONING AMPLIFIER (TSRR - GND) TEST RESULT
Fig. 90: Inspecting Air Conditioning Amplifier (TSRR
- GND)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
B: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
C: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT )
A: Go to next step
3.INSPECT A/C SOLAR SENSOR
a. Remove the A/C solar sensor.
b. Measure the resistance according to the value (s) in the table below.
c. Connect the positive (+) lead from the ohmmeter to terminal 1 and negative (-) lead to terminal 2 of
the A/C solar sensor.
NGA
OK (Checking from the PROBLEM SYMPTOMS TABLE)B
OK (Checking from the DTC)C

Fig. 92: Checking Harness And Connector (A/C Solar Sensor -Air Conditoning Amplifier)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT
)
CIRCUIT DESCRIPTION
This sensor detects the position of the air inlet servomotor and sends the appropriate signals to the A/C
amplifier. The position sensor is built in the air inlet servomotor.
<0029004c004a00110003001c0016001d000300370033002c00030037004800550050004c00510044004f000300390052004f00570044004a0048000300270044005000530048005500030032005300480051004c0051004a000300240051004a004f004800
03002a005500440053004b[

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch to the ON position and push the hand-held tester main switch on.
c. Select the items below in the DATA LIST, and read the displays on the hand-held tester.
DATA LIST / AIR CONDITIONER:
DATA LIST / AIR CONDITIONER
OK:
The display is as specified in the normal condition.
Result:
AIR CONDITIONER TEST RESULT
B: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
C: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT )
A: Go to next step
2.INSPECT AIR CONDITIONING AMPLIFIER (TPI - SG)
a. Remove the A/C amplifier with connectors still connected.
b. Turn the ignition switch to the ON position.
c. Change the set RECIRC/FRESH to activate the air inlet servomotor.
d. Measure the voltage according to the value (s) in the table below.
Standard:
AIR CONDITIONING AMPLIFIER (TPI - SG) VOLTAGE
Item
Measure Item/Display
(Range)
Normal ConditionDiagnostic Note
A/I DAMP
POSAir inlet damper position /
min.: -14% max.: 113.5%RECIRCULATION: Approx. 0%
FRESH: Approx. 100%-
A/I DAMP
TARGAir inlet damper target /
min.: -14% max.: 113.5%RECIRCULATION: Approx. 0%
FRESH: Approx. 100% HALF-
RECIRCULATION: 43 to 99.5 %-
NGA
OK (Checking from the PROBLEM SYMPTOM TABLE)B
OK (Checking from the DTC)C
Tester connectionConditionSpecified condition
A37-20 (TPI) - A37-19 (SG)RECIRC3.5 to 4.5 V
A37-20 (TPI) - A37-19 (SG)FRESH0.5 to 1.5 V

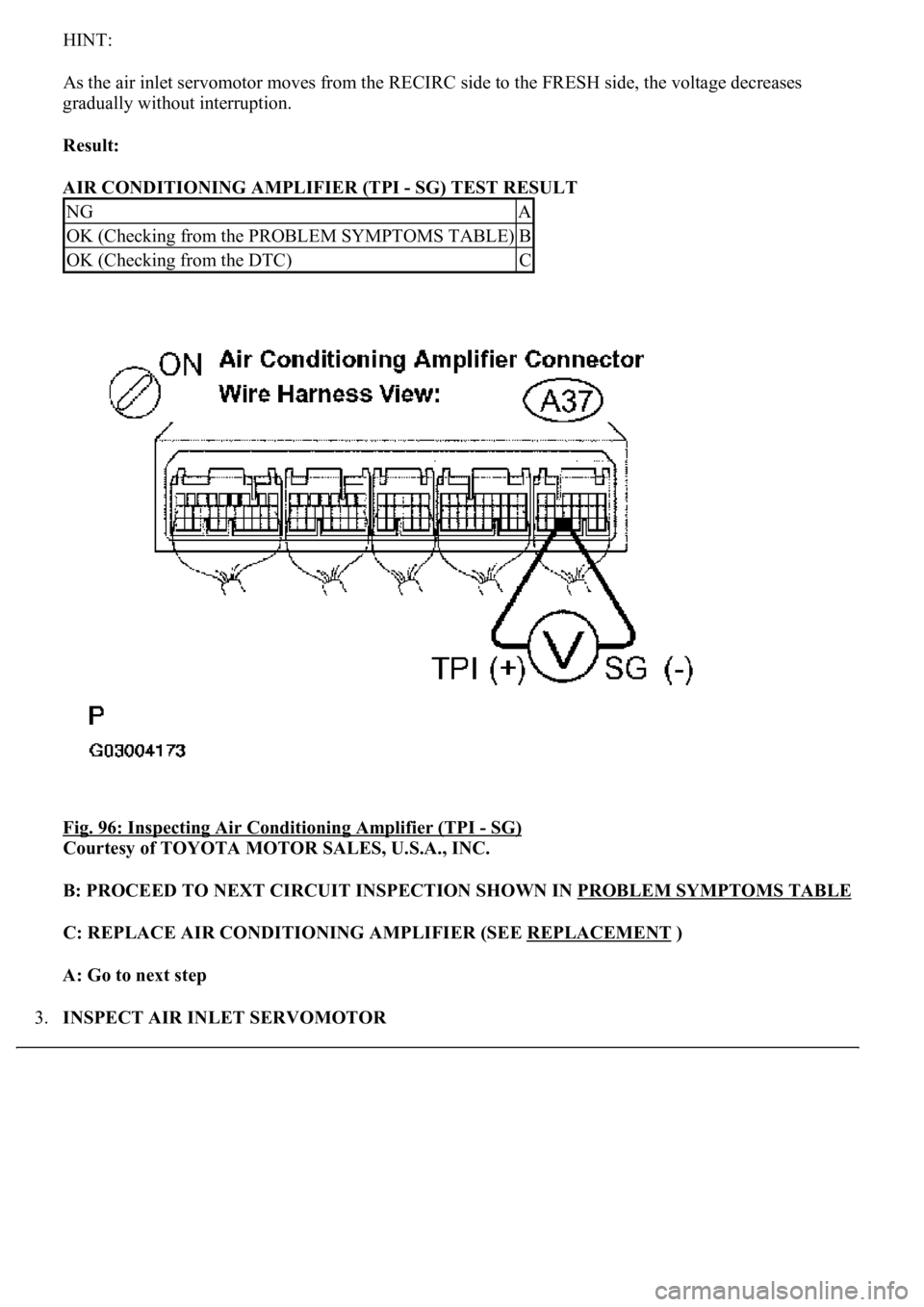

HINT:
As the air inlet servomotor moves from the RECIRC side to the FRESH side, the voltage decreases
gradually without interruption.
Result:
AIR CONDITIONING AMPLIFIER (TPI - SG) TEST RESULT
<0029004c004a00110003001c0019001d0003002c005100560053004800460057004c0051004a00030024004c005500030026005200510047004c0057004c00520051004c0051004a0003002400500053004f004c0049004c004800550003000b0037003300
2c0003[
- SG)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
B: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
C: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT )
A: Go to next step
3.INSPECT AIR INLET SERVOMOTOR
NGA
OK (Checking from the PROBLEM SYMPTOMS TABLE)B
OK (Checking from the DTC)C

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE AIR CONDITIONING AMPLIFIER (SEE REPLACEMENT
)
CIRCUIT DESCRIPTION
This sensor detects the position of the cool air bypass servomotor (Max cool damper servomotor) and sends the
appropriate signals to the A/C amplifier. The position sensor is built in the cool air bypass servomotor.
