2003 LEXUS LS430 torque

4.REMOVE OIL LEVEL GAGE SUB-ASSY (See step 8 in REPLACEMENT )
5.REMOVE IGNITION COIL ASSY
a. Disconnect the ignition coil connector.
b. Remove the bolt and pull out the ignition coil.

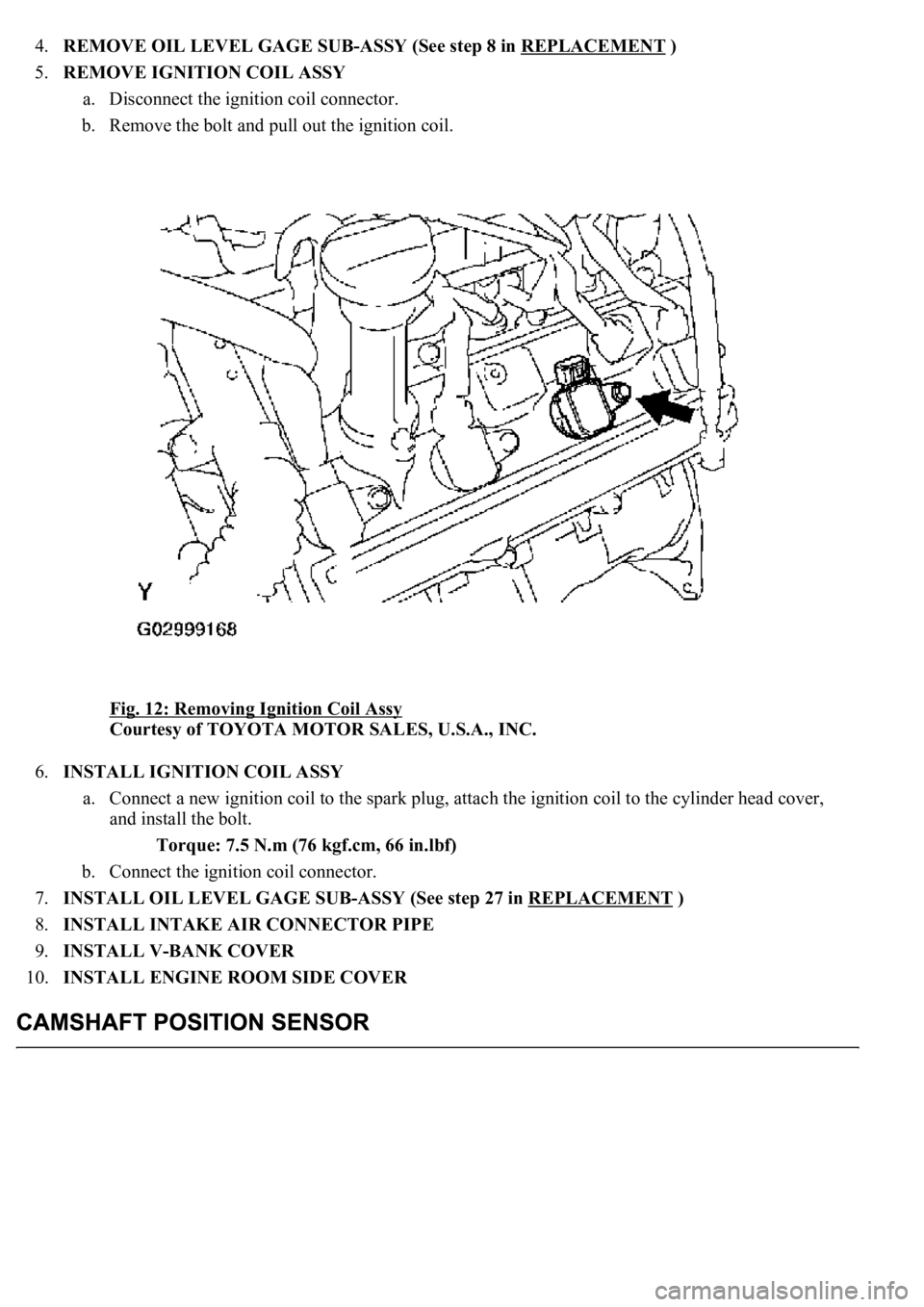

Fig. 12: Removing Ignition Coil Assy

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
6.INSTALL IGNITION COIL ASSY
a. Connect a new ignition coil to the spark plug, attach the ignition coil to the cylinder head cover,
and install the bolt.
Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)
b. Connect the ignition coil connector.
7.INSTALL OIL LEVEL GAGE SUB-ASSY (See step 27 in REPLACEMENT
)
8.INSTALL INTAKE AIR CONNECTOR PIPE
9.INSTALL V-BANK COVER
10.INSTALL ENGINE ROOM SIDE COVER

3.REMOVE V-BANK COVER
4.REMOVE ENGINE ROOM SIDE COVER
5.DISCONNECT RADIATOR HOSE NO. 1
6.REMOVE TIMING BELT COVER SUB-ASSY NO. 3 LH (See step 18 in REPLACEMENT
)
7.REMOVE CAMSHAFT POSITION SENSOR
a. Remove the bolt, stud bolt and sensor.
Fig. 14: Removing Camshaft Position Sensor

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
8.INSTALL CAMSHAFT POSITION SENSOR
a. Install a new sensor with the bolt and stud bolt.
Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)
9.INSTALL TIMING BELT COVER SUB-ASSY NO. 3 LH (See step 33 in REPLACEMENT
)
10.CONNECT RADIATOR HOSE NO. 1
11.INSTALL AIR CLEANER INLET NO. 1 (See step 145 in REPLACEMENT
)
12.INSTALL ENGINE ROOM SIDE COVER
13.INSTALL V-BANK COVER

a. Disconnect the sensor connector.
b. Remove the bolt and sensor.
Fig. 16: Removing Crankshaft Position Sensor

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3.INSTALL CRANKSHAFT POSITION SENSOR
a. Install a new sensor with the bolt.
Torque: 6.5 N.m (65 kgf.cm, 58 in.lbf)
b. Connect the sensor connector.

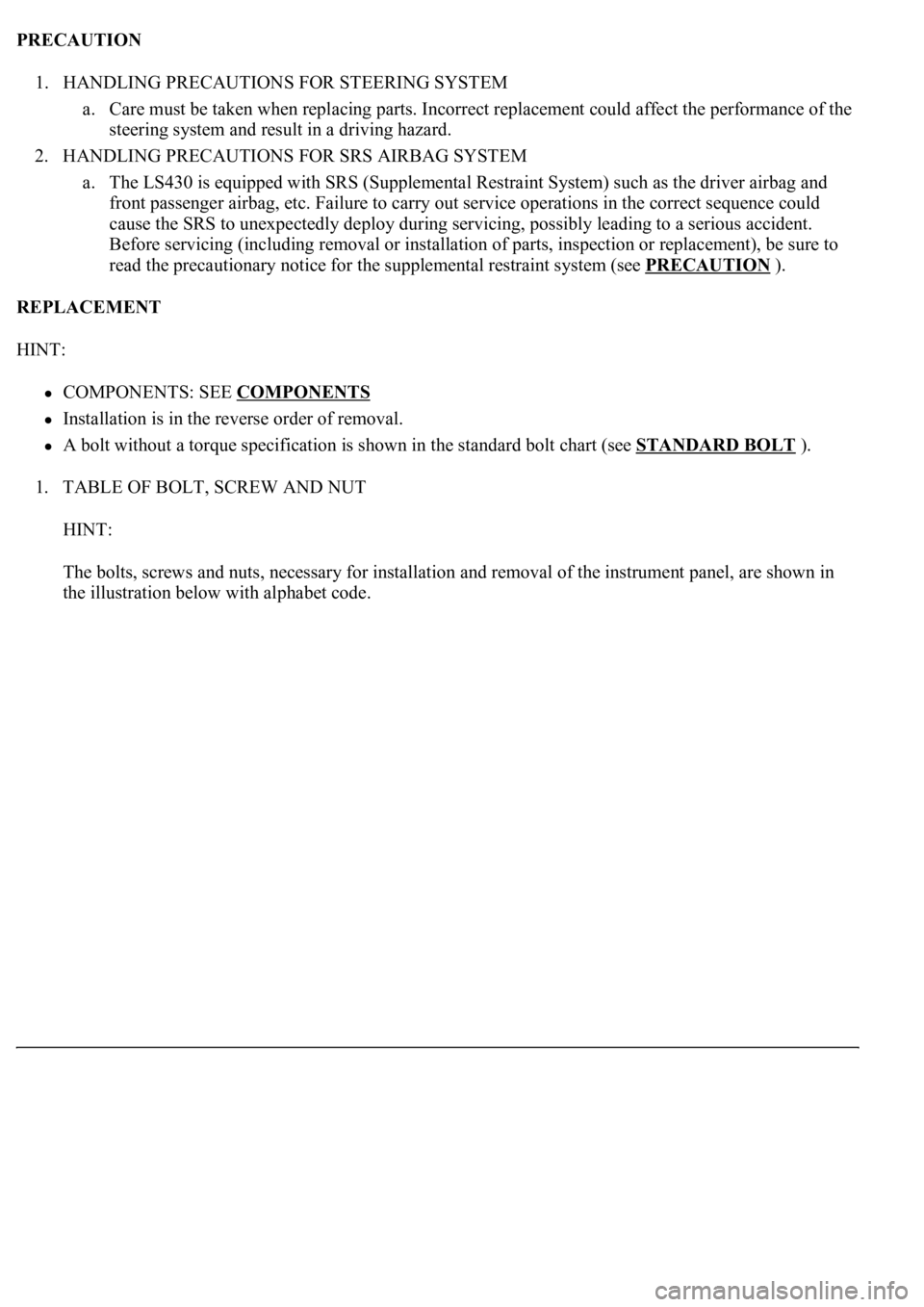

PRECAUTION
1. HANDLING PRECAUTIONS FOR STEERING SYSTEM
a. Care must be taken when replacing parts. Incorrect replacement could affect the performance of the
steering system and result in a driving hazard.
2. HANDLING PRECAUTIONS FOR SRS AIRBAG SYSTEM
a. The LS430 is equipped with SRS (Supplemental Restraint System) such as the driver airbag and
front passenger airbag, etc. Failure to carry out service operations in the correct sequence could
cause the SRS to unexpectedly deploy during servicing, possibly leading to a serious accident.
Before servicing (including removal or installation of parts, inspection or replacement), be sure to
read the precautionary notice for the supplemental restraint system (see PRECAUTION
).
REPLACEMENT
HINT:
COMPONENTS: SEE COMPONENTS
Installation is in the reverse order of removal.
A bolt without a torque specification is shown in the standard bolt chart (see STANDARD BOLT ).
1. TABLE OF BOLT, SCREW AND NUT
HINT:
The bolts, screws and nuts, necessary for installation and removal of the instrument panel, are shown in
the illustration below with alphabet code.

Fig. 37: Removing Instrument Panel Speaker Panel Sub-Assy No.1
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
66.REMOVE INSTRUMENT PANEL SPEAKER PANEL SUB-ASSY NO.2
a. Use the same procedure described in the prior step.
67.REMOVE FRONT PASSENGER AIRBAG ASSY CONNECTOR (SEE REPLACEMENT
)
68.REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY
69.INSTALL FRONT PASSENGER AIRBAG ASSY CONNECTOR
70.INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSY W/REINFORCEMENT ASSY
a. Install the instrument panel safety pad sub-assy w/reinforcement assy with the 9 bolts < A >, < C >,
< D >.
torque: 20 N.m (204 kgf.cm, 15 ft.Ibf)

Fig. 39: Installing Instrument Panel Safety Pad Sub-Assy W/Reinforcement Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
71.INSTALL STEERING COLUMN ASSY (SEE OVERHAUL
)
SSt 09921-00010
72.INSTALL INSTRUMENT PANEL AIR BAG ASSY LOWER NO.1
a. Connect the connectors.
b. Engage the clip and install the glove compartment door assy w/instrument panel airbag assy lower
No.2 with the 3 bolts < J > and the 3 screws < N >.
torque: 10 N.m (102 kgf.cm, 7 ft.Ibf)

Fig. 10: Installing Intake Manifold To Head Gasket No. 1
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
16.INSTALL INTAKE MANIFOLD
a. Install the intake manifold with the 6 bolts and 4 nuts.
Torque: 18 N.m (184 kgf.cm, 13 ft.lbf)
b. Connect the injector connector.
c. Connect the ventilation hose.
d. Connect the air hose for the power steering.
e. Connect the vacuum hose for the brake booster.
f. Install the water by-pass pipe No. 1 and No. 2 with the bolt.
17.CONNECT FUEL PIPE SUB-ASSY NO. 2
a. Using SST, install the fuel main hose.
SST 09023-38401

Torque: 35 N.m (355 kgf.cm, 26 ft.lbf)

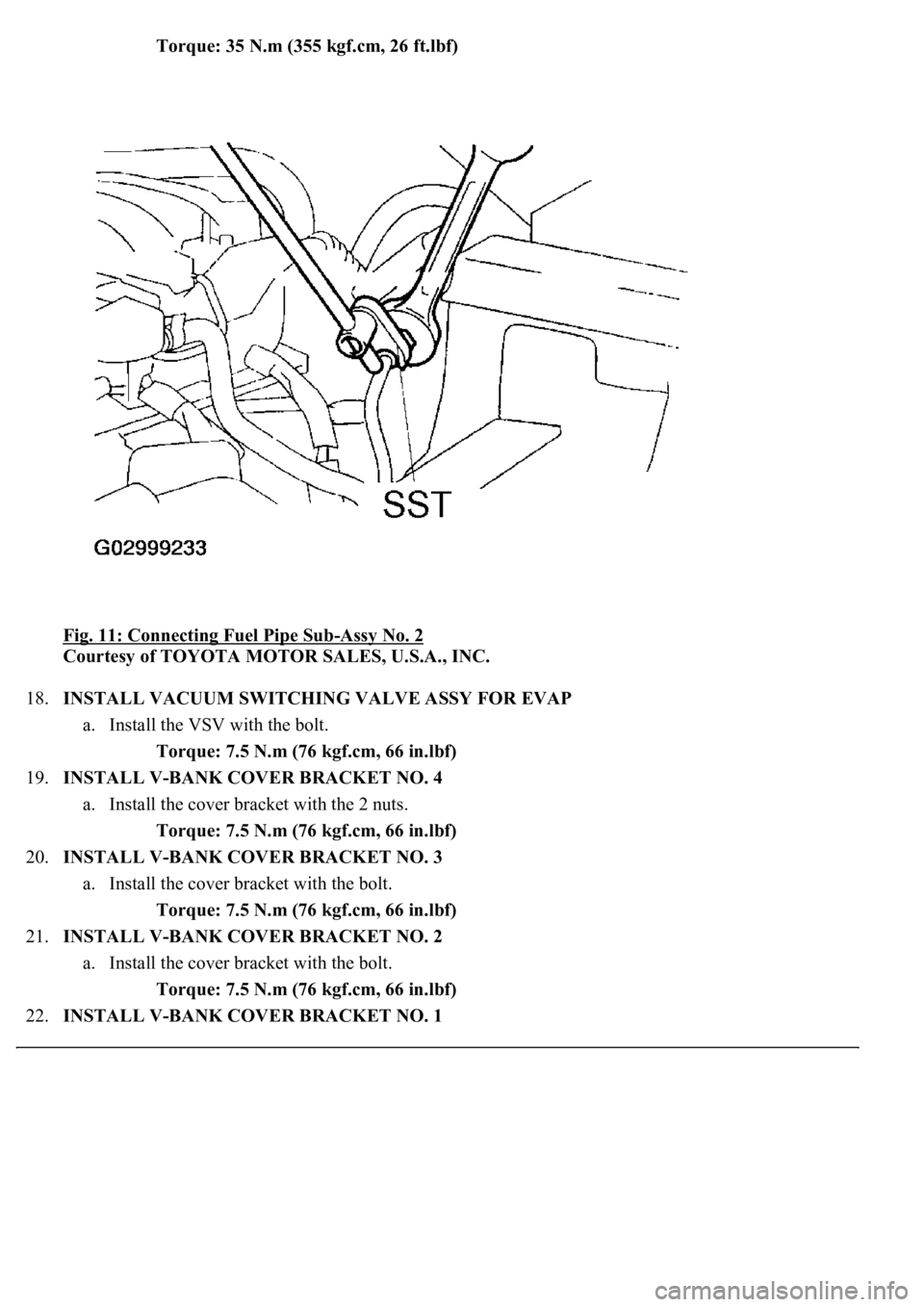

Fig. 11: Connecting Fuel Pipe Sub
-Assy No. 2
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
18.INSTALL VACUUM SWITCHING VALVE ASSY FOR EVAP
a. Install the VSV with the bolt.
Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)
19.INSTALL V-BANK COVER BRACKET NO. 4
a. Install the cover bracket with the 2 nuts.
Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)
20.INSTALL V-BANK COVER BRACKET NO. 3
a. Install the cover bracket with the bolt.
Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)
21.INSTALL V-BANK COVER BRACKET NO. 2
a. Install the cover bracket with the bolt.
Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)
22.INSTALL V-BANK COVER BRACKET NO. 1
