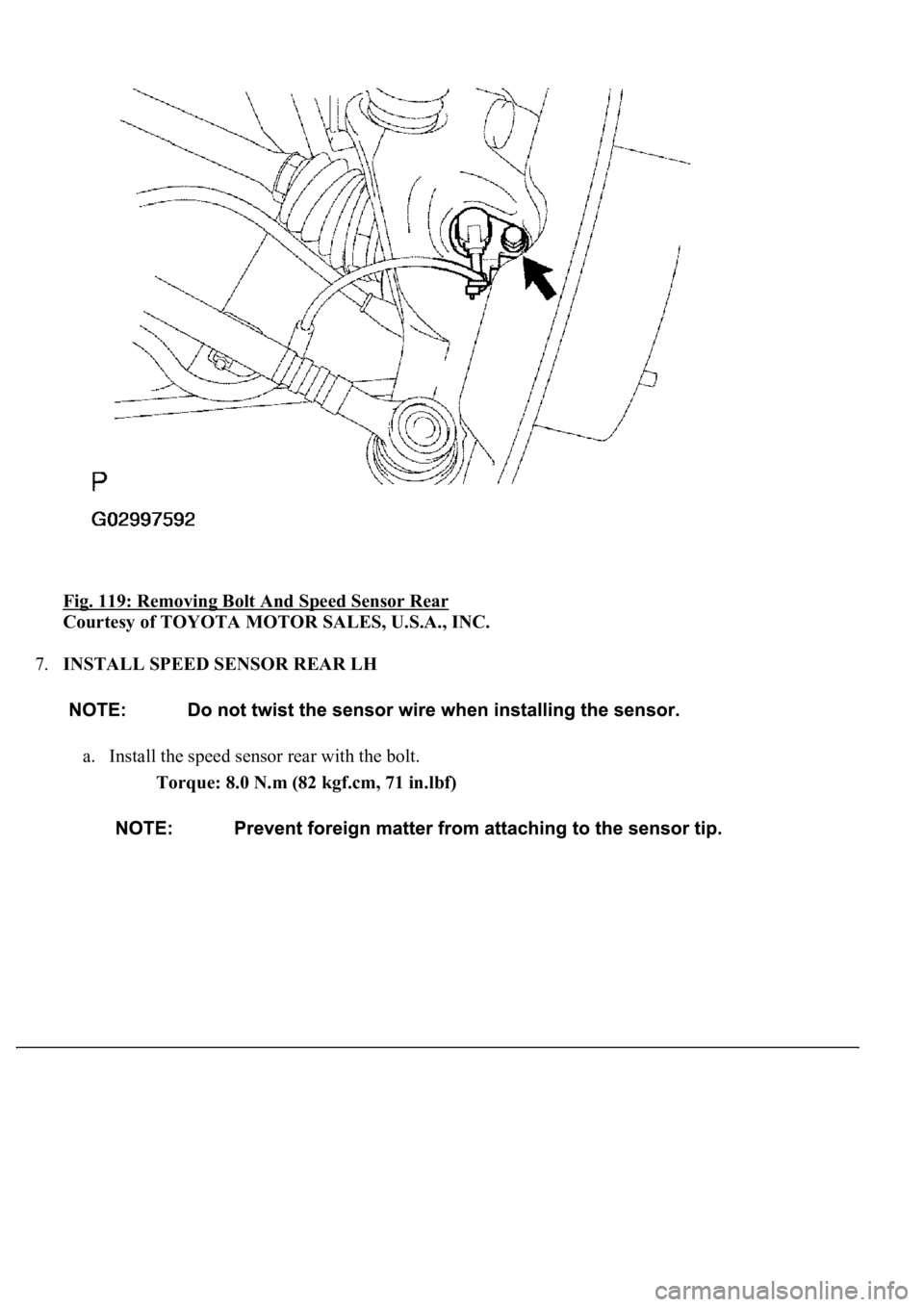

Fig. 119: Removing Bolt And Speed Sensor Rear
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
7.INSTALL SPEED SENSOR REAR LH
a. Install the speed sensor rear with the bolt.
Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

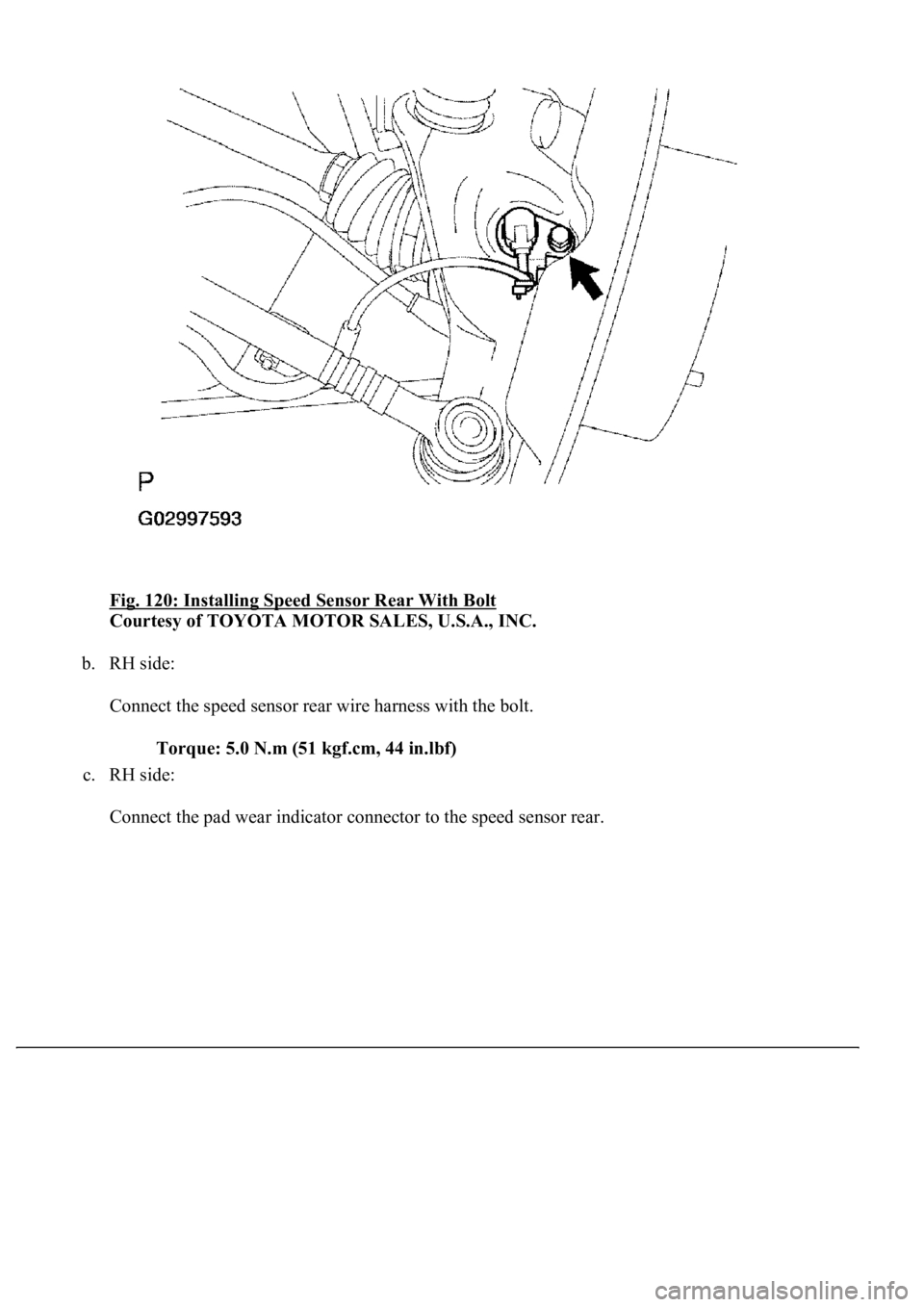

Fig. 120: Installing Speed Sensor Rear With Bolt
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. RH side:
Connect the speed sensor rear wire harness with the bolt.
Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)
c. RH side:
Connect the pad wear indicator connector to the speed sensor rear.

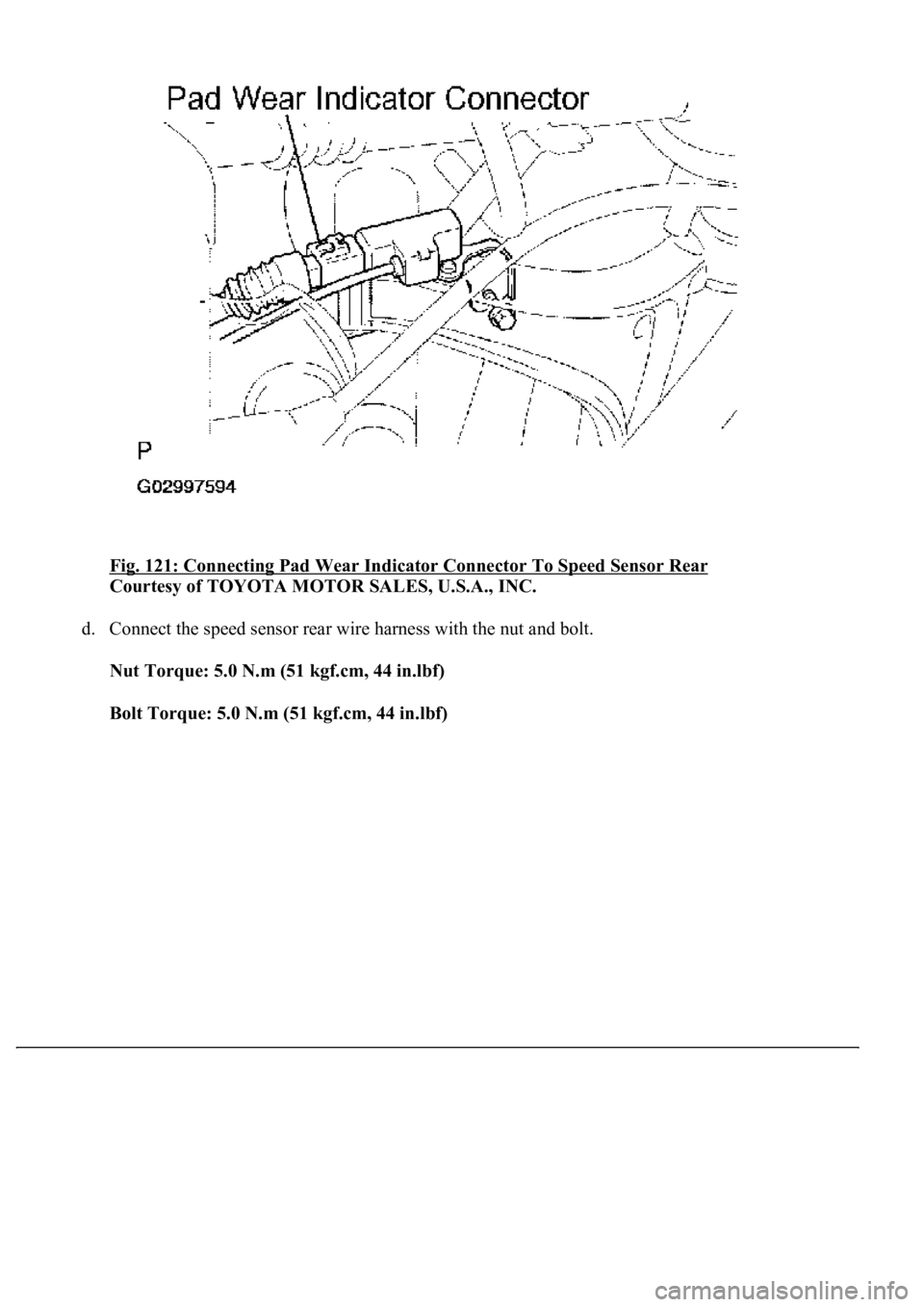

Fig. 121: Connecting Pad Wear Indicator Connector To Speed Sensor Rear
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
d. Connect the speed sensor rear wire harness with the nut and bolt.
Nut Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)
Bolt Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

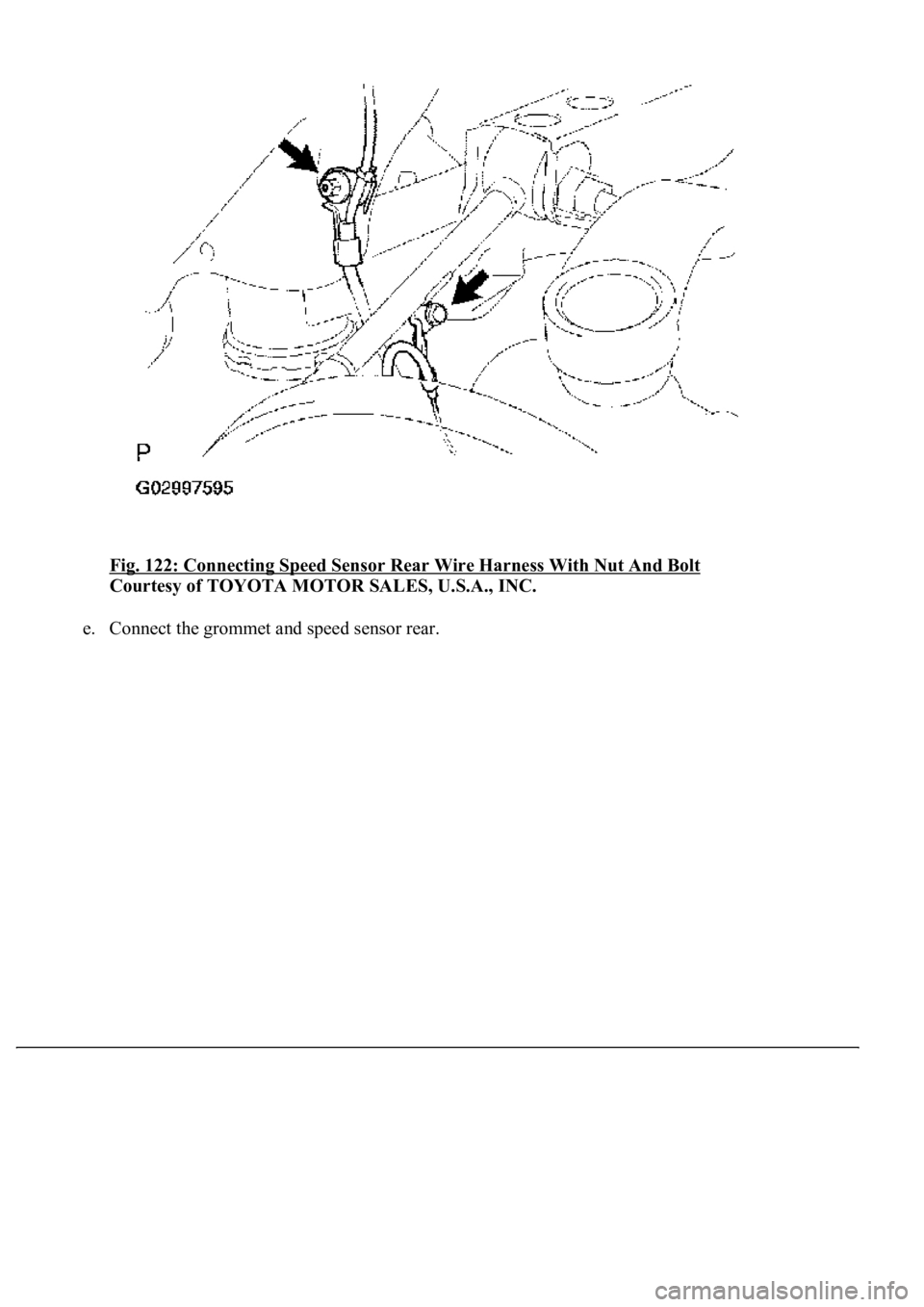

Fig. 122: Connecting Speed Sensor Rear Wire Harness With Nut And Bolt
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
e. Connect the
grommet and speed sensor rear.

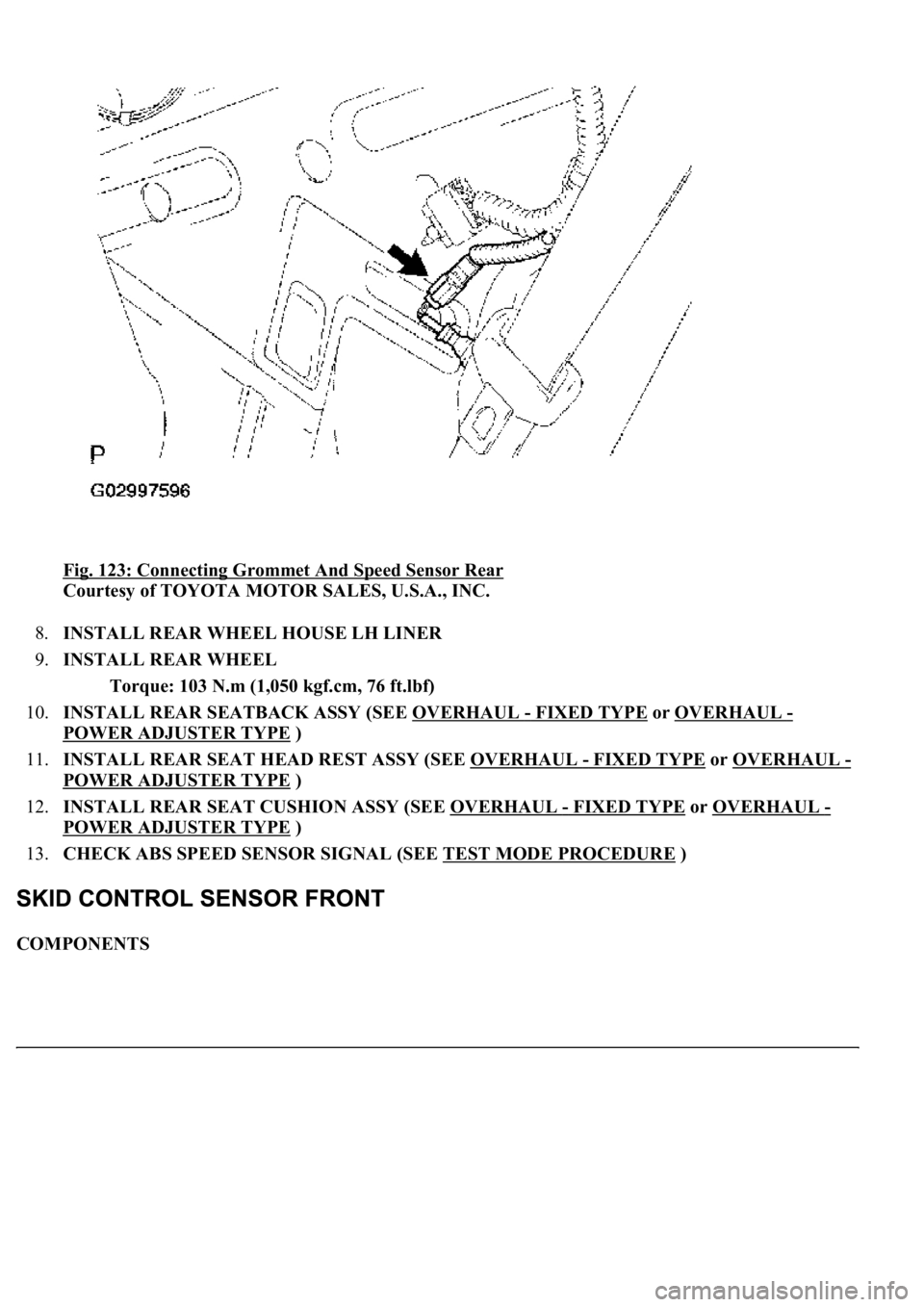

Fig. 123: Connecting Grommet And Speed Sensor Rear
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
8.INSTALL REAR WHEEL HOUSE LH LINER
9.INSTALL REAR WHEEL
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
10.INSTALL REAR SEATBACK ASSY (SEE OVERHAUL
- FIXED TYPE or OVERHAUL -
POWER ADJUSTER TYPE
)
11.INSTALL REAR SEAT HEAD REST ASSY (SEE OVERHAUL
- FIXED TYPE or OVERHAUL -
POWER ADJUSTER TYPE )
12.INSTALL REAR SEAT CUSHION ASSY (SEE OVERHAUL
- FIXED TYPE or OVERHAUL -
POWER ADJUSTER TYPE
)
13.CHECK ABS SPEED SENSOR SIGNAL (SEE TEST MODE PROCEDURE
)
COMPONENTS

Replace the RH side by using the same procedures as for the LH side.
The procedures listed below are for the LH side.
1.REMOVE FRONT WHEEL
2.DISCONNECT SKID CONTROL SENSOR WIRE
a. Disconnect the skid control sensor connector.
Fig. 125: Disconnecting Skid Control Sensor Connector

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
3.SEPARATE FRONT DISC BRAKE CALIPER ASSY LH (SEE OVERHAUL
)
4.REMOVE FRONT DISC (SEE COMPONENTS
)
5.REMOVE FRONT AXLE HUB SUB-ASSY LH (SEE REPLACEMENT
)
6.REMOVE SKID CONTROL SENSOR FRONT
a. Mount the front axle hub sub-assy LH on a soft jaw vise.
b.Using<0003004400030053004c005100030053005800510046004b00030044005100470003004b00440050005000480055000f000300470055004c00590048000300520058005700030057004b00480003001500030053004c005100560003004400510047000300
550048005000520059004800030057004b0048000300150003[attachments from SST.

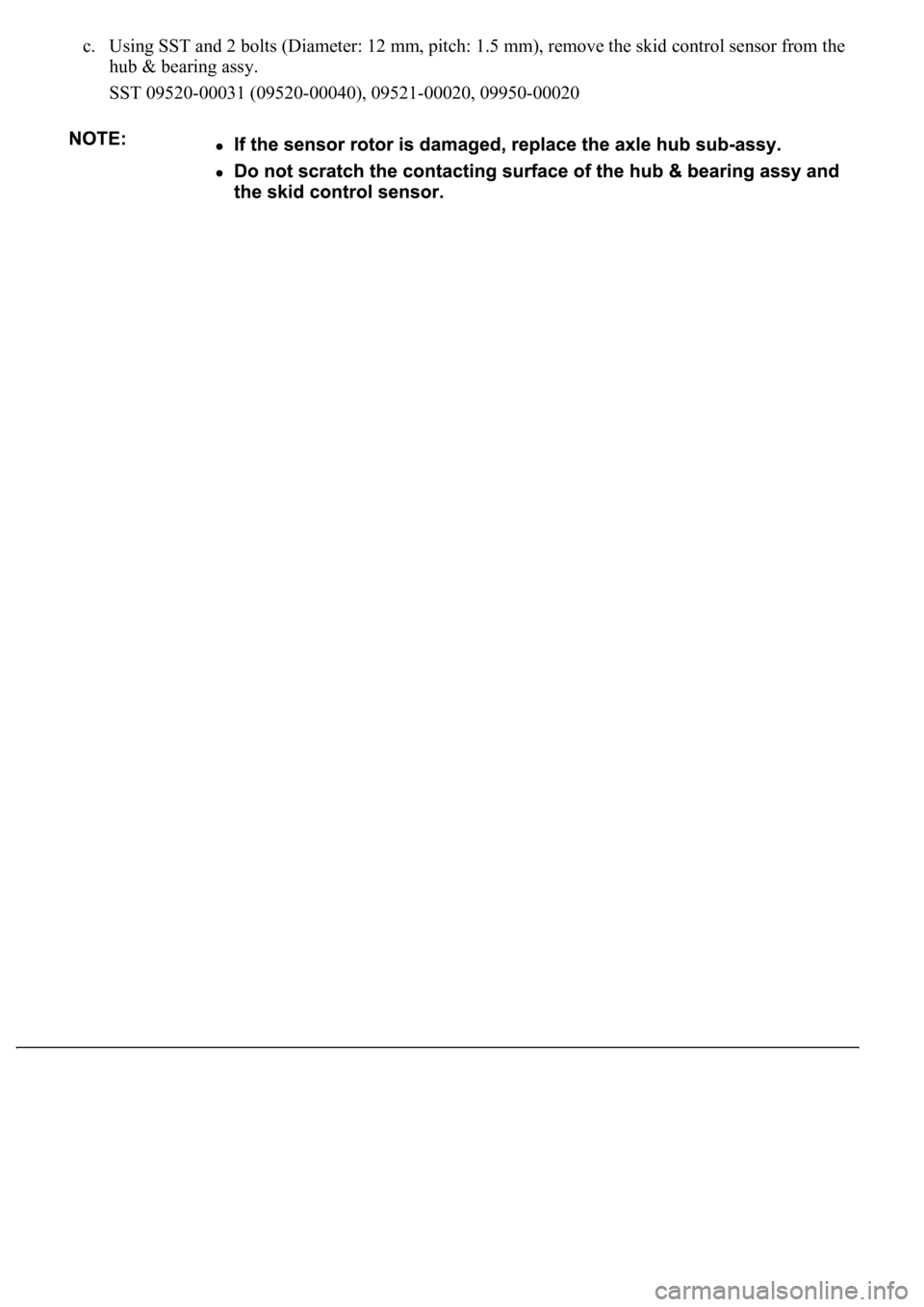

c. Using SST and 2 bolts (Diameter: 12 mm, pitch: 1.5 mm), remove the skid control sensor from the
hub & bearing assy.
<00360036003700030013001c0018001500130010001300130013001600140003000b0013001c001800150013001000130013001300170013000c000f00030013001c001800150014001000130013001300150013000f00030013001c001c00180013001000
13001300130015001300030003[

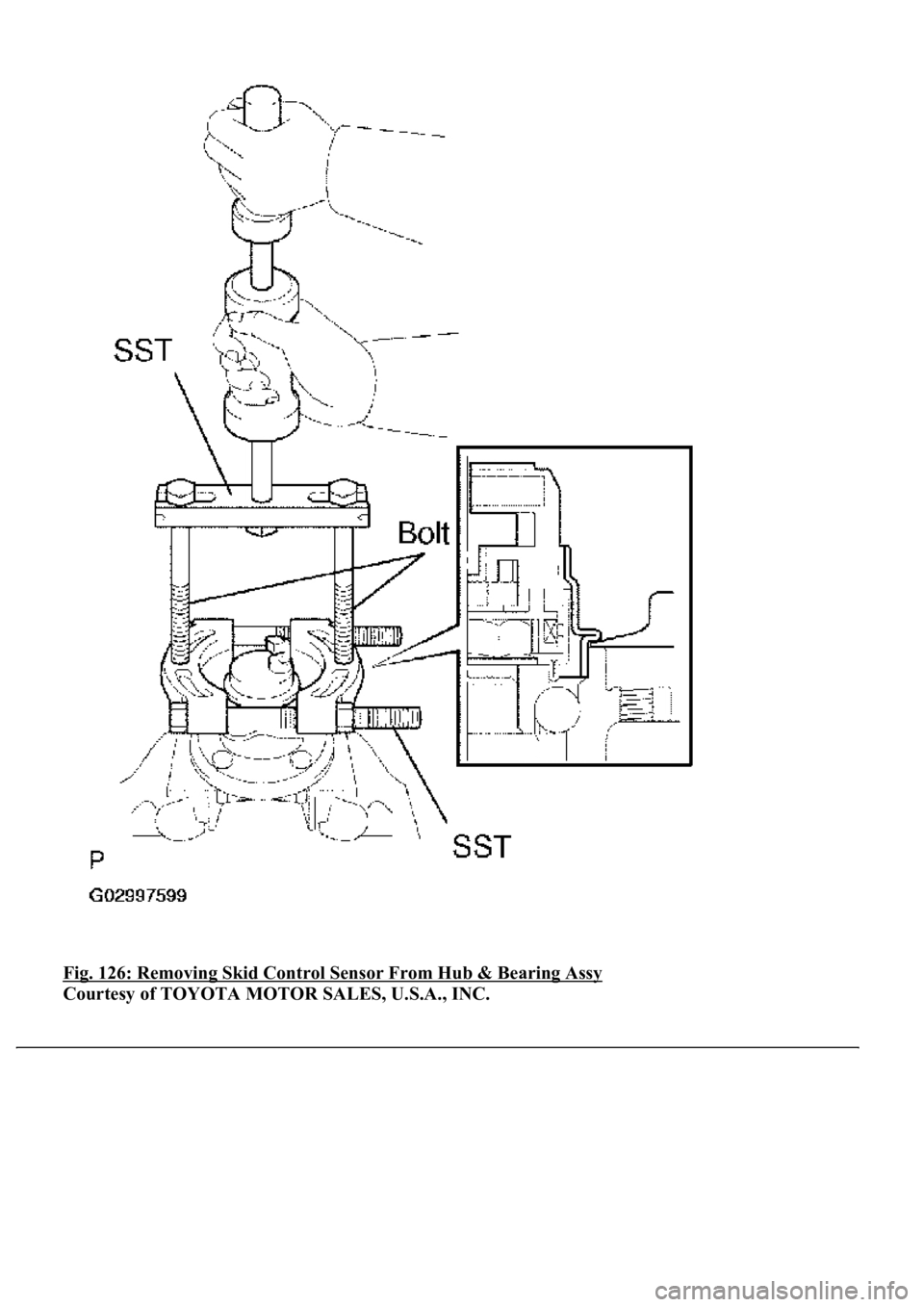

Fig. 126: Removing Skid Control Sensor From Hub & Bearing Assy
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
