2003 LEXUS LS430 Combination

display on the combination meter when starting the beam axis adjustment mode with the hand-held
tester.
Fig. 35: Confirming Current Distance

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
g. Adjustment in horizontal direction
1. Read the divergence in the current angle.
Standard:
0° (Both right and left)
2. Based on the measured divergence of the beam axis, turn and adjust screw B for horizontal
adjustment of the millimeter wave radar sensor using a hexagon wrench.
HINT:

OK: "ON" (door closer position switch (POLE/HALF/FULL) is ON) appears on the screen.
NG: Go to step 2
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS
TABLE
2.INSPECT COMBINATION SWITCH ASSY (HALF LATCH AND FULL LATCH SWITCH)
a. Disconnect the F23-a lock connector.
b. Measure the resistance.
Item(Range)Normal ConditionPosition
POLE SWPawl switch signal/ ON or OFFRefer to system description of door ECU
(SEE SYSTEM DESCRIPTION
)
-
HALF SWHalf switch signal/ ON or OFFRefer to system description of door ECU
(SEE SYSTEM DESCRIPTION
)
-
FULL SWFull switch signal/ ON or OFFRefer to system description of door ECU
(SEE SYSTEM DESCRIPTION
)
-

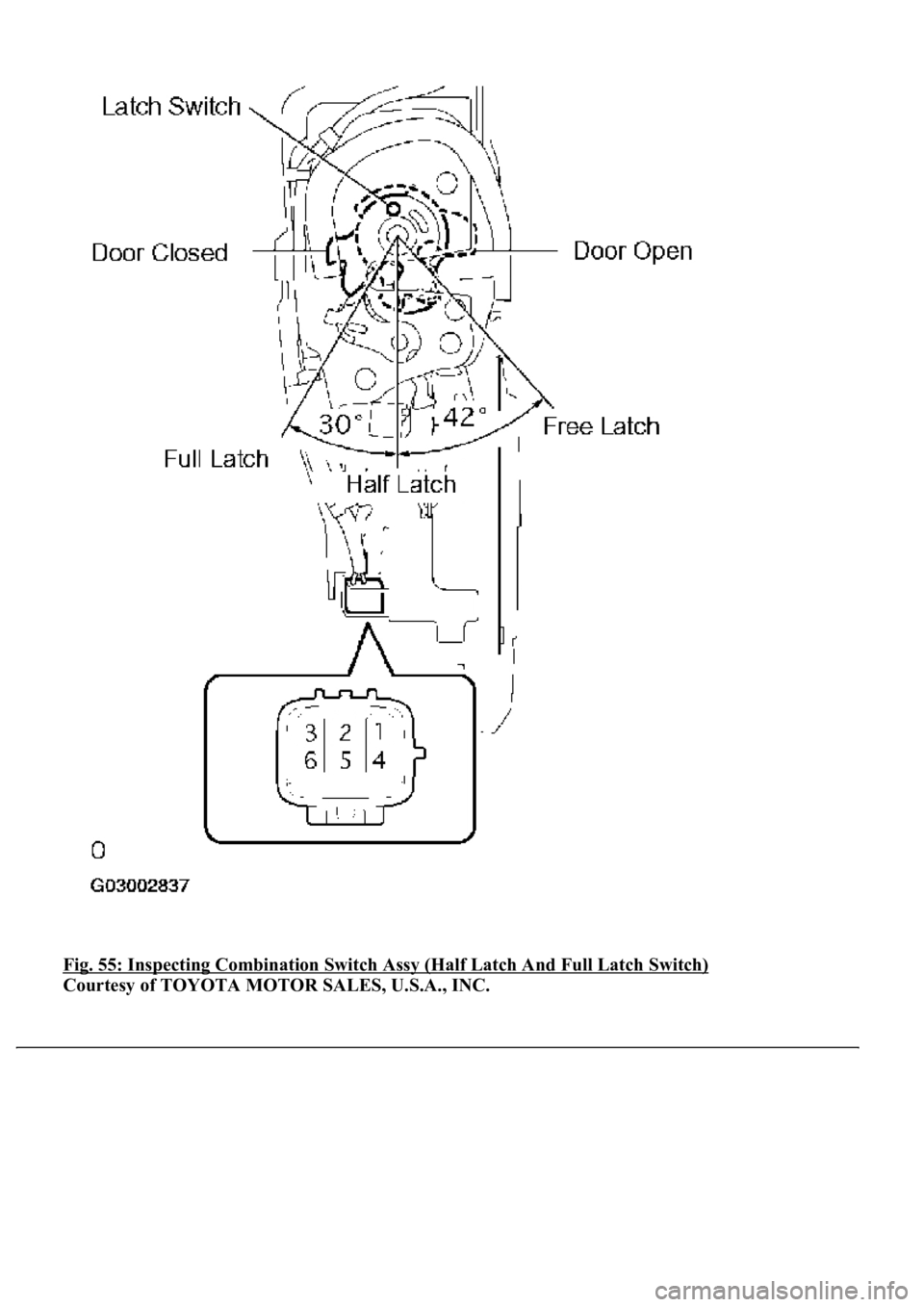

Fig. 55: Inspecting Combination Switch Assy (Half Latch And Full Latch Switch)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

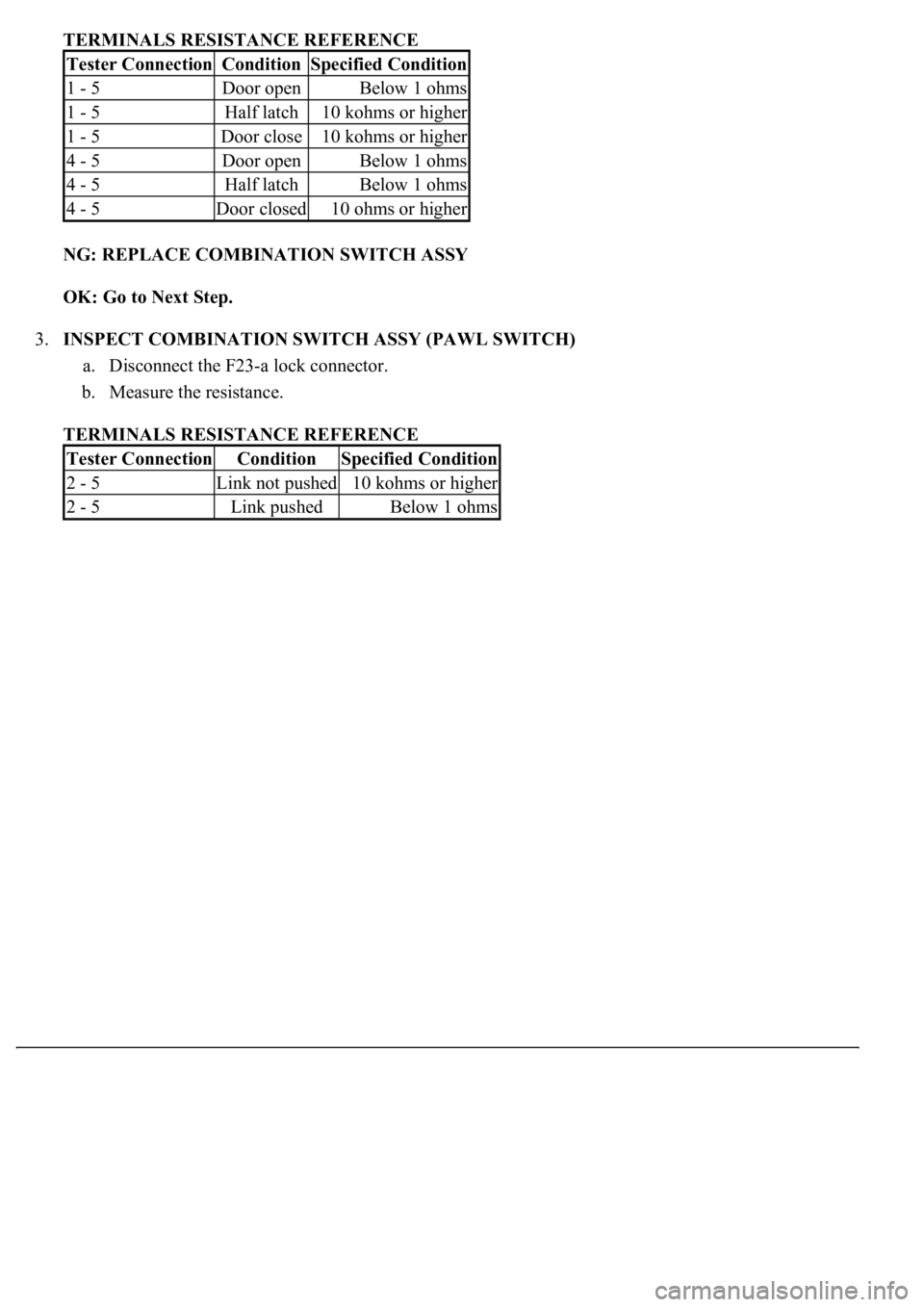

TERMINALS RESISTANCE REFERENCE
NG: REPLACE COMBINATION SWITCH ASSY
OK: Go to Next Step.
3.INSPECT COMBINATION SWITCH ASSY (PAWL SWITCH)
a. Disconnect the F23-a lock connector.
b. Measure the resistance.
TERMINALS RESISTANCE REFERENCE
Tester ConnectionConditionSpecified Condition
1 - 5Door openBelow 1 ohms
1 - 5Half latch10 kohms or higher
1 - 5Door close10 kohms or higher
4 - 5Door openBelow 1 ohms
4 - 5Half latchBelow 1 ohms
4 - 5Door closed10 ohms or higher
Tester ConnectionConditionSpecified Condition
2 - 5Link not pushed10 kohms or higher
2 - 5Link pushedBelow 1 ohms

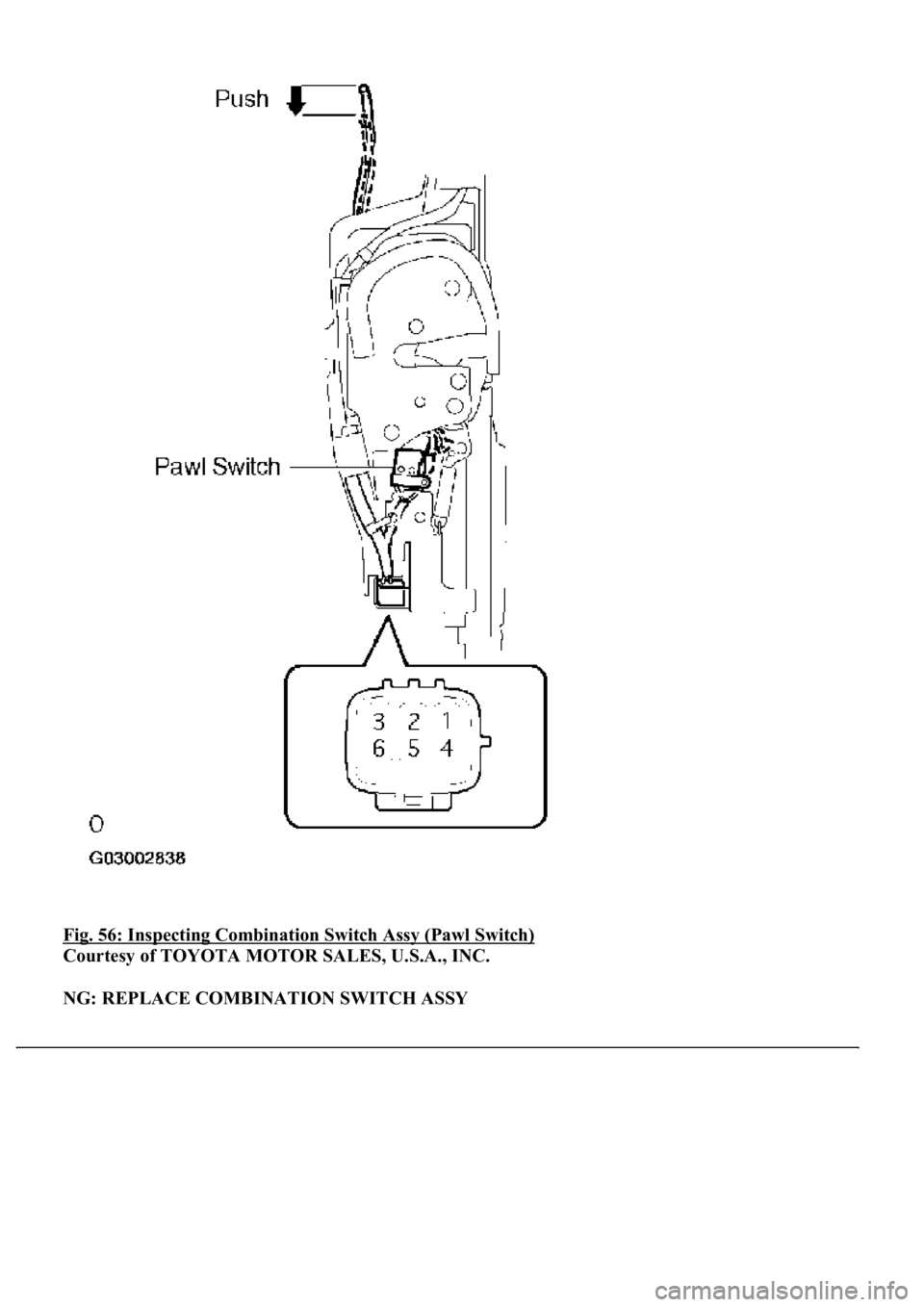

Fig. 56: Inspecting Combination Switch Assy (Pawl Switch)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
NG: REPLACE COMBINATION SWITCH ASSY

Fig. 57: Checking Wire Harness (Driver Door ECU -Front Door Lock Assy LH)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
TERMINALS RESISTANCE REFERENCE
NG: REPLACE COMBINATION SWITCH ASSY
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS
TABLE
CIRCUIT DESCRIPTION
The door lock assembly has a built-in closer position switch, which detects the position of the closer.
WIRING DIAGRAM
Tester ConnectionSpecified Condition
F23-a-2 - F23-23 (POLE)Below 1 ohms
F23-a-1 - F23-24 (HALF)Below 1 ohms
F23-a-4 - F23-15 (FULL)Below 1 ohms
F23-a-5 - F23-21 (KEYE)Below 1 ohms
F23-a-2 - Body ground10 kohms or higher
F23-a-1 - Body ground10 kohms or higher
F23-a-4 - Body ground10 kohms or higher
F23-a-5 - Body ground10 kohms or higher

Fig. 58: Door Closer Position Switch Circuit On Passenger Side Door -Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

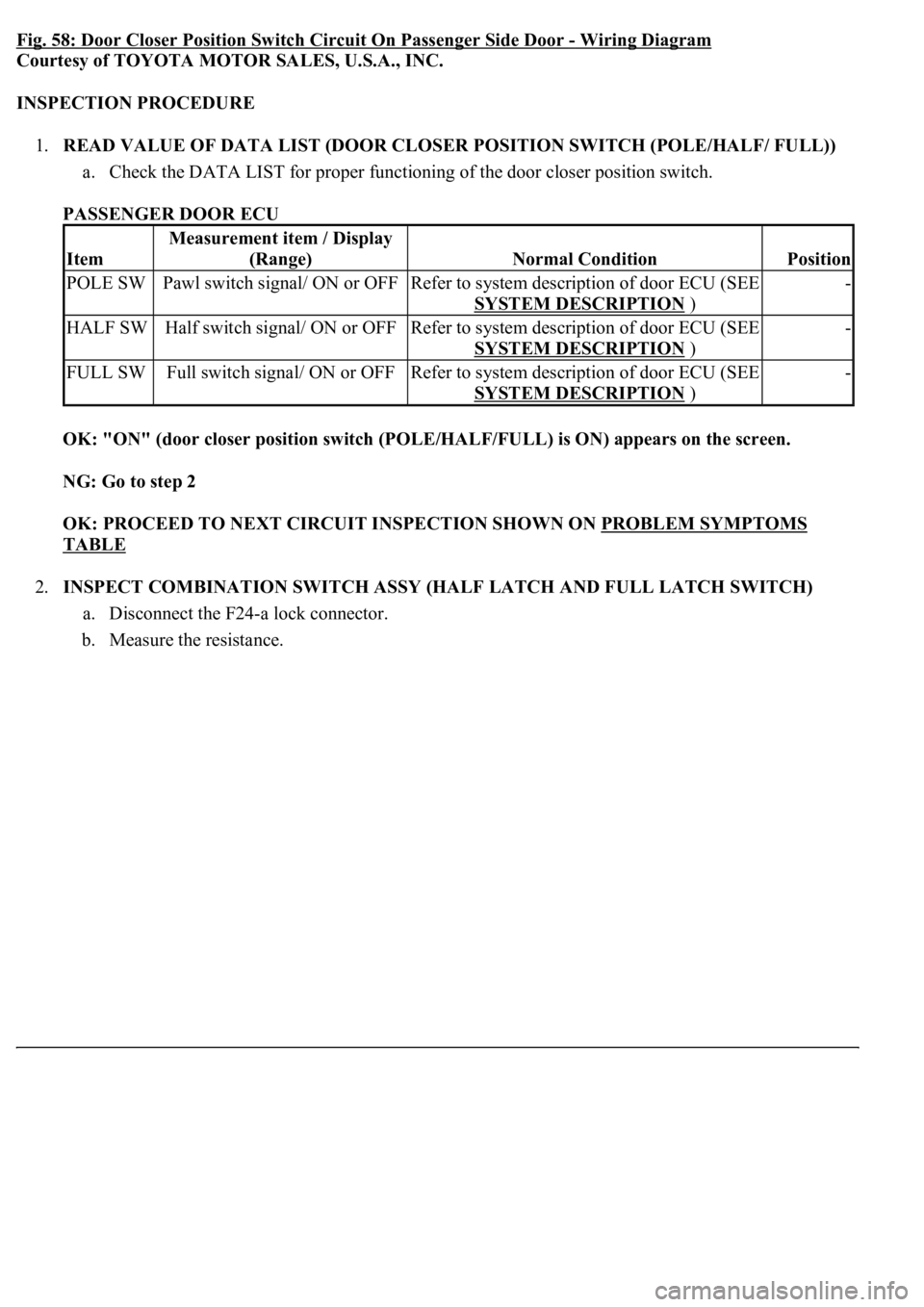

INSPECTION PROCEDURE
1.READ VALUE OF DATA LIST (DOOR CLOSER POSITION SWITCH (POLE/HALF/ FULL))
a. Check the DATA LIST for proper functioning of the door closer position switch.
PASSENGER DOOR ECU
OK: "ON" (door closer position switch (POLE/HALF/FULL) is ON) appears on the screen.
NG: Go to step 2
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS
TABLE
2.INSPECT COMBINATION SWITCH ASSY (HALF LATCH AND FULL LATCH SWITCH)
a. Disconnect the F24-a lock connector.
b. Measure the resistance.
Item
Measurement item / Display
(Range)
Normal ConditionPosition
POLE SWPawl switch signal/ ON or OFFRefer to system description of door ECU (SEE
SYSTEM DESCRIPTION
)
-
HALF SWHalf switch signal/ ON or OFFRefer to system description of door ECU (SEE
SYSTEM DESCRIPTION
)
-
FULL SWFull switch signal/ ON or OFFRefer to system description of door ECU (SEE
SYSTEM DESCRIPTION
)
-

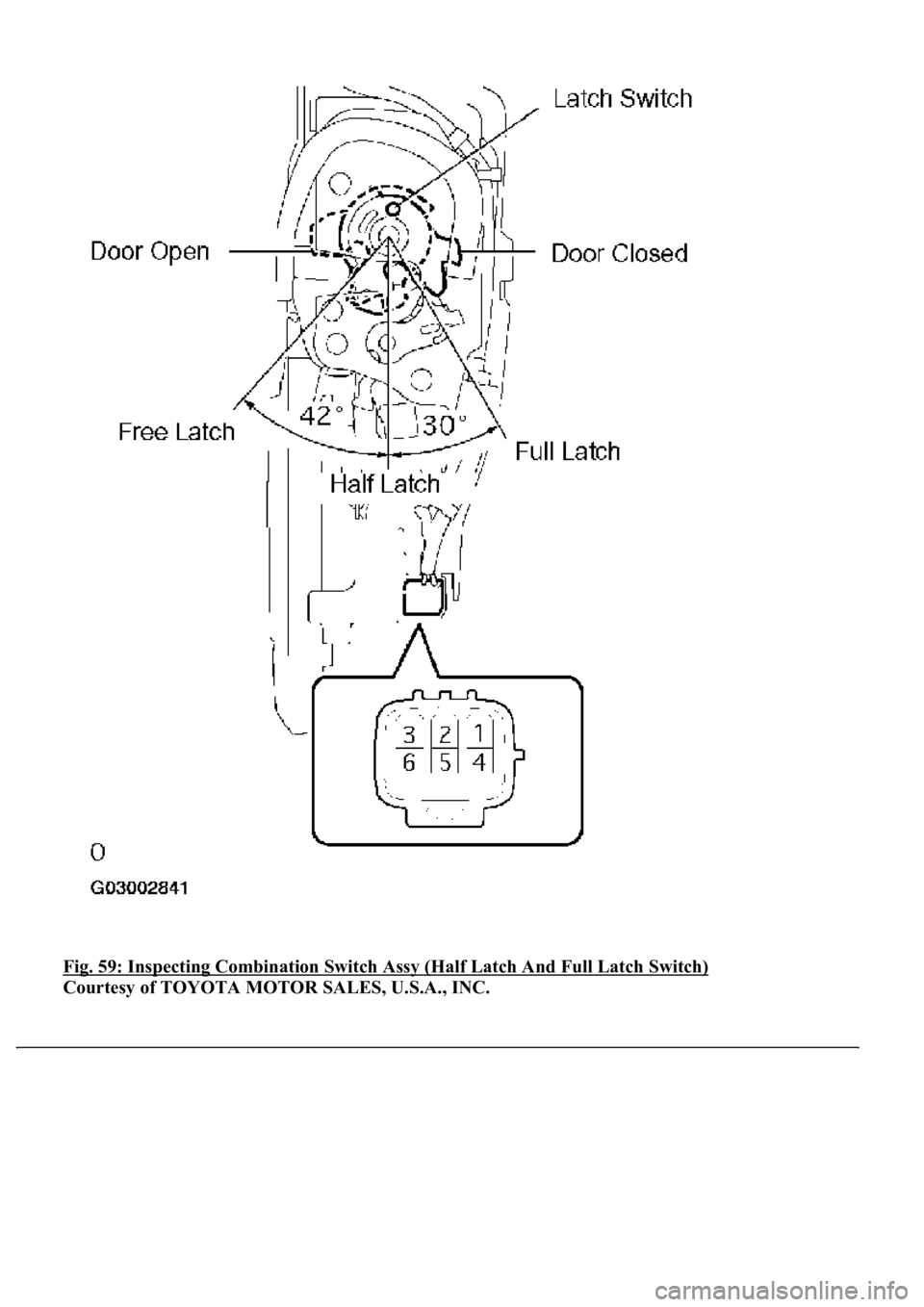

Fig. 59: Inspecting Combination Switch Assy (Half Latch And Full Latch Switch)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
