2003 Hyundai Grandeur Owner's Manual

FEATURES OF YOUR HYUNDAI 1- 3
B010F01A-AAT Operation in Foreign Countries If you are going to drive your Hyundai in another country, be sure to:
o Observe all regulations regarding
registration and insurance.
o Determine that acceptable fuel is available.
B020A01S-GAT BREAKING IN YOUR NEW HYUNDAI During the First 2,000 Km (1,200 Miles) No formal "break-in" procedure is re- quired with your new Hyundai. How- ever, you can contribute to the eco- nomical operation and durability of yourHyundai by observing the following recommendations during the first 2,000 km (1,200 miles). B030A01Y-AAT KEYS For greater convenience, your Hyundai has two master keys and a sub key. The master keys will open all locks on your vehicle. The sub key will onlyfunction in the ignition and the door locks. Leaving your sub key with a parkingattendant will ensure that your vehicle's trunk, trunk lid release, glove box com- partment and rear trunk access maynot be unlocked in your absence. NOTE: Before leaving your sub key with a parking attendant, make sure thatthe lock levers of the rear seat back
HXG116
Master key Sub key
o Don't drive faster than 88 km/h (55
mph).
o While driving, keep your engine speed (rpm, or revolutions per minute) between 2,000 rpm and 4,000 rpm.
o Use moderate acceleration. Don't start, depress the accelerator pedalfully.
o For the first 300 km (200 miles), try to avoid hard stops.
o Don't lug the engine (in other words, don't drive so slowly in too high a gear that the engine "bucks": shift to a lower gear).
o Whether going fast or slow, vary your speed from time to time.
o Don't let the engine idle longer than 3 minutes for a catalytic converter equipped engine.
o Don't tow a trailer during the first 2,000 km (1,200 miles) of opera-tion.

1- 4 FEATURES OF YOUR HYUNDAI
B030B01L B880A01A-GAT IMMOBILIZER SYSTEM (If installed) The immobilizer system is an anti-theft device, designed to deter automobile theft.

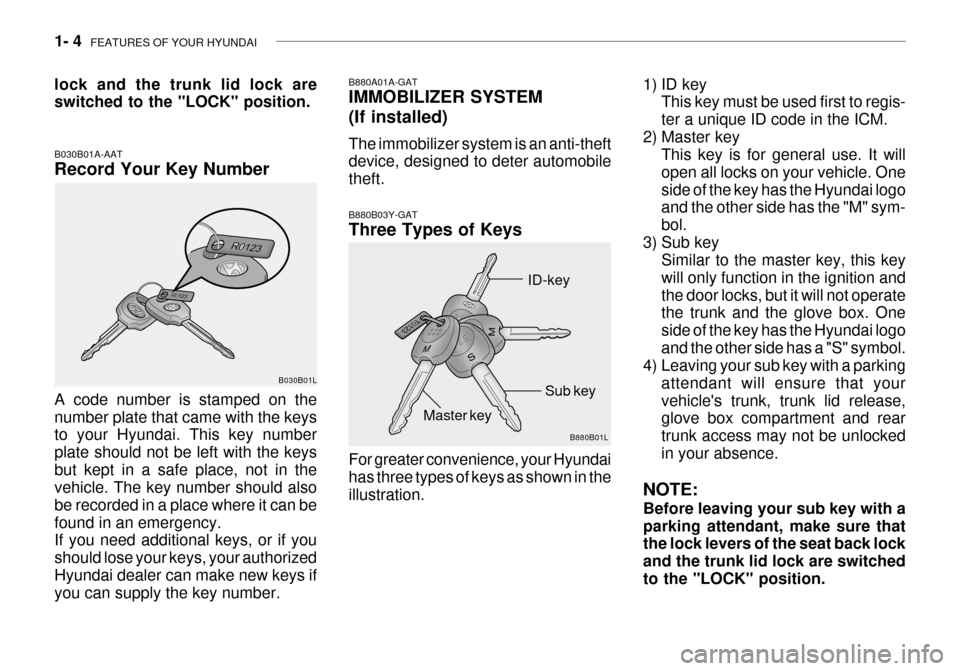

B030B01A-AAT Record Your Key Number A code number is stamped on the number plate that came with the keys to your Hyundai. This key number plate should not be left with the keysbut kept in a safe place, not in the vehicle. The key number should also be recorded in a place where it can befound in an emergency. If you need additional keys, or if you should lose your keys, your authorizedHyundai dealer can make new keys if you can supply the key number. B880B03Y-GAT Three Types of Keys
1) ID key
This key must be used first to regis- ter a unique ID code in the ICM.
2) Master key This key is for general use. It willopen all locks on your vehicle. Oneside of the key has the Hyundai logo and the other side has the "M" sym- bol.
3) Sub key Similar to the master key, this keywill only function in the ignition andthe door locks, but it will not operate the trunk and the glove box. One side of the key has the Hyundai logoand the other side has a "S" symbol.
4) Leaving your sub key with a parking
attendant will ensure that yourvehicle's trunk, trunk lid release, glove box compartment and rear trunk access may not be unlockedin your absence.
NOTE: Before leaving your sub key with a parking attendant, make sure that the lock levers of the seat back lock and the trunk lid lock are switchedto the "LOCK" position.
For greater convenience, your Hyundaihas three types of keys as shown in theillustration. ID-key
Master key Sub key
B880B01L
lock and the trunk lid lock are switched to the "LOCK" position.

FEATURES OF YOUR HYUNDAI 1- 5
B880C01A-GAT Key Numbers The vehicle key number is recorded upon a metal tag attached to the keys when the vehicle is first delivered to you.The key number should be recorded and kept in a safe place in case the need to order further keys arises. Newkeys are available from any Hyundai dealer by quoting the relevant key number.In the interest of security, the metal tag attached to the keys which bears the key number should be removed fromthe key ring after you receive your new vehicle. In addition, key numbers can- not be provided by Hyundai for secu-rity reasons. B880C01L
CAUTION:
Don't lose your ID key or forget thepassword. Always keep your ID keyin a place where you remember and record your password. If you don't have both the password and ID key,consult your authorized Hyundai dealer.
!
5) If you need additional keys or if you should lose your keys, your autho- rized Hyundai dealer can make new keys if you can supply the key num- ber and ID key.
NOTE: If you make your own duplicate key, you will not be able to cancel the system or start the engine. If you need additional keys or if youshould lose your keys, your authorized Hyundai dealer can make new keys ifyou can supply the key number and ID key.
B030C01L-AAT ILLUMINATED IGNITION SWITCH Whenever a door is opened, the igni- tion switch will be illuminated for yourconvenience, provided the ignition switch is not in the "ON" position. The light will go off approximately 10seconds after closing the door or when the ignition switch is turned on.
B030C01L

1- 6 FEATURES OF YOUR HYUNDAI
UNLOCK
LOCK
HXG018
B040A02Y-AAT DOOR LOCKS
B040B01A-AATLocking and unlocking front doors with a key
o The door can be locked or unlocked
with a key.
o Lock the door by turning the key
toward the front of the vehicle and unlock it by turning the key toward the rear.
!
B040C03L
B040C02Y-AAT Locking From the Outside The doors can be locked without a key. To lock the doors, first push the inside lock switch to the "LOCK" position so that the red mark on the switch is notvisible, then closed the door. The door will not lock if the key is left in the ignition switch when the front doorsclose. This is normal. NOTE:
o When locking the door this way,
be careful not to lock the door with the ignition key left in the vehicle.
WARNING:
o Unlocked doors can be danger- ous. Before you drive away (es- pecially if there are children in the car), be sure that all the doorsare securely closed and locked so that the doors cannot be inad- vertently opened from the inside.This helps ensure that the doors will not be opened accidentally. Also, when combined with theproper use of seat belts, locking the doors helps keep occupants from being ejected from the carin case of an accident.
o Before opening the door, always
look for and avoid oncoming traf-fic.
o In case of accident, the door is
unlocked automatically.

FEATURES OF YOUR HYUNDAI 1- 7
o To protect against theft, always
remove the ignition key, close all windows, and lock all doors andthe trunk lid when leaving your vehicle unattended.
Your Hyundai is equipped with a "child- protector" rear door lock assembly. When the lock mechanism is engaged, the rear door cannot be opened fromthe inside. Its use is recommended whenever there are small children in the rear seat. To engage the child-protector feature so the door cannot be opened from theinside, move the child-protector lever to the " " position and close the door. Move the lever to the opposite direc-tion of the " " position when normal door operation is desired.
B040D01S-AAT Locking From the Inside To lock the doors from the inside, simply close the door and push the lock switch to the "LOCK" position. When this is done, neither the outsidenor the inside door handle can be used. NOTE: When the door is locked, the red mark on the switch is not visible.
HXGS226
LOCK
UNLOCK
B040E03L
B040E03A-AAT CHILD-PROTECTOR REAR DOOR LOCKIf you wish to be able to open the door from the outside, the outside door handle will function normally.
B040G02L-AAT Central Door Locks The central door locking switch is lo- cated on the driver's arm rest. It isoperated by depressing either the front or rear of the door lock switch. NOTE:
o When pushing the front portion
of the driver's door lock switch, all vehicle doors will lock.If any door is open when the switch is depressed, the door will remain locked when closed. B040G02L-1
LOCK
UNLOCK

1- 8 FEATURES OF YOUR HYUNDAI
B070A01S-AAT THEFT-ALARM SYSTEM (If installed) This system is designed to provide protection from unauthorized entry intothe car. This system is operated in three stages: the first is the "Armed" stage, the second is the "Alarm" stage,and the third is the "Disarmed" stage. If triggered, the system provides an audible alarm siren. B070B03Y-AAT Armed Stage Park the car and stop the engine. Arm the system as described below.
1) Remove the ignition key from the
ignition switch.
2) Make sure that the engine hood and trunk lid are locked.
3) Lock the doors using the transmitter
of the keyless entry system.
o When pushing the rear portion of
the switch, all vehicle doors will unlock.
!
After completion of the steps above, the turn signal light will blink once to indicate that the system is armed. NOTE:
1) If any door, trunk lid or engine
hood remains open, the system will not be armed.
2) If this happens, rearm the system as described above.
CAUTION:
Do not arm the system until all passengers have left the car. If thesystem is armed while a passenger(s) remains in the car, the alarm may be activated whenthe remaining passenger(s) leaves the car.HXGS123
B070C03L-GAT Alarm Stage The alarm will be activated if any of the following occurs while the car is parked and the system is armed.
1) A front or rear door is opened with-
out using the transmitter.
2) The trunk lid is opened without us-
ing the transmitter.
3) The engine hood is opened.The turn signal lights will blink continu- ously and the siren will sound for 27 seconds. (EC only/Except E.C: 3times). To turn off the system, unlock the door or trunk lid with the transmit- ter.

FEATURES OF YOUR HYUNDAI 1- 9
HXG117
UNLOCK
LOCK
TRUNKCAUTION:
Avoid trying to start the engine while the system is armed. B070D04L-AAT Disarmed Stage
The system will be disarmed when the following step is taken: The driver's or passenger's door is unlocked by depressing the " " button on the transmitter.After completion of the steps above, the turn signal lights will blink twice to indicate that the system is disarmed. Keyless Entry System Locking doors
1. Close all doors.
2. Push the " " button on the
transmitter.
3. All doors will lock and the turn signal lights will blink once to indicate that the system is armed.
Unlocking doors
1. Push the " " button on the transmitter.
2. All doors will unlock and the turn
signal lights will blink twice to indi- cate that the system is disarmed.
Releasing the trunk lid Push the " " button on the trans- mitter for longer than 1 second.
! CAUTION:
Only the transmitter can disarm the armed stage. If the transmitter doesnot disarm the system, it is neces- sary to take the following steps;
1. Unlock the door with the key, which will cause the alarm to be activated.
2. Insert the key in the ignition key cylinder and turn the ignition keyto "ON" position.
3. Wait for 30 seconds. After completing the steps above, the system will be disarmed.!

1- 10 FEATURES OF YOUR HYUNDAI
2. Remove the old battery from the
case and note the polarity. Make sure the polarity of the new battery is the same(+side facing down), then insert it in the transmitter. HEF193
Battery
1. Carefully separate the case with a blade screwdriver as shown in the illustration. HEF-192A
Screwdriver Case
B070E02HP-GAT Replacing the battery When the transmitter's battery begins to get weak, it may take several pusheson the button to lock or unlock the doors, and the LED will not light. Re- place the battery as soon as possible. Battery type : CR2032 Replacement instructions:B060A03L-AAT POWER WINDOWS
Open Close
The power windows operate when the ignition key is in the "ON" position. The main switches are located on the driver's armrest and control the front and rearwindows on both sides of the vehicle. The windows may be opened by de- pressing the appropriate window switchand closed by pulling up the switch. To open the window on the driver's side, press the switch(1) halfway down. Thewindow moves as long as the switch is operated. To fully open the driver's window automatically, press the switchfully down. In automatic operation, the window will fully open even if you let go of the switch. To stop at the desiredopening, pull up and release the switch. HXG025-1
(1)
(2)
