2003 Hyundai Grandeur Owner's Manual

FEATURES OF YOUR HYUNDAI 1- 75
B660C02L-GAT To Cancel the Cruise Speed
Do one of the following:
o Push the control switch "CANCEL".
o Depress the brake pedal.
o Depress the clutch pedal (Manual transaxle).
o Shift the selector lever in "P" or "N" position (Automatic transaxle).
o Decrease the vehicle speed lower
than memory speed by 15 km/h (9mph).
o Decrease the vehicle speed approxi-
mately to less than 40 km/h (25mph).
o Release the main switch. B660C01LB660D01L-GAT To Resume the Preset Speed The vehicle will automatically resume the speed set prior to cancellation when you push the control switch "RESUME(ACCEL)" (above 40 km/h).
B660D01L
B660E01L-GAT To Reset at a Faster Speed
1. Push the control switch "RESUME (ACCEL)"
2. Accelerate to desired speed. While the control switch is held, the ve- hicle will gradually gain speed.B660F01L-GAT To Reset at a Slower Speed
1. Push the control button "SET(COAST)". The vehicle will deceler- ate.
2. When the desired speed is obtained, release the control button. Whilethe control switch is pushed, thevehicle speed will gradually de- crease. B660B01L

1- 76 FEATURES OF YOUR HYUNDAI
WARNING:
o Keep the main switch off when not using the cruise control.
o Do not use the cruise control
when it may not be safe to keep the car at a constant speed, for instance, driving in heavy or vary-ing traffic, or on slippery (rainy, icy or snow-covered) or winding roads or over 6% up-hill or down-hill roads.
o Pay particular attention to the
driving conditions whenever us- ing the cruise control system.
o During cruise-speed driving with manual transaxle vehicle, do notshift into neutral without depress- ing the clutch pedal, since theengine will be overrevved. If this happens, depress the clutch pedal or release the main switch.
o During normal cruise control op- eration, when the set button isactivated or reactivated after ap-plying the brakes, the cruise con- trol will energize after approxi- mately 3 seconds. This delay isnormal. SEEK ( / ) Switch Press the SEEK switch 1 sec. or more.
1. RADIO mode When the SEEK ( ) is pressed, the unit will automatically tune to the next higher frequency and when the SEEK ( ) switch is pressed, it will automati-cally tune to the next lower frequency.
2. TAPE mode
o Pressing the SEEK ( ) will play the
beginning of the next music seg- ment.
o Pressing the SEEK ( ) will start replay at the beginning of the musicjust listened to.
3. CD (compact disc)/CDC (compact disc changer) mode
o Press the SEEK ( ) once to skip forward to the beginning of the next track.
o Press the SEEK ( ) once to skip back to the beginning of the track.
B610A01L-GAT AUDIO REMOTE CONTROL SWITCH (If installed) The steering wheel audio remote con- trol switch is installed to promote safedriving. However, do not operate au- dio remote control switches simulta- neously. MODE Switch Press the MODE switch to select Ra- dio, Tape, CD (compact disc) and CDC.(compact disc changer) Each press of the switch changes the display as follows: FM1
FM2
AM(LW)
TAPE
CD
CDC
HXGS266
!

FEATURES OF YOUR HYUNDAI 1- 77
MUTE Switch
o Press the MUTE switch to disap-
pear the sound.
o Once again press the MUTE switch to reproduce the sound.
VOL ( / ) Switch
o Press the VOL ( ) button to in- crease volume.
o Press the VOL ( ) button to de- cease volume.

1- 78 FEATURES OF YOUR HYUNDAI
B710A01L-GAT HEATING AND COOLING CONTROL
1. Side Ventilator
2. Side Defrost Nozzle
3. Center Ventilator
4. Windshield Defrost Ventilator B710B01A-AAT Center Ventilator The center ventilators are located in the middle of the dashboard. To change the direction of the airflow,turn the control knob on the middle of the ventilator as desired.
B710A01L-AAT VENTILATION To operate the ventilation system:
o Set the air intake control at the fresh
air ( ) position.
o To direct all intake air to the dash-
board vents, set the airflow control
to the face ( ) position.
o Adjust the fan speed control to the
desired speed.
B710A01L-1
1 34122
B710C01Y-AAT Side Ventilator The side vent knobs control the amount of outside air entering the vehicle through the side vents. These vents can also be closed,so no air enters through the sidevents. To change the direction of the air flow, turn the control knobs as desired.

FEATURES OF YOUR HYUNDAI 1- 79
1 B670B03Y-AAT Fan Speed Control (Blower Control)
HXG121
This is used to turn the blower fan on and off and to select the fan speed. The blower fan speed, and thereforethe volume of air delivered from the system, may be controlled manually by setting the blower control betweenthe 1 and 4 position.

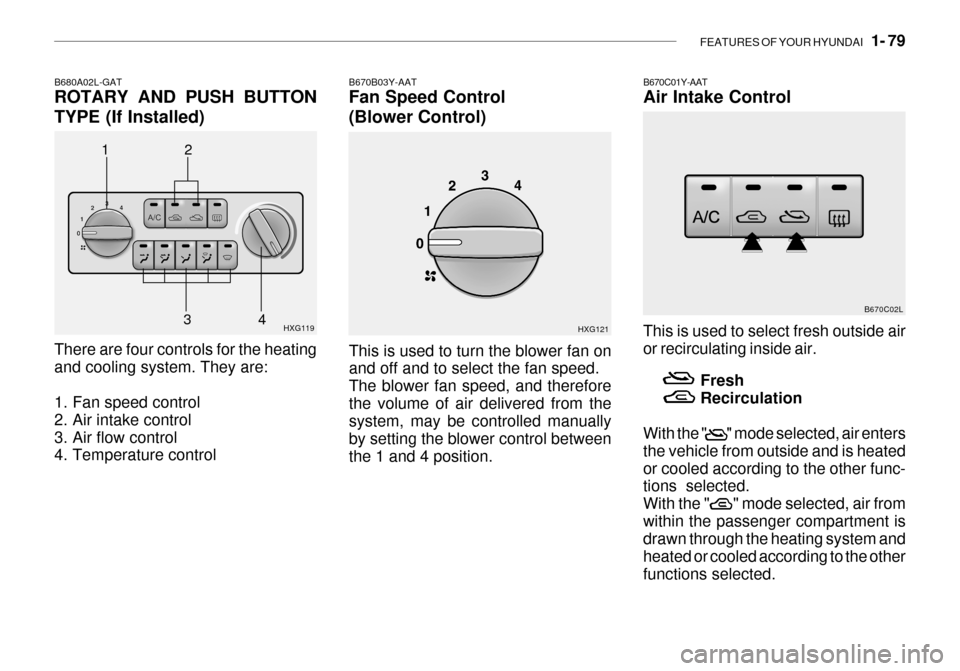

B680A02L-GAT ROTARY AND PUSH BUTTON
TYPE (If Installed) There are four controls for the heating and cooling system. They are:
1. Fan speed control
2. Air intake control
3. Air flow control
4. Temperature control
HXG1192
3
4
B670C01Y-AAT Air Intake Control This is used to select fresh outside air or recirculating inside air. FreshRecirculation
With the " " mode selected, air entersthe vehicle from outside and is heatedor cooled according to the other func- tions selected. With the " " mode selected, air fromwithin the passenger compartment is drawn through the heating system and heated or cooled according to the otherfunctions selected. B670C02L

1- 80 FEATURES OF YOUR HYUNDAI
NOTE:
o It should be noted that prolonged
operation of the heating system in " " mode will give rise tomisting of the windshield and side windows and the air within the passenger compartment willbecome stale. In addition pro- longed use of the air condition- ing with the " " mode selectedmay result in the air within the passenger compartment becom- ing excessively dry.
o When the ignition switch is turned "ON", the air intake con-trol will change to " " mode(regardless of switch position). This is normal operation.

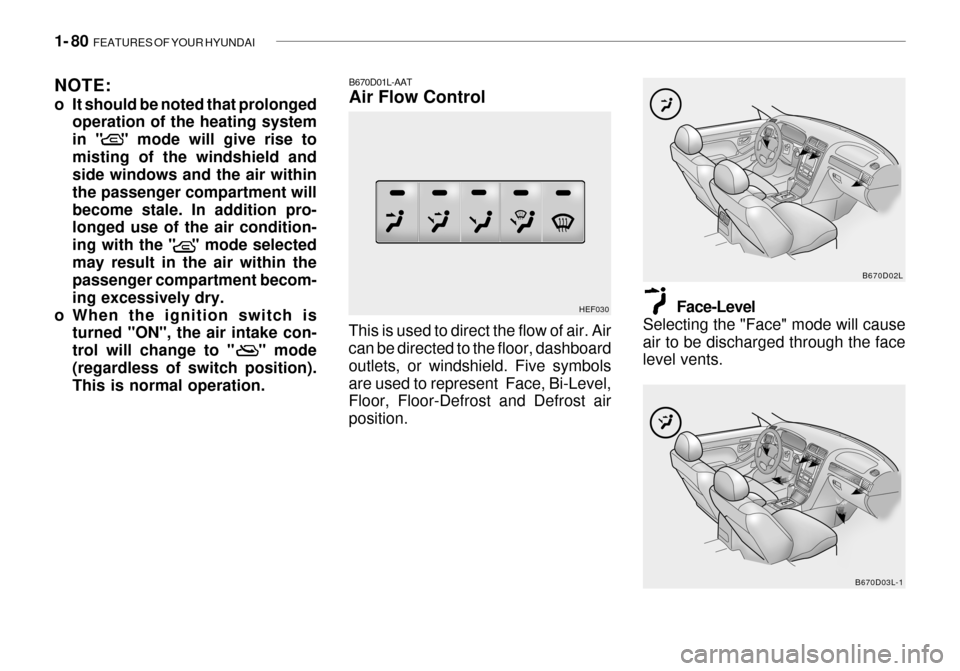

HEF030
B670D01L-AAT Air Flow Control
This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, or windshield. Five symbolsare used to represent Face, Bi-Level, Floor, Floor-Defrost and Defrost air position. Face-Level
Selecting the "Face" mode will causeair to be discharged through the face level vents.
B670D03L-1B670D02L

FEATURES OF YOUR HYUNDAI 1- 81

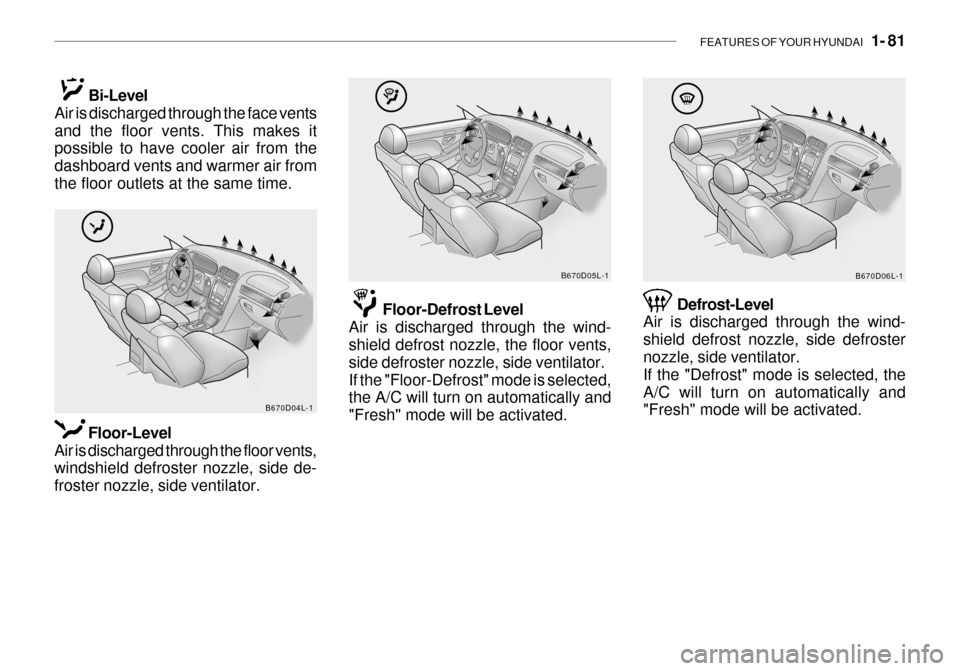

B670D04L-1
Bi-Level
Air is discharged through the face vents and the floor vents. This makes it possible to have cooler air from the dashboard vents and warmer air fromthe floor outlets at the same time.
Floor-Level
Air is discharged through the floor vents, windshield defroster nozzle, side de- froster nozzle, side ventilator. Floor-Defrost Level
Air is discharged through the wind- shield defrost nozzle, the floor vents, side defroster nozzle, side ventilator.If the "Floor-Defrost" mode is selected, the A/C will turn on automatically and "Fresh" mode will be activated. B670D05L-1
Defrost-Level
Air is discharged through the wind-shield defrost nozzle, side defroster nozzle, side ventilator. If the "Defrost" mode is selected, theA/C will turn on automatically and "Fresh" mode will be activated. B670D06L-1

1- 82 FEATURES OF YOUR HYUNDAI

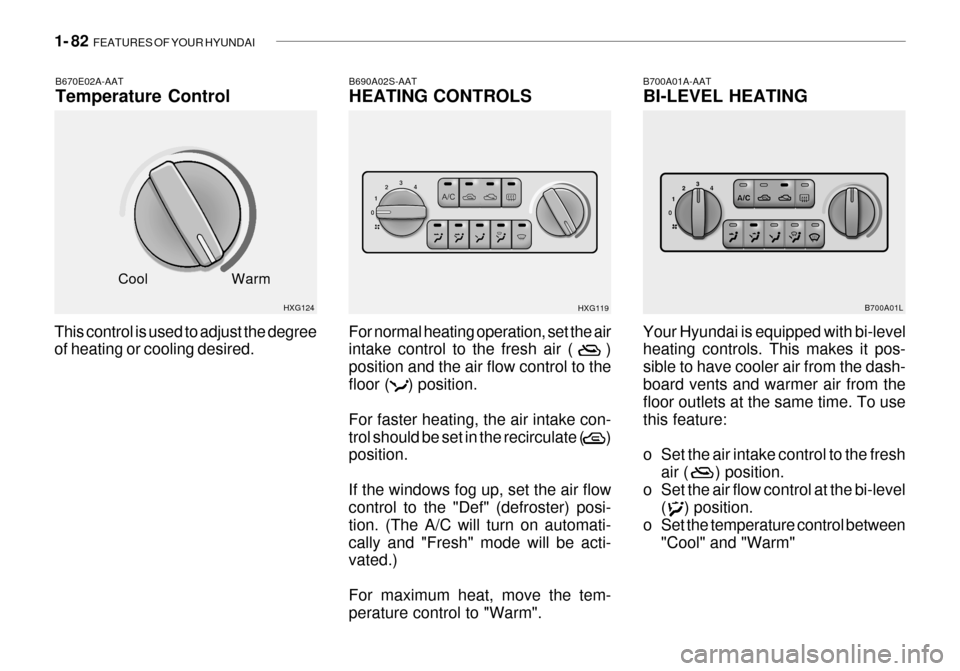

This control is used to adjust the degree of heating or cooling desired.B670E02A-AAT Temperature Control
HXG124
Cool
Warm B690A02S-AATHEATING CONTROLS
For normal heating operation, set the air intake control to the fresh air ( ) position and the air flow control to thefloor ( ) position. For faster heating, the air intake con- trol should be set in the recirculate ( ) position. If the windows fog up, set the air flow control to the "Def" (defroster) posi- tion. (The A/C will turn on automati-cally and "Fresh" mode will be acti- vated.) For maximum heat, move the tem- perature control to "Warm". HXG119
B700A01A-AAT BI-LEVEL HEATING Your Hyundai is equipped with bi-level heating controls. This makes it pos- sible to have cooler air from the dash-board vents and warmer air from the floor outlets at the same time. To use this feature:
o Set the air intake control to the fresh
air ( ) position.
o Set the air flow control at the bi-level ( ) position.
o Set the temperature control between "Cool" and "Warm" B700A01L
