7.
CAUTION: Do not pull on the molded lead frame. This may cause damage to the
connector ends. Carefully pry up on the locking tabs to disconnect the solenoids.
Disconnect the molded lead frame from the solenoids.
Disconnect the molded lead frame from the solenoids. 1. Disconnect the shift solenoid SSA and SSB.
2. Disconnect the torque converter clutch (TCC).
3. Disconnect the electronic pressure control (EPC) solenoid.
4. Disconnect the bulkhead inter- connector.
8. Remove the output shaft speed (OSS) sensor. 1. Remove the bolt.
2. Remove the OSS sensor. Klj . 4 ba
162003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

26. Using the special tools, remove the extension housing seal.
27.
NOTE: These bolts have been coated with a sealant. High break torque may be required to
remove these bolts.
Remove the extension housing.
1. Remove the four bolts and two nuts.
2. Remove the extension housing and the extension housing gasket.
28. Remove the parking pawl. 1. Remove the parking pawl shaft.
2. Remove the parking pawl return spring.
3. Remove the parking pawl.
29. Rotate the transmission to the vertical position with the output shaft towards the floor.
30. CAUTION: Extreme care must be taken during transmission connector removal. Do
not use a hammer on the connector body.
Place a screwdriver on the flat portion of the connector and push the connector out through the
bottom of the case. Klj . 10 ba
162003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

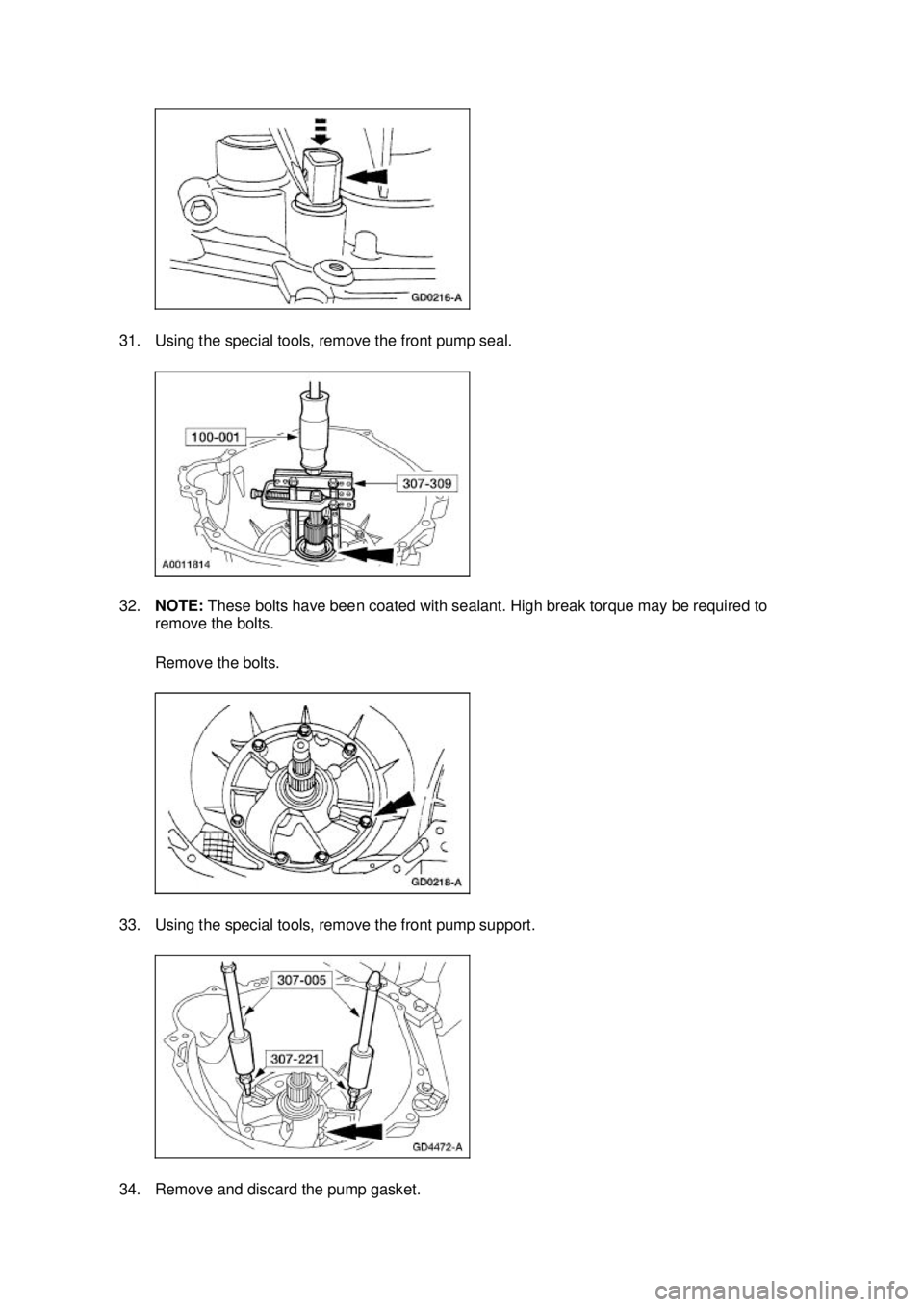

31. Using the special tools, remove the front pump seal.
32.
NOTE: These bolts have been coated with sealant. High break torque may be required to
remove the bolts.
Remove the bolts.
33. Using the special tools, remove the front pump support.
34. Remove and discard the pump gasket. Klj . 11 ba
162003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

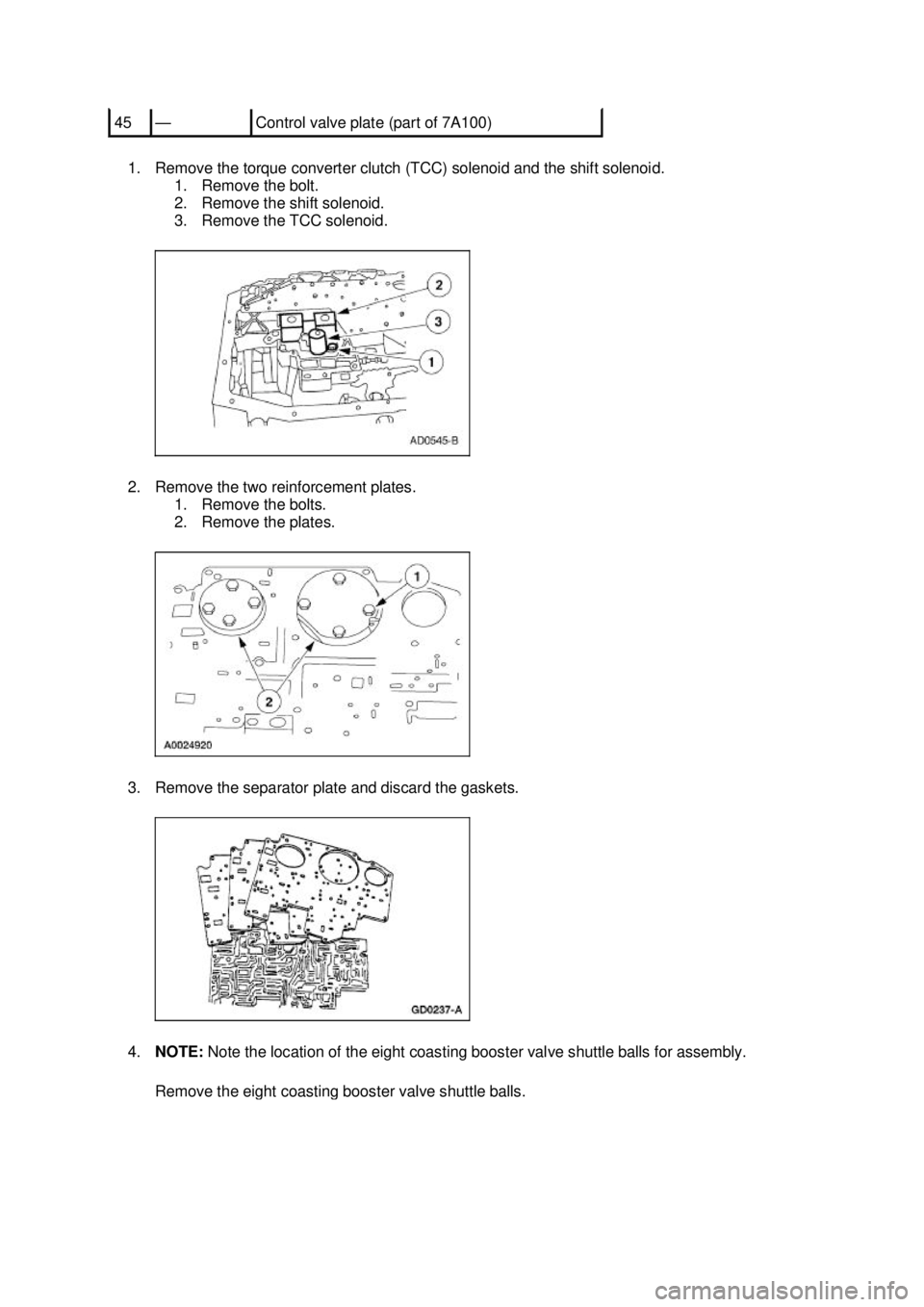

1. Remove the torque converter clutch (TCC) solenoid and the shift solenoid.
1. Remove the bolt.
2. Remove the shift solenoid.
3. Remove the TCC solenoid.
2. Remove the two reinforcement plates. 1. Remove the bolts.
2. Remove the plates.
3. Remove the separator plate and discard the gaskets.
4. NOTE: Note the location of the eight coasting booster valve shuttle balls for assembly. Remove the eight coasting booster valve shuttle balls. 45 — Control valve plate (part of 7A100) Klj . 3 ba
82003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

Assembly
1. CAUTION: Before beginning assembly, carry out and inspect the following:
When building up subassemblies and assembling the transmission, ALWAYS use new
gaskets and seals.
All fasteners must be tightened to the torque specification indicated. In addition to
appearing in the section, the necessary torques can be found in the General
Specifications Chart.
When building up subassemblies, each component part should be lubricated with clean
transmission fluid. It is also good practice to lubricate the subassemblies as they are
installed in the case.
Needle bearings, thrust washers and seals should be lightly coated with petroleum jelly
during subassembly buildup or transmission assembly.
Many components and surfaces in the transmission are precision machined. Careful
handling during disassembly, cleaning, inspection and assembly can prevent
unnecessary damage to machined surfaces.
Install the valve body cover plate. 1. Position the valve body cover plate gasket and cover plate.
2. Install the two guide pin bolts.
3. Install the bolts.
2. Tighten the bolts in the sequence shown. Klj . 5 ba
82003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES
Pump and Intermediate Clutch Piston
Pump and Intermediate Clutch Piston —
Disassembled View
SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Special Tool(s)
Installer, Front Pump Fluid
Seal
307-
014 (T63L-77837- A) Protector, Piston Seal
307-
339 (T95L-77005- A) Item Part Number Description
1 7902 Torque converter
2 7A248 Front pump O-
ring 3 N605789-S101 Bolt
4 — Pump body assembly
5 N605787-S1000 Front pump support bolt
6 7D014 No. 1 pump support thrust washer
7 7D020 Reverse clutch cylinder seal
8 7D019 Forward clutch cylinder seal
9 7E005 Intermediate clutch piston
10 7F224 Intermediate clutch piston outer seal Klj . 1 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES
Torque Converter
1. A new or remanufactured torque converter must be installed if one or more of the following statements is true:
zA torque converter malfunction has been determined based on complete diagnostic
procedures.
z Converter stud or studs, impeller hub or bushing are damaged.
z Discoloration (due to overheating).
z The torque converter is found to be out of specification when carrying out one of the
following torque converter checks:
„One- Way Clutch Check
„ End Play Check
„ Stator to Turbine Interference Check
„ Stator to Impeller Interference Check
„ Torque Converter Leak Check
z Evidence of transmission assembly or fluid contamination due to the following
transmission or converter failure modes:
„Major metallic failure.
„ Multiple clutches or clutch plate failures.
„ Sufficient component wear which results in metallic contamination.
SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES
Torque Converter Cleaning And Inspection
1. If a new torque converter is being installed, continue with Substep 2 of Step 2.
2. If a new torque converter is not being installed, the following procedures must be performed: 1. The torque converter must be thoroughly cleaned.
„Torque converters with drain plugs can be cleaned by using a suitable torque
converter/fluid cooler cleaner.
„ Torque converters without drain plugs can be cleaned by hand. Partially fill the
torque converter using only recommended transmission fluid for the applicable
transmission. Hand agitate the torque converter and then thoroughly drain the
fluid. Refill the torque converter with clean automatic transmission fluid specified
for transmission, and reinstall.
2. All in- tank and auxiliary coolers must be thoroughly cleaned by forward and backward
flushing. For additional information, refer to Transmission Fluid Cooler — Backflushing
and Cleaning in this section.
3. All cooler lines must be thoroughly cleaned by backward and forward flushing. For additional information, refer to Transmission Fluid Cooler — Backflushing and Cleaning
in this section.
4. All Cooler Bypass Valves (CBV), if equipped, must be thoroughly cleaned.
5. Carry out the Transmission Fluid Cooler Flow Test. For additional information, refer to
Transmission Fluid Cooler — Backflushing and Cleaning in this section.
6. If the transmission cooling system fails the Transmission Fluid Cooler Flow Test, a new fluid cooler, cooler bypass valve, and/or cooler lines must be installed. For additional
information, refer to Section 307 - 02 .
7. If new coolers are to be installed, use only factory approved service parts.
SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Material
Item Specification
MERCON® V Automatic
Transmission Fluid
XT
-5-QM, XT -5-DM MERCON® V Klj . 1 ba
