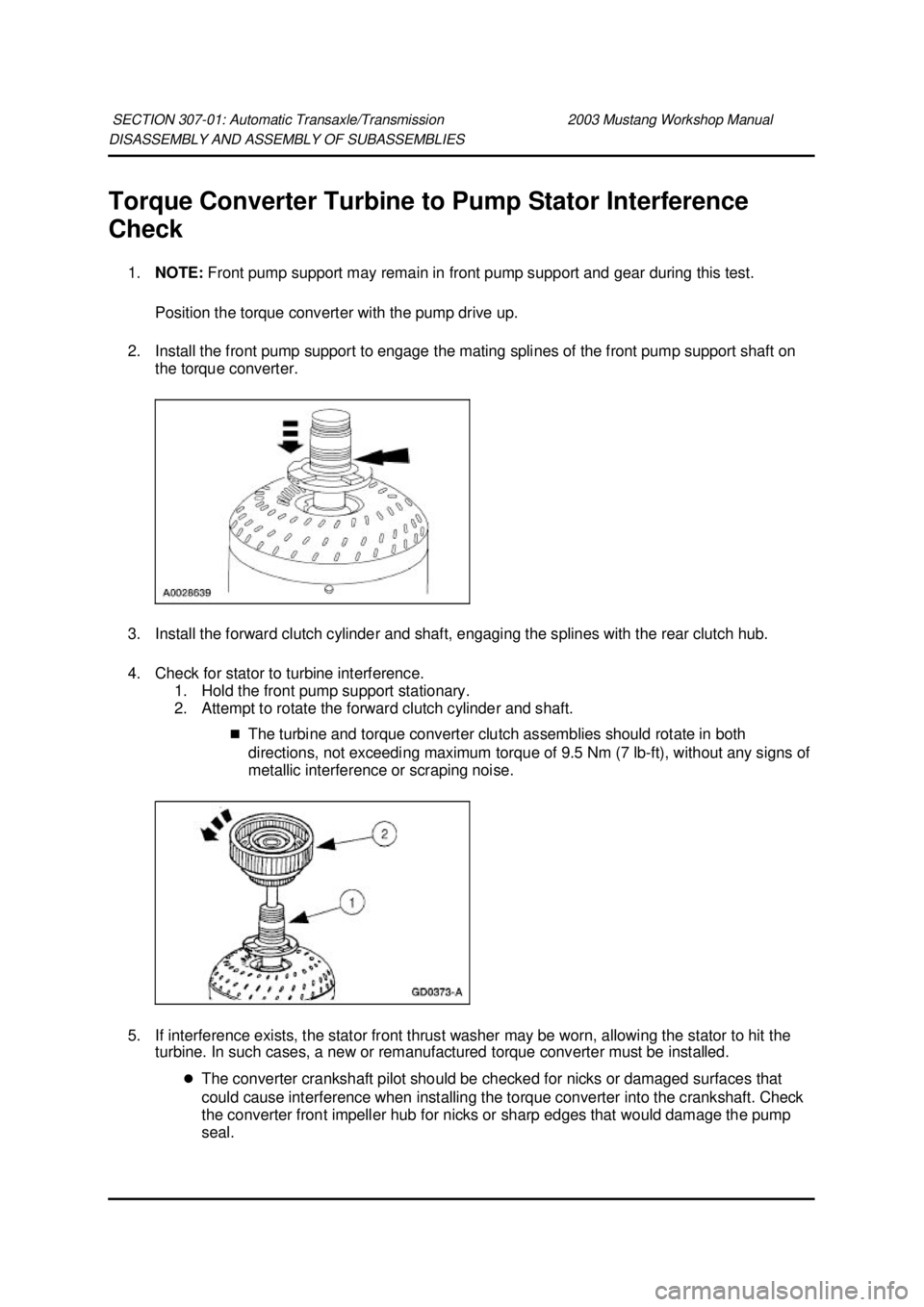

2003 FORD MUSTANG torque

DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES
Torque Converter Turbine to Pump Stator Interference
Check
1. NOTE: Front pump support may remain in front pump support and gear during this test.
Position the torque converter with the pump drive up.
2. Install the front pump support to engage the mating splines of the front pump support shaft on the torque converter.
3. Install the forward clutch cylinder and shaft, engaging the splines with the rear clutch hub.
4. Check for stator to turbine interference. 1. Hold the front pump support stationary.
2. Attempt to rotate the forward clutch cylinder and shaft.
„The turbine and torque converter clutch assemblies should rotate in both
directions, not exceeding maximum torque of 9.5 Nm (7 lb- ft), without any signs of
metallic interference or scraping noise.
5. If interference exists, the stator front thrust washer may be worn, allowing the stator to hit the turbine. In such cases, a new or remanufactured torque converter must be installed.
zThe converter crankshaft pilot should be checked for nicks or damaged surfaces that
could cause interference when installing the torque converter into the crankshaft. Check
the converter front impeller hub for nicks or sharp edges that would damage the pump
seal.
SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

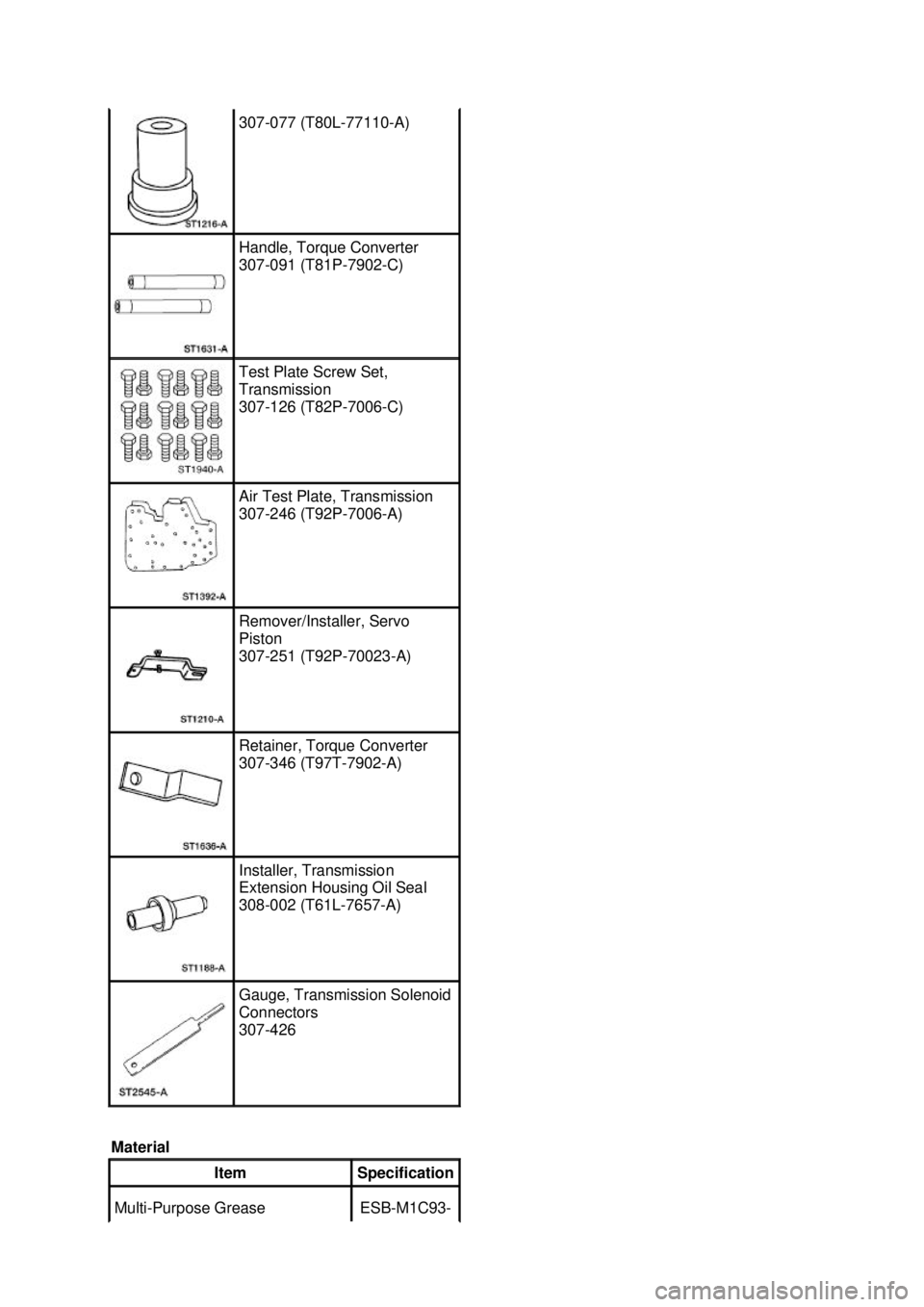

307-
077 (T80L-77110- A) Handle, Torque Converter
307-
091 (T81P-7902- C) Test Plate Screw Set,
Transmission
307-
126 (T82P-7006- C) Air Test Plate, Transmission
307-
246 (T92P-7006- A) Remover/Installer, Servo
Piston
307-
251 (T92P-70023- A) Retainer, Torque Converter
307-
346 (T97T-7902- A) Installer, Transmission
Extension Housing Oil Seal
308-
002 (T61L-7657- A) Gauge, Transmission Solenoid
Connectors
307-426
Material Item Specification
Multi-
Purpose Grease ESB-
M1C93- Klj . 2 ba
252003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

CAUTION: Before beginning assembly, carry out and inspect the following:
When building up subassemblies and assembling the transmission, ALWAYS use new gaskets
and seals.
All fasteners must be tightened to the torque specification indicated. In addition to appearing in
the section, the necessary torques can be found in the General Specifications Chart.
When building up subassemblies, each component part should be lubricated with clean
transmission fluid. It is also good practice to lubricate the subassemblies as they are installed
in the case.
Needle bearings, thrust washers and seals should be lightly coated with petroleum jelly during
subassembly buildup or transmission assembly.
Many components and surfaces in the transmission are precision machined. Careful handling
during disassembly, cleaning, inspection and assembly can prevent unnecessary damage to
machined surfaces.
1. Use the special tools to install the rear case bushing if removed. 1. Position the rear case bushing and the special tool inside the case.
2. Assemble the special tools through the back of the case.
2. Place the transmission in the vertical position.
3. Coat the No. 9 case rear bearing with petroleum jelly and install on the case boss.
4. CAUTION: Be sure the No. 7 needle bearing and direct clutch hub are installed as
shown in the Subassembly section. Internal damage and shift problems may occur. D0AZ-
19584- AA B
MERCON® V Automatic
Transmission Fluid
XT
-5-QM, XT -5-DM MERCON® V Klj . 3 ba
252003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

68. Lightly lubricate the converter hub with clean automatic transmission fluid.
69.
WARNING: The torque converter can fall out if the transmission is tipped.
CAUTION: Make sure the converter hub is fully engaged in the front pump support
and gear and rotates freely. Do not damage the hub seal.
CAUTION: If the torque converter slides out, the hub seal may be damaged.
Using the special tools, install the torque converter.
70. Lubricate the torque converter pilot hub with multi- purpose grease. Klj . 24 ba
252003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

INSTALLATION
Transmission
1. CAUTION: During this move, to avoid damage, do not allow the transmission to get
into a nose- down position as this will cause the torque converter to move forward and
disengage from the pump gear. The converter housing is piloted into position by dowels
in the rear of the engine block. The torque converter must rest squarely against the
flexplate. This indicates that the converter pilot is not binding in the engine crankshaft.
Position and secure the transmission on the high- lift transmission jack.
2. CAUTION: Make sure the torque converter is fully seated in the transmission before
positioning the transmission to the engine.
Using the special tool, install the transmission to the engine.
zAlign the orange balancing marks on the converter stud and the flexplate bolt hole. 3. Reconnect the harness. SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Special Tool(s)
Retainer, Torque Converter
307-
346 (T97T-7902- A)
Material Item Specification
Multi-
Purpose Grease
D0AZ- 19584- AA ESB-
M1C93-
B MERCON® V Automatic
Transmission Fluid
XT
-5-QM, XT -5-DM MERCON® V Klj . 1 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

SPECIFICATIONS
SECTION 307-
02: Transaxle/Transmission Cooling 2003 Mustang Workshop Manual General Specifications
Item Specification
Fluid
MERCON® V Automatic Transmission Fluid XT
-5-QM MERCON® V
Torque Specifications Description Nm lb-
ft Fluid cooler tube nut at radiator 32 24
Cooler line bracket to engine nut 48 35
Fluid cooler tube nut at transmission 21 15 Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

SPECIFICATIONS
SECTION 307-
05: Automatic Transaxle/Transmission External Controls 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
ft lb-
in Steering Column Nuts 40 30 —
Shift Interlock Cable 7 — 62
Shift Cable Bracket 12 9 — Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...
