59. Disconnect the output shaft speed (OSS) sensor electrical connector and detach the left and
right oxygen sensor electrical connectors from the crossmember.
Manual transmission vehicles 60. Remove the bolt and the clutch release lever cover.
61. CAUTION: To prevent component damage, do not depress the clutch pedal with the
transmission removed.
Detach the clutch release cable from the clutch release fork. Klj . 15 ba
192003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

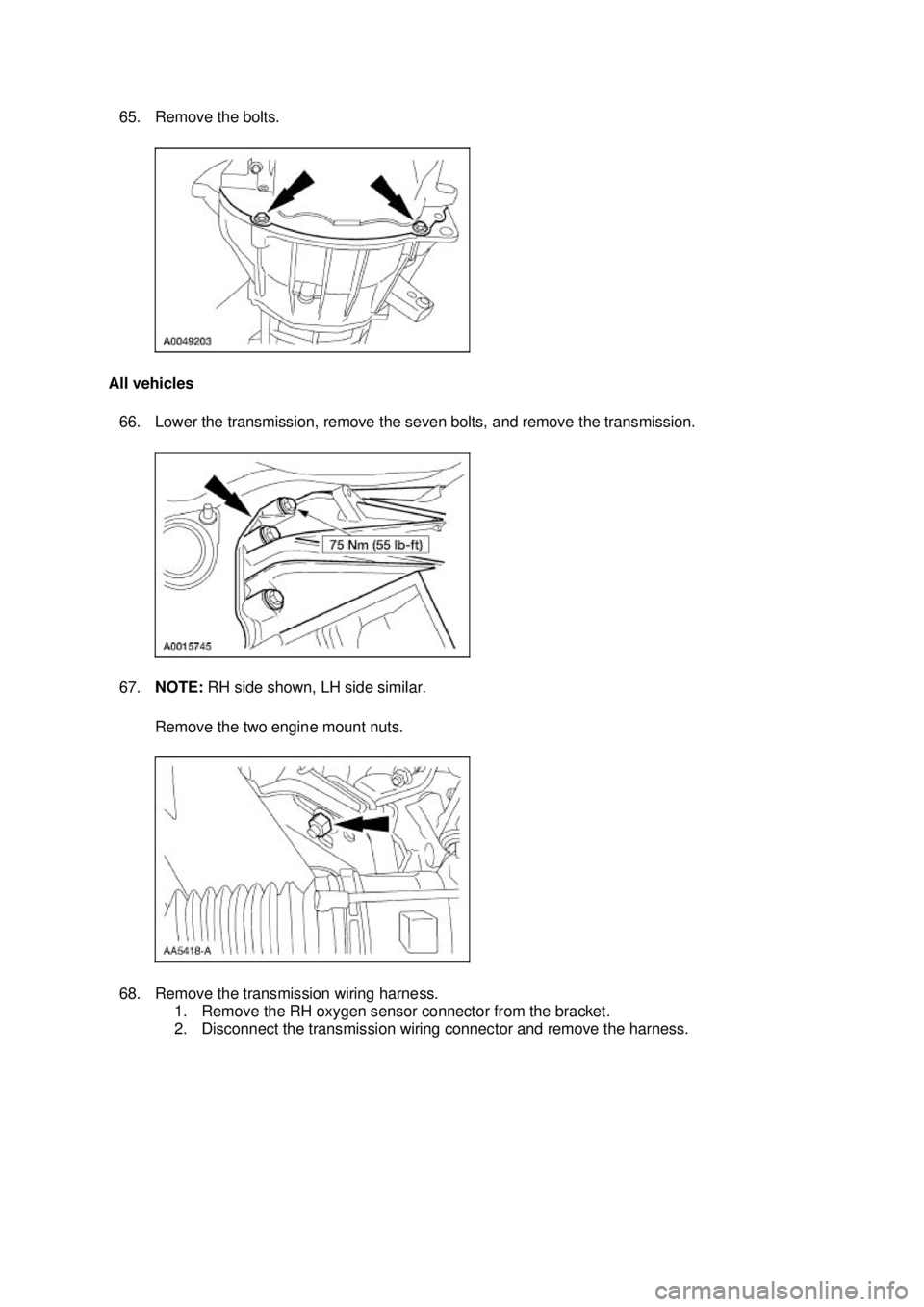

65. Remove the bolts.
All vehicles 66. Lower the transmission, remove the seven bolts, and remove the transmission.
67. NOTE: RH side shown, LH side similar.
Remove the two engine mount nuts.
68. Remove the transmission wiring harness. 1. Remove the RH oxygen sensor connector from the bracket.
2. Disconnect the transmission wiring connector and remove the harness. Klj . 17 ba
192003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

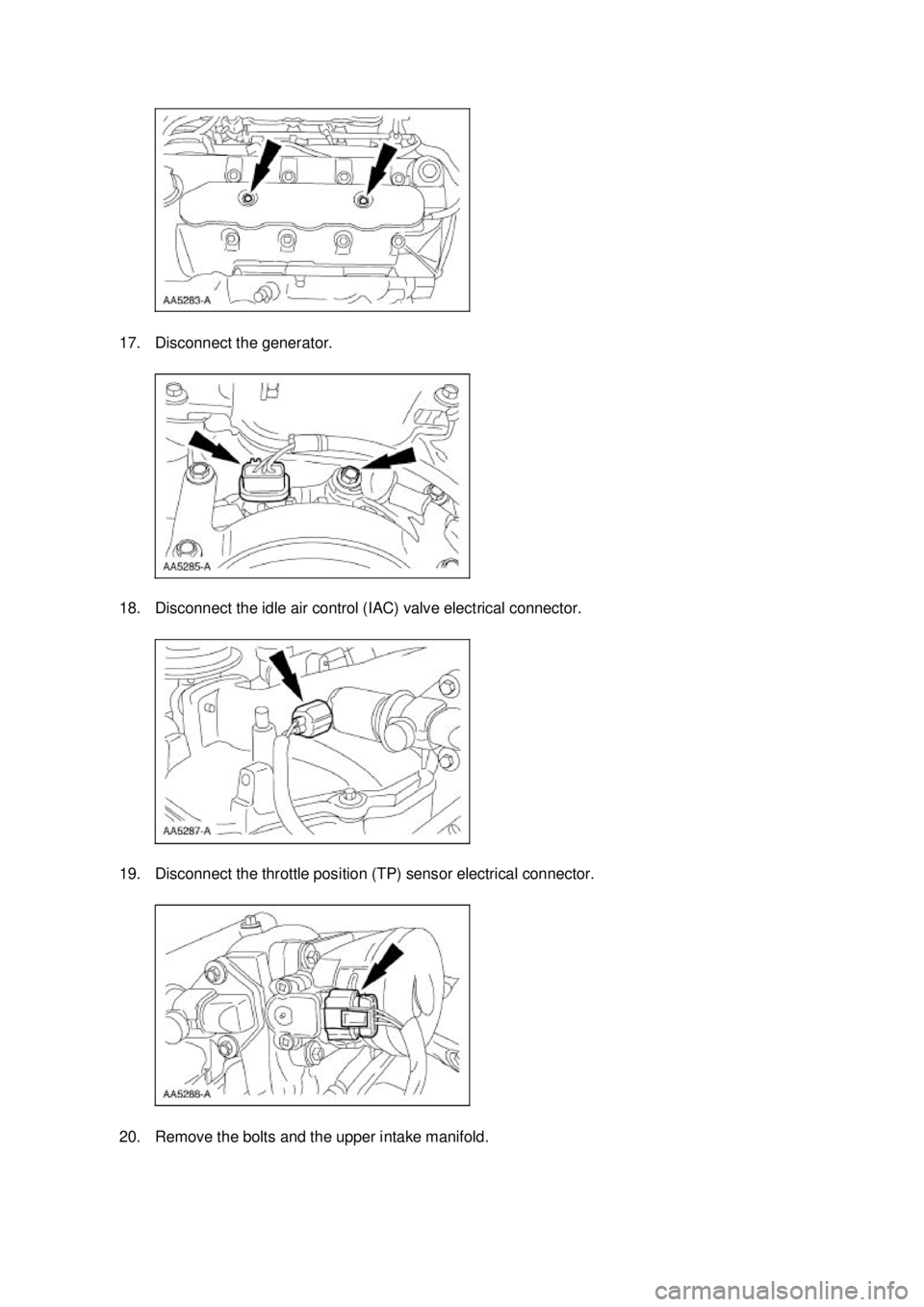

17. Disconnect the generator.
18. Disconnect the idle air control (IAC) valve electrical connector.
19. Disconnect the throttle position (TP) sensor electrical connector.
20. Remove the bolts and the upper intake manifold. Klj . 6 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

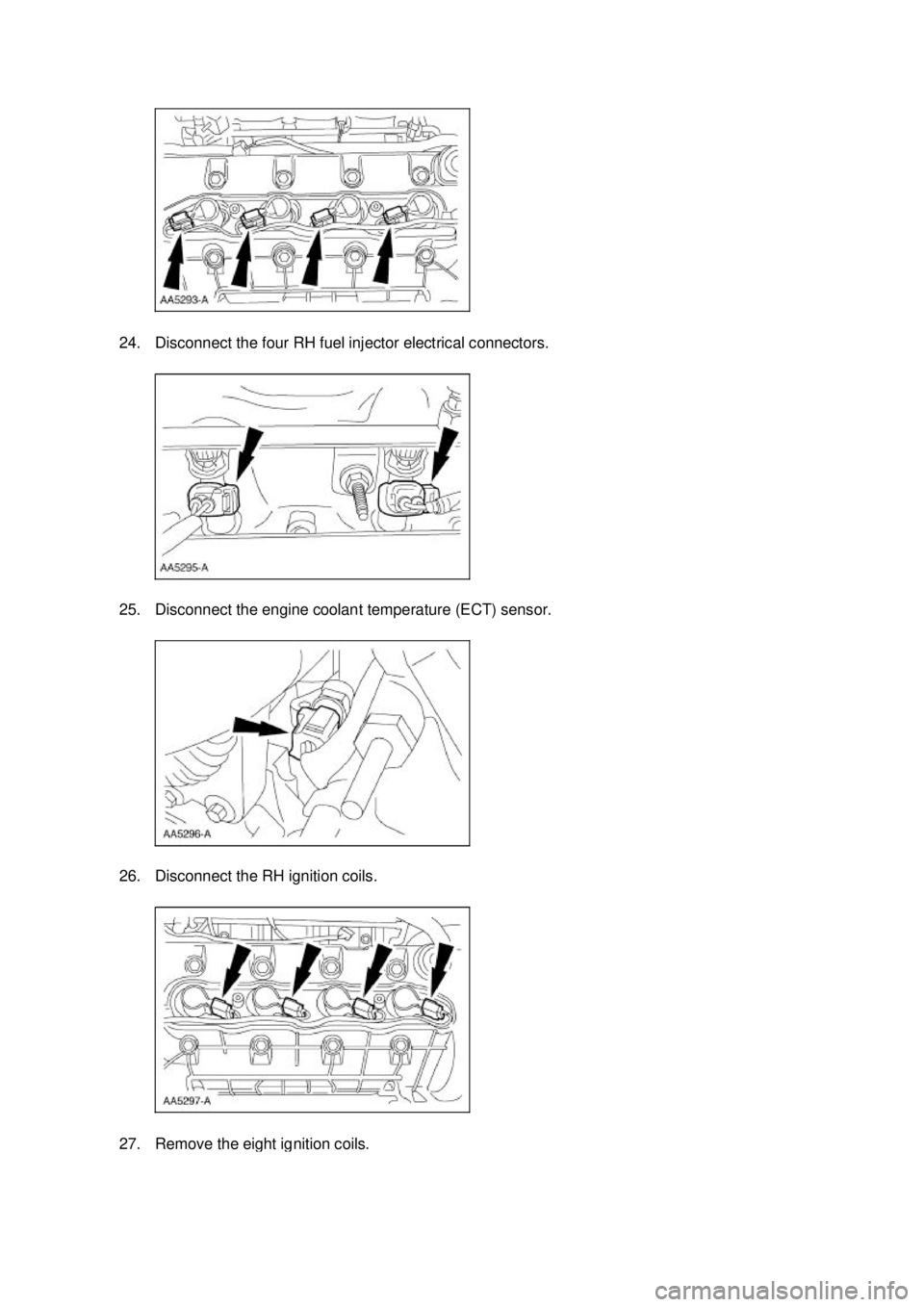

24. Disconnect the four RH fuel injector electrical connectors.
25. Disconnect the engine coolant temperature (ECT) sensor.
26. Disconnect the RH ignition coils.
27. Remove the eight ignition coils. Klj . 8 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

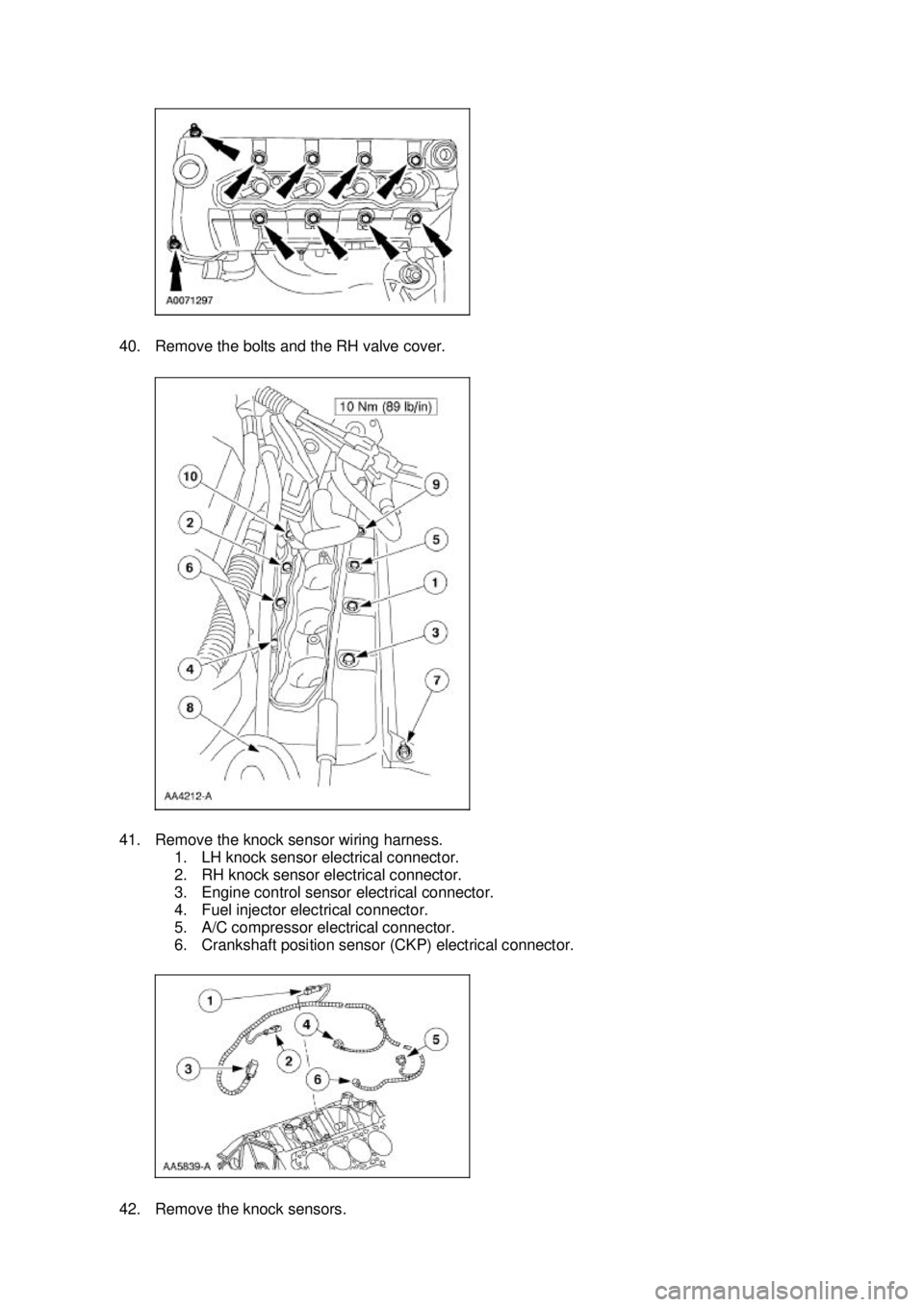

40. Remove the bolts and the RH valve cover.
41. Remove the knock sensor wiring harness.
1. LH knock sensor electrical connector.
2. RH knock sensor electrical connector.
3. Engine control sensor electrical connector.
4. Fuel injector electrical connector.
5. A/C compressor electrical connector.
6. Crankshaft position sensor (CKP) electrical connector.
42. Remove the knock sensors. Klj . 12 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

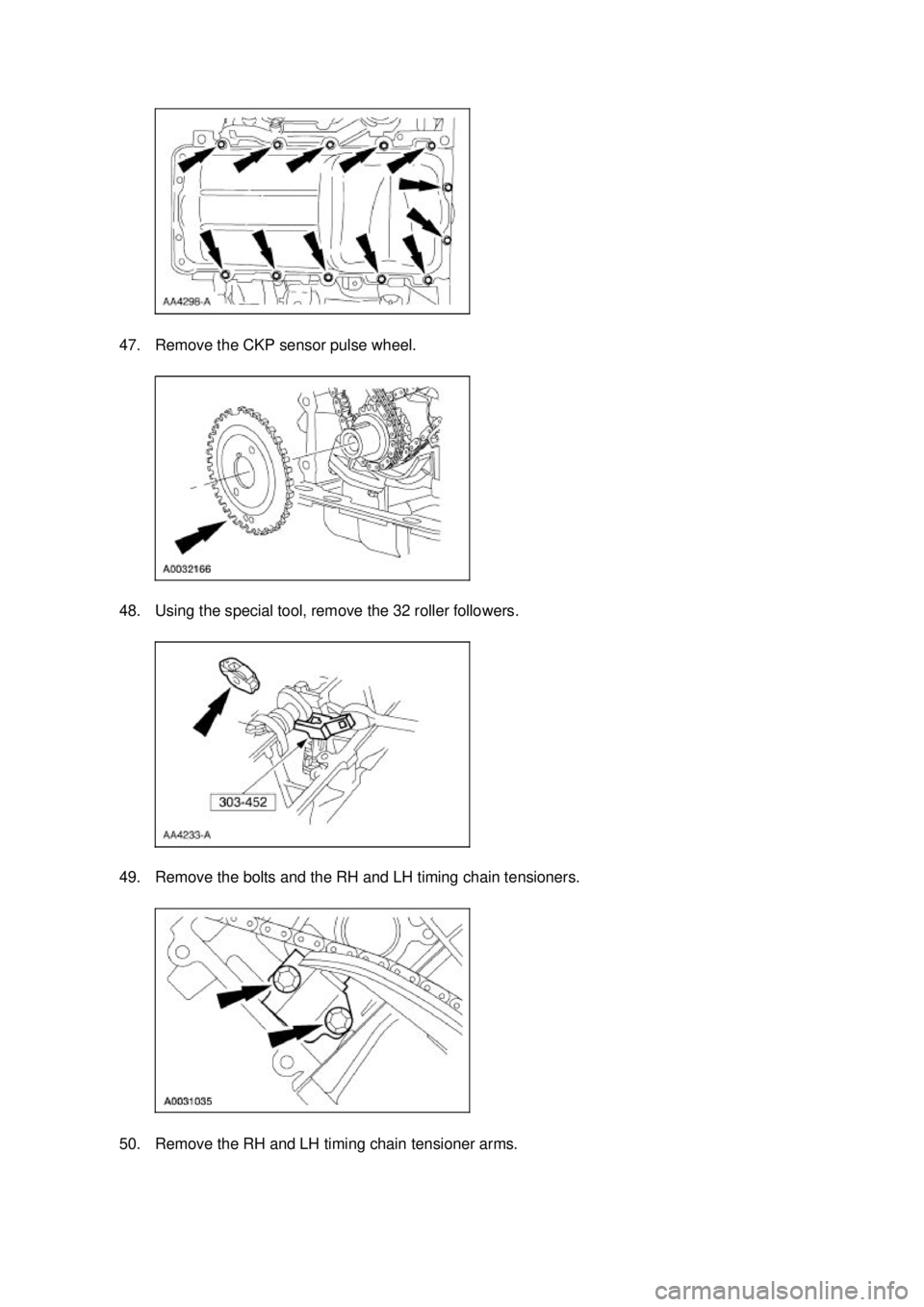

47. Remove the CKP sensor pulse wheel.
48. Using the special tool, remove the 32 roller followers.
49. Remove the bolts and the RH and LH timing chain tensioners.
50. Remove the RH and LH timing chain tensioner arms. Klj . 15 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

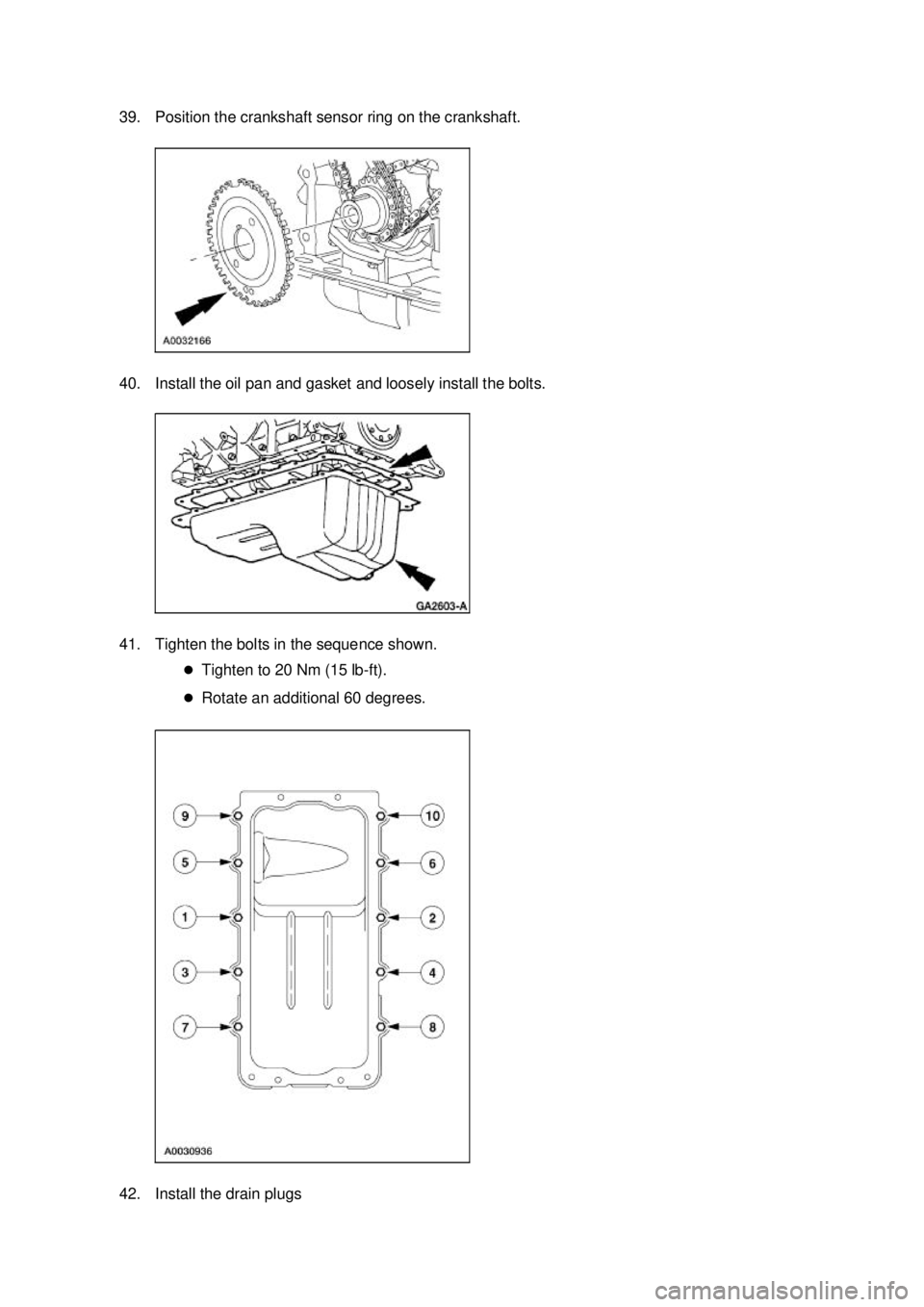

39. Position the crankshaft sensor ring on the crankshaft.
40. Install the oil pan and gasket and loosely install the bolts.
41. Tighten the bolts in the sequence shown.
zTighten to 20 Nm (15 lb- ft).
z Rotate an additional 60 degrees.
42. Install the drain plugs Klj . 14 ba
302003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

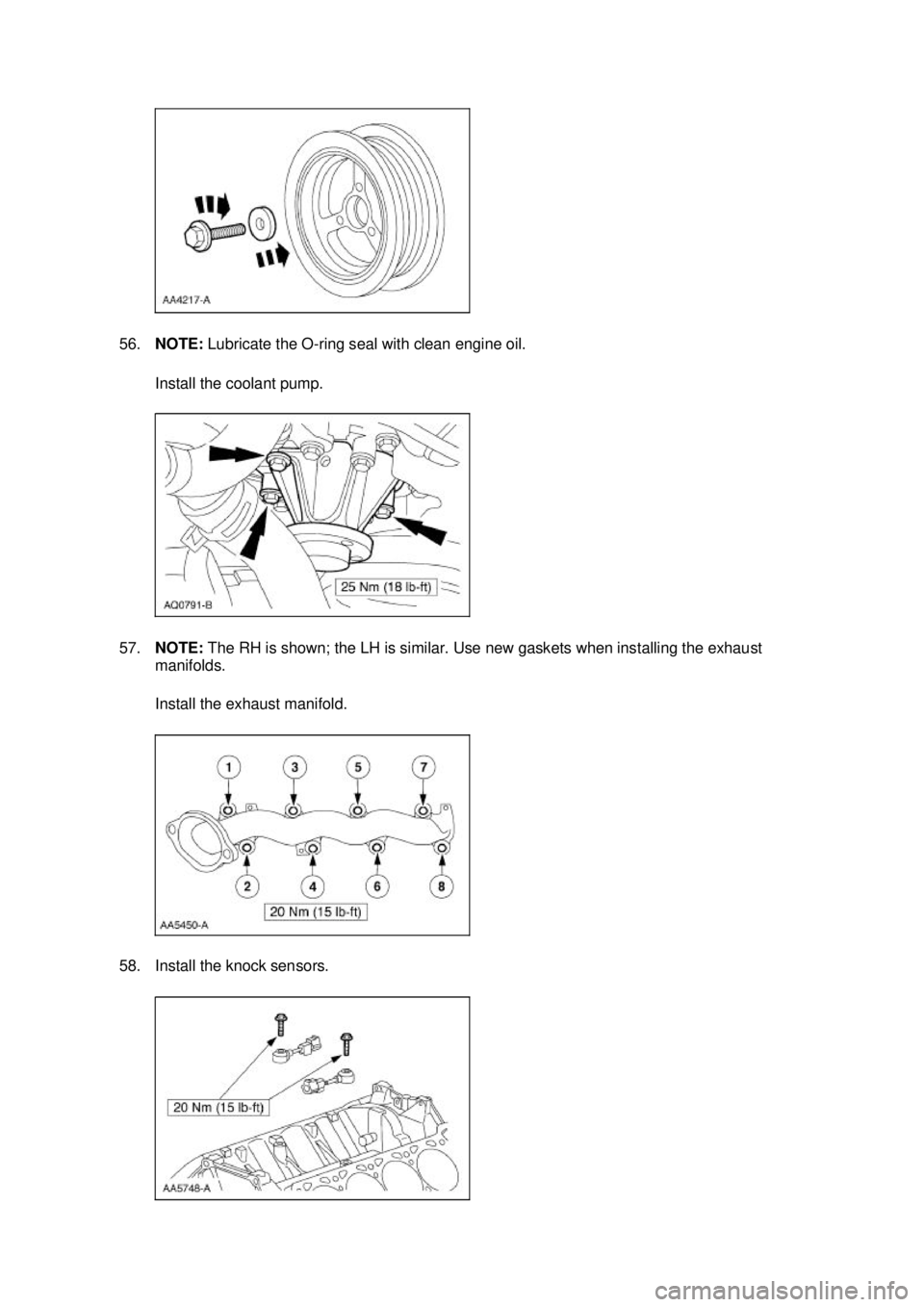

56.
NOTE: Lubricate the O- ring seal with clean engine oil.
Install the coolant pump.
57. NOTE: The RH is shown; the LH is similar. Use new gaskets when installing the exhaust
manifolds.
Install the exhaust manifold.
58. Install the knock sensors. Klj . 20 ba
302003 Mustang Workshop Manual
