2003 FORD MUSTANG sensor

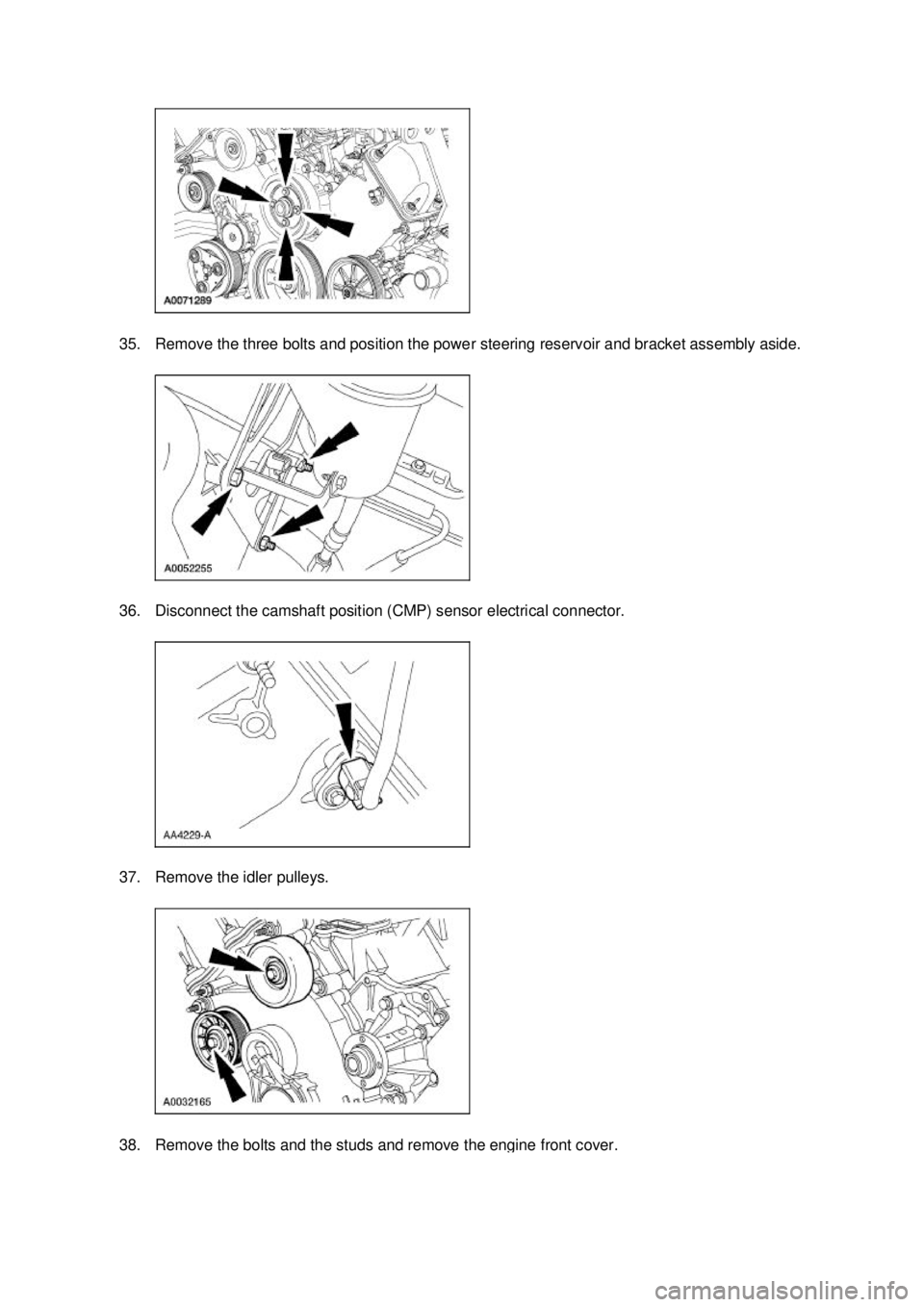

35. Remove the three bolts and position the power steering reservoir and bracket assembly aside.
36. Disconnect the camshaft position (CMP) sensor electrical connector.
37. Remove the idler pulleys.
38. Remove the bolts and the studs and remove the engine front cover. Klj . 9 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

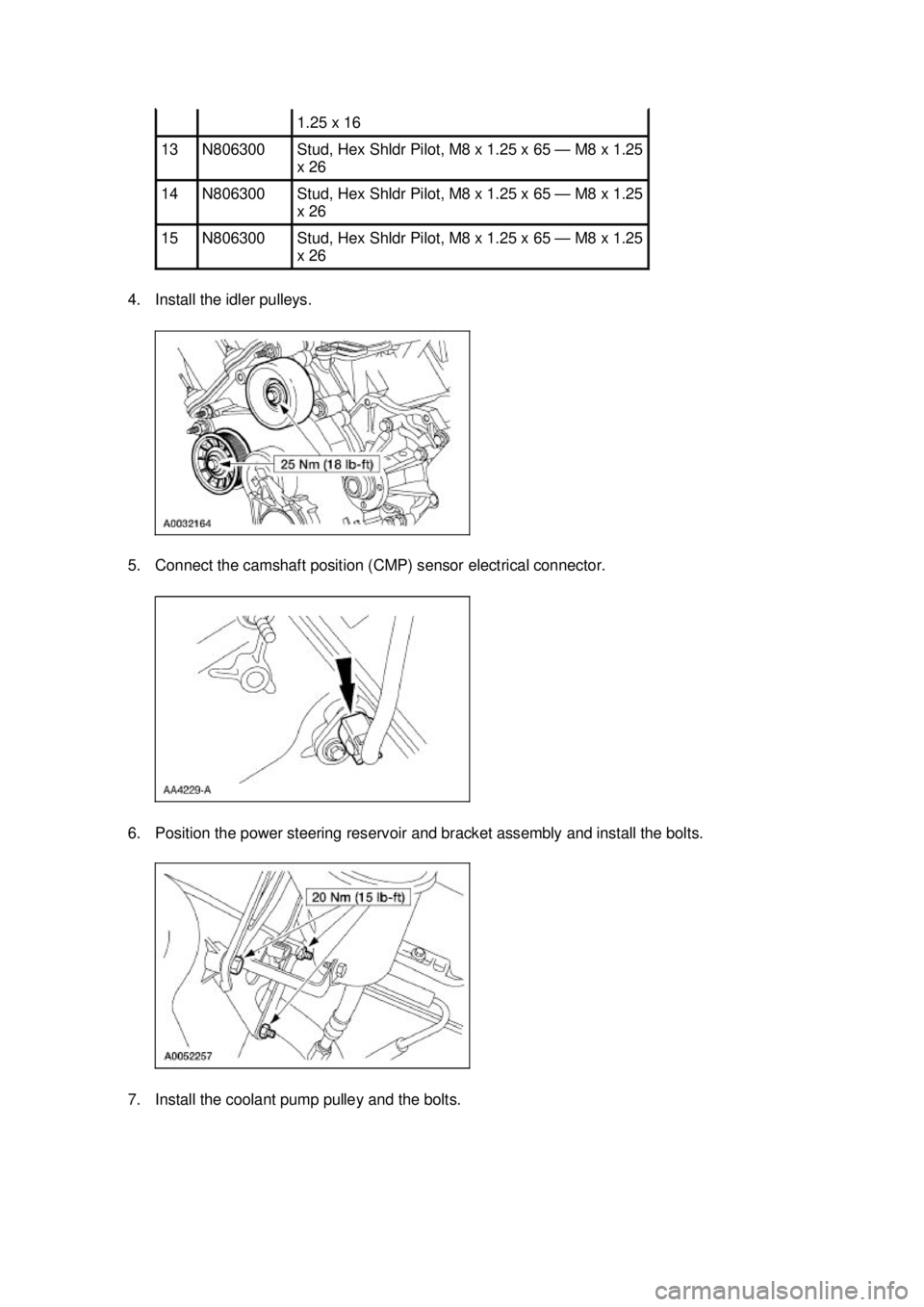

4. Install the idler pulleys.
5. Connect the camshaft position (CMP) sensor electrical connector.
6. Position the power steering reservoir and bracket assembly and install the bolts.
7. Install the coolant pump pulley and the bolts. 1.25 x 16
13 N806300 Stud, Hex Shldr Pilot, M8 x 1.25 x 65 —
M8 x 1.25
x 26 14 N806300 Stud, Hex Shldr Pilot, M8 x 1.25 x 65 —
M8 x 1.25
x 26 15 N806300 Stud, Hex Shldr Pilot, M8 x 1.25 x 65 —
M8 x 1.25
x 26 Klj . 12 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

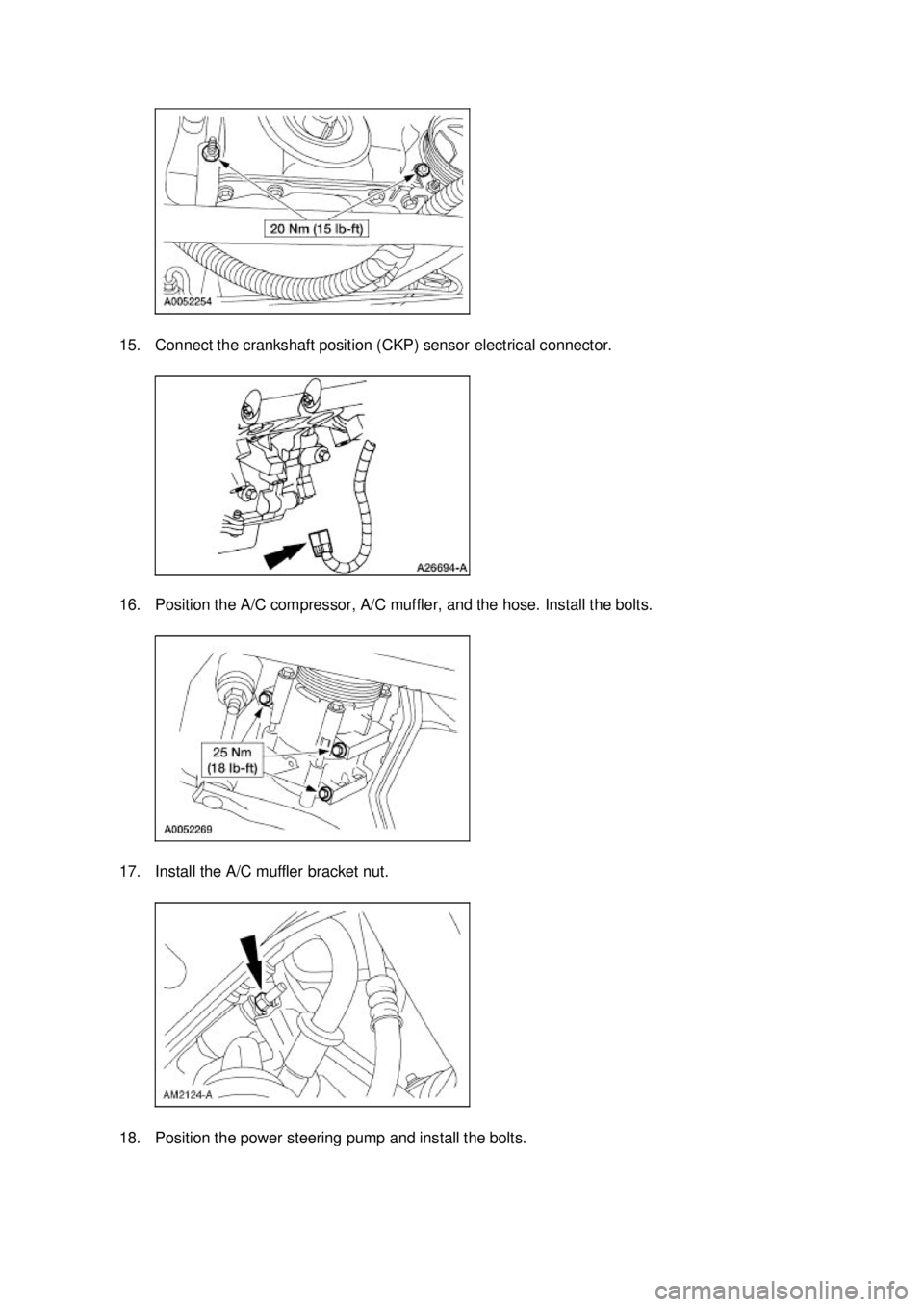

15. Connect the crankshaft position (CKP) sensor electrical connector.
16. Position the A/C compressor, A/C muffler, and the hose. Install the bolts.
17. Install the A/C muffler bracket nut.
18. Position the power steering pump and install the bolts. Klj . 15 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

IN-
VEHICLE REPAIR
Timing Drive Components
Removal CAUTION: Since the engine is not free- wheeling, if the crankshaft or the camshafts are
moved in any manner during removal and installation, the crankshaft and the camshafts must
be re- synchronized.
1. Remove the engine front cover. For additional information, refer to Engine Front Cover in this
section.
2. Remove the crankshaft sensor ring from the crankshaft.
3. CAUTION: Unless otherwise instructed, at no time when the timing chains are
removed and the cylinder heads are installed is the crankshaft or the camshaft to be
rotated. Severe piston and valve damage will occur.
Using the special tool, position the crankshaft as shown.
SECTION 303-
01D: Engine — Mach I 4.6L (4V) 2003 Mustang Workshop Manual Special Tool(s)
Holding Tool, Crankshaft
303-
448 (T93P-6303- A) Klj . 1 ba
72003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

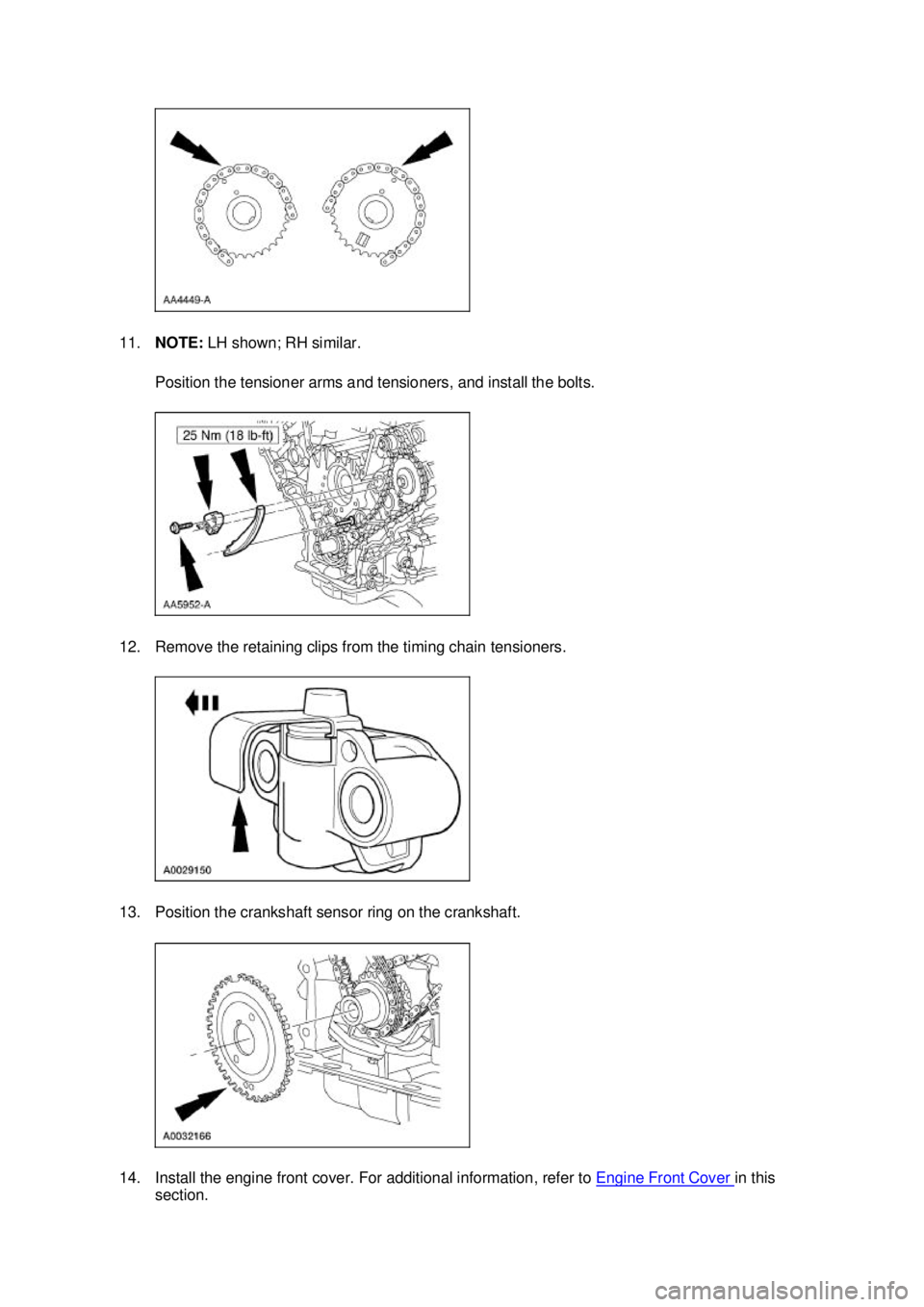

11.
NOTE: LH shown; RH similar.
Position the tensioner arms and tensioners, and install the bolts.
12. Remove the retaining clips from the timing chain tensioners.
13. Position the crankshaft sensor ring on the crankshaft.
14. Install the engine front cover. For additional information, refer to Engine Front Cover in this
section. Klj . 6 ba
72003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

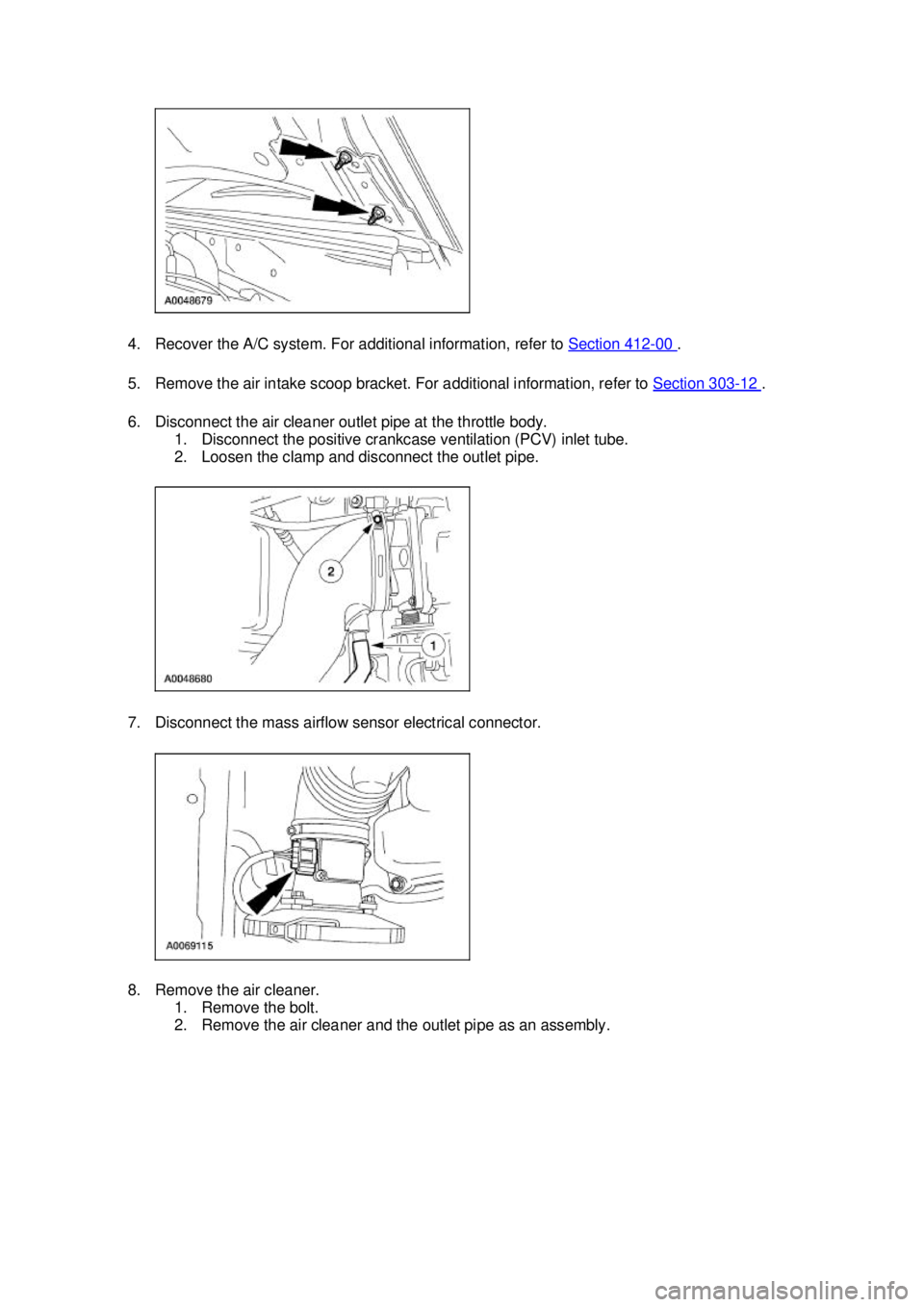

4. Recover the A/C system. For additional information, refer to
Section 412 - 00 .
5. Remove the air intake scoop bracket. For additional information, refer to Section 303 - 12 .
6. Disconnect the air cleaner outlet pipe at the throttle body. 1. Disconnect the positive crankcase ventilation (PCV) inlet tube.
2. Loosen the clamp and disconnect the outlet pipe.
7. Disconnect the mass airflow sensor electrical connector.
8. Remove the air cleaner. 1. Remove the bolt.
2. Remove the air cleaner and the outlet pipe as an assembly. Klj . 2 ba
192003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

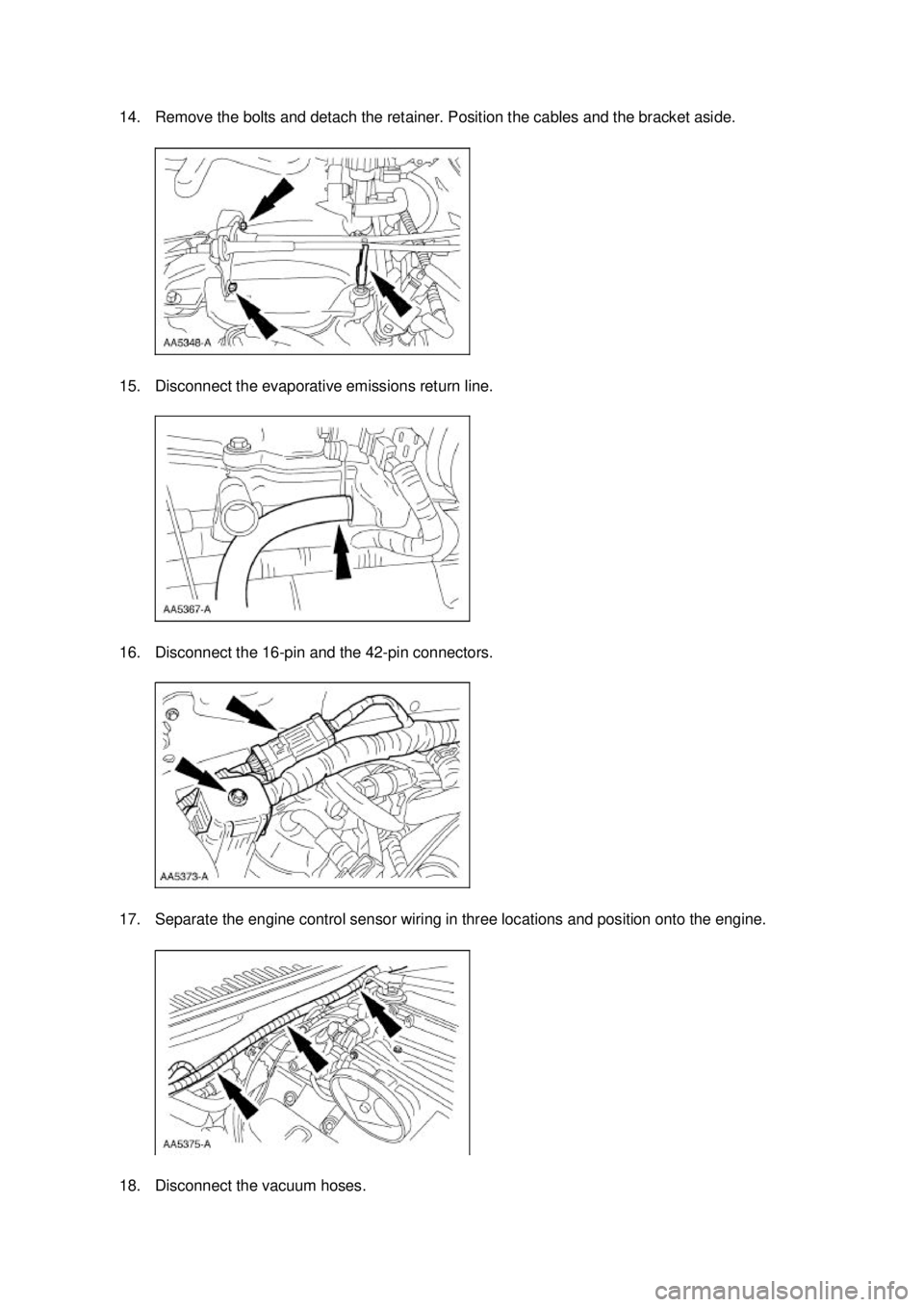

14. Remove the bolts and detach the retainer. Position the cables and the bracket aside.
15. Disconnect the evaporative emissions return line.
16. Disconnect the 16-
pin and the 42-pin connectors.
17. Separate the engine control sensor wiring in three locations and position onto the engine.
18. Disconnect the vacuum hoses. Klj . 4 ba
192003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

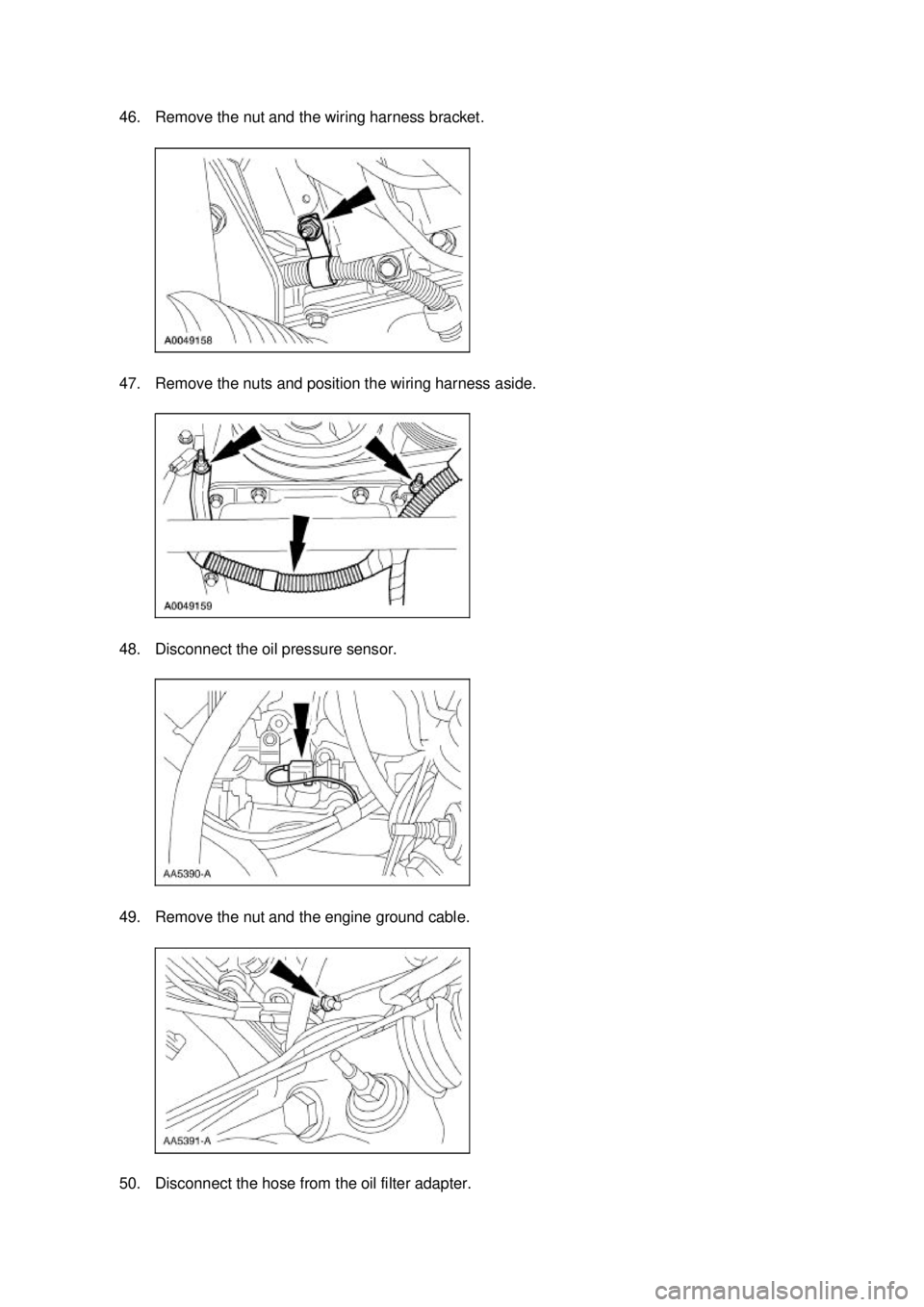

46. Remove the nut and the wiring harness bracket.
47. Remove the nuts and position the wiring harness aside.
48. Disconnect the oil pressure sensor.
49. Remove the nut and the engine ground cable.
50. Disconnect the hose from the oil filter adapter. Klj . 12 ba
192003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
