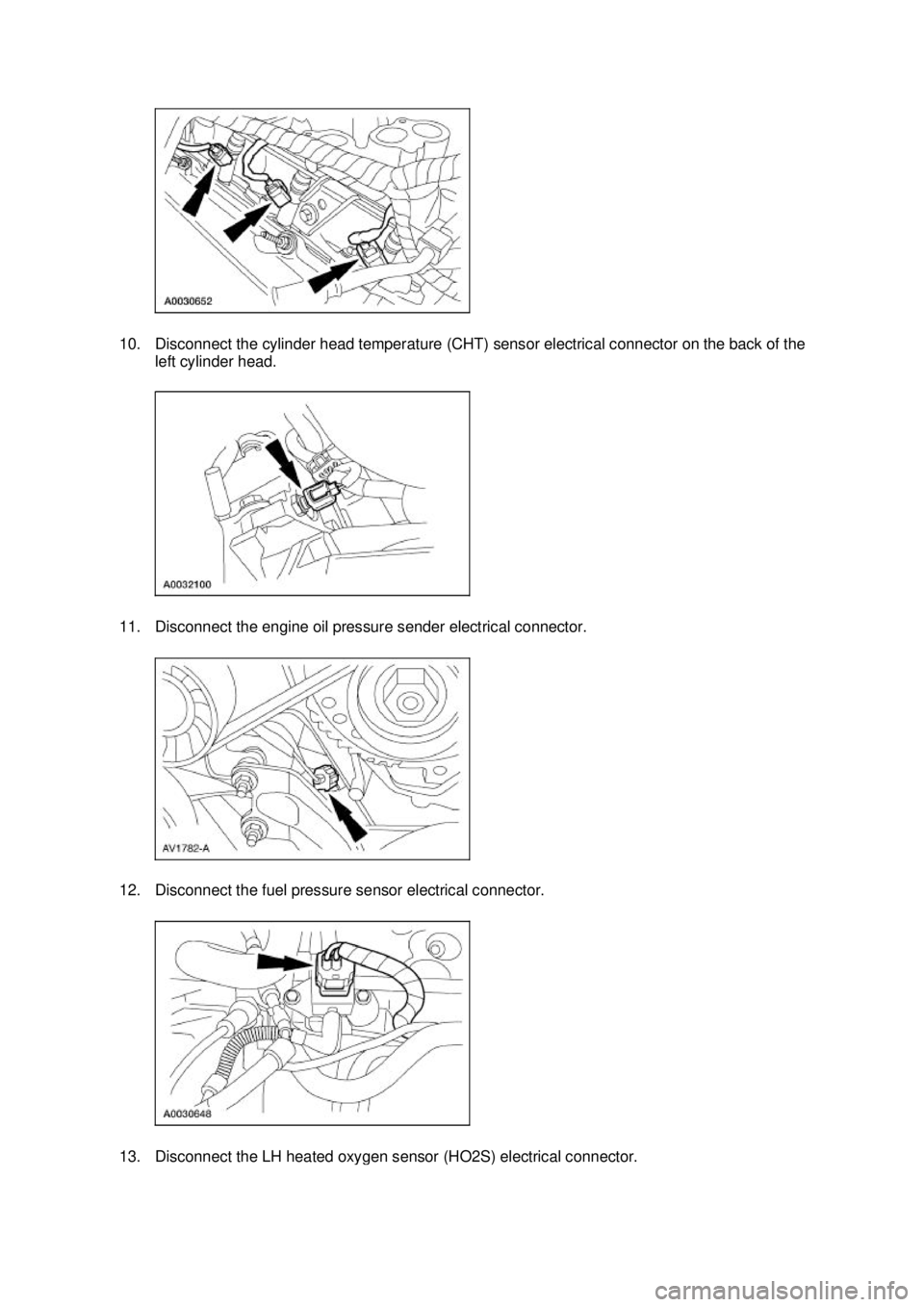

10. Disconnect the cylinder head temperature (CHT) sensor electrical connector on the back of the
left cylinder head.
11. Disconnect the engine oil pressure sender electrical connector.
12. Disconnect the fuel pressure sensor electrical connector. 13. Disconnect the LH heated oxygen sensor (HO2S) electrical connector. Klj . 3 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1930 of 4378

REMOVAL AND INSTALLATION
Supply Manifold
Removal and Installation
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when
working on or near any fuel related components. Highly flammable mixtures are always present
and may ignite. Failure to follow these instructions may result in personal injury.
WARNING: Fuel in the fuel system remains under high pressure even when the engine is
not running. Before working on or disconnecting any of the fuel lines or fuel system
components, the fuel system pressure must be relieved. Failure to follow these instructions
may result in personal injury.
1. Disconnect the battery ground cable.
2. Remove the upper intake manifold. For additional information, refer to Section 303 - 01A .
3. Relieve the fuel pressure. For additional information, refer to Section 310 - 00 .
4. Disconnect the fuel line. For additional information, refer to Section 310 - 00 .
5. Separate the wiring harness from the supply manifold.
6. NOTE: Right side shown, left side similar.
Disconnect the six fuel injector electrical connectors. 7. Disconnect the fuel pressure sensor. SECTION 303-
04A: Fuel Charging and Controls — 3.8L 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1935 of 4378

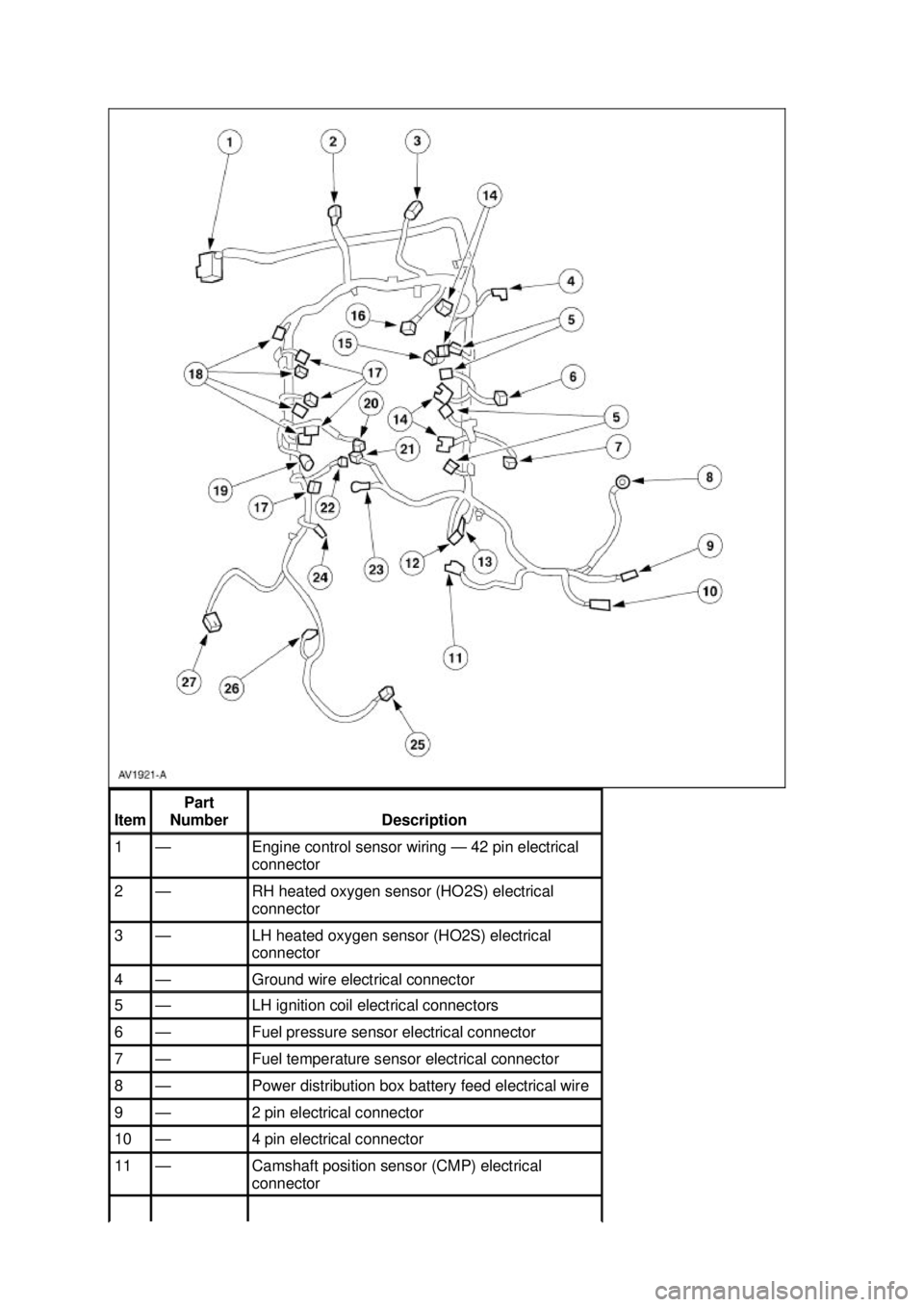

Item Part
Number Description
1 — Engine control sensor wiring —
42 pin electrical
connector 2 — RH heated oxygen sensor (HO2S) electrical
connector
3 — LH heated oxygen sensor (HO2S) electrical
connector
4 — Ground wire electrical connector
5 — LH ignition coil electrical connectors
6 — Fuel pressure sensor electrical connector
7 — Fuel temperature sensor electrical connector
8 — Power distribution box battery feed electrical wire
9 — 2 pin electrical connector
10 — 4 pin electrical connector
11 — Camshaft position sensor (CMP) electrical
connector Klj . 2 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 1936 of 4378

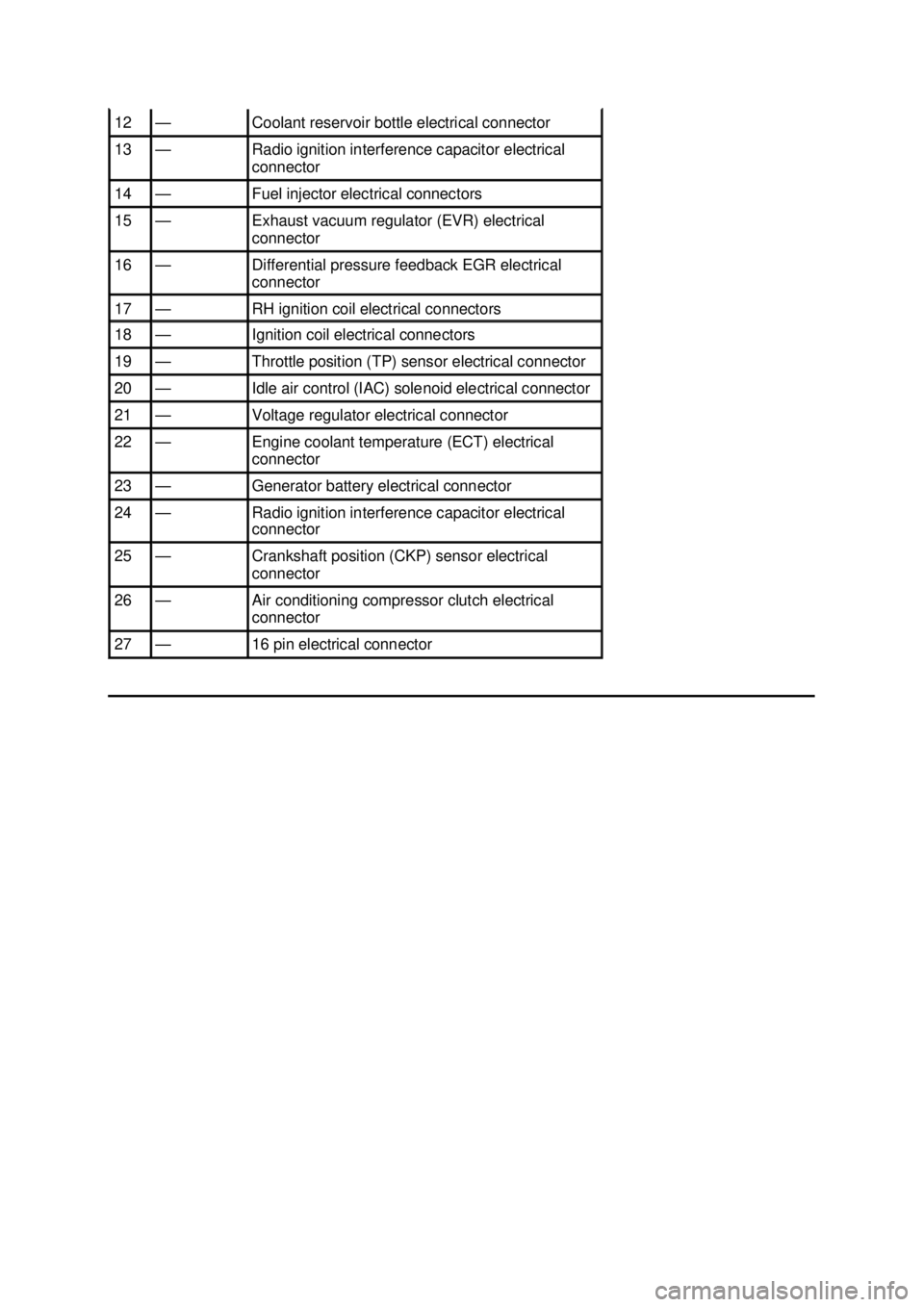

12 — Coolant reservoir bottle electrical connector
