2003 FORD MUSTANG sensor

REMOVAL AND INSTALLATION
Throttle Body
Removal and Installation
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when
working on or near any fuel related components. Highly flammable mixtures are always present
and can ignite. Failure to follow these instructions can result in personal injury.
CAUTION: The throttle body bore and plate area have a special coating and cannot be
cleaned.
1. Remove the air cleaner outlet tube. For additional information, refer to Section 303 - 12 .
2. Disconnect the throttle position (TP) sensor and the idle air control (IAC) valve electrical connectors.
3. Disconnect the accelerator controls. zDisconnect the accelerator cable.
z If equipped, disconnect the speed control cable.
4. NOTE: Discard the throttle body gasket after removing the throttle body. Remove the bolts and the throttle body. SECTION 303-
04C: Fuel Charging and Controls — Cobra 4.6L (4V) 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Fuel Charging Wiring Harness
Removal and Installation
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when
working on or near any fuel related components. Highly flammable mixtures are always present
and can ignite. Failure to follow these instructions can result in personal injury.
1. Disconnect the battery ground cable.
2. Remove the exhaust gas recirculation (EGR) valve and the exhaust manifold to EGR valve tube. For additional information, refer to Section 303 - 08 .
3. Remove the bolts and the LH ignition coil cover.
4. Disconnect the LH ignition coil electrical connectors. 5. Disconnect the barometric pressure (BARO) sensor electrical connector. SECTION 303-
04C: Fuel Charging and Controls — Cobra 4.6L (4V) 2003 Mustang Workshop Manual Klj . 1 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

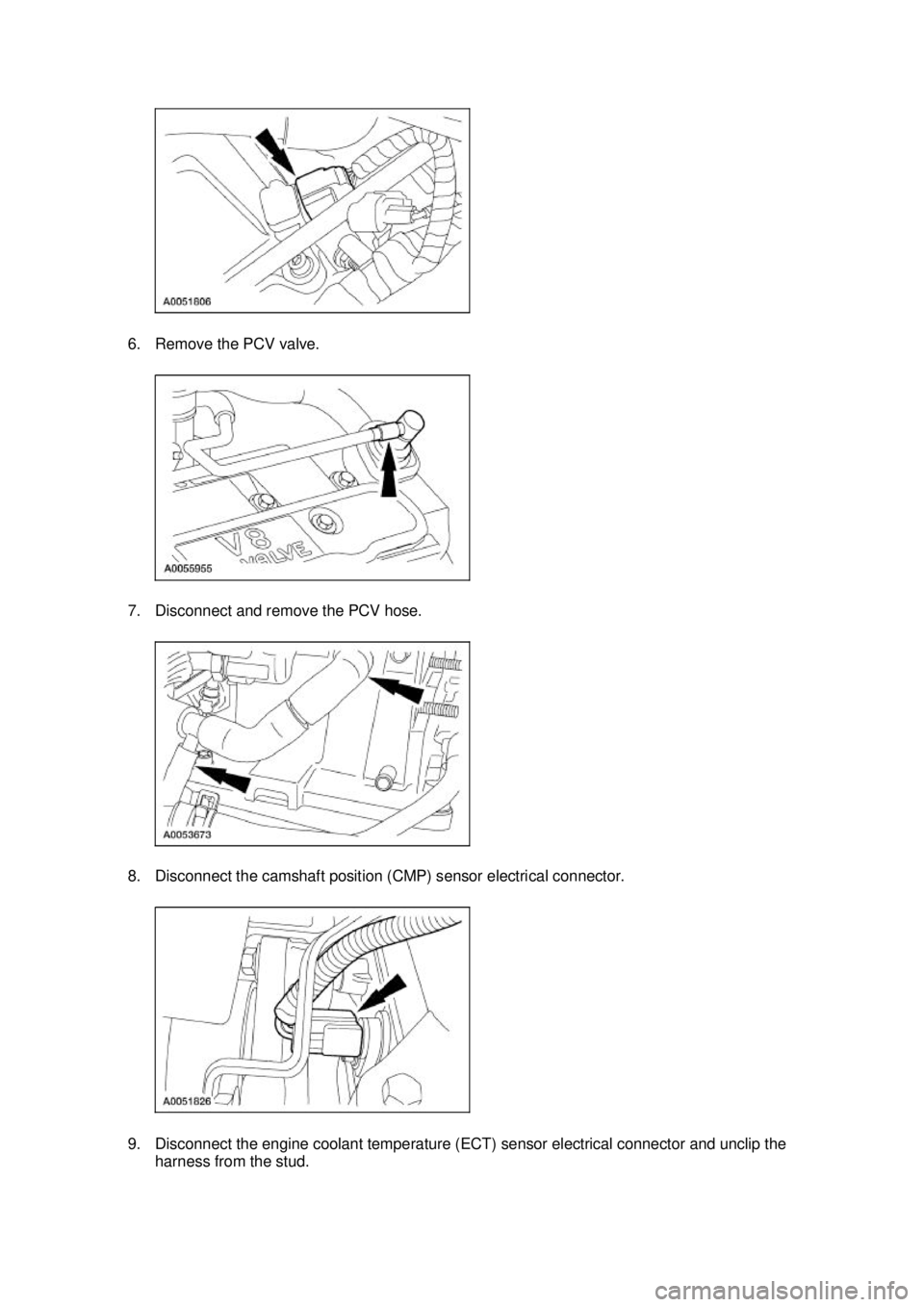

6. Remove the PCV valve.
7. Disconnect and remove the PCV hose.
8. Disconnect the camshaft position (CMP) sensor electrical connector.
9. Disconnect the engine coolant temperature (ECT) sensor electrical connector and unclip the
harness from the stud. Klj . 2 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

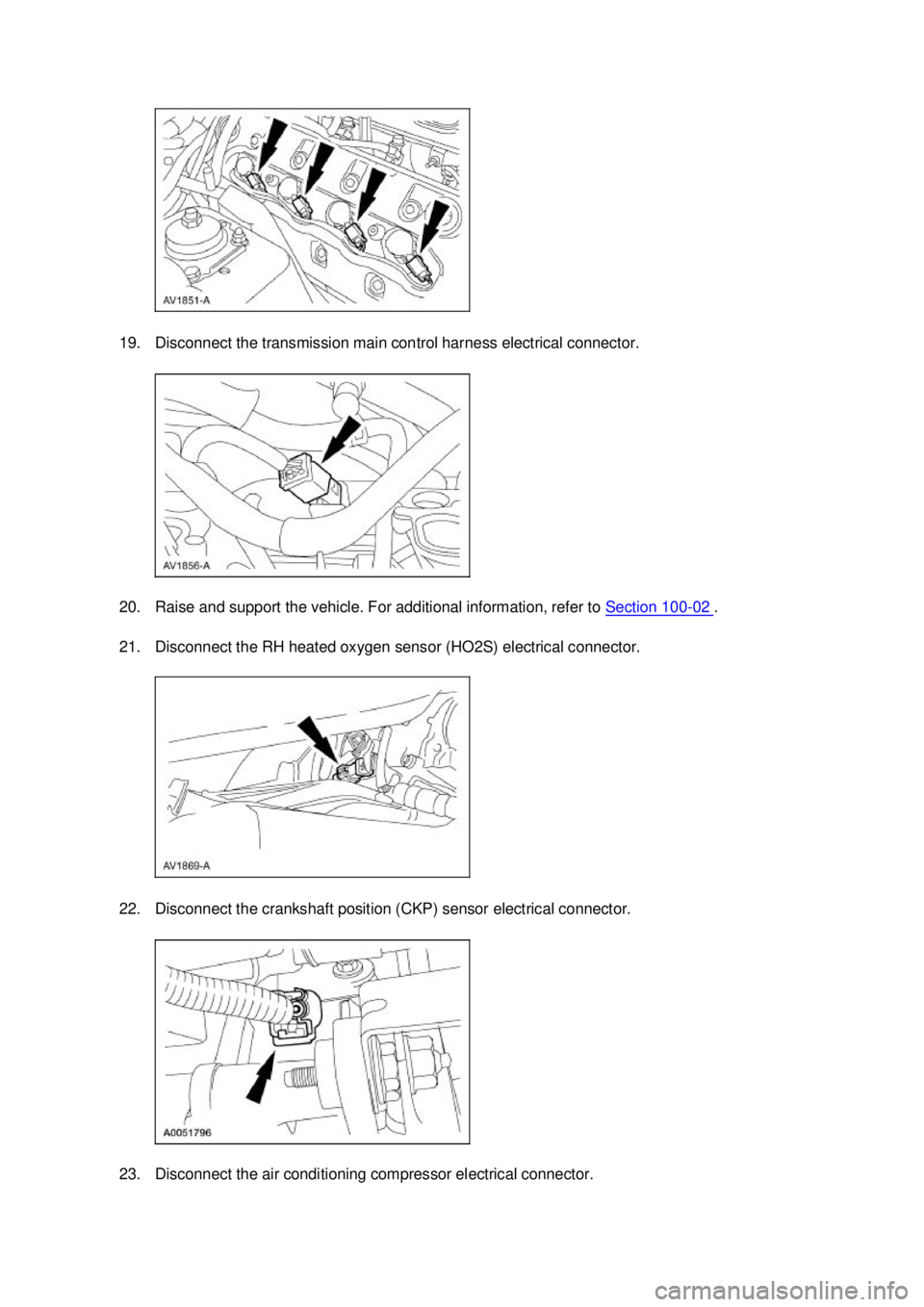

19. Disconnect the transmission main control harness electrical connector.
20. Raise and support the vehicle. For additional information, refer to
Section 100 - 02 .
21. Disconnect the RH heated oxygen sensor (HO2S) electrical connector.
22. Disconnect the crankshaft position (CKP) sensor electrical connector.
23. Disconnect the air conditioning compressor electrical connector. Klj . 5 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

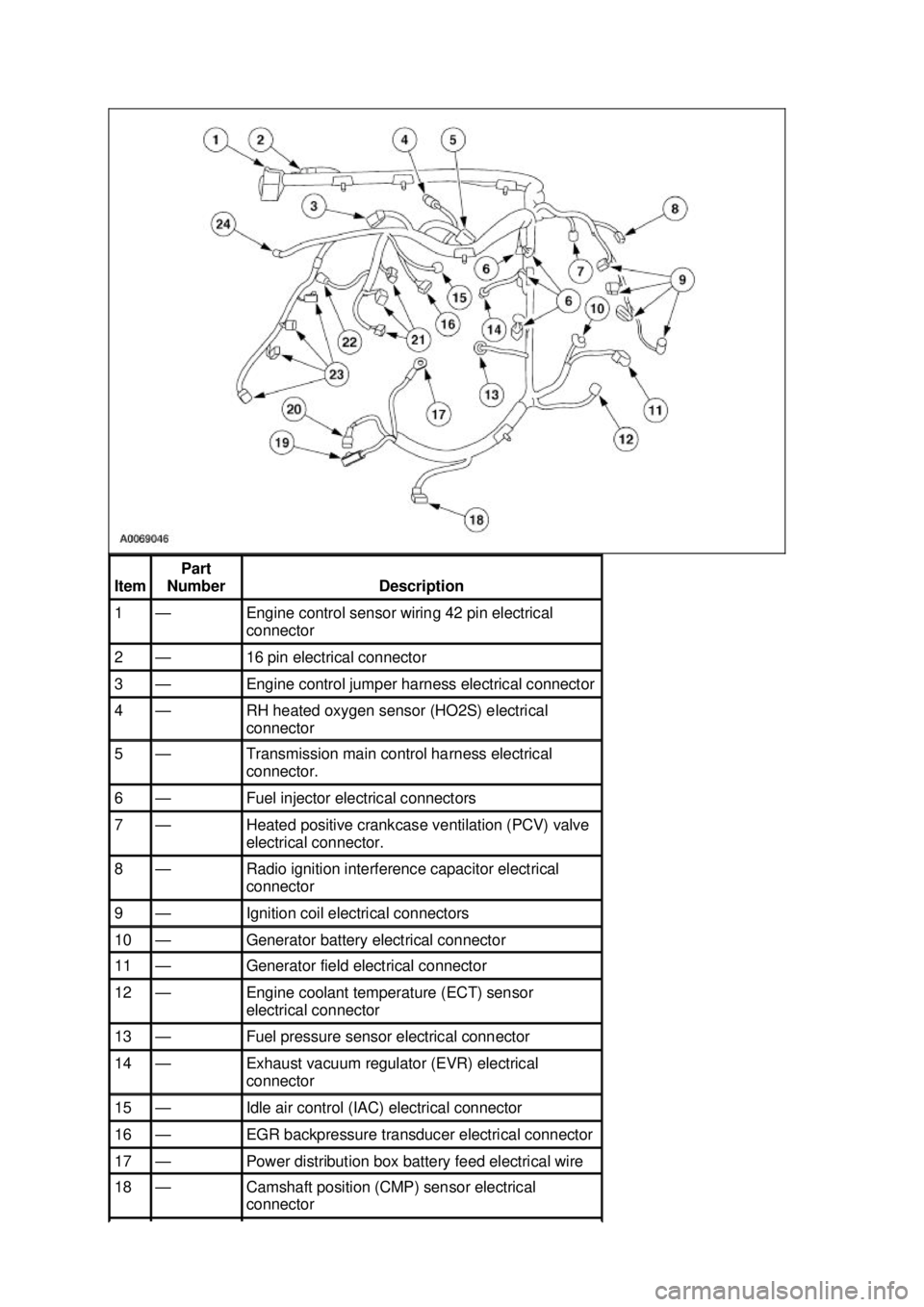

Item Part
Number Description
1 — Engine control sensor wiring 42 pin electrical
connector
2 — 16 pin electrical connector
3 — Engine control jumper harness electrical connector
4 — RH heated oxygen sensor (HO2S) electrical
connector
5 — Transmission main control harness electrical
connector.
6 — Fuel injector electrical connectors
7 — Heated positive crankcase ventilation (PCV) valve
electrical connector.
8 — Radio ignition interference capacitor electrical
connector
9 — Ignition coil electrical connectors
10 — Generator battery electrical connector
11 — Generator field electrical connector
12 — Engine coolant temperature (ECT) sensor
electrical connector
13 — Fuel pressure sensor electrical connector
14 — Exhaust vacuum regulator (EVR) electrical
connector
15 — Idle air control (IAC) electrical connector
16 — EGR backpressure transducer electrical connector
17 — Power distribution box battery feed electrical wire
18 — Camshaft position (CMP) sensor electrical
connector Klj . 2 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

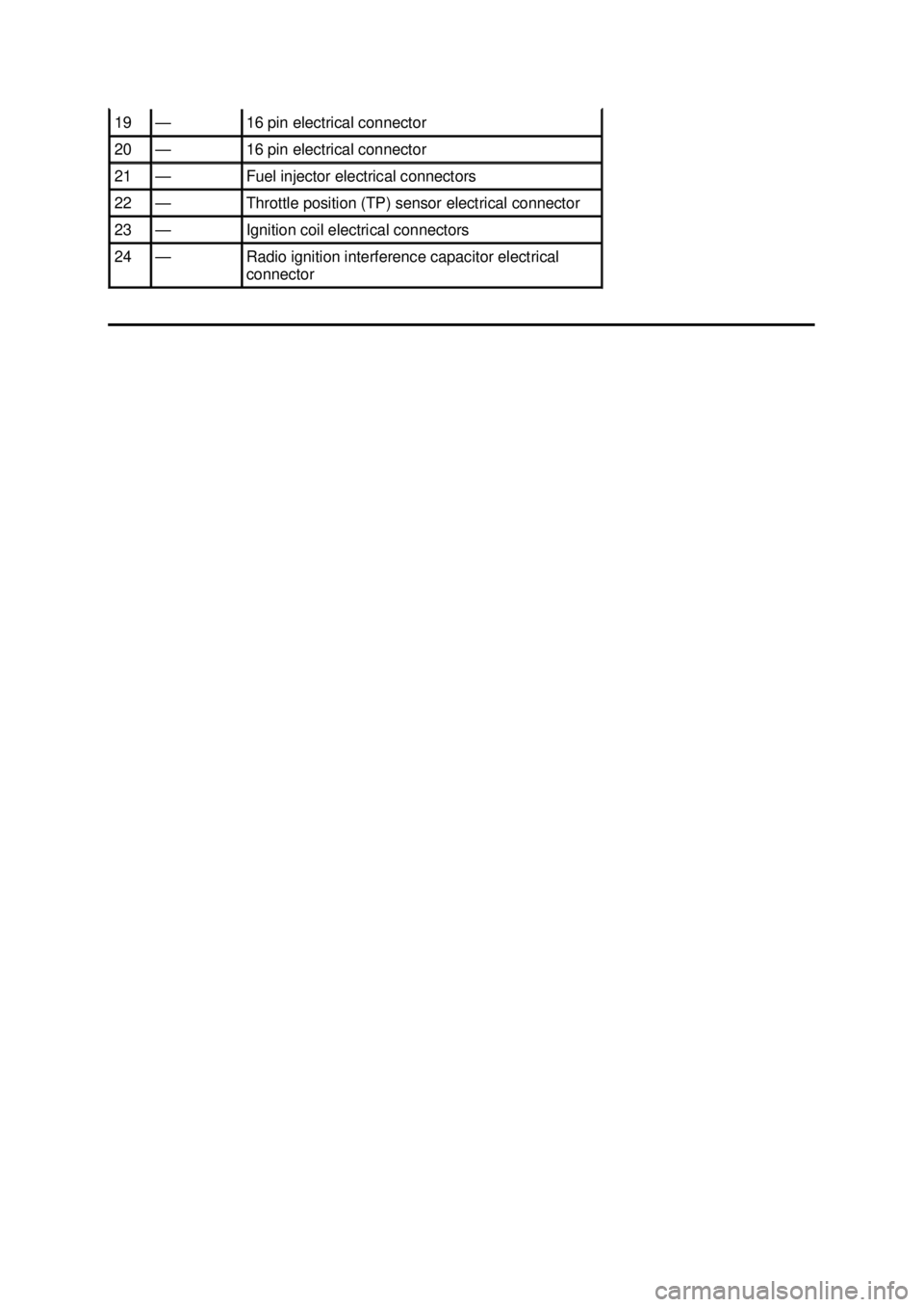

19 — 16 pin electrical connector
20 — 16 pin electrical connector
21 — Fuel injector electrical connectors
22 — Throttle position (TP) sensor electrical connector
23 — Ignition coil electrical connectors
24 — Radio ignition interference capacitor electrical
connector Klj . 3 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Throttle Body
Removal
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when
working on or near any fuel related components. Highly flammable mixtures are always present
and can ignite. Failure to follow these instructions can result in personal injury.
CAUTION: The throttle body bore and plate area have a special coating and cannot be
cleaned.
1. Remove the air intake scoop bracket. For additional information, refer to Section 303 - 12 .
2. Remove the air cleaner outlet tube. For additional information, refer to Section 303 - 12 .
3. Disconnect the throttle position (TP) sensor electrical connector.
4. Disconnect the accelerator controls. zDisconnect the accelerator cable.
z Disconnect the speed control cable.
z Disconnect the return spring.
5. NOTE: Discard the throttle body gasket after removing the throttle body.
Remove the throttle body. zRemove the four bolts.
SECTION 303-
04D: Fuel Charging and Controls — Mach I 4.6L (4V) 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

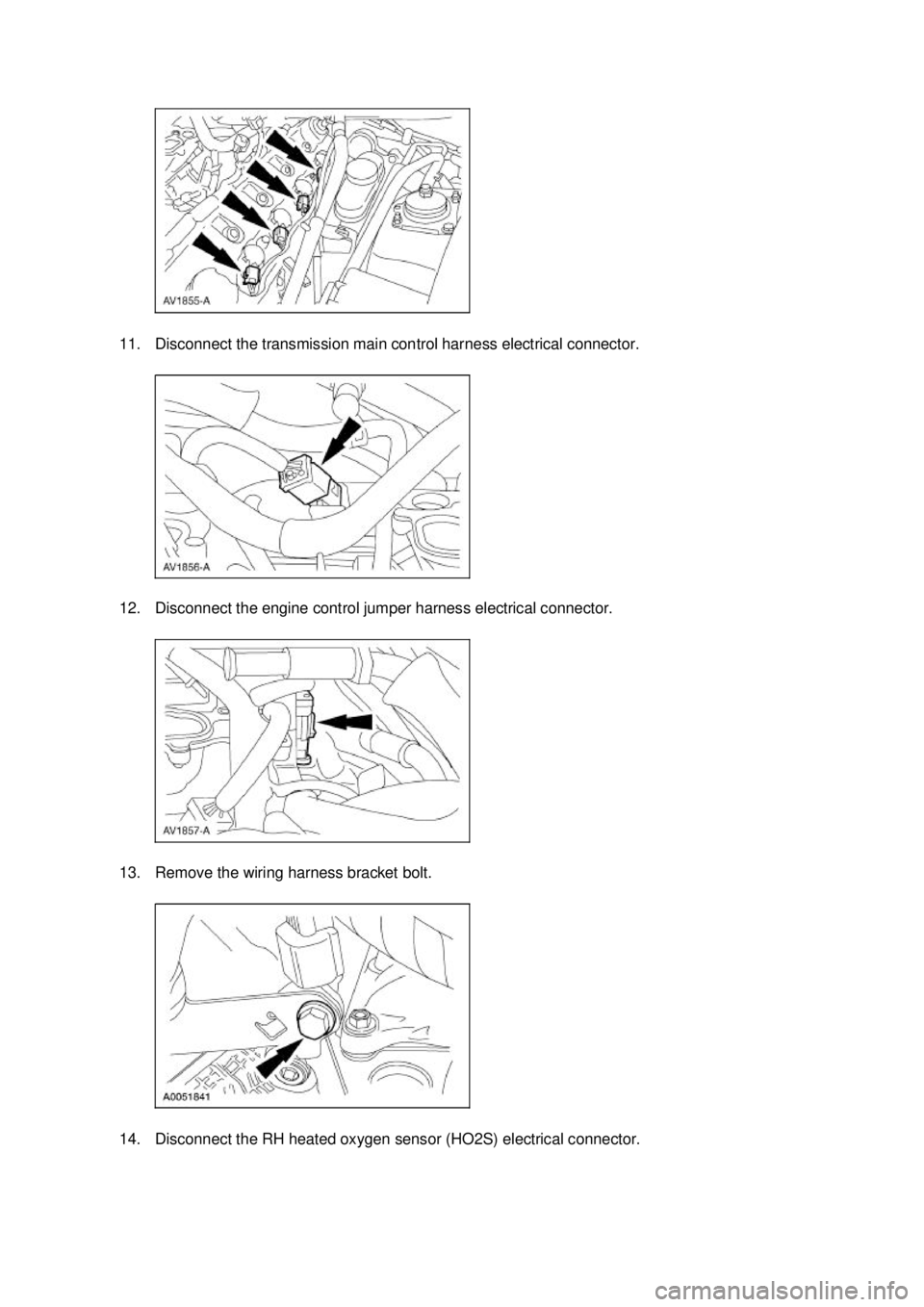

11. Disconnect the transmission main control harness electrical connector.
12. Disconnect the engine control jumper harness electrical connector.
13. Remove the wiring harness bracket bolt.
14. Disconnect the RH heated oxygen sensor (HO2S) electrical connector. Klj . 3 ba
112003 Mustang Workshop Manual
