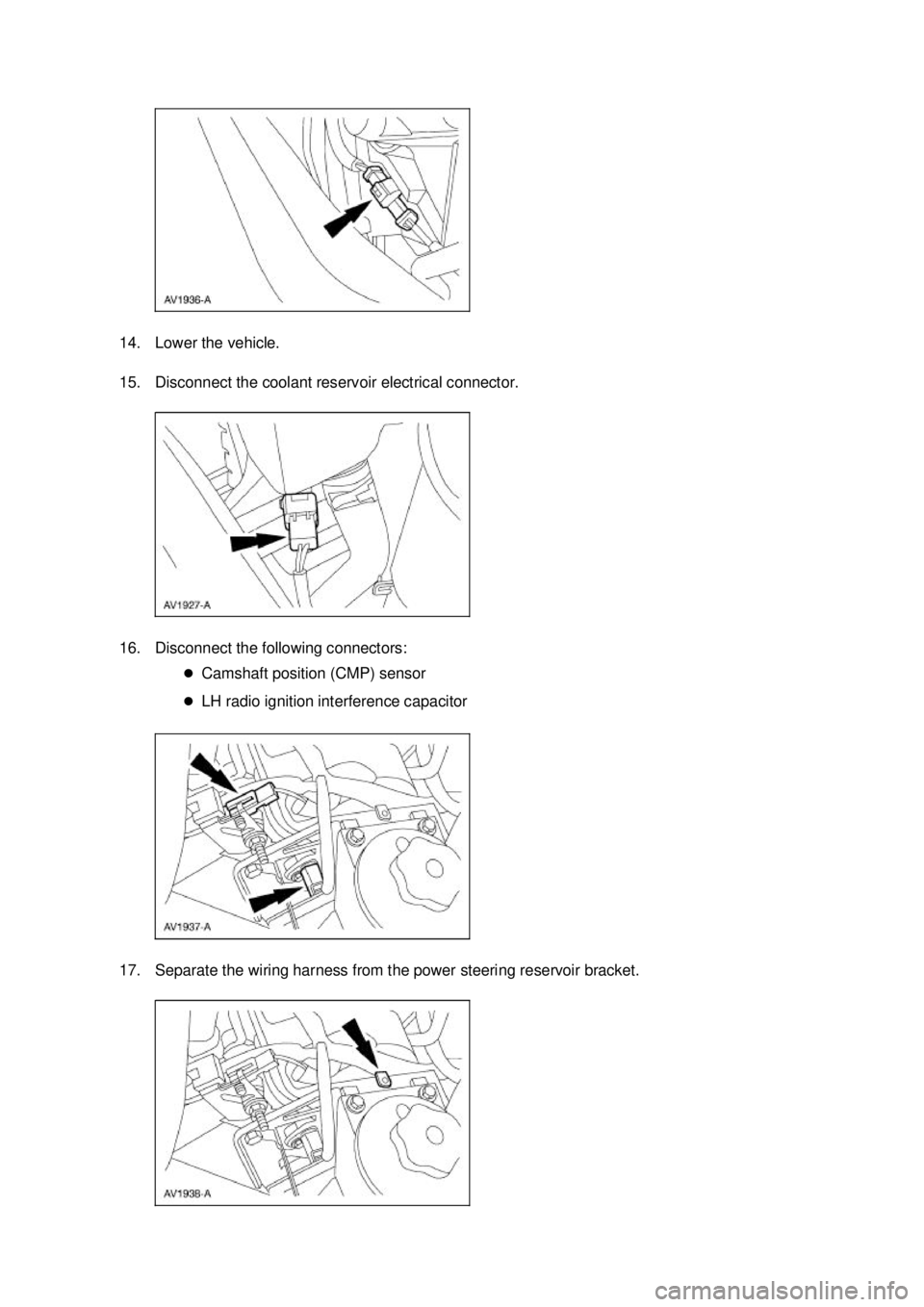

14. Lower the vehicle.
15. Disconnect the coolant reservoir electrical connector.
16. Disconnect the following connectors:
zCamshaft position (CMP) sensor
z LH radio ignition interference capacitor
17. Separate the wiring harness from the power steering reservoir bracket. Klj . 4 ba
142003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

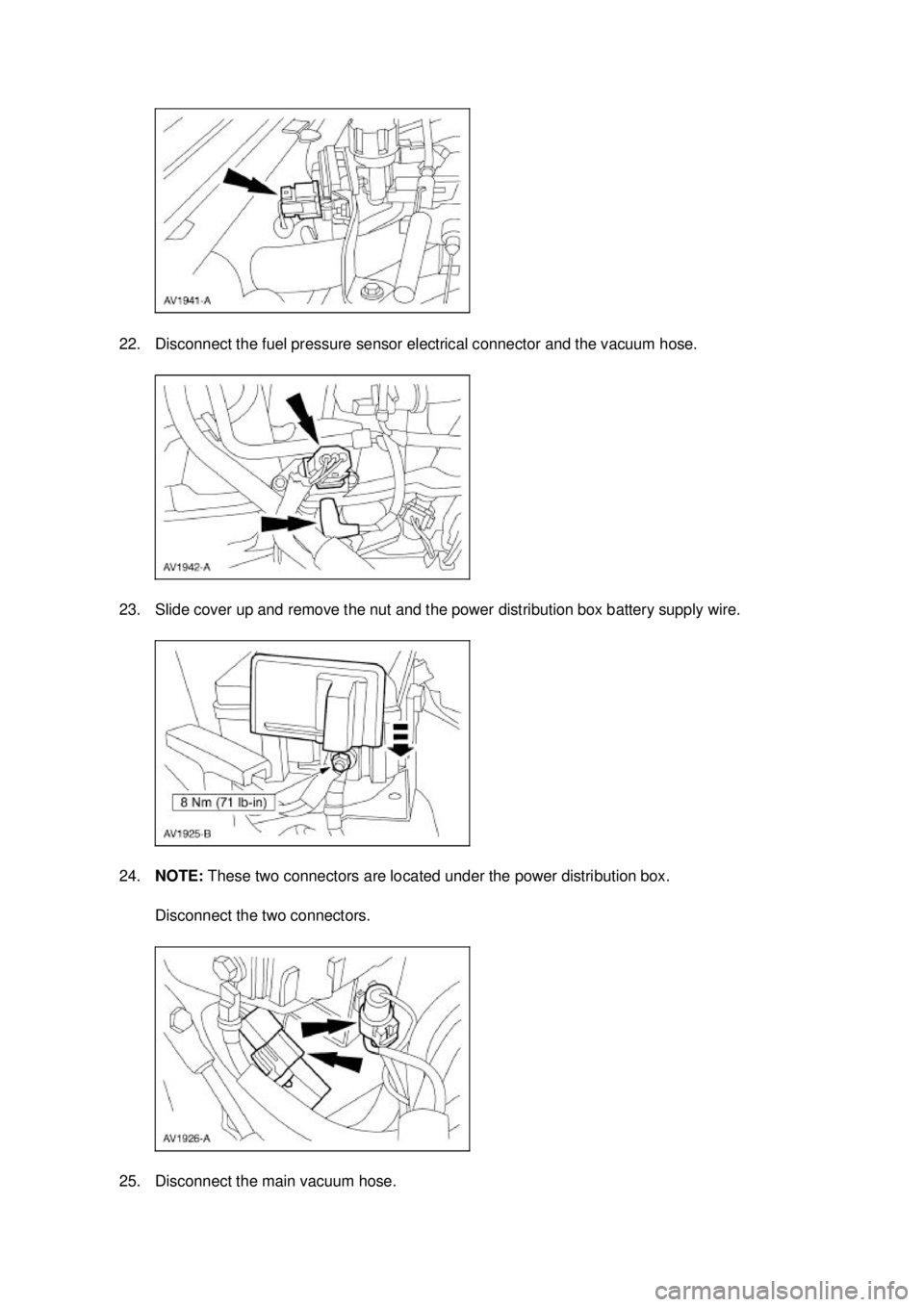

22. Disconnect the fuel pressure sensor electrical connector and the vacuum hose.
23. Slide cover up and remove the nut and the power distribution box battery supply wire.
24.
NOTE: These two connectors are located under the power distribution box.
Disconnect the two connectors.
25. Disconnect the main vacuum hose. Klj . 6 ba
142003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

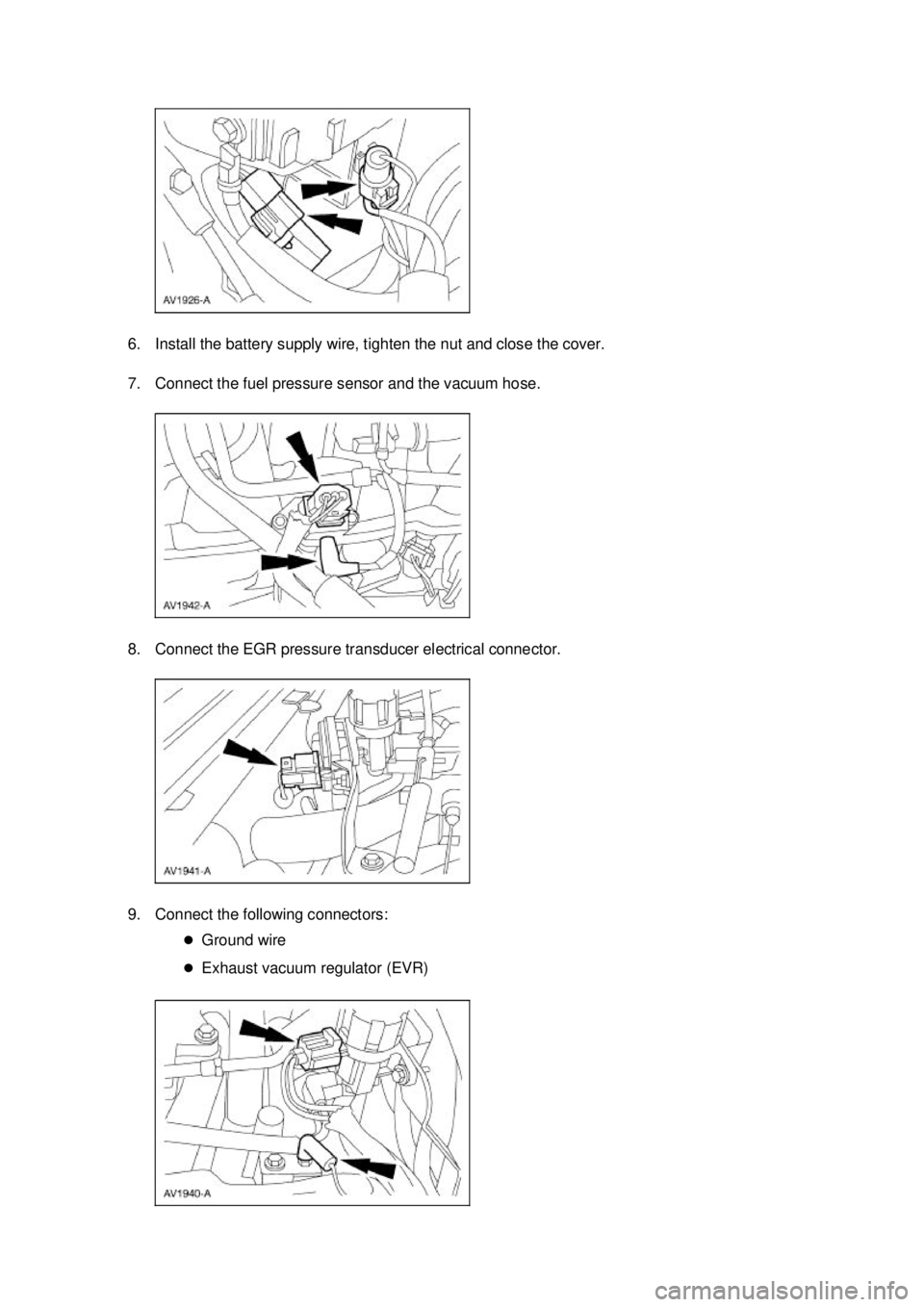

6. Install the battery supply wire, tighten the nut and close the cover.
7. Connect the fuel pressure sensor and the vacuum hose.
8. Connect the EGR pressure transducer electrical connector.
9. Connect the following connectors:
zGround wire
z Exhaust vacuum regulator (EVR) Klj . 9 ba
142003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

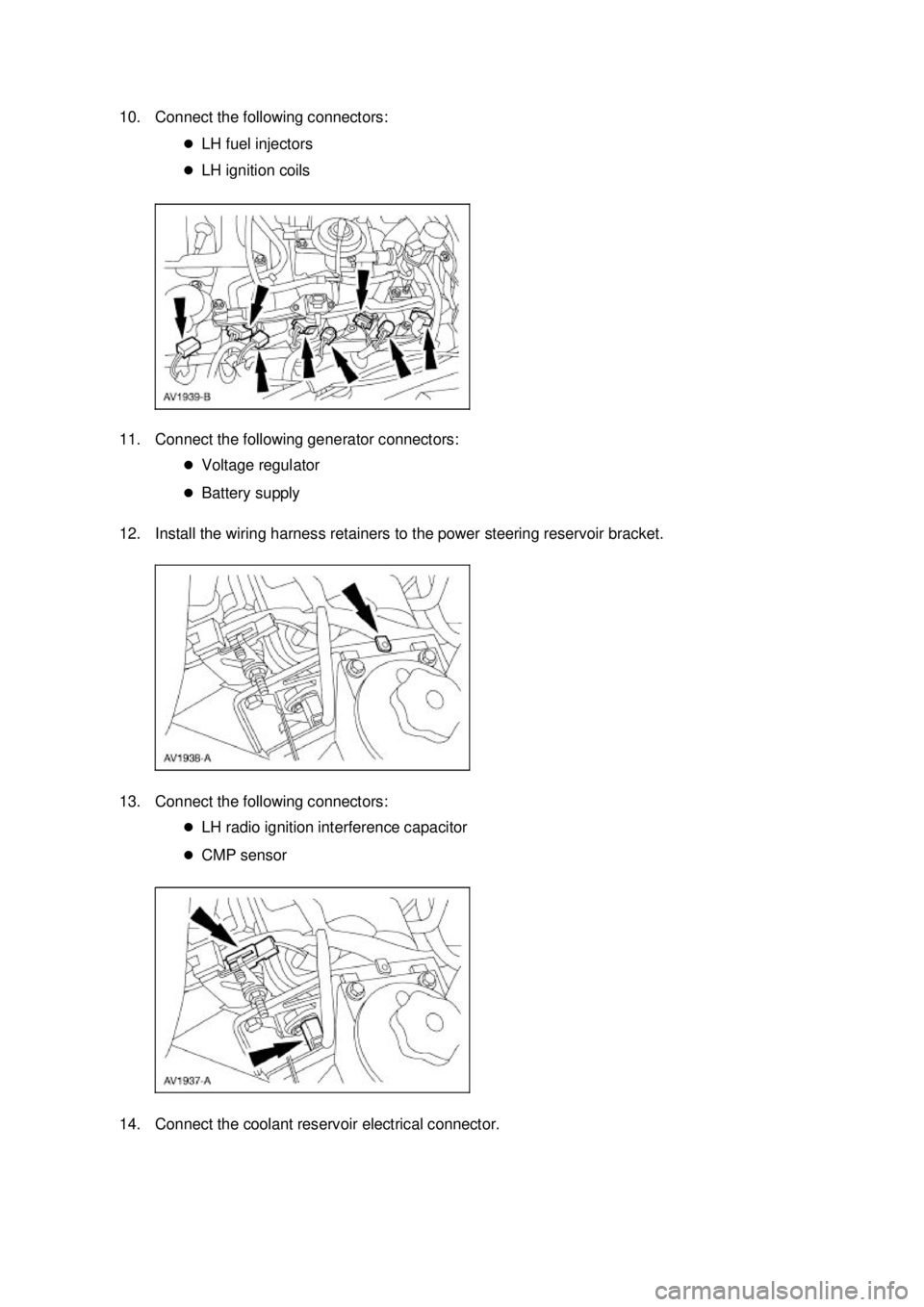

10. Connect the following connectors:
zLH fuel injectors
z LH ignition coils
11. Connect the following generator connectors: zVoltage regulator
z Battery supply
12. Install the wiring harness retainers to the power steering reservoir bracket.
13. Connect the following connectors: zLH radio ignition interference capacitor
z CMP sensor 14. Connect the coolant reservoir electrical connector. Klj . 10 ba
142003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

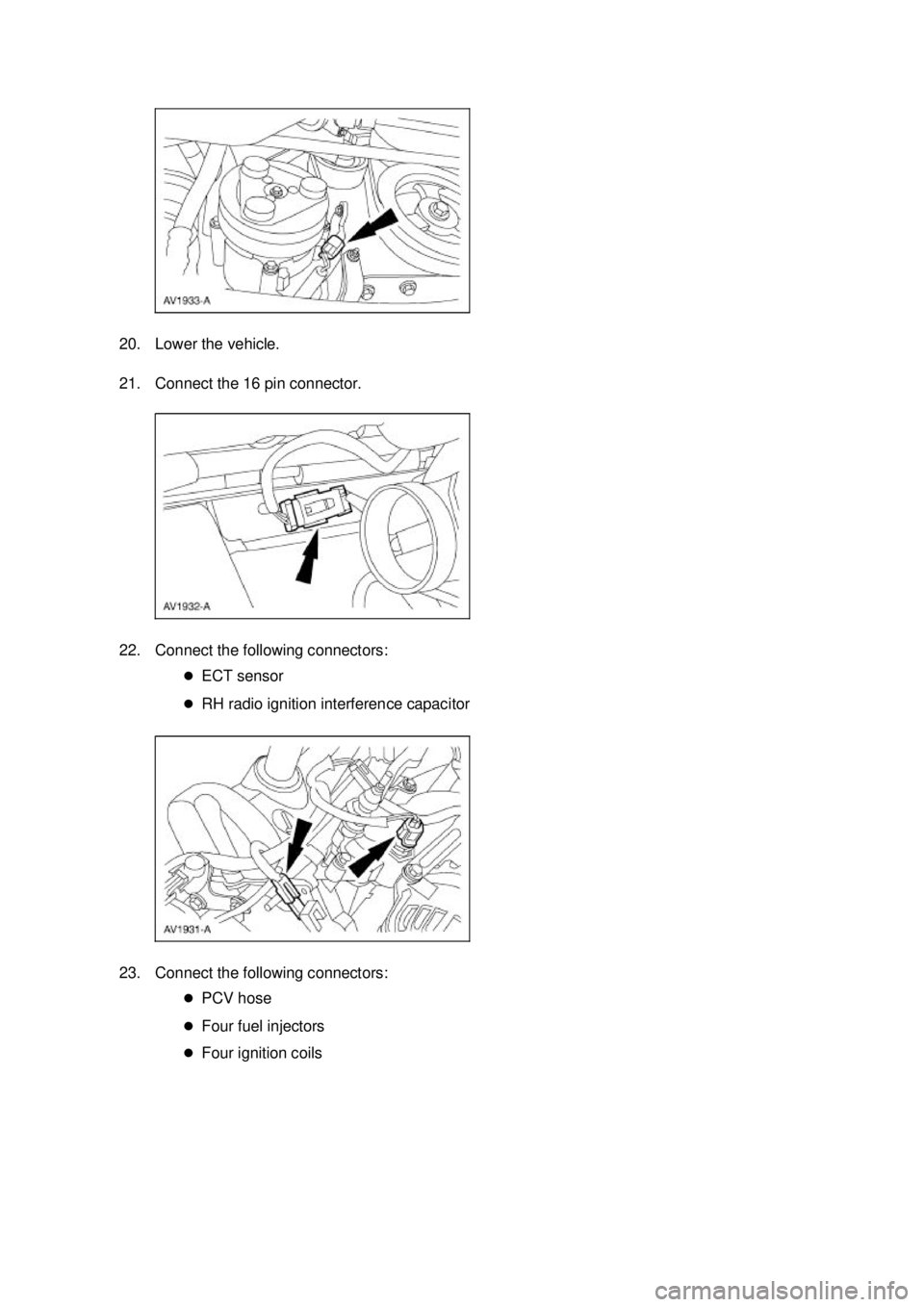

20. Lower the vehicle.
21. Connect the 16 pin connector.
22. Connect the following connectors:
zECT sensor
z RH radio ignition interference capacitor
23. Connect the following connectors: zPCV hose
z Four fuel injectors
z Four ignition coils Klj . 12 ba
142003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

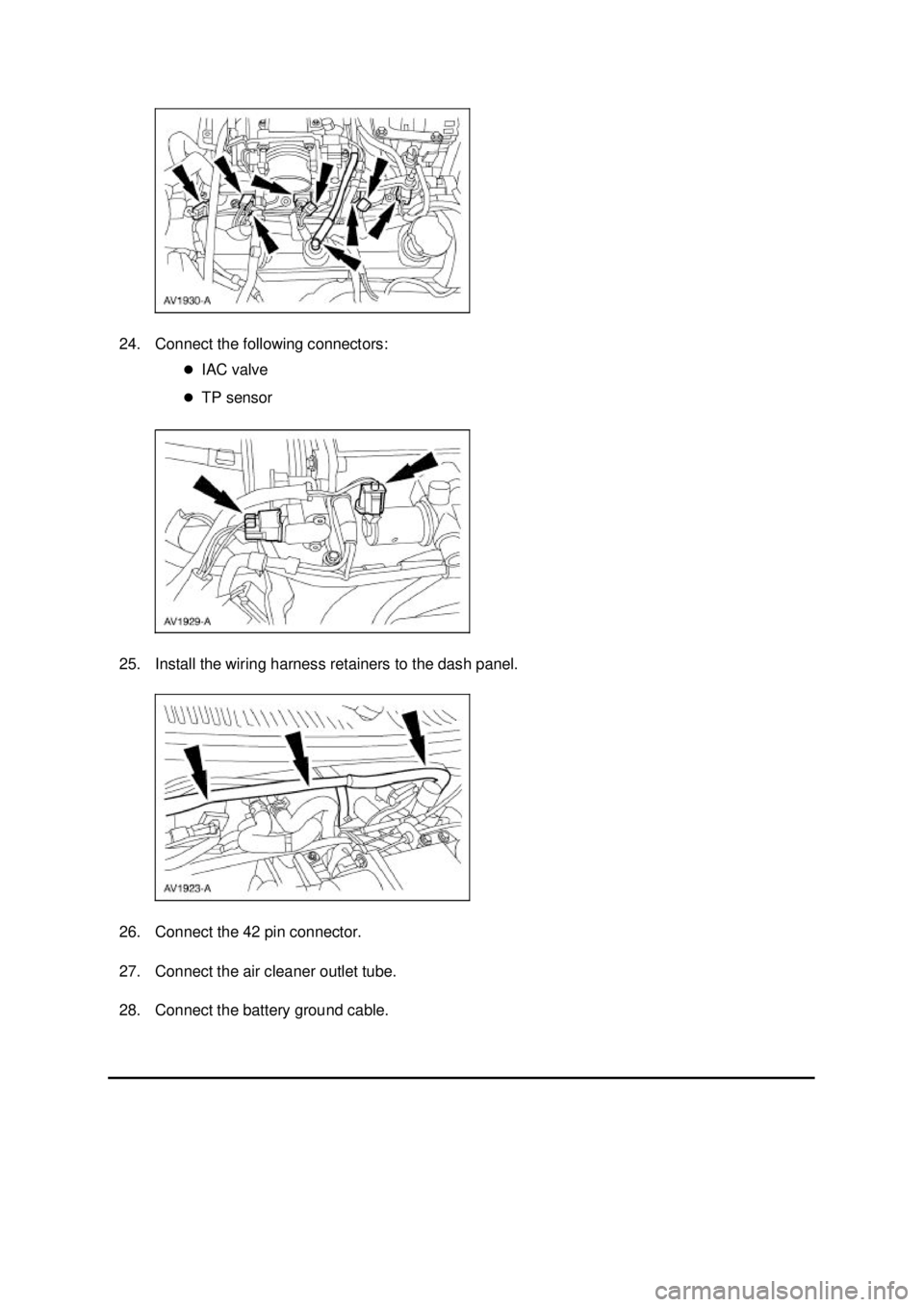

24. Connect the following connectors:
zIAC valve
z TP sensor
25. Install the wiring harness retainers to the dash panel.
26. Connect the 42 pin connector.
27. Connect the air cleaner outlet tube.
28. Connect the battery ground cable. Klj . 13 ba
142003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

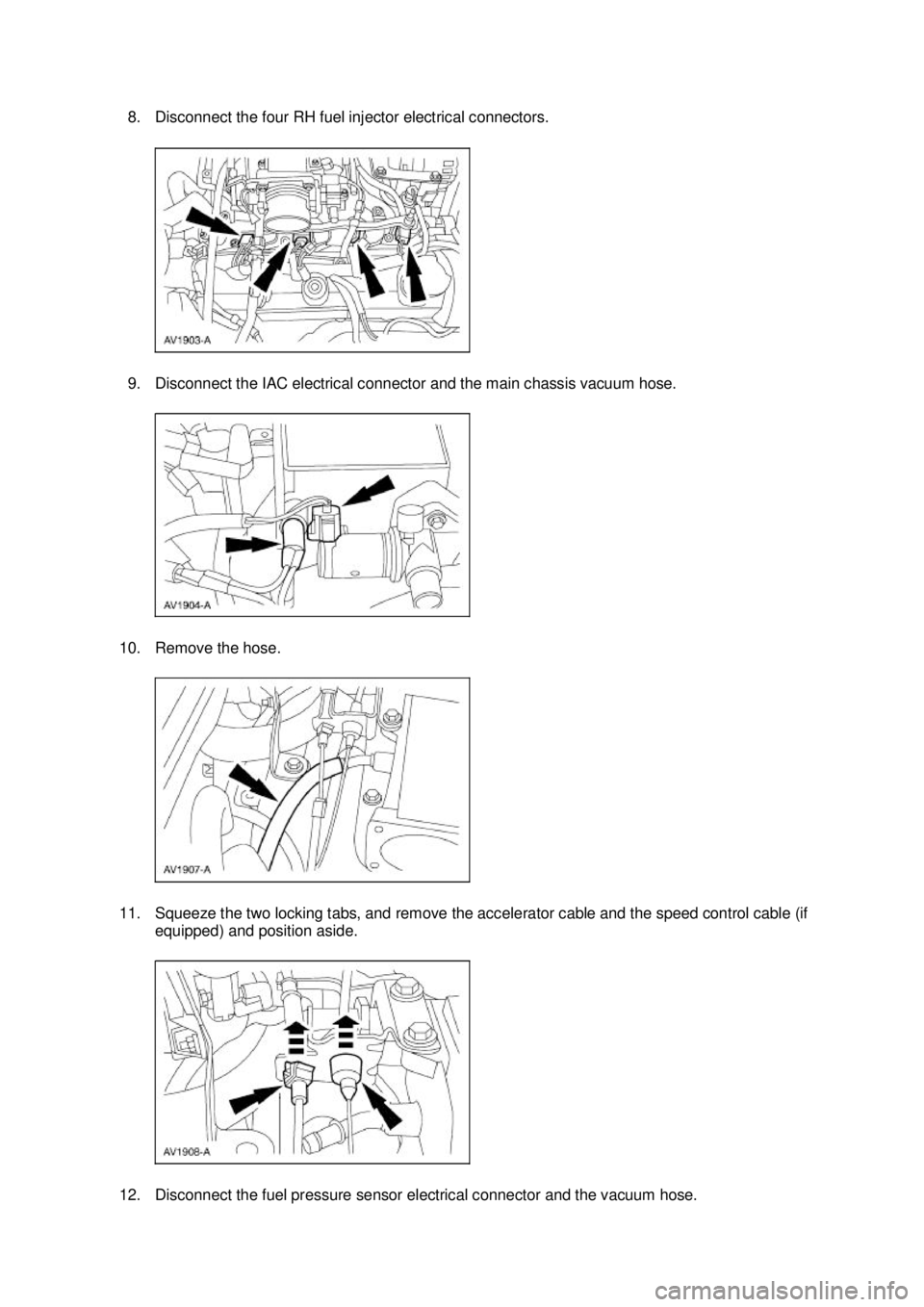

8. Disconnect the four RH fuel injector electrical connectors.
9. Disconnect the IAC electrical connector and the main chassis vacuum hose.
10. Remove the hose.
11. Squeeze the two locking tabs, and remove the accelerator cable and the speed control cable (if equipped) and position aside.
12. Disconnect the fuel pressure sensor electrical connector and the vacuum hose. Klj . 2 ba
82003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

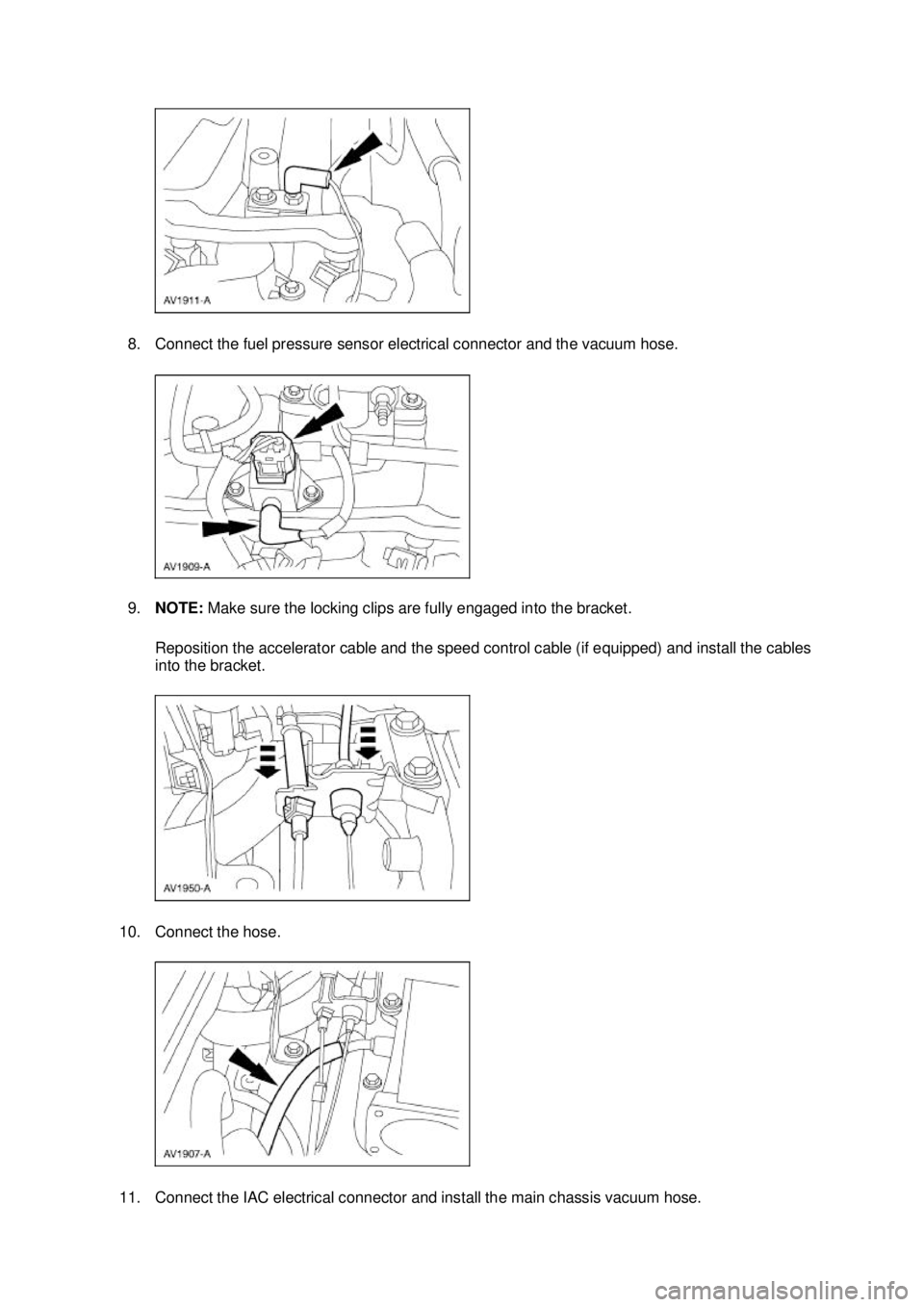

8. Connect the fuel pressure sensor electrical connector and the vacuum hose.
9.
NOTE: Make sure the locking clips are fully engaged into the bracket.
Reposition the accelerator cable and the speed control cable (if equipped) and install the cables
into the bracket.
10. Connect the hose.
11. Connect the IAC electrical connector and install the main chassis vacuum hose. Klj . 6 ba
82003 Mustang Workshop Manual
