2003 FORD MUSTANG engine

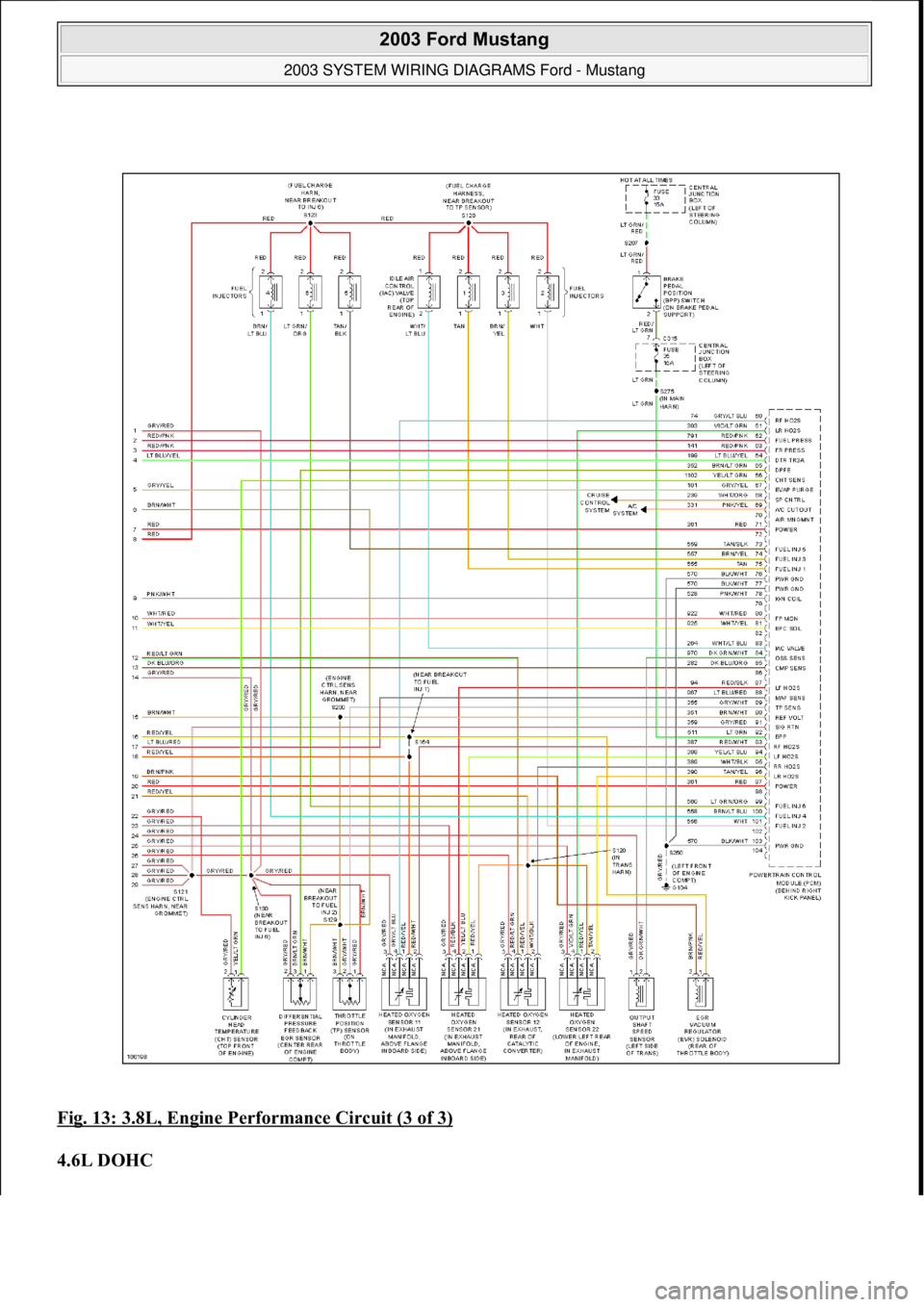

Fig. 13: 3.8L, Engine Performance Circuit (3 of 3)
4.6L DOHC

2003 Ford Mustang
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:45:09Page 14 © 2006 Mitchell Repair Information Company, LLC.

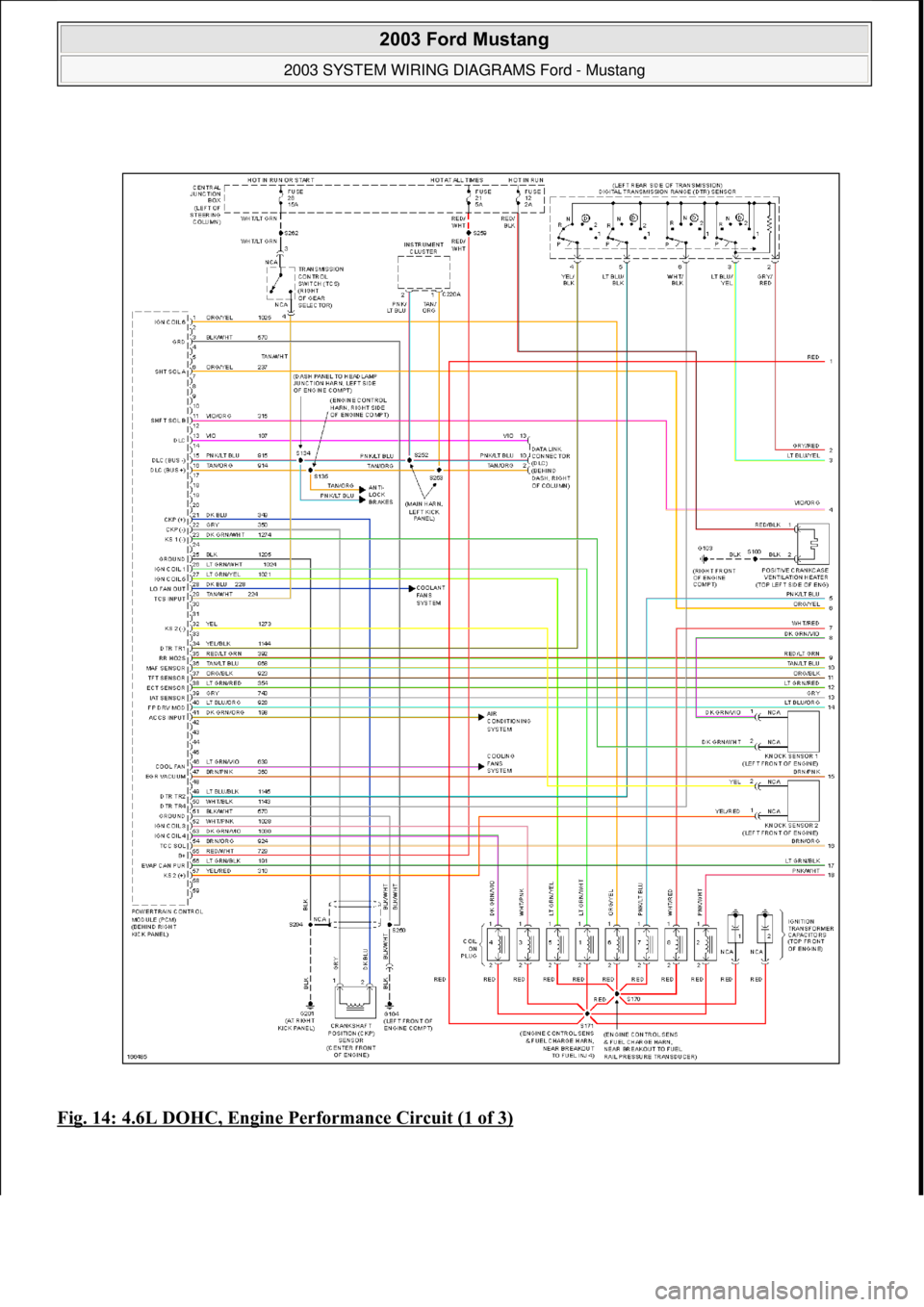

Fig. 14: 4.6L DOHC, Engine Performance Circuit (1 of 3)

2003 Ford Mustang
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:45:09Page 15 © 2006 Mitchell Repair Information Company, LLC.

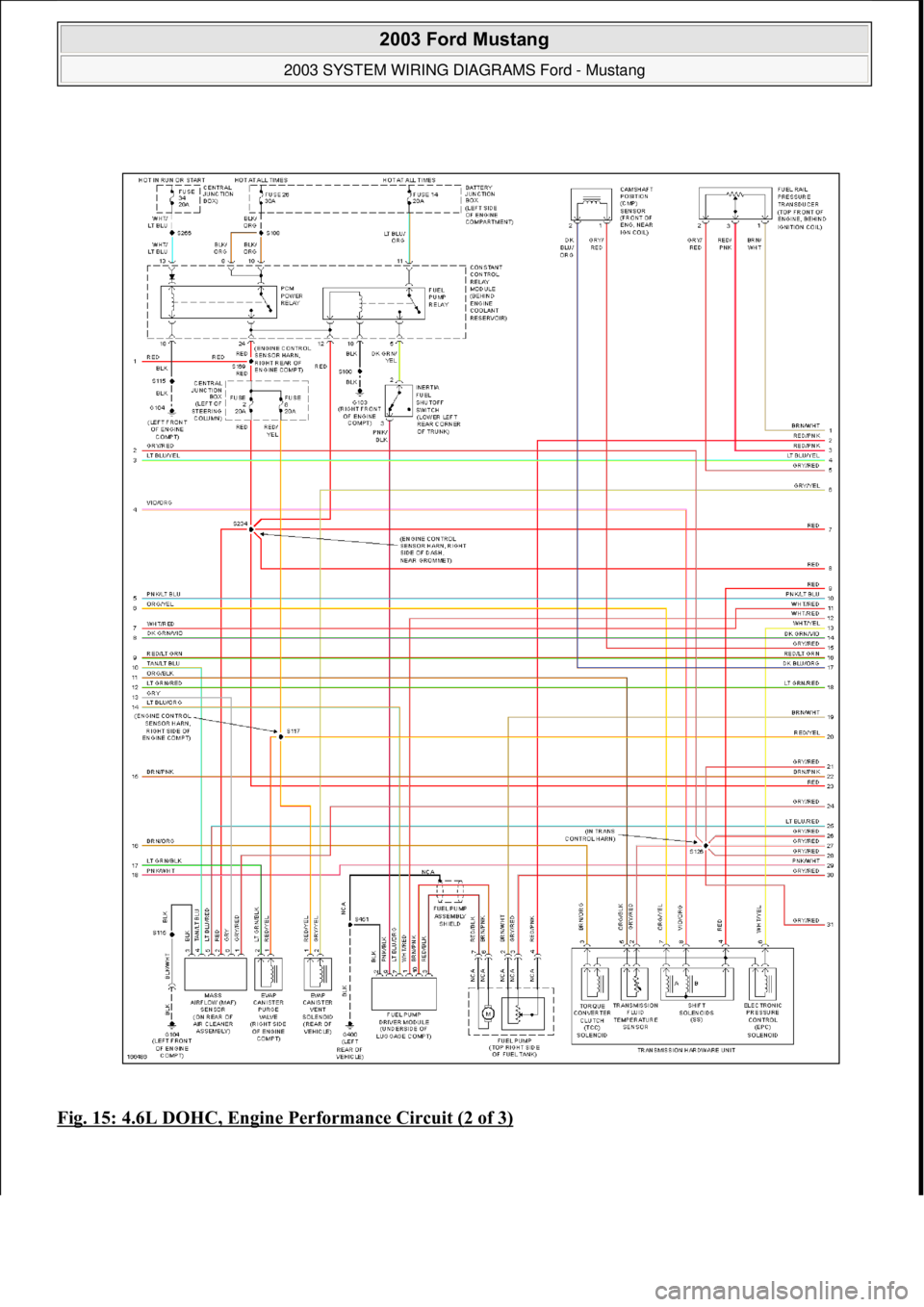

Fig. 15: 4.6L DOHC, Engine Performance Circuit (2 of 3)

2003 Ford Mustang
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:45:09Page 16 © 2006 Mitchell Repair Information Company, LLC.

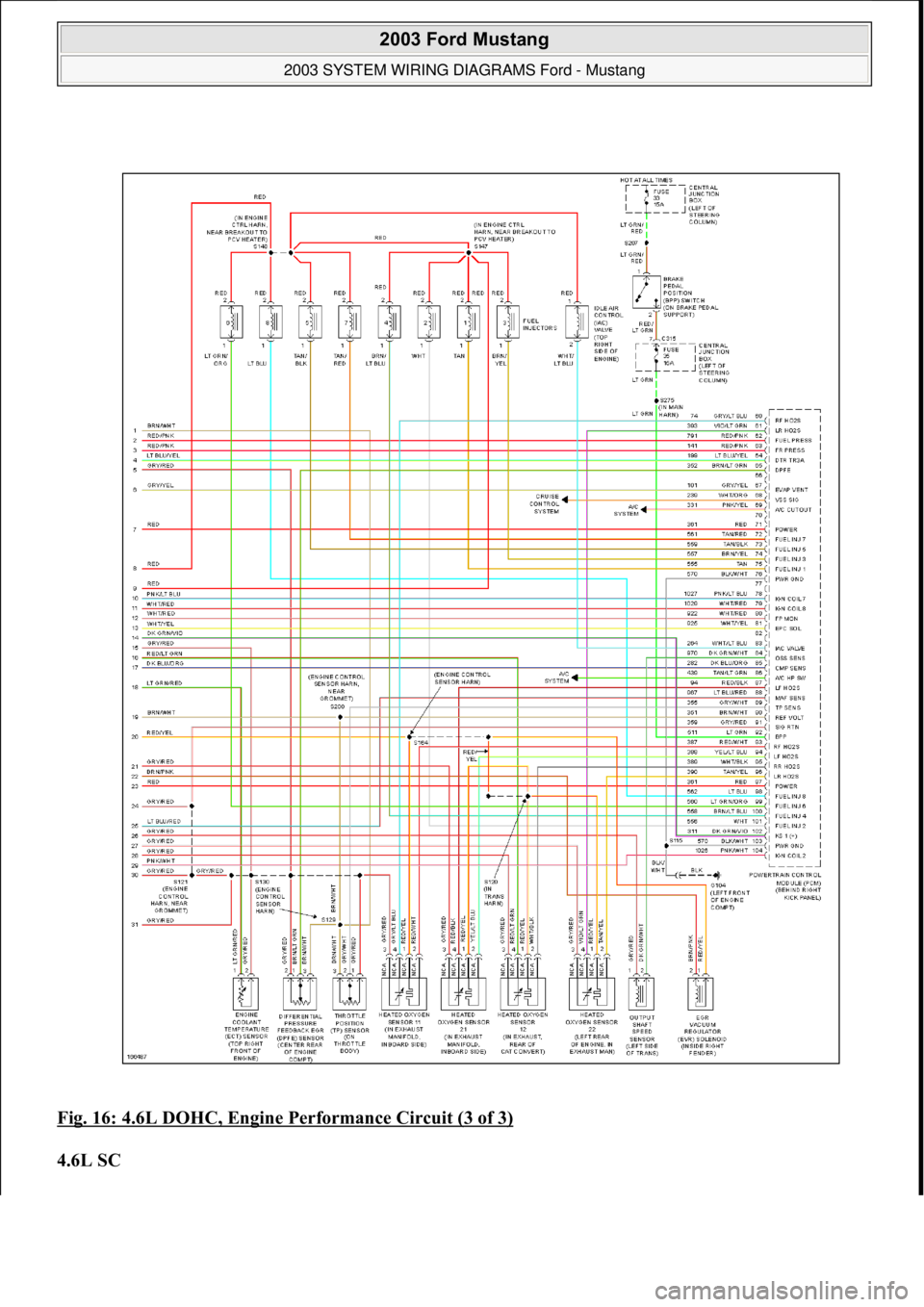

Fig. 16: 4.6L DOHC, Engine Performance Circuit (3 of 3)
4.6L SC

2003 Ford Mustang
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:45:09Page 17 © 2006 Mitchell Repair Information Company, LLC.

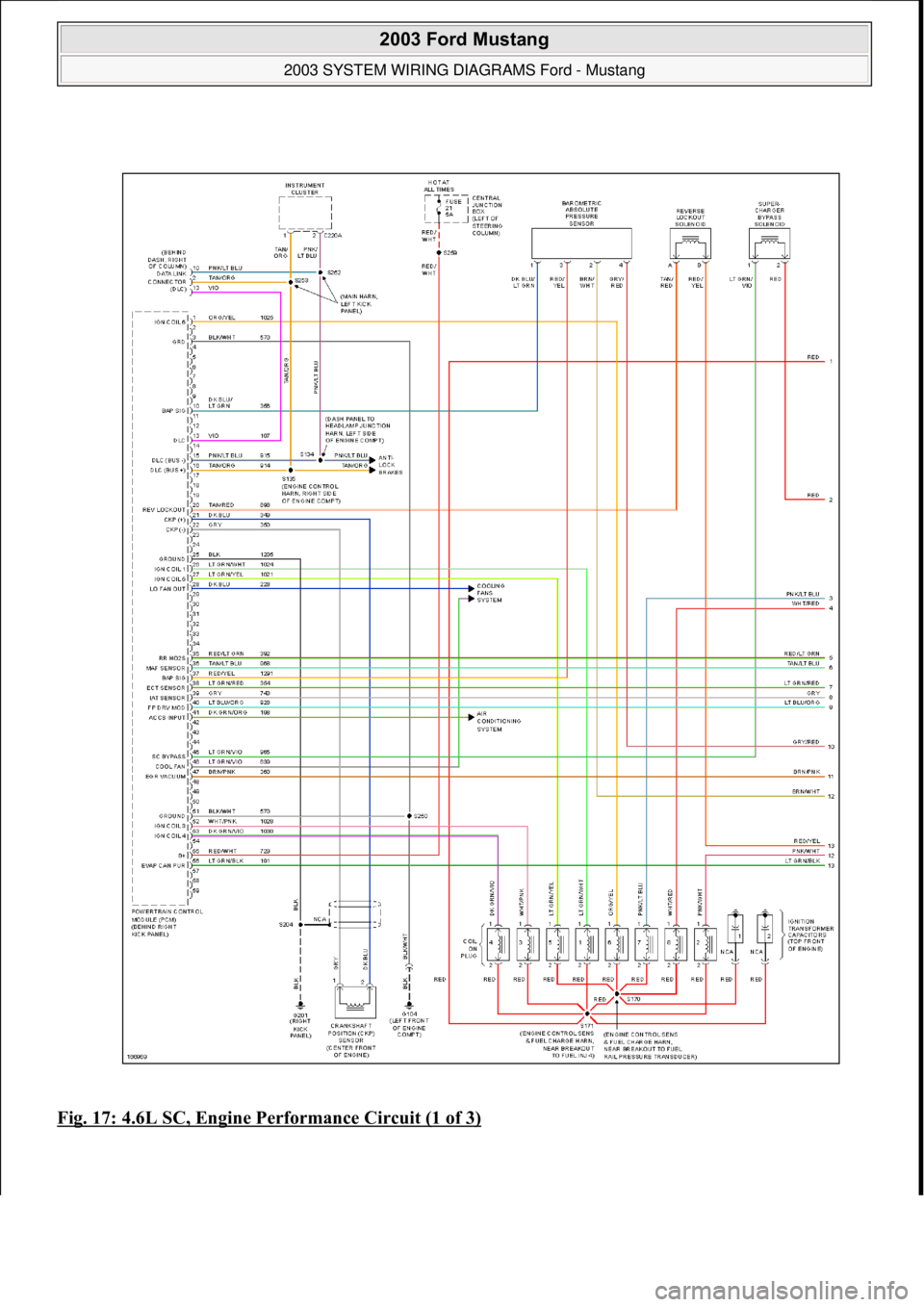

Fig. 17: 4.6L SC, Engine Performance Circuit (1 of 3)

2003 Ford Mustang
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:45:09Page 18 © 2006 Mitchell Repair Information Company, LLC.

Fig. 18: 4.6L SC, Engine Performance Circuit (2 of 3)

2003 Ford Mustang
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:45:09Page 19 © 2006 Mitchell Repair Information Company, LLC.

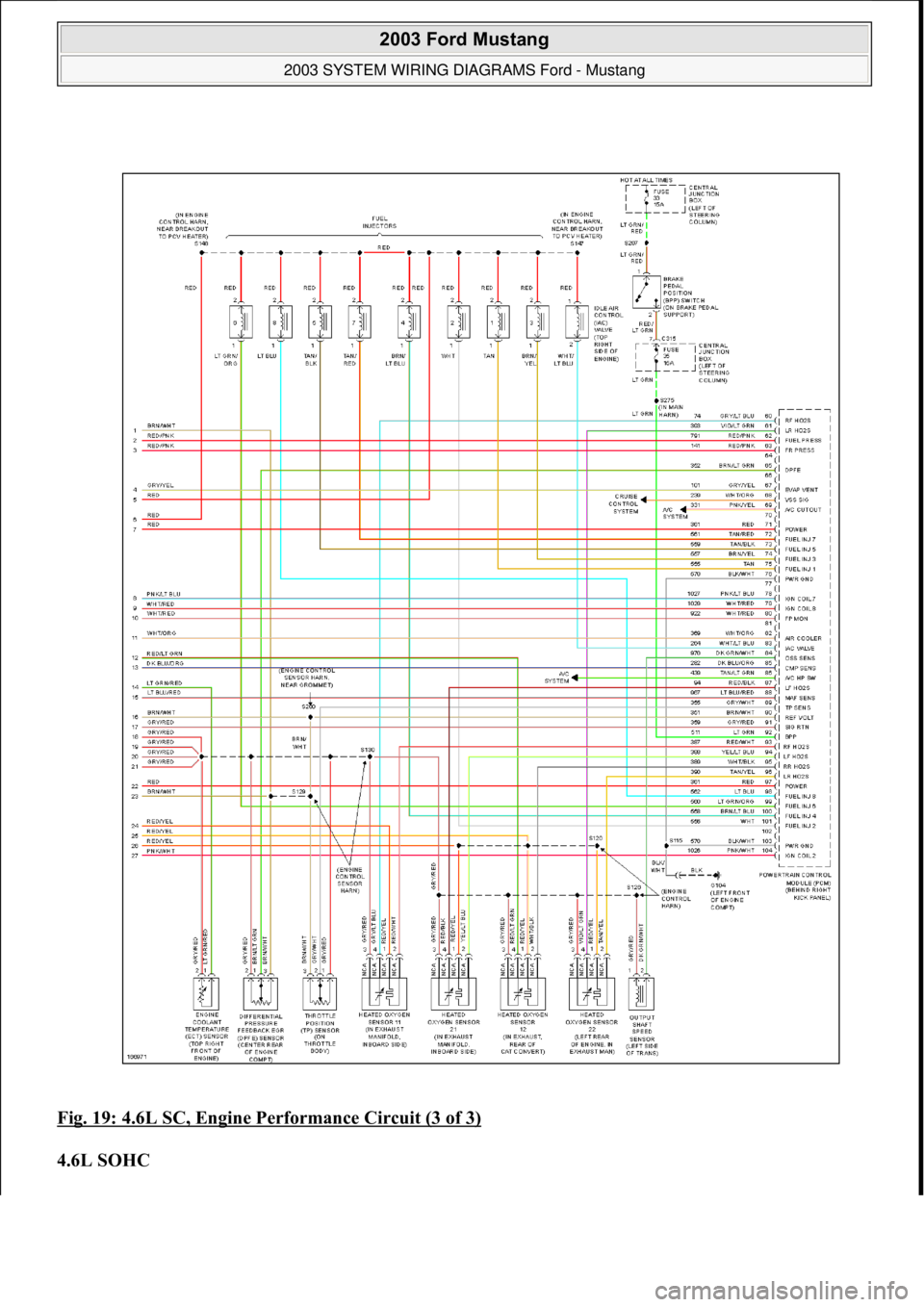

Fig. 19: 4.6L SC, Engine Performance Circuit (3 of 3)
4.6L SOHC

2003 Ford Mustang
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:45:09Page 20 © 2006 Mitchell Repair Information Company, LLC.

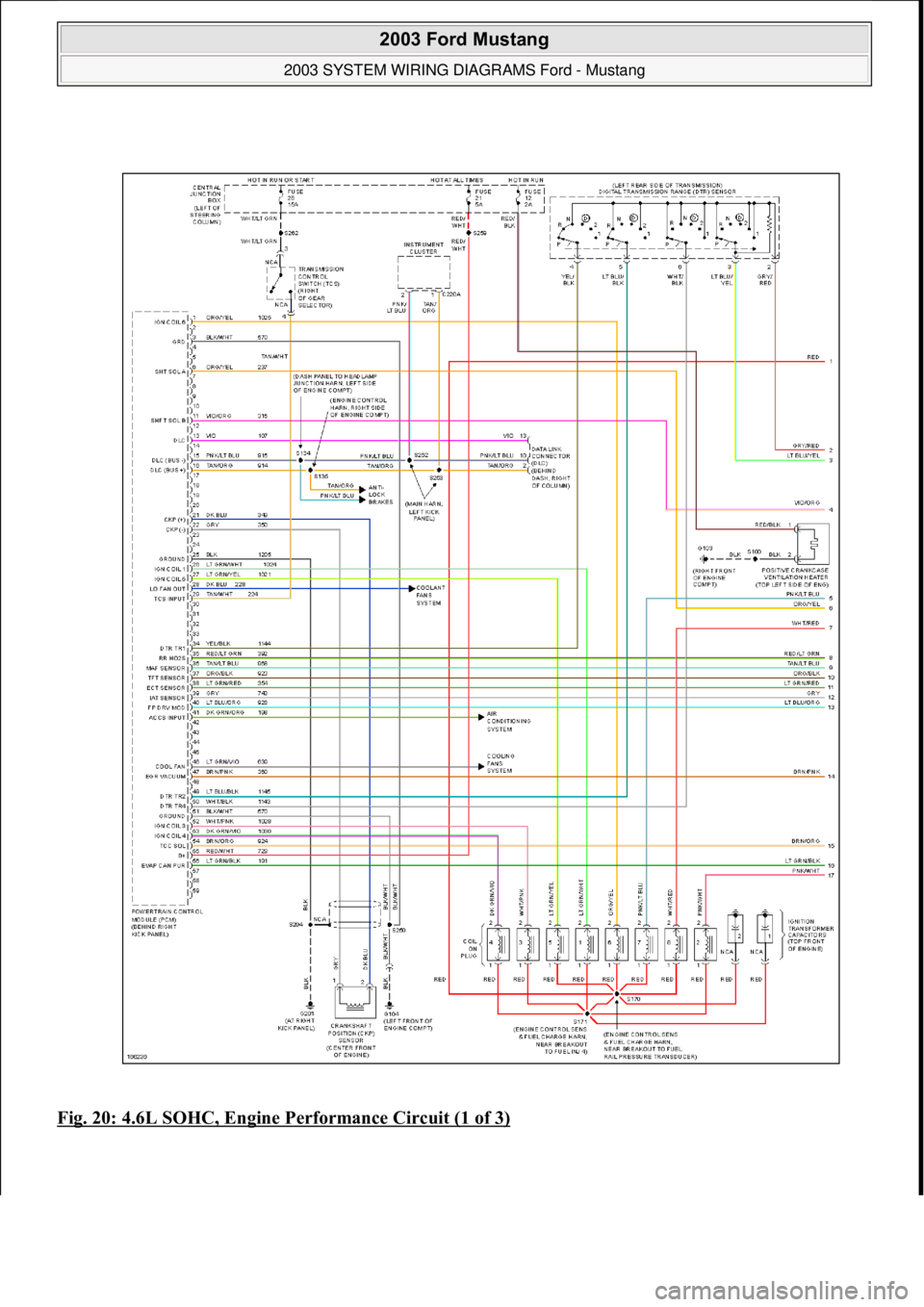

Fig. 20: 4.6L SOHC, Engine Performance Circuit (1 of 3)

2003 Ford Mustang
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:45:09Page 21 © 2006 Mitchell Repair Information Company, LLC.
