Page 4340 of 4378

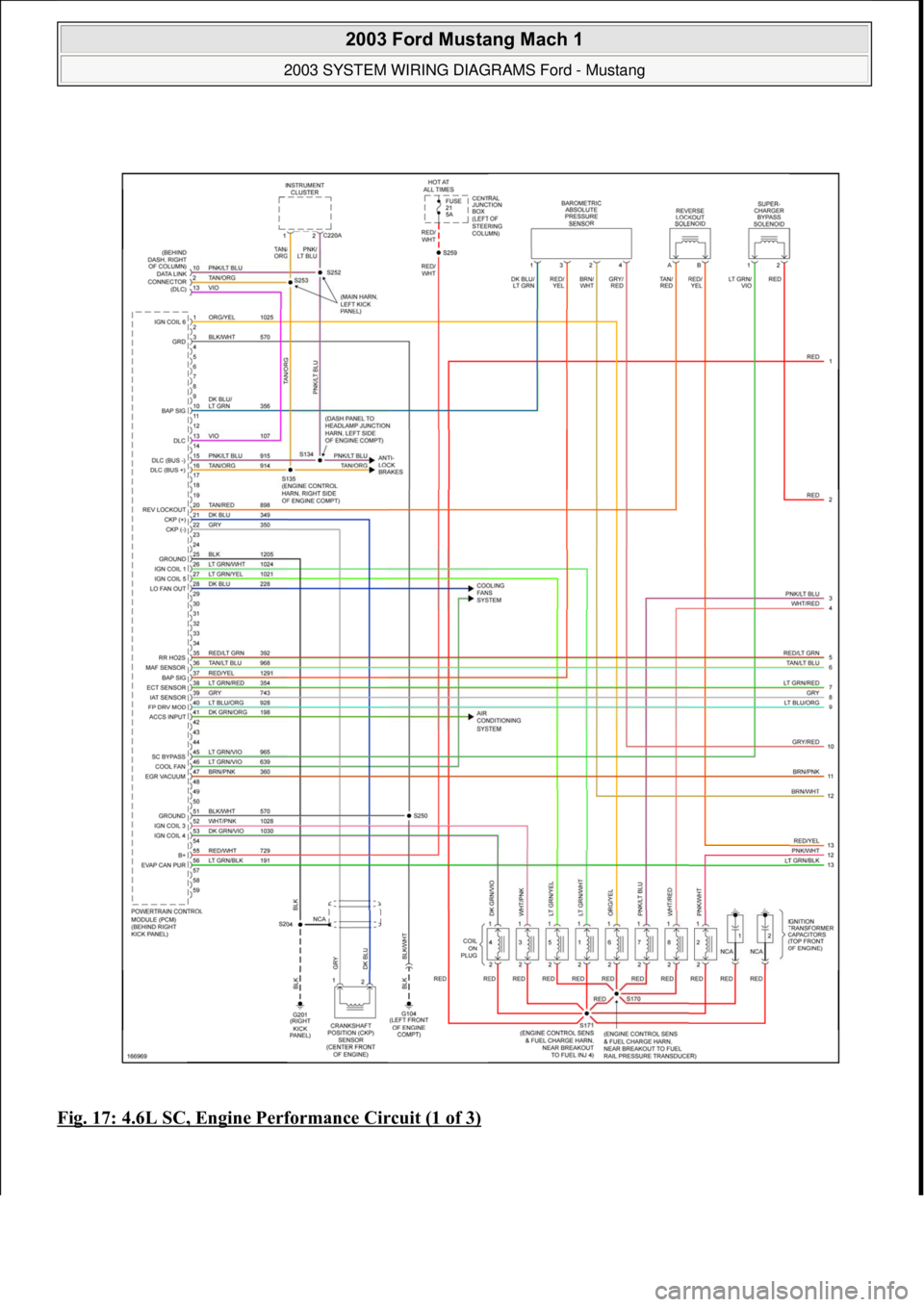

Fig. 17: 4.6L SC, Engine Performance Circuit (1 of 3)
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 18 © 2006 Mitchell Repair Information Company, LLC.
Page 4341 of 4378

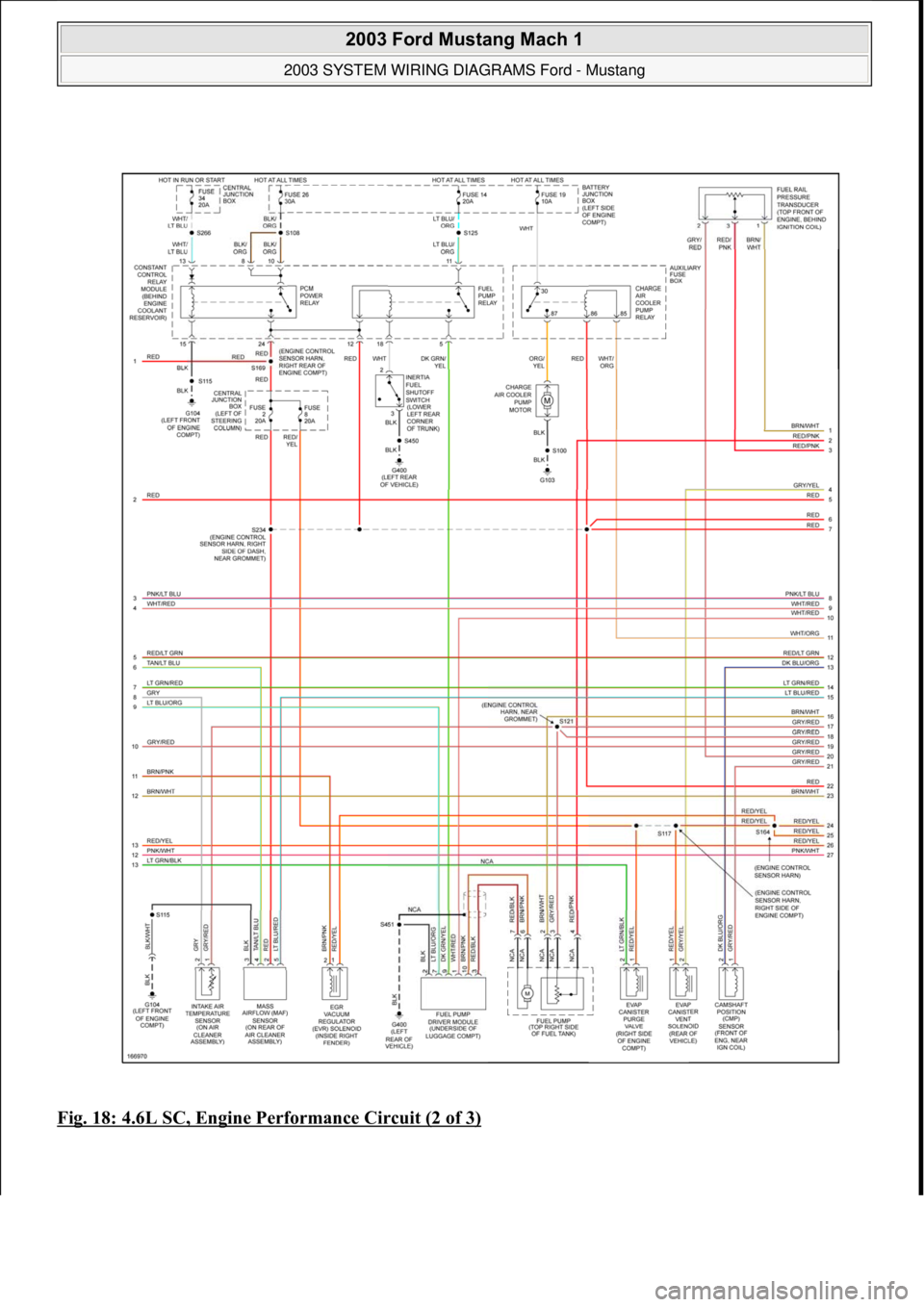

Fig. 18: 4.6L SC, Engine Performance Circuit (2 of 3)
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 19 © 2006 Mitchell Repair Information Company, LLC.
Page 4342 of 4378

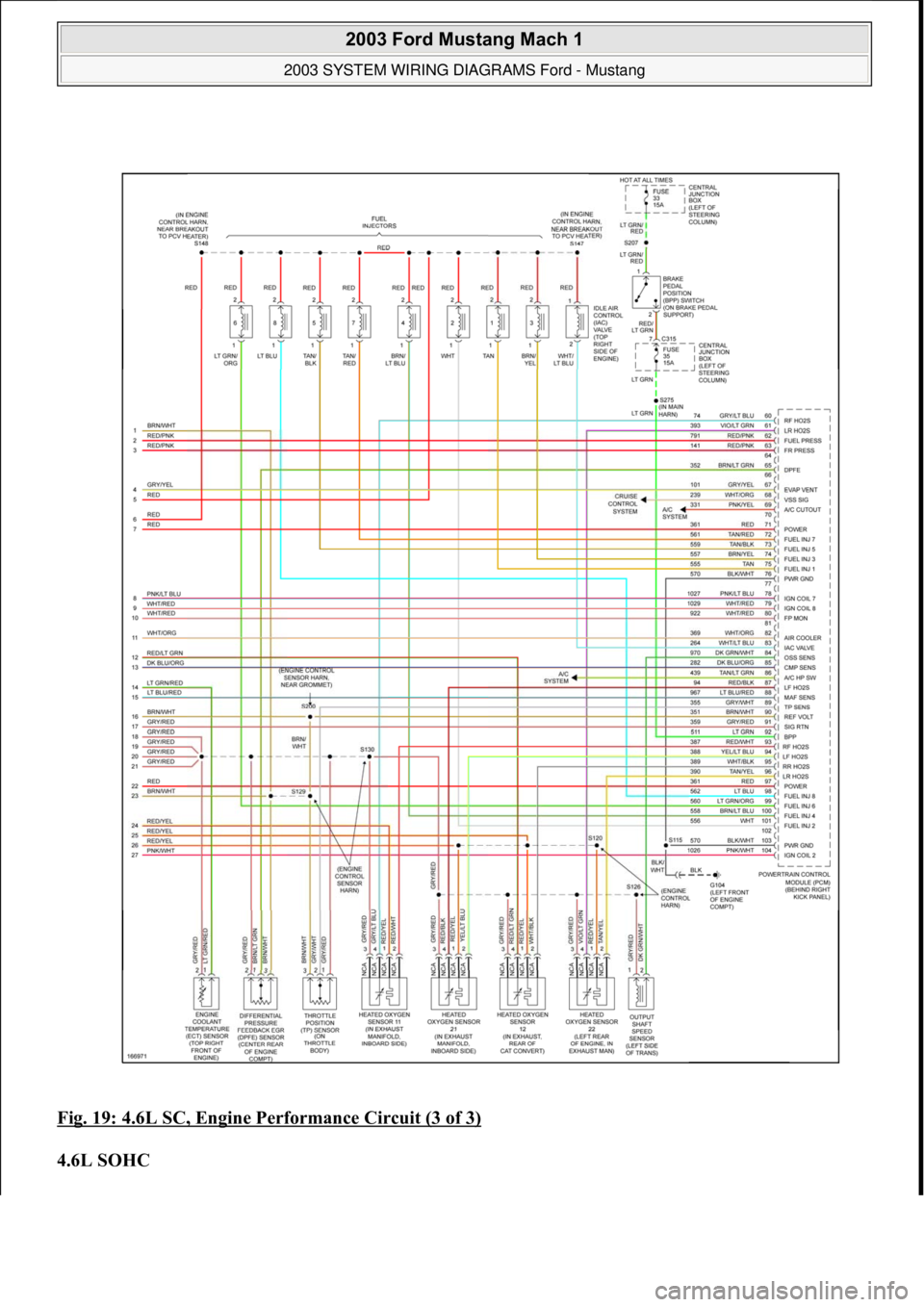

Fig. 19: 4.6L SC, Engine Performance Circuit (3 of 3)
4.6L SOHC
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 20 © 2006 Mitchell Repair Information Company, LLC.
Page 4343 of 4378
Fig. 20: 4.6L SOHC, Engine Performance Circuit (1 of 3)
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 21 © 2006 Mitchell Repair Information Company, LLC.
Page 4344 of 4378

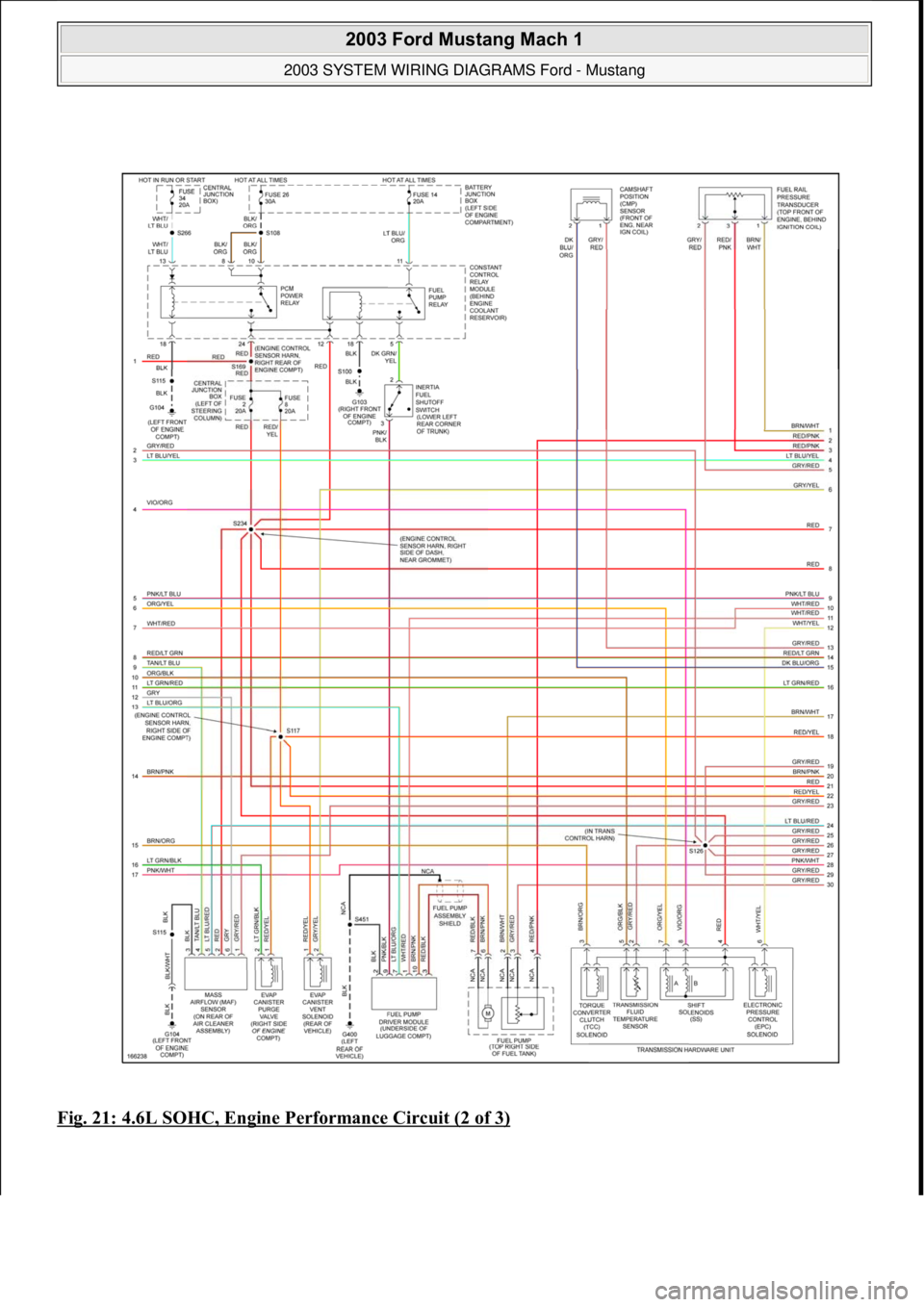

Fig. 21: 4.6L SOHC, Engine Performance Circuit (2 of 3)
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 22 © 2006 Mitchell Repair Information Company, LLC.
Page 4345 of 4378

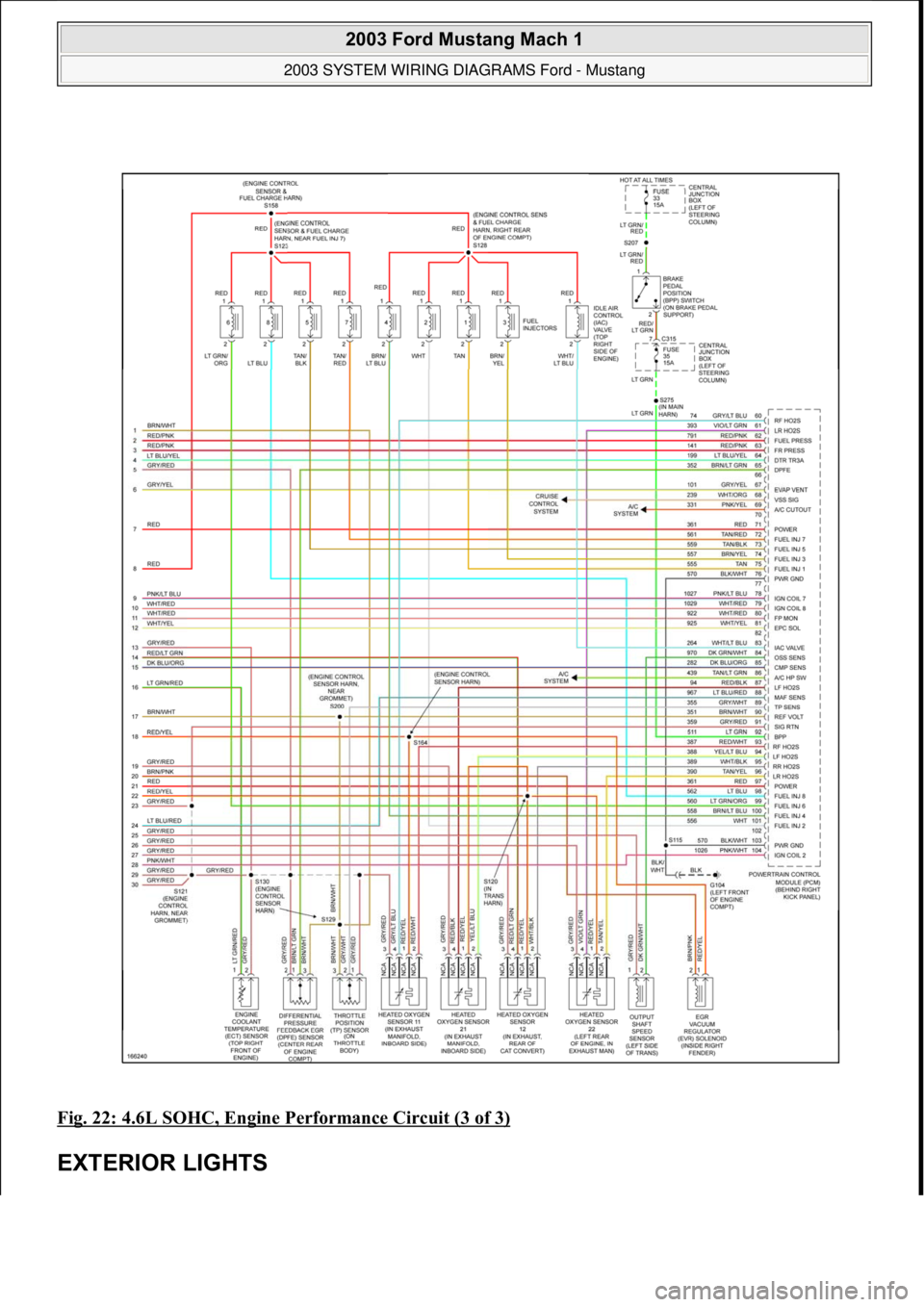

Fig. 22: 4.6L SOHC, Engine Performance Circuit (3 of 3)
EXTERIOR LIGHTS
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 23 © 2006 Mitchell Repair Information Company, LLC.
