Page 4228 of 4378

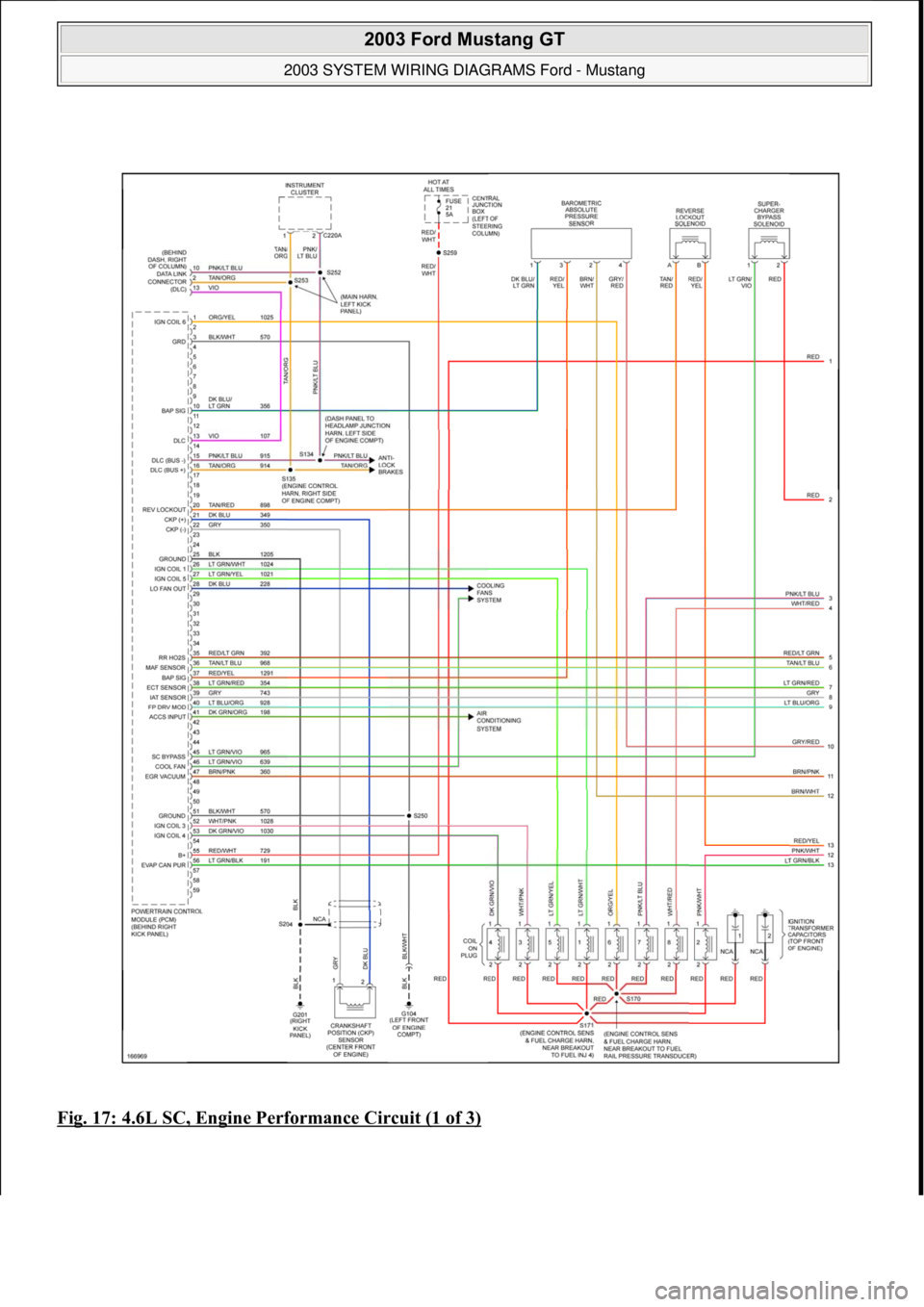

Fig. 17: 4.6L SC, Engine Performance Circuit (1 of 3)
2003 Ford Mustang GT
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:50:34Page 18 © 2006 Mitchell Repair Information Company, LLC.
Page 4229 of 4378

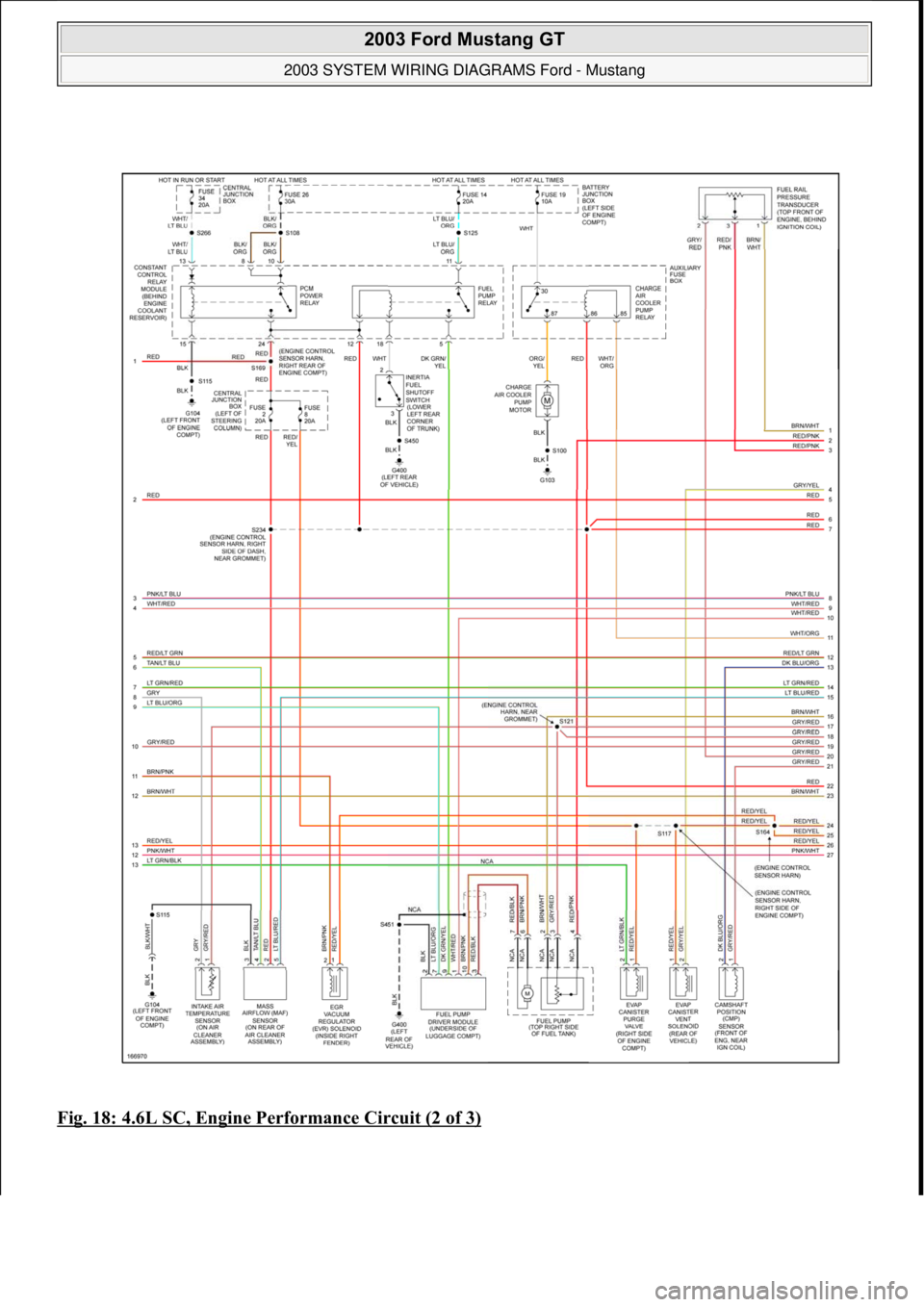

Fig. 18: 4.6L SC, Engine Performance Circuit (2 of 3)
2003 Ford Mustang GT
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:50:34Page 19 © 2006 Mitchell Repair Information Company, LLC.
Page 4230 of 4378

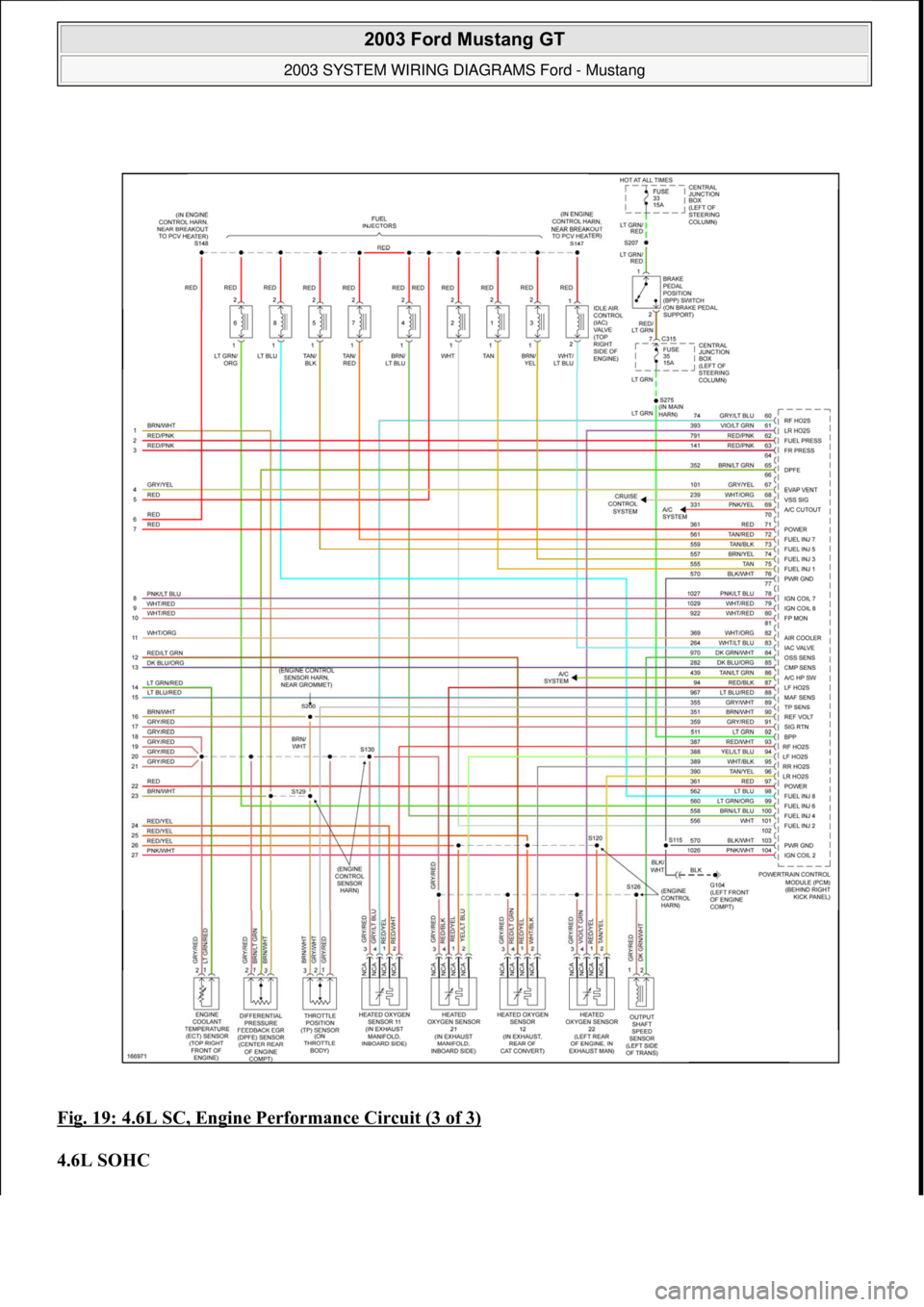

Fig. 19: 4.6L SC, Engine Performance Circuit (3 of 3)
4.6L SOHC
2003 Ford Mustang GT
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:50:34Page 20 © 2006 Mitchell Repair Information Company, LLC.
Page 4231 of 4378

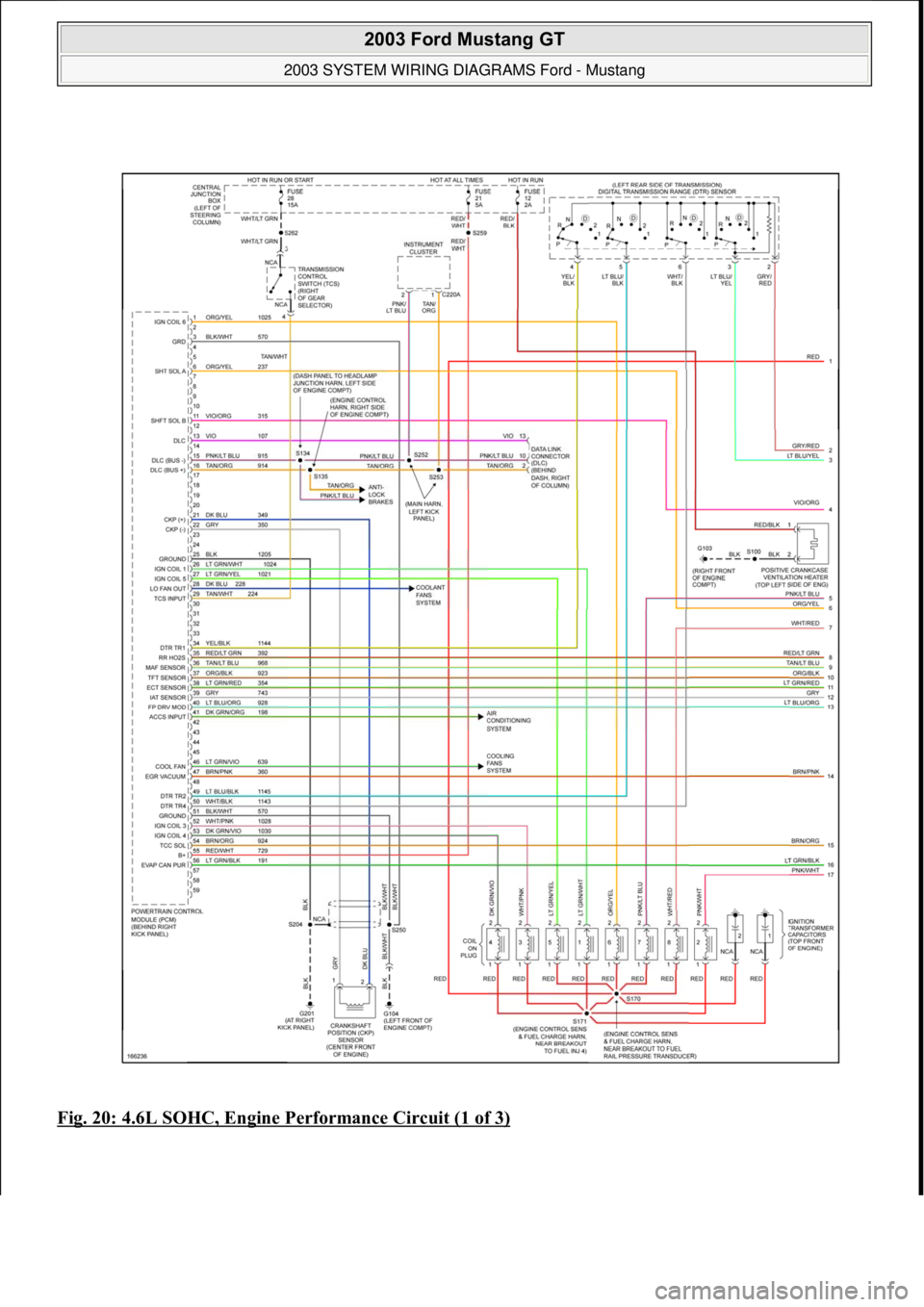

Fig. 20: 4.6L SOHC, Engine Performance Circuit (1 of 3)
2003 Ford Mustang GT
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:50:34Page 21 © 2006 Mitchell Repair Information Company, LLC.
Page 4232 of 4378

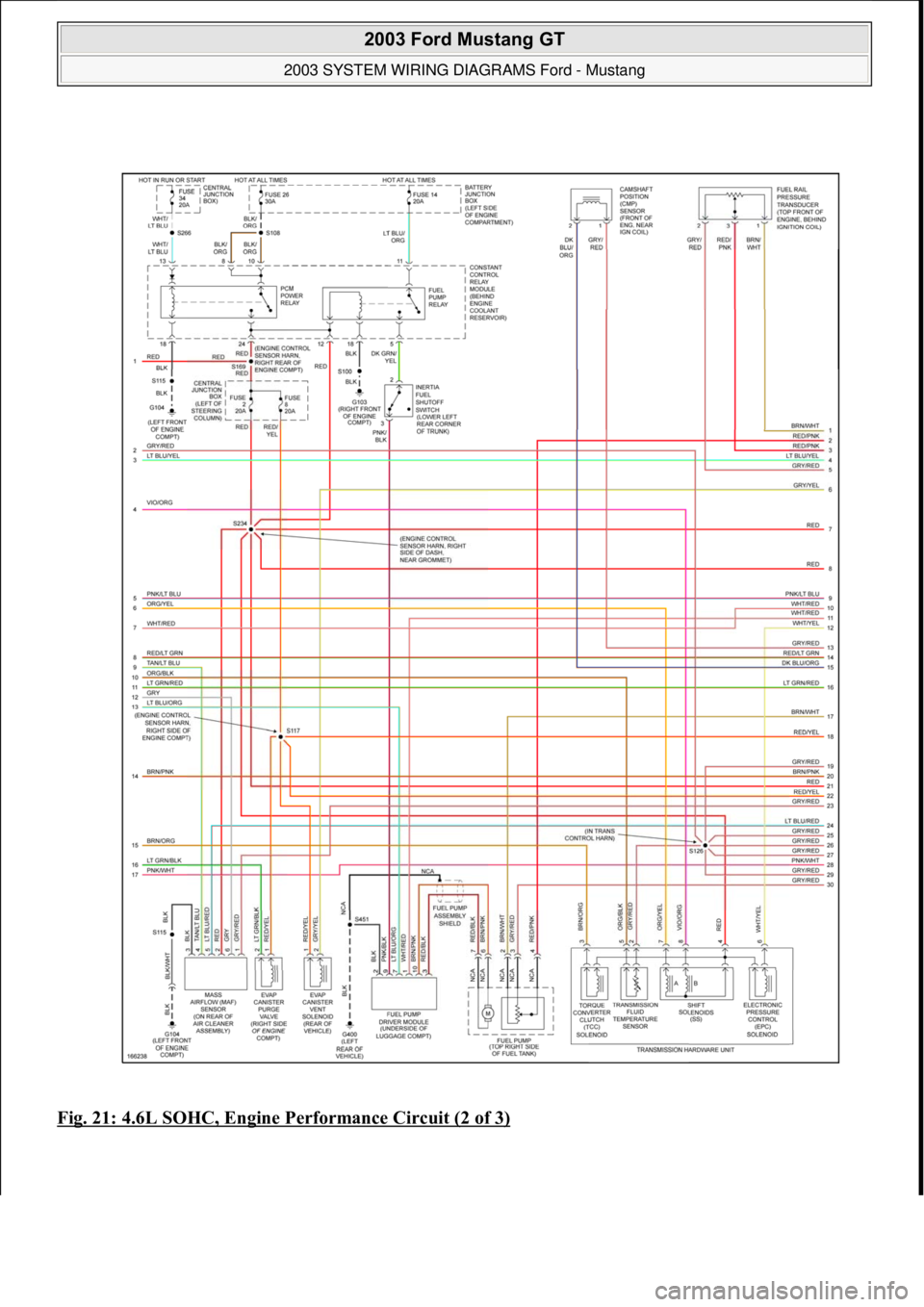

Fig. 21: 4.6L SOHC, Engine Performance Circuit (2 of 3)
2003 Ford Mustang GT
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:50:34Page 22 © 2006 Mitchell Repair Information Company, LLC.
Page 4233 of 4378

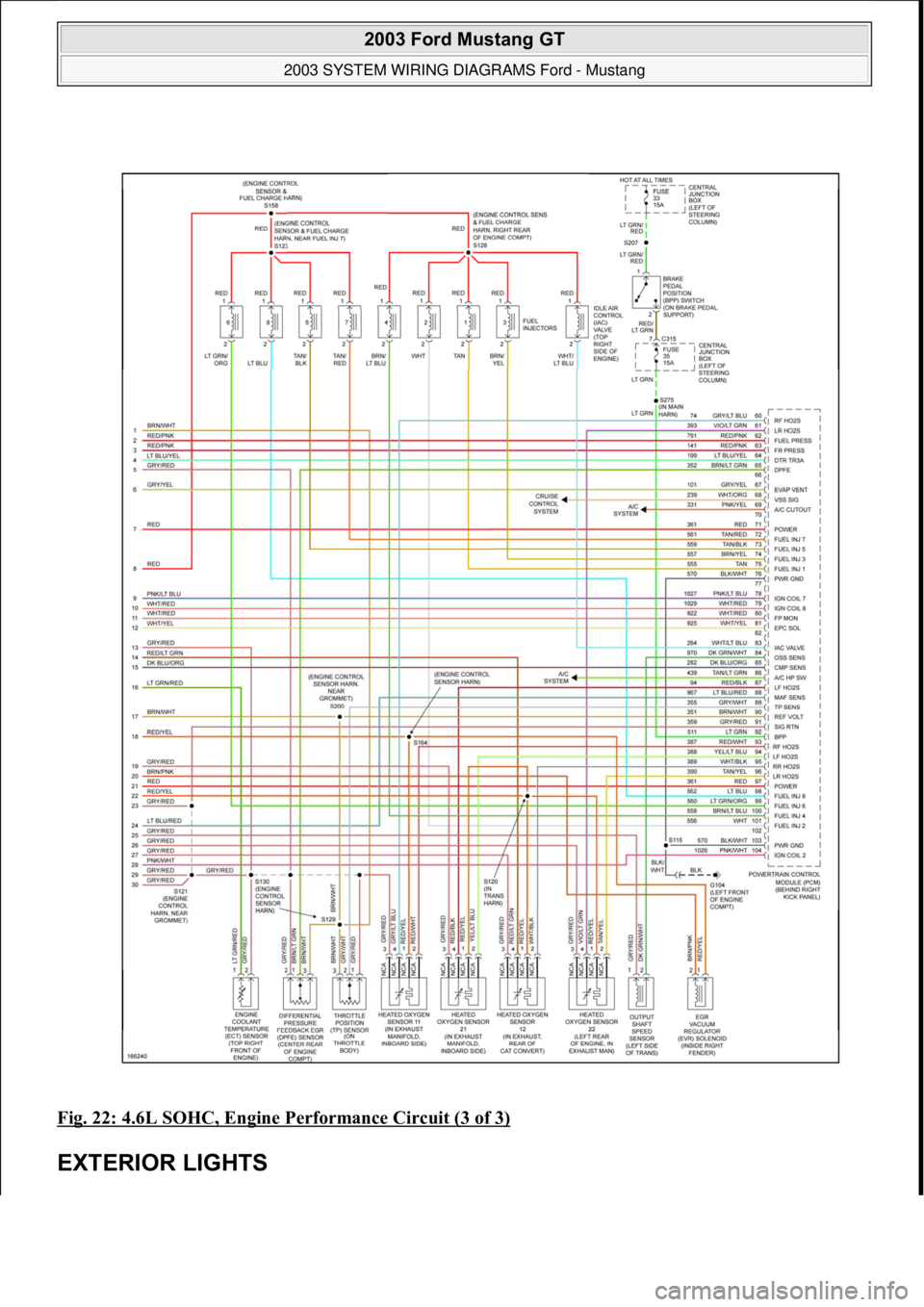

Fig. 22: 4.6L SOHC, Engine Performance Circuit (3 of 3)
EXTERIOR LIGHTS
2003 Ford Mustang GT
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:50:34Page 23 © 2006 Mitchell Repair Information Company, LLC.
Page 4278 of 4378

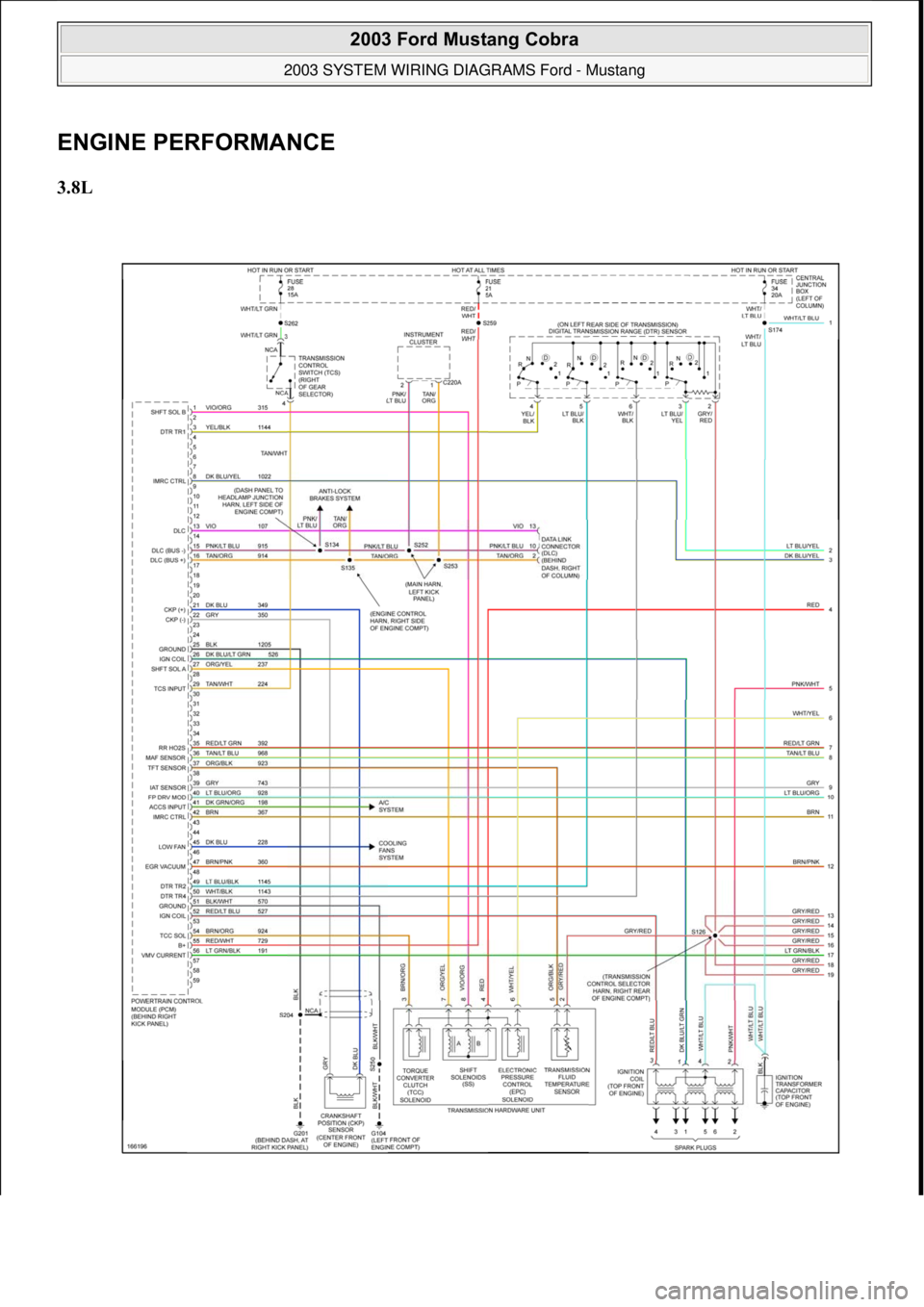

ENGINE PERFORMANCE
3.8L
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 12 © 2006 Mitchell Repair Information Company, LLC.
Page 4279 of 4378

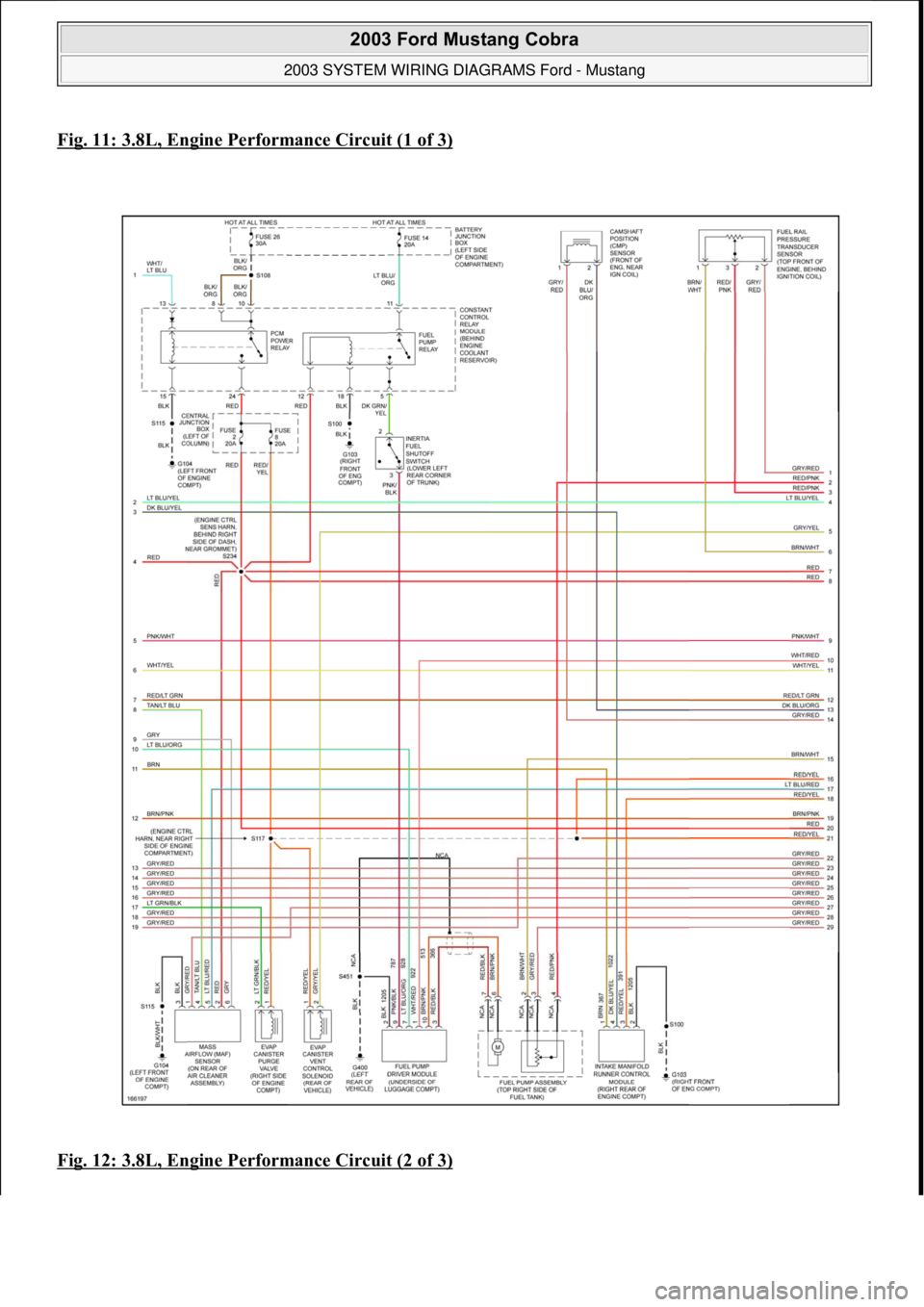

Fig. 11: 3.8L, Engine Performance Circuit (1 of 3)
Fig. 12: 3.8L, Engine Performance Circuit (2 of 3)
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 13 © 2006 Mitchell Repair Information Company, LLC.
