2003 FORD MUSTANG engine

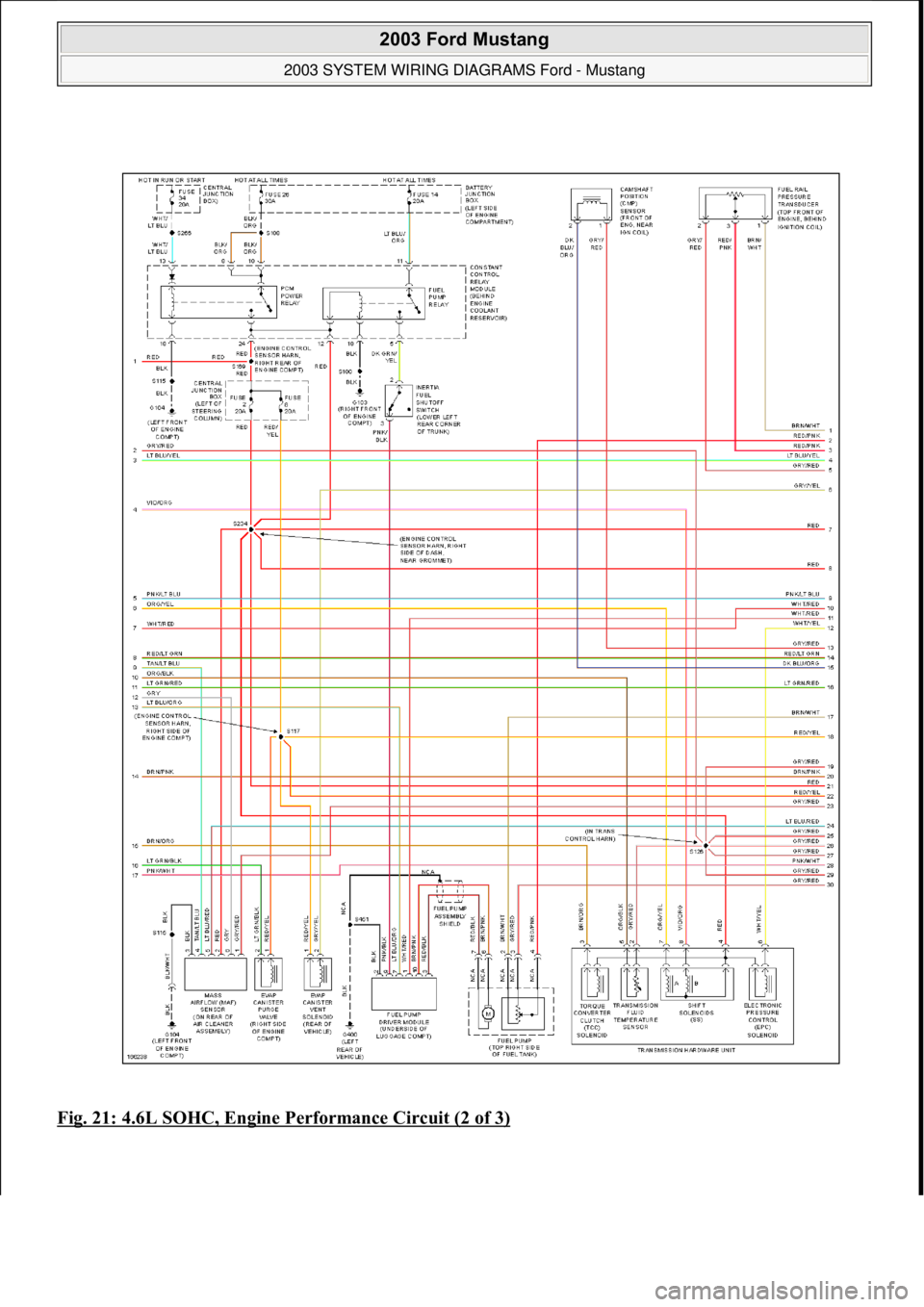

Fig. 21: 4.6L SOHC, Engine Performance Circuit (2 of 3)

2003 Ford Mustang
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:45:09Page 22 © 2006 Mitchell Repair Information Company, LLC.

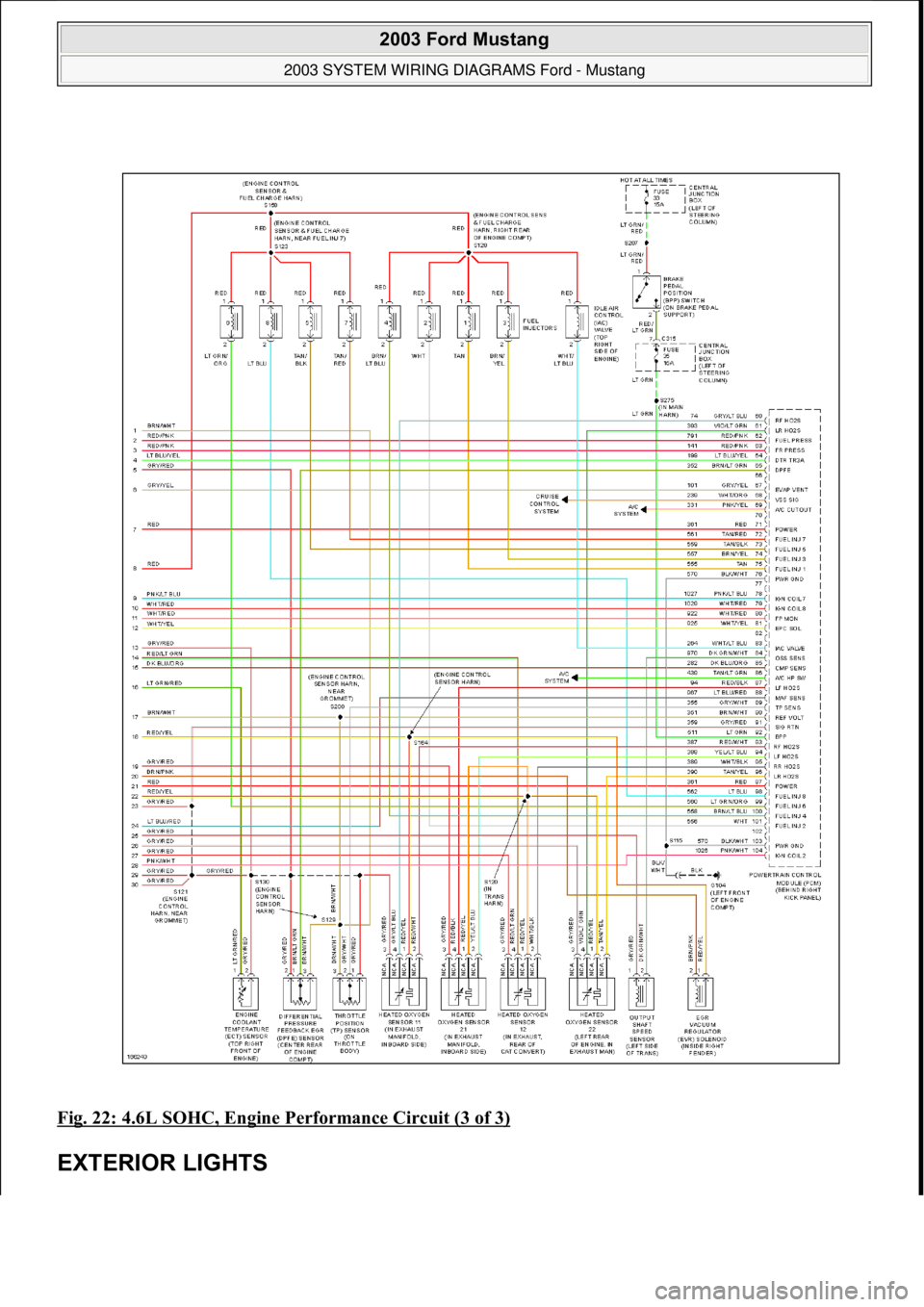

Fig. 22: 4.6L SOHC, Engine Performance Circuit (3 of 3)
EXTERIOR LIGHTS

2003 Ford Mustang
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:45:09Page 23 © 2006 Mitchell Repair Information Company, LLC.

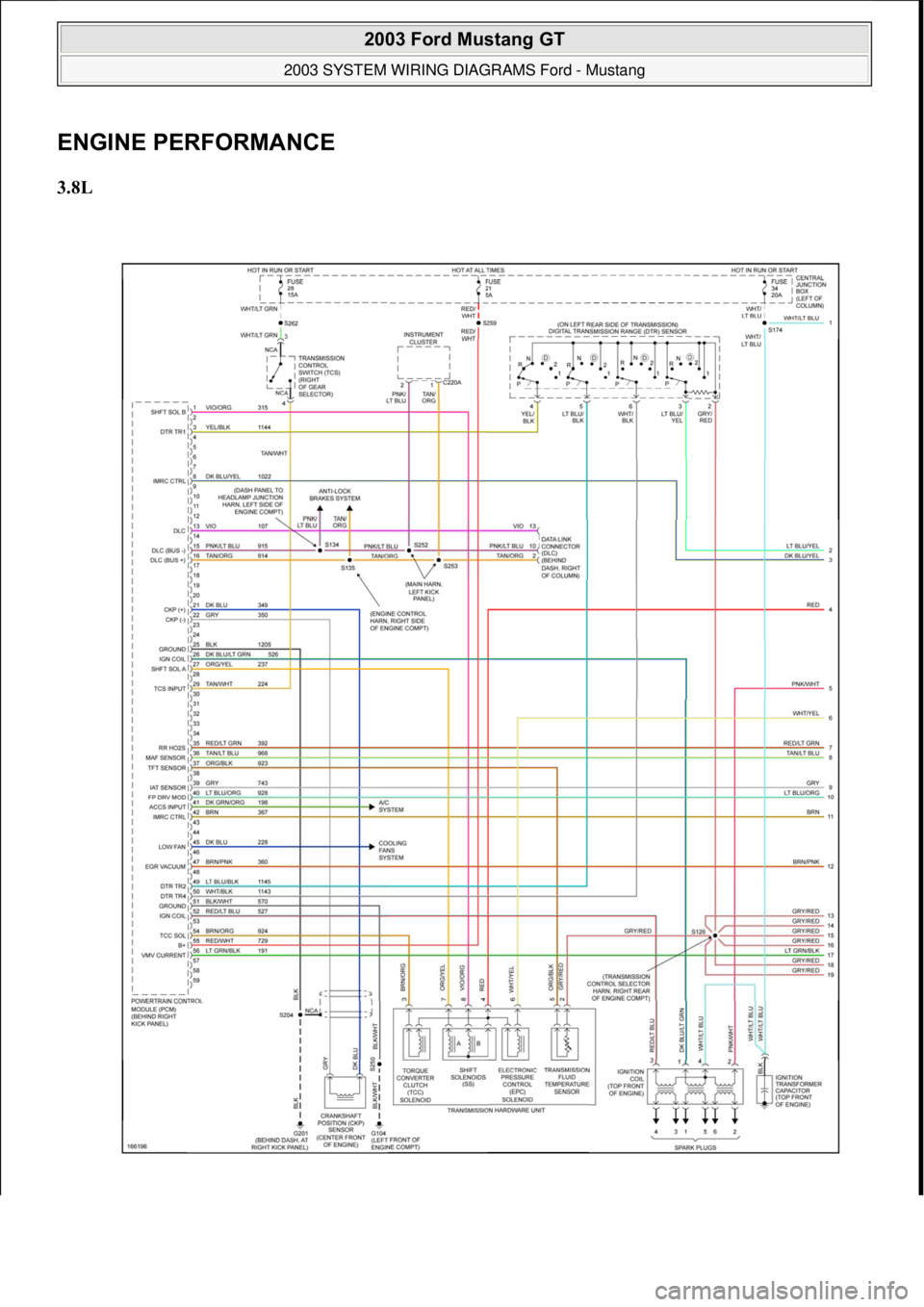

ENGINE PERFORMANCE
3.8L

2003 Ford Mustang GT
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:50:34Page 12 © 2006 Mitchell Repair Information Company, LLC.

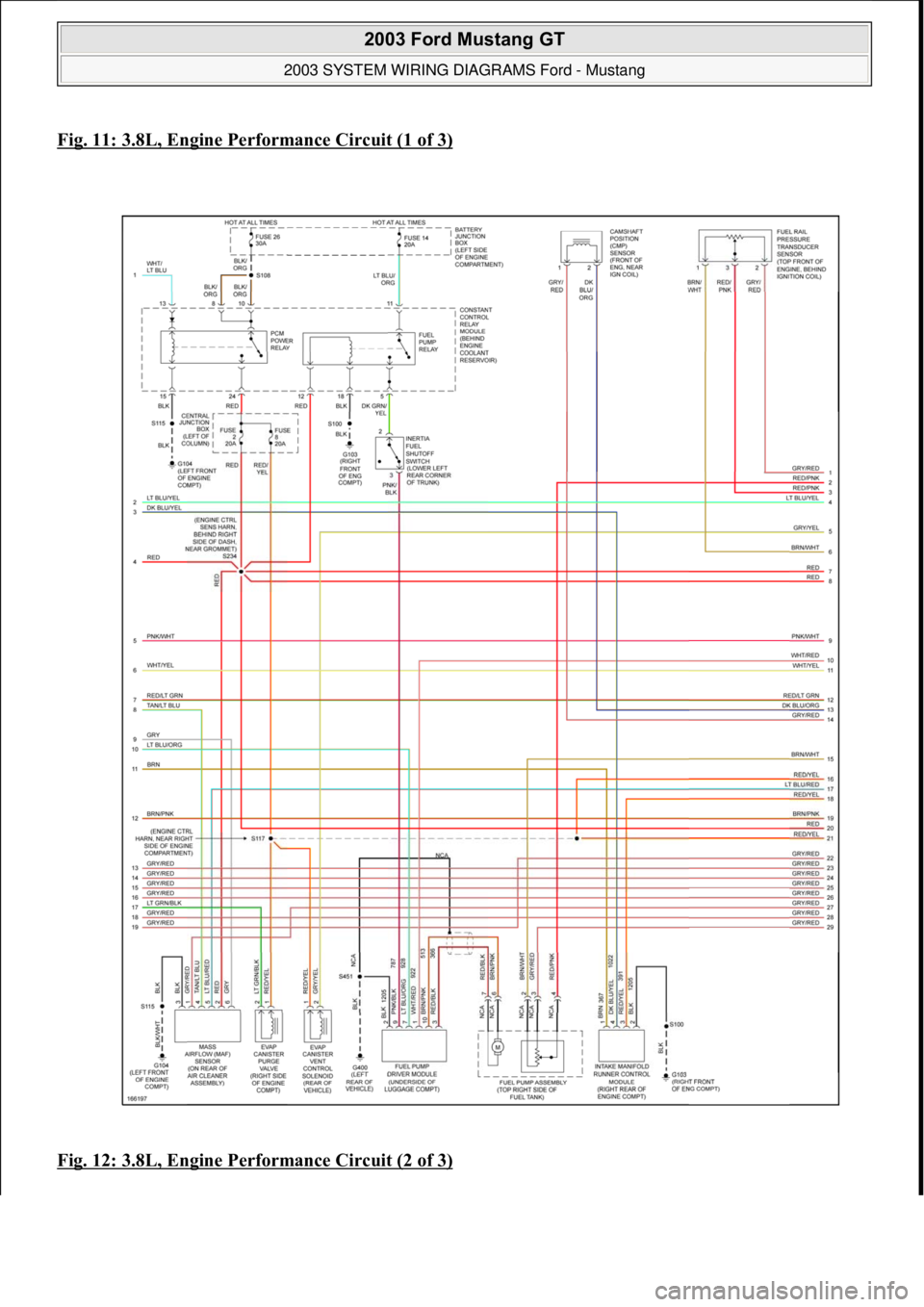

Fig. 11: 3.8L, Engine Performance Circuit (1 of 3)
Fig. 12: 3.8L, Engine Performance Circuit (2 of 3)

2003 Ford Mustang GT
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:50:34Page 13 © 2006 Mitchell Repair Information Company, LLC.

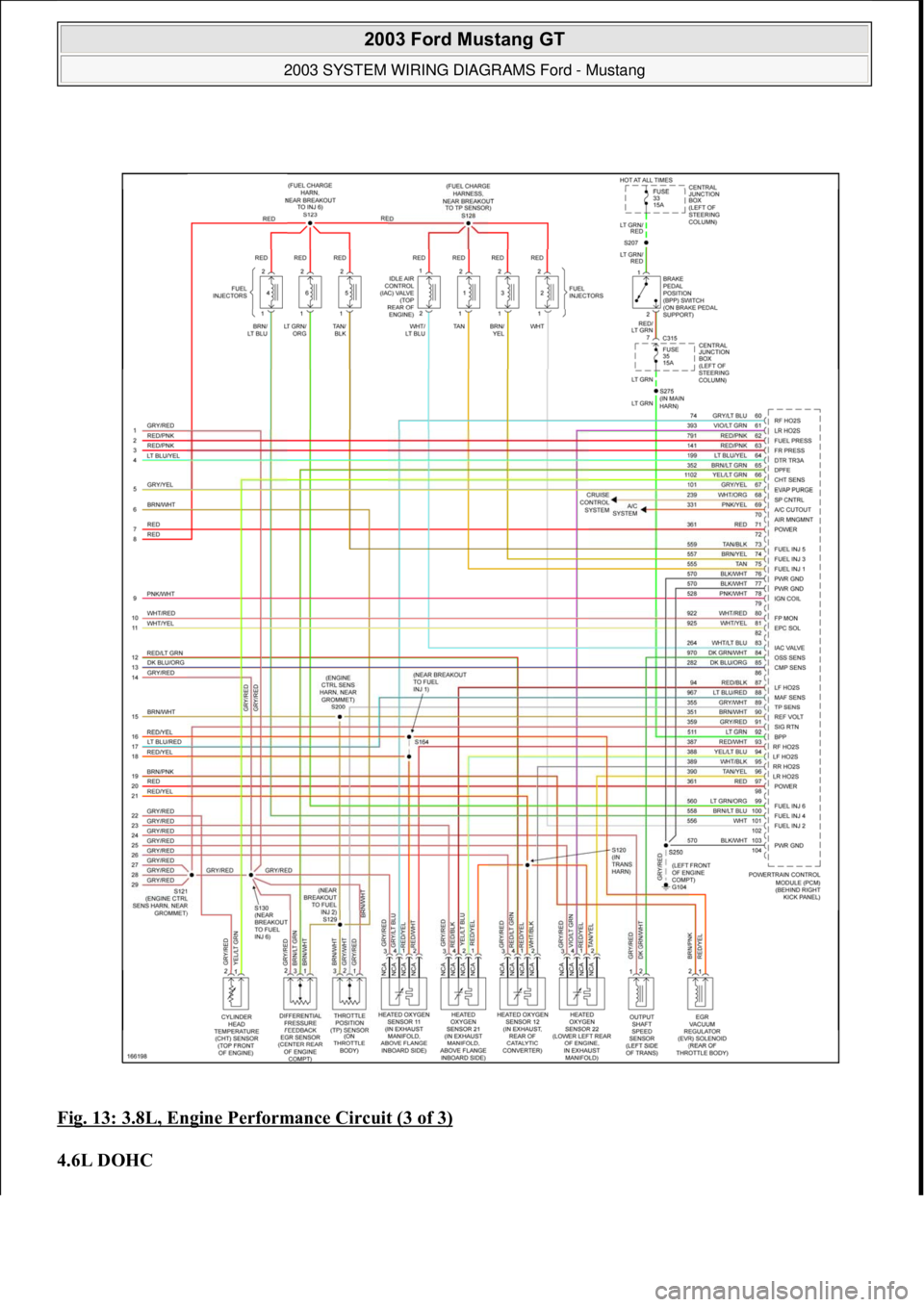

Fig. 13: 3.8L, Engine Performance Circuit (3 of 3)
4.6L DOHC

2003 Ford Mustang GT
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:50:34Page 14 © 2006 Mitchell Repair Information Company, LLC.

Fig. 14: 4.6L DOHC, Engine Performance Circuit (1 of 3)

2003 Ford Mustang GT
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:50:34Page 15 © 2006 Mitchell Repair Information Company, LLC.

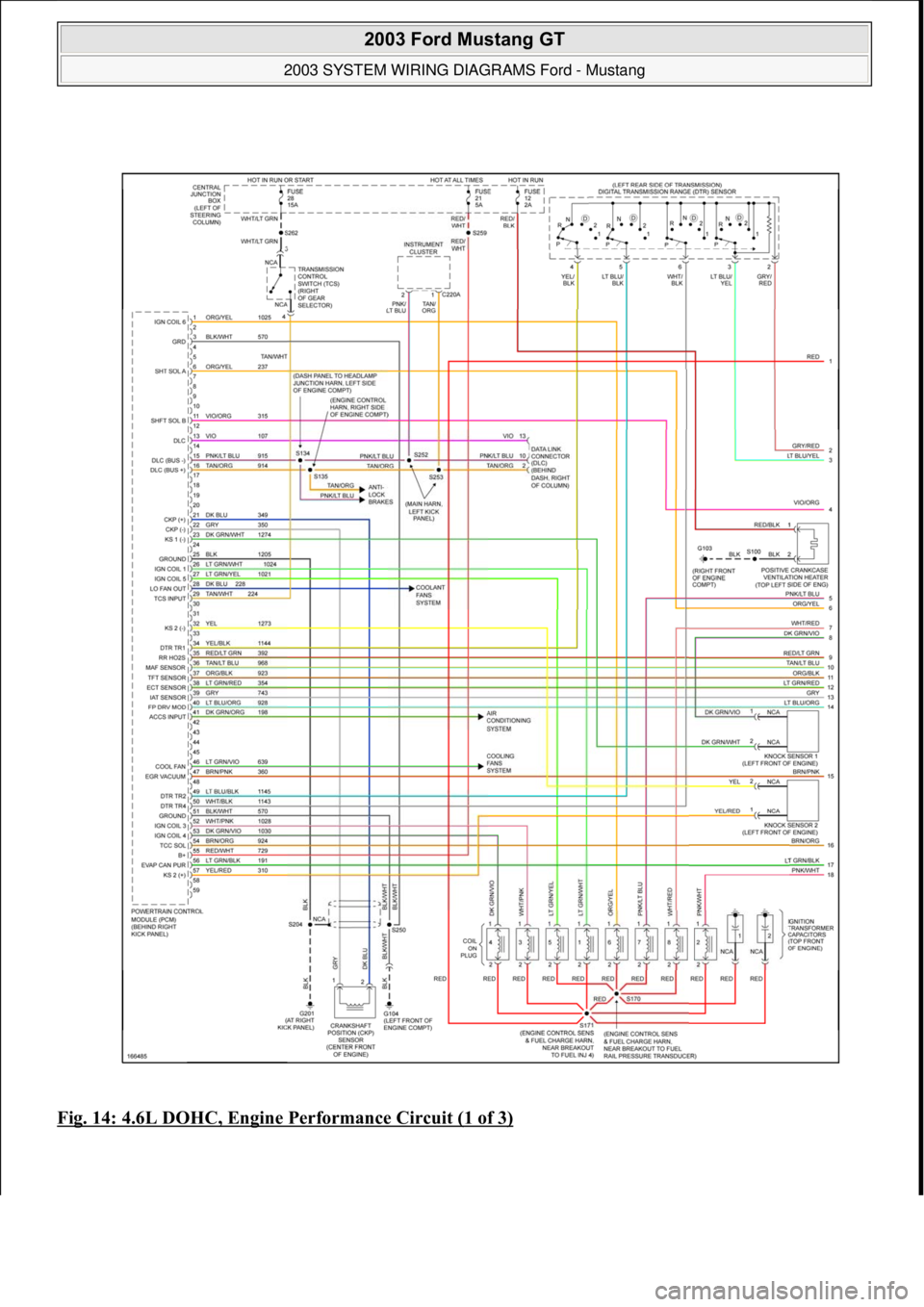

Fig. 15: 4.6L DOHC, Engine Performance Circuit (2 of 3)

2003 Ford Mustang GT
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:50:34Page 16 © 2006 Mitchell Repair Information Company, LLC.

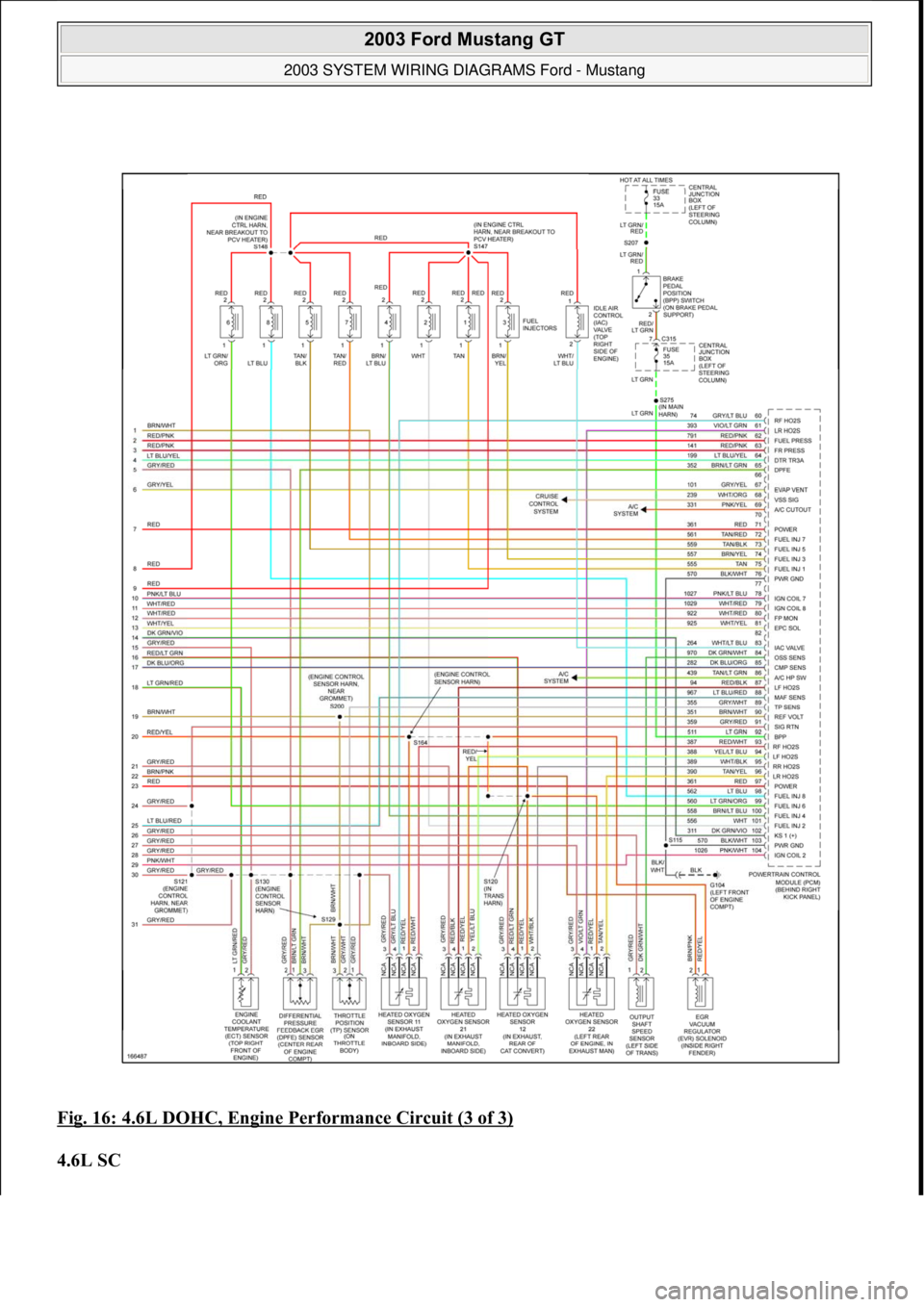

Fig. 16: 4.6L DOHC, Engine Performance Circuit (3 of 3)
4.6L SC

2003 Ford Mustang GT
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:50:34Page 17 © 2006 Mitchell Repair Information Company, LLC.
