Page 4280 of 4378
Fig. 13: 3.8L, Engine Performance Circuit (3 of 3)
4.6L DOHC
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 14 © 2006 Mitchell Repair Information Company, LLC.
Page 4281 of 4378

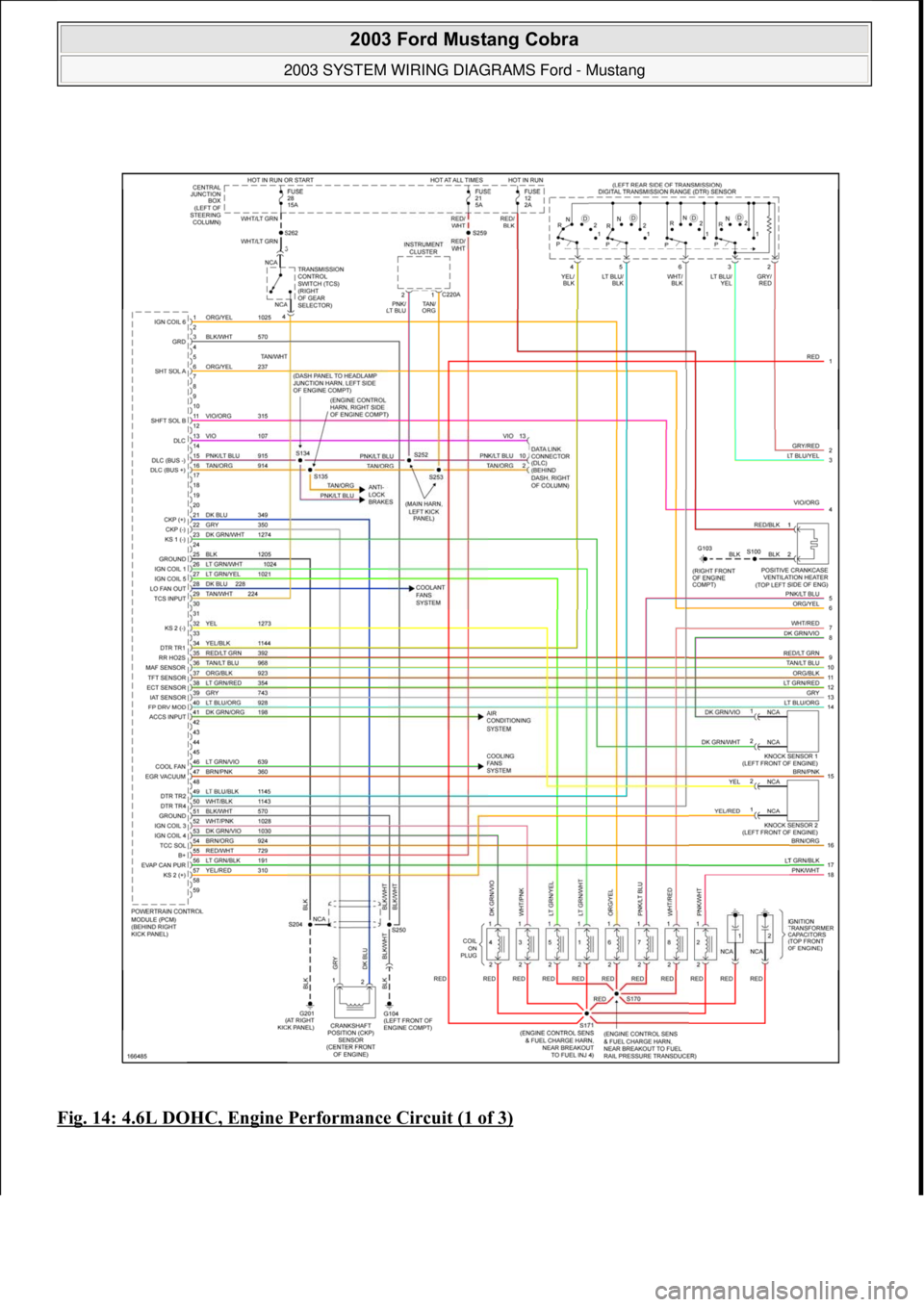

Fig. 14: 4.6L DOHC, Engine Performance Circuit (1 of 3)
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 15 © 2006 Mitchell Repair Information Company, LLC.
Page 4282 of 4378

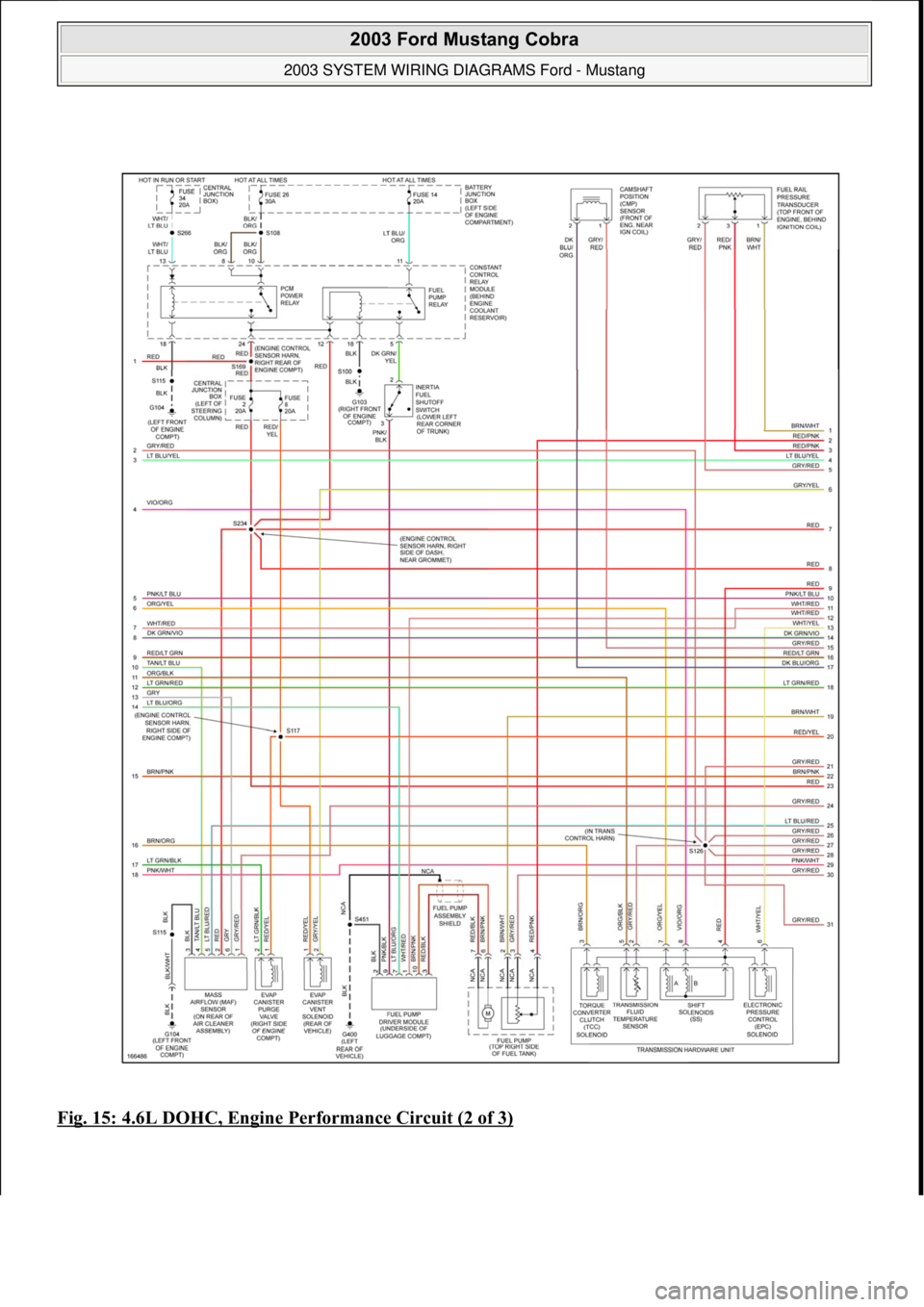

Fig. 15: 4.6L DOHC, Engine Performance Circuit (2 of 3)
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 16 © 2006 Mitchell Repair Information Company, LLC.
Page 4283 of 4378

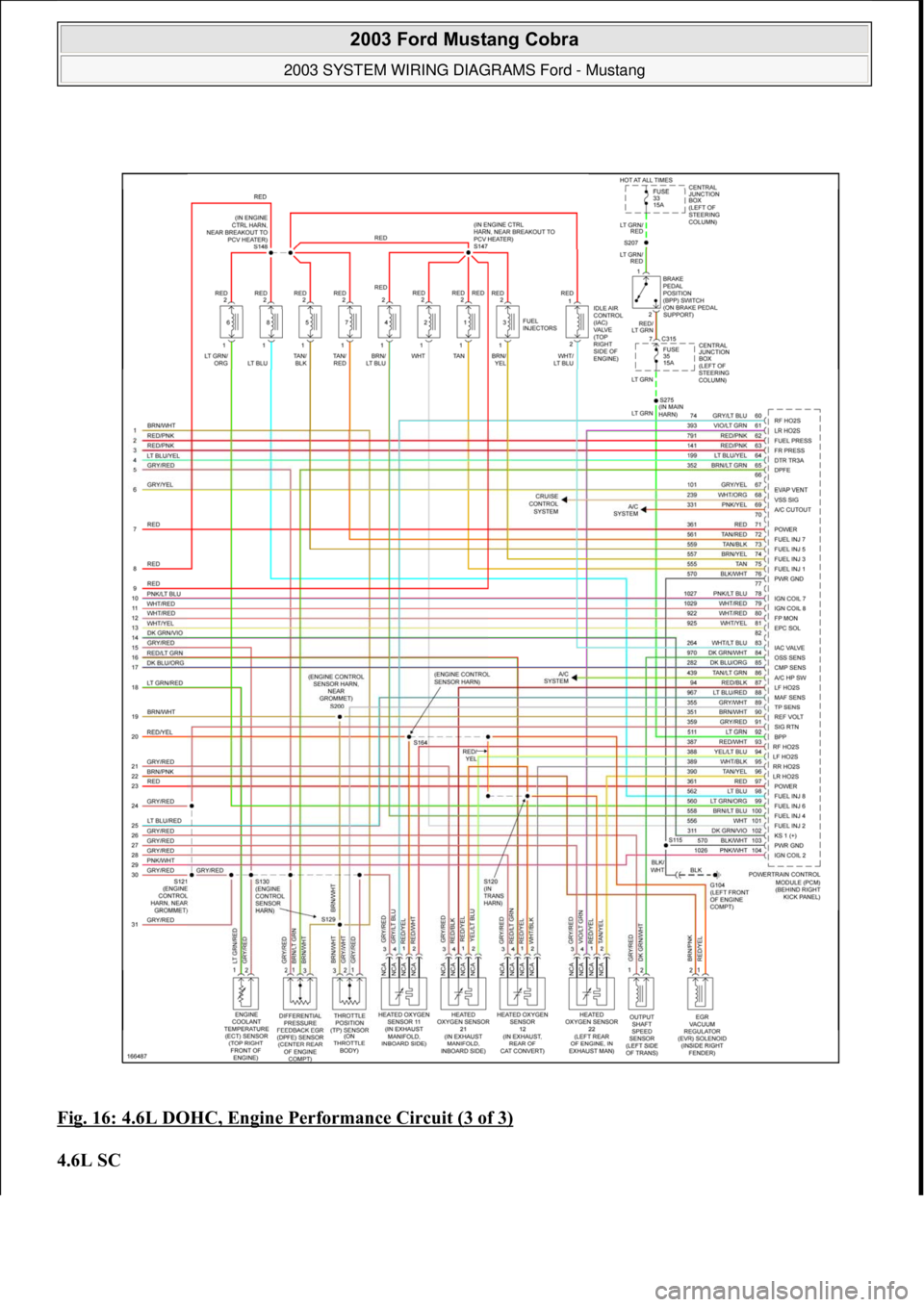

Fig. 16: 4.6L DOHC, Engine Performance Circuit (3 of 3)
4.6L SC
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 17 © 2006 Mitchell Repair Information Company, LLC.
Page 4284 of 4378

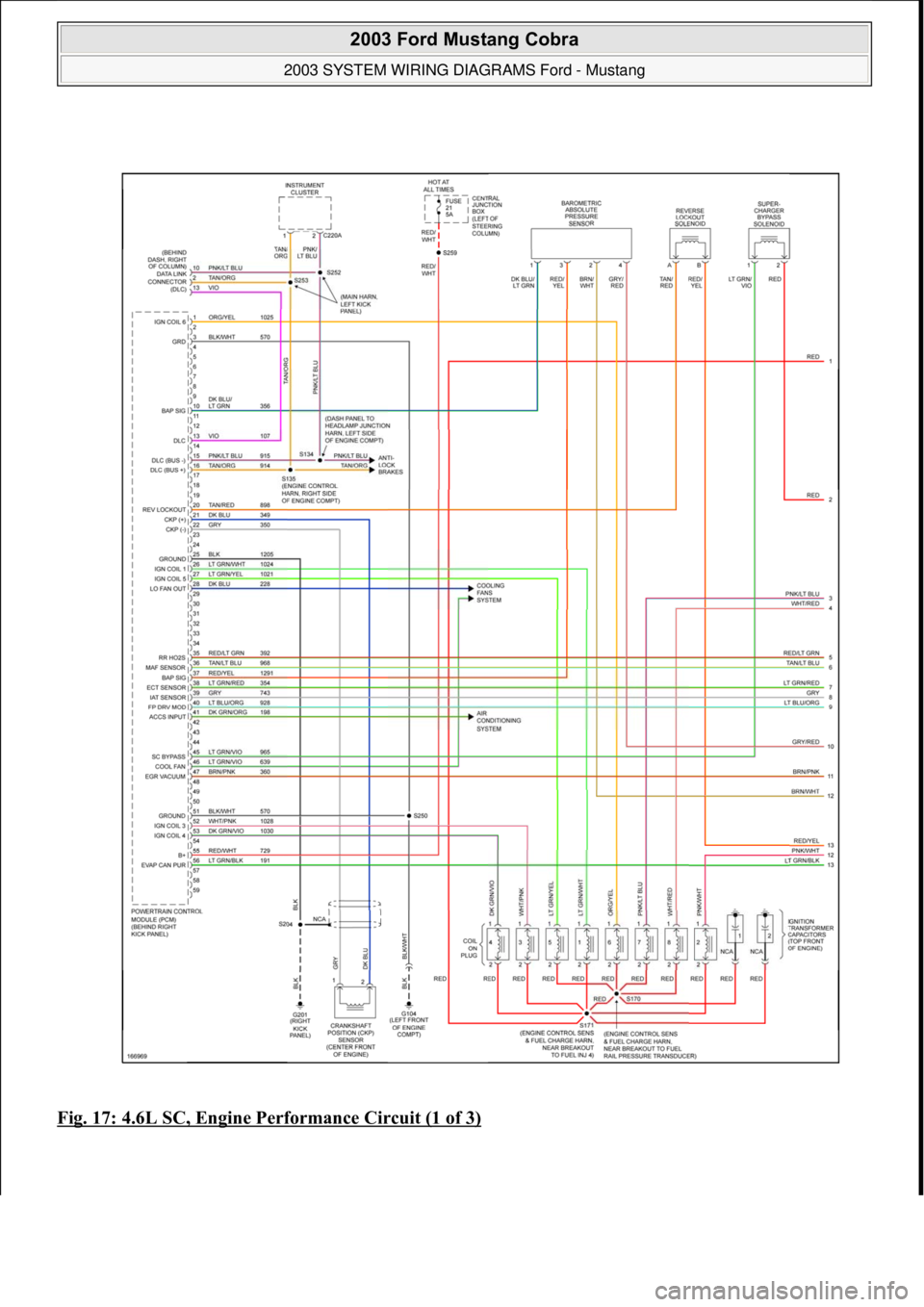

Fig. 17: 4.6L SC, Engine Performance Circuit (1 of 3)
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 18 © 2006 Mitchell Repair Information Company, LLC.
Page 4285 of 4378

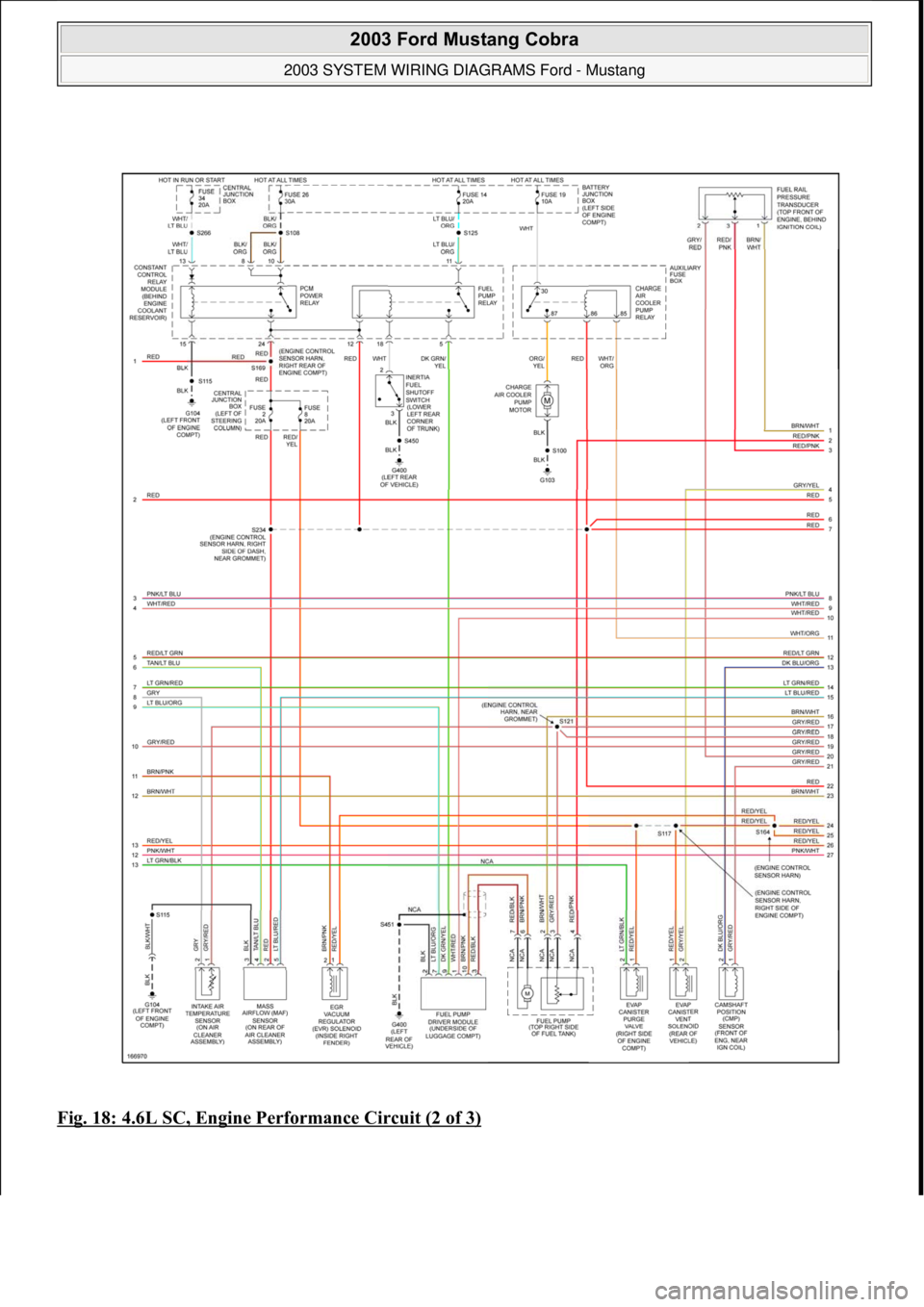

Fig. 18: 4.6L SC, Engine Performance Circuit (2 of 3)
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 19 © 2006 Mitchell Repair Information Company, LLC.
Page 4286 of 4378

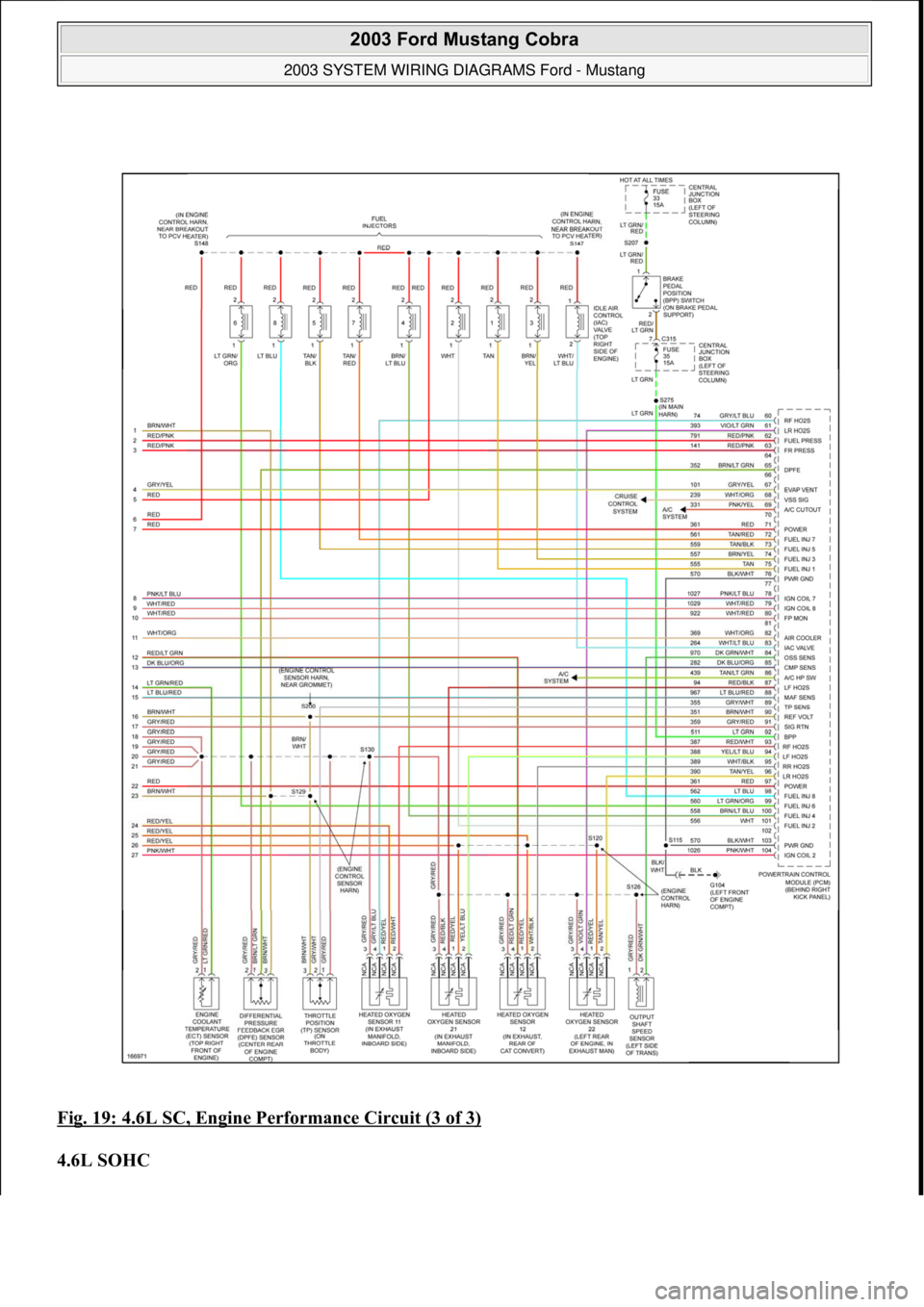

Fig. 19: 4.6L SC, Engine Performance Circuit (3 of 3)
4.6L SOHC
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 20 © 2006 Mitchell Repair Information Company, LLC.
Page 4287 of 4378

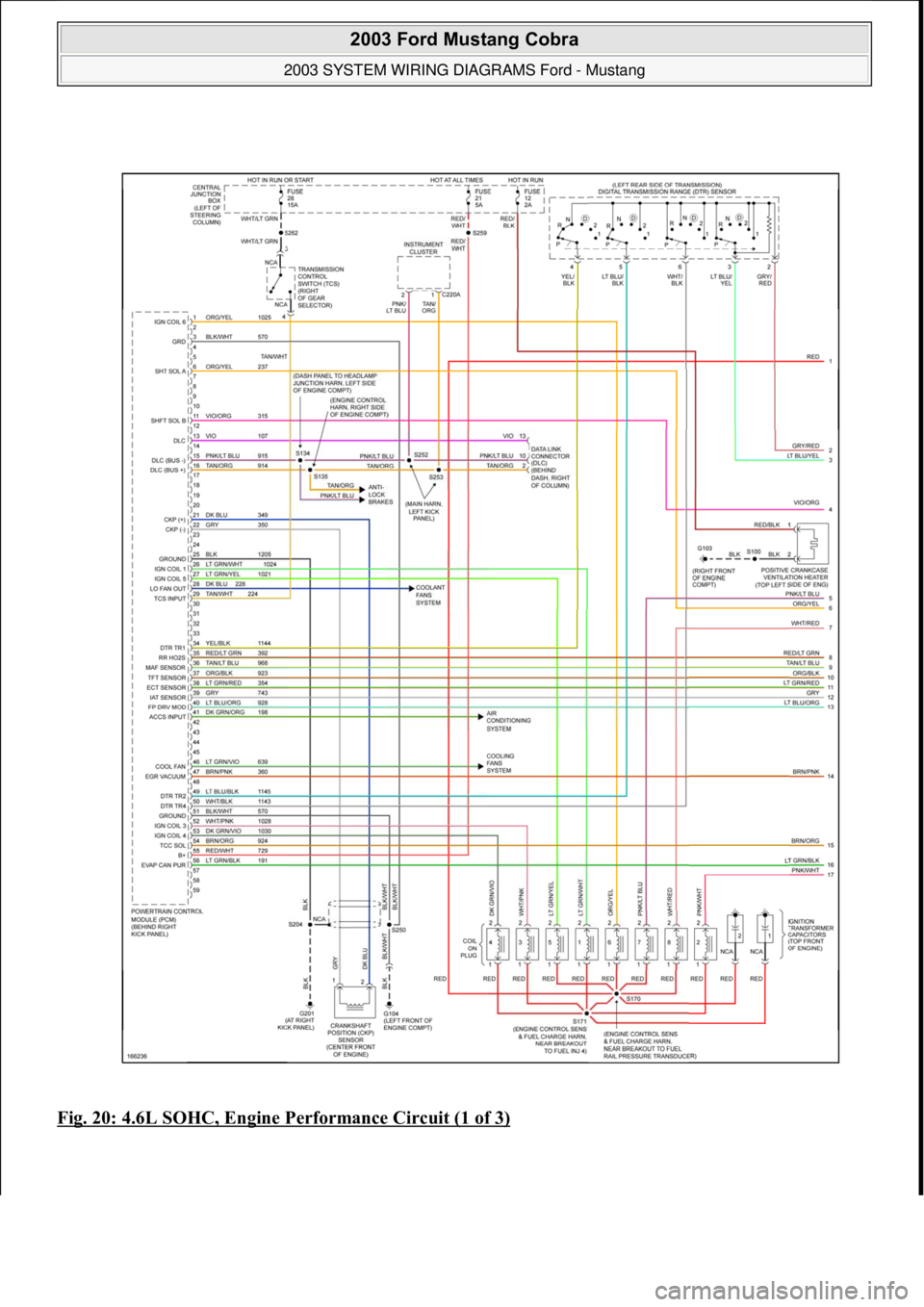

Fig. 20: 4.6L SOHC, Engine Performance Circuit (1 of 3)
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 21 © 2006 Mitchell Repair Information Company, LLC.
