YOUR BOXER IN DETAIL97
Cancelling a programme
To clear a programmed start-up time, press button
6briefly.
The screen lighting switches off andthe preselection number "B" disap-
pears. Recalling a programme Press button 6several times until the
required preselection number "B"
appears. Note: after ten seconds, the time
disappears but remains programmed while the screen lighting and the pre-selection number "B" remain. SERVICING
At least once a year, before winter, have the programmable heating sys-
tem checked by a PEUGEOT dealer. Servicing and repairs should only be
carried out by a PEUGEOT dealer.
Use genuine replacement parts only.
The programmable hea- ting system is fitted with athermal safety devicewhich cuts off combustion
in the event of over-
heating due to a lack of coolant. Inthis case, top up the coolant andpress the programme selectionbutton before switching the hea-ting on again. In the case of a coolant leak,
contact a PEUGEOT dealer.
To avoid inhaling poisonous fumes and asphyxiation, the pro-grammable heating must not beused in an enclosed area, evenfor short periods (areas not fittedwith an exhaust gas extractionsystem). Always switch off the program- mable heating when filling withfuel to avoid any risk of fire orexplosion. The programmable heating sys- tem is supplied from the vehicle'sfuel tank. Before use, ensure thatthe quantity of fuel remaining issufficient.

17-11-2003
FRONT SEATS Driver and passenger (single) seats Note: the two-seat passenger bench
seats cannot be adjusted.
1. Head restraint height adjustment
To raise or lower the head restraint press the lug sliding it atthe same time.
To remove the head restraint, place it in the top position, pressthe lug and pull it upwards.
To put it back in position, locate the stems of the restraint in theholes, taking care to keep themin line with the seat back.
2. Seat lumbar adjustment (driver's seat)
Turn the knob to obtain the cor- rect position.
YOUR BOXER IN DETAIL
98
The adjustment is correct when the upper edge of thehead restraint is level withthe top of the head.

17-11-2003
3. Seat back angle adjustmentTurn the knob to obtain the cor- rect seat back angle.
4. Seat height adjustment (driver's seat) The height can be adjusted at the front and at the rear: Ð Front height adjustment: lift thelever at the front of the seat,
Ð Rear height adjustment: lift the lever at the rear of the seat.
5. Forwards-backwards adjustmentLift the control and slide the seat forwards or backwards.
6. Armrest (driver's seat) This can be folded down and isadjustable.
To adjust it, turn the knob under the end of the armrest. Heated seats The temperature is regulated auto- matically in relation to the passengercompartment temperature.
YOUR BOXER IN DETAIL
99
SEAT WITH VARIABLE
VIBRATION REDUCTION(driver)
Turn the control Ato adjust the vibra-
tion reduction in accordance with the driver's weight.

17-11-2003
REAR SEATS (Minibus) Side seats Adjusting the angle of the seat back
Turn knob Aand adjust the angle as
required. Folding the side seat on the sliding side door side access to the third row:Place the head restraint in the low position. Push control B.
Tilt the seat back towards the front Centre seats (2nd and 3rd row) Adjusting the angle of the seat back Pull control
Cand adjust the angle
as required. Folding the seat back Place the head restraint in the low position. Pull control Cand fold the seat back
towards the front.
YOUR BOXER IN DETAIL
100
You now have a table with four can holders.

17-11-2003
YOUR BOXER IN DETAIL101
Rules for transporting children on the front passenger seat** Children under the age of 10 must not travel in the forwards facingposition, unless the rear seats arealready occupied by other childrenor the rear seats cannot be used(absent or folded). In this case,adjust the front passenger seat tothe intermediate position and leavethe passenger air bag armed. The transportation of children in the rearwards facing position is permit-ted. In this position, it is essential todisarm the passenger air bag.Otherwise, the child would risk beingkilled or seriously injured if the airbag were to inflate.
GENERAL POINTS RELATING TO CHILD SEATS Although one of PEUGEOT's main criteria when designing your vehicle, the safe- ty of your children also depends on you.
For maximum safety, please follow these precautions:
Ð Since 1992,
all children under the age of 10 must travel in approved child
seats* suited to their weight , on seats fitted with a seat belt.
Ð A child weighing less than 9 kg must travel in the rearwards facing posi-
tion both in the front and in the rear. PEUGEOT recommends that chil-dren should travel in the "rearwards facing" position up to the age of two.
Ð Statistically, the safest seats in your vehicle for the transportation of chil-dren are the rear seats. PEUGEOT recommends that children travel in the rear even when a "rearwards facing" child seat is used.
Ð If a child is travelling on a booster seat, check that the lap section of the seat belt passes over the child's thighs correctly. The chest section of the seat belt mustbe positioned on the child's shoulder without touching the neck. PEUGEOTrecommends that you use a booster seat with a back, fitted with a seat belt guide.
Ð Remember to fasten the seat belt or the child seat harness keeping the slack
in relation to the child's body to a minimum , even for short journeys.
* According to current legislation in the country.
** Consult the relevant administration in your country for information regarding the rules for transporting children on the front passenger seat.

17-11-2003
YOUR BOXER IN DETAIL
102

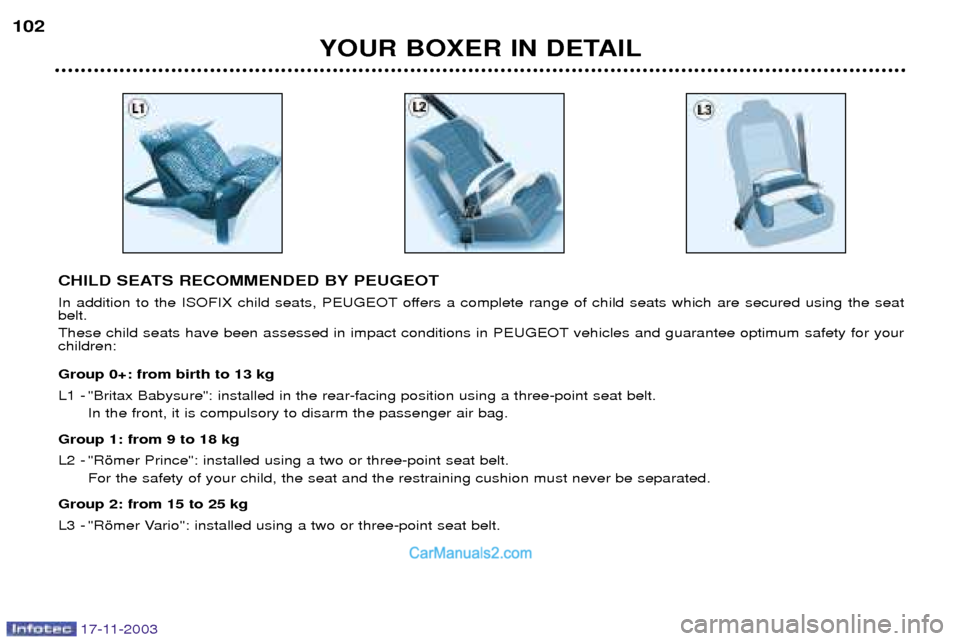

CHILD SEATS RECOMMENDED BY PEUGEOT
In addition to the ISOFIX child seats, PEUGEOT offers a complete range of child seats which are secured using the seat belt.
These child seats have been assessed in impact conditions in PEUGEOT vehicles and guarantee optimum safety for your children: Group 0+: from birth to 13 kg
L1 - "Britax Babysure": installed in the rear-facing position using a three-point seat belt.
In the front, it is compulsory to disarm the passenger air bag.
Group 1: from 9 to 18 kg
L2 - "Ršmer Prince": installed using a two or three-point seat belt. For the safety of your child, the seat and the restraining cushion must never be separated.
Group 2: from 15 to 25 kg
L3 - "Ršmer Vario'': installed using a two or three-point seat belt.

17-11-2003
YOUR BOXER IN DETAIL103
Never leave one or more children alone and unsu-pervised in a vehicle. Never leave a child or an
animal in a vehicle which is expo- sed to the sun and has the win-dows closed.
To protect your young children from the sun, fit blinds on the rearwindows. Never leave the keys within reach of children inside the vehicle. Observe strictly the recommenda- tions for assembling and securingthe child seat as shown in the childseat instructions.
To prevent the doors from opening
accidentally, use the child lock*. Also, do not open the rear win- dows more than a third*.
* According to model.
Groups 2 and 3: from 15 to 36 kg
L4 - "Recaro Start": installed using a three-point seat belt.
The height and width of the seat back and length of the seat cushion must be adjusted according to the age and build of your child.
L5 - "Klippan Optima": installed using a three-point seat belt. From the age of 6 years (approximately 22 kg), the booster is used on itsown.
Refer to the "Summary table for the installation of child seats". Disarm the passenger air bag when installing a "rearwards facing" child seat on the front passenger seat. Otherwise, the child would risk beingkilled or seriously injured were the air bag to inflate.

17-11-2003
YOUR BOXER IN DETAIL
104
SUMMARY TABLE FOR THE INSTALLATION OF CHILD SEATS In accordance with European regulations (Directive 2000/3), the table below indicates the extent to which each seat in your vehicle can be fitted with a child seat secured using the seat belt and universally approved (child seat which can be instal-led in all vehicles using a seat belt) for one or more weight groups:
U: seat suitable for the installation of a "rear facing" universal child seat and a "forward facing" universal child seat.
(a) Group 0: from birth to 10 kg.
(b) The rules for transporting children on the front passenger seat are specific to each country. Consult the legislation in force in your country. Regulation weight groups
Seat Group 0 (a) and 0+ Group 1 Group 2 Group 3< 13 kg 9 - 18 kg 15 - 25 kg 22 - 36 kg
Front passenger seat (b) UU UU
Rear side UU UU
seat (right or left)
Rear cente UU UU
seat
