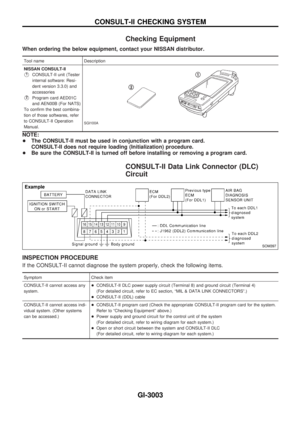

2002 NISSAN PATROL Electronic Repair Manual

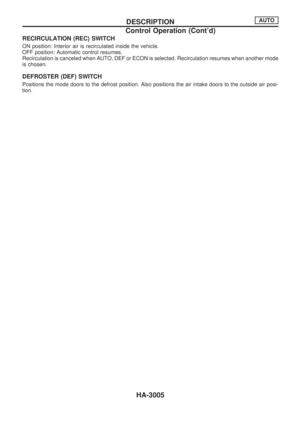

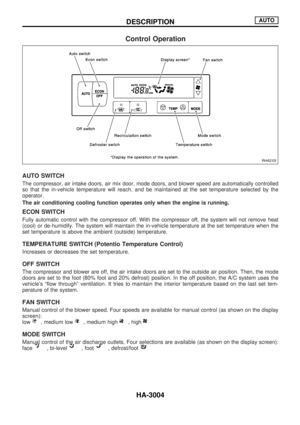

RECIRCULATION (REC) SWITCH
ON position: Interior air is recirculated inside the vehicle.
OFF position: Automatic control resumes.
Recirculation is canceled when AUTO, DEF or ECON is selected. Recirculation resumes when another mode
is chosen.
DEFROSTER (DEF) SWITCH
Positions the mode doors to the defrost position. Also positions the air intake doors to the outside air posi-
tion.
DESCRIPTIONAUTO
Control Operation (Cont'd)
HA-3005

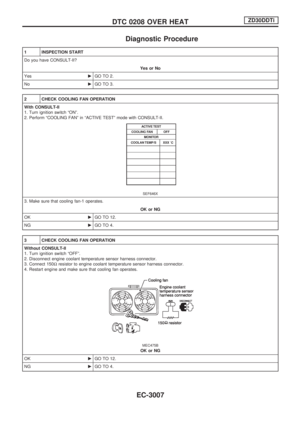

Auto Amp. Terminals and Reference Value
INSPECTION OF AUTO AMP.
+Measure voltage between each terminal and body ground by
following ªAUTO AMP. INSPECTION TABLEº.

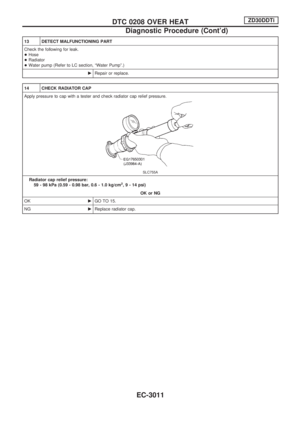

+Pin connector terminal layout
SHA758F
RHA501GF
TROUBLE DIAGNOSISAUTO
HA-3006

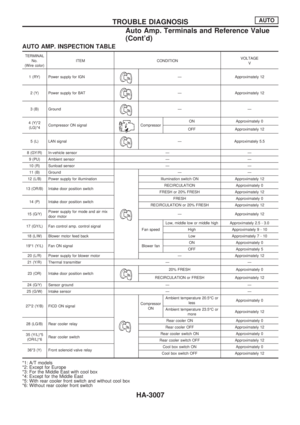

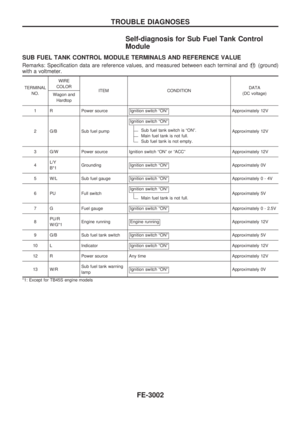

AUTO AMP. INSPECTION TABLE
TERMINAL
No.
(Wire color)ITEM CONDITIONVOLTAGE
V
1 (RY) Power supply for IGN
Ð Approximately 12
2 (Y) Power supply for BAT
Ð Approximately 12
3 (B) Ground
ÐÐ
4 (Y)*2
(LG)*4Compressor ON signal
CompressorON Approximately 0
OFF Approximately 12
5 (L) LAN signal
Ð Approximately 5.5
8 (GY/R) In-vehicle sensor Ð Ð
9 (PU) Ambient sensor Ð Ð
10 (R) Sunload sensor Ð Ð
11 (B) Ground
ÐÐ
12 (L/B) Power supply for illumination Illumination switch ON Approximately 12
13 (OR/B) Intake door position switchRECIRCULATION Approximately 0
FRESH or 20% FRESH Approximately 12
14 (P) Intake door position switchFRESH Approximately 0
RECIRCULATION or 20% FRESH Approximately 12
15 (G/Y)Power supply for mode and air mix
door motorÐ Approximately 12
17 (GY/L) Fan control amp. control signal
Fan speedLow, middle low or middle high Approximately 2.5 - 3.0
High Approximately9-10
18 (L/W) Blower motor feed back Low Approximately7-10
19*1 (Y/L) Fan ON signal Blower fanON Approximately 0
OFF Approximately 5
20 (L/R) Power supply for blower motor Ð Approximately 12

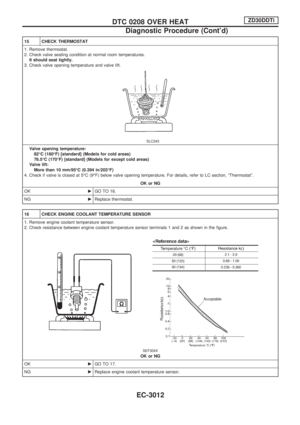

21 (Y/R) Thermal transmitter Ð Ð
23 (OR) Intake door position switch
20% FRESH Approximately 0
RECIRCULATION or FRESH Approximately 12
24 (G/Y) Sensor ground Ð Ð
25 (G/W) Intake sensor Ð Ð
27*2 (Y/B) FICD ON signal
Compressor
ONAmbient temperature 20.5ÉC or
lessApproximately 0
Ambient temperature 23.5ÉC or
moreApproximately 12
28 (LG/B) Rear cooler relayRear cooler ON Approximately 0
Rear cooler OFF Approximately 12
35 (Y/L)*5
(OR/L)*6Rear cooler switchRear cooler switch ON Approximately 0
Rear cooler switch OFF Approximately 12
36*3 (Y) Front solenoid valve relayCool box switch ON Approximately 0
Cool box switch OFF Approximately 12
*1: A/T models
*2: Except for Europe
*3: For the Middle East with cool box
*4: Except for the Middle East
*5: With rear cooler front switch and without cool box
*6: Without rear cooler front switch
TROUBLE DIAGNOSISAUTO
Auto Amp. Terminals and Reference Value
(Cont'd)
HA-3007

Wiring Diagram Ð R/COOL Ð/With Front
Auto A/C
THA138M
TROUBLE DIAGNOSESREAR COOLER
HA-3008

THA070M
TROUBLE DIAGNOSESREAR COOLER
Wiring Diagram Ð R/COOL Ð/With Front
Auto A/C (Cont'd)
HA-3009

TROUBLE DIAGNOSESREAR COOLER
Wiring Diagram Ð R/COOL Ð/With Front
Auto A/C (Cont'd)
HA-3010
