2002 NISSAN PATROL Electronic Repair Manual

Multi-remote control system .................. EL-3144
N
NATS (Nissan Anti-theft System) .......... EL-3168
NATS - Wiring diagram ..... EL-3168, 3169, 3171
P
POWER - Wiring diagram ..................... EL-3007
Parking brake control ............................ BR-3004
Parking lamp .......................................... EL-3046
Power door lock ..................................... EL-3120
Power supply routing ............................. EL-3006
R
R/COOL - Wiring diagram (front
auto A/C) ........................................... HA-3008
ROOM/L - Wiring diagram ..................... EL-3070
Radio - See Audio ................................. EL-3109
Rear axle (drum brake type) ................. RA-3002
Rear disc brake ..................................... BR-3003
Rear window defogger .......................... EL-3107
Refrigeration cycle ................................ HA-3003
Room lamp - See Interior lamp ............. EL-3069
S
S/LOCK - Wiring diagram ...................... EL-3134
S/TANK - Wiring diagram ...................... FE-3004
STAB - Wiring diagram ......................... RA-3003
Speedometer ......................................... EL-3079
Stabilizer release device - Wiring
diagram ............................................. RA-3003
Stabilizer release device ....................... RA-3003
Starter .................................................... EL-3038
Starting system ...................................... EL-3038
Steering switch ...................................... EL-3036
Steering wheel and column ................... ST-3002
Sub fuel tank control system ................. FE-3002
Super lock .............................................. EL-3133
Supplemental restraint system - Wiring
diagram ................................... RS-3003, 3007
T
TAIL/L - Wiring diagram ........................ EL-3046
TCM circuit diagram .............................. AT-3003
THEFT - Wiring diagram ............. EL-3157, 3162
TURN - Wiring diagram ......................... EL-3058
Tachometer ............................................ EL-3079
Tail lamp ................................................ EL-3046
Theft warning system ............................ EL-3156Tread-FR&RR (Dimensions) .................. GI-3007
Turn signal lamp .................................... EL-3058
V
VSS - Wiring diagram ........................... EC-3005
Vehicle identification number ................. GI-3006
Vehicle speed sensor (VSS) ................. EC-3005
W
WARN - Wiring diagram ........................ EL-3086
WIPER - Wiring diagram ....................... EL-3100
Warning chime ....................................... EL-3098
Warning lamps ....................................... EL-3084
Washer, front ......................................... EL-3100
Water temperature gauge ..................... EL-3079
Wheelbase (Dimensions) ....................... GI-3007
Width (Dimensions) ................................ GI-3007
Wiper deicer .......................................... EL-3106
Wiper, front ............................................ EL-3100
ALPHABETICAL INDEX
IDX-3003

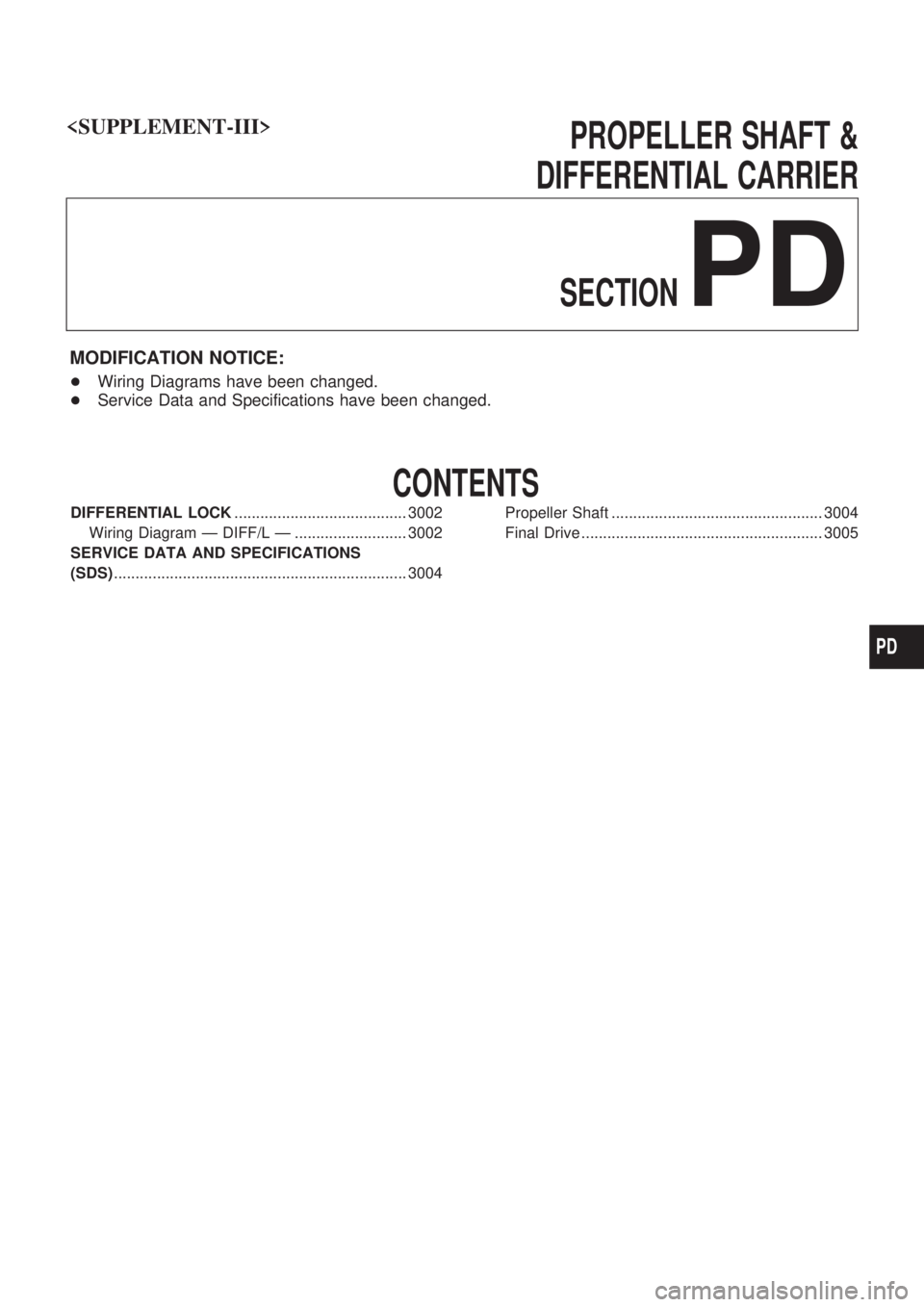

PROPELLER SHAFT &
DIFFERENTIAL CARRIER
SECTION
PD
MODIFICATION NOTICE:
+Wiring Diagrams have been changed.
+Service Data and Specifications have been changed.
CONTENTS
DIFFERENTIAL LOCK........................................ 3002
Wiring Diagram Ð DIFF/L Ð .......................... 3002
SERVICE DATA AND SPECIFICATIONS
(SDS).................................................................... 3004Propeller Shaft ................................................. 3004
Final Drive ........................................................ 3005

PD

Wiring Diagram Ð DIFF/L Ð
TPD016M
DIFFERENTIAL LOCK
PD-3002

TPD015M
DIFFERENTIAL LOCK
Wiring Diagram Ð DIFF/L Ð (Cont'd)
PD-3003

Propeller Shaft
GENERAL SPECIFICATIONS
Front propeller shaft
Applied modelZD30DDTi engine
M/T A/T
Propeller shaft model 2F80B
Number of joints 2
Type of journal bearing Solid (Disassembly type)
Coupling type with transmission Flange type
Distance between yokes
mm (in)73 (2.87)
Shaft length (Spider-to-spider)
mm (in)832 (32.76) 796 (31.34)
Shaft outer diameter
mm (in)50.8 (2.000)
Rear propeller shaft
Applied modelZD30DDTi
Transmission M/T A/T
Body Wagon Hardtop Wagon Hardtop
Propeller shaft model 2F100H
Number of joints2
Type of journal bearing Solid (Disassembly type)
Coupling type with transmission Flange type
Distance between yokes
mm (in)94 (3.70)
Shaft length (Spider-to-spider)
mm (in)1,011 (39.80) 440 (17.32) 1,044 (41.10) 480 (18.90)
Shaft outer diameter
mm (in)89.6 (3.528) 57 (2.24) 89.6 (3.528) 75.2 (2.961)
Available snap rings
2F80B
Thickness mm (in) Color Part Number
1.99 (0.0783) White 37146-C9400
2.02 (0.0795) Yellow 37147-C9400
2.05 (0.0807) Red 37148-C9400
2.08 (0.0819) Green 37149-C9400
2.11 (0.0831) Blue 37150-C9400
2.14 (0.0843) Light brown 37151-C9400
2.17 (0.0854) Black 37152-C9400
2.20 (0.0866) Colorless 37153-C9400
2F100H
Thickness mm (in) Color Part Number
1.95 (0.0768) White 37146-61502
1.98 (0.0780) Yellow 37147-61502
2.01 (0.0791) Red 47148-61502
2.04 (0.0803) Green 47149-61502
2.07 (0.0815) Blue 37150-61502
2.10 (0.0827) Light brown 37151-61502
2.13 (0.0839) Pink 47146-61502
2.16 (0.0850) Gold 37147-61502
2.19 (0.0862) Black 47148-61502
2.22 (0.0874) Colorless 37149-61502
SERVICE DATA AND SPECIFICATIONS (SDS)
PD-3004

Final Drive
GENERAL SPECIFICATIONS
Wagon
EngineZD30DDTi
Transmission5M/T, 4A/T
Front final driveStandard
H233B
2-pinion
Gear ratio4.375
Number of teeth
(Ring gear/drive pinion)35/8
Oil capacity (Approx.)
!(Imp pt)5.4 (9-1/2)
Rear final drive
[Grade]Standard Optional
H233B
4-pinion LSD Diff. lock LSD Diff. lock
Gear ratio4.375
Number of teeth
(Ring gear/drive pinion)35/8
Oil capacity (Approx.)
!(Imp pt)2.4 (4-1/4) 2.1 (3-3/4) 3.0 (5-1/4) 2.1 (3-3/4) 3.0 (5-1/4)
Hardtop
EngineZD30DDTi
Transmission 5M/T 4A/T
Front final driveStandard
H233B
2-pinion
Gear ratio4.375
Number of teeth
(Ring gear/drive pinion)35/8
Oil capacity (Approx.)
!(Imp pt)5.4 (9-1/2)
Rear final drive
[Grade]Standard Optional Standard Optional
H233B
4-pinion LSD Diff. lock LSD Diff. lock 4-pinion Diff. lock LSD Diff. lock
Gear ratio4.375
Number of teeth
(Ring gear/drive pinion)35/8
Oil capacity (Approx.)
!(Imp pt)2.4 (4-1/4) 2.1 (3-3/4) 3.0 (5-1/4) 2.1 (3-3/4) 3.0 (5-1/4) 2.4 (4-1/4) 3.0 (5-1/4) 2.1 (3-3/4) 3.0 (5-1/4)
SERVICE DATA AND SPECIFICATIONS (SDS)
PD-3005

Differential actuator mounting adjusting
shim
Thickness mm (in) Part number
0.4 (0.016) 38154 06J00
1.0 (0.039) 38154 06J01
0.9 (0.035) 38154 06J02
1.5 (0.059) 38154 06J03
Diff. lock actuator adjustment
Standard length A mm (in) 80.9 - 84.8 (3.185 - 3.340)
SERVICE DATA AND SPECIFICATIONS (SDS)
Final Drive (Cont'd)
PD-3006

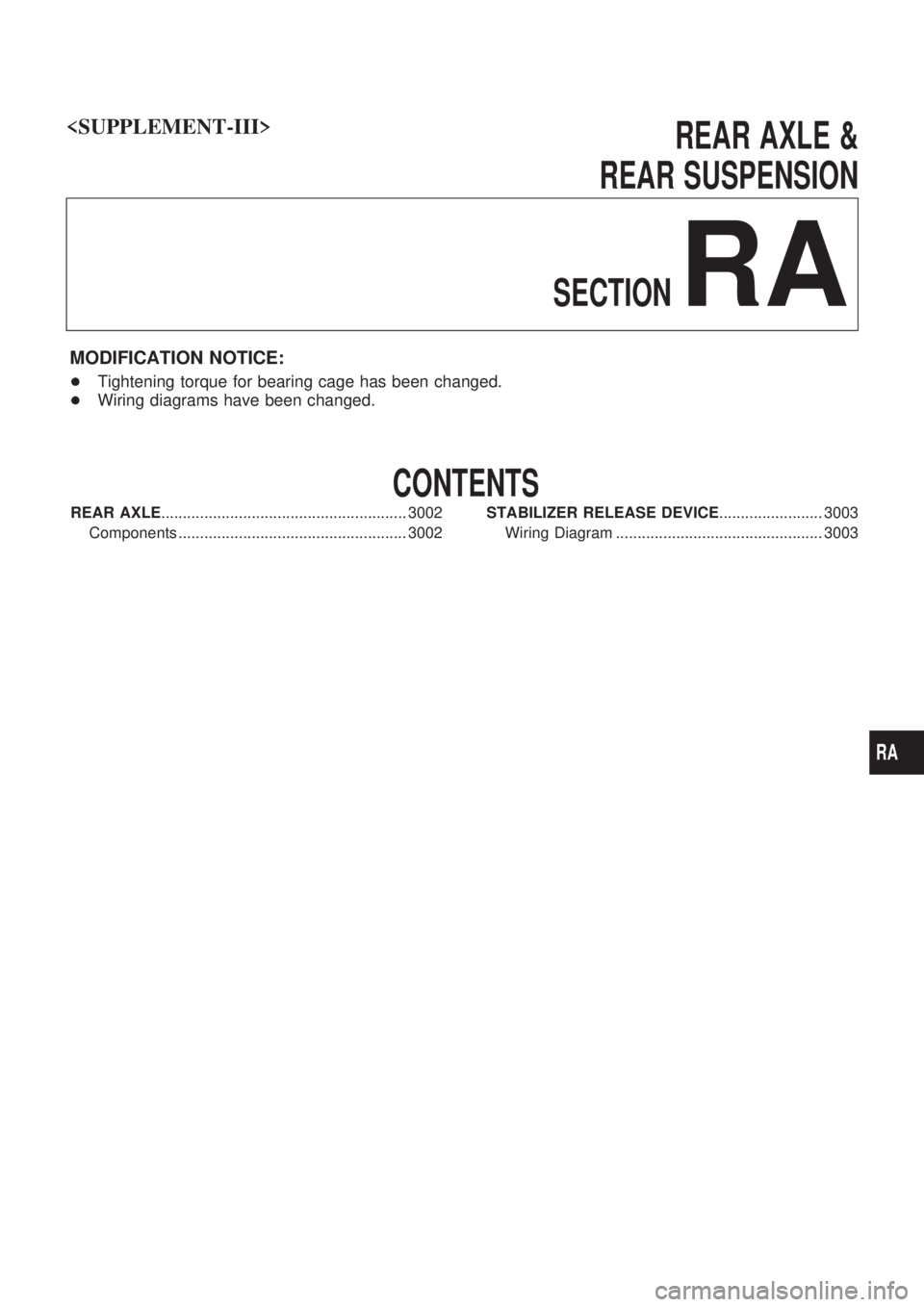

REAR AXLE &
REAR SUSPENSION
SECTION
RA
MODIFICATION NOTICE:
+Tightening torque for bearing cage has been changed.
+Wiring diagrams have been changed.
CONTENTS
REAR AXLE......................................................... 3002
Components ..................................................... 3002STABILIZER RELEASE DEVICE........................ 3003
Wiring Diagram ................................................ 3003

RA
