Power steering is only operable when the
engine is running. If the engine is off or if
the power steering system is inoperable,
you can still steer, but it requires more
physical effort.
If the steering feels rigid during normal
driving, consult an Authorized Mazda
Dealer.With cruise control, you can set and
automatically maintain any speed of more
than about 40 km/h (25 mph).


Cruise Set Indicator Light
This light comes on when a cruising speed
is set.
Power Steering
Never hold the steering wheel to the
extreme left or right for more than five
seconds with the engine running.
This could damage the power steering
system.
CAUTION
Cruise Control
Cruise Control Use:
Using cruise control in the following
conditions could cause you to lose
control of the vehicle:
•
Heavy or unsteady traffic
• Slippery or winding roads
• Similar restrictions that require
inconsistent speed
Don ’t use cruise control in these
situations.
WARNING
J07L(02MY).book Page 13 Monday, June 11, 2001 4:52 PM

5-14
Driving Your Mazda
Starting and Driving
Form No. 8Q42-EA-01F

Activation/Deactivation
To activate the system, push the CRUISE
MAIN switch.
To deactivate the system, push the switch
again.

To Set Speed
1. Turn on the CRUISE MAIN switch.
2. Accelerate to the desired speed, which
must be more than 40 km/h (25 mph).
3. Turn the control knob to SET/COAST and release it at the speed you want.
Release the accelerator at the same
time.
Don ’t continue to hold the knob. Until
you release it, speed will continue to
drop (unless you continue to
accelerate) and you ’ll miss the desired
speed.
Cruise Main Switch:
Leaving the CRUISE MAIN switch
on when not using the cruise control
is dangerous as it may be switched on
accidentally. This could result in loss
of vehicle control. Keep the CRUISE
MAIN switch off when cruise control
is not in use.
Indicator light
WARNING
NOTE
• The SET function can
’t be activated
until about 2 seconds after the
CRUISE MAIN switch has been
engaged.
• On a steep grade, the vehicle may
momentarily slow down going up or
speed up while going down.
Control knob
J07L(02MY).book Page 14 Monday, June 11, 2001 4:52 PM

5-15
Driving Your Mazda
Starting and Driving
Form No. 8Q42-EA-01F

To Increase Cruising Speed
Follow either of these procedures.
• Turn the control knob to RESUME/
ACCEL and hold it. Your vehicle will
accelerate.
Release the knob at the speed you
want.
• Accelerate to the desired speed.
Turn the control knob to SET/COAST
and release it immediately.


To Decrease Cruising Speed
Turn the control knob to SET/COAST and
hold it. The vehicle will gradually slow.
Release the knob at the speed you want.

To Resume Cruising Speed at
More Than 40 km/h (25 mph)
If some other method besides the CRUISE
MAIN was used to cancel cruising speed
and the system is still activated, the most
recent set speed will automatically resume
when the control knob is turned to
RESUME/ACCEL.
If vehicle speed is below 40 km/h (25
mph), increase the vehicle speed up to 40
km/h (25 mph) and turn the control knob
to RESUME/ACCEL.
NOTE
Accelerate if you want to speed up
temporarily when the cruise control is
on. Greater speed will not interfere
with it or change the set speed.
Take your foot off the accelerator to
return to the set speed.
Control knob
Control knob
Control knob
Control knob
J07L(02MY).book Page 15 Monday, June 11, 2001 4:52 PM

5-16
Driving Your Mazda
Starting and Driving
Form No. 8Q42-EA-01F

To Cancel
To turn off the system, use one
of these
methods:
• Press the CRUISE MAIN switch.
• Slightly depress the brake pedal.
• (Manual transmission)
Depress the clutch pedal.
The system is off when the ignition is off.
NOTE
With an automatic transmission
vehicle, the gear is automatically
selected when going uphill.
NOTE
Cruise control will cancel at about 15
km/h (9 mph) below the preset speed
or below 40 km/h (25 mph).
J07L(02MY).book Page 16 Monday, June 11, 2001 4:52 PM

5-17
Driving Your Mazda
Form No. 8Q42-EA-01F

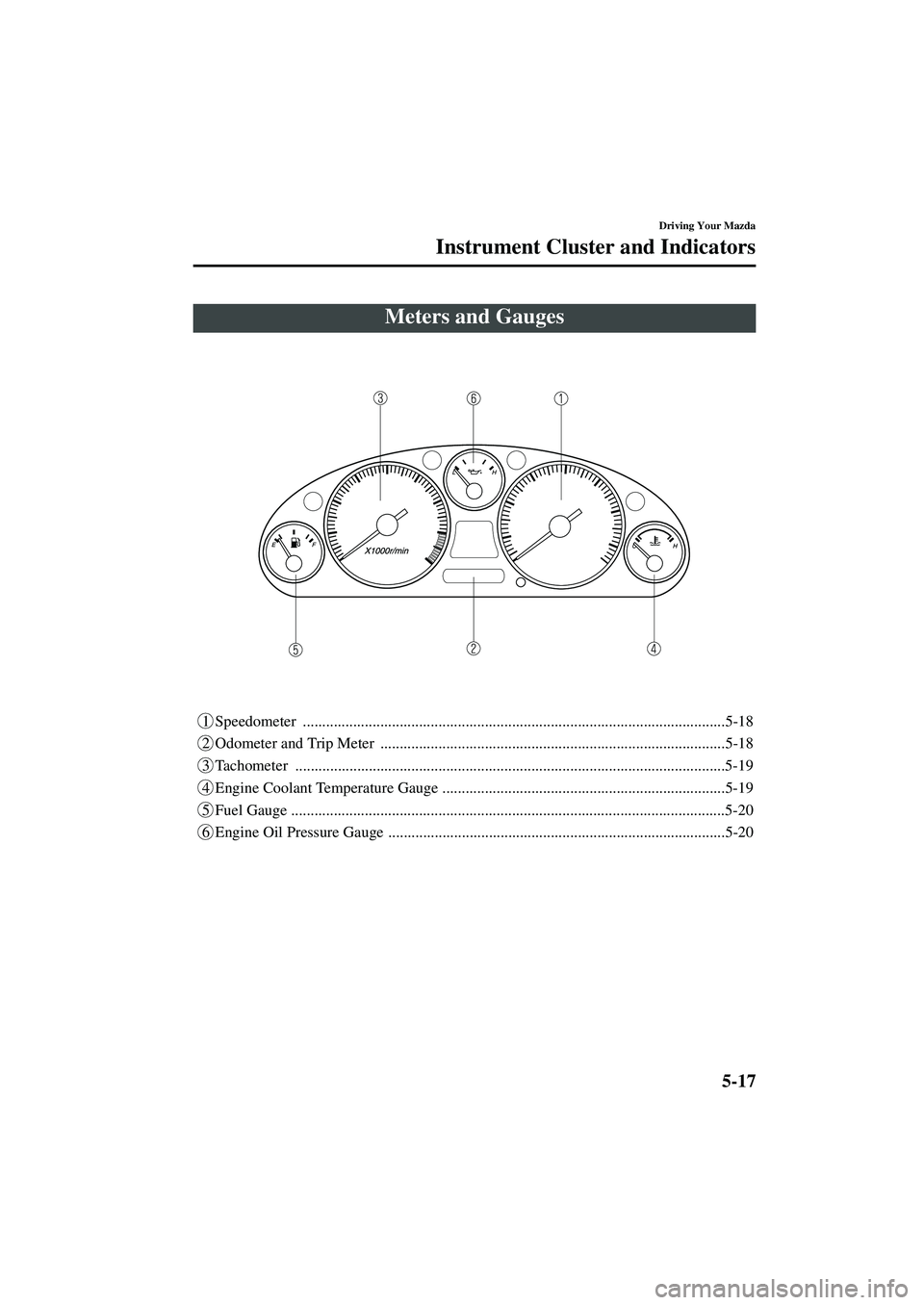

Instrument Cluster and Indicators
1 Speedometer .............................................................................................................5-18
2 Odometer and Trip Meter .........................................................................................5-18
3 Tachometer ...............................................................................................................5-19
4 Engine Coolant Temperature Gauge .........................................................................5-19
5 Fuel Gauge ................................................................................................................5-20
6 Engine Oil Pressure Gauge .......................................................................................5-20
Meters and Gauges
J07L(02MY).book Page 17 Monday, June 11, 2001 4:52 PM

5-18
Driving Your Mazda
Instrument Cluster and Indicators
Form No. 8Q42-EA-01F

Speedometer
The speedometer indicates the speed of
the vehicle.

Odometer and Trip Meter
The ignition switch must be in the ON
position.
The display mode can be changed from
odometer to trip meter A to trip meter B
and then back to odometer by pressing the
selector. The selected mode will be
displayed. Odometer
When this mode is selected, ODO will be
displayed.
The odometer records the total distance
the vehicle has been driven.
Tr i p m e t e r
The trip meter can record the total
distance of two trips. One is recorded in
trip meter A, and the other is recorded in
trip meter B.
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When meter B is
selected, TRIP B will be displayed.
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to "0.0" by holding
the selector depressed for more than 1
second. Use this meter to measure trip
distances and in to compute fuel
consumption.
Selector
Odometer
Trip meter A Press the selector
Press the selector
Press the selector
Trip meter B
J07L(02MY).book Page 18 Monday, June 11, 2001 4:52 PM

5-19
Driving Your Mazda
Instrument Cluster and Indicators
Form No. 8Q42-EA-01F

Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).

Engine Coolant Temperature
Gauge
The engine coolant temperature gauge
shows the temperature of the engine
coolant.
If the needle exceeds normal range toward
H, it indicates overheating.
NOTE
• Only the trip meters record tenths of
kilometers (miles).
• The trip record will be erased when;

The power supply is interrupted
(blown fuse or the battery is
disconnected).
 The vehicle is driven over 999.9
km (mile).
Don ’t run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine damage.
Red zone
CAUTION
Driving with an overheated engine can
cause serious engine damage (page 7-
11).
CAUTION
J07L(02MY).book Page 19 Monday, June 11, 2001 4:52 PM

5-20
Driving Your Mazda
Instrument Cluster and Indicators
Form No. 8Q42-EA-01F

Fuel Gauge
The fuel gauge shows approximately how
much fuel is in the tank. We recommend
keeping the tank over 1/4 full. When the
needle is near E, refuel as soon as
possible.

Engine Oil Pressure Gauge
Engine oil pressure is normal when the
engine oil pressure gauge needle points
halfway between L and H with the engine
running.
If the needle on the gauge doesn
’t move
after starting the engine, follow steps 1
through 3. If the engine oil pressure gauge moves to
L (low) while you are driving, drive to the
side of the road and park off the right-of-
way. Set the parking brake. Then follow
steps 1 through 3.
1. Turn off the engine and inspect the
engine oil level (page 8-13). If it ’s low,
add oil.
2. Start the engine.
3. If the needle still doesn’ t move, get a
tow to the nearest service station or to
an Authorized Mazda Dealer.
Don ’t run the engine if the oil pressure
is low. It could result in extensive
engine damage.
CAUTION
