These grades will be added to the sidewalls of passenger vehicle tires over the next several
years according to a schedule established by the NHTSA and the tire manufacturers.
The grade of tires available as standard or optional equipment on Mazda vehicle may vary
with respect to grade.
ALL PASSENGER VEHICLE TIRES MUST CONFORM TO THESE GRADES AND
TO ALL OTHER FEDERAL TIRE-SAFETY REQUIREMENTS.

Uniform Tire Quality Grading
Quality grades can be found where applicable on the tire sidewall between tread shoulder
and maximum section width.
For example:
Treadwear 200 Traction AA Temperature A
The temperature grade for this tire is established for a tire that is properly inflated
and not overloaded. Excessive speed, underinflation, or excessive loading, either
separately or in combination, can cause heat buildup and possible tire failure.
WARNING
UTQGS MARK (example)
TREADWEAR 200 TRACTION AA
TEMPERATURE A
J07L(02MY).book Page 13 Monday, June 11, 2001 4:52 PM

9-14
Customer Information
Form No. 8Q42-EA-01F
Reporting Safety Defects
If you believe that your vehicle has a defect which could cause a crash or could cause
injury or death, you should immediately inform the National Highway Traffic Safety
Administration (NHTSA) in addition to notifying Mazda Motor Corporation (Your Mazda
Importer/Distributor).
If NHTSA receives similar complaints, it may open an investigation, and if it finds that a
safety defect exists in a group of vehicles, it may order a recall and remedy campaign.
However, NHTSA cannot become involved in individual problems between you, your
dealer, or Mazda Motor Corporation (Your Mazda Importer/Distributor).
To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1 (800) 424-
9393 (or 366-0123 in Washington, D.C. area) or write to: NHTSA, U.S. Department of
Transportation. Washington, D.C. 20590. You can also obtain other information about
motor vehicle safety from the Hotline.
Reporting Safety Defects
NOTE
If you live in the U.S.A., all correspondence to Mazda Motor Corporation should be
forwarded to:
Mazda North American Operations
7755, Irvine Center Drive
Irvine, California 92618-2922
P.O. Box 19734
Irvine, CA 92623-9734
Customer Assistance Center or toll free at 1 (800) 222-5500
If you live outside of the U.S.A., please contact the nearest Mazda Distributor shown
(page 9-7) in this booklet.
J07L(02MY).book Page 14 Monday, June 11, 2001 4:52 PM

9-15
Customer Information
Form No. 8Q42-EA-01F
Service Publications
Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.
When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.
If they don’t have what you need in stock, they can order it for you.

WORKSHOP MANUAL:
Covers recommended maintenance and repair procedures of the drive train, body and
chassis.

WIRING DIAGRAM:
Provides electrical schematics as well as component location for the entire electrical
system.

OWNER’
S MANUAL:
This booklet contains information regarding the proper care and operation of your vehicle.
This is not a technician ’s manual.
Service Publications
PUBLICATION ORDER NUMBER PUBLICATION DESCRIPTION
9999-95-042B-02 2002 WORKSHOP MANUAL (English)
9999-95-026G-02 2002 WIRING DIAGRAM (English)
9999-95-031C-02 (U.S.A. only) 2002 OWNER’S MANUAL
J07L(02MY).book Page 15 Monday, June 11, 2001 4:52 PM

J07L(02MY).book Page 16 Monday, June 11, 2001 4:52 PM

10-1
Form No. 8Q42-EA-01F
10Specifications
Technical information about your Mazda.
Identification Numbers ............................................................. 10- 2
Vehicle Information Labels ................................................... 10- 2
Specifications ............................................................................. 10- 4
Specifications ........................................................................ 10- 4
J07L(02MY).book Page 1 Monday, June 11, 2001 4:52 PM

10-2
Form No. 8Q42-EA-01F
Identification Numbers

Vehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the left top side of the
dashboard. This plate can easily be seen
through the windshield.

Motor Vehicle Safety Standard
Label

Chassis Number

Vehicle Emission Control
Information Label

Tire Pressure Label
Vehicle Information Labels
J07L(02MY).book Page 2 Monday, June 11, 2001 4:52 PM

10-3
Identification Numbers
Form No. 8Q42-EA-01F

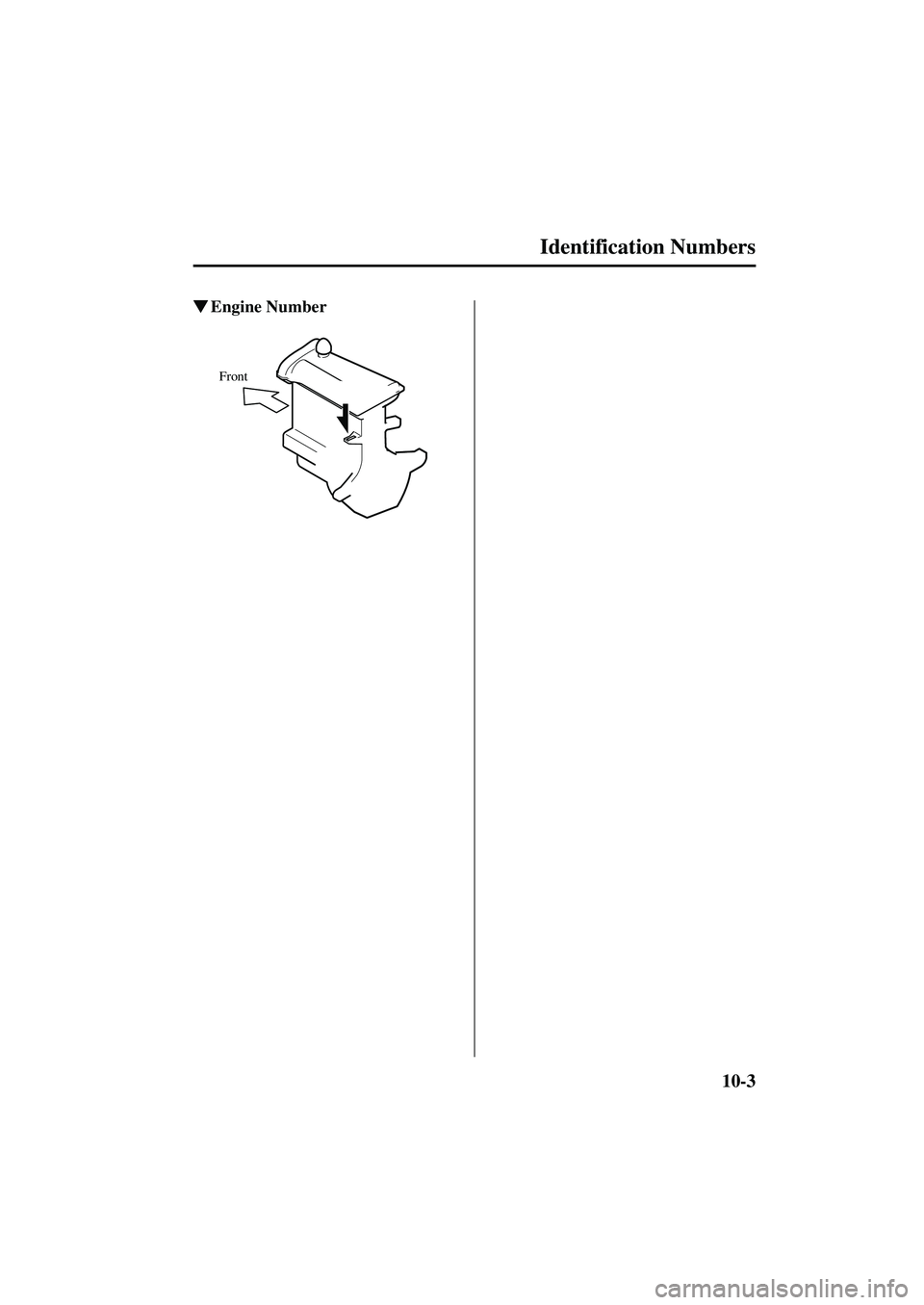

Engine Number
Front
J07L(02MY).book Page 3 Monday, June 11, 2001 4:52 PM

10-4
Form No. 8Q42-EA-01F
Specifications

Engine

Electrical System

Lubricant Quality
*Refer to the recommended SAE viscosity numbers on page 8-13 .
Specifications
Type
DOHC-16V in-line, 4-cylinder
Bore ×Stroke 83×85mm (3.3 ×3.4 in)
Displacement 1,840 ml (1,840 cc, 112.2 cu in)
Compression ratio 10.0: 1
Battery Maintenance-free, 12V-32AH/5HR
Alternator 12V-80 A
Starter 12V-1.0 kW
Spark-plug number NGK
BKR5E11, BKR6E11
DENSO K16PR-U11, K20PR-U11
Spark-plug gap 1.0—1.1 mm (0.040— 0.043 in)
Lubricant Classification
Engine oil
*
API Service ILSAC
SG (Energy Conserving II) —
SH (Energy Conserving II) GF-I
SJ GF-II
SL GF-III
Manual transmission oil Any temperature
API Service GL-4 or GL-5
(SAE 75W-90)
Above 10
°C (50 °F)
API Service GL-4 or GL-5
(SAE 80W-90)
Automatic transmission fluid ATF M-III or equivalent (e.g. Dexron ® III)
Rear differential oil API Service GL-5 (SAE 90)
Power steering fluid ATF M-III or equivalent (e.g. Dexron® III)
Brake/clutch fluid SAE J1703 or FMVSS116 DOT-3
J07L(02MY).book Page 4 Monday, June 11, 2001 4:52 PM
