2002 MAZDA MODEL MX-5 MIATA Owners Manual

2-1
Form No. 8Q42-EA-01F
2Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, SRS air bags and
child-restraint systems.
Seats .............................................................................................. 2- 2
Seats ......................................................................................... 2- 2
Seat Belt Systems ......................................................................... 2- 4
Seat Belt Precautions ............................................................... 2- 4
3-Point Type Seat Belt ............................................................. 2- 7
Seat Belt Pretensioner and Load Limiting Systems ................ 2- 8
Seat Belt Extender ................................................................... 2-10
Seat Belt Warning Light/Beep ................................................. 2-11
Child Restraint ............................................................................ 2-12
Child Restraint Precautions ..................................................... 2-12
Installing a Child-Restraint System ......................................... 2-15
SRS Air Bags ............................................................................... 2-16
Supplemental Restraint Systems (SRS) Precautions ............... 2-16
Passenger-Side Air Bag Deactivation Switch .......................... 2-19
Air Bag System Description .................................................... 2-22
J07L(02MY).book Page 1 Monday, June 11, 2001 4:52 PM

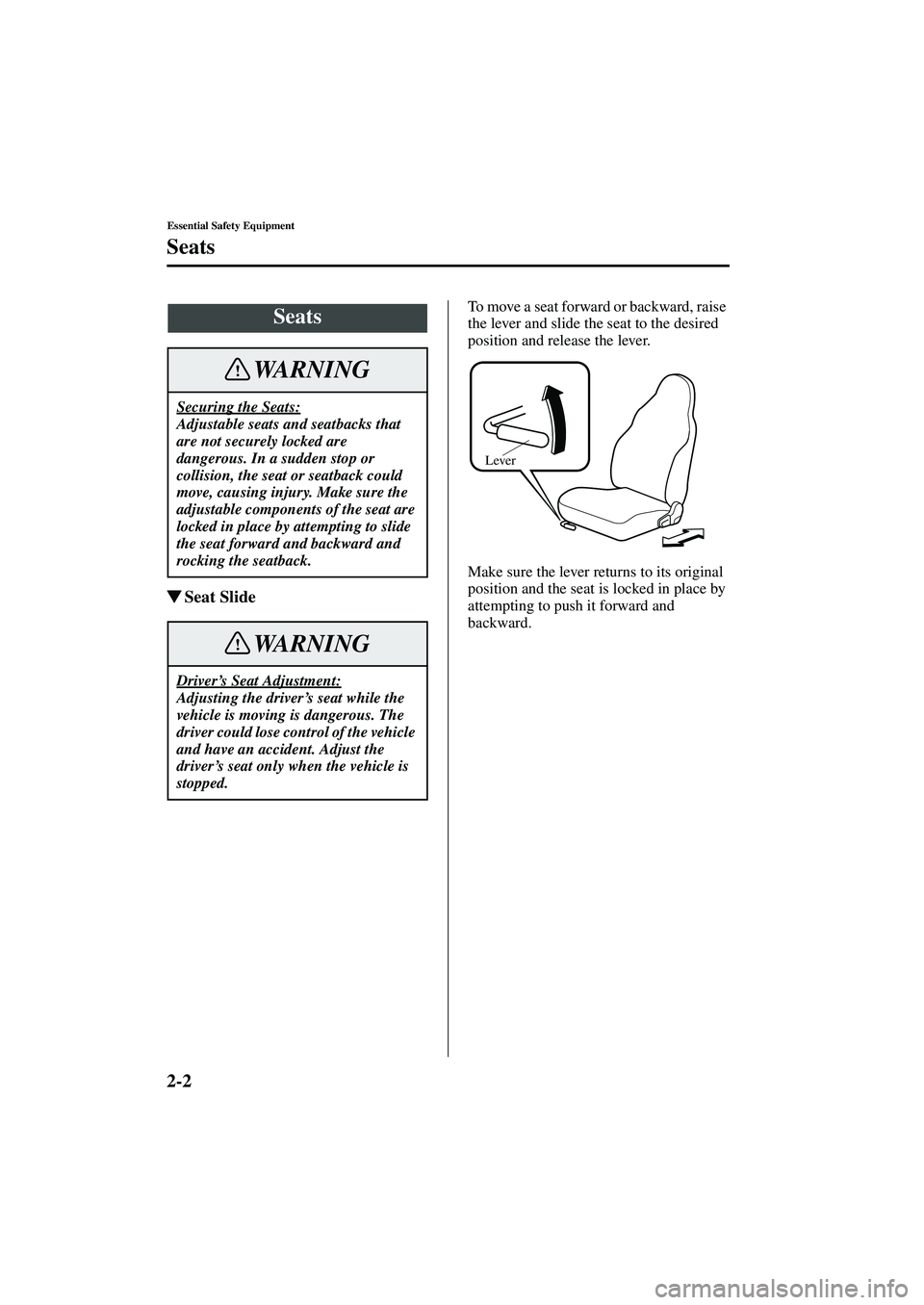

2-2
Essential Safety Equipment
Form No. 8Q42-EA-01F
Seats

Seat Slide
To move a seat forward or backward, raise
the lever and slide the seat to the desired
position and release the lever.
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward. Seats
Securing the Seats:
Adjustable seats and seatbacks that
are not securely locked are
dangerous. In a sudden stop or
collision, the seat or seatback could
move, causing injury. Make sure the
adjustable components of the seat are
locked in place by attempting to slide
the seat forward and backward and
rocking the seatback.
Driver’s Seat Adjustment:
Adjusting the driver’s seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident. Adjust the
driver’s seat only when the vehicle is
stopped.
WARNING
WARNING
Lever
J07L(02MY).book Page 2 Monday, June 11, 2001 4:52 PM

2-3
Essential Safety Equipment
Seats
Form No. 8Q42-EA-01F

Seat ReclineTo change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
Reclining:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don
’t get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back
and upright.
Unlocked Seatback:
A seatback plays an important role in
your protection in a vehicle. Leaving
the seatback unlocked is dangerous as
it can allow passengers to be ejected
or thrown around and baggage to
strike occupants in a sudden stop or
collision, resulting in severe injury.
After adjusting the seatback at any
time, even when there are no other
passengers, rock the seatback to make
sure it is locked in place.
WARNING
When returning a rear-reclined
seatback to its upright position, make
sure you support the seatback while
operating the seatback lever. If the
seatback is not supported, it will flip
forward suddenly and could cause
injury.
Lever
CAUTION
J07L(02MY).book Page 3 Monday, June 11, 2001 4:52 PM

2-4
Essential Safety Equipment
Form No. 8Q42-EA-01F
Seat Belt Systems
Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.
All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.
The driver’s seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.
However, the passenger ’s seat lap/shoulder belt retractors operate in two modes:
emergency locking mode, and for child-restraint systems, automatic locking mode.
Seat Belt Precautions
J07L(02MY).book Page 4 Monday, June 11, 2001 4:52 PM

2-5
Essential Safety Equipment
Seat Belt Systems
Form No. 8Q42-EA-01F
Not Wearing Seat Belts:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown
out of the vehicle. They could be seriously injured or even killed. In the same
collision, occupants wearing seat belts would be much safer. Always wear your seat
belt and make sure all occupants are properly restrained.
Seat Belt Damaged During an Accident:
Using a damaged seat belt is dangerous. An accident could damage the belt webbing
of the seat belt in use. A damaged seat belt cannot provide adequate protection in a
collision. Have an Authorized Mazda Dealer inspect all seat belt systems in use during
an accident before they are used again.
Twisted Seat Belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt isn’t
available to absorb the impact. This puts more force on the bones beneath the belt,
which could break them or cause other serious injury or death. Don ’t wear twisted
seat belts.
One Belt, One Passenger:
Using one seat belt for more than one person at a time is dangerous. A seat belt used
in this way can ’t spread the impact forces properly and the two passengers could be
crushed together and seriously injured or even killed. Never use one belt for more
than one person at a time.
Belt retraction may become difficult if the belts and rings are soiled, so try to keep them
clean.
WARNING
CAUTION
Ring
J07L(02MY).book Page 5 Monday, June 11, 2001 4:52 PM

2-6
Essential Safety Equipment
Seat Belt Systems
Form No. 8Q42-EA-01F

Pregnant Women and Persons with Serious Medical Conditions
Pregnant women should wear seat belts. Ask your doctor for specific recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.

Emergency Locking Mode
If the belt has fully retracted, it will always be in the emergency locking mode until you
move it into automatic locking mode by pulling the belt all the way out to its full length. In
the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision.
If the belt feels tight and hinders comfortable movement while the vehicle is stopped or in
motion, you may be in the automatic locking mode because you have pulled the belt too far
out. To return to the more comfortable emergency locking mode, wait until you can stop
the vehicle in a safe area, retract the belt fully to convert it back to emergency locking
mode and then again extend it around you.

Automatic Locking Mode
Always use the automatic locking mode to keep the child-restraint system from shifting to
an unsafe position in the event of an accident. To get the seat belt into the automatic
locking mode, pull it all the way out and connect it as instructed on the child-restraint
system. It will retract down to the child-restraint system and stay locked on it. See the
section on child restraint (page 2-12).
J07L(02MY).book Page 6 Monday, June 11, 2001 4:52 PM

2-7
Essential Safety Equipment
Seat Belt Systems
Form No. 8Q42-EA-01F

Fastening the Seat Belts
1. Grasp the buckle and tongue.
2. Slowly pull out the lap/shoulder belt.
3. Insert the tongue into the buckle until
you hear a click. 4. Make sure the shoulder belt is snugly
fitted against your body.
3-Point Type Seat Belt
Belt
Tongue
Tonge
Buckle
Positioning the Shoulder Portion of
the Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
An improperly positioned belt will
provide little or no protection in a
collision. Always make sure the
shoulder portion of the seat belt is
positioned across your shoulder and
near your neck, but never under your
arm, on your neck, or on your upper
arm.
Positioning the Lap Portion of the
Seat Belt:
The lap portion of the seat belt worn
too high is dangerous. In a collision,
this would concentrate the impact
force directly on the abdominal area,
causing serious injury. Wear the lap
portion of the belt snugly and as low
as possible.
WARNING
Keep low on
hip bone
Too high
Take up slack
WARNING
J07L(02MY).book Page 7 Monday, June 11, 2001 4:52 PM

2-8
Essential Safety Equipment
Seat Belt Systems
Form No. 8Q42-EA-01F

Unfastening the Seat Belts
Depress the button on the buckle.
To secure the passenger's seat belt when
not in use, insert the belt tongue into the
slot. For optimum protection, the driver and
passenger seat belts are equipped with
pretensioner and load limiting systems.
In moderate or greater frontal or near-
frontal accidents, the air bag and
pretensioner systems deploy
simultaneously. The pretensioners take up
slack in the seat belts as the air bags are
expanding. The load limiting system
releases belt webbing in a controlled
manner to reduce belt force on the
occupant
’s chest.
NOTE
If a belt does not fully retract, inspect it
for kinks and twists.
Seat Belt Pretensioner and
Load Limiting Systems
