Your Vehicle at a Glance
Form No. 8Q42-EA-01F
Dashboard Overview
Hood release handle
Climate control systemCup holder
Glove box
Shift lever
Parking brake
Audio system
Passenger-side air bag
Hazard warning flasher switch
Fog lights switch Lighting control/Turn signals Instrument cluster
Driver-side air bag
Wiper and washer lever
Ignition switch Ashtray
Center console
Power window
switches
Cruise control switches
Creuise main switch(page 2-16)
(page 5-17)
(page 5-29)
(page 5-13)
(page 5-30) (page 5-31)
(page 5-13)
(page 5-34)
(page 6-10)
(page 5-9)
(page 6-39) (page 3-9)
(page 3-10)
(page 5-2)
(page 6-2) (page 5-5)
(page 6-38) (page 6-38) (page 6-39)
(page 2-16)
J07L(02MY).book Page 2 Monday, June 11, 2001 4:52 PM

2-1
Form No. 8Q42-EA-01F
2Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, SRS air bags and
child-restraint systems.
Seats .............................................................................................. 2- 2
Seats ......................................................................................... 2- 2
Seat Belt Systems ......................................................................... 2- 4
Seat Belt Precautions ............................................................... 2- 4
3-Point Type Seat Belt ............................................................. 2- 7
Seat Belt Pretensioner and Load Limiting Systems ................ 2- 8
Seat Belt Extender ................................................................... 2-10
Seat Belt Warning Light/Beep ................................................. 2-11
Child Restraint ............................................................................ 2-12
Child Restraint Precautions ..................................................... 2-12
Installing a Child-Restraint System ......................................... 2-15
SRS Air Bags ............................................................................... 2-16
Supplemental Restraint Systems (SRS) Precautions ............... 2-16
Passenger-Side Air Bag Deactivation Switch .......................... 2-19
Air Bag System Description .................................................... 2-22
J07L(02MY).book Page 1 Monday, June 11, 2001 4:52 PM

2-3
Essential Safety Equipment
Seats
Form No. 8Q42-EA-01F

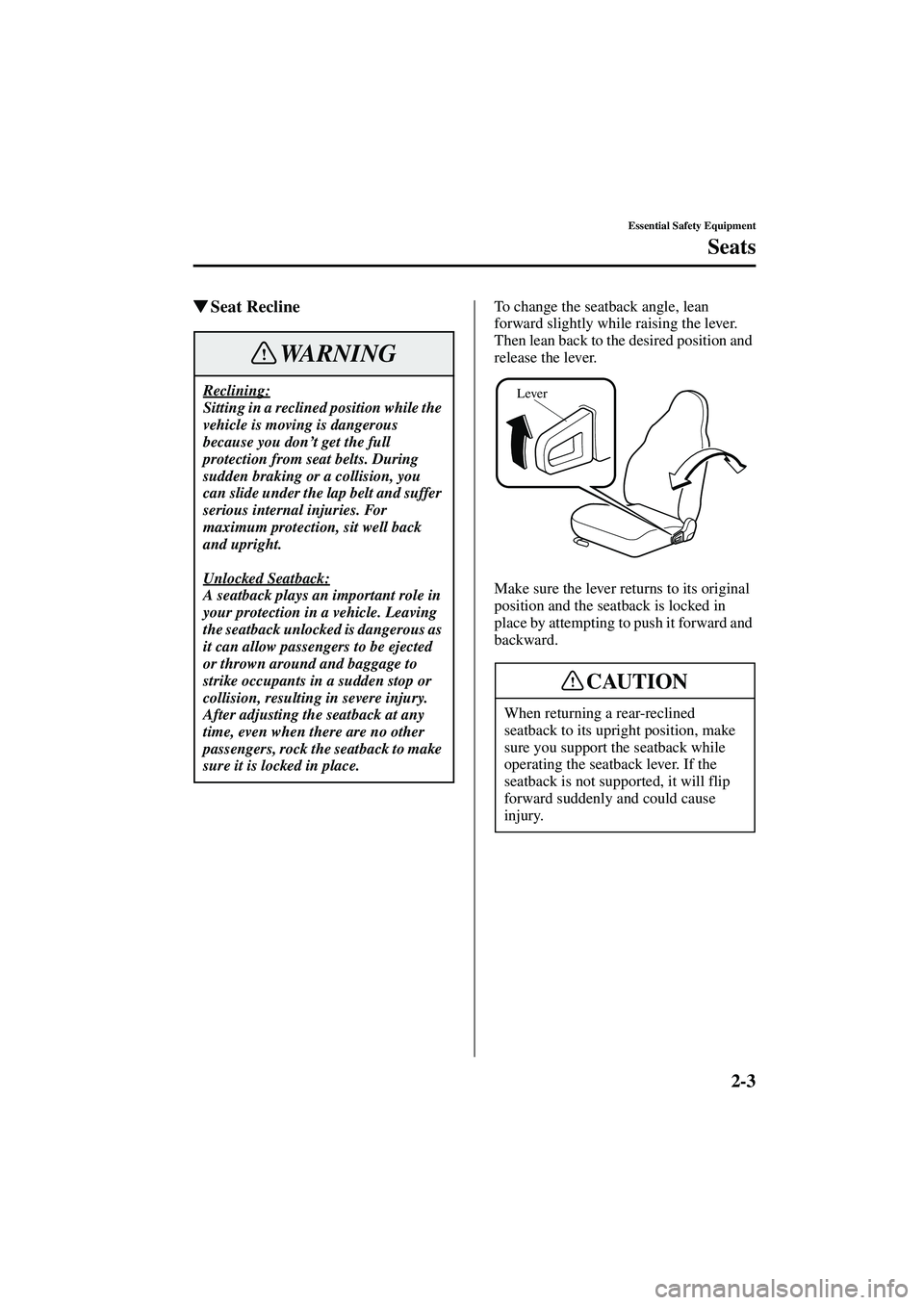

Seat ReclineTo change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
Reclining:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don
’t get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back
and upright.
Unlocked Seatback:
A seatback plays an important role in
your protection in a vehicle. Leaving
the seatback unlocked is dangerous as
it can allow passengers to be ejected
or thrown around and baggage to
strike occupants in a sudden stop or
collision, resulting in severe injury.
After adjusting the seatback at any
time, even when there are no other
passengers, rock the seatback to make
sure it is locked in place.
WARNING
When returning a rear-reclined
seatback to its upright position, make
sure you support the seatback while
operating the seatback lever. If the
seatback is not supported, it will flip
forward suddenly and could cause
injury.
Lever
CAUTION
J07L(02MY).book Page 3 Monday, June 11, 2001 4:52 PM

2-9
Essential Safety Equipment
Seat Belt Systems
Form No. 8Q42-EA-01F
Incorrect Positioning of the Driver
and Passenger Seat Belts:
Incorrect positioning of the driver
and passenger seat belts is dangerous.
Without proper positioning, the
pretensioner and load limiting
systems cannot provide adequate
protection in an accident and this
could result in serious injury. Wear
seat belts only as recommended in
this owner’s manual.
Modification or Testing of the
Pretensioner System:
Modifying the components or wiring
of the pretensioner system, including
the use of electronic testing devices is
dangerous. You could accidentally
activate it or make it inoperable which
would prevent it from activating in an
accident. The occupants could be
seriously injured. Never modify the
components or wiring, or use
electronic testing devices on the
pretensioner system.
Pretensioner System Disposal:
Improper disposal of the pretensioner
system or a vehicle with non-
deactivated pretensioners is
dangerous. Unless all safety
procedures are followed, injury could
result. Ask an Authorized Mazda
Dealer how to safely dispose of the
pretensioner system or how to scrap a
pretensioner-equipped vehicle.
WARNINGNOTE
• The pretensioner system will only
activate in a moderate or greater
frontal or near-frontal collision. It
will not activate in side or rear
impacts.
• Some smoke (non-toxic gas) will be
released when the air bags and
pretensioners deploy. This does not
indicate a fire. This gas normally
has no effect on occupants,
however, those with sensitive skin
may experience light skin irritation.
If residue from the deployment of
the air bags or the pretensioner
system gets on the skin or in the
eyes, wash it off as soon as possible.
• The seat belt pretensioners will only
function once. After they are
expended, they will not work again
and must be replaced immediately,
even if there was no seat occupant
seated at the time.
J07L(02MY).book Page 9 Monday, June 11, 2001 4:52 PM

2-10
Essential Safety Equipment
Seat Belt Systems
Form No. 8Q42-EA-01F

Air Bag/Seat Belt Pretensioner
Systems Warning Light
If the air bag/seat belt pretensioner system
is OK, the warning light comes on when
the ignition switch is turned to the ON
position or after the engine is cranked.
After about 6 seconds it goes out.
A system malfunction is indicated when
the warning light constantly flashes, stays
on or doesn
’t come on at all. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident. If your seat belt is not long enough, even
when fully extended, a seat belt extender
may be available to you at no charge from
your Authorized Mazda Dealer.
This extender will be only for you and for
the particular vehicle and seat. Even if it
plugs into other seat belts, it may not hold
in the critical moment of a crash.
When ordering an extender, only order
one that provides the necessary additional
length to fasten the seat belt properly.
Please contact your Authorized Mazda
Dealer for more information.
Self-Servicing the Air Bag/
Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled. This
could cause serious injuries. Never
tamper with the systems and always
have an Authorized Mazda Dealer
perform all servicing and repairs.
WARNING
Seat Belt Extender
J07L(02MY).book Page 10 Monday, June 11, 2001 4:52 PM

2-11
Essential Safety Equipment
Seat Belt Systems
Form No. 8Q42-EA-01F
If the driver’s seat belt is not fastened
when the ignition switch is turned to the
ON position, a beep will sound for about
6 seconds and the seat belt warning light
will remain on until the belt is fastened.
If the system does not operate correctly,
consult an Authorized Mazda Dealer.
Unnecessary Use of an Extender:
Using a seat belt extender when not
necessary is dangerous. The seat belt
will be too long and not fit properly.
In an accident, the seat belt will not
provide adequate protection and you
could be seriously injured. Only use
the extender when it is required to
fasten the seat belt properly.
Using an Improper Extender:
Using a seat belt extender that is for
another person or a different vehicle
or seat is dangerous. The seat belt will
not provide adequate protection and
the user could be seriously injured in
an accident. Only use the extender
provided for you and for the
particular vehicle and seat. NEVER
use the extender in a different vehicle
or seat.
Using an Extender That is Too Long:
Using an extender that is too long is
dangerous. The seat belt will not fit
properly. In an accident, the seat belt
will not provide adequate protection
and you could be seriously injured.
Don ’t use the extender or choose one
shorter in length if the distance
between the extender ’s buckle and the
center of the user ’s body is less than
15cm (6 in).
WARNINGSeat Belt Warning Light/
Beep
J07L(02MY).book Page 11 Monday, June 11, 2001 4:52 PM

2-18
Essential Safety Equipment
SRS Air Bags
Form No. 8Q42-EA-01F
Installation of Front-End Equipment:
Installation of front-end equipment, such as frontal protection bar (kangaroo bar,
bull bar, push bar, etc.), snowplow, or winches, is dangerous. The air bag crash sensor
system could be affected. This could cause air bags to inflate unexpectedly, or it could
prevent the air bags from inflating during an accident. Occupants could be seriously
injured. Never install any front-end equipment to your vehicle.
Suspension Adjustment:
Adjusting the vehicle suspension is dangerous. If the vehicle’s height or the
suspension is changed, the vehicle will be unable to accurately detect a collision
resulting in incorrect or unexpected air bag deployment and the possibility of serious
injuries.
Modification of the Supplemental Restraint System:
Modifying the components or wiring of the supplemental restraint system is
dangerous. You could accidentally activate it or make it inoperable. Don ’t make any
modifications to the supplemental restraint system. This includes installing trim,
badges, or anything else over the air bag storage areas. It also includes installing
extra electric equipment on or near system components or wiring.
NOTE
• When an air bag deploys, a loud inflation noise can be heard and some smoke will be
released. Neither is likely to cause injury, however, the texture of the air bags may
cause light skin injuries on body parts not covered with clothing through friction.
• Should you sell your Mazda, we urge you to tell the new owner of its air bag systems
and that familiarization with all instructions about them, from the Owner
’s Manual, is
important.
WARNING
J07L(02MY).book Page 18 Monday, June 11, 2001 4:52 PM

2-19
Essential Safety Equipment
SRS Air Bags
Form No. 8Q42-EA-01F
Your vehicle is equipped with a
passenger-side air bag deactivation
switch. The switch is located in the center
console. The switch must be used to
deactivate the passenger-side air bag
when the occupant of the passenger seat
fits into one of the following categories
(as described in the request form for the
air bag on-off switch, the appendix B to
part 595 of National Highway Traffic
Safety Administration [NHTSA]) :
•Infants (less than one year old; for all
types of restraint, but particularly the
rear-facing child restraint.)
• Children aged 1 to 12
• People with certain medical conditions
which, according to his/her physician,
could be adversely affected by air-bag
activation For more government release information
on air bag deactivation, contact your
Authorized Mazda Dealer for the
occupant categories as described in the
request form for the air bag deactivation
switch in the NHTSA rules. The factory
installed air bag deactivation switch in
your car only works for the passenger-side
air bag.
The air bag deactivation switch turns off
the passenger-side air bag. Make sure the
passenger-side air bag deactivation switch
is in the ON position except when a
passenger fitting the previous categories
occupies the front passenger seat.
Passenger-Side Air Bag
Deactivation Switch
Unnecessary Deactivation of
Passenger-side Air Bag:
Unnecessary deactivation of the
passenger-side air bag is dangerous.
If turned off unnecessarily, the
passenger will not receive the added
protection of the air bag. Serious
injuries or even death could occur.
With the exception of passengers
fitting the categories described below,
do not turn the air bag deactivation
switch to the OFF position.
WARNING
Passenger-
Side Air Bag
Deactivation Switch Passenger-side
Air Bag
Operation Air Bag
Deactivation
Indicator Light
OFF position
Deactivate ON
ON position Activate OFF
ON
OFF
Air bag deactivation switch
Deactivation indicatoir
J07L(02MY).book Page 19 Monday, June 11, 2001 4:52 PM
