2002 ISUZU AXIOM key

6E±256
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC) P0300 Engine Misfire Detected
Circuit Description
Misfire is monitored as a function of the combustion
quality (CQ) signals generated from the ION Sensing
Module. Combustion signals represent the degree of
combustion in each cylinder. Misfire is detected when the
combustion signal is below a predetermined value.
This DTC P0300 will determine if a multiple cylinder
misfire is occurring by monitoring the Combustion
Quality.
Conditions for Setting the DTC

None of the following DTCs occur: TP sensor, MAF
sensor, VSS, ECT sensor.

The engine speed is between 600 and 6250 RPM.

The system voltage is between 11 and 16 volts.

The engine temperature sensor (ECT) indicates an
engine temperature between ±7
C (20
F) and 110
C
(230
F).

Throttle angle is steady and throttle changes less than
2% per 125 milliseconds.
Action Taken When the DTC Sets

The PCM will ON the MIL after second trip with
detected the fault.

If the misfire is severe enough to cause possible
catalyst damage, the PCM will flash the MIL for as long
as the misfire remains at catalyst damaging levels.

The PCM will disable the TCC operation.

The PCM will store conditions which were present
when the DTC was set as Freeze Frame and in the
Failure Records data.
Conditions for Clearing the MIL/DTC

The PCM will turn the MIL ªOFFº on the third
consecutive trip cycle in which the diagnostic has been
run and the fault condition is no longer present.

A history DTC P0300 will clear after 40 consecutive
warm-up cycles occur without a fault.

DTC P0300 can be cleared by using the Tech 2 ªClear
Infoº function or by disconnecting the PCM battery
feed.
Diagnostic Aids
The Tech 2 display ªMisfire Cur. #1 through #6º can be
useful to determine whether the misfire is isolated to a
single cylinder.
Damaged or faulty ignition coil ± Check for cracks or
other damage.

Substitute a known good coil ± Swap the ignition coils
and retest. If the misfire follows the coil, replace the
ignition coil.
If the misfire is random, check for the following conditions:

System grounds ± Ensure all connections are clean
and properly tightened.

MAF ± A mass air flow (MAF) sensor output that
causes the PCM to sense a lower than normal air flow
will cause a lean condition.

Air induction system ± Air leaks into the induction
system which bypass the MAF sensor will cause a lean
condition. Check for disconnected or damaged
vacuum hoses, incorrectly installed or faulty PCV
valve, or for vacuum leaks at the throttle body, EGR
valve, and intake manifold mounting surfaces.

Fuel pressure ± Perform a fuel system pressure test.
A faulty fuel pump, plugged filter, or faulty fuel system
pressure regulator will contribute to a lean condition.

Injector(s) ± Perform an injector coil/balance test to
locate faulty injector(s) contributing to a lean or
flooding condition. In addition to the above test, check
the condition of the injector O-rings.

EGR ± Check for a leaking valve, adapter, or feed pipes
which will contribute to a lean condition or excessive
EGR flow.

Fuel quality ± Using fuel with the wrong octane rating
for the vehicle may cause driveability problems.
Although alcohol-enhanced fuels may raise the octane
rating, the fuel's ability to turn into vapor in cold
temperatures deteriorates. This may affect the cold
driveability of the engine. The Reid Vapor Pressure of
the fuel can also create problems in the fuel system,
especially during the spring and fall when changes by
the refineries may not coincide with changes in the
weather.

Vehicle marshalling ± The transportation of new
vehicles from the assembly plant to the dealership can
involve as many as 60 key cycles within 2 to 3 miles of
driving. This type of operation contributes to the fuel
fouling of the spark plugs and will turn on the MIL with
a P0300 Misfire DTC.
Reviewing the Failure Records vehicle mileage since the
diagnostic test last failed may help determine how often
the condition that caused the DTC to be set occurs. This
may assist in diagnosing the condition.

6E±328
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC)

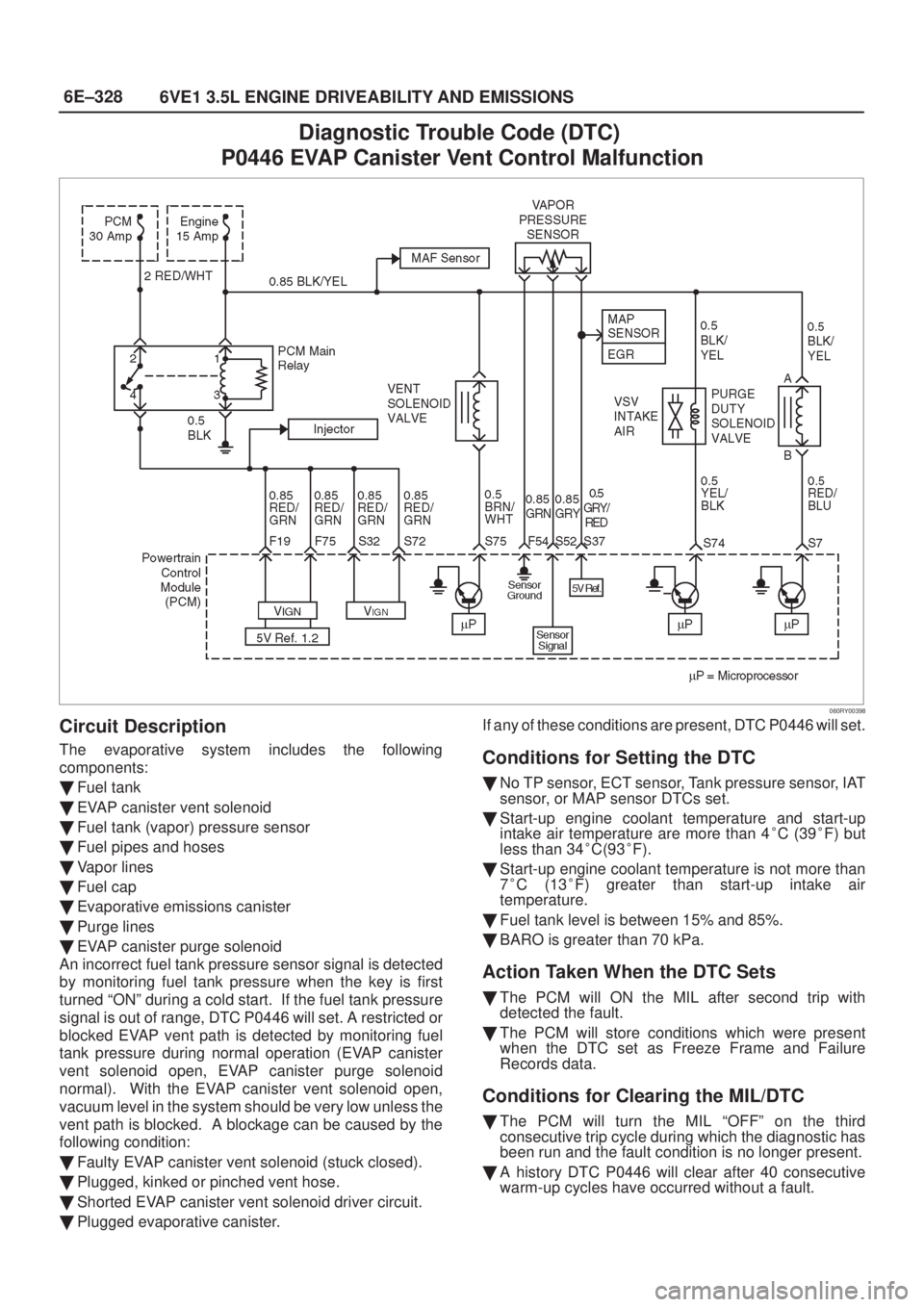

P0446 EVAP Canister Vent Control Malfunction
060RY00398
Circuit Description
The evaporative system includes the following
components:

Fuel tank

EVAP canister vent solenoid

Fuel tank (vapor) pressure sensor

Fuel pipes and hoses

Vapor lines

Fuel cap

Evaporative emissions canister

Purge lines

EVAP canister purge solenoid
An incorrect fuel tank pressure sensor signal is detected
by monitoring fuel tank pressure when the key is first
turned ªONº during a cold start. If the fuel tank pressure
signal is out of range, DTC P0446 will set. A restricted or
blocked EVAP vent path is detected by monitoring fuel
tank pressure during normal operation (EVAP canister
vent solenoid open, EVAP canister purge solenoid
normal). With the EVAP canister vent solenoid open,
vacuum level in the system should be very low unless the
vent path is blocked. A blockage can be caused by the
following condition:

Faulty EVAP canister vent solenoid (stuck closed).

Plugged, kinked or pinched vent hose.

Shorted EVAP canister vent solenoid driver circuit.

Plugged evaporative canister.If any of these conditions are present, DTC P0446 will set.Conditions for Setting the DTC

No TP sensor, ECT sensor, Tank pressure sensor, IAT
sensor, or MAP sensor DTCs set.

Start-up engine coolant temperature and start-up
intake air temperature are more than 4
C (39
F) but
less than 34
C(93
F).

Start-up engine coolant temperature is not more than
7
C (13
F) greater than start-up intake air
temperature.

Fuel tank level is between 15% and 85%.

BARO is greater than 70 kPa.
Action Taken When the DTC Sets

The PCM will ON the MIL after second trip with
detected the fault.

The PCM will store conditions which were present
when the DTC set as Freeze Frame and Failure
Records data.
Conditions for Clearing the MIL/DTC

The PCM will turn the MIL ªOFFº on the third
consecutive trip cycle during which the diagnostic has
been run and the fault condition is no longer present.

A history DTC P0446 will clear after 40 consecutive
warm-up cycles have occurred without a fault.

6E±490
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Diagnostic Trouble Code (DTC)
P1523 Actuator Control Return Performance
D06RY00111
Circuit Description

The throttle position (TP) sensor circuit provides a
voltage signal relative to throttle position (blade angle).
The throttle blade angle will vary from about 8 % at
closed throttle to about 92 % at wide open
throttle(WOT).

The DC motor circuit provides a voltage signal relative
to command throttle position (blade angle).

This DTC detects if the throttle return to the default
position at key on is steady.
Conditions for setting the DTC

The ignition is ªONº.

Normalized TPS is less than 7 % or Normalized TPS
is more than 25 %.
Action Taken When the DTC Sets

The PCM will not turn the malfunction indicator lamp
(MIL) ªONº.

The PCM will store conditions which were present
when the DTC was set as Failure Records only. This
information will not be stored as Freeze Frame data.
Conditions for Clearing the MIL/DTC

The PCM will turn the MIL ªOFFº on the third
consecutive trip cycle during which the diagnostic has
been run and the fault condition is no longer present.
A history DTC P1523 will clear after 40 consecutive trip
cycles during which the warm up cycles have occurred
without a fault.

DTC P1523 can be cleared using the Tech 2 ªClear
Infoº function or by disconnecting the PCM battery
feed.
Diagnostic Aids
An intermittent may be caused by the following:

Poor connections.

Misrouted harness.

Rubbed through wire insulation.

Broken wire inside the insulation.
Check for the following conditions:

Poor connection at PCM-Inspect harness connectors
for backed out terminals, improper mating, broken
locks, improperly formed or damaged terminals, and
poor terminal to wire connection.

Damaged harness-Inspect the wiring harness for
damage. If the harness appears to be OK, observe the
TP sensor 1, TP sensor 2 display on the Tech 2 while
moving connectors and wiring harnesses related to the
sensor.
A change in the display will indicate the location of
the fault. If DTC P1523 cannot be duplicated, the
information included in the Failure Records data can
be useful in determining vehicle mileage since the
DTC was last set.

6E±524
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Dieseling, Run-On Symptom

StepActionValue(s)Ye sNo
1DEFINITION:
Engine continues to run after key is turned ªOFF,º but
runs very rough. If engine runs smooth, check ignition
switch and adjustment.
Was the ªOn-Board Diagnostic (OBD) System Checkº
performed?
ÐGo to Step 2
Go to OBD
System
Check
21. Perform a bulletin search.
2. If a bulletin that addresses the symptom is found,
correct the condition as instructed in the bulletin.
Was a bulletin found that addresses the symptom?
ÐVerify repairGo to Step 3
3Was a visual/physical check performed?
ÐGo to Step 4
Go to Visual/
Physical
Check
41. Check for a short between B+ and any of the ignition
feed circuits.
2. If a problem is found, repair as necessary.
Was a problem found?
ÐVerify repairGo to Step 5
51. Review all diagnostic procedures within this table.
2. If all procedures have been completed and no
malfunctions have been found, review/inspect the
following:

Visual/physical inspection

Tech 2 data

Freeze Frame data/Failure Records butter

All electrical connections within a suspected
circuit and/or system
3. If a problem is found, repair as necessary.
Was a problem found?
ÐVerify repair
Contact
Technical
Assistance

6E±545
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
Malfunction Indicator Lamp
(MIL)
Removal and Installation Procedure
Refer to Warning light bulb, indicator light valve,
illumination light bulb, A/T indicator light bulb in Meter and
Gauge.
Reduced Power Lamp
The reduced power lamp (RPL) turns on when the ignition
key is moved to the ON position. It should turn off in
approximately 3 seconds or immediately after the engine
starts.
If the RPL turns on during vehicle operation, a vehicle
system failure resulting in reduced engine output is
indicated.
If both the reduced RPL and the check engine light turn
on, a serious problem affecting vehicle performance is
indicated.
Refer to the
OBD system check NO and RPL ªONº steady
in this manual.
Powertrain Control Module
(PCM)
Service Precaution
NOTE: To p r e ve n t p ossible electrostatic discharge
damage to the PCM, do not touch the connector pins or
soldered components on the circuit board.
Electrostatic Discharge (ESD)
Damage
Electronic components used in the control systems are
often designed to carry very low voltage. Electronic
components are susceptible to damage caused by
electrostatic discharge. Less than 100 volts of static
electricity can cause damage to some electronic
components. By comparison, it takes as much as 4,000
volts for a person to even feel the zap of a static
discharge.
There are several ways for a person to become statically
charged. The most common methods of charging are by
friction and by induction. An example of charging by
friction is a person sliding across a car seat.
Charging by induction occurs when a person with well
insulated shoes stands near a highly charged object and
momentarily touches ground. Charges of the same
polarity are drained off leaving the person highly charged
with the opposite polarity. Static charges can cause
damage, therefore, it is important to use care when
handling and testing electronic components.
NOTE: To prevent possible Electrostatic Discharge
damage, follow these guidelines:

Do not touch the control module connector pins or
soldered components on the control module circuit
board.
Do not open the replacement part package until the
part is ready to be installed.

Before removing the part from the package, ground
the package to a known good ground on the vehicle.

If the part has been handled while sliding across the
seat, or while sitting down from a standing position, or
while walking a distance, touch a known good ground
before installing the part.
NOTE: To prevent internal PCM damage, the ignition
must be in the ªOFFº position in order to disconnect or
reconnect power to the PCM (for example: battery cable,
PCM pigtail, PCM fuse, jumper cables, etc.).
IMPORTANT:When replacing the production PCM
with a service PCM, it is important to transfer the
broadcast code and production PCM number to the
service PCM label. This will allow positive identification of
PCM parts throughout the service life of the vehicle. Do
not record this information on the metal PCM cover.
IMPORTANT:The ignition should always be in the
ªOFFº position in order to install or remove the PCM
connectors.
Service of the PCM should normally consist of either re-
placement of the PCM or EEPROM programming. If the
diagnostic procedures call for the PCM to be replaced,
the PCM should be checked first to ensure it is the correct
part. If it is, remove the faulty PCM and install the new
service PCM.
The service PCM EEPROM will not be programmed.
DTC P0601 indicates the check sum error.
Removal Procedure
1. Disconnect the negative battery cable.
2. Block the wheels.
3. Remove the two screws from the PCM electrical
connectors.
4. Disconnect the PCM electrical connectors.
060RY00065

6E±579
6VE1 3.5L ENGINE DRIVEABILITY AND EMISSIONS
The PCM monitors signals from several sensors in order
to determine the fuel needs of the engine. Fuel is
delivered under one of several conditions called ªmodes.º
All modes are controlled by the PCM.
Fuel Pressure Regulator
The fuel pressure regulator is a diaphragm-operated
relief valve mounted on the fuel rail with fuel pump
pressure on one side and manifold pressure on the other
side. The fuel pressure regulator maintains the fuel
pressure available to the injector at three times
barometric pressure adjusted for engine load. It may be
serviced separtely.
If the pressure is too low, poor performance and a DTC
P0131, DTC P0151,DTC P0171 or DTC P1171 will be the
result. If the pressure is too high, excessive odor and/or a
DTC P0132, DTC P0152,DTC P0172 will be the result.
Refer to
Fuel System Diagnosis for information on
diagnosing fuel pressure conditions.
014RY00010
Fuel Pump Electrical Circuit
When the key is first turned ªON,º the PCM energizes the
fuel pump relay for two seconds to build up the fuel
pressure quickly. If the engine is not started within two
seconds, the PCM shuts the fuel pump off and waits until
the engine is cranked. When the engine is cranked and
the 58 X crankshaft position signal has been detected by
the PCM, the PCM supplies 12 volts to the fuel pump relay
to energize the electric in-tank fuel pump.
An inoperative fuel pump will cause a ªno-startº condition.
A fuel pump which does not provide enough pressure will
result in poor performance.
Fuel Rail
The fuel rail is mounted to the top of the engine and
distributes fuel to the individual injectors. Fuel is
delivered to the fuel inlet tube of the fuel rail by the fuel
lines. The fuel goes through the fuel rail to the fuel
pressure regulator. The fuel pressure regulator maintains
a constant fuel pressure at the injectors. Remaining fuel
is then returned to the fuel tank.
055RW009
Run Mode
The run mode has the following two conditions:

Open loop

Closed loop
When the engine is first started the system is in ªopen
loopº operation. In ªopen loop,º the PCM ignores the
signal from the heated oxygen sensor (HO2S). It
calculates the air/fuel ratio based on inputs from the TP,
ECT, and MAF sensors.
The system remains in ªopen loopº until the following
conditions are met:

The HO2S has a varying voltage output showing that
it is hot enough to operate properly (this depends on
temperature).

The ECT has reached a specified temperature.

A specific amount of time has elapsed since starting
the engine.

Engine speed has been greater than a specified RPM
since start-up.
The specific values for the above conditions vary with
different engines and are stored in the programmable
read only memory (PROM). When these conditions are
met, the system enters ªclosed loopº operation. In
ªclosed loop,º the PCM calculates the air/fuel ratio
(injector on-time) based on the signal from the HO2S.
This allows the air/fuel ratio to stay very close to 14.7:1.
Starting Mode
When the ignition is first turned ªON,º the PCM energizes
the fuel pump relay for two seconds to allow the fuel pump
to build up pressure. The PCM then checks the engine
coolant temperature (ECT) sensor and the throttle
position (TP) sensor to determine the proper air/fuel ratio
for starting.
The PCM controls the amount of fuel delivered in the
starting mode by adjusting how long the fuel injectors are
energized by pulsing the injectors for very short times.

7A±5 AUTOMATIC TRANSMISSION (4L30±E)
Normal Operation Of 2002 4L30±E
Transmission
Torque Converter Clutch (Electronically
Controlled Capacity Clutch : ECCC)
Application Conditions:
The clutch apply is controlled by moving the converter
clutch control valve by commanding Torque Converter
Clutch (TCC) solenoid using the PWM signal.
The TCC is normally applied in 2nd, 3rd and 4th gears
only when all of the following conditions exist:
Ð The engine coolant temperature is above 70
C
(158
F) and ATF temperature is above 18
C
(64.5
F).
Ð The shift pattern requests TCC apply.
Moreover, TCC is always applied in 2nd, 3rd and 4th
gears when the transmission oil temperature is above
135
C (275
F).
This mode should be canceled at 125
C (257
F).
ATF Warning Lamp
The ATF warning lamp will be constantly on (not flashing)
if the transmission oil temperature is above 145
C
(293
F).
The ATF warning lamp goes off again when the
transmission oil temperature is below 125
C (257
F).
Reverse Lock Out
With the selector lever in reverse position, the PCM will
not close the PWM solenoid until the vehicle is below 11
km/h (6.8 mph), thus preventing reverse engagement
above this speed.
Diagnosis
Introduction
The systematic troubleshooting information covered by
this Section offers a practical and systematic approach to
diagnosing 4L30±E transmission, using information that
can be obtained from road tests, electrical diagnosis, oil
pressure checks or noise evaluation.
The key to correcting a complaint is to make use of all of
the available symptoms and logically letting them direct
you to the cause.
When dealing with automatic transmission complaints, it
is best to gather as many symptoms as possible before
making the decision to remove the transmission from the
vehicle.
Frequently, the correction of the complaint does not
require removal of the transmission from the vehicle.
Driver Information
To analyze the problem fill out a complete description of
the owner's complaint.
Please draw a circle around the right information and
complete the following form. (The next page is an
example of a completed form). You can draw a circle
around many numbers if you are not sure.

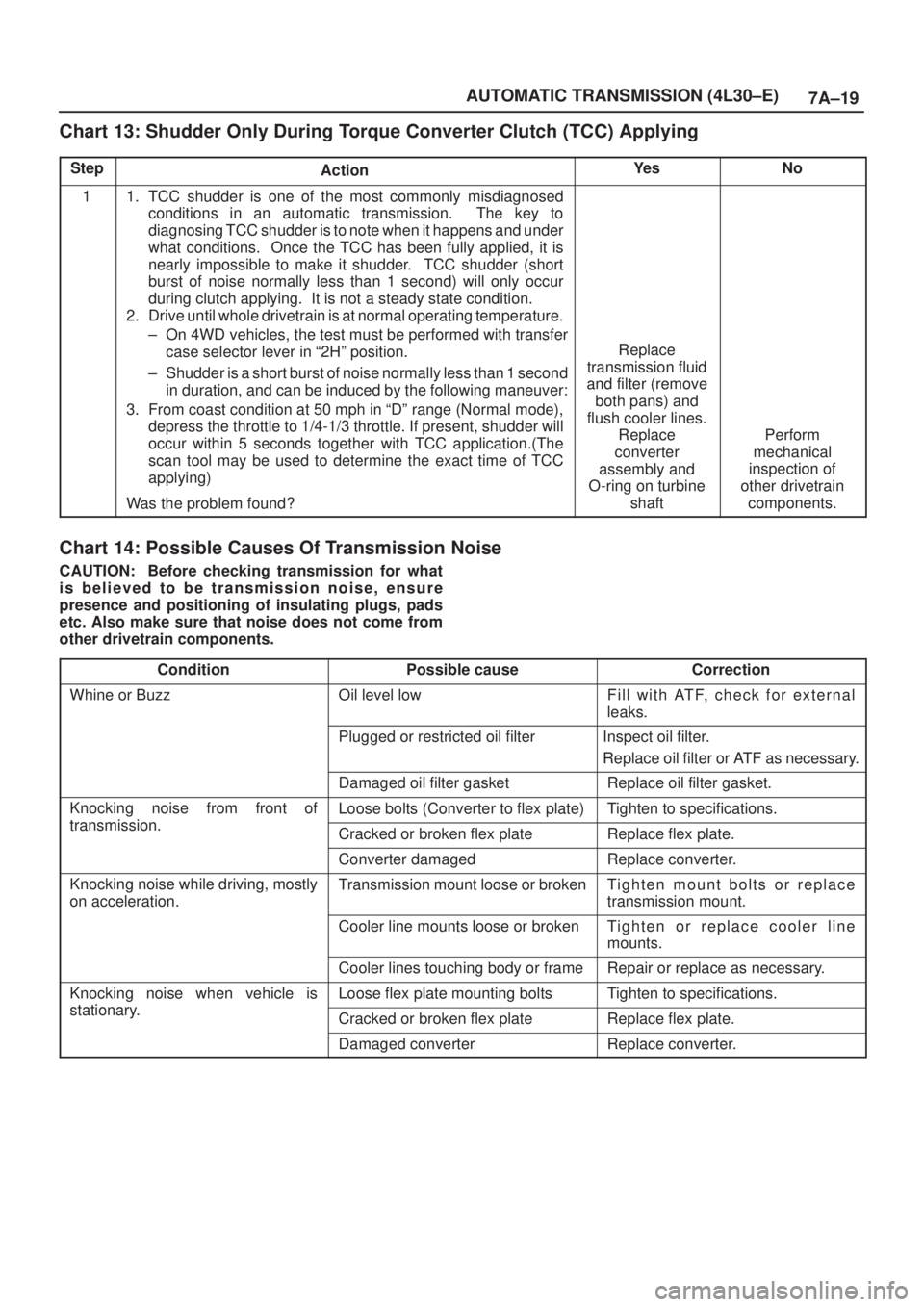

7A±19 AUTOMATIC TRANSMISSION (4L30±E)
Chart 13: Shudder Only During Torque Converter Clutch (TCC) Applying
StepActionYe sNo
11. TCC shudder is one of the most commonly misdiagnosed
conditions in an automatic transmission. The key to
diagnosing TCC shudder is to note when it happens and under
what conditions. Once the TCC has been fully applied, it is
nearly impossible to make it shudder. TCC shudder (short
burst of noise normally less than 1 second) will only occur
during clutch applying. It is not a steady state condition.
2. Drive until whole drivetrain is at normal operating temperature.
± On 4WD vehicles, the test must be performed with transfer
case selector lever in ª2Hº position.
± Shudder is a short burst of noise normally less than 1 second
in duration, and can be induced by the following maneuver:
3. From coast condition at 50 mph in ªDº range (Normal mode),
depress the throttle to 1/4-1/3 throttle. If present, shudder will
occur within 5 seconds together with TCC application.(The
scan tool may be used to determine the exact time of TCC
applying)
Was the problem found?
Replace
transmission fluid
and filter (remove
both pans) and
flush cooler lines.
Replace
converter
assembly and
O-ring on turbine
shaft
Perform
mechanical
inspection of
other drivetrain
components.
Chart 14: Possible Causes Of Transmission Noise
CAUTION: Before checking transmission for what
is believed to be transmission noise, ensure
presence and positioning of insulating plugs, pads
etc. Also make sure that noise does not come from
other drivetrain components.
Condition
Possible causeCorrection
Whine or BuzzOil level lowFill with ATF, check for external
leaks.
Plugged or restricted oil filterInspect oil filter.
Replace oil filter or ATF as necessary.
Damaged oil filter gasketReplace oil filter gasket.
Knocking noise from front of
transmission
Loose bolts (Converter to flex plate)Tighten to specifications.
transmission.Cracked or broken flex plateReplace flex plate.
Converter damagedReplace converter.
Knocking noise while driving, mostly
on acceleration.Transmission mount loose or brokenTighten mount bolts or replace
transmission mount.
Cooler line mounts loose or brokenTighten or replace cooler line
mounts.
Cooler lines touching body or frameRepair or replace as necessary.
Knocking noise when vehicle is
stationary
Loose flex plate mounting boltsTighten to specifications.
stationary.Cracked or broken flex plateReplace flex plate.
Damaged converterReplace converter.
