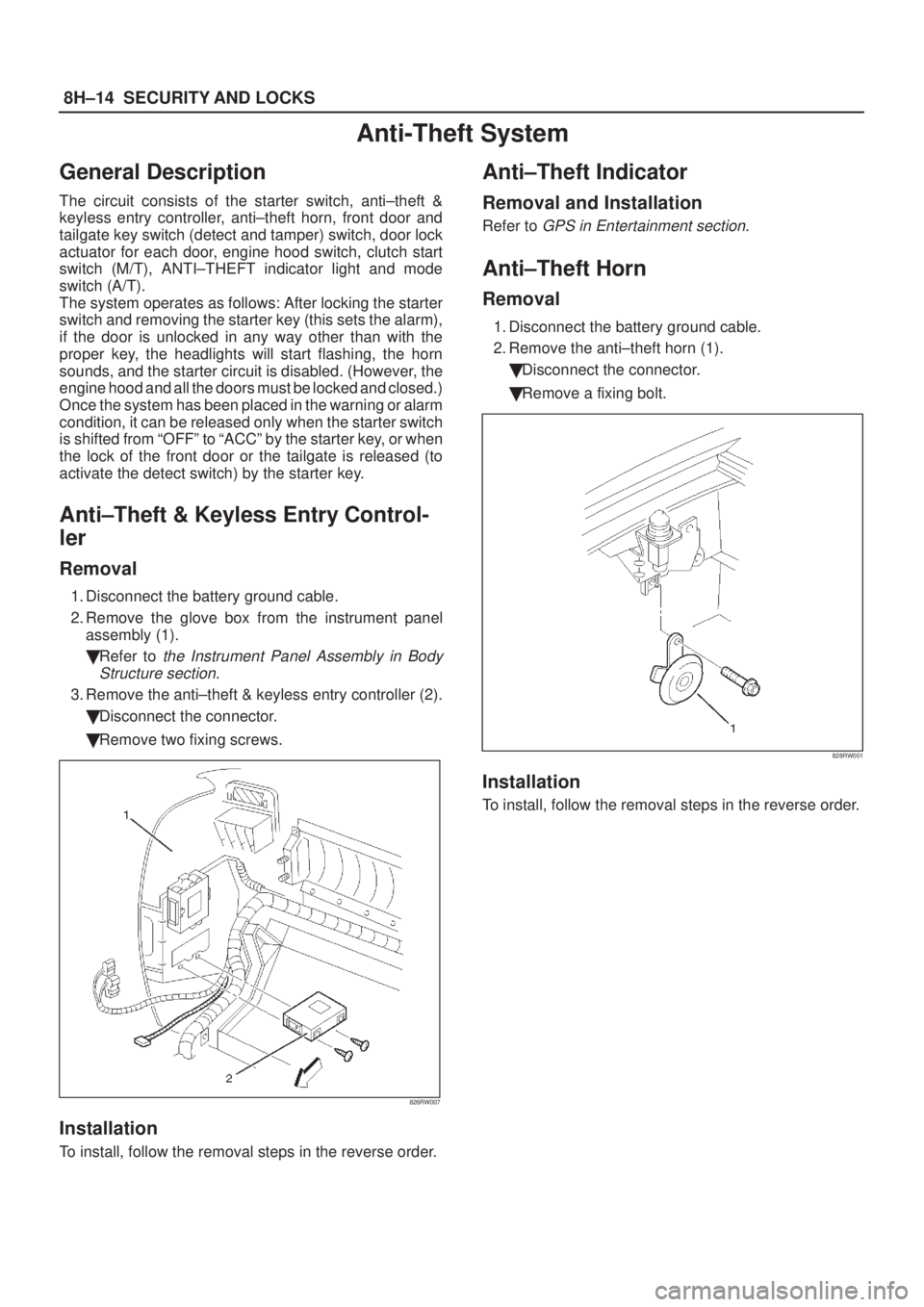

8H±14SECURITY AND LOCKS
Anti-Theft System
General Description
The circuit consists of the starter switch, anti±theft &
keyless entry controller, anti±theft horn, front door and
tailgate key switch (detect and tamper) switch, door lock
actuator for each door, engine hood switch, clutch start
switch (M/T), ANTI±THEFT indicator light and mode
switch (A/T).
The system operates as follows: After locking the starter
switch and removing the starter key (this sets the alarm),
if the door is unlocked in any way other than with the
proper key, the headlights will start flashing, the horn
sounds, and the starter circuit is disabled. (However, the
engine hood and all the doors must be locked and closed.)
Once the system has been placed in the warning or alarm
condition, it can be released only when the starter switch
is shifted from ªOFFº to ªACCº by the starter key, or when
the lock of the front door or the tailgate is released (to
activate the detect switch) by the starter key.
Anti±Theft & Keyless Entry Control-
ler
Removal
1. Disconnect the battery ground cable.
2. Remove the glove box from the instrument panel
assembly (1).

Refer to
the Instrument Panel Assembly in Body
Structure section.
3. Remove the anti±theft & keyless entry controller (2).

Disconnect the connector.

Remove two fixing screws.
826RW007
Installation
To install, follow the removal steps in the reverse order.
Anti±Theft Indicator
Removal and Installation
Refer to GPS in Entertainment section.
Anti±Theft Horn
Removal
1. Disconnect the battery ground cable.
2. Remove the anti±theft horn (1).

Disconnect the connector.

Remove a fixing bolt.
828RW001
Installation
To install, follow the removal steps in the reverse order.

SECURITY AND LOCKS8H±15
Engine Hood Switch
Removal
1. Disconnect the battery ground cable.
2. Disconnect the connector.
3. Remove the engine hood switch (1).
828RW002
Installation
To install, follow the removal steps in the reverse order.
Anti±theft & Keyless Entry Control
Unit/Transmitter Replacement
Anti±theft & Keyless Entry Control Unit
Replacement
1. Remove and install the control unit.

Refer to
Anti±theft & Keyless Entry Control Unit
Removal and Installation in this section.
2. Register ID code.

Refer to
ID Code Registration in this section.
3. Check that the keyless entry system works normally.
Transmitter Replacement
1. Prepare a new transmitter.
2. Register ID code.

Refer to
ID Code Registration in this section.
3. Check that the keyless entry system works normally.
Transmitter Battery Replacement
1. Remove a screw to remove the cover.
2. Remove the batteries.
3. Set the new batteries into the transmitter.
4. Install the cover to the transmitter.
5. Check that the keyless entry system works normally.

8H±16SECURITY AND LOCKS

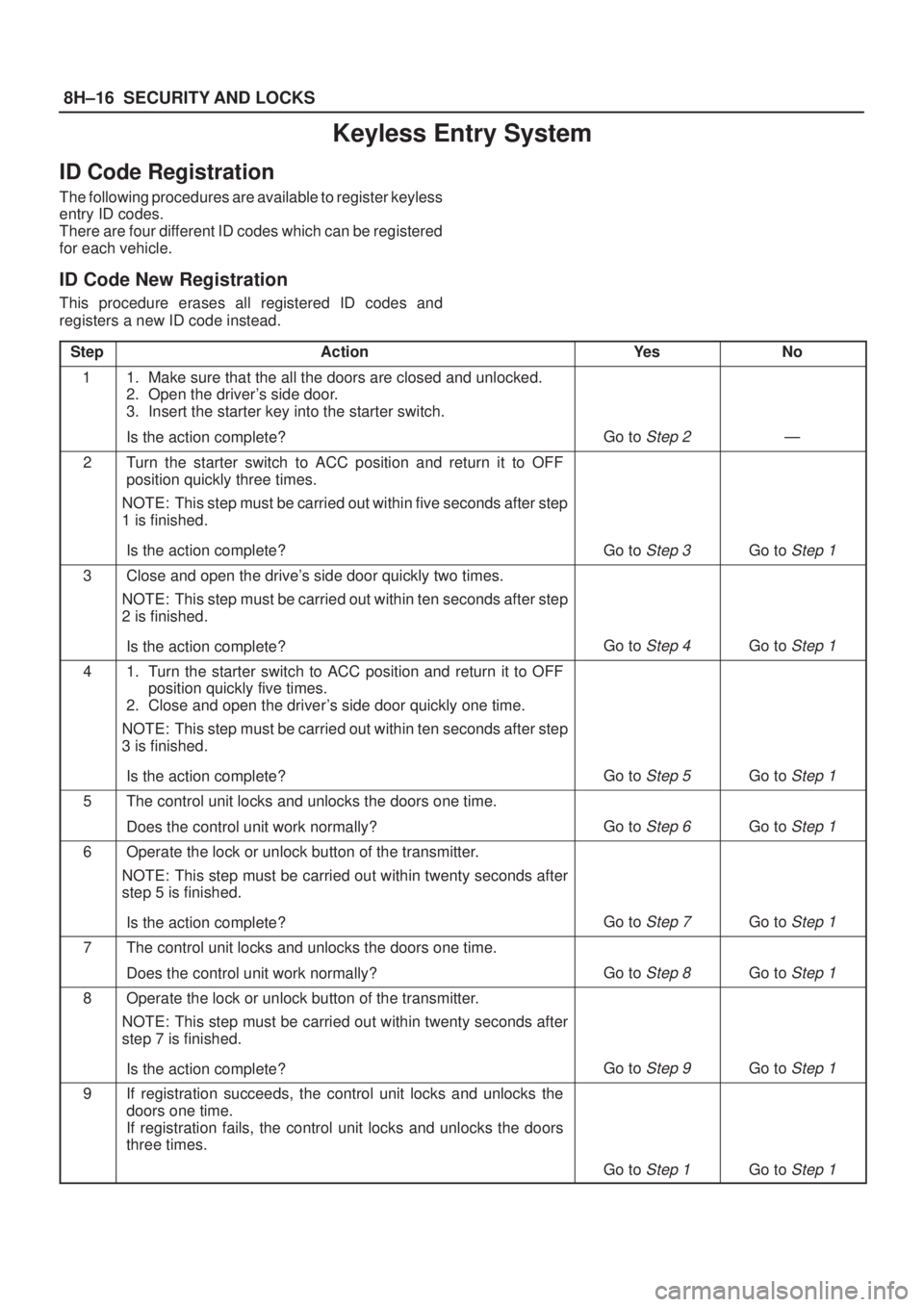

Keyless Entry System
ID Code Registration
The following procedures are available to register keyless
entry ID codes.
There are four different ID codes which can be registered
for each vehicle.
ID Code New Registration
This procedure erases all registered ID codes and
registers a new ID code instead.
Step
ActionYe sNo
11. Make sure that the all the doors are closed and unlocked.
2. Open the driver's side door.
3. Insert the starter key into the starter switch.
Is the action complete?
Go to Step 2Ð
2Turn the starter switch to ACC position and return it to OFF
position quickly three times.
NOTE: This step must be carried out within five seconds after step
1 is finished.
Is the action complete?
Go to Step 3Go to Step 1
3Close and open the drive's side door quickly two times.
NOTE: This step must be carried out within ten seconds after step
2 is finished.
Is the action complete?
Go to Step 4Go to Step 1
41. Turn the starter switch to ACC position and return it to OFF
position quickly five times.
2. Close and open the driver's side door quickly one time.
NOTE: This step must be carried out within ten seconds after step
3 is finished.
Is the action complete?
Go to Step 5Go to Step 1
5The control unit locks and unlocks the doors one time.
Does the control unit work normally?
Go to Step 6Go to Step 1
6Operate the lock or unlock button of the transmitter.
NOTE: This step must be carried out within twenty seconds after
step 5 is finished.
Is the action complete?
Go to Step 7Go to Step 1
7The control unit locks and unlocks the doors one time.
Does the control unit work normally?
Go to Step 8Go to Step 1
8Operate the lock or unlock button of the transmitter.
NOTE: This step must be carried out within twenty seconds after
step 7 is finished.
Is the action complete?
Go to Step 9Go to Step 1
9If registration succeeds, the control unit locks and unlocks the
doors one time.
If registration fails, the control unit locks and unlocks the doors
three times.
Go to Step 1Go to Step 1

SECURITY AND LOCKS8H±17

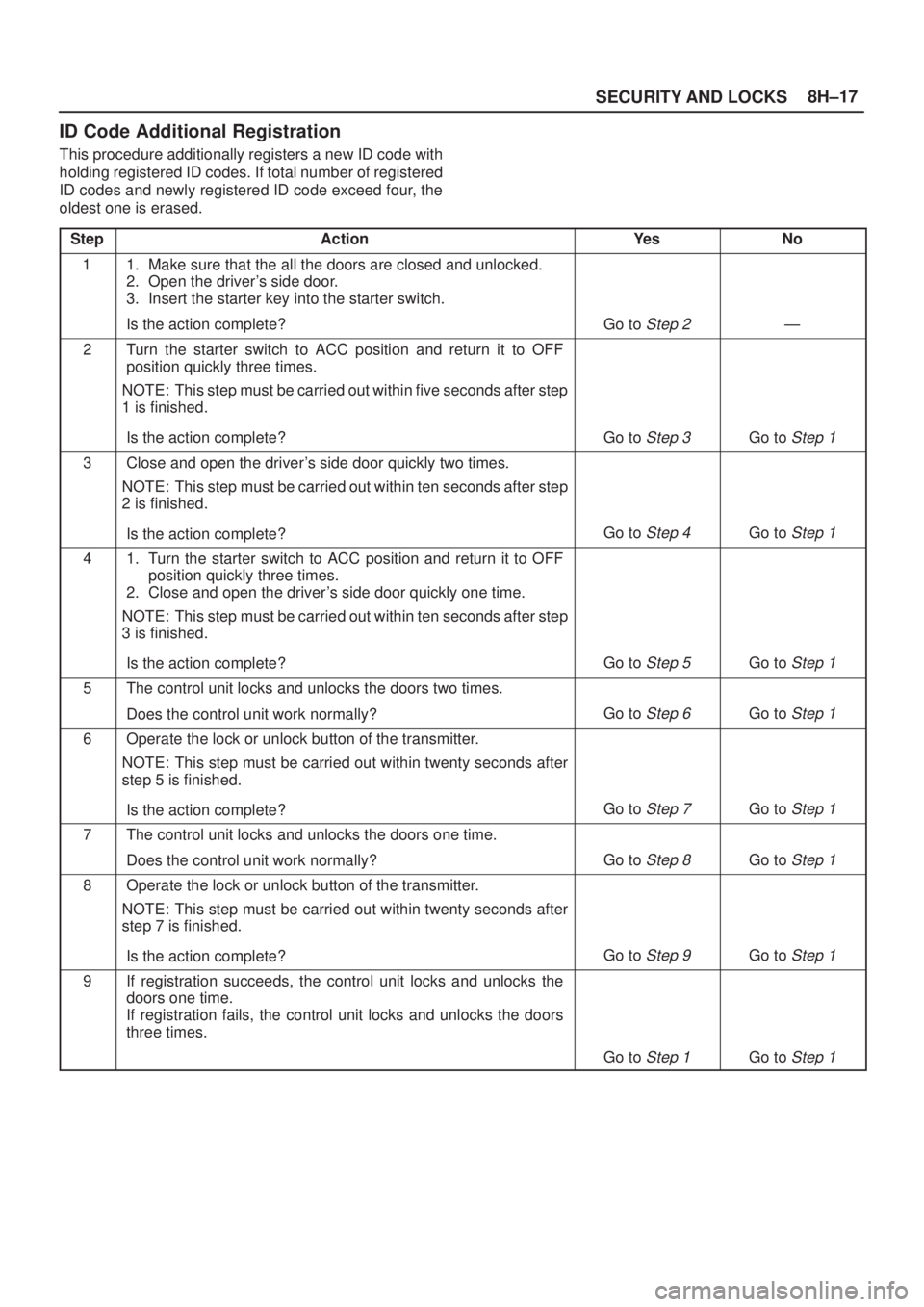

ID Code Additional Registration
This procedure additionally registers a new ID code with
holding registered ID codes. If total number of registered
ID codes and newly registered ID code exceed four, the
oldest one is erased.
Step
ActionYe sNo
11. Make sure that the all the doors are closed and unlocked.
2. Open the driver's side door.
3. Insert the starter key into the starter switch.
Is the action complete?
Go to Step 2Ð
2Turn the starter switch to ACC position and return it to OFF
position quickly three times.
NOTE: This step must be carried out within five seconds after step
1 is finished.
Is the action complete?
Go to Step 3Go to Step 1
3Close and open the driver's side door quickly two times.
NOTE: This step must be carried out within ten seconds after step
2 is finished.
Is the action complete?
Go to Step 4Go to Step 1
41. Turn the starter switch to ACC position and return it to OFF
position quickly three times.
2. Close and open the driver's side door quickly one time.
NOTE: This step must be carried out within ten seconds after step
3 is finished.
Is the action complete?
Go to Step 5Go to Step 1
5The control unit locks and unlocks the doors two times.
Does the control unit work normally?
Go to Step 6Go to Step 1
6Operate the lock or unlock button of the transmitter.
NOTE: This step must be carried out within twenty seconds after
step 5 is finished.
Is the action complete?
Go to Step 7Go to Step 1
7The control unit locks and unlocks the doors one time.
Does the control unit work normally?
Go to Step 8Go to Step 1
8Operate the lock or unlock button of the transmitter.
NOTE: This step must be carried out within twenty seconds after
step 7 is finished.
Is the action complete?
Go to Step 9Go to Step 1
9If registration succeeds, the control unit locks and unlocks the
doors one time.
If registration fails, the control unit locks and unlocks the doors
three times.
Go to Step 1Go to Step 1

8H±18SECURITY AND LOCKS

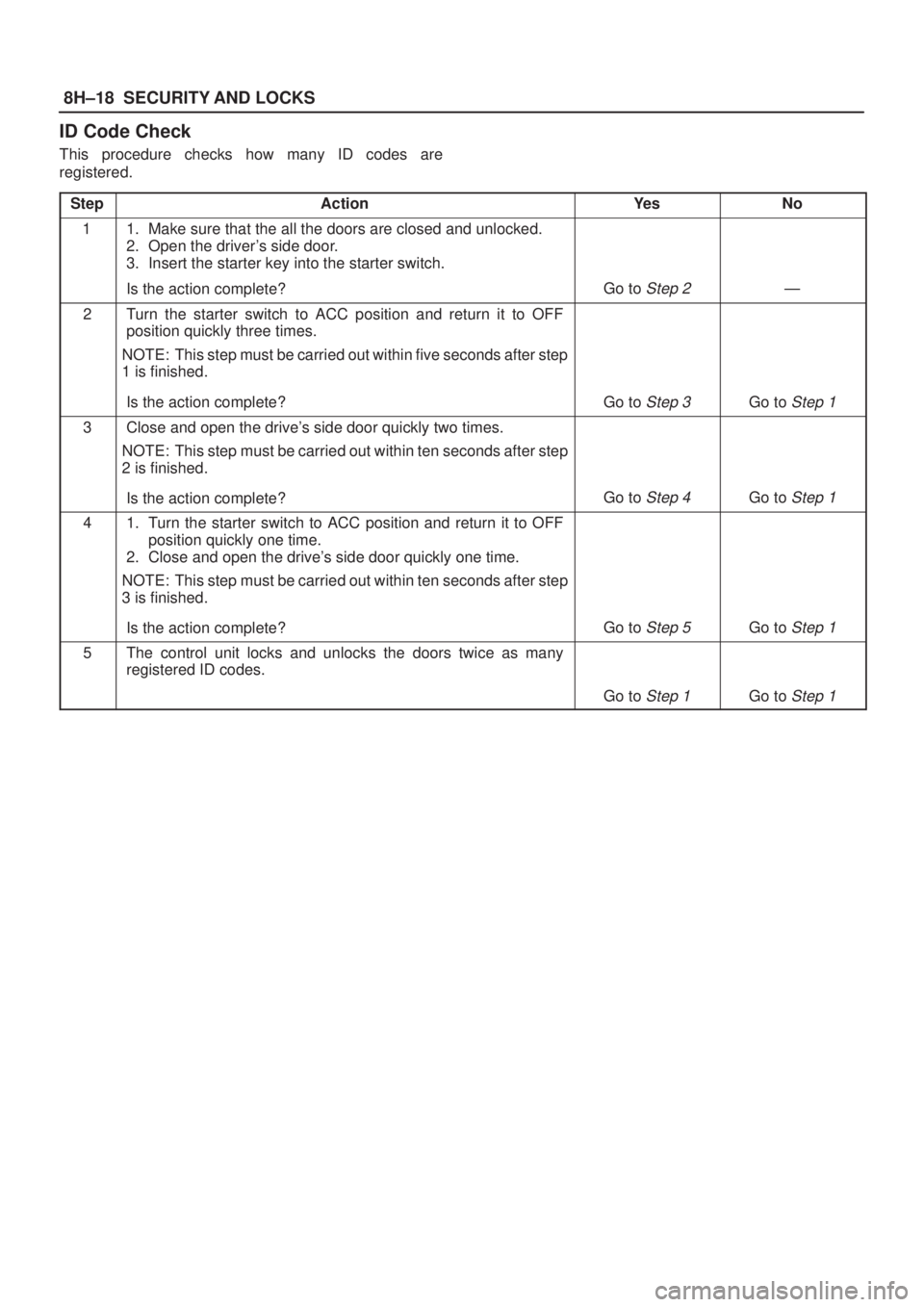

ID Code Check
This procedure checks how many ID codes are
registered.
Step
ActionYe sNo
11. Make sure that the all the doors are closed and unlocked.
2. Open the driver's side door.
3. Insert the starter key into the starter switch.
Is the action complete?
Go to Step 2Ð
2Turn the starter switch to ACC position and return it to OFF
position quickly three times.
NOTE: This step must be carried out within five seconds after step
1 is finished.
Is the action complete?
Go to Step 3Go to Step 1
3Close and open the drive's side door quickly two times.
NOTE: This step must be carried out within ten seconds after step
2 is finished.
Is the action complete?
Go to Step 4Go to Step 1
41. Turn the starter switch to ACC position and return it to OFF
position quickly one time.
2. Close and open the drive's side door quickly one time.
NOTE: This step must be carried out within ten seconds after step
3 is finished.
Is the action complete?
Go to Step 5Go to Step 1
5The control unit locks and unlocks the doors twice as many
registered ID codes.
Go to Step 1Go to Step 1

SUPPLEMENTAL RESTRAINT SYSTEM9J±5

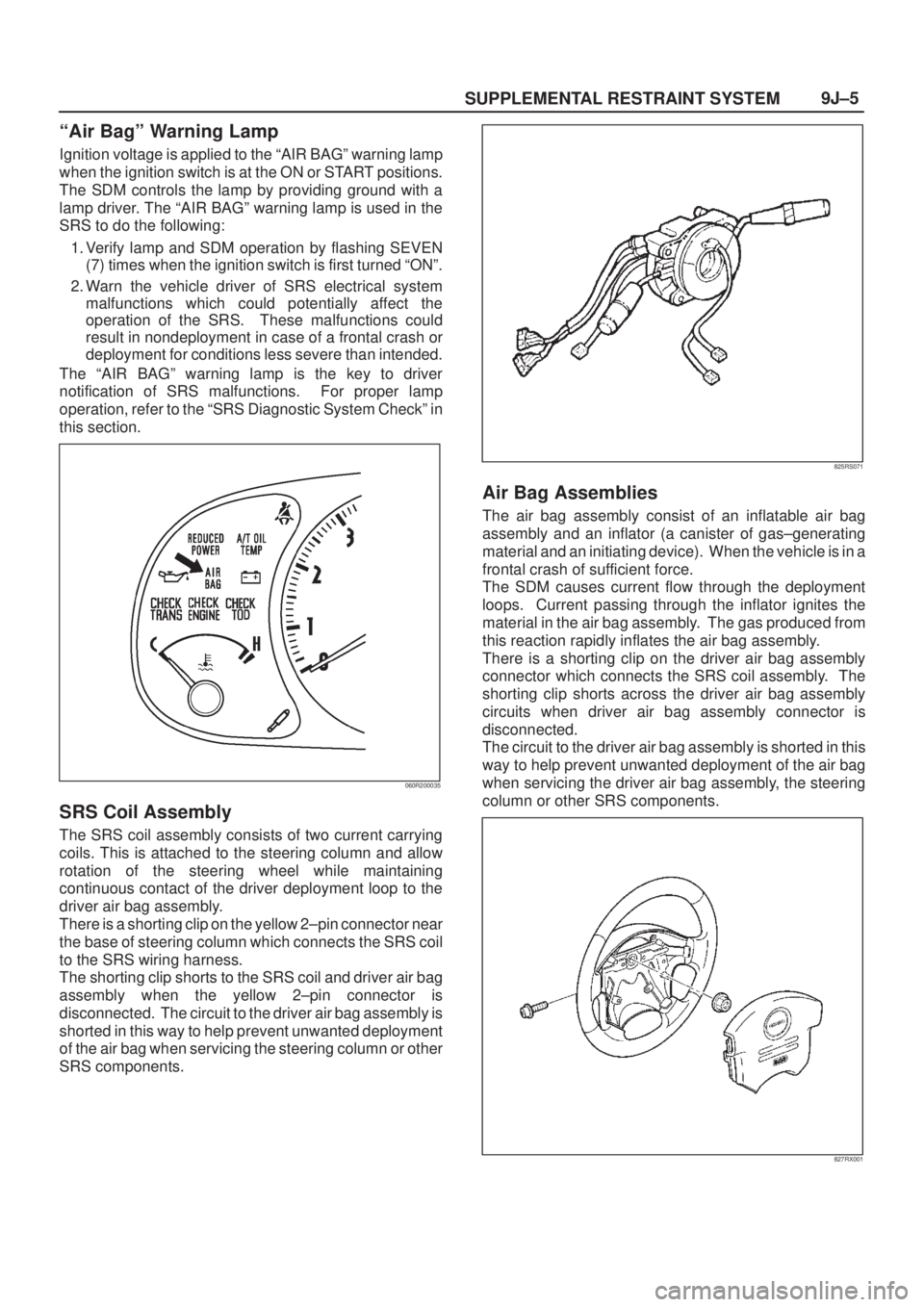

ªAir Bagº Warning Lamp
Ignition voltage is applied to the ªAIR BAGº warning lamp
when the ignition switch is at the ON or START positions.
The SDM controls the lamp by providing ground with a
lamp driver. The ªAIR BAGº warning lamp is used in the
SRS to do the following:
1. Verify lamp and SDM operation by flashing SEVEN
(7) times when the ignition switch is first turned ªONº.
2. Warn the vehicle driver of SRS electrical system
malfunctions which could potentially affect the
operation of the SRS. These malfunctions could
result in nondeployment in case of a frontal crash or
deployment for conditions less severe than intended.
The ªAIR BAGº warning lamp is the key to driver
notification of SRS malfunctions. For proper lamp
operation, refer to the ªSRS Diagnostic System Checkº in
this section.
060R200035
SRS Coil Assembly
The SRS coil assembly consists of two current carrying
coils. This is attached to the steering column and allow
rotation of the steering wheel while maintaining
continuous contact of the driver deployment loop to the
driver air bag assembly.
There is a shorting clip on the yellow 2±pin connector near
the base of steering column which connects the SRS coil
to the SRS wiring harness.
The shorting clip shorts to the SRS coil and driver air bag
assembly when the yellow 2±pin connector is
disconnected. The circuit to the driver air bag assembly is
shorted in this way to help prevent unwanted deployment
of the air bag when servicing the steering column or other
SRS components.
825RS071
Air Bag Assemblies
The air bag assembly consist of an inflatable air bag
assembly and an inflator (a canister of gas±generating
material and an initiating device). When the vehicle is in a
frontal crash of sufficient force.
The SDM causes current flow through the deployment
loops. Current passing through the inflator ignites the
material in the air bag assembly. The gas produced from
this reaction rapidly inflates the air bag assembly.
There is a shorting clip on the driver air bag assembly
connector which connects the SRS coil assembly. The
shorting clip shorts across the driver air bag assembly
circuits when driver air bag assembly connector is
disconnected.
The circuit to the driver air bag assembly is shorted in this
way to help prevent unwanted deployment of the air bag
when servicing the driver air bag assembly, the steering
column or other SRS components.
827RX001

SUPPLEMENTAL RESTRAINT SYSTEM 9J±6
There is a shorting clip on the passenger air bag
assembly connector which connects to the SRS harness.
The shorting clip shorts across the passenger air bag
assembly circuit when the passenger air bag assembly
connector is disconnected. The circuit to the passenger
air bag assembly is shorted in this way to help prevent
unwanted deployment of the air bag when servicing the
passenger air bag assembly, the instrument panel or
other SRS components.
827RY00001
Legend
(1) Passenger Air Bag Door
(2) Passenger Air Bag Assembly
(3) Passenger Air Bag Harness
(4) Cross Beam
Steering Column
The steering column absorbs energy and is designed to
compress in a frontal crash to decrease the chance of
injury to the driver.
431R200006
Knee Bolster
The knee bolsters are used to absorb energy to protec
knees and control the forward movement of the vehicle's
front seat occupants during a frontal crash, by limiting leg
movement.
740RS021
Definition
Air Bag
An inflatable cloth cushion designed to deploy in certain
frontal crashes. It supplements the protection offered by
the seat belts by distributing the impact load more evenly
over the vehicle occupant's head and torso.
Asynchronous
Performed in a nonperiodic fashion, (i. e., no defined time
or interval).
(B+)
Battery voltage, (B+) The voltage available at the battery
at the time of the indicated measurement. With the key
ªONº and the engine not running, the system voltage will
likely be between 12 and 12.5 volts. At idle the voltage
may be 14 to 16 volts. The voltage could be as low as 10
volts during engine cranking.
Bulb Check
The SDM will cause the ªAIR BAGº warning lamp to flash
seven times and then go ªOFFº whenever the ignition
switch transitions to the ON position from any other
ignition switch position and no malfunctions are detected.
ªCONTINUOUS MONITORINGº
Tests performed by the SDM on the SRS every 100
milliseconds while ªIgnition 1º voltage is in the normal
operating voltage range at the SDM.
Data Link Connector (DLC)
Formerly ªDLCº a connector which allows communication
with an external computer, such as a scan tool.
Datum Line
A base line parallel to the plane of the underbody or frame
from which all vertical measurements originate.

SUPPLEMENTAL RESTRAINT SYSTEM9J±9
Light blue color for driver air bag assembly.
Light blue color for passenger air bag assembly.
Use only the air bag assembly for AXIOM (UP) mod-
els.
CAUTION: Proper operation of the sensors and
Supplemental Restraint System (SRS) requires that
any repairs to the vehicle structure return it to the
original production configuration. Deployment
requires, at a minimum, replacement of the SDM, air
bag assembly and dimensional inspection of the
steering column. Any visible damage to the SDM
mounting bracket (s) requires replacement, and the
steering column must be dimensionally inspected,
whether deployment occurred or not.
Accident With Deployment ± Component
Replacement and Inspections
Certain SRS components must be replaced or inspected
for damage after a frontal crash involving air bag
deployment. Those components are:

Air bag assembly

SDM
CAUTION: Refer to ªSDM Replacement Guidelinesº
below for important information on SDM
replacement in both deployment and non
deployment crashes.

SRS coil assemblyÐInspect wiring and connector for
any signs of scorching, melting, or damage due to
excessive heat. Replace if damaged. Refer to SRS
coil assembly in this section.
Accident With or Without
DeploymentÐComponent Inspection
Certain SRS and restraint system components must be
inspected after any crash, whether the air bag deployed
or not. Those components are:

Steering columnÐDimensionally inspect per
ªChecking Steering Column for Accident Damageº in
3 of this workshop manual.

Knee bolsters and mounting pointsÐ Inspect for any
distortion, bending, cracking, or other damage.

I/P steering column reinforcement plateÐ Inspect for
any distortion, bending, cracking, or other damage.

I/P bracesÐInspect for any distortion, bending,
cracking, or other damage.

Seat belts and mounting pointsÐRefer to ªSeat
Beltsº in 10 of this workshop manual.
SDM Replacement Guidelines
SDM replacement policy requires replacement of SDM,
after crash involving air bag deployment when ªSRS
Warning Lampº turn ªONº, ªSRS Diagnosisº should be
done according to ªSection 9J1º.
Wiring Damage
If any SRS wire harness is damaged, it should be
replaced. Don't repair SRS. It is replace only.
SRS Connector (Plastic Body And
Terminal Metal Pin) Damage
If any connector or terminal in the SRS wire harness
(except pigtails) is damaged, it should be replaced.
SRS Wire Pigtail Damage
If the wiring pigtail (a wire or wires attached directly to the
device, not by a connector) is damaged, the entire
component (with pigtail) must be replaced. Examples of
ªpigtailº components are the driver air bag assembly, the
passenger air bag assembly, and the SRS coil assembly.
On±Vehicle Service
Service Precautions
WARNING: WHEN PERFORMING SERVICE ON OR
AROUND SRS COMPONENTS OR SRS WIRING,
FOLLOW THE PROCEDURES LISTED BELOW TO
TEMPORARILY DISABLE THE SRS. FAILURE TO
FOLLOW PROCEDURES COULD RESULT IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY OR OTHERWISE UNNEEDED SRS REPAIRS.
The SDM in DriverÐPassenger SRS can maintain
sufficient voltage to cause a deployment for up to 15
seconds after the ignition switch is turned ªOFFº, the
battery is disconnected, or the fuse powering the SDM is
removed.
Many of the service procedures require removal of the
ªSRS±1º fuse, and disconnection of the air bag assembly
from the deployment loop to avoid an accidental
deployment. If the air bag assembly is disconnected from
the deployment loop as noted in the ªDisabling the SRSº
procedure that follows, service can begin immediately
without waiting for the 15 second time period to expire.
Disabling The SRS
Removal
Turn the ignition switch to ªlockº and remove key.
1. Remove SRS fuse SRS±1, from left dash side lower
fuse block or disconnect battery.
2. Disconnect yellow 2±pin connector at the base of
steering column.
3. Remove glove box assembly, Refer to ªPassenger Air
Bag Assembly Replacementº in section 9J±28.
4. Disconnect yellow 2±pin connector behind the glove
box assembly.
CAUTION: With the ªSRS±1º fuse removed and
ignition switch ªONº, ªAIR BAGº warning lamp will
be ªONº. This is normal operation and does not
indicate an SRS malfunction.
Enabling The SRS
Installation
CAUTION: Never use the air bag assembly from
another vehicle and difference model year air bag
assembly.
