LIGHTING SYSTEM8A±13

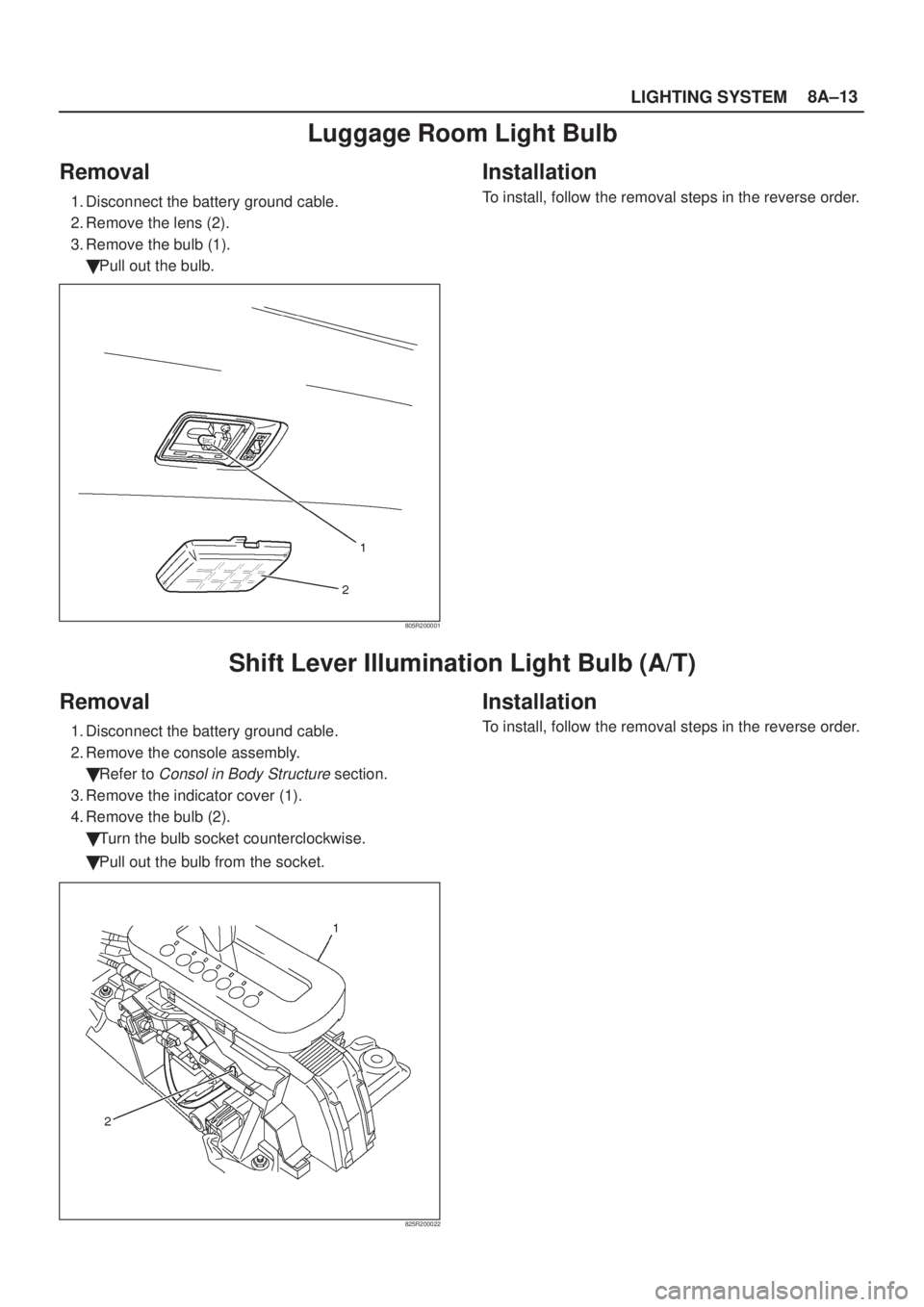

Luggage Room Light Bulb
Removal
1. Disconnect the battery ground cable.
2. Remove the lens (2).
3. Remove the bulb (1).

Pull out the bulb.
805R200001
Installation
To install, follow the removal steps in the reverse order.
Shift Lever Illumination Light Bulb (A/T)
Removal
1. Disconnect the battery ground cable.
2. Remove the console assembly.

Refer to
Consol in Body Structure section.
3. Remove the indicator cover (1).
4. Remove the bulb (2).

Turn the bulb socket counterclockwise.

Pull out the bulb from the socket.
825R200022
Installation
To install, follow the removal steps in the reverse order.

ENTERTAINMENT8C±1
AXIOM
BODY AND ACCESSORIES
ENTERTAINMENT
CONTENTS
Service Precaution 8C±1. . . . . . . . . . . . . . . . . . . . . .
Cigarette Lighter 8C±2. . . . . . . . . . . . . . . . . . . . . . . .
General Description 8C±2. . . . . . . . . . . . . . . . . . . . .
Removal 8C±2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rod Type Antenna 8C±3. . . . . . . . . . . . . . . . . . . . . .
Removal 8C±3. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±3. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessory Socket 8C±4. . . . . . . . . . . . . . . . . . . . . . .
Front Accessory Socket 8C±4. . . . . . . . . . . . . . . .
Removal 8C±4. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±4. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Accessory Socket 8C±4. . . . . . . . . . . . . . . .
Removal 8C±4. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±4. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio 8C±5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8C±5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±5. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speaker 8C±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Speaker 8C±6. . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8C±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±6. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front Tweeter Assembly 8C±6. . . . . . . . . . . . . . . .
Removal 8C±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±6. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Door Speaker 8C±6. . . . . . . . . . . . . . . . . . . .
Removal 8C±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear Tweeter Assembly 8C±7. . . . . . . . . . . . . . . .
Removal 8C±7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Installation 8C±7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horn 8C±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8C±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Display (MID) 8C±8. . . . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8C±8. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±8. . . . . . . . . . . . . . . . . . . . . . . . . . . .
MID Control Unit 8C±9. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8C±9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±9. . . . . . . . . . . . . . . . . . . . . . . . . . . .
GPS Control Unit 8C±10. . . . . . . . . . . . . . . . . . . . . . . .
Removal 8C±10. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8C±10. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Self-Diagnosis 8C±11. . . . . . . . . . . . . . . . . . . . . . . . . .
Self-Diagnosis Flow Chart±1 8C±11. . . . . . . . . . . .
Self-Diagnosis Flow Chart±2 (Audio) 8C±12. . . . .
Self-Diagnosis Flow Chart±3 (Display) 8C±13. . .
Self-Diagnosis Flow Chart±4 (MID) 8C±14. . . . . .
Audio Self-Diagnosis 8C±15. . . . . . . . . . . . . . . . . . .
Display Self-Diagnosis 8C±16. . . . . . . . . . . . . . . . .
MID Self-Diagnosis 8C±17. . . . . . . . . . . . . . . . . . . .
Symptom Diagnosis 8C±18. . . . . . . . . . . . . . . . . . . . .
MID Not Appears 8C±18. . . . . . . . . . . . . . . . . . . . . .

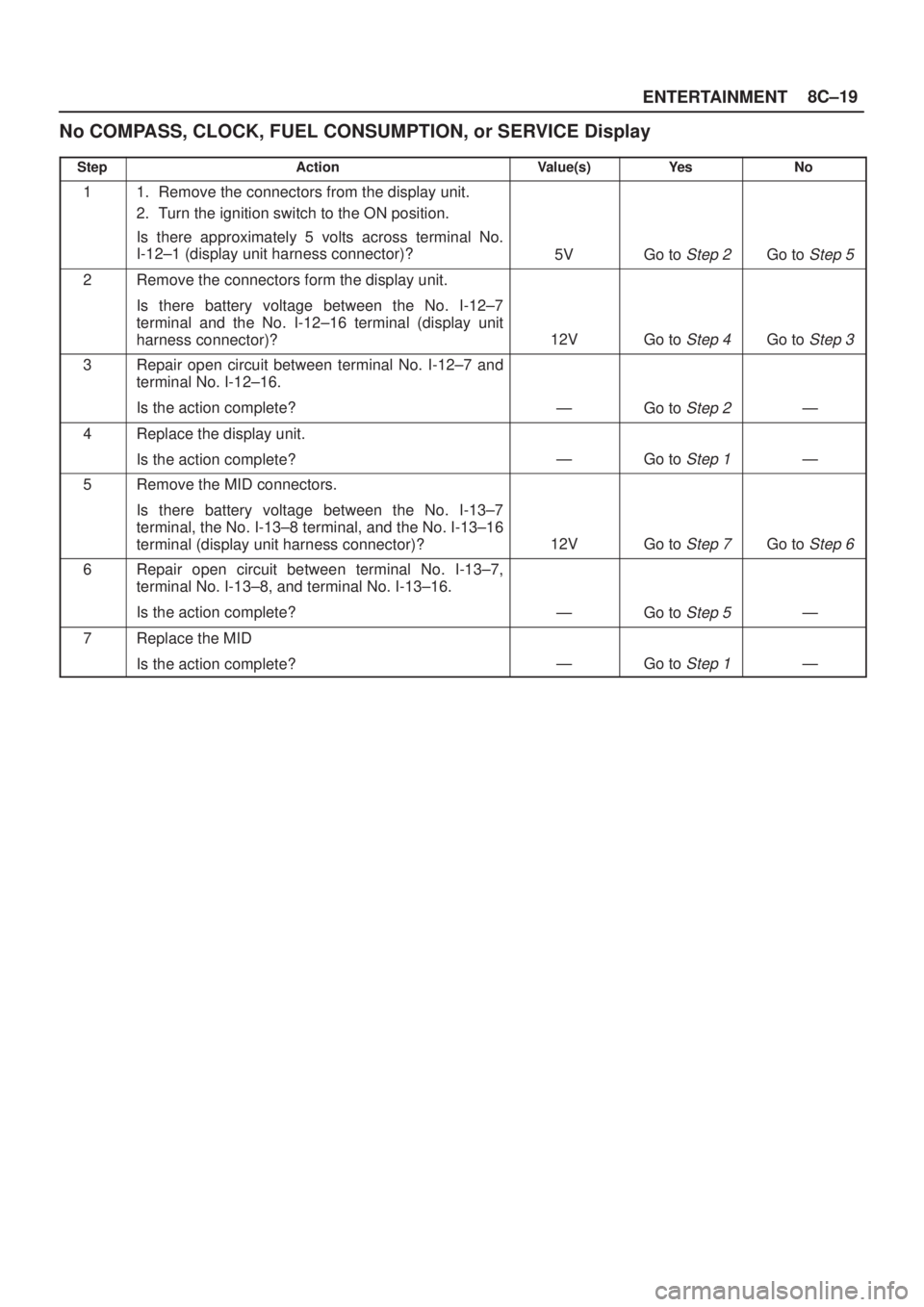

No COMPASS, CLOCK, FUEL
CONSUMPTION, or SERVICE Display 8C±19. .
No COMPASS Display 8C±20. . . . . . . . . . . . . . . . .
No SERVICE Display 8C±20. . . . . . . . . . . . . . . . . .
Other Trouble Symptom 8C±21. . . . . . . . . . . . . . . .
MID Circuit 8C±22. . . . . . . . . . . . . . . . . . . . . . . . . . .
Harness Connector Faces 8C±23. . . . . . . . . . . . . .
Service Precaution
WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.
CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fasteners joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fasteners.
When you install fasteners, use the correct
tightening sequence and specifications. Following
these instructions can help you avoid damage to
parts and systems.

ENTERTAINMENT8C±3

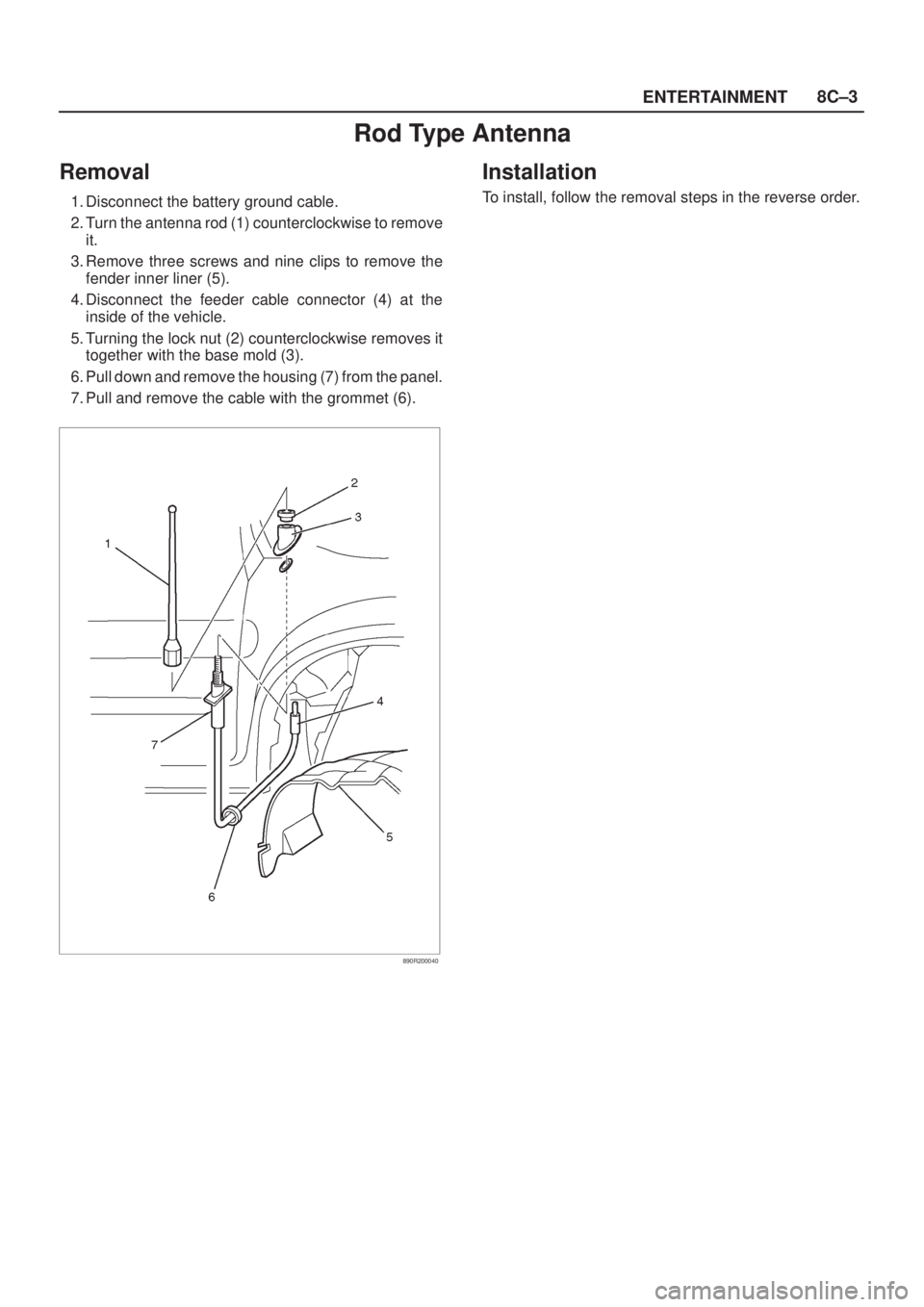

Rod Type Antenna
Removal
1. Disconnect the battery ground cable.
2. Turn the antenna rod (1) counterclockwise to remove
it.
3. Remove three screws and nine clips to remove the
fender inner liner (5).
4. Disconnect the feeder cable connector (4) at the
inside of the vehicle.
5. Turning the lock nut (2) counterclockwise removes it
together with the base mold (3).
6. Pull down and remove the housing (7) from the panel.
7. Pull and remove the cable with the grommet (6).
890R200040
Installation
To install, follow the removal steps in the reverse order.

ENTERTAINMENT8C±15
Audio Self-Diagnosis
StepActionValue(s)Ye sNo
11. Simultaneously press and hold the RESET key and
the CLOCK key (on the display panel).
2. Turn the ignition switch to the ON position.
Does DIAG appear on the display screen?
ÐGo to Step 2
Check power
supply and
component
connections.
Start
self-diagnosis
again.
2Press and release the SERVICE key (1 time only).
Does DIAG AUDIO appear on the display?
ÐGo to Step 3Go to Step 11
3Press and release the SERVICE key (1 time only) to
check tape connections.
Does TAPE OK appear on the display?
ÐGo to Step 4
On NG display,
Go to
Step 11
4Press and release the SERVICE key (1 time only) to
check CD changer connections.
Does CD CHG OK appear on the display?
ÐGo to Step 5
On NG display,
Go to
Step 11
5Press and release the SERVICE key (1 time only) to
check communication with A/C unit.
Does A/C DATA OK appear on the display?
ÐGo to Step 9
On NG display,
Go to
Step 6
6Is A/C DATA ERR1(abnormal display data line)
displayed?
Ð
Refer to A/C
self-diagnosis
Go to Step 7
7Is A/C DATA ERR2 (abnormal CLOCK data line)
displayed?
Ð
Refer to A/C
self-diagnosis
Go to Step 8
8Is A/C DATA ER3 (abnormal SW data line) displayed?ÐGo to Step 11Ð
9Press and release the SERVICE key (1 time only) to
display the A/C unit error history.
Is the action complete?
ÐGo to Step 10Ð
101. Press and release the SERVICE key (1 time only) to
change to the key diagnosis mode.
2. Press and release each key.
NOTE: As a key is pressed, its name should appear on
the display. The A/C LED should blink at 1±second
intervals.
Did the events described in Step 2 occur?
ÐGo to Step 12Go to Step 11
11Replace the audio unit.
Is the action complete?
ÐGo to Step 1Ð
12Press and release the ON/OFF key.
Is the action complete?
ÐGo to Step 1Go to Step 13
13Press and release the SERVICE key (1 time only).
Is the action complete?
ÐGo to Step 3Ð

8C±16ENTERTAINMENT
Display Self-Diagnosis
StepActionValue(s)Ye sNo
11. Simultaneously press and hold the RESET key and
the CLOCK key (on the display panel).
2. Turn the ignition switch to the ON position.
Does DIAG appear on the display screen?
ÐGo to Step 2
Check power
supply and
component
connections.
Start
self-diagnosis
again.
2Press and release the RESET key (1 time only).
Does DIAG DISP appear on the display?
ÐGo to Step 3Go to Step 10
3Press and release the RESET key (1 time only) to start
audio communications diagnosis.
Does AUD DAT OK appear on the display?
ÐGo to Step 5
On NG display,
Go to
Step 4
4Replace the audio unit.
Is the action complete?
ÐGo to Step 1Ð
51. Press and release the RESET key (1 time only).
2. Confirm that the trouble history is displayed on the
screen.
Is the trouble history displayed?
ÐGo to Step 6Ð
6Press and release the RESET key (1 time only) to start
MID communications diagnosis.
Does MID DATA OK appear on the display?
ÐGo to Step 8
On NG display,
Go to
Step 7
7Replace the MID unit.
Is the action complete?
ÐGo to Step 1Ð
81. Press and release the RESET key (1 time only) to
display MID communications error history.
2. Confirm that the error history is displayed on the
screen.
Is the error history displayed?
ÐGo to Step 9Ð
9Press and release the RESET key (1 time only) to open
all segments.
Do all segments light?
ÐGo to Step 11Go to Step 10
10Replace the display unit.
Is the action complete?
ÐGo to Step 1Ð
11Press and release the ON/OFF key to complete display
self-diagnosis.
Is the action complete?
ÐGo to Step 1Go to Step 12
12Press and release the SERVICE key.
Is the action complete?
ÐGo to Step 3Ð

ENTERTAINMENT8C±17
MID Self-Diagnosis
StepActionValue(s)Ye sNo
11. Simultaneously press and hold the RESET key and
the CLOCK key (on the display panel).
2. Turn the ignition switch to the ON position.
Does DIAG appear on the display screen?
ÐGo to Step 2
Check power
supply and
components
connections.
Start
self-diagnosis
again.
2Press and release the CLOCK key (1 time only).
Does DIAG MID appear on the display?
ÐGo to Step 3Ð
3Press and release the CLOCK key (1 time only) to
begin GPS communications diagnosis.
Does GPS OK appear on the display?
ÐGo to Step 5
On ERROR1,
Go to
Step 4
4Repair open circuit between MID and GPS receiver
(I-13±2 ~ I-16±5).
Is the action complete?
ÐGo to Step 1Ð
5Press and release the CLOCK key (1 time only) to
begin fuel injection pulse diagnosis.
Does F-INJ OK appear on the display?
ÐGo to Step 7
On ERROR2,
Go to
Step 6
6Repair open fuel injection pulse circuit (I-13±5 ~
E35±8).
Is the action complete?
ÐGo to Step 1Ð
7Press and release the CLOCK key (1 time only) to
begin fuel remainder pulse diagnosis.
Does F-SENS OK appear on the display?
ÐGo to Step 9
On ERROR3,
Go to
Step 9
8Repair open fuel remainder pulse circuit (I-13±6 ~
E35±48).
Is the action complete?
ÐGo to Step 1Ð
9Press and release the CLOCK key (1 time only) to
begin gyro-sensor diagnosis.
Does GYRO OK appear on the display?
ÐGo to Step 11
On ERROR4,
Go to
Step 10
10Replace the MID control unit.
Is the action complete?
ÐGo to Step 1Ð
111. Press and release the CLOCK key (1 time only) to
begin vehicle speed sensor diagnosis.
2. Drive vehicle.
Does SPEED OK appear on the display?
ÐGo to Step 13
On ERROR5,
Go to
Step 12
12Repair open vehicle speed sensor circuit (I-13±15 ~
E43±3).
Is the action complete?
ÐGo to Step 1Ð
13Press and release ON/OFF key to return to start of
diagnosis screen.
Is the action complete?
ÐGo to Step 1Go to Step 14
14Press and release the SERVICE key.
Is the action complete?
ÐGo to Step 2Ð

ENTERTAINMENT8C±19
No COMPASS, CLOCK, FUEL CONSUMPTION, or SERVICE Display
StepActionValue(s)Ye sNo
11. Remove the connectors from the display unit.
2. Turn the ignition switch to the ON position.
Is there approximately 5 volts across terminal No.
I-12±1 (display unit harness connector)?
5VGo to Step 2Go to Step 5
2Remove the connectors form the display unit.
Is there battery voltage between the No. I-12±7
terminal and the No. I-12±16 terminal (display unit
harness connector)?
12VGo to Step 4Go to Step 3
3Repair open circuit between terminal No. I-12±7 and
terminal No. I-12±16.
Is the action complete?
ÐGo to Step 2Ð
4Replace the display unit.
Is the action complete?
ÐGo to Step 1Ð
5Remove the MID connectors.
Is there battery voltage between the No. I-13±7
terminal, the No. I-13±8 terminal, and the No. I-13±16
terminal (display unit harness connector)?
12VGo to Step 7Go to Step 6
6Repair open circuit between terminal No. I-13±7,
terminal No. I-13±8, and terminal No. I-13±16.
Is the action complete?
ÐGo to Step 5Ð
7Replace the MID
Is the action complete?
ÐGo to Step 1Ð

8D±1
WIRING SYSTEM
AXIOM
BODY AND ACCESSORIES
WIRING SYSTEM
CONTENTS
Fuse, Relay and Diode 8D±2. . . . . . . . . . . . . . . . . . .
Relay / Fuse Box Location 8D±2. . . . . . . . . . . . . .
Relay / Fuse Box (Instrument Panel) 8D±3. . . . .
Relay / Fuse Box (Engine Room) 8D±4. . . . . . . .
Circuit Diagram 8D±5. . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Block Circuit 8D±5. . . . . . . . . . . . . . . . . . . . .
Ground Location (Engine Room) 8D±6. . . . . . . .
Ground Location (Cabin) 8D±7. . . . . . . . . . . . . . .
Starter and Generator 8D±8. . . . . . . . . . . . . . . . . .
PCM±1 8D±9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PCM±2 8D±10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight and Fog Light 8D±11. . . . . . . . . . . . . . . .
Turn, Hazard, Stop, Back Up, Horn and
A/T Shift Lock 8D±12. . . . . . . . . . . . . . . . . . . . . . . .
Dome Light, Luggage Room Light, Courtesy
Light, Spot Light, and Warning Buzzer 8D±13. . .
Power Window and Door Lock 8D±14. . . . . . . . . .
Alarm and Relay Control Unit 8D±15. . . . . . . . . . . Rear Wiper/Washer and Rear Defogger 8D±16. .
Audio, Clock, Cigarette Lighter and
ACC Socket 8D±17. . . . . . . . . . . . . . . . . . . . . . . . . .
MID 8D±18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Door Mirror 8D±19. . . . . . . . . . . . . . . . . . . . . . . . . . .
Meter 8D±20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Anti-theft with Keyless Entry 8D±21. . . . . . . . . . . .
Air Conditioning 8D±22. . . . . . . . . . . . . . . . . . . . . . .
ABS 8D±23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SRS±Air Bag 8D±24. . . . . . . . . . . . . . . . . . . . . . . . . .
Intelligent Suspension 8D±25. . . . . . . . . . . . . . . . . .
T.O.D 8D±26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sunroof 8D±27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Illumination Light 8D±28. . . . . . . . . . . . . . . . . . . . . .
Windshield Wiper and Washer 8D±29. . . . . . . . . .
Power Seat 8D±30. . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat Heater 8D±31. . . . . . . . . . . . . . . . . . . . . . . . . . .
