2002 Hyundai Grandeur Owner's Manual

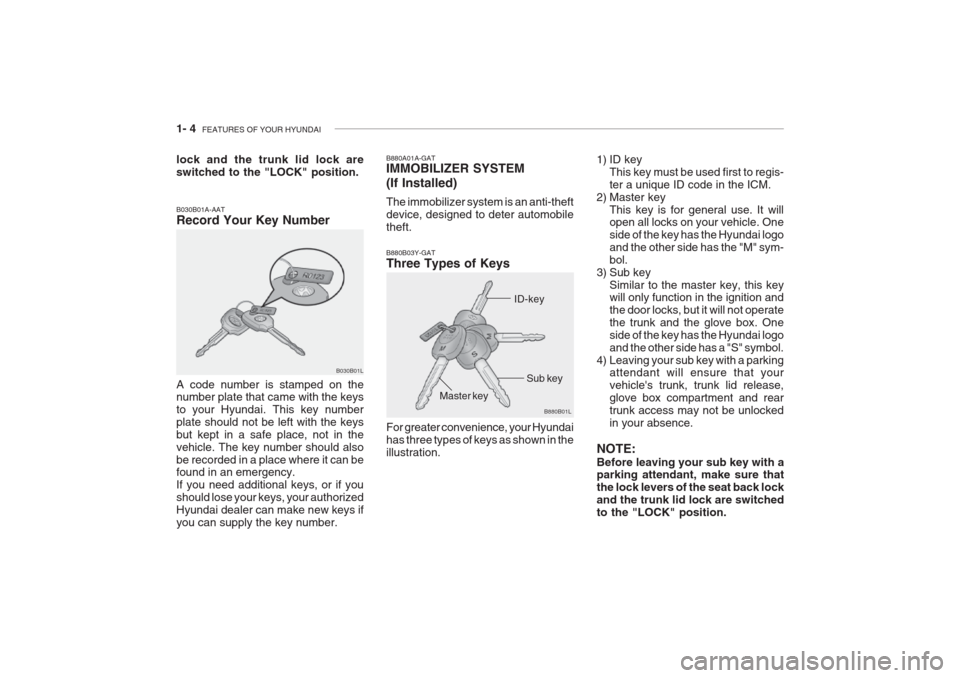

1- 4 FEATURES OF YOUR HYUNDAI
B030B01L B880A01A-GAT IMMOBILIZER SYSTEM (If Installed) The immobilizer system is an anti-theft device, designed to deter automobiletheft.
B030B01A-AAT Record Your Key Number A code number is stamped on the number plate that came with the keys to your Hyundai. This key numberplate should not be left with the keysbut kept in a safe place, not in thevehicle. The key number should alsobe recorded in a place where it can be found in an emergency. If you need additional keys, or if youshould lose your keys, your authorizedHyundai dealer can make new keys ifyou can supply the key number. B880B03Y-GAT Three Types of Keys
1) ID key
This key must be used first to regis- ter a unique ID code in the ICM.
2) Master key This key is for general use. It will open all locks on your vehicle. One side of the key has the Hyundai logoand the other side has the "M" sym-bol.
3) Sub key Similar to the master key, this key will only function in the ignition and the door locks, but it will not operatethe trunk and the glove box. Oneside of the key has the Hyundai logoand the other side has a "S" symbol.
4) Leaving your sub key with a parking attendant will ensure that yourvehicle's trunk, trunk lid release,glove box compartment and reartrunk access may not be unlockedin your absence.
NOTE: Before leaving your sub key with a parking attendant, make sure that the lock levers of the seat back lockand the trunk lid lock are switchedto the "LOCK" position.
For greater convenience, your Hyundaihas three types of keys as shown in theillustration. ID-key
Master key Sub key
B880B01L
lock and the trunk lid lock are switched to the "LOCK" position.

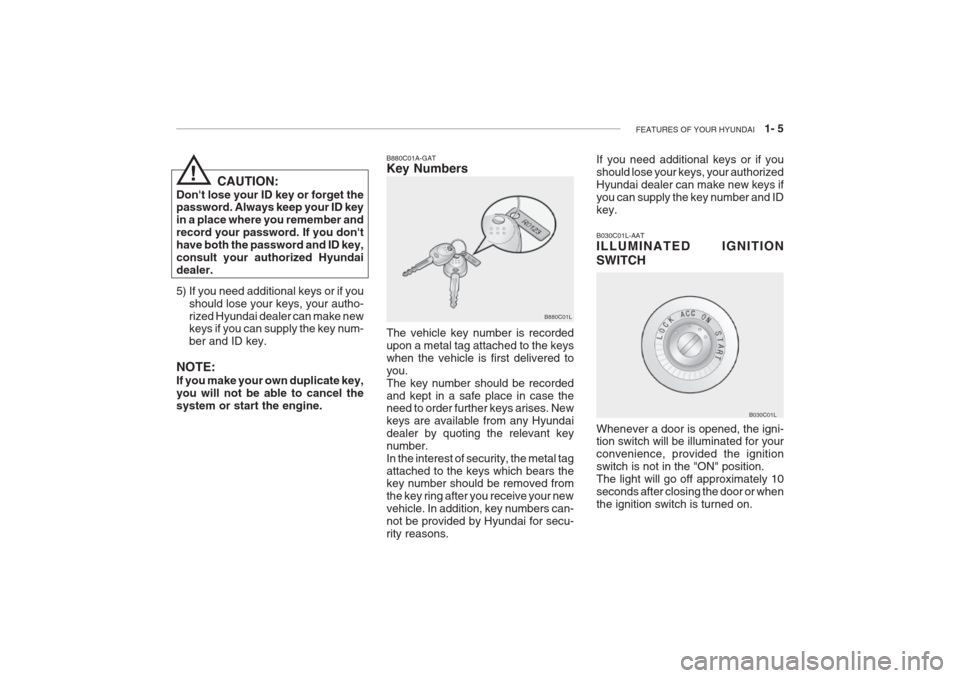

FEATURES OF YOUR HYUNDAI 1- 5
B880C01A-GAT Key Numbers The vehicle key number is recorded upon a metal tag attached to the keyswhen the vehicle is first delivered toyou.The key number should be recordedand kept in a safe place in case the need to order further keys arises. New keys are available from any Hyundaidealer by quoting the relevant keynumber.In the interest of security, the metal tagattached to the keys which bears the key number should be removed from
the key ring after you receive your newvehicle. In addition, key numbers can-not be provided by Hyundai for secu-rity reasons. B880C01L
CAUTION:
Don't lose your ID key or forget the password. Always keep your ID key in a place where you remember andrecord your password. If you don'thave both the password and ID key,consult your authorized Hyundaidealer.
!
5) If you need additional keys or if you should lose your keys, your autho- rized Hyundai dealer can make new keys if you can supply the key num- ber and ID key.
NOTE: If you make your own duplicate key, you will not be able to cancel thesystem or start the engine. If you need additional keys or if youshould lose your keys, your authorizedHyundai dealer can make new keys ifyou can supply the key number and IDkey.
B030C01L-AAT ILLUMINATED IGNITION SWITCH Whenever a door is opened, the igni- tion switch will be illuminated for your convenience, provided the ignitionswitch is not in the "ON" position.The light will go off approximately 10seconds after closing the door or whenthe ignition switch is turned on.
B030C01L

1- 6 FEATURES OF YOUR HYUNDAI
UNLOCK
LOCK
HXG018
B040A01A-AAT DOOR LOCKS
B040B01A-AATLocking and unlocking front doors with a key
o The door can be locked or unlocked
with a key.
o Lock the door by turning the key toward the front of the vehicle and unlock it by turning the key towardthe rear.
!
B040C03L
B040C02Y-AAT Locking From the Outside The doors can be locked without a key. To lock the doors, first push the insidelock switch to the "LOCK" position, sothat the red mark on the switch is notvisible, then closed the door.The door will not lock if the key is left in the ignition switch when the front doors close. This is normal. NOTE:
o When locking the door this way,
be careful not to lock the door with the ignition key left in thevehicle.
WARNING:
o Unlocked doors can be danger- ous. Before you drive away (es-pecially if there are children inthe car), be sure that all the doorsare securely closed and lockedso that the doors cannot be inad- vertently opened from the inside. This helps ensure that the doorswill not be opened accidentally.Also, when combined with theproper use of seat belts, lockingthe doors helps keep occupants from being ejected from the car in case of an accident.
o Before opening the door, always
look for and avoid oncoming traf-fic.

FEATURES OF YOUR HYUNDAI 1- 7
o To protect against theft, always
remove the ignition key, close all windows, and lock all doors andthe trunk lid when leaving yourvehicle unattended.
Your Hyundai is equipped with a "child-
protector" rear door lock assembly.When the lock mechanism is engaged,the rear door cannot be opened fromthe inside. Its use is recommendedwhenever there are small children in the rear seat. To engage the child-protector feature so that the door cannot be openedfrom the inside, move the child-protec-tor lever to the " " position and close the door. Move the lever to the oppo- site direction of the " " position whennormal door operation is desired.
B040D01S-AAT Locking From the Inside To lock the doors from the inside, simply close the door and push thelock switch to the "LOCK" position.When this is done, neither the outside nor the inside door handle can be used. NOTE: When the door is locked, the red mark on the switch is not visible.
HXGS226
LOCK
UNLOCK
B040E03L
B040E03A-AAT CHILD-PROTECTOR REAR DOOR LOCKIf you wish to be able to open the door from the outside, the outside doorhandle will function normally.
B040G01L-AAT Central Door Locks The central door locking switch is lo- cated on the driver's arm rest. It isoperated by depressing the door lockswitch. If any door is open when the switch is depressed, the door will re- main locked when closed. NOTE:
o When pushing the front portion
of the driver's door lock switch, all vehicle doors will lock. B040G02L-1
LOCK
UNLOCK

1- 8 FEATURES OF YOUR HYUNDAI
B070A01S-AAT THEFT-ALARM SYSTEM (If installed) This system is designed to provide protection from unauthorized entry intothe car. This system is operated inthree stages: the first is the "Armed"stage, the second is the "Alarm" stage, and the third is the "Disarmed" stage. If triggered, the system provides anaudible alarm siren. B070B03Y-AAT Armed Stage Park the car and stop the engine. Arm the system as described below.
1) Remove the ignition key from the
ignition switch.
2) Make sure that the engine hood and
trunk lid are locked.
3) Lock the doors using the transmitter
of the keyless entry system.
o When pushing the rear portion of
the switch, all vehicle doors will unlock.
!
After completion of the steps above, the turn signal light will blink once toindicate that the system is armed. NOTE:
1) If any door, trunk lid or engine
hood remains open, the system will not be armed.
2) If this happens, rearm the system
as described above.
CAUTION:
Do not arm the system until allpassengers have left the car. If thesystem is armed while apassenger(s) remains in the car, the alarm may be activated when the remaining passenger(s) leavesthe car.HXGS123
B070C03L-AAT Alarm Stage The alarm will be activated if any of the following occurs while the car is parkedand the system is armed.
1) A front or rear door is opened with-
out using the transmitter.
2) The trunk lid is opened without us-
ing the transmitter.
3) The engine hood is opened.The turn signal light will blink continu- ously and the siren will sound for 27seconds. (EC only/Except E.C: 3times). To turn off the system, unlockthe door or trunk lid with the transmit-ter.

FEATURES OF YOUR HYUNDAI 1- 9
HXG117
UNLOCK
LOCK
TRUNKCAUTION:
Avoid trying to start the engine while the system is armed. B070D03L-AAT Disarmed Stage The system will be disarmed when the following step is taken: The driver's or passenger's door is unlocked by depressing the " "button on the transmitter.After completion of the steps above,the turn signal light will blink twice toindicate that the system is disarmed. NOTE: Once the system has been dis- armed, it can not be rearmed exceptby repeating the arming procedures.
Keyless Entry System Locking doors
1. Close all doors.
2. Push the " " button on the
transmitter.
3. All doors will lock and the turn signal light will blink once to indicate that the system is armed.
Unlocking doors
1. Push the " " button on the transmitter.
2. All doors will unlock and the turn
signal light will blink twice to indicate that the system is disarmed.
Releasing the trunk lid Push the " " button on the trans- mitter for longer than 1 second.
!
CAUTION:
Only the transmitter can disarm the armed stage. If the transmitter doesnot disarm the system, it is neces-sary to take the following steps;
1. Unlock the door with the key, which will cause the alarm to be activated.
2. Insert the key in the ignition key cylinder and turn the ignition key to "ON" position.
3. Wait for 30 seconds. After completing the steps above, the system will be disarmed.
!

1- 10 FEATURES OF YOUR HYUNDAI
2. Remove the old battery from the
case and note the polarity. Make sure the polarity of the new battery is the same(+side facing down), theninsert it in the transmitter. HEF193
Battery
1. Separate the case with a blade screwdriver as shown in the illustra- tion. HEF-192A
Screwdriver Case
B070E02HP-GAT Replacing the battery When the transmitter's battery begins to get weak, it may take several pusheson the button to lock or unlock thedoors, and the LED will not light. Re-place the battery as soon as possible. Battery type : CR2032 Replacement instructions:B060A02L-AAT POWER WINDOWS
Open Close
The power windows operate when the ignition key is in the "ON" position. Themain switches are located on thedriver's armrest and control the frontand rear windows on both sides of the vehicle. The windows may be opened by depressing the appropriate windowswitch and closed by pulling up theswitch. To open the window on thedriver's side, press the switch(1) half-way down. The window moves as long as the switch is operated. To fully open the driver's window automatically, pressthe switch fully down. In automaticoperation, the window will fully open HXG025-1
(1)
(2)

FEATURES OF YOUR HYUNDAI 1- 11
WARNING:
1) Be careful that someone's head, hands and body are not trapped by a closing window.
2) Never try to operate the main
switch on the driver's door andthe individual door windowswitch in opposing directions at the same time. If this is done, the window will stop and cannot beopened or closed.
3) Do not leave children alone in the car. Always remove the ignitionkey for their safety. HXG029
Close
Open
HXG179
B080B01A-AAT Adjusting Seat Forward and Rearward
B080A01A-AAT ADJUSTABLE FRONT SEATS
In order to prevent operation of the windows, a window lock switch(2) is provided on the armrest of the driver's door. To disable the power windows,press the window lock switch. To re-vert to normal operation, press thewindow lock switch a second time. Thepower windows can be operated for 30 seconds after the ignition key is turned to the "ACC" or the "LOCK" position.However while the front doors areopened with the key turned to "LOCK"and removed, the power windows can-not be operated.
HXG129-1
even if you let go of the switch. To stopat the desired opening, pull up andrelease the switch.
!WARNING:
Never attempt to adjust the seat while the vehicle is moving. Thiscould result in loss of control, or an accident which may cause death, serious injury, or property damage.
!
