Page 2153 of 2399

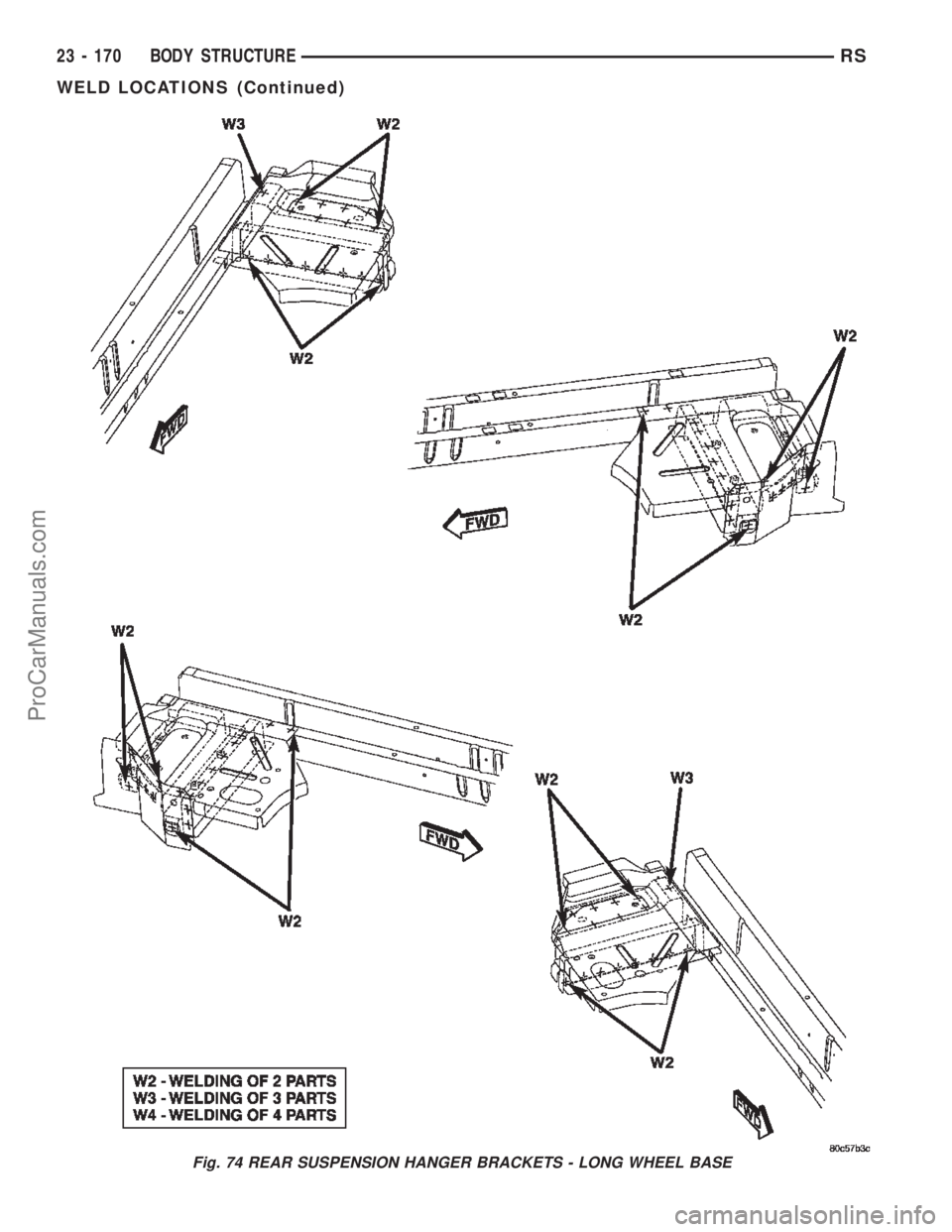

CHRYSLER VOYAGER 2002 Service Manual Fig. 74 REAR SUSPENSION HANGER BRACKETS - LONG WHEEL BASE 23 - 170 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2154 of 2399

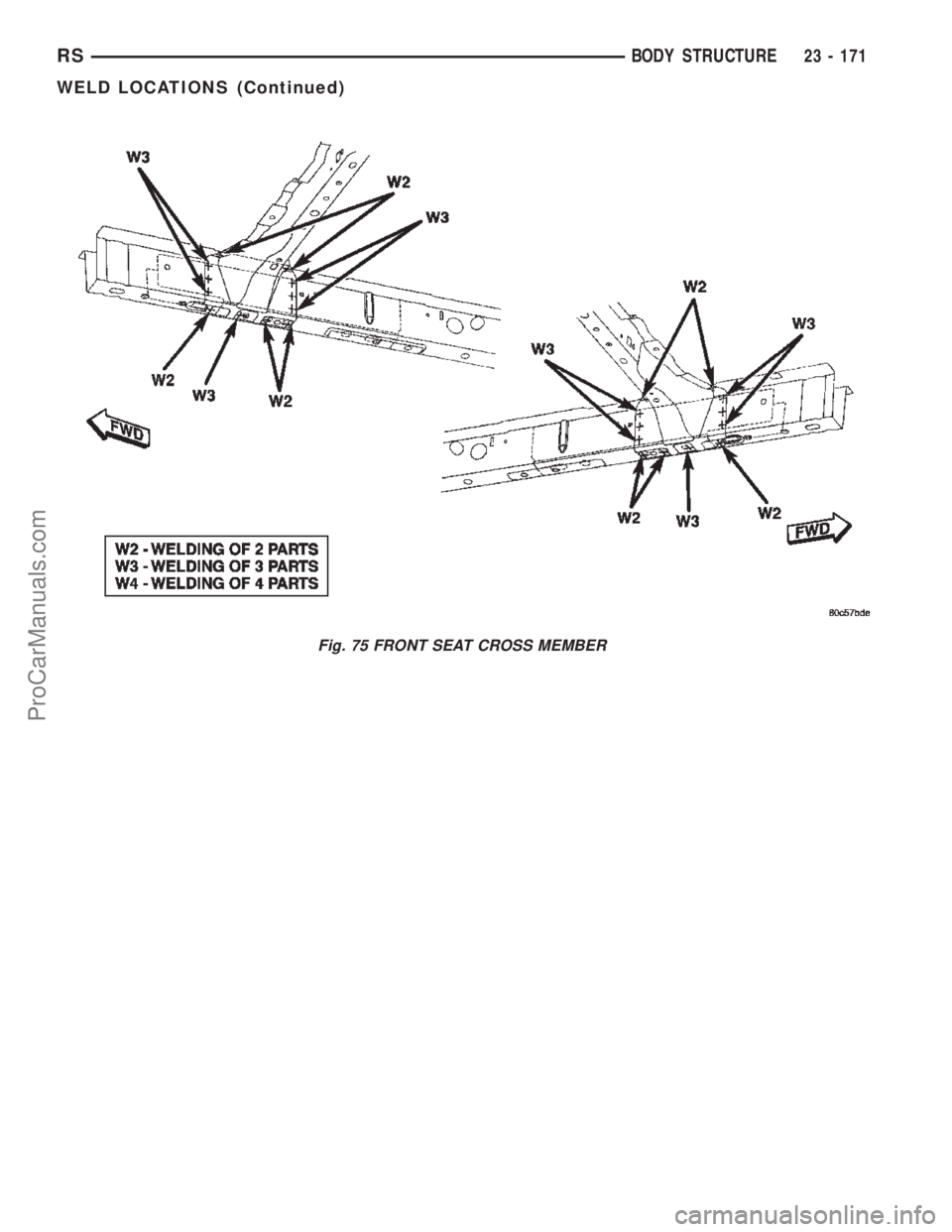

CHRYSLER VOYAGER 2002 Service Manual Fig. 75 FRONT SEAT CROSS MEMBER RSBODY STRUCTURE23 - 171 WELD LOCATIONS (Continued) ProCarManuals.com

Page 2155 of 2399

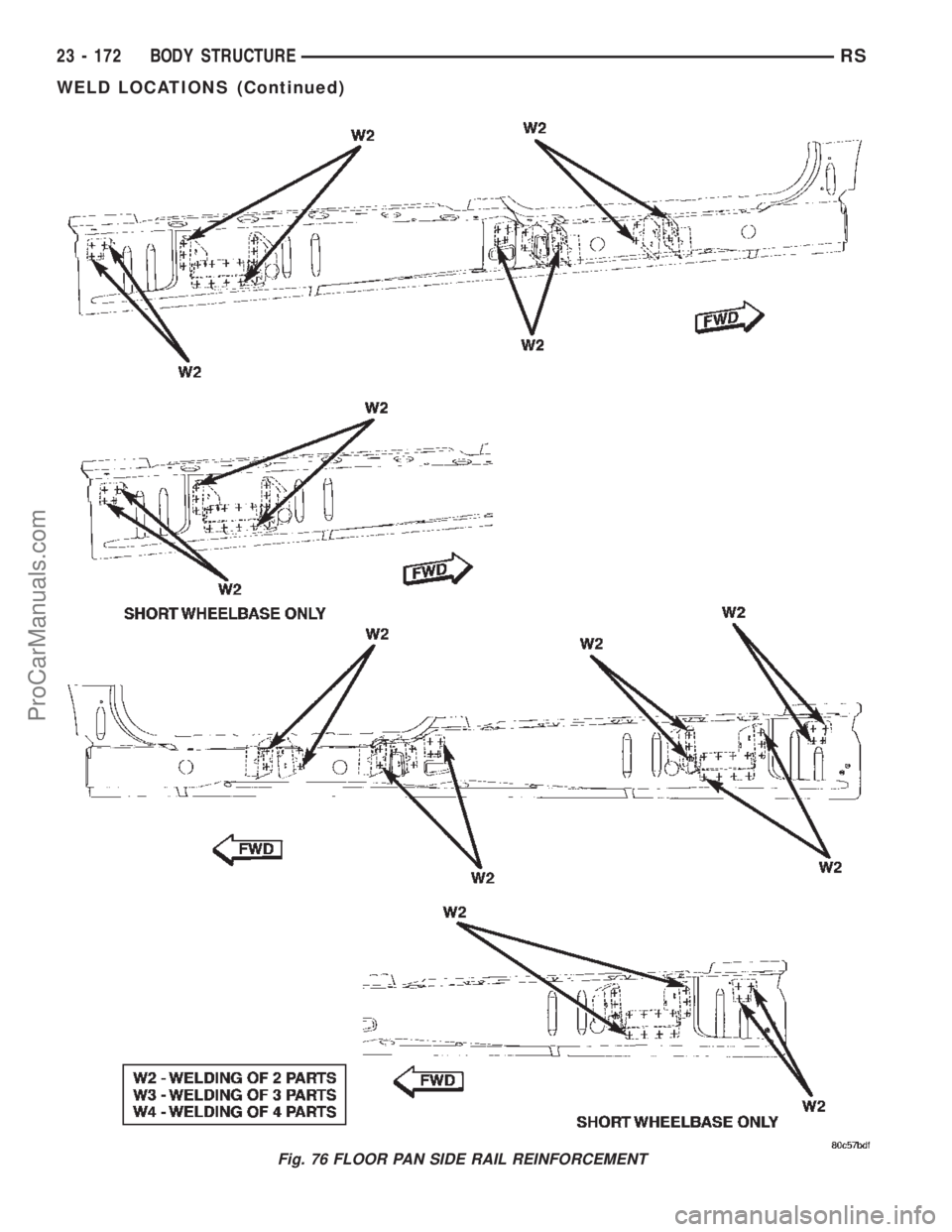

CHRYSLER VOYAGER 2002 Service Manual Fig. 76 FLOOR PAN SIDE RAIL REINFORCEMENT 23 - 172 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2156 of 2399

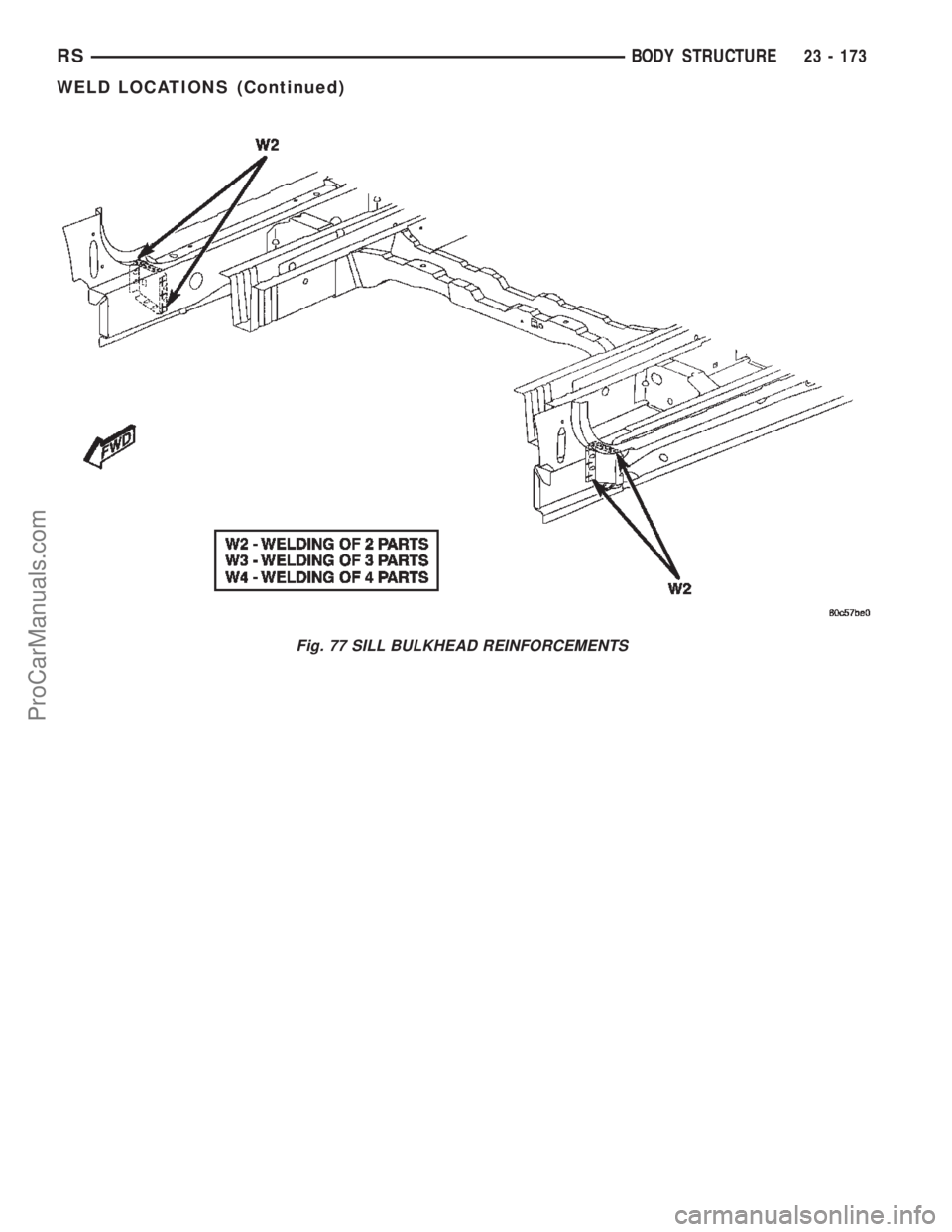

CHRYSLER VOYAGER 2002 Service Manual Fig. 77 SILL BULKHEAD REINFORCEMENTS RSBODY STRUCTURE23 - 173 WELD LOCATIONS (Continued) ProCarManuals.com

Page 2157 of 2399

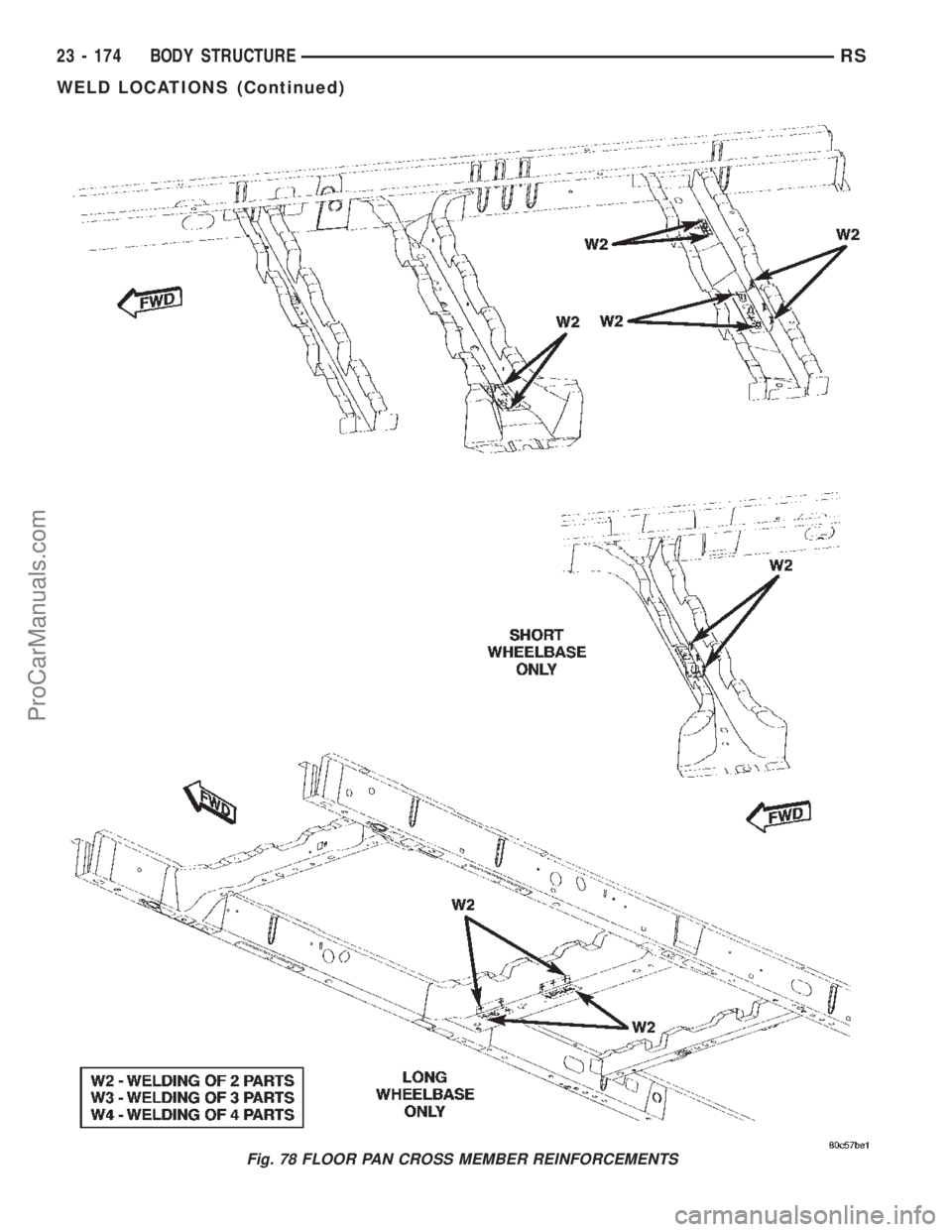

CHRYSLER VOYAGER 2002 Service Manual Fig. 78 FLOOR PAN CROSS MEMBER REINFORCEMENTS 23 - 174 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2158 of 2399

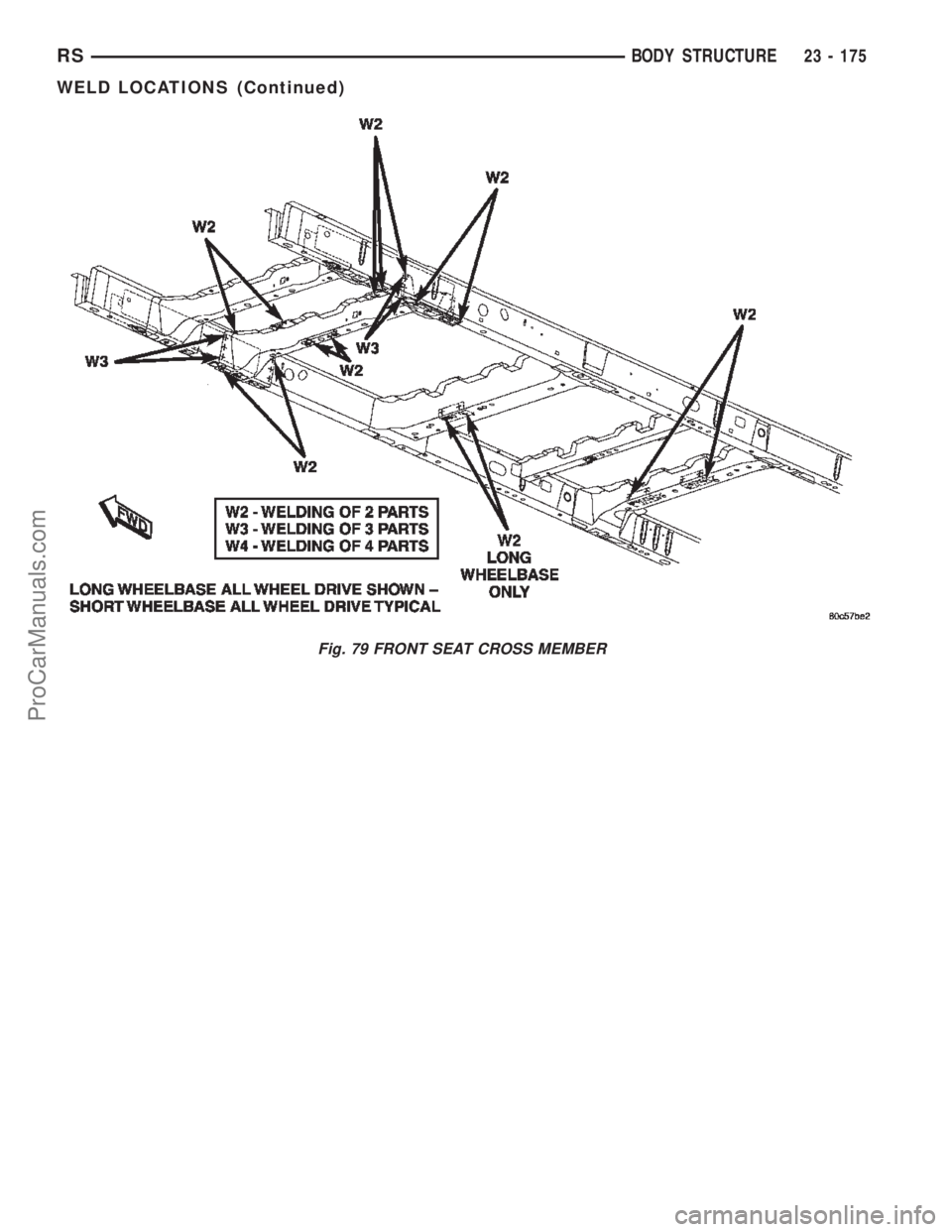

CHRYSLER VOYAGER 2002 Service Manual Fig. 79 FRONT SEAT CROSS MEMBER RSBODY STRUCTURE23 - 175 WELD LOCATIONS (Continued) ProCarManuals.com

Page 2159 of 2399

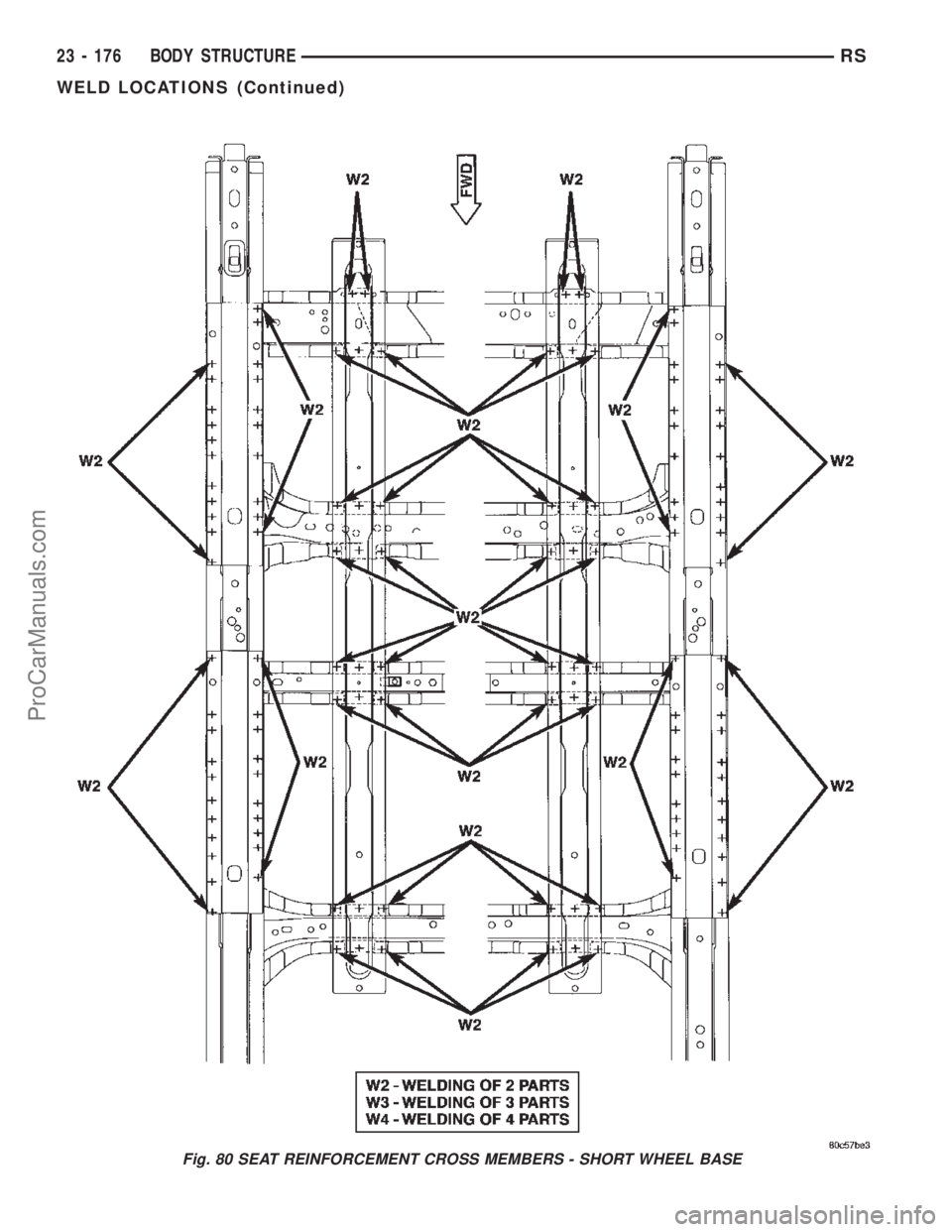

CHRYSLER VOYAGER 2002 Service Manual Fig. 80 SEAT REINFORCEMENT CROSS MEMBERS - SHORT WHEEL BASE 23 - 176 BODY STRUCTURERS WELD LOCATIONS (Continued) ProCarManuals.com

Page 2160 of 2399

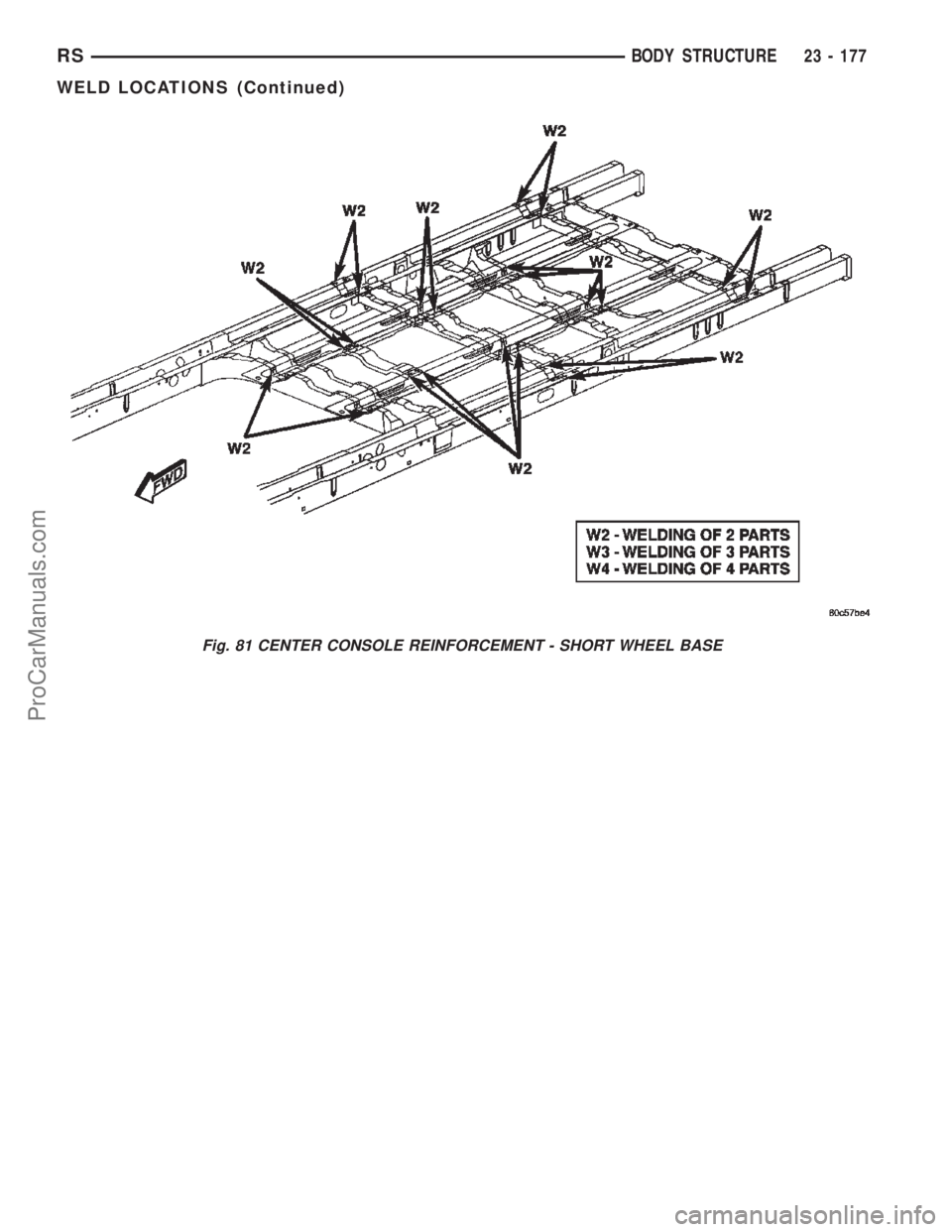

CHRYSLER VOYAGER 2002 Service Manual Fig. 81 CENTER CONSOLE REINFORCEMENT - SHORT WHEEL BASE RSBODY STRUCTURE23 - 177 WELD LOCATIONS (Continued) ProCarManuals.com
