Page 2121 of 2399

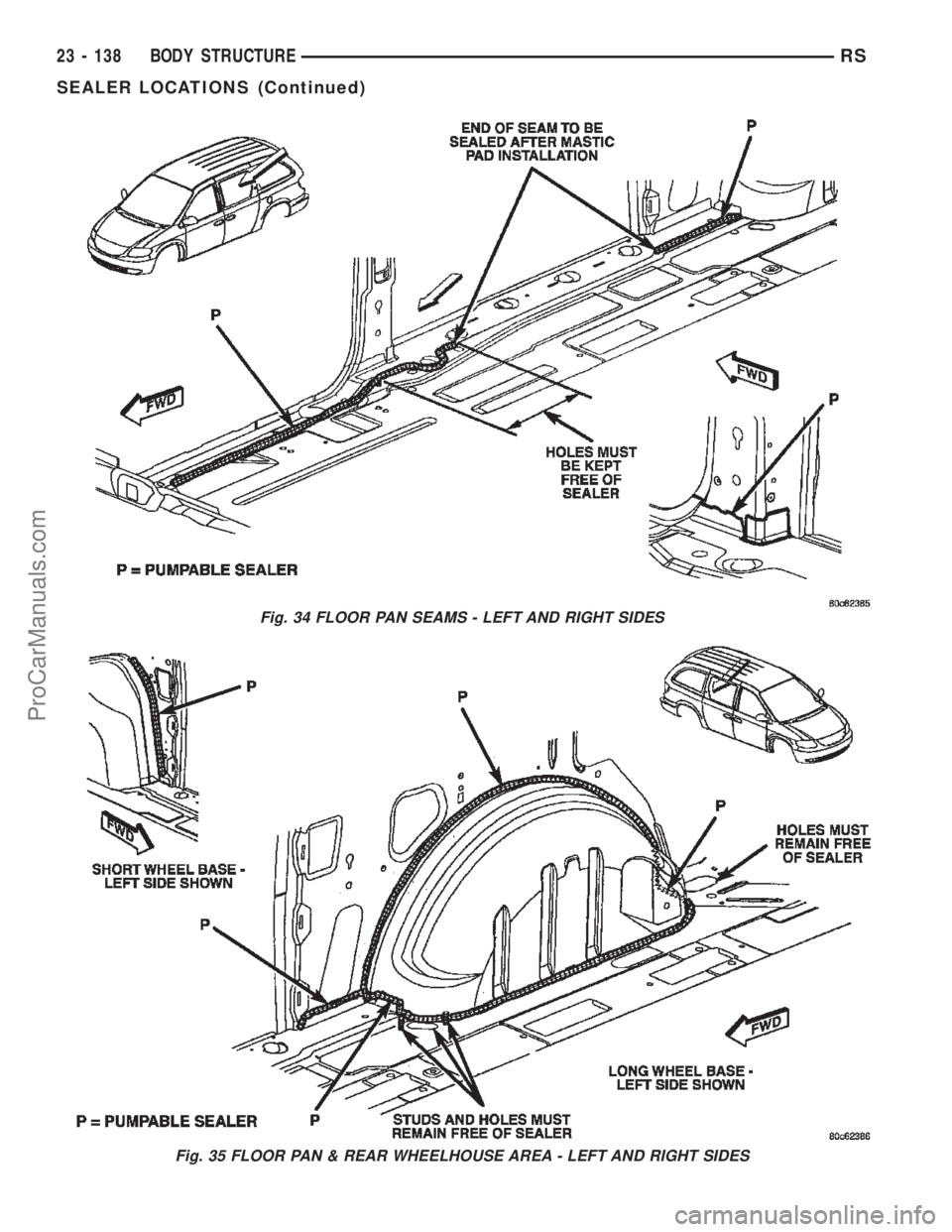

CHRYSLER VOYAGER 2002 Service Manual Fig. 34 FLOOR PAN SEAMS - LEFT AND RIGHT SIDES Fig. 35 FLOOR PAN & REAR WHEELHOUSE AREA - LEFT AND RIGHT SIDES 23 - 138 BODY STRUCTURERS SEALER LOCATIONS (Continued) ProCarManuals.com

Page 2122 of 2399

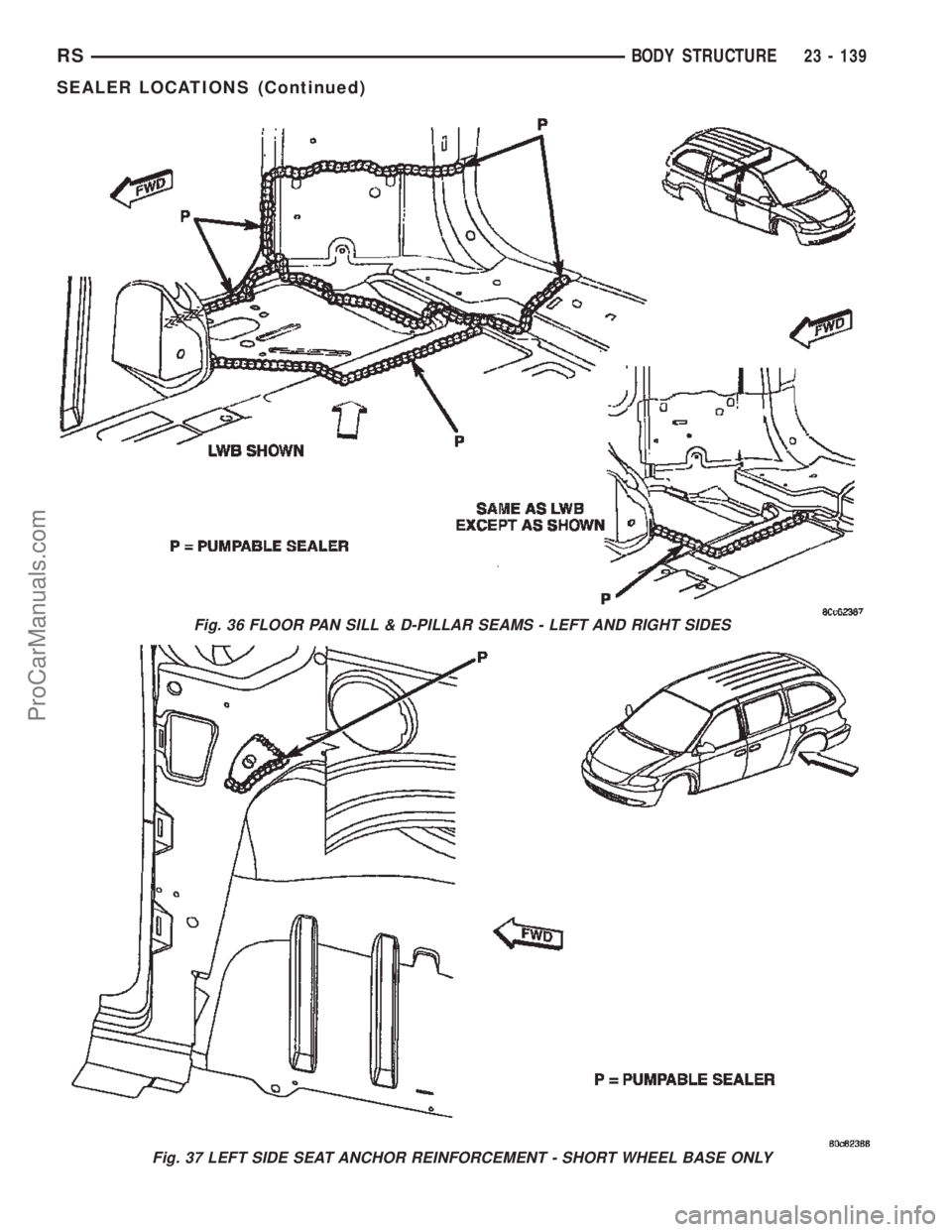

CHRYSLER VOYAGER 2002 Service Manual Fig. 36 FLOOR PAN SILL & D-PILLAR SEAMS - LEFT AND RIGHT SIDES Fig. 37 LEFT SIDE SEAT ANCHOR REINFORCEMENT - SHORT WHEEL BASE ONLY RSBODY STRUCTURE23 - 139 SEALER LOCATIONS (Continued) ProCarManuals.c

Page 2123 of 2399

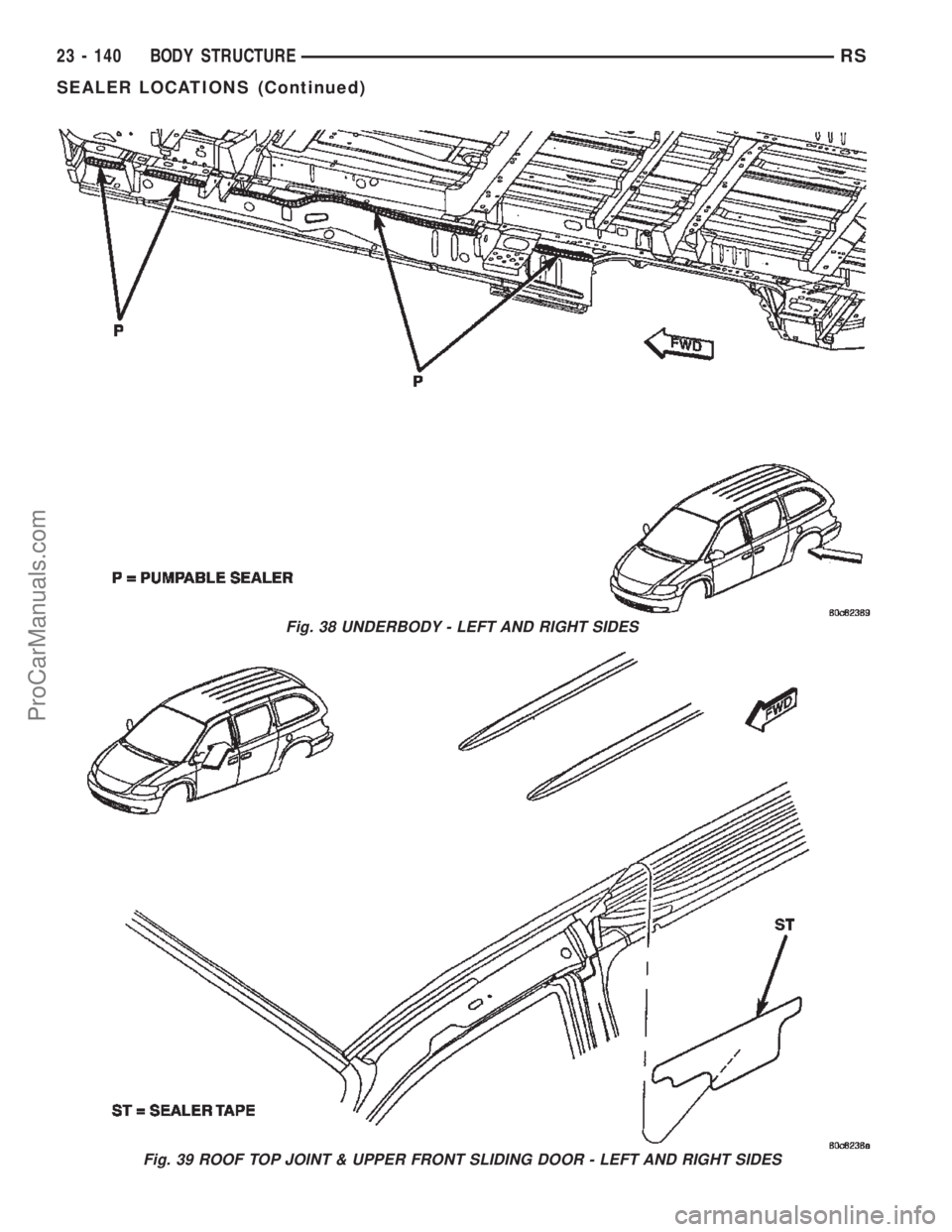

CHRYSLER VOYAGER 2002 Service Manual Fig. 38 UNDERBODY - LEFT AND RIGHT SIDES Fig. 39 ROOF TOP JOINT & UPPER FRONT SLIDING DOOR - LEFT AND RIGHT SIDES 23 - 140 BODY STRUCTURERS SEALER LOCATIONS (Continued) ProCarManuals.com

Page 2124 of 2399

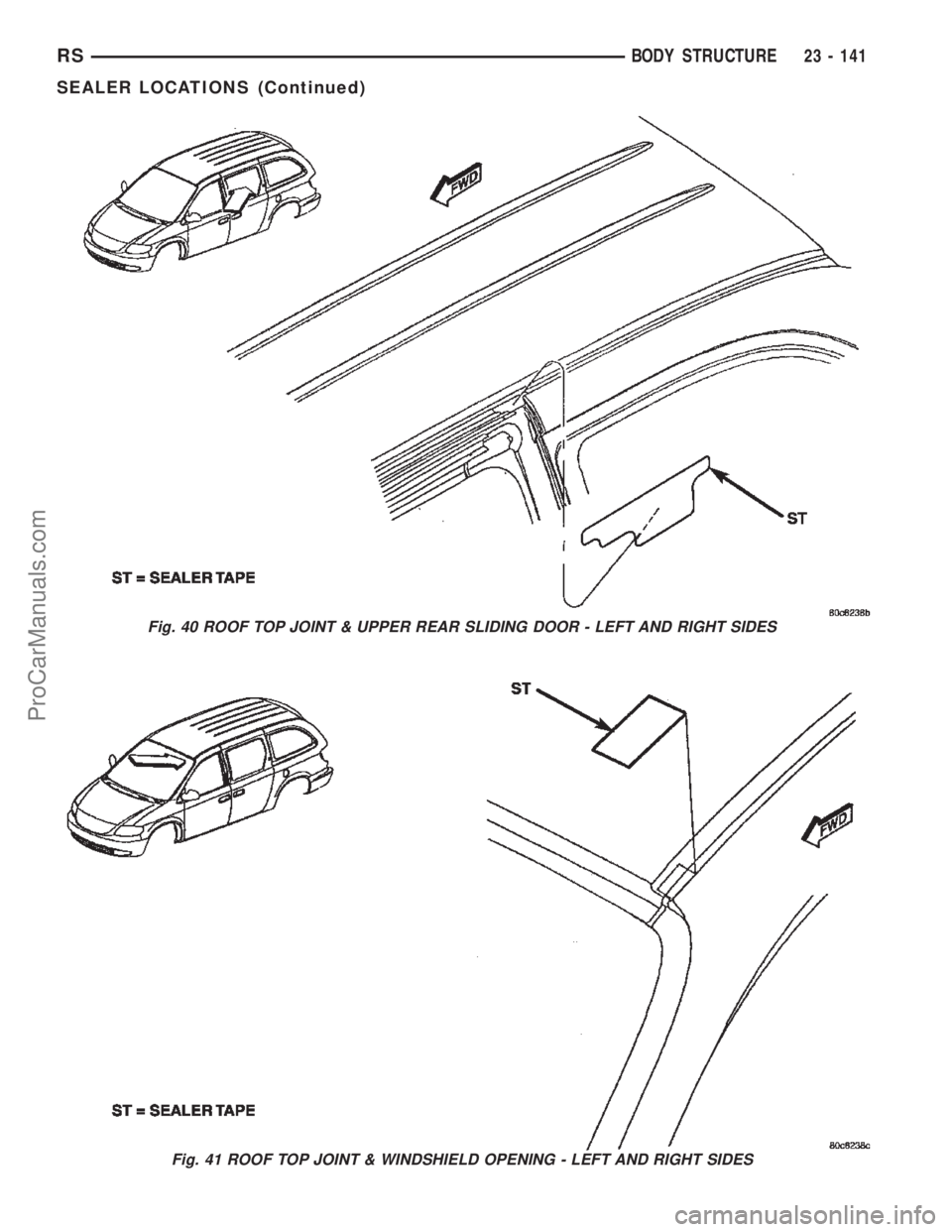

CHRYSLER VOYAGER 2002 Service Manual Fig. 40 ROOF TOP JOINT & UPPER REAR SLIDING DOOR - LEFT AND RIGHT SIDES Fig. 41 ROOF TOP JOINT & WINDSHIELD OPENING - LEFT AND RIGHT SIDES RSBODY STRUCTURE23 - 141 SEALER LOCATIONS (Continued) ProCarM

Page 2125 of 2399

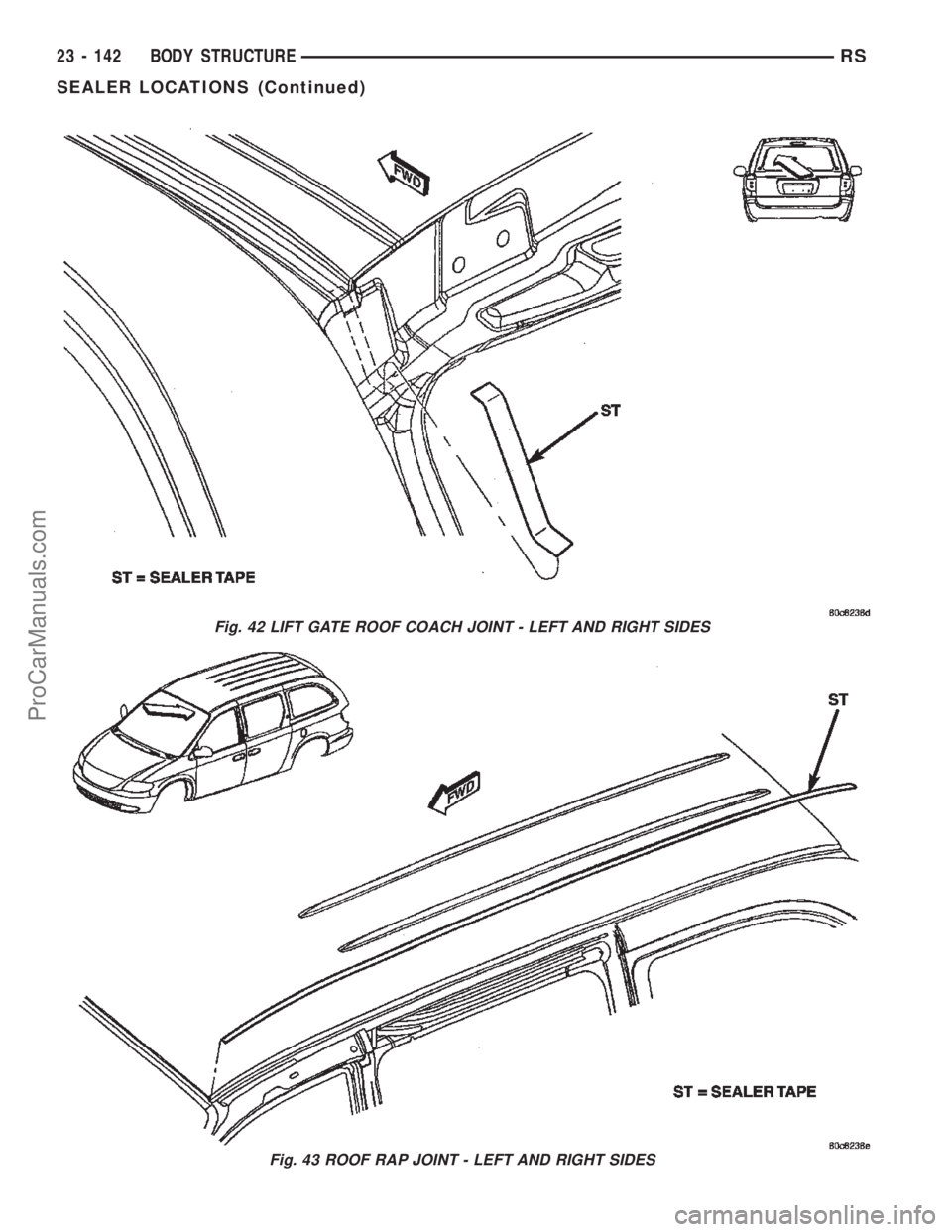

CHRYSLER VOYAGER 2002 Service Manual Fig. 42 LIFT GATE ROOF COACH JOINT - LEFT AND RIGHT SIDES Fig. 43 ROOF RAP JOINT - LEFT AND RIGHT SIDES 23 - 142 BODY STRUCTURERS SEALER LOCATIONS (Continued) ProCarManuals.com

Page 2126 of 2399

CHRYSLER VOYAGER 2002 Service Manual Fig. 44 DRAIN HOLE PATCHES Fig. 45 WHEELHOUSE VENT HOLE - LEFT SIDE SHOWN - RIGHT SIDE TYPICAL RSBODY STRUCTURE23 - 143 SEALER LOCATIONS (Continued) ProCarManuals.com

Page 2127 of 2399

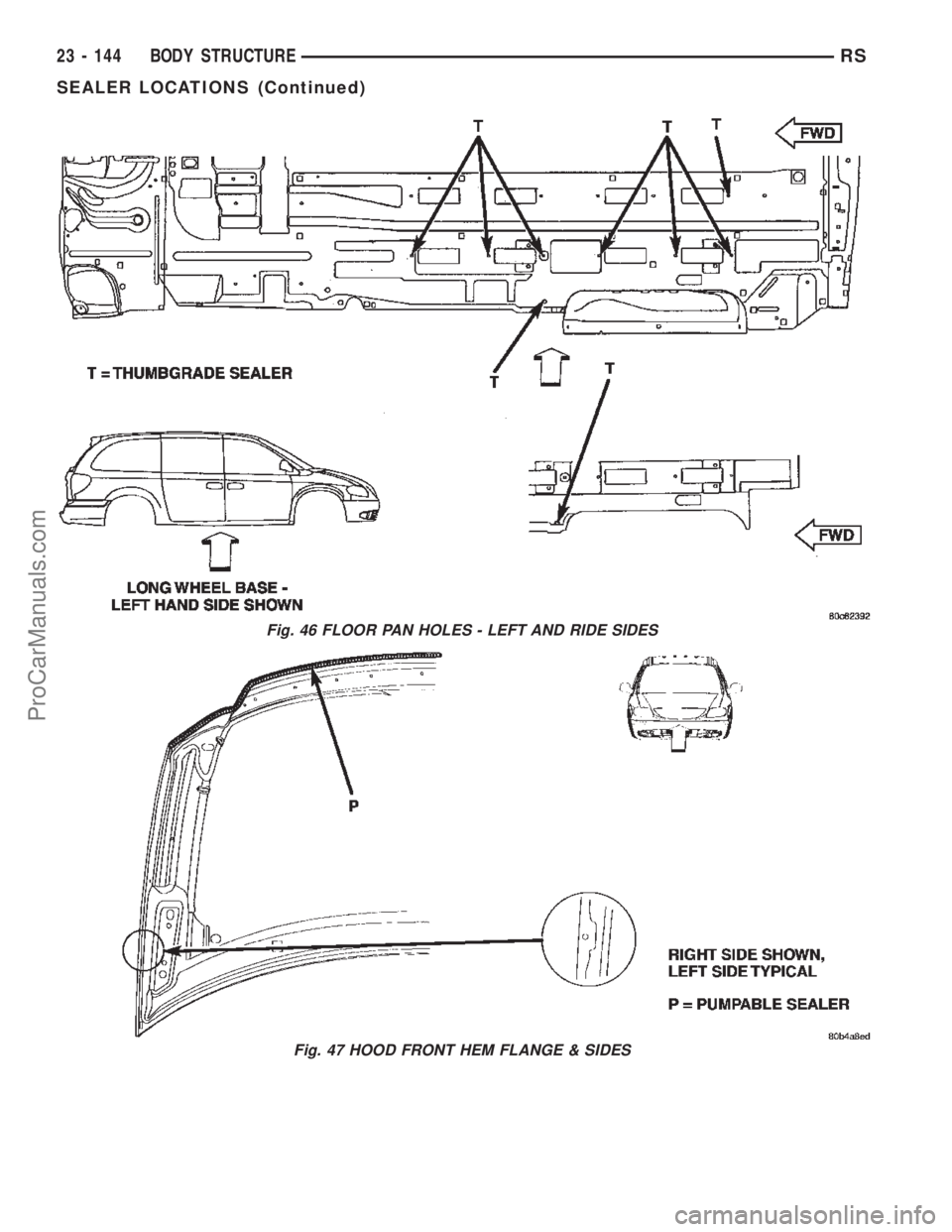

CHRYSLER VOYAGER 2002 Service Manual Fig. 46 FLOOR PAN HOLES - LEFT AND RIDE SIDES Fig. 47 HOOD FRONT HEM FLANGE & SIDES 23 - 144 BODY STRUCTURERS SEALER LOCATIONS (Continued) ProCarManuals.com

Page 2128 of 2399

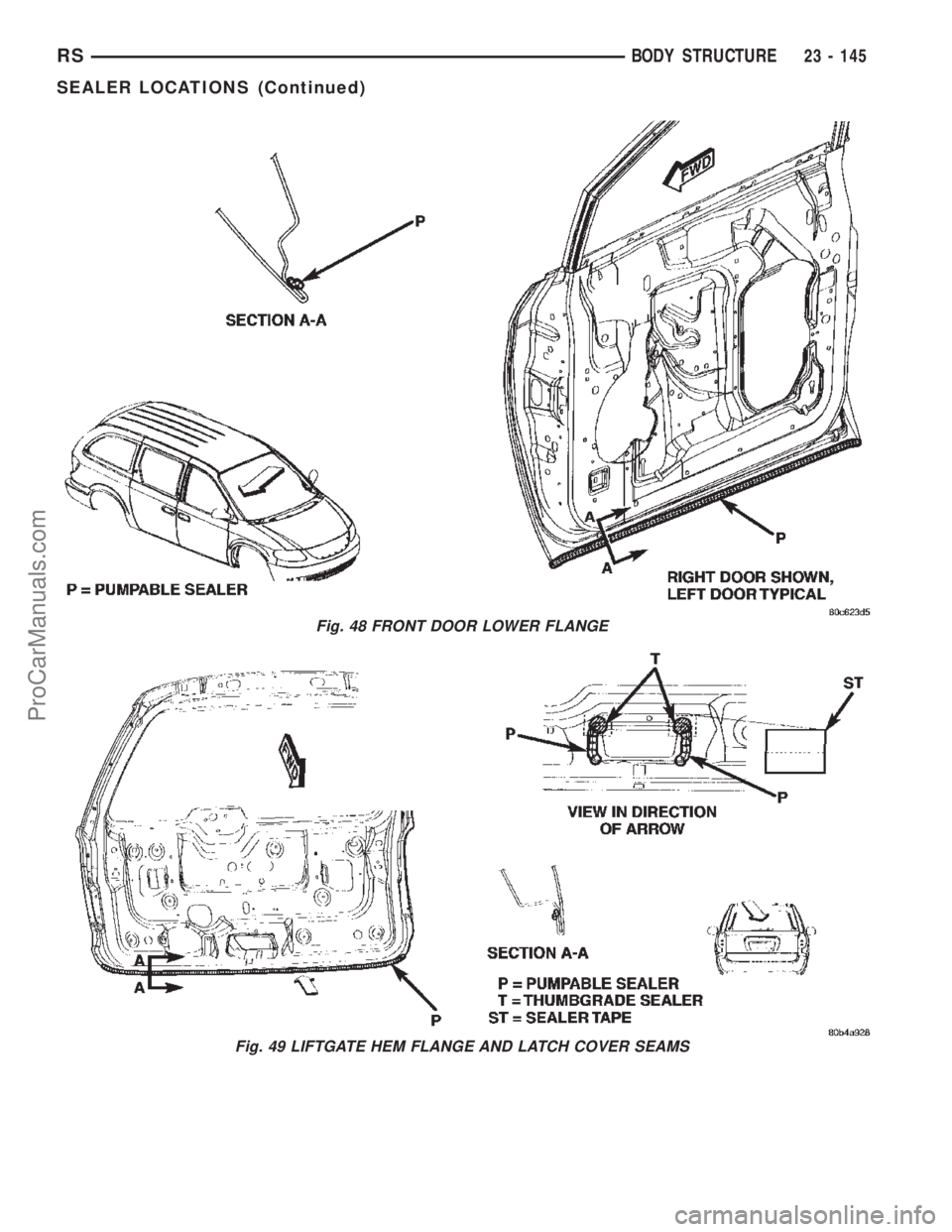

CHRYSLER VOYAGER 2002 Service Manual Fig. 48 FRONT DOOR LOWER FLANGE Fig. 49 LIFTGATE HEM FLANGE AND LATCH COVER SEAMS RSBODY STRUCTURE23 - 145 SEALER LOCATIONS (Continued) ProCarManuals.com
