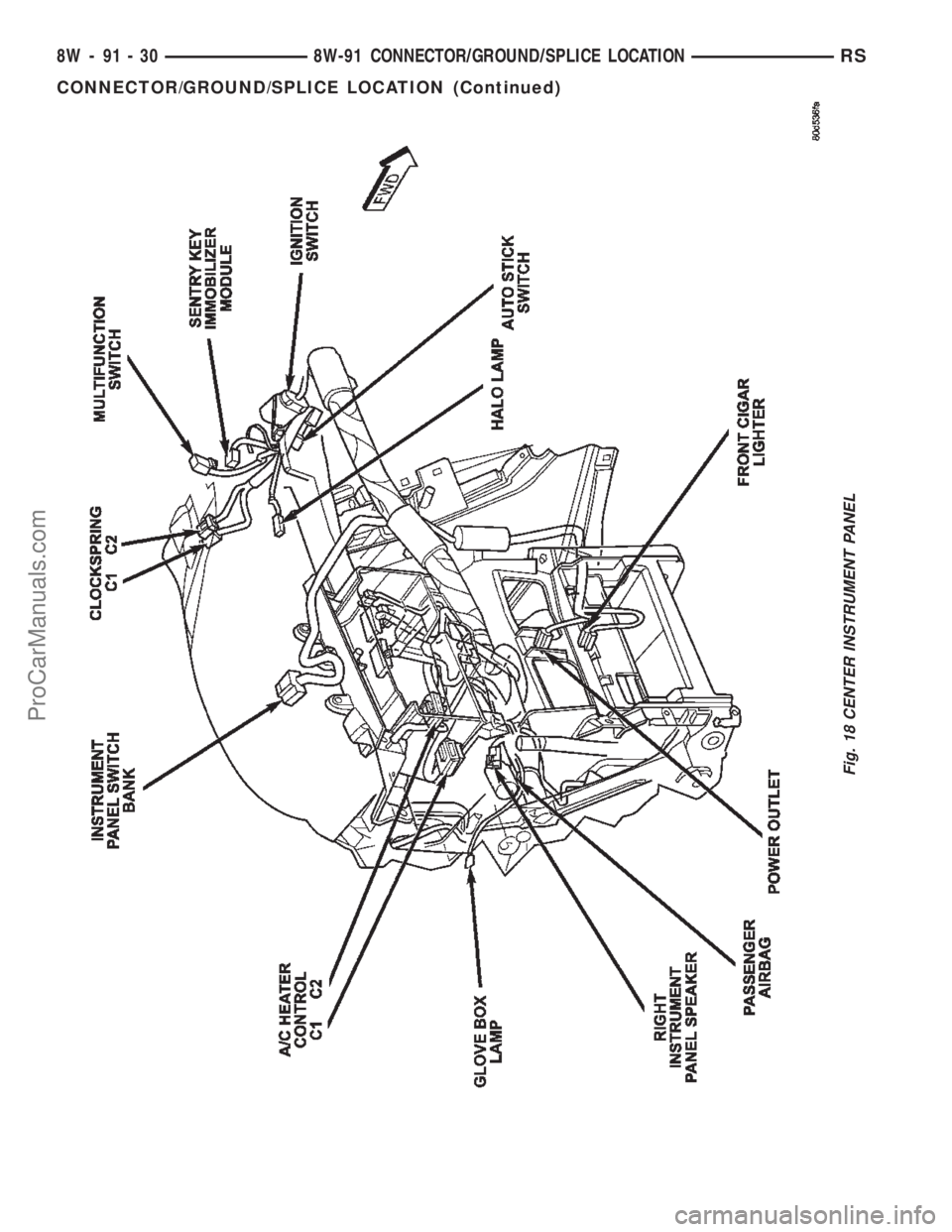

CHRYSLER VOYAGER 2002 Service Manual Fig. 18 CENTER INSTRUMENT PANEL 8W - 91 - 30 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1178 of 2399

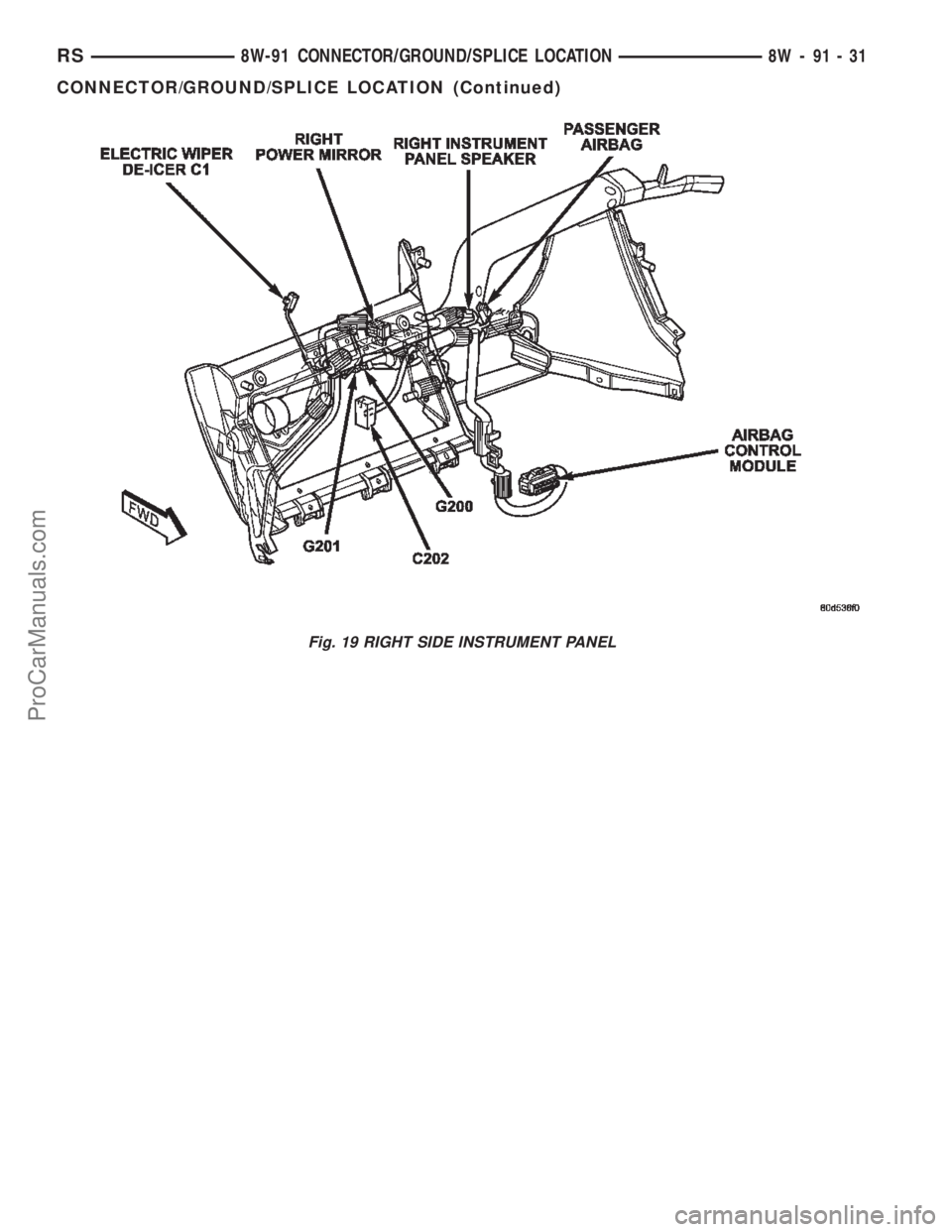

CHRYSLER VOYAGER 2002 Service Manual Fig. 19 RIGHT SIDE INSTRUMENT PANEL RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-31 CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1179 of 2399

CHRYSLER VOYAGER 2002 Service Manual Fig. 20 CENTER INSTRUMENT PANEL RHD 8W - 91 - 32 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1180 of 2399

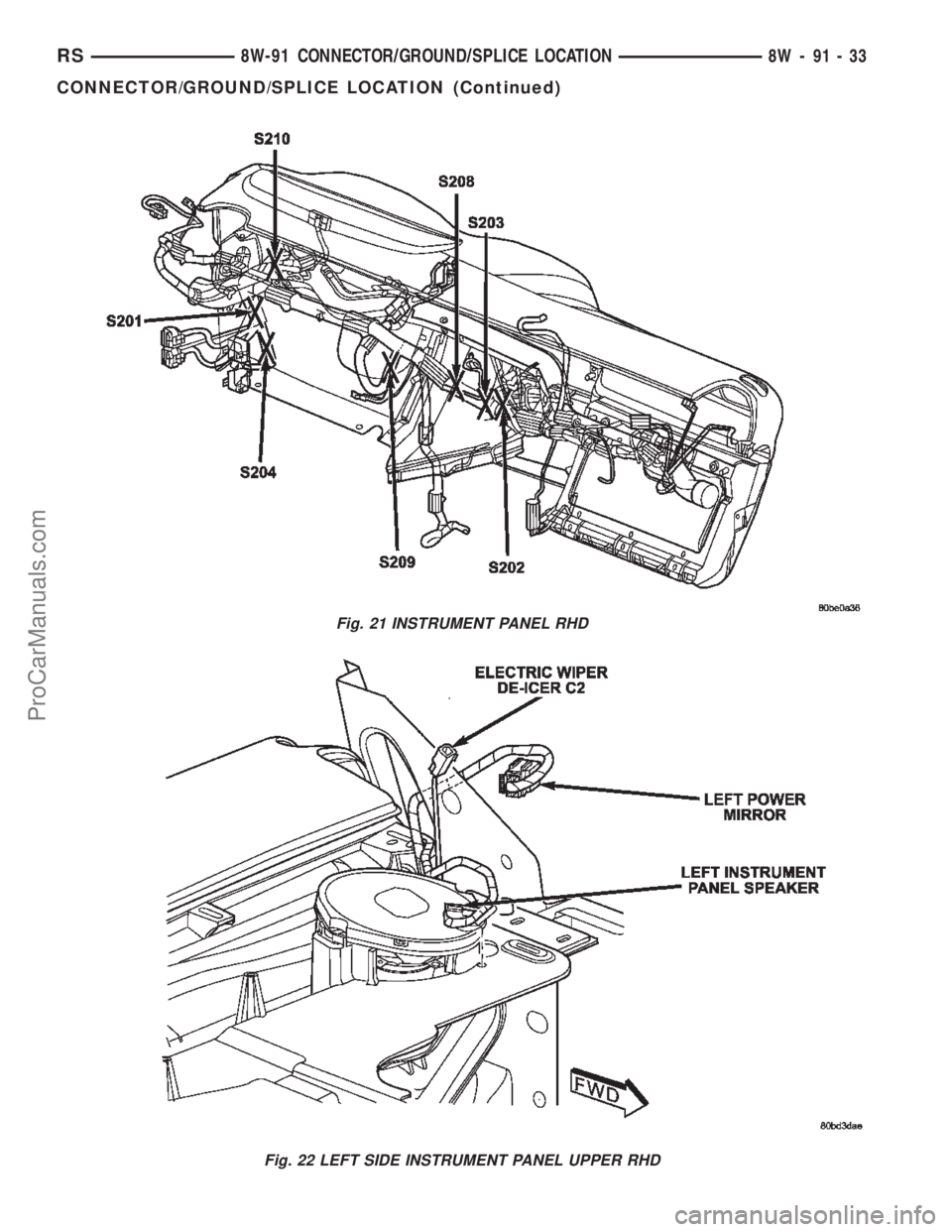

CHRYSLER VOYAGER 2002 Service Manual Fig. 21 INSTRUMENT PANEL RHD Fig. 22 LEFT SIDE INSTRUMENT PANEL UPPER RHD RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-33 CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1181 of 2399

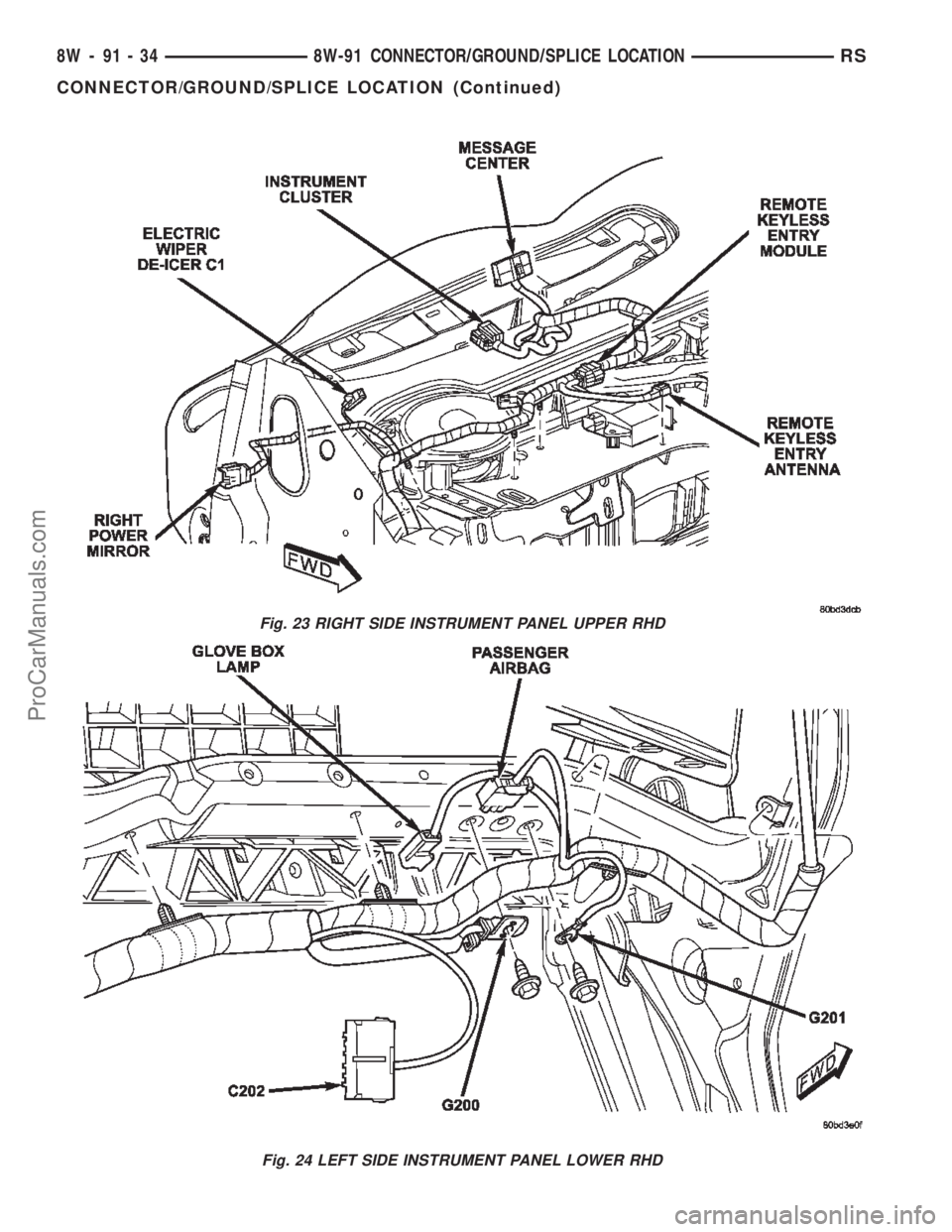

CHRYSLER VOYAGER 2002 Service Manual Fig. 23 RIGHT SIDE INSTRUMENT PANEL UPPER RHD Fig. 24 LEFT SIDE INSTRUMENT PANEL LOWER RHD 8W - 91 - 34 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManu

Page 1182 of 2399

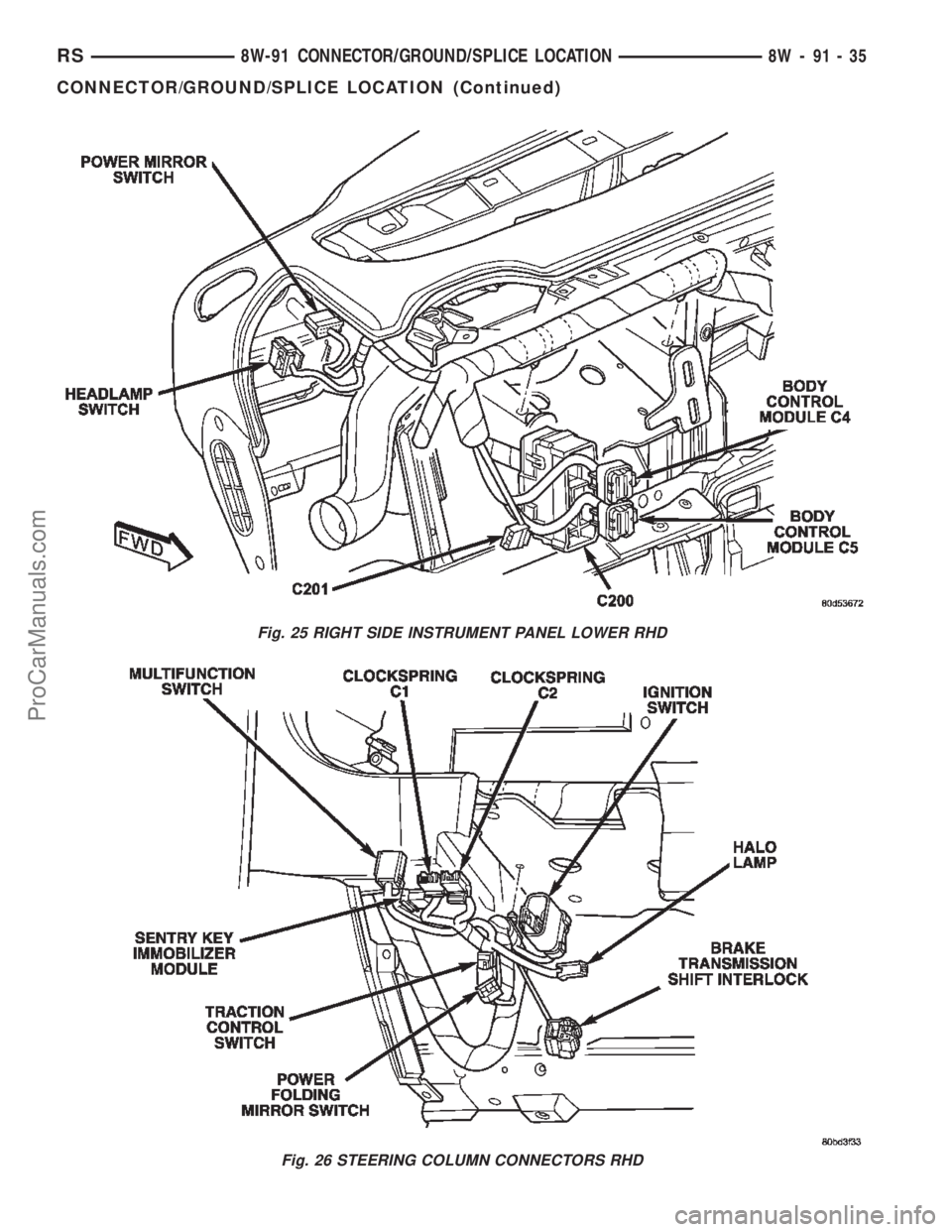

CHRYSLER VOYAGER 2002 Service Manual Fig. 25 RIGHT SIDE INSTRUMENT PANEL LOWER RHD Fig. 26 STEERING COLUMN CONNECTORS RHD RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-35 CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1183 of 2399

CHRYSLER VOYAGER 2002 Service Manual Fig. 27 LEFT SIDE BODY LHD 8W - 91 - 36 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com

Page 1184 of 2399

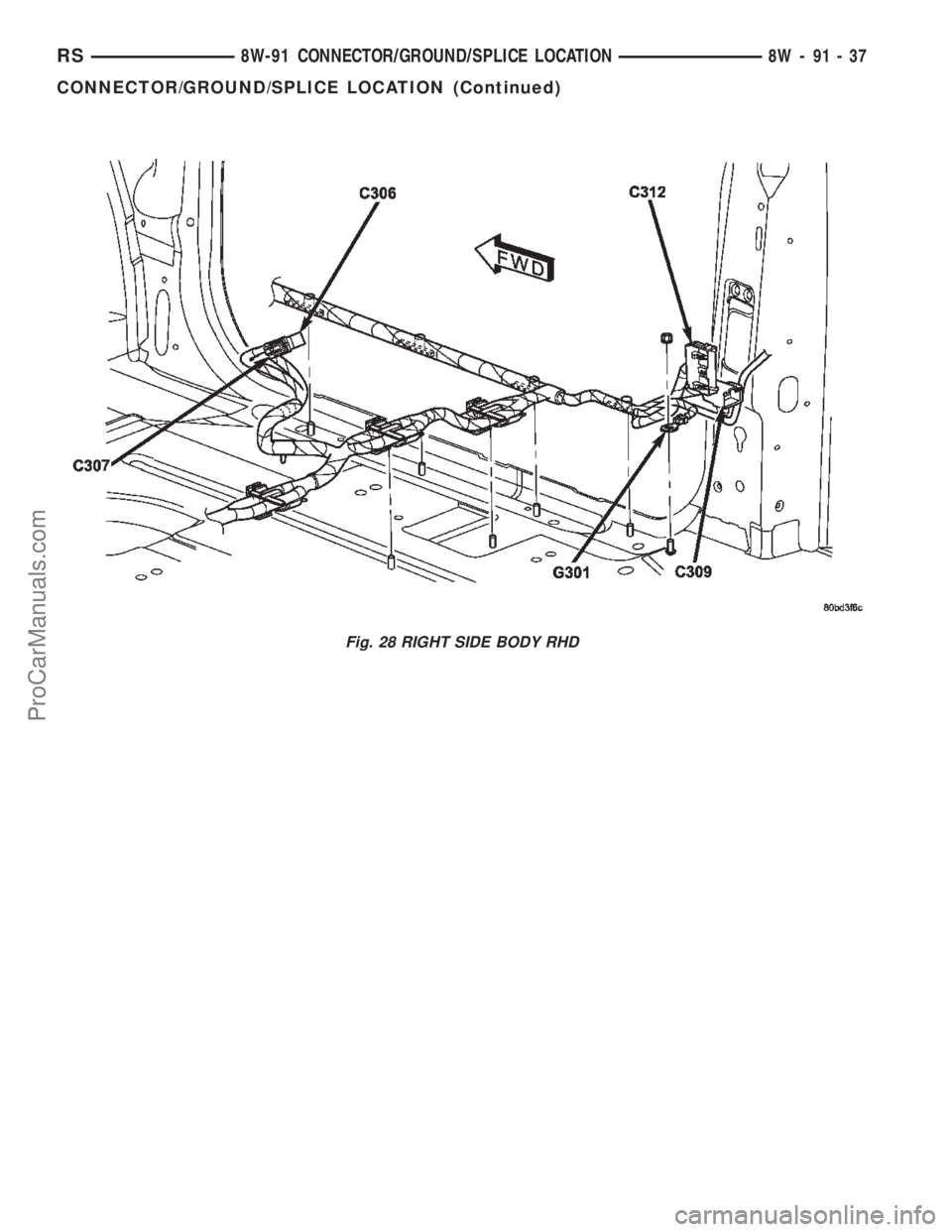

CHRYSLER VOYAGER 2002 Service Manual Fig. 28 RIGHT SIDE BODY RHD RS8W-91 CONNECTOR/GROUND/SPLICE LOCATION8W-91-37 CONNECTOR/GROUND/SPLICE LOCATION (Continued) ProCarManuals.com
